Brother MFC-8710DW Manuale utente

Start Here MFC-8710DW

MFC-8910DW

Quick Setup Guide

USA/CAN Version 0

Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product

is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.

Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation

procedure.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

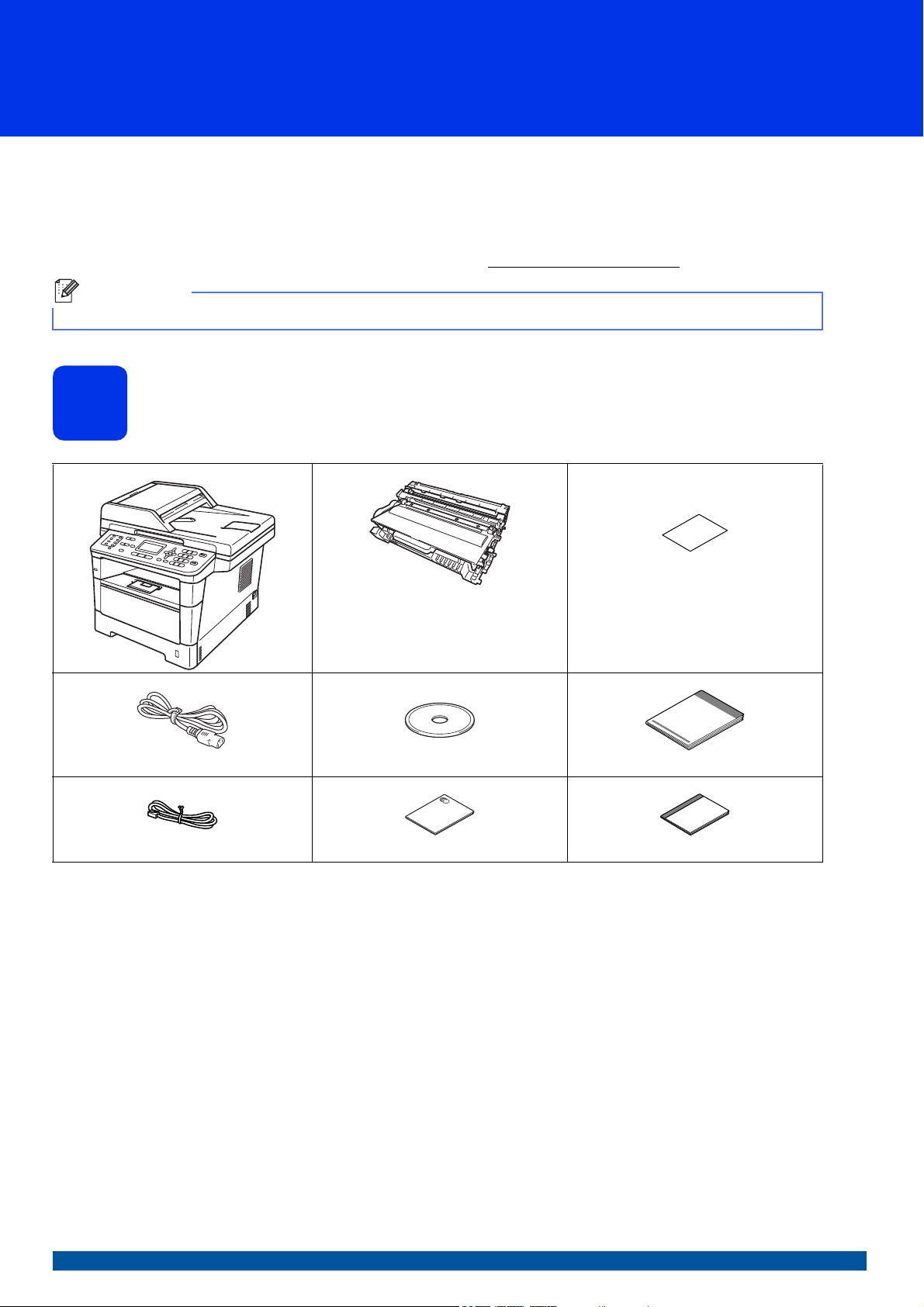

Unpack the machine and check the components

Note

Not all models are available in all countries.

Drum Unit and Toner Cartridge

Assembly

(pre-installed)

Product Registration Sheet

(USA only)

AC Power Cord Installer CD-ROM Quick Setup Guide

Telephone Line Cord Product Safety Guide Basic User's Guide

WARNING

• Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger

of suffocation, keep these bags away from babies and children and dispose of them correctly.

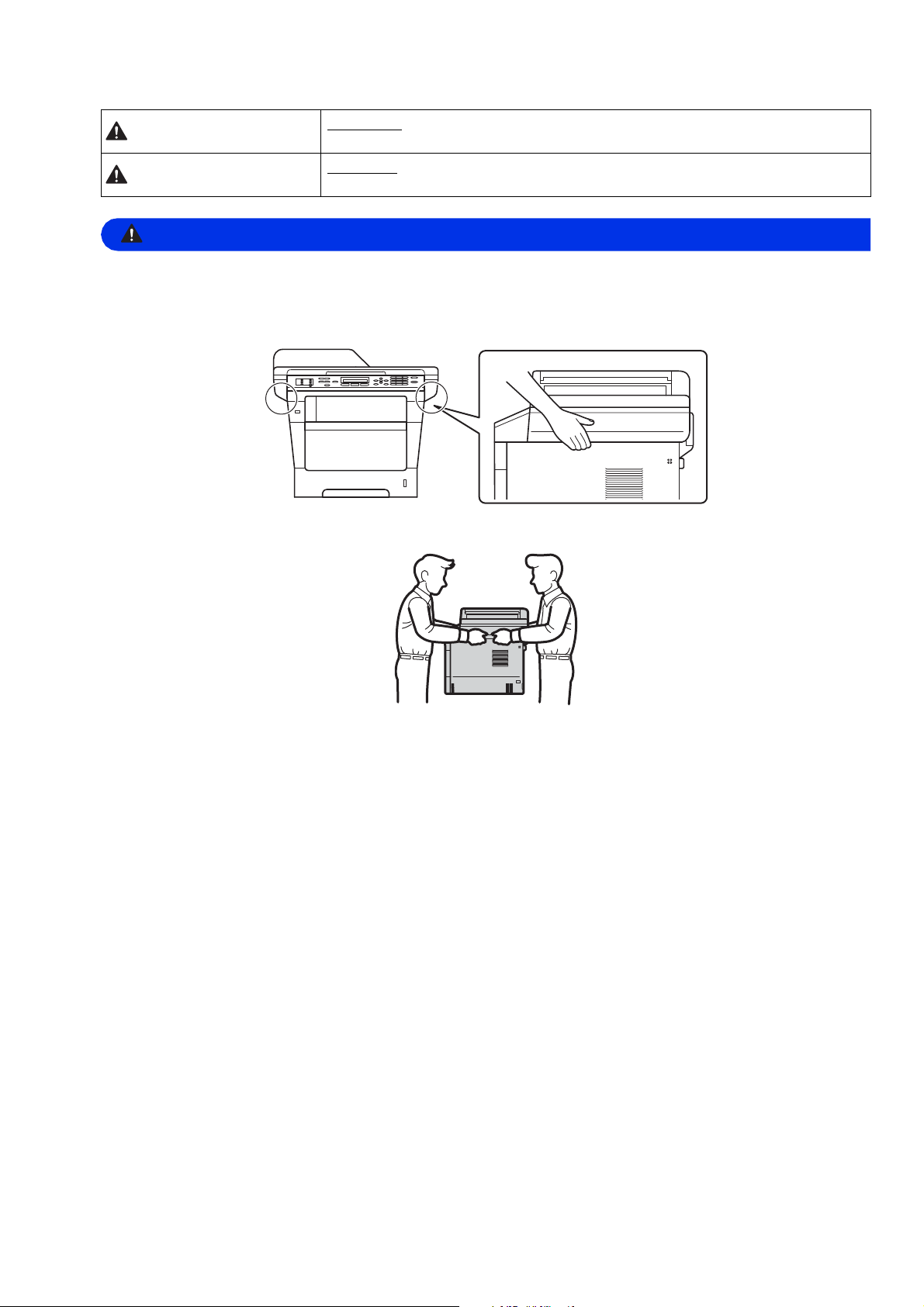

• When moving the machine, grasp the side handholds firmly from the front of the machine. The side

handholds are located under the scanner. DO NOT carry the machine by holding it at the bottom.

• This machine is heavy and weighs more than 39.7 lb. (18.0 kg) including paper. To prevent possible

injuries at least two people should lift the machine by holding it from the front and back.

• If you use a Lower Tray, DO NOT carry the machine with the Lower Tray as you may be injured or cause

damage to the machine because it is not attached to the Lower Tray.

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injuries.

CAUTION indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injuries.

WARNING

CAUTION

Note

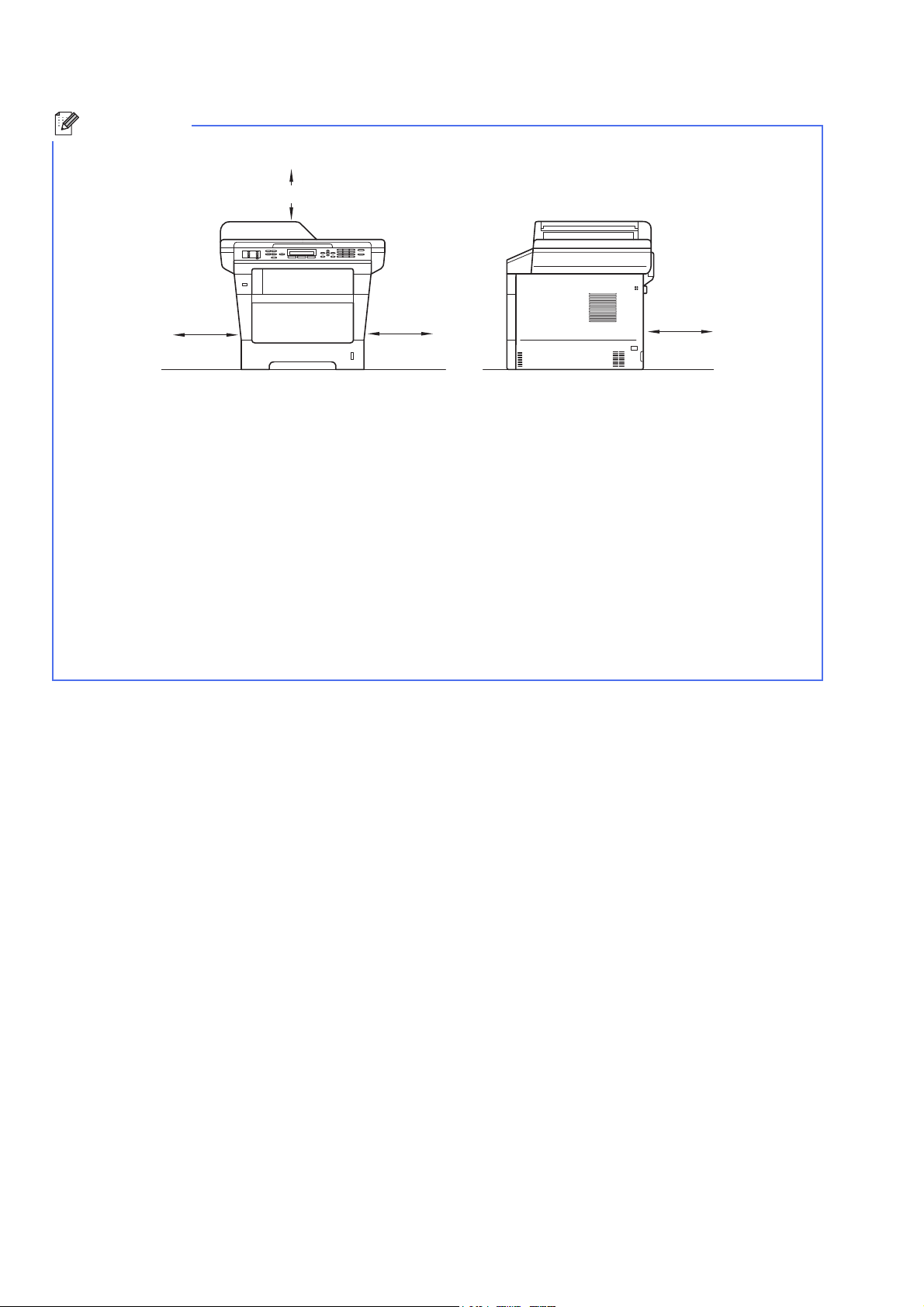

• Keep a minimum gap around the machine as shown in the illustration.

• The components included in the box may differ depending on your country.

• We recommend that you save the original packaging.

• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid

any damage during transit. The machine should be adequately insured with the carrier. For how to repack

the machine, see Packing and shipping the machine in the Advanced User's Guide.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the connection you

want to use (USB or Network).

USB cable

• It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 6 feet (2 meters).

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the MFL-Pro

Suite installation process.

Network cable

Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

6.00 in.

(150 mm)

6.00 in.

(150 mm)

6.00 in.

(150 mm)

15.70 in. (400 mm)

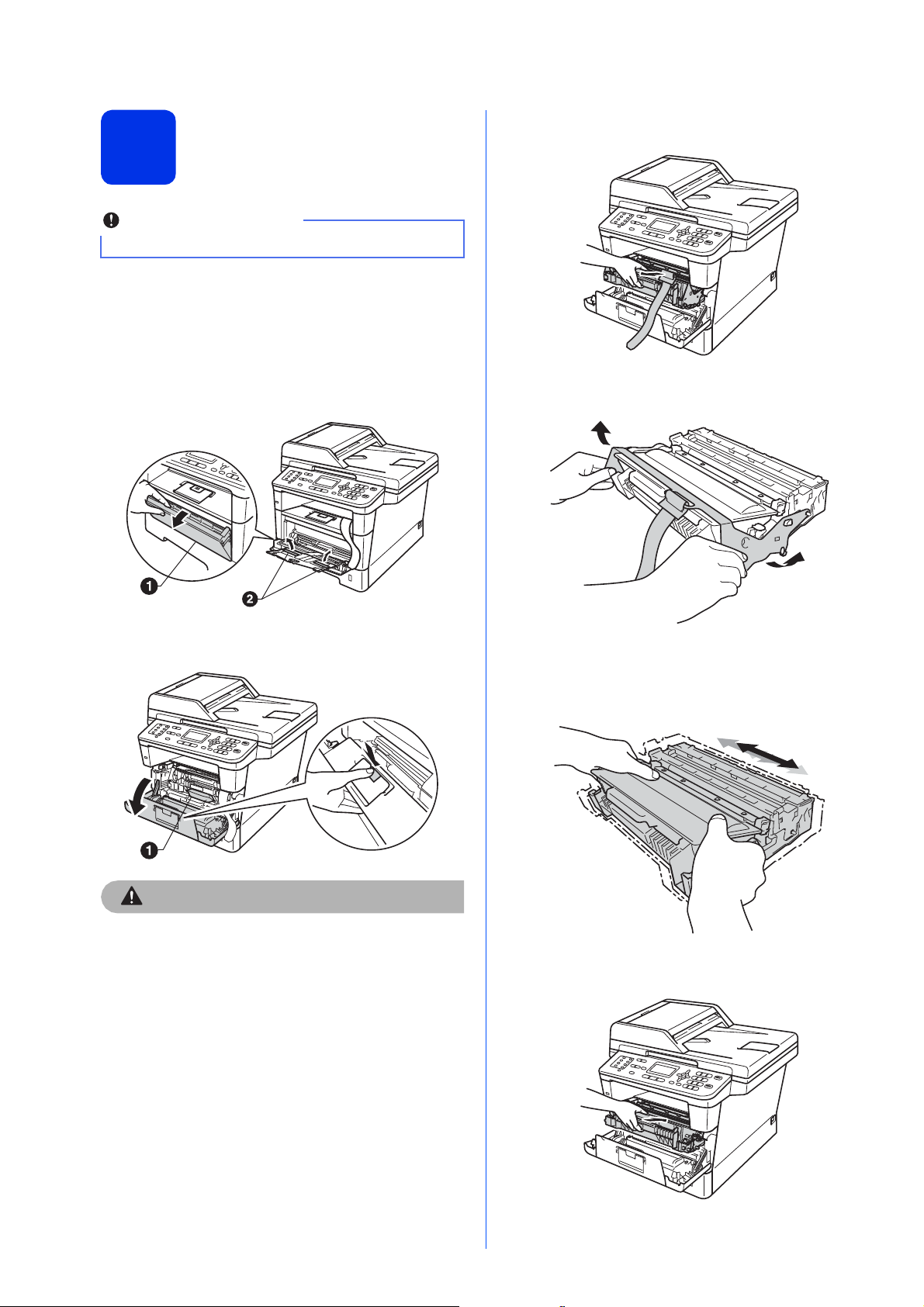

Remove the packing

material from the

machine

aRemove the packing tape from the outside of

the machine and the film covering the scanner

glass.

bOpen the MP tray a, and remove the packing

tape bfrom the MP tray support, then close

the MP tray.

cPress the front cover release button and open

the front cover. Remove the silica gel pack a.

CAUTION

DO NOT eat the silica gel pack. Please throw

away. If ingested, seek medical attention

immediately.

dTake out the drum unit and toner cartridge

assembly.

eRemove the orange protective material from

the drum unit and toner cartridge assembly.

fHold the drum unit and toner cartridge

assembly level with both hands and gently

shake it from side to side several times to

distribute the toner evenly inside the cartridge.

gPut the drum unit and toner cartridge assembly

firmly back in the machine.

hClose the front cover of the machine.

Important

DO NOT connect the AC power cord yet.

Load paper in the paper

tray

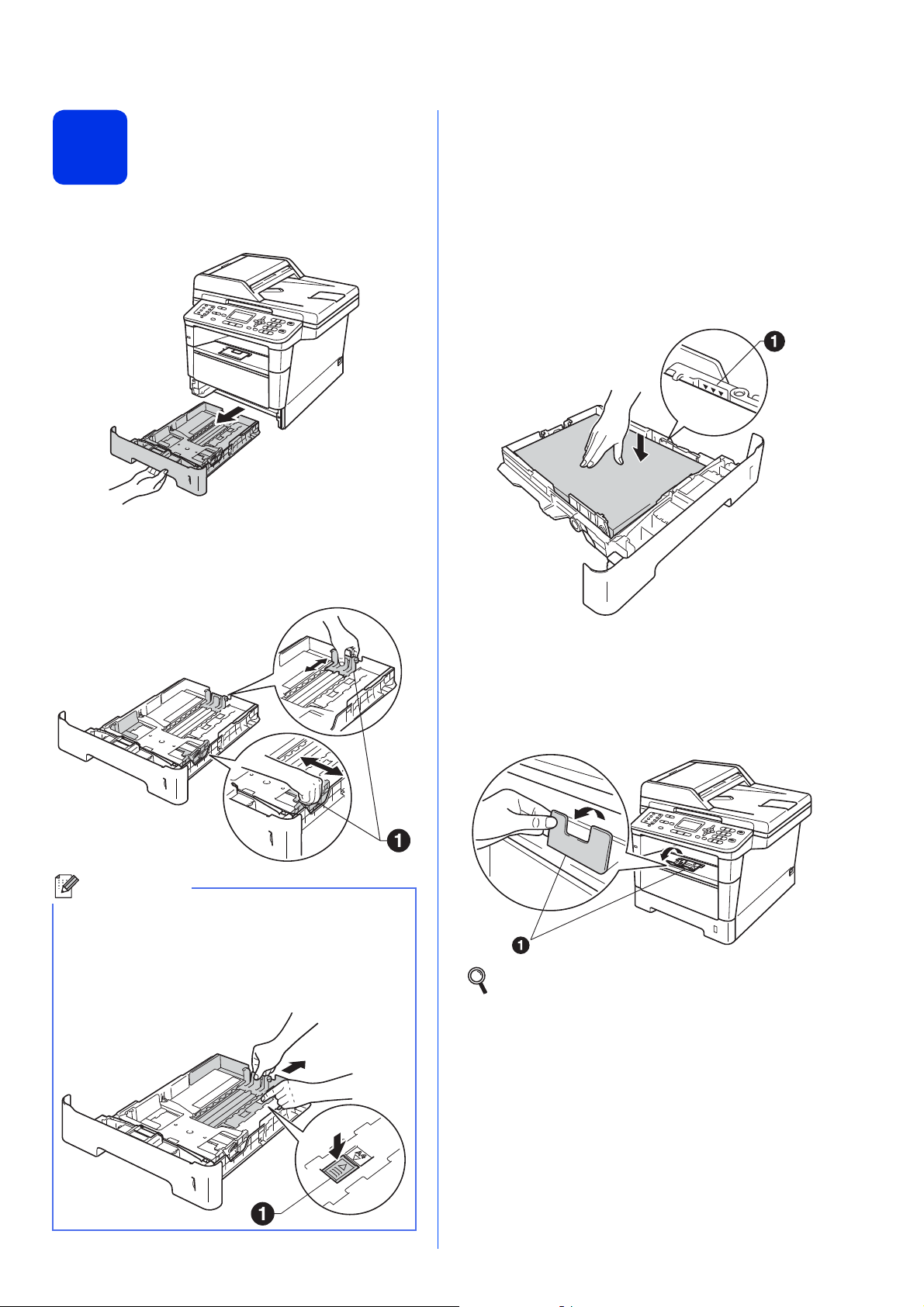

aPull the paper tray completely out of the

machine.

bWhile pressing the green paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure that

the guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

dPut the paper in the tray and make sure:

The paper is below the maximum paper

mark (bbb)a.

Over filling the paper tray will cause paper

jams.

The side to be printed on is face down.

The paper guides touch the sides of the

paper so it will feed properly.

ePut the paper tray firmly back in the machine.

Make sure that it is completely inserted into the

machine.

fLift up the support flap ato prevent paper from

sliding off the face-down output tray.

Note

For Legal or Folio size paper, press the release

button ain the bottom of the paper tray and then

pull out the back of the paper tray.

(Legal or Folio size paper are not available in

some regions.)

For more information about recommended

paper, see Recommended paper and print

media in the Basic User's Guide.

Connect the power cord

and telephone line

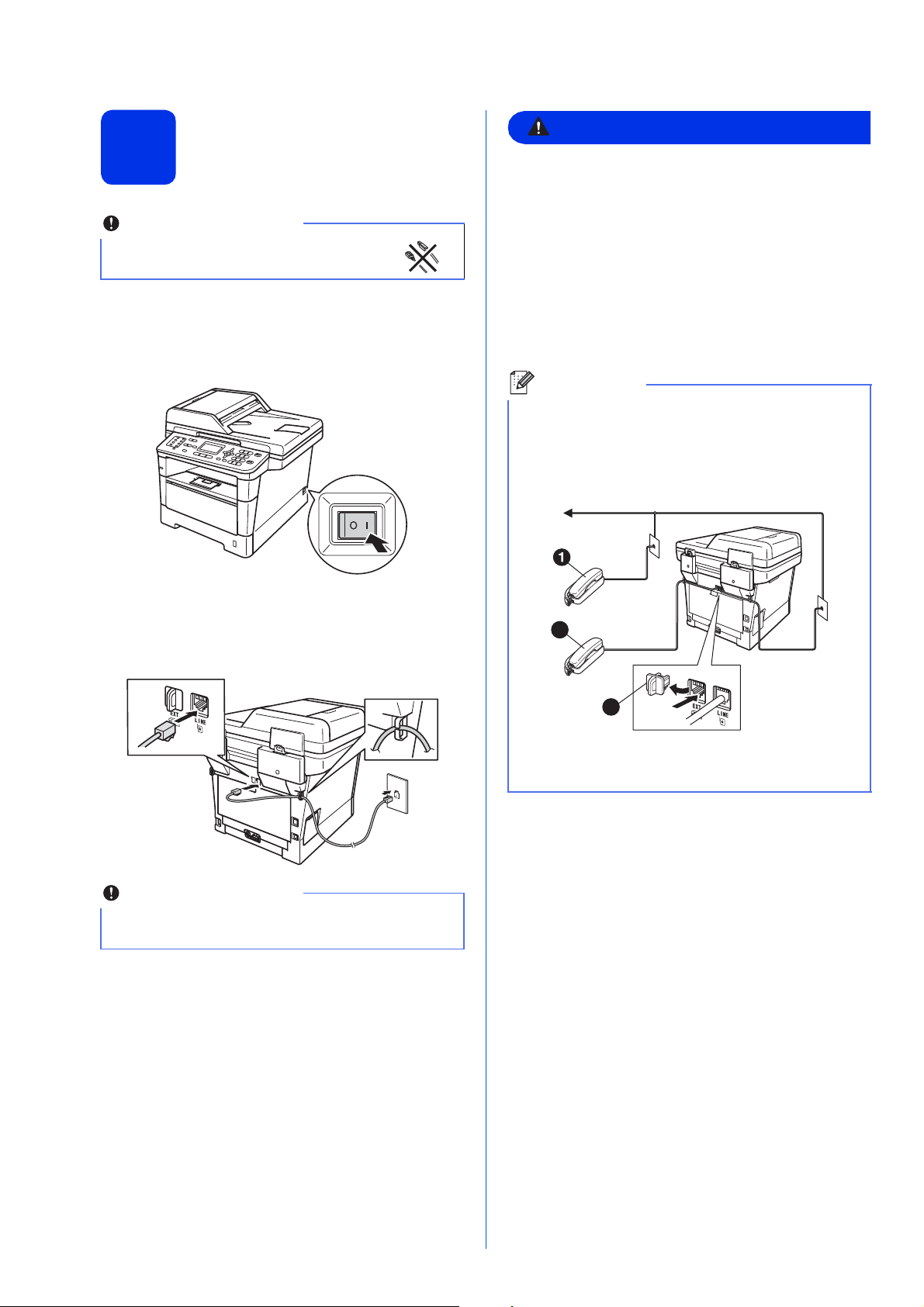

aConnect the AC power cord to the machine and

then plug it into an AC power outlet.

bTurn the machine's power switch on.

cConnect the telephone line cord. Connect one

end of the telephone line cord to the jack on the

machine marked LINE and the other end to a

modular wall jack.

WARNING

The machine must be grounded using a

3-prong plug.

Since the machine is grounded through the

power outlet, you can protect yourself from

potentially hazardous electrical conditions on

the telephone network by keeping the power

cord connected to your machine when you

connect it to a telephone line. Similarly, you

can protect yourself when you want to move

your machine by disconnecting the telephone

line first and then the power cord.

Important

DO NOT connect the interface cable

yet.

Important

The telephone line cord MUST be connected to

the jack on the machine marked LINE.

Note

If you are sharing one telephone line with an

external telephone, connect it as shown below.

Before you connect the external telephone,

remove the protective cap cfrom the EXT. jack

on the machine.

aExtension telephone

bExternal telephone

cProtective cap

Wireless setup

(if needed)

aWhen the Wi-Fi setup message appears, press

OK.

Do one of the following:

If you are using a Macintosh computer or a

mobile device on a wireless network, go to

If you are using a Windows®computer or

want to connect your Macintosh using USB

or wired network, go to c.

Setup Wi-Fi?

aYes

bNo

Select ab or OK

bPress aor bto choose Yes.

Press OK.

Then go to step 19 on page 25 to continue the

wireless setup.

After finishing the wireless setup you will need

to return to step 6to finish the machine setup.

cPress aor bto choose No.

Press OK.

Then go to step 6.

The wireless setup for Windows®users will be

covered in later steps.

Note

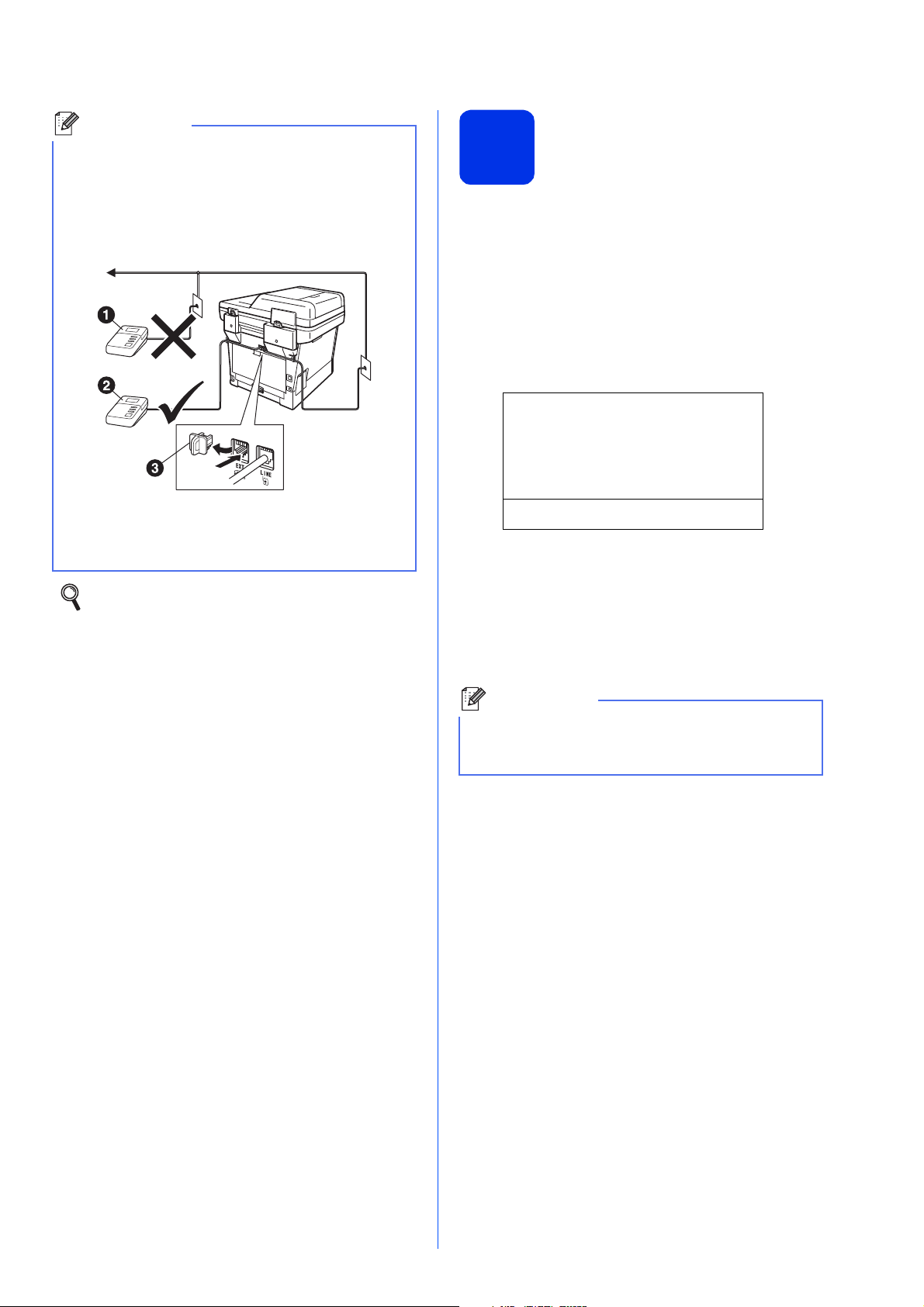

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Before you connect the external telephone

answering machine, remove the protective cap c

from the EXT. jack on the machine.

aExtension telephone answering machine

(not supported)

bExternal telephone answering machine

cProtective cap

Set the receive mode to External TAD if

you have an external answering machine.

See Choose the correct Receive

Mode on page 9. For additional details, see

Connecting an external TAD (telephone

answering device) in the Basic User's Guide.

Note

If you want to change the initial settings on your

machine first, you can choose No and you will be

able to configure the wireless settings later.

Choose your language

(if needed)

aPress Menu, 0, 0.

bPress aor bto choose your language.

Press OK.

cPress Stop/Exit.

Choose the correct Receive Mode

The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail,

Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.

aPress Menu, 0, 1.

bPress aor bto choose the receive mode.

Press OK.

cPress Stop/Exit.

Will you be using a Distinctive Ring number for receiving faxes?

Brother uses the term “Distinctive Ring” but telephone companies may have other names for this service such

as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive

Ring in the Basic User's Guide for instruction on setting up your machine using this feature.

Will you be using Voice Mail on the same telephone line as your Brother machine?

If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that

Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail

in the Basic User's Guide for instructions on setting up your machine using this service.

Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?

Your external telephone answering device (TAD) will automatically answer every call. Voice messages are

stored on the external TAD and fax messages are printed. Choose External TAD as your receive mode. See

the instructions below.

Will you be using your Brother machine on a dedicated fax line?

Your machine automatically answers every call as a fax. Choose Fax Only as your receive mode. See the

instructions below.

Will you be using your Brother machine on the same line as your telephone?

Do you want to receive voice calls and faxes automatically?

The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same line.

Choose Fax/Tel as your receive mode. See the instructions below.

Important Note: You cannot receive voice messages on either Voice Mail or an answering machine when

choosing the Fax/Tel mode.

Do you expect to receive very few faxes?

Choose Manual as your receive mode. You control the telephone line and must answer every call yourself.

See the instructions below.

For details, see Using receive modes in the Basic User's Guide.

Set the LCD contrast

(if needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress Menu, 1, 7.

bPress cto increase the contrast.

—OR—

Press dto decrease the contrast.

Press OK.

cPress Stop/Exit.

Set the date and time

The machine displays the date and time, and if you

set up the station ID, the date and time will be added

to each fax you send.

aPress Menu, 0, 2, 1.

bEnter the last two digits of the year on the dial

pad, and then press OK.

02.Date&Time

Year:2012

Enter & OK Key

(e.g. Enter 1, 2for 2012.)

cEnter the two digits for the month on the dial

pad, and then press OK.

02.Date&Time

XX/XX/2012

Month:03

Enter & OK Key

(e.g. Enter 0, 3for March.)

dEnter the two digits for the day on the dial pad,

and then press OK.

02.Date&Time

03/XX/2012

Day:25

Enter & OK Key

(e.g. Enter 2, 5for 25th.)

eDo one of the following:

If you want to use the 24-hour clock, press a

or bto choose 24h Clock, and then press

OK. Go to step f.

If you want to use the 12-hour clock, press a

or bto choose 12h Clock, and then press

OK. Go to step g.

02.Date&Time

03/25/2012

a12h Clock

b24h Clock

Select ab or OK

fEnter the time in 24-hour format on the dial

pad, and then press OK. Go to step i.

02.Date&Time

03/25/2012

Time:15:25

Enter & OK Key

(e.g. Enter 1, 5, 2, 5for 15:25.)

gEnter the time in 12-hour format on the dial

pad, and then press OK.

02.Date&Time

03/25/2012

Time:03:25

Enter & OK Key

(e.g. Enter 0, 3, 2, 5for 3:25.)

Altri manuali per MFC-8710DW

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC 685CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC MFC-465CN Manuale utente

Brother

Brother DCP 8085DN Manuale utente

Brother

Brother MFC-9420CN Manuale utente

Brother

Brother MFC 495CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-9460CDN Manuale utente

Brother

Brother MFC-7420 Manuale utente

Brother

Brother MFC-8420 Manuale utente

Brother

Brother MFC-J265W Manuale utente

Brother

Brother MFC-J6710DW Manuale utente

Brother

Brother MFC-J480DW Manuale utente

Brother

Brother MFC-7360N Manuale utente

Brother

Brother MFC-6800 Manuale utente

Brother

Brother MFC-J6535DW Manuale operativo e di manutenzione

Brother

Brother MFC-J220 Manuale utente

Brother

Brother DCP-4020C Manuale utente

Brother

Brother MFC-J6920DW Manuale utente

Brother

Brother MFC-J5730DW Manuale utente

Brother

Brother Airprint MFC-J485DW Manuale di istruzioni

Brother

Brother MFC-J6510DW Istruzioni per il montaggio

Brother

Brother IntelliFAX 5750e Manuale utente

Brother

Brother DCP-J525W Manuale utente

Brother

Brother DCP-8080DN Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
