FACSIMILE EQUIPMENT

SERVICE MANUAL

MODEL: MFC9100C/MFC760

No part of this publication may be reproduced in any

form or by any means without permission in writing

from the publisher.

Specifications are subject to change without notice.

PREFACE

This publication is a Service Manual covering the specifications, construction, theory of operation,

and maintenance of the Brother facsimile equipment. It includes information required for field

troubleshooting and repair--disassembly, reassembly, and lubrication--so that service personnel

will be able to understand equipment function, to rapidly repair the equipment and order any

necessary spare parts.

To perform appropriate maintenance so that the facsimile equipment is always in best condition

for the customer, the service personnel must adequately understand and apply this manual.

This manual is made up of six chapters and appendices.

CHAPTER I.GENERAL DESCRIPTION

CHAPTER II.INSTALLATION

CHAPTER III.THEORY OF OPERATION

CHAPTER IV.DISASSEMBLY/REASSEMBLY, LUBRICATION AND ADJUSTMENT

CHAPTER V. MAINTENANCE MODE

CHAPTER VI. ERROR INDICATION AND TROUBLESHOOTING

Appendix 1. EEPROM Customizing Codes

Appendix 2. Circuit Diagrams

This manual describes the model and its versions to be destined for major countries. The specifications and

functions are subject to change depending upon each destination.

CHAPTER I.

GENERAL DESCRIPTION

CHAPTER I. GENERAL DESCRIPTION

CONTENTS

1. EQUIPMENT OUTLINE........................................................................................I-1

1.1External Appearance and Weight..................................................................I-1

1.2Components.................................................................................................I-1

2. SPECIFICATIONS................................................................................................I-2

I- 1

1. EQUIPMENT OUTLINE

1.1 External Appearance and Weight

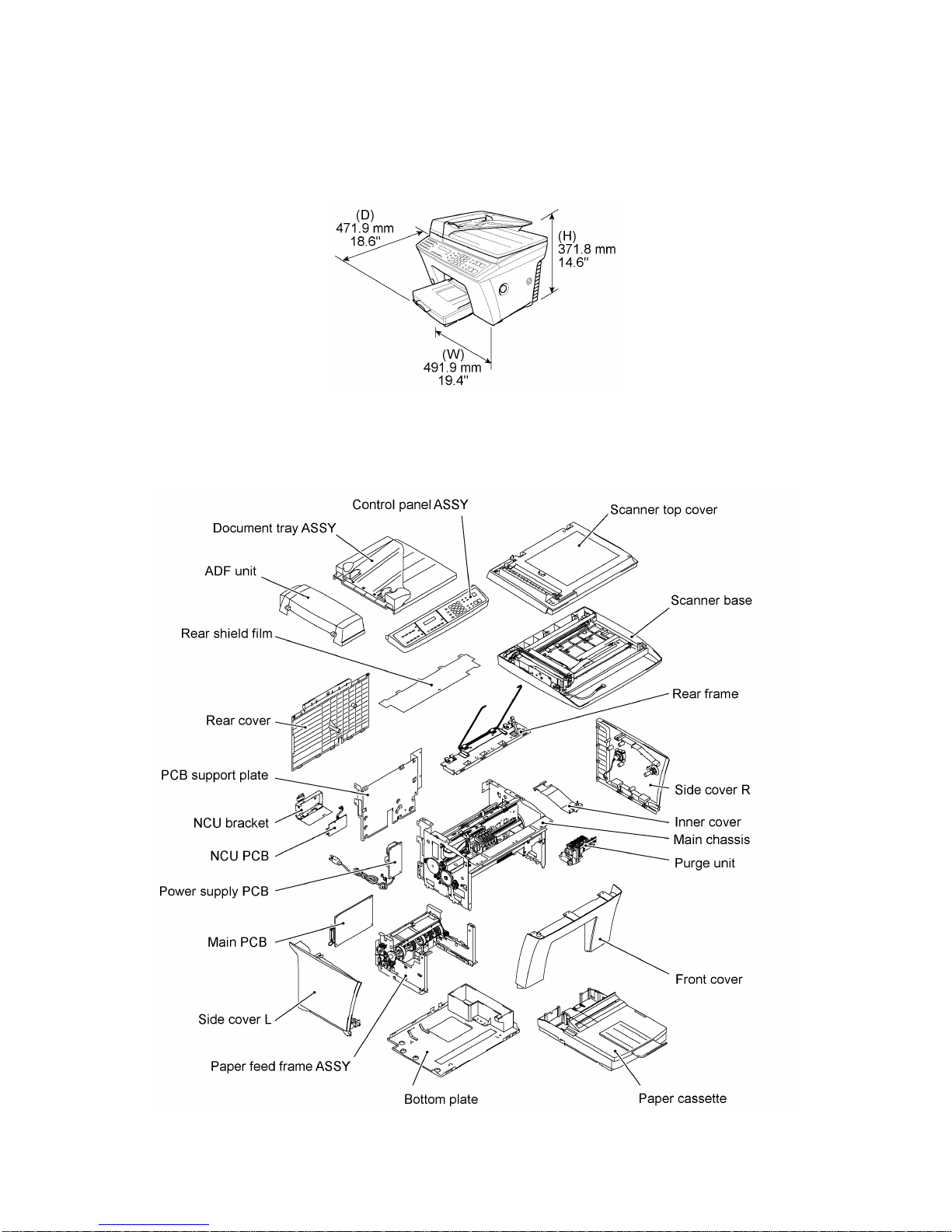

The figure below shows the equipment appearance and approximate dimensions.

Weight: Machine proper Approx. 16 kg (36 lb.)

In package Approx. 20 kg (44 lb.)

1.2 Components

The equipment consists of the following major components:

I- 2

2. SPECIFICATIONS (1/4)

MODEL MFC9100C MFC760

GENERAL

Print Engine BY2 BY2

Modem Speed (bps) 14.400 14.400

Transmission Speed (sec) 6 6

ITU-T Group G3 G3

Coding Method MH/MR/MMR MH/MR/MMR

Input/Output Width 8.5"/8.5" 8.5"/8.5"

ADF (pages) 50 50

LCD Size 16 x 2 16 x 2

On-Screen Programming Yes Yes

Backup Clock 1 hour 1 hour

Memory Capacity 8 MB 8 MB

Backup Memory N/A N/A

Optional Memory N/A N/A

Color New Color New Color

Standby Mode N/A N/A

PC-Fax Protocol Compliance Class 1, 2 Class 1,2

Simultaneous Operation Yes (Print/Fax, Print/Copy, Print/Scan) Yes (Print/Fax, Print/Copy, Print/Scan)

Data Modem N/A N/A

Energy Star Compliance Yes Yes

TELEPHONE

Automatic Redial Yes Yes

Handset N/A N/A

One-Touch Dial 16 16

Speed Dial 100 100

Telephone Index Yes Yes

Speaker Phone N/A N/A

Chain Dialing Yes Yes

Caller ID Yes N/A

Call Waiting Caller ID N/A N/A

Distinctive Ringing Yes Yes for UK

Hold/Mute Key N/A N/A

Junk Call Barrier N/A N/A

Power Failure Dialing N/A N/A

Ringer Volume Yes (3 levels + OFF) Yes (3 levels + OFF)

PBX Feature No No

Transfer Method Flash Flash

Digits of One-Touch & Speed Dial 20 digits 20 digits

Registrable Number of Characters 15 chars 15 chars

FAX

Internet FAX Yes (Netcentric) Yes (WordCraft)

Easy Receive/Fax Detect Yes Yes

Fax/Tel Switch N/A N/A

Super Fine Yes Yes

300 dpi Transmission N/A N/A

I- 3

(2/4)

MODEL MFC9100C MFC760

Gray Scale 256 256

Contrast Text (Light/Normal/Dark), Photo Text (Light/Normal/Dark), Photo

Smoothing N/A N/A

Call Reservation N/A N/A

Password Check N/A N/A

Enhanced Remote Activation Yes Yes

Multi-Resolution Transmission Yes Yes

Multi Transmission N/A N/A

Next-Fax Reservation Yes (= DUAL ACCESS) Yes (= DUAL ACCESS)

Delayed Timer Yes (Up to 50 timers or 50 jobs) Yes (Up to 50 timers or 50 jobs)

Polling Yes (Std/Seq) Yes (Std/Del/Seq/Sec)

Quick Scan (Memory Transmission) Yes (Super/3 sec.)

- 590 pages x 11K Yes (Super/3 sec.)

- 590pages x 11K

Broadcasting Yes (166 locations) Yes (166 locations)

Batch Transmission N/A N/A

Auto Reduction Yes Yes

Out-of-Paper Reception Yes (600 pages x 11K) Yes (600 pages x 11K)

Dual Access Yes Yes

ECM (Error Correction Mode) Yes Yes

ITU SUB Addressing N/A N/A

LIST/REPORT

Activity Report/Journal Report Yes Yes

Transmission Verification Report Yes Yes

Coverpage Yes (Super) Yes (Super)

Help List Yes Yes

Callback Message No No

Caller ID List Yes No

INTERFACE

External TAD Interface Yes Yes

Missing Link/PC Interface No No

Printer Interface Yes (Parallel) Yes (Parallel)

COLOR

BFT Compatible Yes Yes

Color Fax Mode No No

PRINTER

Color/Mono Color Color

Engine Type Piezo inkjet Piezo inkjet

Resolution (dpi) 1440 x 720, 720 x 720,

360 x 360, 360 x 180 1440 x 720, 720 x 720,

360 x 360, 360 x 180

Speed (ppm) Mono: Up to 7 (360 x 180)

Color: Up to 4 (360 x 180) Mono: Up to 7 (360 x 180)

Color: Up to 4 (360 x 180)

Paper Capacity (sheets) 250 250

Optional Paper Capacity (sheets) N/A N/A

Standard Print Language GDI GDI

Emulation Windows GDI, EPSON ESC/P Windows GDI, EPSON ESC/P

Resident Fonts 1 (10, 12, 15 cpi and Ps for each font) 1 (10, 12, 15 cpi and Ps for each font)

Fonts Disk Based 35 35

Paper Handling Size LTR, LGL, A4, B5, A5, A6

CM10, DL, C5, C6, B5 LTR, LGL, A4, B5, A5, A6

CM10, DL, C5, C6, B5

I- 4

(3/4)

MODEL MFC9100C MFC760

Paper Cassette Cut sheet: Min.2.75" (W) x 5.0" (L)

Max. 8.5" (W) x 14.0" (L)

Envelop (BL/C5/CM10/Mona)

Output paper : 100 sheets

Cut sheet: Min.2.75" (W) x 5.0" (L)

Max. 8.5" (W) x 14.0" (L)

Envelop (BL/C5/CM10/Mona)

Output paper : 100 sheets

Printer Driver Windows 3.1/3.11/95/98/NT4.0

with auto installer program Windows 3.1/3.11/95/98/NT4.0

Utility Software Brother Resource Manager Brother Resource Manager

Photo Realistic Print N/A N/A

Ink Cartridge Life (Black) 750 pages (5% duty) 750 pages (5% duty)

Ink Cartridge Life (Color) 400 pages (5% duty for each color) 400 pages (5% duty for each color)

Ink Cartridge Life (Photo) N/A N/A

Interface Type Parallel (IEEE1284) Parallel (IEEE1284)

Bundled Cable Parallel Option

Network Option (Pony) Option (Pony)

COPY

Color Yes Yes

Speed (ppm) Color: 4 ppm, Mono: 5 ppm Color: 4 ppm, Mono: 5 ppm

Multi Copy Yes (Mono: 99 pages/Color: 99 pages) Yes (Mono:99 pages/Color:99 pages)

Sort Yes Yes

Reduction/Enlargement Yes (25% to 400%) Yes (25% to 400%)

Resolution (dpi) Color: Max. 1440 x 720

Min. 360 x 180

Mono: Max. 720 x 720

Min. 360 x 180

Color: Max. 1440 x 720

Min. 360 x 180

Mono: Max. 720 x 720

Min. 360 x 180

SCANNER

Color/Mono Color/Mono Color/Mono

Resolution (dpi) 300 x 300 (Opt.)/1200 x 1200 (Int.) 300 x 300 (Opt.)/1200 x 1200 (Int.)

Gray Scale 256 256

TWAIN Compliant Yes Yes

Formats (Import) TIFF, UniDoc, PCX, DCX TIFF, UniDoc, PCX, DCX

Formats (Export) TIFF, UniDoc, PCX, DCX TIFF, UniDoc, PCX, DCX

OCR Yes (Xerox TextBridge) Yes (Xerox TextBridge)

MESSAGE CENTER / MESSAGE MANAGER

ICM Recording Time No No

Page Memory (Out-of-Paper Reception) 600 pages x 11K 600 pages x 11K

OGM (MC/MC Pro/Paging/F/T) No No

TAD Type No No

Memo/Recording Conversation No No

Fax Forwarding Yes Yes

Fax Retrieval Yes Yes

Paging Yes No

Remote Access Yes Yes

Toll Saver No No

MESSAGE CENTER PRO/MESSAGE

MANAGER PRO

Fax & Voice Mail Box No No

Fax- & Voice-on-Demand No No

I- 5

(4/4)

MODEL MFC9100C MFC760

MESSAGE CENTER (PC MC)

Fax Forwarding No No

Paging No No

ICM Recording Time No No

OGM MC/MC Pro/Paging No No

Fax & Voice Mail Box No No

Fax- & Voice-on-Demand No No

VIDEO CAPTURE

Video Capture Yes Yes

Video Print Yes Yes

Video Format NTSC PAL

BUNDLED SOFTWARE

PC Fax SMSI WordCraft

Viewer Visioneer WordCraft

Printer Driver Brother Brother

Others Auto E-mail printing

Netcentric (PC Internet Fax)

3D Fax Speed (PC Color Fax)

Corel Print & Photo House

Auto E-mail printing

ACCESSORY

Cartridges Black cartridge

Cyan cartridge

Magenta cartridge

Yellow cartridge

Black cartridge

Cyan cartridge

Magenta cartridge

Yellow cartridge

Paper Type BP36CL (720 dpi high-quality coated paper)

BP72CL (720 dpi high-quality coated paper)

BPGLL (Glossy paper)

BPTRL (Transparencies)

BP36CA (360 dpi high-quality coated paper)

BP72CA(720 dpi high-quality coated paper)

BPGLA(Glossy paper)

BPTRA(Transparencies)
