MULTI-FUNCTION CENTER

PARTS REFERENCE LIST

MODEL: MFC9750 / MFC9850 / MFC9870

(For Germany / United Kingdom /

France / Norway / Belgium /

Netherlands / Switzerland / Ireland /

Denmark / Austria / Spain / Italy /

Sweden / European Generic)

No part of this publication may be reproduced in any form

or by any means without permission in writing from the

publisher.

Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q' ty

(3) Description

Note: No orders without Parts Code or Tool No. can be accepted.

[Example] (1) (2) (3)

REF.NO. CODE Q' TY DESCRIPTION REMARKS

2. Parts change will be informed by the technical information.

COUNTRIES

Germany ----- GER

United Kingdom ------ UK

France ------ FRA

Norway ------ NOR

Belgium ------ BEL

Netherlands ------ NLD

Switzerland ------ CHE

Ireland ------ IRE

Denmark ------ DEN

Austria ------ AUT

Spain ------ SPA

Italy ------ ITA

Sweden ------ SWE

European Generic ----- GNR

LIST 8(PANEL)

REF No. CODE Q'TY DESCRIPTION REMARKS

1 LE3402001 1 PANEL UNIT ASSY

1-1 LE3403001 1 PANEL COVER, GRAY

(

1495

)

1-2 LE3431001 1 KEY, TEN, GRAY

(

1495

)

1-3 LE8515001 1 KEY, COLOR COPY, GREEN

(

5159

)

1-4 LJ4285004 1 KEY, START, PURPLE

(

6255

)

1-5 LJ423100

2 KEY, STOP/MONO COPY, GRAY

(

1495

)

1-6 LE3468002 1 KEY, SET, BLUE

(

6314

)

1-7 LE4078002 1 KEY, MENU, BLUE

(

6314

)

1-8 LE3295001 16 KEY, FUNCTION, GRAY

(

1495

)

1-9 LG2567001 1 LCD

1-10 LG2667001 1 KEY FPC

1-11 LG2721001 1 PANEL PCB ASSY

1-12 08731061

7 TAPTITE, CUP B M3X6

1-13 08727081

2 TAPTITE, CUP B M2.6X8

2 LE3633001 1 PANEL SHEET, FOR GER/AUT

2 LE3643001 1 PANEL SHEET, FOR UK/BEL/CHE/IRE

2 LE3647001 1 PANEL SHEET, FOR FRA

2 LE3813001 1 PANEL SHEET, FOR NOR

2 LE3814001 1 PANEL SHEET, FOR NLD

2 LE3816001 1 PANEL SHEET, FOR SPA

2 LE3817001 1 PANEL SHEET, FOR ITA

2 LE3818001 1 PANEL SHEET, FOR SWE

3 LE3380001 1

DDRESS LABEL

MFC860

List2(LASER UNIT)

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LJ4157001 1LASER UNIT (SP)

2 087321615 3 TAPTITE, CUP S M3X16

MFC9750, MFC9850, MFC9870

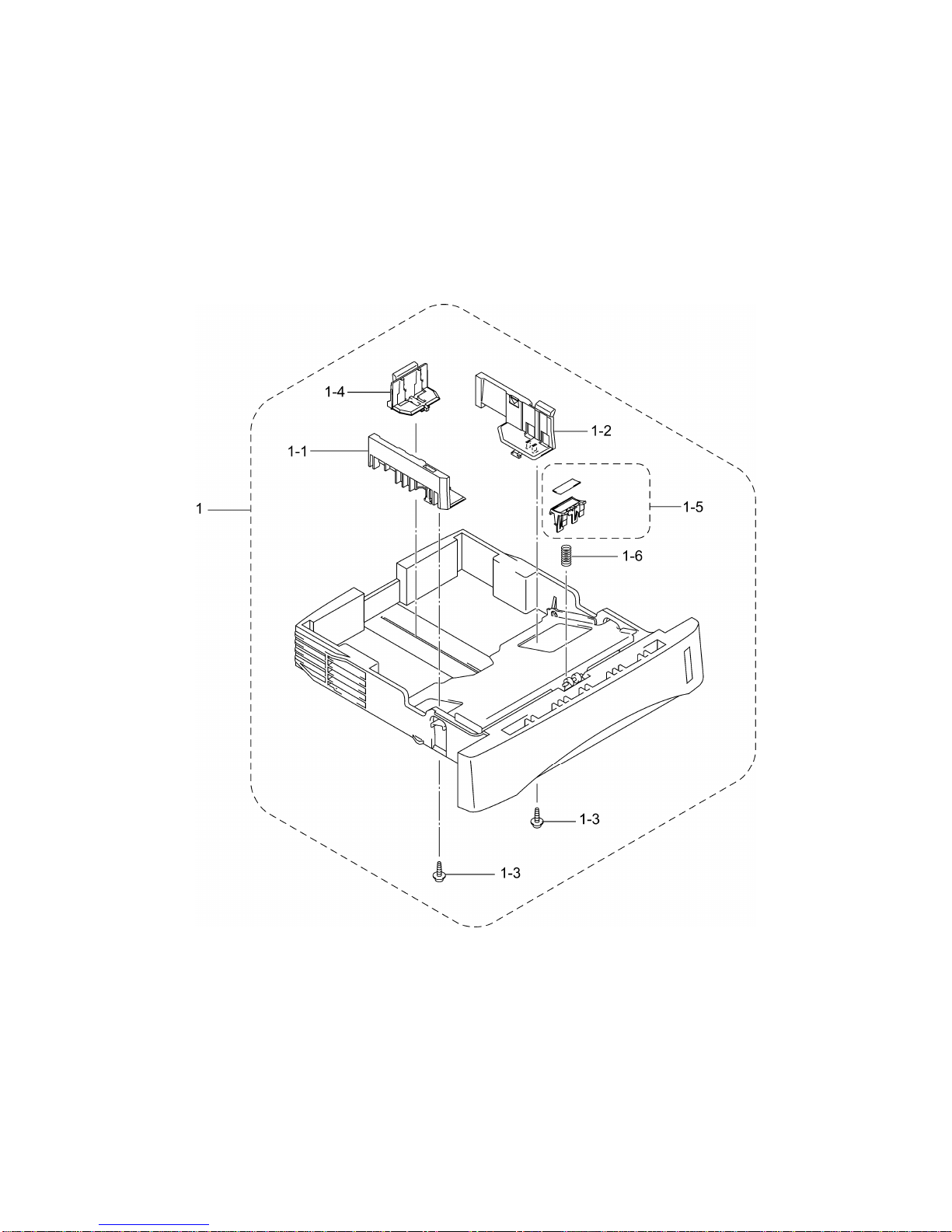

List3(PAPER TRANSPORT)

REF.No. CODE Q'TY DESCRIPTION REMARKS

1 UL9059001 1 JOINT

2 UL9060001 1 PAPER FEED ROLLER ASSY

3 UL9062001 1 PAWLED BUSHING

4 UL9066001 1 PAPER PICKUP ROLLER

5 UL9062001 1 PAWLED BUSHING

6 UL9069001 1 CONDUCTIVE BUSHING

7 LJ4499001 1 ELECTRODE SPRING

8 LJ4843001 1 OUTER CHUTE 1 (SP)

9 LJ5591001 1 PLANETARY GEAR ASSY (SP)

10 UL9070001 1 GEAR 21

11 UL8985001 1 GEAR 59

12 LJ5705001 1 GEAR 21 PRESSURE PLATE

13 LJ5838001 1 FEED ROLLER PLANETARY GEAR ASSY (SP)

14 UL9049001 1MANUAL INSERTION SENSOR ACTUATOR

15 UL9050001 1REGISTRATION SENSOR ACTUATOR

16 UL9051001 1REGISTRATION SENSOR SPRING

17 UU2042001 1CASSETTE SENSOR ACTUATOR

18 UL9053001 2 TRANSFER ARM ADD

19 UL9052001 2 TRANSFER SPRING ADD

MFC9750, MFC9850, MFC9870
