Start Here

Quick Setup Guide

USA/CAN Version 0

MFC-J220

Before you can use the machine, please read this Quick Setup Guide for the correct setup and installation.

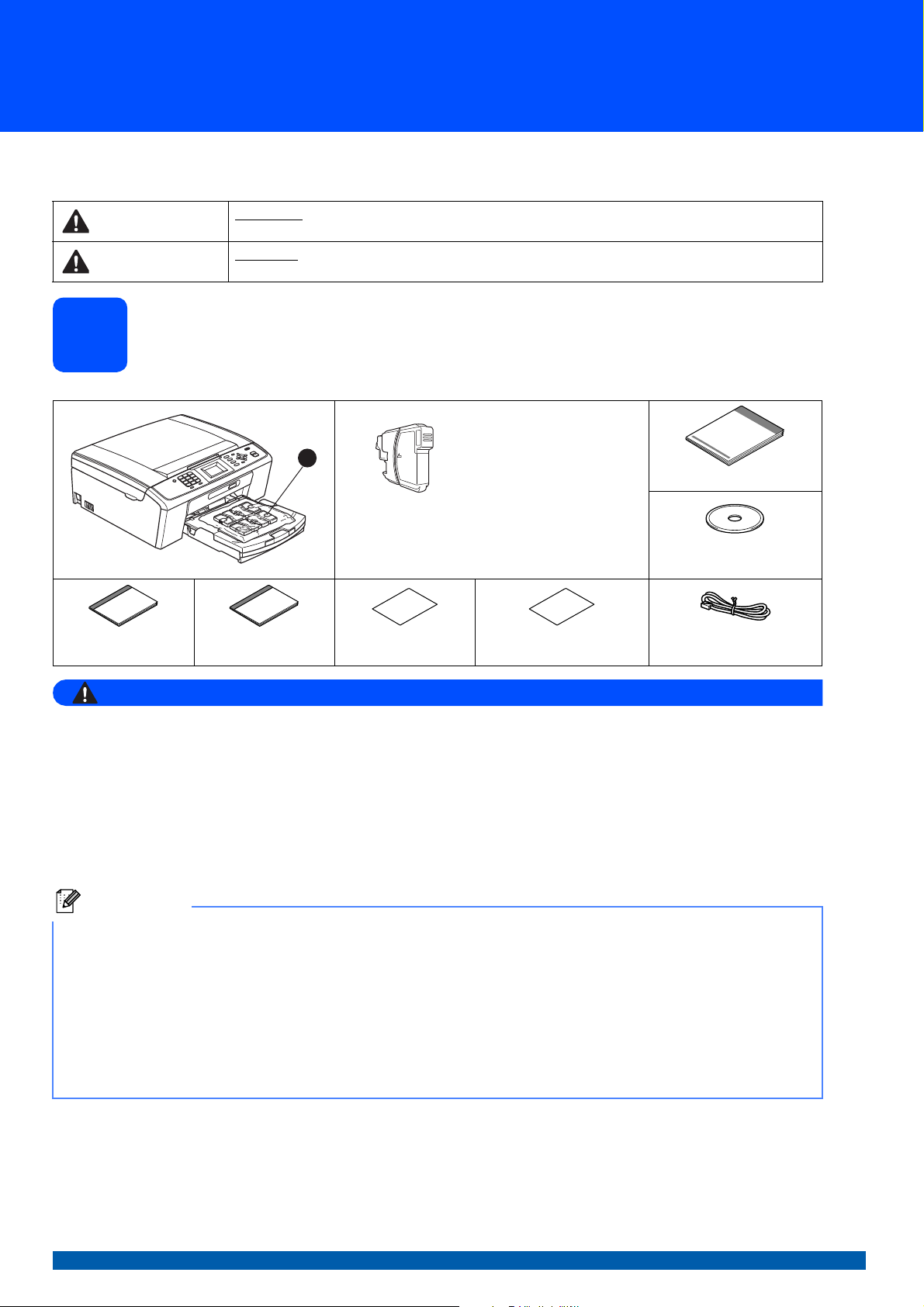

Unpack the machine and check the components

WARNING

Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

aRemove the protective tape and film covering the machine, and also from the LCD.

Remove

the plastic bag acontaining the ink cartridges from on top of the paper tray.

cMake sure you have all components.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

Starter Ink

Cartridges

[x4]

Black

Yellow

Cyan

Magenta Quick Setup Guide

Installation CD-ROM

Documentation CD-ROM

Basic User’s Guide Safety and Legal

booklet

Accessory Order

Form

Product Registration

Sheet (USA only)

Telephone Line Cord

Note

• The components included in the box may differ depending on your country.

• Save all packing materials and the box in case for any reason you must ship your machine.

• You need to purchase the correct USB cable.

USB cable

Please make sure you use a USB 2.0 cable (Type A/B) that is no more than 6 feet (2 meters) long (cable not

included).

Your machine has a USB interface that is compatible with the USB 2.0 specification. This interface is also

compatible with Hi-Speed USB 2.0; however, the maximum data transfer rate will be 12 Mbits/s. The machine

can also be connected to a computer that has a USB 1.1 interface.

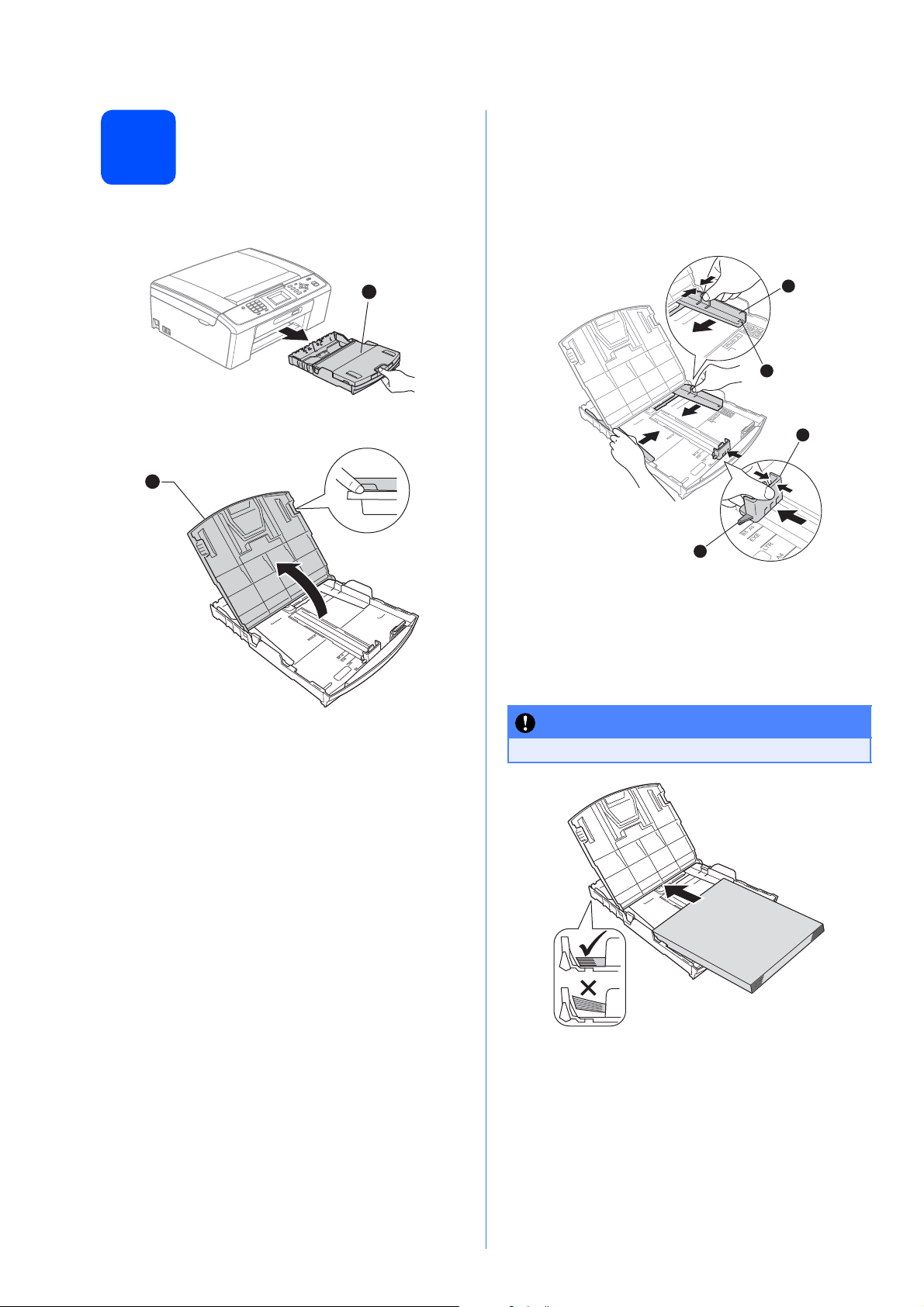

Load plain Letter/A4

paper

aPull the paper tray acompletely out of the

machine.

bLift the output paper tray cover a.

cWith both hands, gently press and slide the

paper side guides aand then the paper length

guide bto fit the paper size.

Make sure that the triangular marks con the

paper side guides aand paper length guide b

line up with the mark for the paper size you are

using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

eGently put the paper into the paper tray print

side down and top edge first. Check that the

paper is flat in the tray.

IMPORTANT

DO NOT push the paper in too far.

fGently adjust the paper side guides to the

paper with both hands. Make sure that the

paper side guides touch the edges of the

paper.

gClose the output paper tray cover.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support auntil it clicks, and then

unfold the paper support flap b.

Note

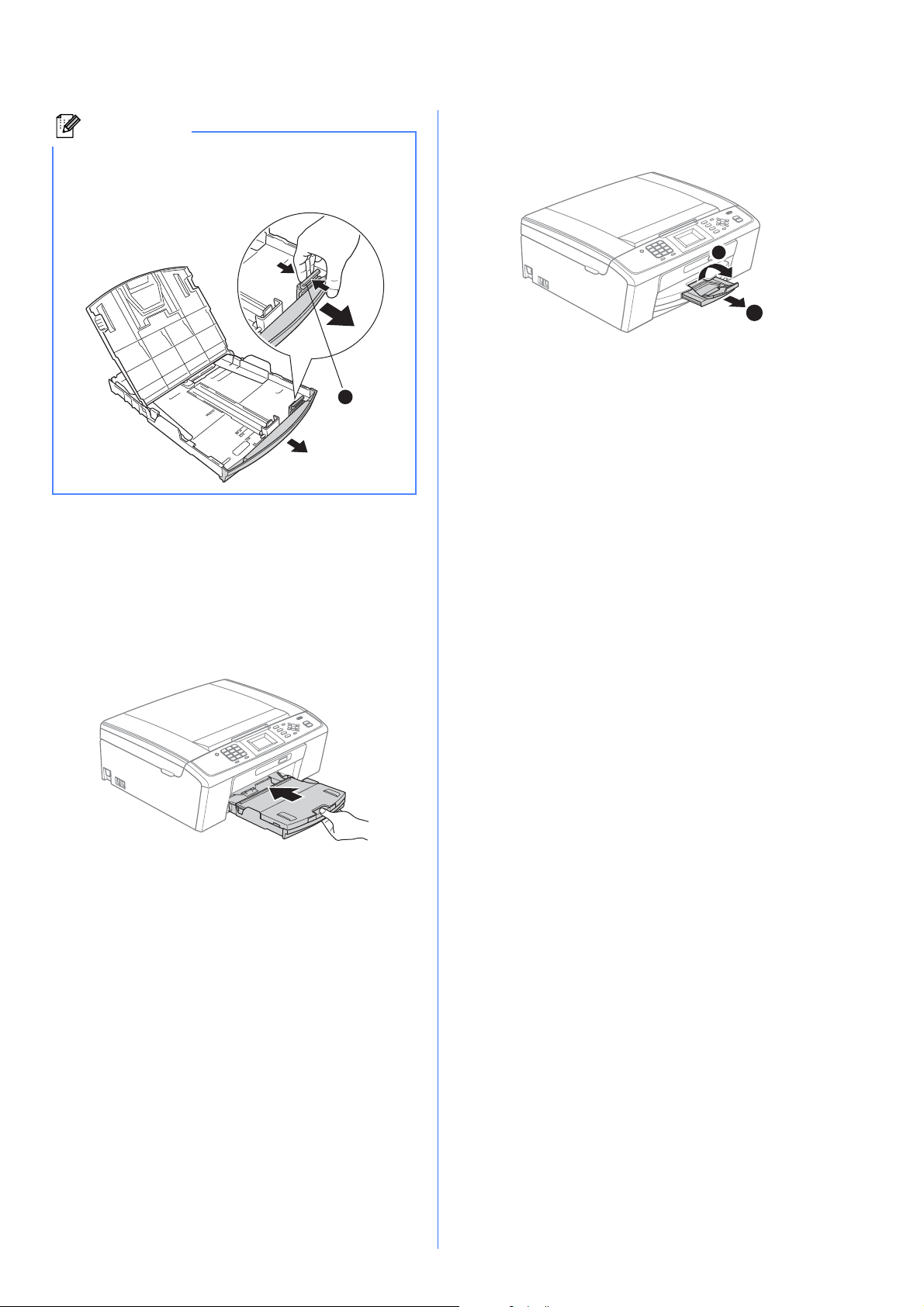

When you use Legal size paper, press and hold

the universal guide release button aas you slide

out the front of the paper tray.

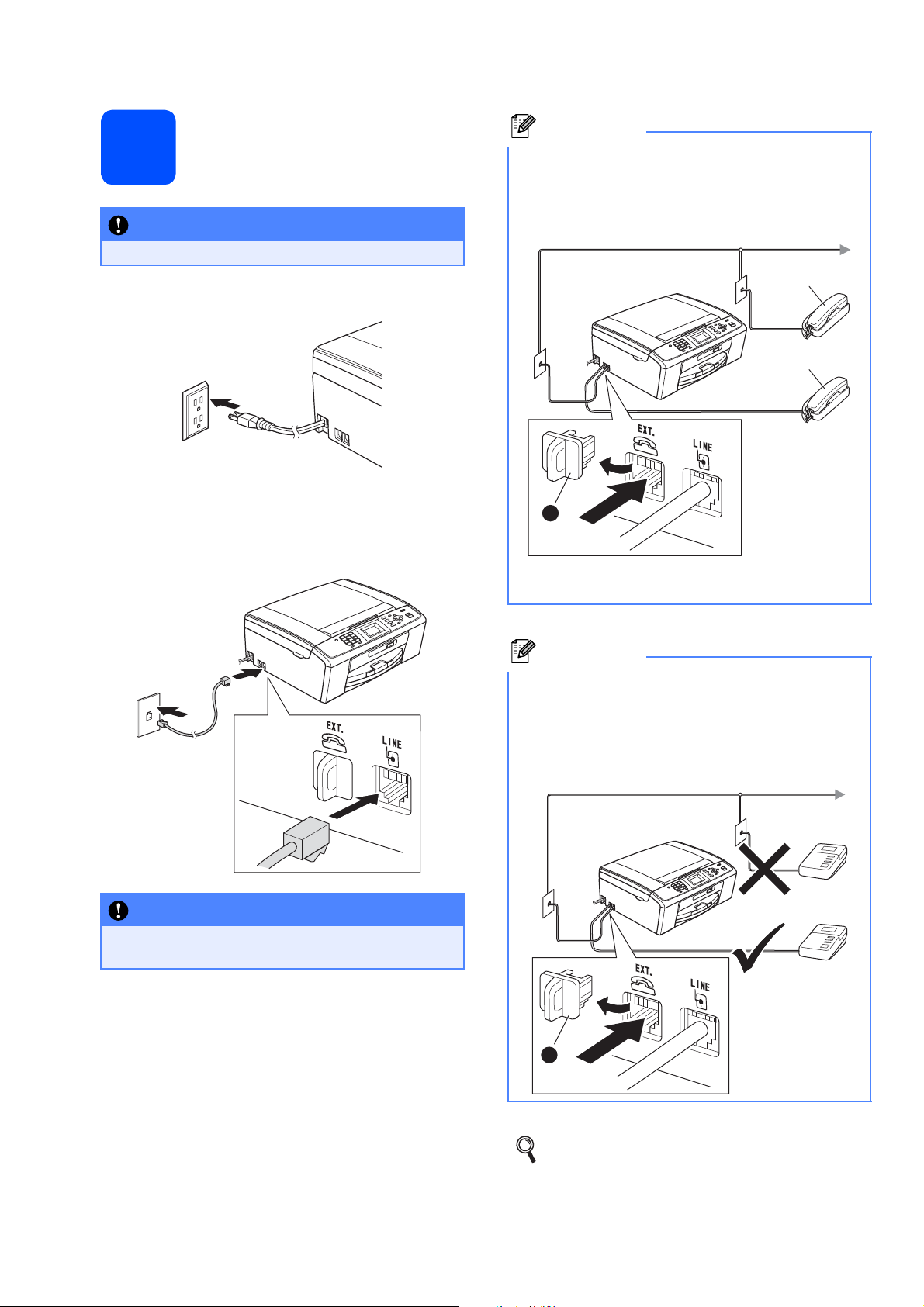

Connect the power cord

and telephone line

aConnect the power cord.

bConnect the telephone line cord. Connect one

end of the telephone line cord to the jack on the

machine marked LINE and the other end to a

modular wall jack.

IMPORTANT

DO NOT connect the USB cable yet.

IMPORTANT

The telephone line cord MUST be connected

to the jack on the machine marked LINE.

Note

If you are sharing one telephone line with an

external telephone, connect it as shown below.

Before you connect the external telephone,

remove the protective cap afrom the EXT. jack

on the machine.

1Extension telephone

2External telephone

Note

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Before you connect the external telephone

answering machine, remove the protective cap a

from the EXT. jack on the machine.

Set the receive mode to

External TAD

if you

have an external answering machine. See

Choose the correct Receive Mode on page 8.

For additional details, see Connecting an

external TAD (telephone answering device) in

chapter 6 in the Basic User’s Guide.

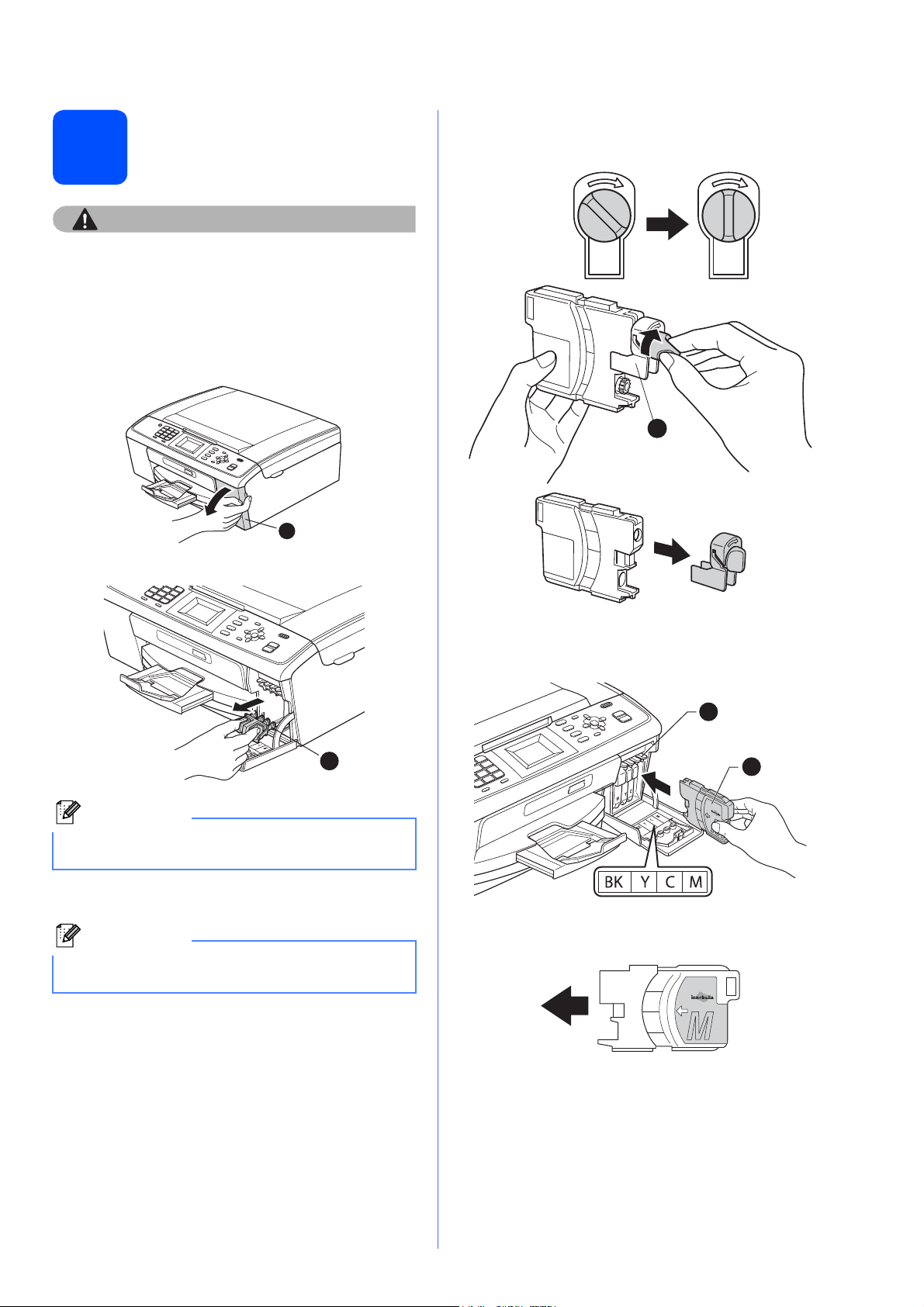

Install the ink cartridges

CAUTION

If ink gets in your eyes, wash them out with water

at once, and if irritation occurs consult a doctor.

aMake sure that the power is turned on.

The LCD shows No Ink Cartridge.

bOpen the ink cartridge cover a.

cRemove the green protective part a.

dUnpack the ink cartridge.

eTurn the green knob on the protective yellow

cap clockwise until it clicks to release the

vacuum seal, then remove the cap a.

fTake care to match the color of the lever a

with the cartridge color b, as shown in the

diagram below.

gInstall each ink cartridge in the direction of the

arrow on the label.

Note

Do not throw away the green protective part. You

will need it if you transport the machine.

Note

Make sure you install the Starter Ink Cartridges

included with your machine first.

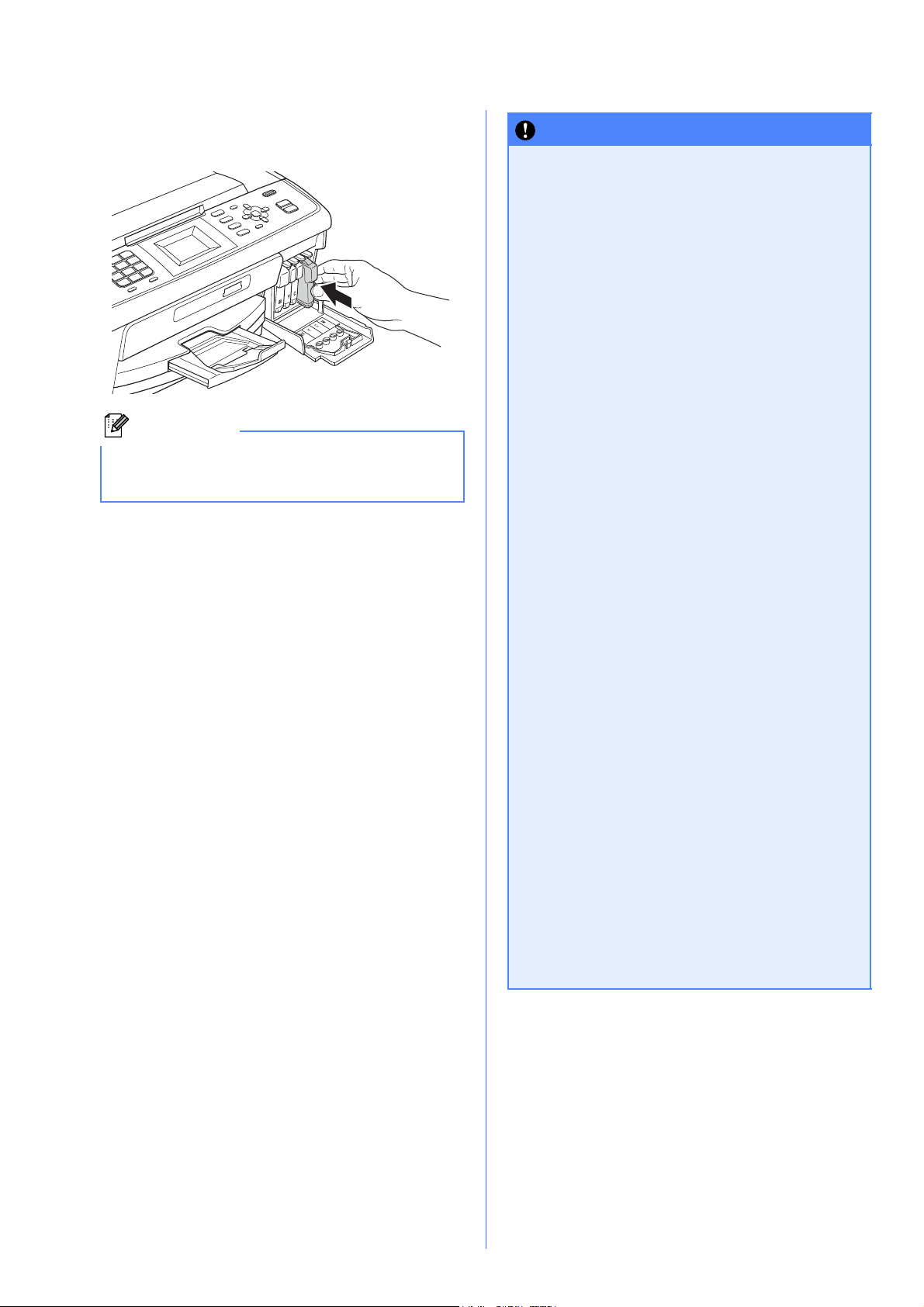

hGently push the ink cartridge until it clicks. After

all the ink cartridges are installed close the ink

cartridge cover.

Note

The machine will prepare the ink tube system for

printing. This process will take approximately four

minutes. Do not turn off the machine.

IMPORTANT

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will

not know the quantity of ink left in the

cartridge.

• DO NOT shake the ink cartridges. If ink

stains your skin or clothing, wash with soap

or detergent at once.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of

the cartridge.

• If you mix the colors by installing an ink

cartridge in the wrong position, clean the

print head several times after correcting the

cartridge installation. (See Cleaning the

print head in Appendix A in the Advanced

User’s Guide on the documentation

CD-ROM.)

• Once you open an ink cartridge, install it in

the machine and use it up within six months

of installation. Use unopened ink cartridges

by the expiration date written on the

cartridge package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out

of the cartridge.

• Brother strongly recommends that you do

not refill the ink cartridges provided with

your machine. We also strongly recommend

that you continue to use only Genuine

Brother Brand replacement ink cartridges.

Use or attempted use of potentially

incompatible ink and/or cartridges in the

Brother machine may cause damage to the

machine and/or may result in unsatisfactory

print quality. Our warranty coverage does

not apply to any problem that is caused by

the use of unauthorized third party ink

and/or cartridges. To protect your

investment and obtain premium

performance from the Brother machine, we

strongly recommend the use of Genuine

Brother Supplies.

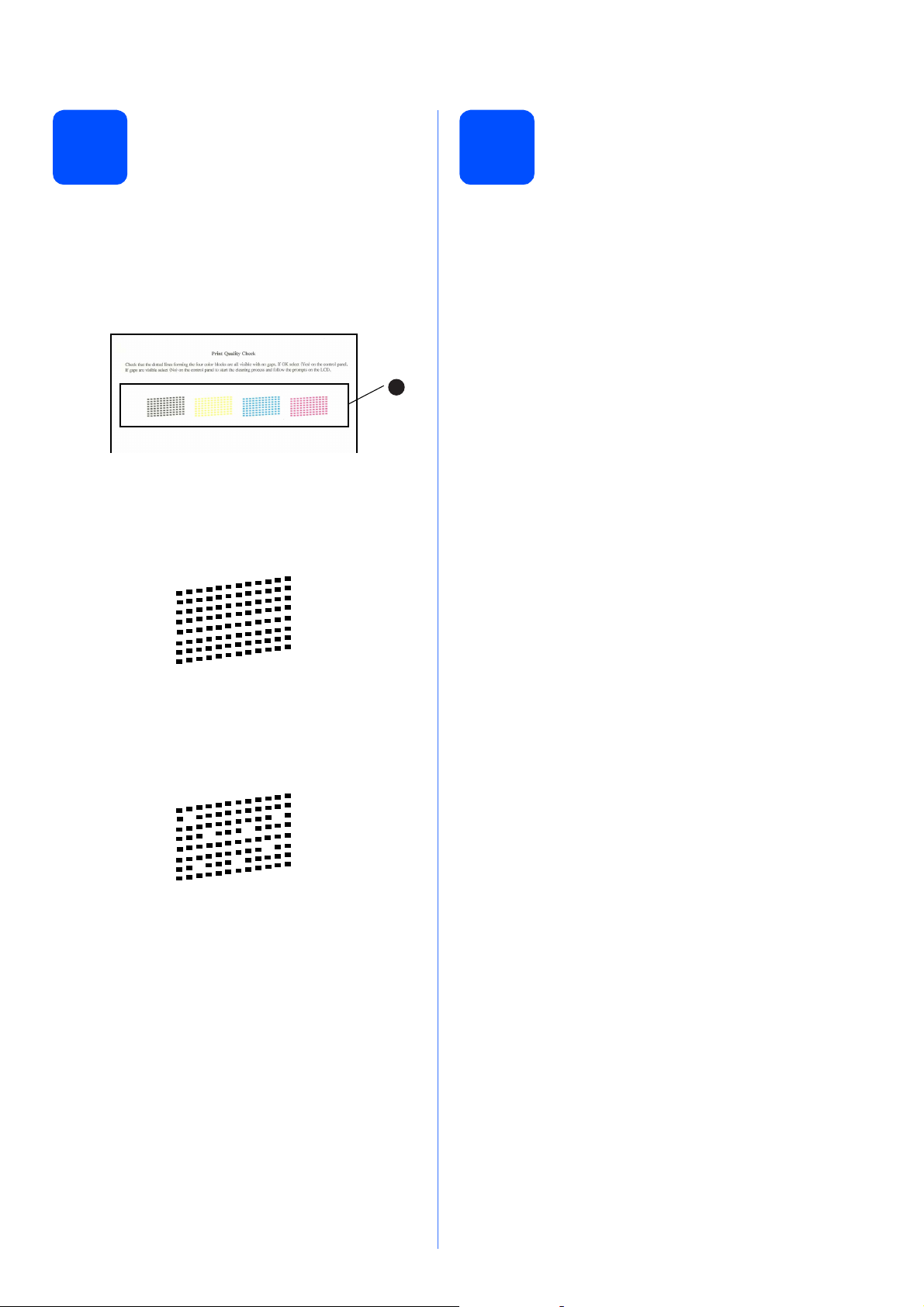

Check the print quality

aWhen the preparation process has finished, the

LCD shows Set Paper and Press Start.

Press Color Start.

bCheck the quality of the four color blocks aon

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes)

on the dial pad to finish the quality check and

go to step 6.

If you can see missing short lines, press 2(No)

on the dial pad and follow the steps on the

LCD.

Choose your language

(if needed)

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Local Language.

Press OK.

dPress aor bto choose your language.

Press OK.

ePress Stop/Exit.

Poor

Choose the correct Receive Mode

The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail,

Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Receive Mode.

Press OK.

dPress aor bto choose the receive mode.

Press OK.

ePress Stop/Exit.

Will you be using a Distinctive Ring number for receiving faxes?

Brother uses the term “Distinctive Ring” but telephone companies may have other names for this service such

as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive

Ring in chapter 6 in the Basic User’s Guide for instruction on setting up your machine using this feature.

Will you be using Voicemail on the same telephone line as your Brother machine?

If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that

Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail

in chapter 6 in the Basic User’s Guide for instructions on setting up your machine using this service.

Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?

Your external telephone answering device (TAD) will automatically answer every call. Voice messages are

stored on the external TAD and fax messages are printed. Choose External TAD as your receive mode. See

the instructions below. For additional information see Connecting an external TAD (telephone answering

device) in chapter 6 in the Basic User’s Guide.

Will you be using your Brother machine on a dedicated fax line?

Your machine automatically answers every call as a fax. Choose

Fax Only

as your receive mode. See the

instructions below.

Will you be using your Brother machine on the same line as your telephone?

Do you want to receive voice calls and faxes automatically?

The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same

line. Choose Fax/Tel as your receive mode. See the instructions below. For additional information see

Fax/Tel in chapter 5 in the Basic User’s Guide for instructions on setting up and using this receive mode.

Important Note: You cannot receive voice messages on either Voice Mail or an answering machine

when choosing the Fax/Tel mode.

Do you expect to receive very few faxes?

Choose Manual as your receive mode. You control the phone line and must answer every call yourself.

See the instructions below.

For details, see Using receive modes in chapter 5 in the Basic User’s Guide.

Note

If the Receive Mode option is not displayed, make sure the Distinctive Ring feature is set to Off. (See Turning

off Distinctive Ring in chapter 6 in the Basic User’s Guide.)

Set the LCD contrast

(if needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress Menu.

bPress aor bto choose General Setup.

Press OK.

cPress aor bto choose LCD Settings.

Press OK.

dPress aor bto choose LCD Contrast.

Press OK.

ePress dor cto choose the contrast level.

Press OK.

fPress Stop/Exit.

Set the date and time

The machine displays the date and time, and if you

set up the station ID the date and time will be added

to each fax you send.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Date&Time.

Press OK.

dEnter the last two digits of the year on the dial

pad, and then press OK.

eEnter the two digits for the month on the dial

pad, and then press OK.

fEnter the two digits for the day on the dial pad,

and then press OK.

gPress aor bto choose 12h Clock or

24h Clock, and then press OK.

hEnter the time on the dial pad, and then press

OK.

i(12h Clock only)

Press aor bto choose AM or PM, and then press

OK.

jPress Stop/Exit.

(e.g. Enter 10for 2010.)

Year:2010

12 or 24 ?

12h Clock

24h Clock

AM or PM ?

Set your Station ID

You should store your name and fax number to be

printed on all fax pages that you send.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Station ID.

Press OK.

dEnter your fax number (up to 20 digits) on the

dial pad, and then press OK.

eEnter your name (up to 20 characters) using

the dial pad, and then press OK.

fPress Stop/Exit.

Fax Transmission Report

Your Brother machine is equipped with a

Transmission Verification Report that can be used as

confirmation that you sent a fax. This report lists the

name or fax number of the receiving party, the date,

time, and duration of the transmission, the number of

pages transmitted, and whether or not the

transmission was successful. If you want to use the

Fax Transmission Report feature, see Transmission

Verification Report in chapter 4 in the Basic User’s

Guide.

Note

• See the following chart for entering your name.

• If you need to enter a character that is on the

same key as the last character, press cto

move the cursor to the right.

• If you entered a letter incorrectly and want to

change it, press dor cto move the cursor to the

incorrect character, press Clear.

Press

key

One

time

Two

times

Three

times

Four

times

2ABC2

3DEF 3

4GH I 4

5JKL5

6MNO 6

7PQRS

8TUV8

9WX Y Z

Note

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

For details, see Entering Text in Appendix C

in the Basic User’s Guide.

Note

(USA only)

The Telephone Consumer Protection Act of 1991

makes it unlawful for any person to use a

computer or electronic device to send any

message via a telephone fax machine unless

such messages clearly contain, in a margin at the

top or bottom of each transmitted page, or on the

first page of the transmission, the date and time it

is sent and an identification of the business or

other entity or other individual sending the

message and the telephone number of the

sending machines or such business, other entity

or individual.

Altri manuali per MFC-J220

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother DCP 8085DN Manuale utente

Brother

Brother MFC 3360C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MCF-J285DW Manuale operativo e di manutenzione

Brother

Brother MFC-8880DN Manuale utente

Brother

Brother MFC-8440 Manuale utente

Brother

Brother DCP-T310 Manuale operativo

Brother

Brother MFC-J2320 Manuale operativo e di manutenzione

Brother

Brother MFC 665CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-9100C Manuale utente

Brother

Brother MFC-J6959DW Manuale utente

Brother

Brother MFC-J220 Manuale utente

Brother

Brother FAX-1820C Guida di sicurezza

Brother

Brother MFC-J280W Manuale di installazione e funzionamento

Brother

Brother DCP 7030 - B/W Laser - All-in-One Guida rapida

Brother

Brother MFC 7345N - Laser Multifunction Center Manuale utente

Brother

Brother MFC-7840W Manuale utente

Brother

Brother MFC-5460CN Manuale utente

Brother

Brother DCP-9042CDN Manuale utente

Brother

Brother MFC-9440CN Manuale utente

Brother

Brother MFC-J430w Manuale operativo e di manutenzione

Brother

Brother MFC 685CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-J6520DW Manuale operativo

Brother

Brother MFC-J815DW Manuale tecnico

Brother

Brother DCP-9270CDN Manuale operativo e di manutenzione

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
