Start Here

Quick Setup Guide

CEE-ENG Version A

MFC-J430W

Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup

Guide for the correct setup and installation.

Unpack the machine

WARNING

Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger

of suffocation, keep these bags away from babies and children and dispose of them correctly.

aRemove the protective tape and film covering the machine, and also from the LCD.

bRemove the plastic bag acontaining the ink cartridges from on top of

the paper tray.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

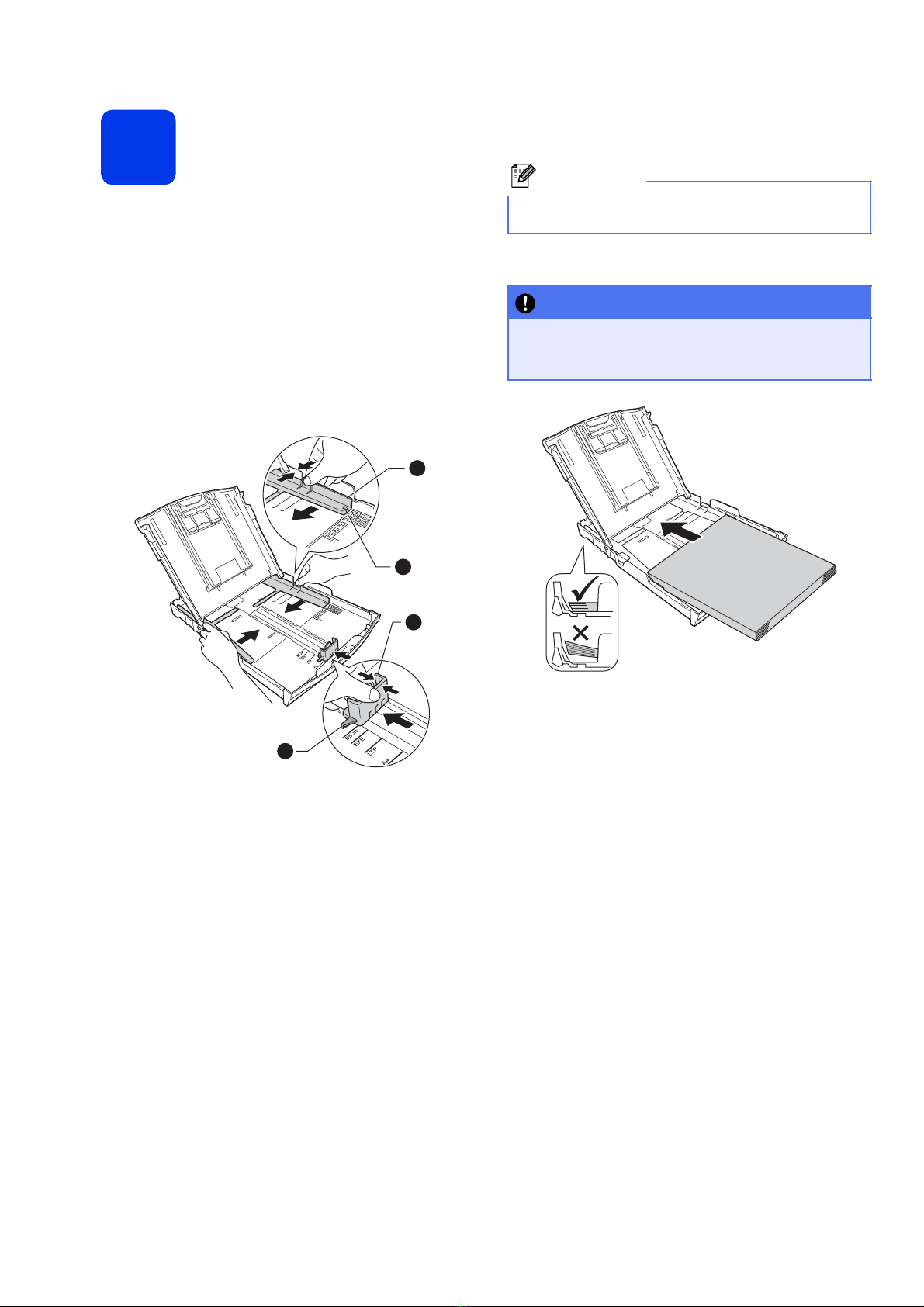

Load plain A4 paper

aPull the paper tray completely out of the

machine.

bOpen the output paper tray cover.

cWith both hands, gently press and slide the

paper side guides aand then the paper length

guide bto fit the paper size.

Make sure that the triangular marks con the

paper side guides aand paper length guide b

line up with the mark for the paper size you are

using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

eCheck that the paper is flat in the tray.

fGently adjust the paper side guides to the

paper with both hands.

gClose the output paper tray cover.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support until it clicks, and then unfold

the paper support flap.

Note

Always make sure that the paper is not curled or

wrinkled.

IMPORTANT

Be careful that you do not push the paper in

too far; it may lift at the back of the tray and

cause paper feed problems.

Connect the power cord

and telephone line

WARNING

• The machine must be fitted with an earthed

plug.

• Since the machine is grounded through the

power outlet, you can protect yourself from

potentially hazardous electrical conditions on

the telephone network by keeping the power

cord connected to your machine when you

connect it to a telephone line. Similarly, you

can protect yourself when you want to move

your machine by disconnecting the telephone

line first and then the power cord.

aConnect the power cord.

Install the ink cartridges

CAUTION

If ink gets in your eyes, wash it out with water at

once and call a doctor if you are concerned.

aMake sure that the power is turned on.

bOpen the ink cartridge cover.

cRemove the orange protective part.

dUnpack the ink cartridge.

IMPORTANT

DO NOT connect the USB cable yet (if you are

using a USB cable).

IMPORTANT

The telephone line cord MUST be connected

to the socket on the machine marked LINE.

Note

Make sure you install the Introductory ink

cartridges included with your machine first.

IMPORTANT

DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

eTake care to match the colour of the lever with

the cartridge colour.

Install each ink cartridge in the direction of the

arrow on the label.

fGently push the back of the ink cartridge

marked “PUSH” until it clicks. After all the ink

cartridges are installed close the ink cartridge

cover.

Check the print quality

aWhen the preparation process has finished, the

LCD shows Set Paper and Press Start.

Press Colour Start.

bCheck the quality of the four colour blocks on

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes) to

finish the quality check and go to step 6.

If you can see missing short lines, press 2(No)

and follow the steps on the LCD.

Wireless setup

(if needed)

For wireless setup using a Macintosh computer or

mobile device, go to a.

For Windows users (all connections) and Macintosh

USB connections, go to b.

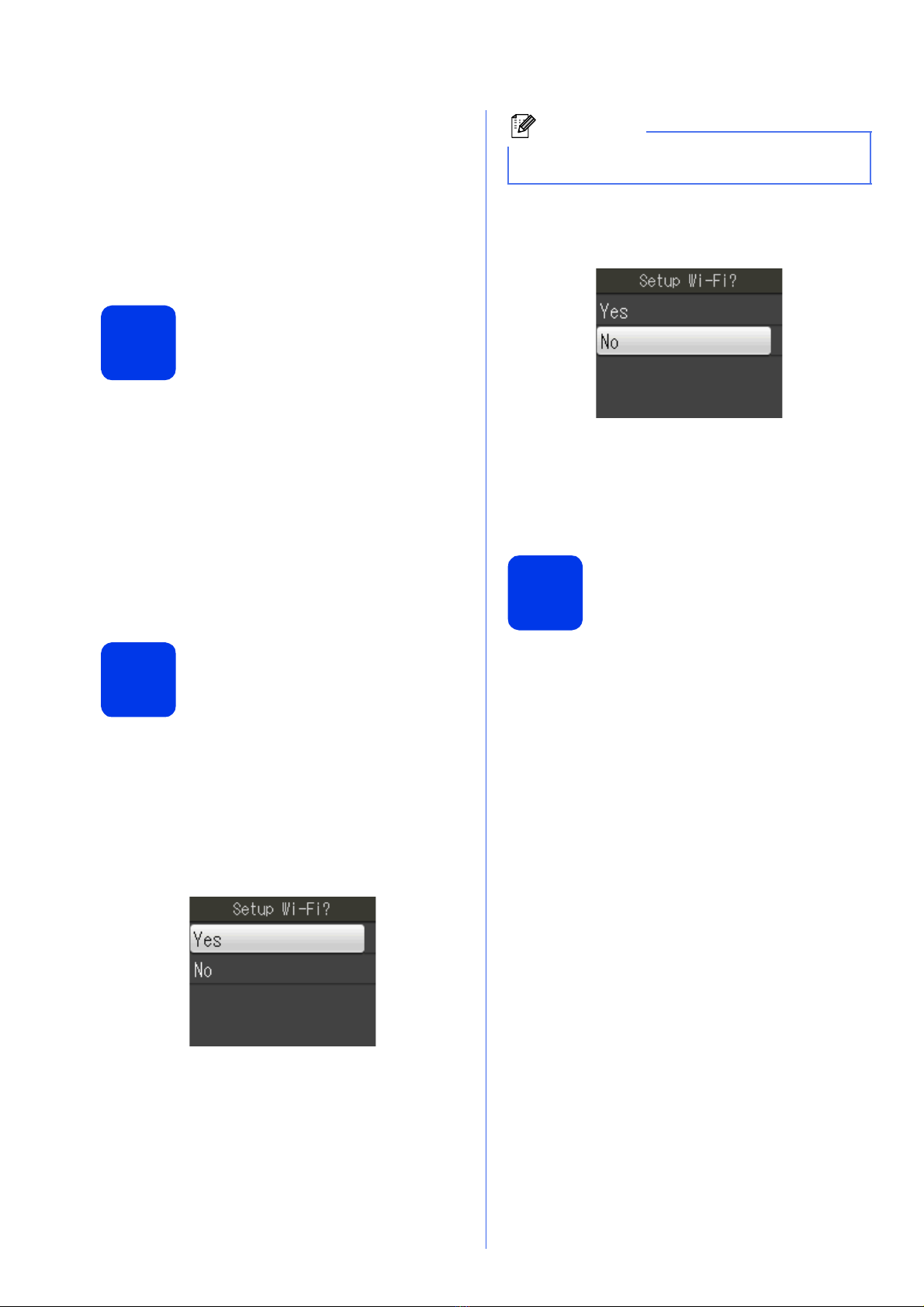

aIf you are using a Macintosh computer or a

mobile device on a wireless network, press

OK.

Press aor bto choose Yes.

Press OK.

Then go to step 15 on page 12 to continue the

wireless setup.

After finishing the wireless setup you will need

to return to step 7to finish the machine setup.

bIf you are using a Windows®computer or want

to connect your Macintosh using USB, press

OK.

Press aor bto choose No.

Press OK.

Then go to step 7.

The wireless setup for Windows®users will be

covered in later steps.

Choose your language

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Local Language.

Press OK.

dPress aor bto choose your language.

Press OK.

ePress Stop/Exit.

Note

You can choose No to configure the wireless

settings later.

Choose a Receive Mode

There are four possible receive modes: Fax Only,

Fax/Tel, Manual and External TAD.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Receive Mode.

Press OK.

dPress aor bto choose Fax Only, Fax/Tel,

External TAD or Manual.

Press OK.

ePress Stop/Exit.

Set the date and time

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Date&Time.

Press OK.

dEnter the last two digits of the year on the dial

pad, and then press OK.

eRepeat for month/day/time in 24-hour format.

fPress Stop/Exit.

Enter personal

information (Station ID)

You should store your name and fax number to be

printed on all fax pages that you send.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Station ID.

Press OK.

dEnter your fax number (up to 20 digits) on the

dial pad, and then press OK. To enter a “+” for

international codes, press l.

eEnter your name (up to 20 characters) using

the dial pad, and then press OK.

fPress Stop/Exit.

Do you want to use the telephone features of your

machine (if available) or an external telephone or

external telephone answering device connected on the

same line as the machine?

Your machine

automatically answers

every call as a fax.

Your machine controls

the line and

automatically answers

every call. If the call is

not a fax, the telephone

will ring for you to pick

up the call.

Your external telephone

answering device (TAD)

automatically answers

every call. Voice

messages are stored

on the external TAD.

Fax messages are

printed.

You control the

telephone line and must

answer every call

yourself.

Do you want the machine to

answer fax and telephone calls

automatically?

Manual

Fax Only

Fax/Tel

External TAD

Yes

Are you using the voice message

function of an external telephone

answering device?

Note

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

Set Tone or Pulse dialling

mode

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Tone/Pulse.

Press OK.

dPress aor bto choose Pulse (or Tone).

Press OK.

ePress Stop/Exit.

Set the telephone line

type

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Phone Line Set.

Press OK.

dPress aor bto choose Normal, PBX or ISDN.

Press OK.

ePress Stop/Exit.

Set the telephone line

compatibility (VoIP)

If you are connecting the machine to a VoIP service

(over the Internet) you need to change the

compatibility setting.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Compatibility.

Press OK.

dPress aor bkey to choose

Basic(for VoIP).

Press OK.

ePress Stop/Exit.

Note

If you are using an analogue telephone line you

can skip this step.

Windows®Macintosh

USB Wireless Network

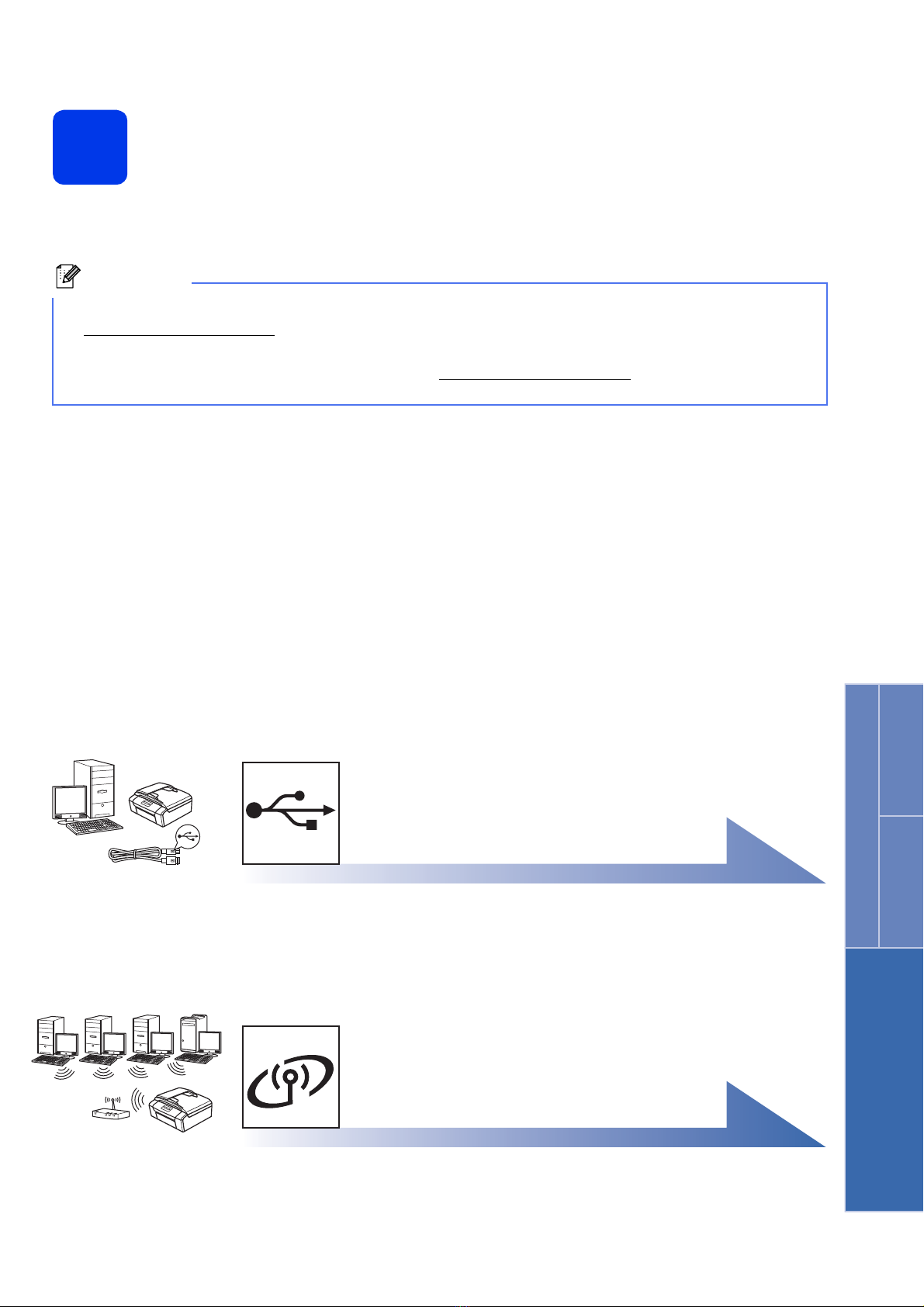

Choose your connection type

These installation instructions are for Windows®XP/XP Professional x64 Edition, Windows Vista®, Windows®7,

and Mac OS X (versions 10.4.11, 10.5.x and 10.6.x).

Note

• For Windows Server®2003/2008/2008 R2, the drivers can be found from your model’s download page at

http://solutions.brother.com/.

• If your computer does not have a CD-ROM drive you can download the latest drivers, manuals and utilities

for your model from the Brother Solutions Center at http://solutions.brother.com/. Some software

applications included on the CD-ROM may not be available as a download.

For USB interface cable

Windows

, go to page 8

Macintosh, go to page 10

For Wireless Network

Windows

and Macintosh,

go to page 12

Windows®

USB

For USB interface users

(Windows®XP Home/XP Professional/Windows Vista®/Windows®7)

Before you install

Make sure that your computer is ON and you are

logged on with Administrator rights.

Install MFL-Pro Suite

aPut the supplied installer CD-ROM into your

CD-ROM drive. Follow the on-screen

instructions.

bThe CD-ROM Top Menu will appear. Click

Install MFL-Pro Suite and click Yes if you

accept the license agreements. Follow the

on-screen instructions.

cChoose Local Connection (USB), and then

click Next. The installation continues.

dWhen this screen appears, go to the next step.

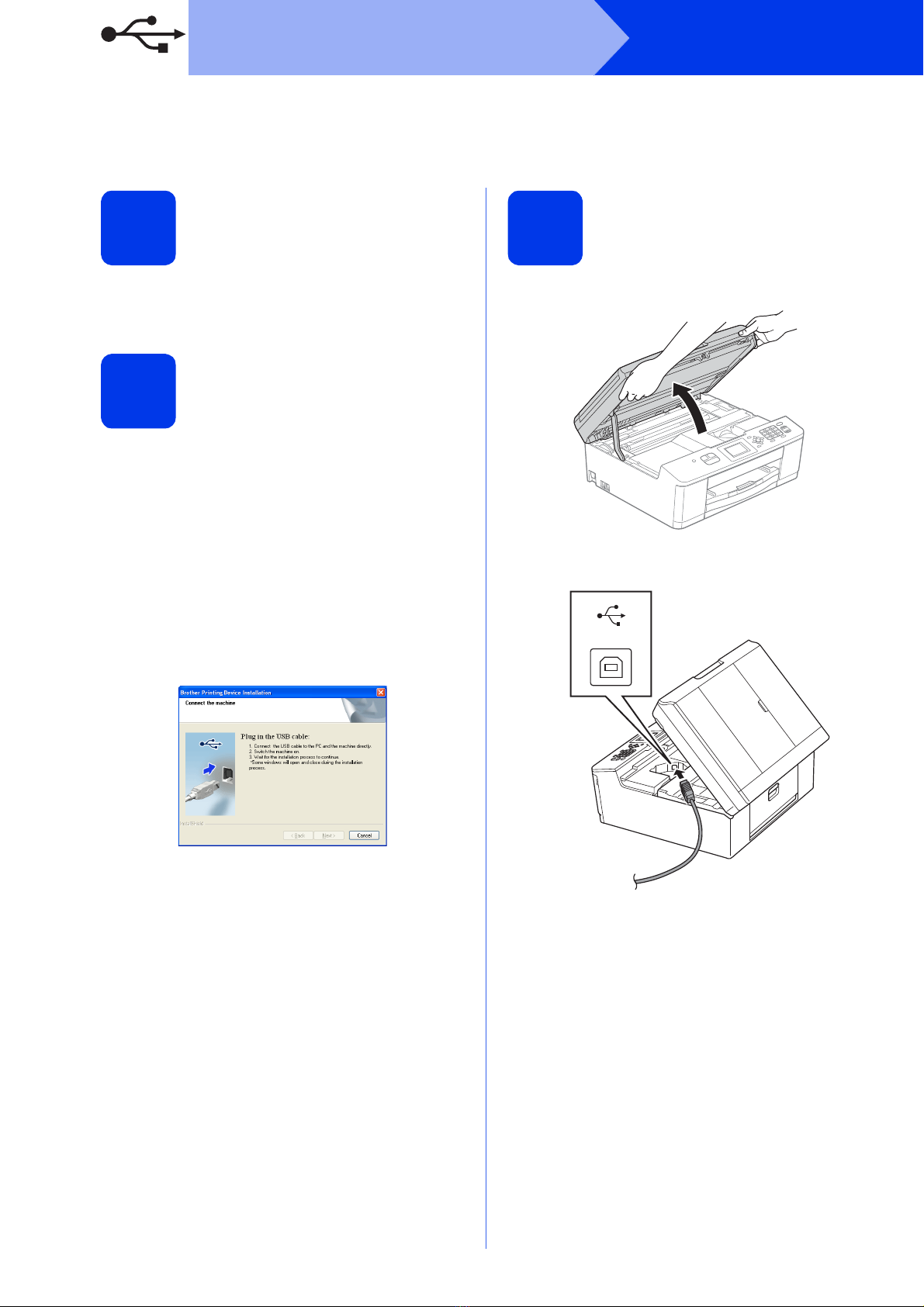

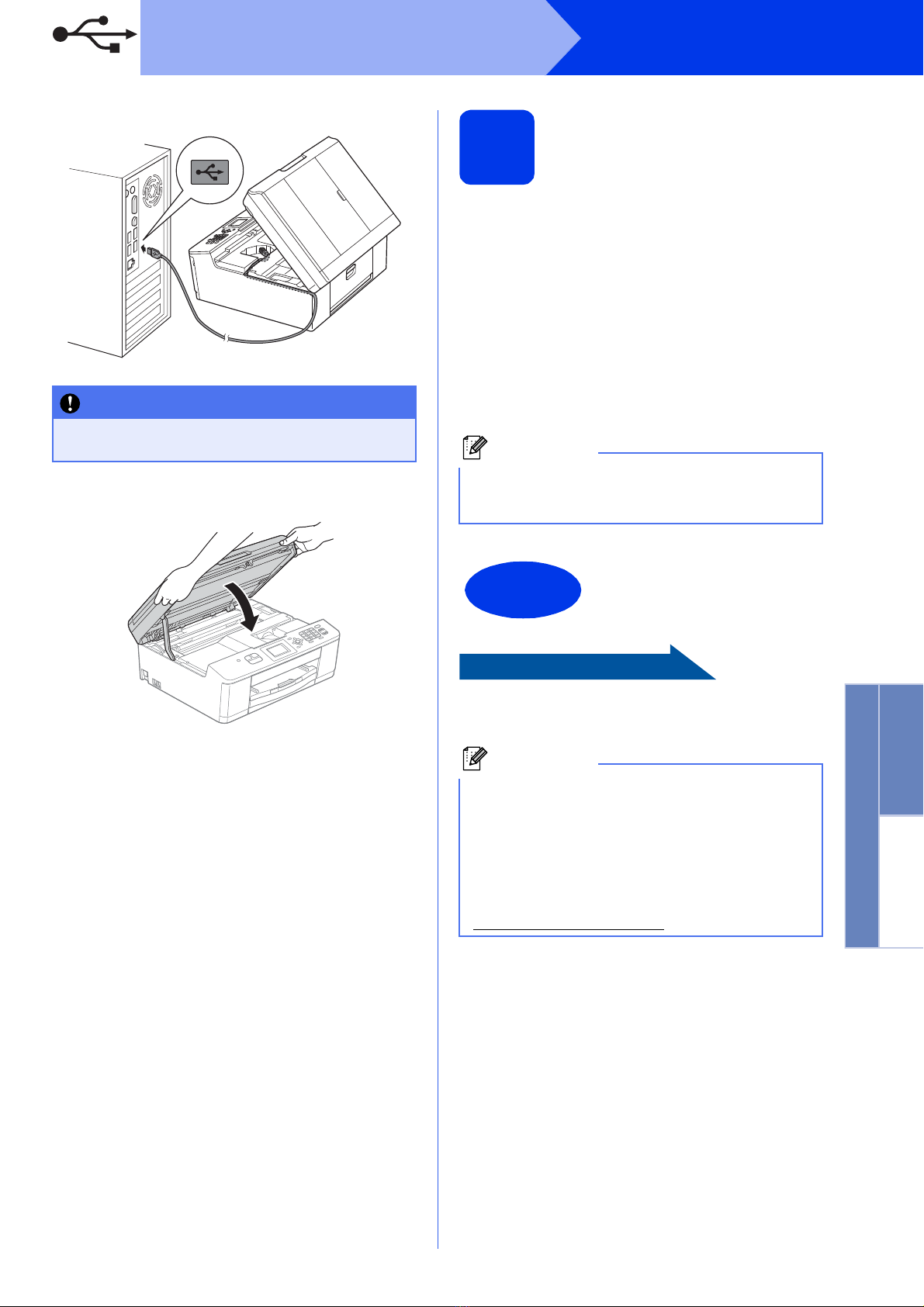

Connect the USB cable

USB

Windows®

USB

Windows®Macintosh

USB

eThe installation will continue automatically.

The installation screens appear one after

another.

fWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions.

gIf you do not want to set your machine as the

Default printer, uncheck Set as Default Printer

and then click Next.

Finish and restart

aClick Finish to restart your computer.

After restarting the computer, you must be

logged on with Administrator rights.

bThe following screens will appear.

• When the Check for Firmware Updates

screen appears, choose the firmware

update setting you want and click OK.

• When the Brother Product Research &

Support Program starts up, follow the

on-screen instructions.

Now go to

Proceed to Install Optional Applications on

page 19.

IMPORTANT

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

Note

Internet access is required for the firmware

update and the Brother Product Research &

Support Program.

Finish

The installation is now

complete.

Note

XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is the

most suitable driver for Windows Vista®and

Windows®7 when printing from applications that

use the XML Paper Specification documents.

Please download the latest driver by accessing

the Brother Solutions Center at

http://solutions.brother.com/.

Macintosh

USB

For USB interface users

(Mac OS X 10.4.11, 10.5.x, 10.6.x)

Before you install

Make sure your machine is connected to the power

and your Macintosh is ON. You must be logged on

with Administrator rights.

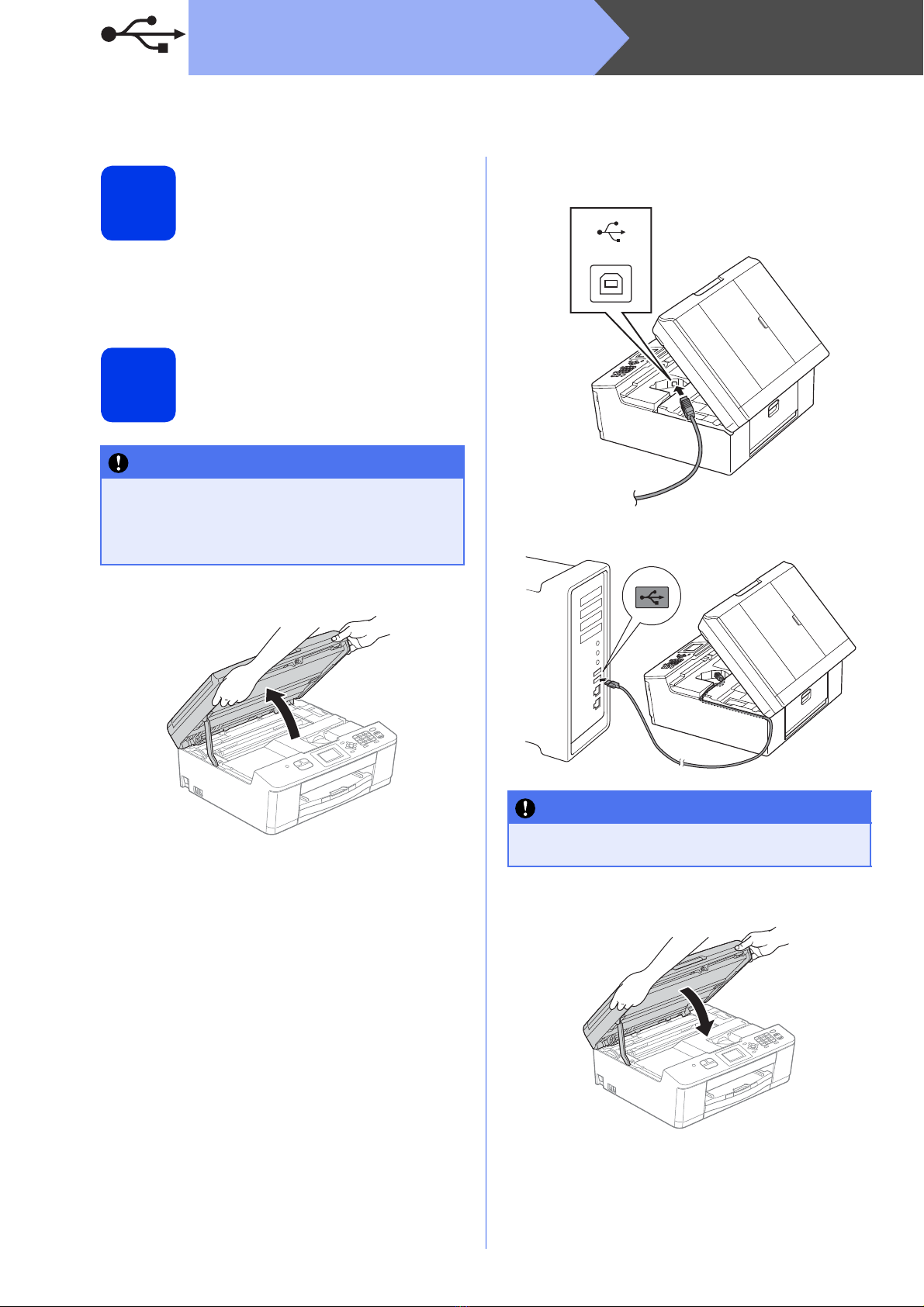

Connect the USB cable

IMPORTANT

• DO NOT connect the machine to a USB port

on a keyboard or a non-powered USB hub.

• Connect the machine directly to your

Macintosh.

IMPORTANT

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

USB

Altri manuali per MFC-J430w

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother DCP-9040CN Manuale utente

Brother

Brother MFC-9420CN Manuale utente

Brother

Brother MFC-4550 PLUS Manuale utente

Brother

Brother MFC-J3520 Manuale utente

Brother

Brother MFC-P2500 Manuale utente

Brother

Brother DCP 330C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-7895DW Manuale utente

Brother

Brother DCP 385C - Color Inkjet - All-in-One Manuale utente

Brother

Brother DCP-395CN Manuale utente

Brother

Brother MFC 5490CN - Color Inkjet - All-in-One Manuale utente

Brother

Brother DCP-9010CN Istruzioni per l'installazione

Brother

Brother ADS-2100e Manuale utente

Brother

Brother MFC-9*970CDW Manuale utente

Brother

Brother MFC-J6920DW Istruzioni per il montaggio

Brother

Brother DCP-1400 Manuale utente

Brother

Brother MFC-J2310 Manuale di istruzioni

Brother

Brother DCP-7010 Manuale utente

Brother

Brother MFC-8510DN Manuale operativo e di manutenzione

Brother

Brother MFC-9130CW Manuale utente

Brother

Brother MFC-440CN Manuale utente

Brother

Brother MFC-8460N Manuale utente

Brother

Brother DCP-7060D Manuale operativo e di manutenzione

Brother

Brother MFC 6890CDW Manuale utente

Brother

Brother MFC-860 Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
