FACSIMILE EQUIPMENT

PARTS REFERENCE LIST

MODEL: MFC590

(For Germany / United Kingdom / France /

Belgium / Netherlands /

Switzerland / Ireland / Denmark /

Austria / Spain / Italy / Euro Generic /

Pan Nordic)

No part of this publication may be reproduced in any form

or by any means without permission in writing from the

publisher.

Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q' ty

(3) Description

Note: No orders without Parts Code or Tool No. can be accepted.

[Example] (1) (2) (3)

REF.NO. CODE Q' TY DESCRIPTION

RECOMMEND

REMARKS

2. Parts change will be informed by the technical information.

COUNTRIES

GERMANY ---- GER

UNITED KINGDOM ---- UK

FRANCE ---- FRA

BELGIUM ---- BEL

NETHERLANDS ---- NLD

SWITZERLAND ---- CHE

IRELAND ---- IRE

DENMARK ---- DEN

AUSTRIA ---- AUS

SPAIN ---- SPA

ITALY ---- ITA

EURO GENERIC ---- GNR

PAN NORDIC ---- NOR

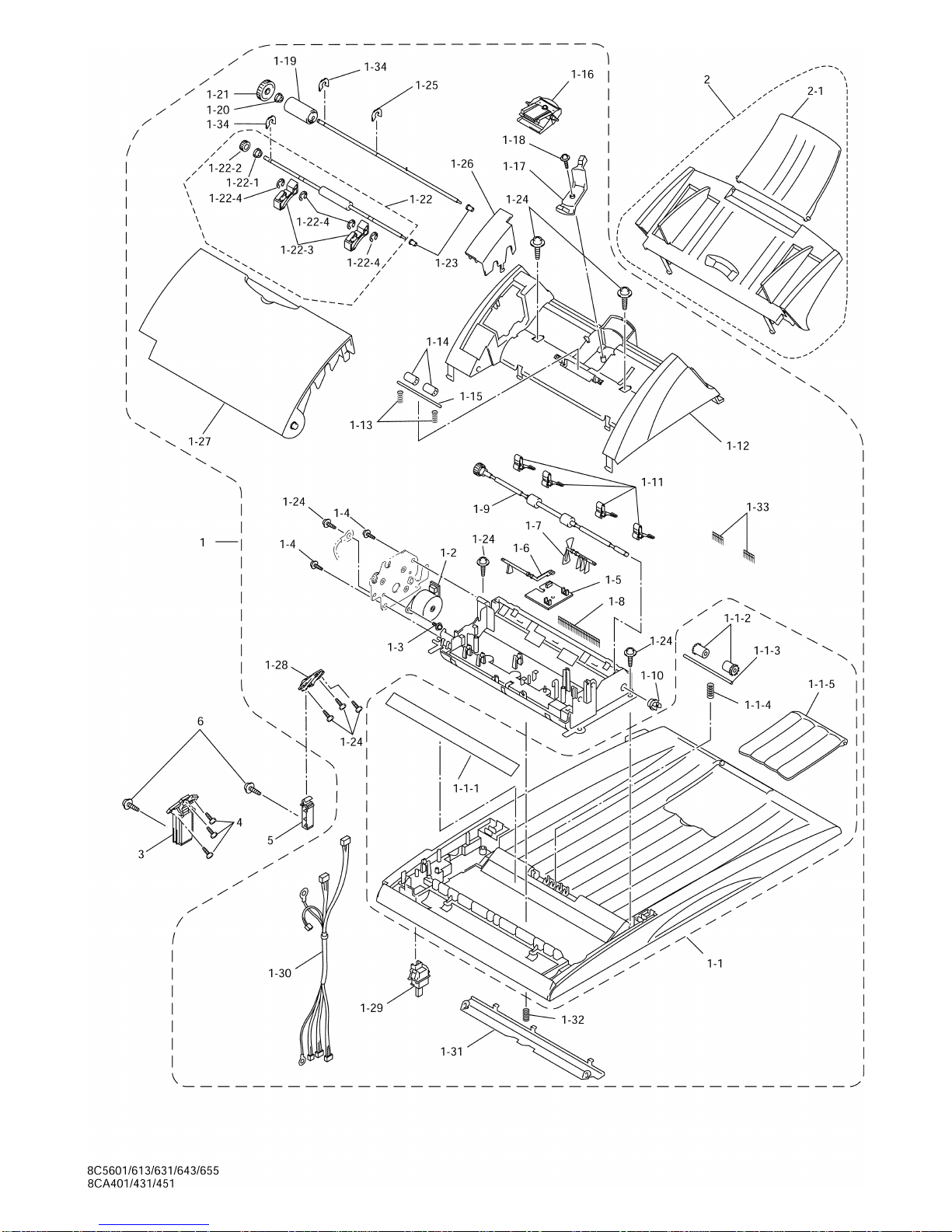

LIST1(ADF)

REF.No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS

1 LE6867001 1 ADF/DOCUMENT TRAY ASSY 1

1-1 LE9437001 1 DOCUMENT TRA

1-1-1 LE6205001 1 CHUTE FILM ASSY

1-1-2 UL624400

2 PINCH ROLLE

1-1-3 LE2471001 1 PINCH ROLLER SHAFT

1-1-4 LE6206001 1 PINCH ROLLER SPRING

1-1-

LE6207001 1 DOCUMENT STOPPE

1-2 LE6214001 1

DF MOTO

1-3 0A430060

1 SCREW, PAN WASHER M3X6

1-4 08731081

2 TAPTITE, CUP B M3X8

1-5 LG3216001 1 DOCUMENT SENSOR PCB ASSY

1-6 LE6219001 1 DOCUMENT REAR SENSOR ACTUATO

1-7 LE6220001 1 DOCUMENT FRONT SENSOR ACTUATO

1-8 LE6221001 1

NTI-STATIC BRUSH

1-9 LE6222001 1 DOCUMENT EJECTION ROLLER ASSY

1-10 UF0026001 1 PAWLED BUSHING

1-11 LE6334001 4 DOCUMENT GUIDE CLI

1-12 LE6226001 1 UPPER ADF CHUTE

1-13 LE2472001 2 PRESSURE ROLLER SPRING

1-14 UF9009001 2 PRESSURE ROLLER

1-15 LE2471001 1 PRESSURE ROLLER SHAFT

1-16 LE6345001 1 SEPARATION RUBBER UNIT

1-17 LE6330001 1

DF THICKNESS ADJUSTER

1-18 UF5034001 1 TAPTITE, B M3X6

1-19 LE2037001 1 SEPARATION ROLLER

1-20 LE6494001 1 BUSHING

1-21 LE6230001 1 SEPARATION ROLLER GEAR

1-22 LE6233001 1 DOCUMENT FEED ROLLER ASS

1-22-1 LE6494001 1 BUSHING

1-22-2 LE6495001 1 DOCUMENT FEED ROLLER GEA

1-22-

LE6492001 2 DOCUMENT FEED PAPER CHUTE

1-22-

04805034

4 RETAINING RING

1-23 UF9949001 2 BUSHING S

(

SEPARATION ROLLER, FEED ROLLER

)

1-24 08731101

8 TAPTITE, CUP B M3X10

1-25 04805034

1 RETAINING RING E5

1-26 LE6236001 1 GEAR COVER, GRAY

(

1495

)

1-27 LE6237001 1

DF COVER, GRAY

(

1495

)

1-28 LE6245001 1 HINGE ARM

1-29 LG3218001 1 DOCUMENT TRAY OPEN SENSOR

1-30 LG3219001 1

DF MOTOR SENSOR HARNESS ASSY

1-31 LE9010001 1 DOCUMENT PRESSURE BA

1-32 LE6218001 1 SPRING

1-33 LE6609001 2

NTI-STATIC BRUSH S

1-34 LE2537001 2 PLASTIC RETAINING RING

2LE6246001 1 DOCUMENT GUIDE BASE

2-1 LE6250001 1 DOCUMENT SUPPORT, CLEAR PURPLE

(

6342

)

3 LE6238001 1 HINGE L

4 08731101

3 TAPTITE, CUP B 3X10

5 LE6244001 1 HINGE BASE R

6 08541121

2 TAPTITE, BIND B M4X12

MFC590

LIST2(SCANNER)

REF.No. CODE Q'TY DESCRIPTION RECOMMEND REMARKS

1 LE9351001 1 SCANNER UNIT

(

)

1-1 LE9314001 1 SCANNER BASE, GRAY

(

1495

)

1-2 LE6253001 2 FRONT COVER CONNECTOR

1-3 08741121

2 TAPTITE, CUP B M4X12

1-4 LG3233001 1 PANEL HARNESS

1-5 LE9722001 1 CCD UNIT CHG

1-6 LE6351001 1 CCD FLAT CABLE

1-7 LE6353001 1 CCD DRIVE BELT ASS

1-8 LE6260001 1 SPONGE

1-9 08731081

6 TAPTITE, CUP B M3X8

1-10 LE9255001 1 SCANNER OPEN LEVER

1-11 LE6264001 1 LEVER SPRING

1-12 LE6267001 1 SCANNER TOP COVER ASSY

1-13 08741121

4 TAPTITE, CUP B M4X12

1-14 LE8107001 1 CCD PROTECTOR R del

1-15 LE8108001 1 CCD PROTECTOR F del

1-161

LE6355001 1 DOCUMENT SET LABEL

1-171

LE7947001 1 BELT STOPPER del

1-18 LE9433001 1 BELT HOLDING SPRING add

2 08731081

1 TAPTITE, CUP B M3X8

3 LE2095001 1 SCANNER OPEN SENSOR ACTUATOR

MFC590

LIST3(ENGINE)

* You have to use the same color spare part with the original part for the replacement.

REF No. CODE Q'TY DESCRIPTION RECOMMEN

REMARKS

1 LE6053001 4 VIBRATION ABSORBER

2 LE6198001 1 CARRIAGE ASSY

2-1 LE6062001 2 HEAD CLAMP SPRING

2-2 LE6715001 1 CARRIAGE PCB ASSY 1

2-3 LE6911001 1 STOPPER PIN adde

3 LE6421001 1 WAVY WASHER

4 LE6722001 2 ECCENTRIC BUSHING

5 08732061

2 TAPTITE, CUP S M3X6

6 0A530060

4 SCREW, PAN

(

S/P WASHER

)

M3X6

7 LE6074001 1 TIMING BELT

8 LE6434001 1 CARRIAGE MOTO

9 LE6424001 1 IDLE PULLEY HOLDER ASSY

10 08732061

1 TAPTITE, CUP S M3X6

11 0A530080

1 SCREW, PAN

(

S/P WASHER

)

M3X8

12 UF9823001 2 SHOULDER SCREW

13 LE3171001 1 PULLEY SPRING

14 LE6078001 1 FLAT CABLE CLAMP

15 LE6571001 1 CABLE CLAMP STOPPER

16 LE6152001 1 FFC CLAMP FILM

17 LE6425001 1 ENCODER STRIP

18 UD6012001 1 ENCODER STRIP SPRING

19 LG3124001 1 INK EMPTY SENSOR PCB

20 LE6081001 1 SENSOR SUPPORT

21 LE6082001 1 PLATEN

22 LE6385001 1 FLUSHING SPONGE

23 08527101

2 TAPTITE, BIND B M2.6X10

24 08531101

1 SCREW, BIND B TITE 3X10

25 LE6430001 1 STAR WHEEL SUPPORT ASSY

25-1 LE6504001 7 STAR WHEEL W

25-2 LE6805001 8 STAR WHEEL B

25-3 LE6107001 7 STAR WHEEL SPRING

26 LE6874001 1 PAPER PRESSURE HOLDER L ASSY

26-1 LE6875001 1 PAPER PRESSURE HOLDER FILM A

26-2 LE6876001 1 PAPER PRESSURE HOLDER FILM B

26-3 LE6392001 1 PAPER PRESSURE HOLDER FILM C

27 LE6877001 1 PAPER PRESSURE HOLDER R ASSY

27-1 LE6875001 1 PAPER PRESSURE HOLDER FILM A

27-2 LE6876001 1 PAPER PRESSURE HOLDER FILM B

27-3 LE6392001 1 PAPER PRESSURE HOLDER FILM C

28 LE6878001 2 PAPER PRESSURE HOLDER M ASSY

28-1 LE6875001 1 PAPER PRESSURE HOLDER FILM A

28-2 LE6876001 1 PAPER PRESSURE HOLDER FILM B

28-3 LE6392001 1 PAPER PRESSURE HOLDER FILM C

29 LE6090001 4 SPRING

*30 LE6091003 1 PAPER FEED ROLLER ASSY, RED

(INCLUDING PF BUSHING L)

*30 LE6091004 1 PAPER FEED ROLLER ASSY, BLUE

(INCLUDING PF BUSHING L)

31 LE6093001 1 PF ROLLER GEAR R

32 LE6121001 1 RETAINING RING, EXTERNAL C5

33 LE6095001 1 PF BUSHING R

34 LE6122001 1 RETAINING RING, EXTERNAL C8

35 LE6096001 1 PAPER EJECTION ROLLER ASSY

36 UU1290001 1 BUSHING

37 UF9949001 1 PAWLED BUSHING

38 LE6489001 1 PAPER FEED MOTOR ASSY

39 LE6101001 1 PF ROLLER GEAR

40 LE6103001 1 PAPER EJECTION ROLLER GEAR

41 LE6104001 1 PAPER EJECTION JOINT

42 UF8034001 1 GEAR, 39

43 LE9268001 1 GEAR, 25M

44 LE6109001 1 GEAR, 31 MF

45 UF8105001 1 BUSHING

46 08732061

3 TAPTITE, CUP S M3X6

47 LE6576001 1

SF ROLLER ASSY

47-1 LE3432001 1

SF ROLLER

48 LE6002001 1 PURGE UNIT ASSY 1

48-1 LG3083001 1 PURGE SWITCH HARNESS

48-2 LE6472001 1 PURGE FOAM

49 08731081

3 TAPTITE, CUP B M3X8

50 LE6134001 1 PAPER CHUTE

51 LE6393001 1 CHUTE FILM L

MFC590

LIST3(ENGINE)

REF No.

CODE

Q'TY

DESCRIPTION

RECOMMEND

REMARKS

LE3194001

REGISTRATION SENSOR ACTUATOR

LE6153001

ACTUATOR SPRING

LG2239001

REGISTRATION SENSOR

LG3156001

REGISTRATION SENSOR HARNESS

LE6356001

PF SPRING

UG5569000

FLAT CORE

LE6438001

FLAT CABLE GUIDE

----

NOT USED

LE6626001

SUPPORT SPRING

0A5300805

SCREW, PAN (S/P WASHER) M3X6

LE6863001

CHUTE FILM

LE6376001

IDLE GEAR SPRING

LE6857001

IDOL GEAR

LE6858001

POLYSLIDER WASHER

MFC590
