SERVICE MANUAL

MODEL: PT-9200PC

SERVICE MANUAL

MODEL: PT-9200PC

Copyright Brother 1998

No part of this publication may be reproduced in any

form or by any means without permission in writing from

the publisher.

Specifications are subject to change without notice.

PREFACE

This publication is a service manual covering the specifications, theory of operation,

disassembly/

reassembly procedure, and troubleshooting of the Brother label printer PT-9200PC. It is

intended for service personnel and other concerned persons to accurately and quickly provide

after-sale service for our PT-9200PC.

To perform appropriate maintenance so that the machine is always in best condition for the

customer, the service personnel must adequately understand and apply this manual.

This manual is made up of four chapters and an appendix.

CHAPTER ISPECIFICATIONS

CHAPTER II MECHANISMS

CHAPTER III ELECTRONICS

CHAPTER IV TROUBLESHOOTING

APPENDIX CIRCUIT DIAGRAM

CHAPTER I

SPECIFICATIONS

CONTENTS

CHAPTER I SPECIFICATIONS

1.1MECHANICAL SPECIFICATIONS................................................................................................I-1

1.1.1 External View..................................................................................................................I-1

1.1.2 Input Specifications.........................................................................................................I-2

1.1.3 Display Specifications......................................................................................................I-2

1.1.4 Printing Specifications.....................................................................................................I-2

1.1.5 Tape Cassette Specifications..........................................................................................I-3

1.1.6 Tape Cutter Specifications...............................................................................................I-3

1.1.7 PC Interface Specifications.............................................................................................I-3

1.2ELECTRONIC SPECIFICATIONS.................................................................................................I-4

1.2.1 Power Supply Specifications............................................................................................I-4

I - 1

1.1 MECHANICAL SPECIFICATIONS

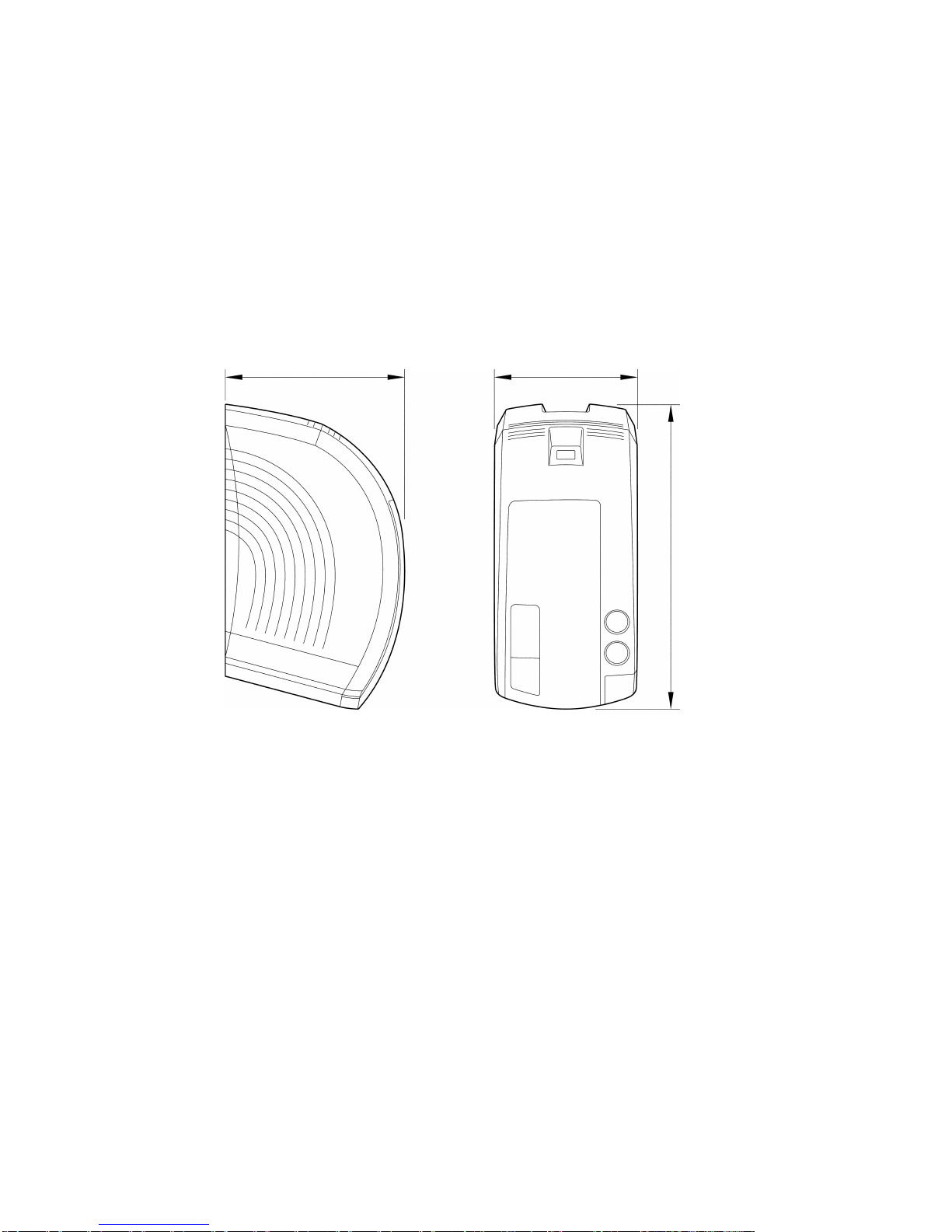

1.1.1 External View

(1) Dimensions (W ×D ×H) 115 mm ×245 mm ×145 mm

(2) Weight

Machine proper Approx. 1.5 kgf (only the machine)

Machine and package Approx. 2.4 kgf

145 mm 115 mm

245 mm

Fig. 1.1-1 External View

I - 2

1.1.2 Input Specifications

(1) Number of keys 2 (ON/OFF ( ) and FEED/CUT ( ) keys)

(2) Key layout See Fig. 1.1-2.

FEED/CUT key

ON/OFF key

Fig. 1.1-2 Key Layout

1.1.3 Display Specifications

(1) Display method LED (green/red)

1.1.4 Printing Specifications

(1) Printing method Thermal transfer or heat sensitizing method

by thermal head

Printing on plastic tapes (laminated and non-

laminated tapes) or special tapes (instant

lettering tape, non-laminated thermal film

tape, and fabric printing tape)

(Fixed print head and tape feed mechanism)

(2) Printing speed 20 mm/sec

(3) Print head

Type Thin film thermal head

384 dots ×1 dot

Dimensions of a heating

element 0.08 mm wide by 0.0545 mm high

I - 3

1.1.5 Tape Cassette Specifications

(1) Cassette Cartridge type

(2) Types of cassettes

Laminated tape cassette Laminated tape, ink ribbon, and adhesive

base tape

Non-laminated tape

cassette Non-laminated tape and ink ribbon

Instant lettering tape

cassette Instant lettering tape and ink ribbon

Fabric printing tape

cassette Fabric printing tape and ink ribbon

Stamp tape cassette Porous-stamp tape and mount

(3) Tape size

Width Length

Laminated tape 6,9,12,18,24,36 mm 8 m

(5 m for fluorescent

coating tapes)

Non-laminated tape 6,9,12,18,24 mm 8 m

Instant lettering tape 18 mm 8 m

Fabric printing tape 18 mm 8 m

Stamp tape 18 mm 8 m

1.1.6 Tape Cutter Specifications

(1) Tape cutting method Automatic full cutting method

(not user-replaceable)

Automatic half cutting method

(not user-replaceable)

1.1.7 PC Interface Specifications

(1) Method

Serial (RS-232C)

Baud rate Max. 115.2 K

(2) Attachments

I/F cable Dedicated cable

Editor Dedicated editor

I - 4

1.2 ELECTRONIC SPECIFICATIONS

1.2.1 Power Supply Specifications

(1) Power supply method

Commercially available power (120V AC, 60 Hz for North America, and 230V

AC, 50 Hz for Europe) is input and stabilized to generate DC voltage by the

switching regulator in the machine.

The power supply cord is inserted into an inlet.
