PARTS REFERENCE LIST

MODEL: PT-220/210E (For Europe)

REVISED

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J317 - 110 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in June, ‘98.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM................................................................................1

2 . COVERS..................................................................................................3

3 . MAIN PCB................................................................................................5

4 . RUBBER KEY...........................................................................................7

5 . SUB PCB..................................................................................................7

6 . ATTACHMENTS ......................................................................................9

7 . PRINTED MATTER .................................................................................9

8 . PACKING MATERIALS ..........................................................................11

-1-

MODEL PT-220/210E (For Europe) 5V2-511-045

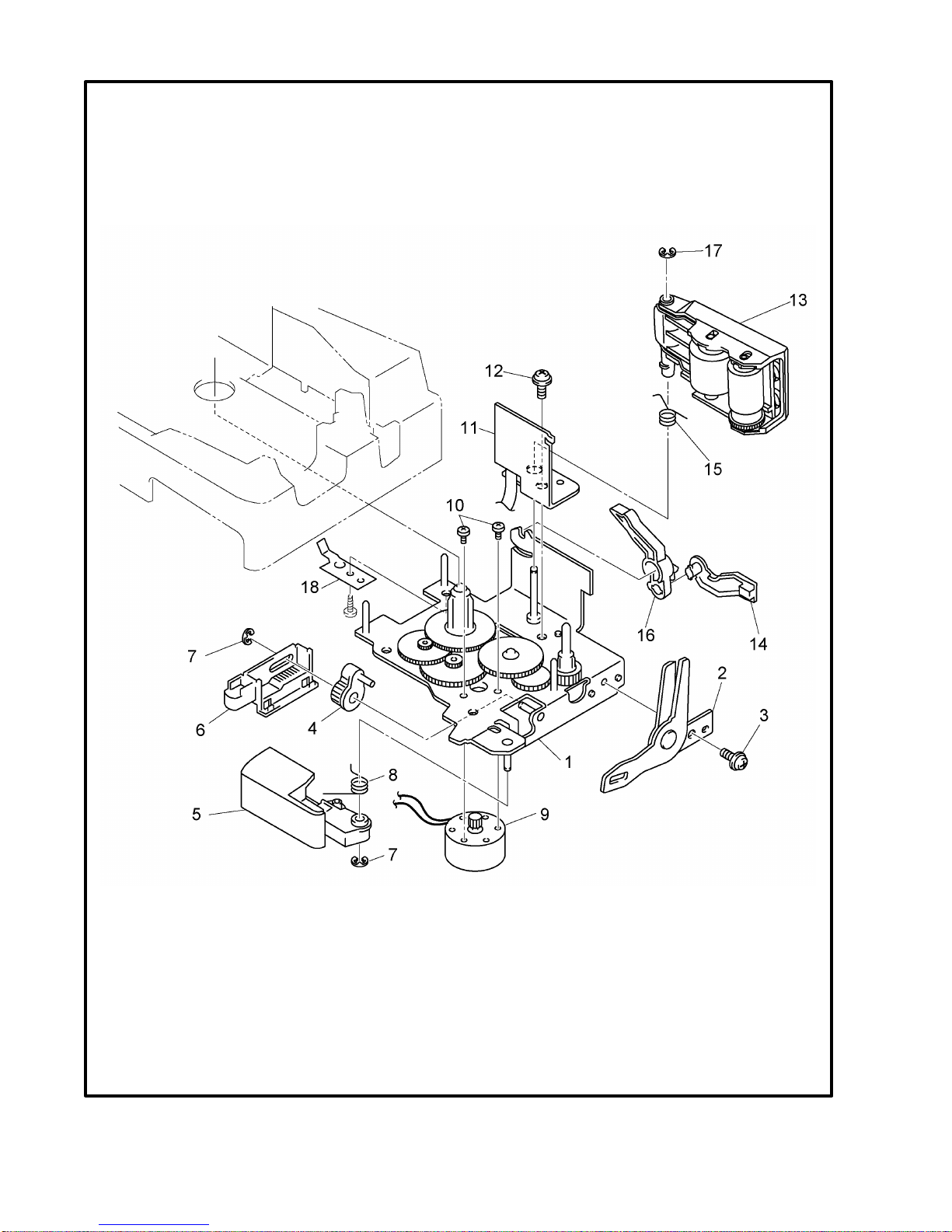

1 . PRINT MECHANISM

-2-

1 . PRINT MECHANISM PT2000026

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UN4505001 1FRAME ASSY 220

2LA4067001 1CUTTER ASSY (SP) CHNG#A

30A4300605 1SCREW, PAN (S/P WASHER) M3X6

4UN4520001 1CUTTER MOVING GEAR ASSY

5UN4523001 1CUTTER LEVER

6UN4524001 1CUTTER RACK GEAR

7 048025346 2 RETAINING RING, E2.5

8UN4525001 1SPRING

9LA0123001 1DC MOTOR ASSY NAPLES

10 UN3640001 2SCREW, PAN 1.7X2.5

11 UN6290001 1HEAD ASSY, KV1801-21B

12 060300415 1 SCREW, BIND M3X4

13 LA3621001 1ROLLER HOLDER ASSY 1300

14 UN0393001 1ROLLER RELEASE ROD 300

15 UN0392001 1ROLLER HOLDER SPRING

16 UN4530001 1ROLLER RELEASE LEVER 220

17 048020346 1 RETAINING RING, E2

18 UN4531000 1ANTI-STATIC SPRING 220

MODEL PT-220/210E (For Europe) 5V2-511-045

-3-

MODEL PT-220/210E (For Europe) 5V2-511-061

2 . COVERS

-4-

2 . COVERS PT1999076

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UN4533001 1BODY COVER 220GE, GRAY1395 (PT-220) (DEU/AUT)

1UN4532001 1BODY COVER 220UK, GRAY1395 (PT-220) (GBR/IRL/NLD/CHE/DNK/SWE/ITA/FIN CHNG

/NOR/ESP)

1UN4535001 1BODY COVER 220FR, GRAY1395 (PT-220) (FRA)

1UN4534001 1BODY COVER 220BG, GRAY1395 (PT-220) (BEL/PRT)

1UN2102001 1BODY COVER 210E UK, WHITE1397 (PT-210E) (GBR/DNK/IRL/NLD/SWE/ITA/FIN CHNG

/PRT/ESP)

1UN2153001 1BODY COVER 210E FR, WHITE1397 (PT-210E) (FRA)

1UN2143001 1BODY COVER 210E GE, WHITE1397 (PT-210E) (DEU)

1UN2152001 1BODY COVER 210E BG, WHITE1397 (PT-210E) (BEL)

2UN4536001 1CASSETTE COVER 220, GRAY1395 (PT-220)

2UN4439001 1CASSETTE COVER 210E, WHITE1397 (PT-210E)

3UN4538001 1LCD PANEL 220GE (PT-220) (DEU/AUT)

3UN4537001 1LCD PANEL 220UK (PT-220) (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/PRT/NOR CHNG

/ESP)

3UN4539001 1LCD PANEL 220FR (PT-220) (FRA)

3UN2494001 1LCD PANEL 210E UK (PT-210E) (GBR/DNK/IRL/NLD/SWE/ITA/BEL/FIN/PRT/ESP) CHNG

3UN2496001 1LCD PANEL 210E FR (PT-210E) (FRA)

3UN2495001 1LCD PANEL 210E GE (PT-210E) (DEU)

4UN4540001 1BOTTOM COVER 220, GRAY1421 (PT-220)

4UN4540002 1BOTTOM COVER 220, GRAY1267 (PT-210E)

5 085270615 2 TAPTITE, BIND B M2.6X6

6 085270817 8 TAPTITE, BIND B M2.6X8

7UN8680001 2BATTERY TERMINAL M

8UN8041001 3BATTERY TERMINAL P2

9UN8681006 1TERMINAL COVER, GRAY1421 (PT-220)

9UN8681007 1TERMINAL COVER, GRAY1267 (PT-210E)

10 UN3680001 1STRAP BELT, BLACK (PT-220)

10 UN3680002 1STRAP BELT, GRAY (PT-210E)

11 UN3714001 1CE LABEL

12 UN4542001 1ADAPTER CAUTION LABEL

13 UN4589000 1CASSETTE SPRING

14 UN4590001 1CASSETTE PIN

MODEL PT-220/210E (For Europe) 5V2-511-061

-5-

MODEL PT-220/210E (For Europe) 5V2-511-101

3 . MAIN PCB

SPEC. NO. TABLE

01 11 FRENCH LH H H

02 12 BELGIUM HLH H

03 13 GERMAN H H LH

00 10 UK H H H H

220 210E 1 2 3 4

SPEC.CODE KEYBOARD SPEC. SOLDER POINTS

H: DO NOT SOLDER

L: SOLDER

-6-

3 . MAIN PCB PT2000066

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1B48J317-102 LA5146002 1MAIN PCB ASSY PT220E (PT-220) (DEU/AUT) CHNG#A

1B48J317-101 LA5146001 1MAIN PCB ASSY PT220E (PT-220) (GBR/IRL/NLD/CHE/DNK/SWE CHNG#A

/ITA/FIN/NOR/ESP)

1B48J317-103 LA5146003 1MAIN PCB ASSY PT220E (PT-220) (BEL/PRT) CHNG#A

1B48J317-201C UN4629001 1MAIN PCB ASSY PT220F, FRENCH (PT-220) (FRA) CHNG#A

1B48J317-211 UN4432001 1MAIN PCB ASSY 210EF, FRENCH (PT-210E) (FRA)

1B48J317-210 UN4421001 1MAIN PCB ASSY 210E (PT-210E) (GBR/DNK/IRL/NLD/SWE/ITA

/FIN/PRT/ESP)

1B48J317-213 UN4421002 1MAIN PCB ASSY 210E (PT-210E) (DEU)

1B48J317-212 UN4421003 1MAIN PCB ASSY 210E (PT-210E) (BEL)

MODEL PT-220/210E (For Europe) 5V2-511-101

-7-

MODEL PT-220/210E (For Europe) 5V2-511-102

4 . RUBBER KEY

MODEL PT-220/210E (For Europe) 5V2-511-003

5 . SUB PCB
