P-touch

PARTS REFERENCE LIST

MODEL: PT-9600

NOTES FOR USING THIS PARTS REFERENCE LIST

1. When ordering parts, inform us of the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision, and Parts location mounted on the PCB.)

Note : Orders without Parts Code or Tool No. cannot be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B55L142 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are design-changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A: compatible between old and new

CHNG#B: replaceable from old to new

CHNG#D : incompatible

ADD : newly added

3. Parts marked with an "R" in the REMARKS column are recommended spare parts.

4. The original of this list was made based on the information as of November, 2002.

5. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM................................................................................ 1

2 . COVERS.................................................................................................. 3

3 . KEYBOARD............................................................................................. 5

4 . MAIN PCB ............................................................................................... 7

5 . SENSORS ............................................................................................... 9

6 . LCD PCB ................................................................................................. 9

7 . PRINTED MATTER.................................................................................11

8 . ATTACHMENTS.....................................................................................13

9 . PACKING MATERIALS...........................................................................13

-1-

MODEL PT-9600 8V2-711-045

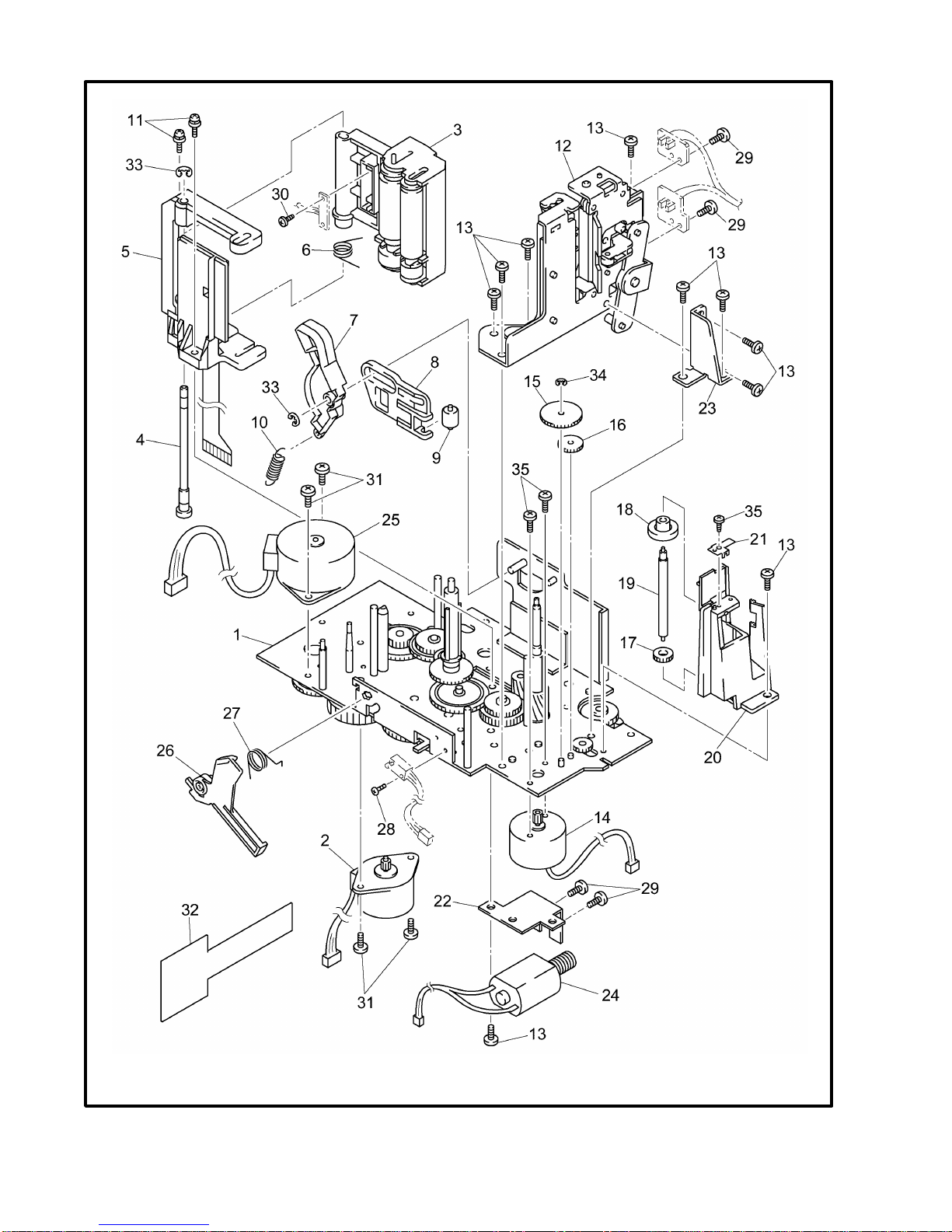

1 . PRINT MECHANISM

-2-

1 . PRINT MECHANISM

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA8191001 1CHASSIS 3600 ASSY R

2LA8436001 1TAPE FEED MOTOR ASSY

3LA8984001 1ROLLER HOLDER ASSY 3600 (SP) R

4UT0895001 1ROLLER HOLDER SHAFT

5LA2071001 1HEAD ASSY, KSH384 BW3 (SP) R

6UT0901001 1ROLLER HOLDER RELEASE SPRING

7UT0239000 1RELEASE LEVER

8UT0240000 1RELEASE ROD

9UB5507000 1RELEASE ROD ROLLER

10 UT1549001 1RELEASE LEVER SPRING PRO

11 0A4300805 2SCREW, PAN (S/P WASHER) M3X8

12 LA8986001 1HALF CUTTER CHASSIS ASSY (SP) R

13 000300615 10 SCREW, BIND M3X6

14 LA8239001 1EJECT MOTOR ASSY R

15 LA3057000 1DOUBLE GEAR 1

16 LA8553001 1EJECT IDLE GEAR

17 LA8440001 1EJECT GEAR

18 LA8241001 1EJECT RUBBER

19 LA8242001 1EJECT ROLLER SHAFT

20 LA8243001 1TAPE GUIDE

21 LA8554001 1EJECT SHAFT SPRING

22 LA8244001 1HC MOTOR HOLDER

23 LA8555001 1HC SUPPORT PLATE

24 LA8245001 1CARRIAGE MOTOR 3600 ASSY R

25 LA8246001 1TAPE CONTROL MOTOR 3600 ASSY R

26 LA8247001 1AV SENSOR ACTUATOR

27 LA8248001 1AV SENSOR SPRING

28 UT0855001 1SCREW, PAN M1.7X6

29 000020405 4 SCREW, BIND M2X4

30 085210415 1 TAPTITE, BIND B M2X4

31 060260516 4 SCREW, BIND M2.6X5

32 U62189000 1PLATEN PROTECT PAD

33 048025346 2 RETAINING RING, E2.5

34 048015346 1 RETAINING RING, E1.5

35 LA8420001 3SCREW, PAN 1.7X3

MODEL PT-9600 8V2-711-045

-3-

MODEL PT-9600 8V2-711-061

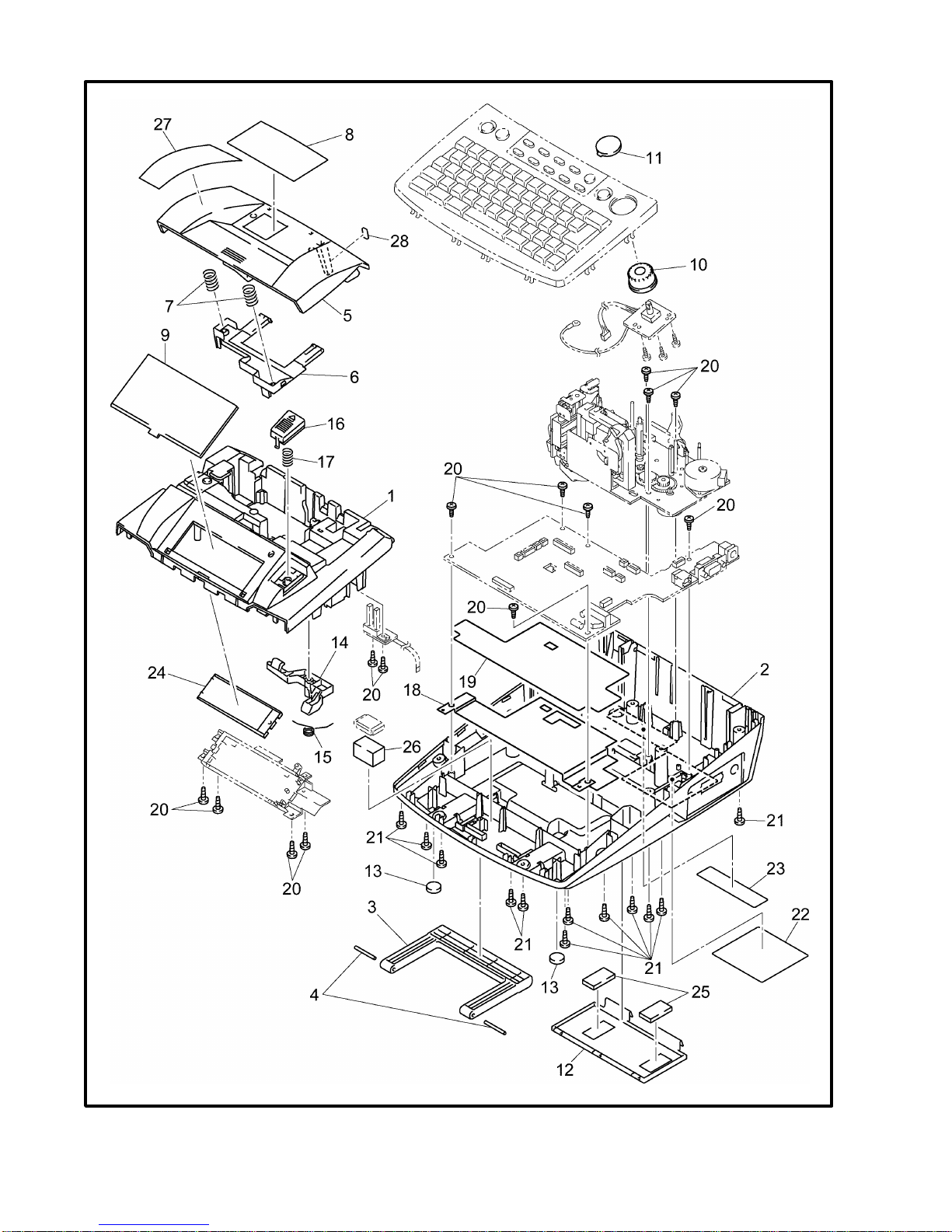

2 . COVERS

-4-

2 . COVERS PtPn020058

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA8249001 1BODY COVER 9600 R

2LA8252001 1BOTTOM COVER 9600 R

3LA8253001 1HANDLE 9600 R

4U05810001 2HANDLE SHAFT R

5LA8254001 1CASSETTE COVER 9600 R

6LA8255001 1CASSETTE PRESSER

7LA8256001 2CASSETTE PRESSER SPRING

8LA8257001 1TAPE PANEL 9600 US (USA/CAN) R

8LA8312001 1TAPE PANEL 9600 EC (EUROPE/ZAF/AUS) R, ADD

9LA8258001 1LCD PANEL 9600 US (USA/CAN) R

9LA8338001 1LCD PANEL 9600 GE (DEU/AUT) R

9LA8313001 1LCD PANEL 9600 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/NOR/ESP/ZAF/AUS) R, ADD

9LA8341001 1LCD PANEL 9600 FR (FRA) R

10 LA7417001 1NAVI DIAL 1850 GE (DEU/AUT) R

10 LA7432001 1NAVI DIAL 1850 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/NOR/ESP/ZAF/AUS) R, ADD

10 LA7436001 1NAVI DIAL 1850 FR (FRA) R

11 LA8900001 1EMBLEM 9600 (USA/CAN) R

12 LA8260001 1BATTERY LID 9600 R

13 LA5753001 2LOWER FOOT 2300

14 LA8354001 1LOCK ARM

15 LA8262001 1LOCK ARM RETURN SPRING

16 LA8263001 1RELEASE BUTTON

17 UT1489001 1RELEASE BUTTON RETURN SPRING

18 LA8308001 1SHIELD PLATE D

19 LA8264001 1SHEET A

20 085270817 14 TAPTITE, BIND B M2.6X8

21 085271017 12 TAPTITE, BIND B M2.6X10

22 LA8266001 1CAUTION LABEL 9600 US (USA/CAN)

22 LA8335001 1CAUTION LABEL 9600 EC (EUROPE/ZAF/AUS) ADD

23 LA5703001 1FCC LABEL 2300 (USA/CAN)

23 LA4998001 1C-TICK MARK (AUS) ADD

24 LA8267001 1LIGHT PLATE ASSY 9600

25 LA8565001 2CUSHION

26 LA8963000 1CORE CUSHION (EUROPE/ZAF/AUS) ADD

27 LA8620001 1MYLAR LABEL 3600 US (USA)

28 LA9349001 1BRAKE PAD 3600

MODEL PT-9600 8V2-711-061

-5-

MODEL PT-9600 8V2-711-003

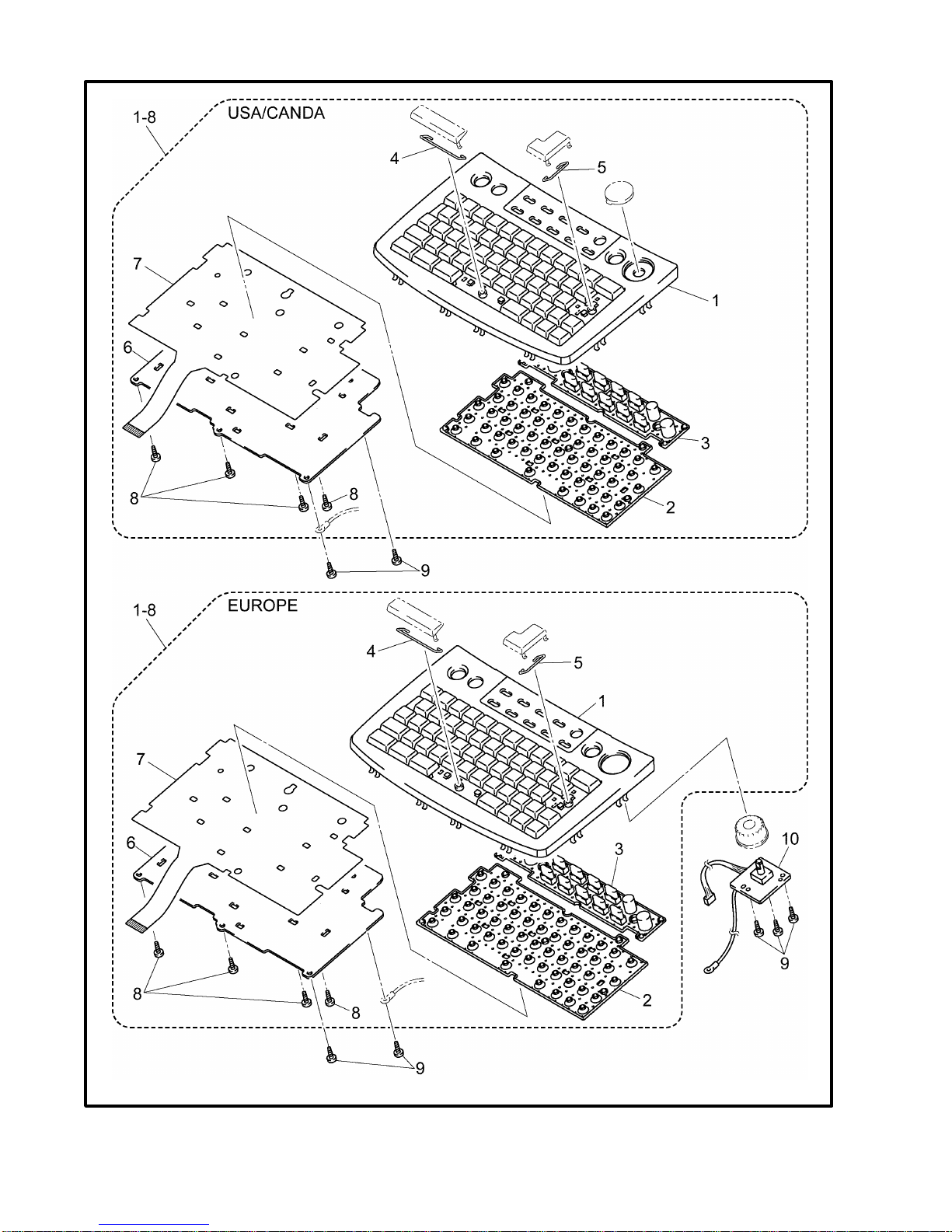

3 . KEYBOARD

-6-

3 . KEYBOARD PtPn020058

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-8 LA8654001 1KB UNIT US (USA/CAN) R

1-8 LA8655001 1KB UNIT GE (DEU/AUT) R

1-8 LA8656001 1KB UNIT UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/FIN/NOR/ESP R

/ZAF)

1-8 LA8657001 1KB UNIT FR (FRA) R

1-8 LA8658001 1KB UNIT BG (BEL) R

1-8 LN0032001 1KB UNIT AUS (AUS) ADD

1LA8250001 1BODY KB COVER 9600 US (USA/CAN)

1LA8337001 1BODY KB COVER 9600 GE (DEU/AUT)

1LA8311001 1BODY KB COVER 9600 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA ADD

/FIN/NOR/ESP/BEL/ZAF/AUS)

1LA8340001 1BODY KB COVER 9600 FR (FRA)

2LA8176001 1CONTACT RUBBER

3LA8177001 1FUNCTION RUBBER 9600 US (USA/CAN)

3LA8178001 1FUNCTION RUBBER 9600 GE (DEU/AUT)

3LA8179001 1FUNCTION RUBBER 9600 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA ADD

/FIN/NOR/ESP/BEL/ZAF/AUS)

3LA8180001 1FUNCTION RUBBER 9600 FR (FRA)

4LA8187001 1KEY D SP WIRE

5LA8188001 1KEY C RET WIRE

6LA8189001 1FIX PLATE

7B55L137-1 LA8190001 1PCB, B55L137

8 085270817 4 TAPTITE, BIND B M2.6X8

9 085270817 2 TAPTITE, BIND B M2.6X8 (USA/CAN)

9 085270817 5 TAPTITE, BIND B M2.6X8 (EUROPE/ZAF/AUS) ADD

10 B55L139-1 LA8305001 1JOG PCB ASSY 9600 (EUROPE/ZAF/AUS) R, ADD

MODEL PT-9600 8V2-711-003

-7-

MODEL PT-9600 8V2-711-101

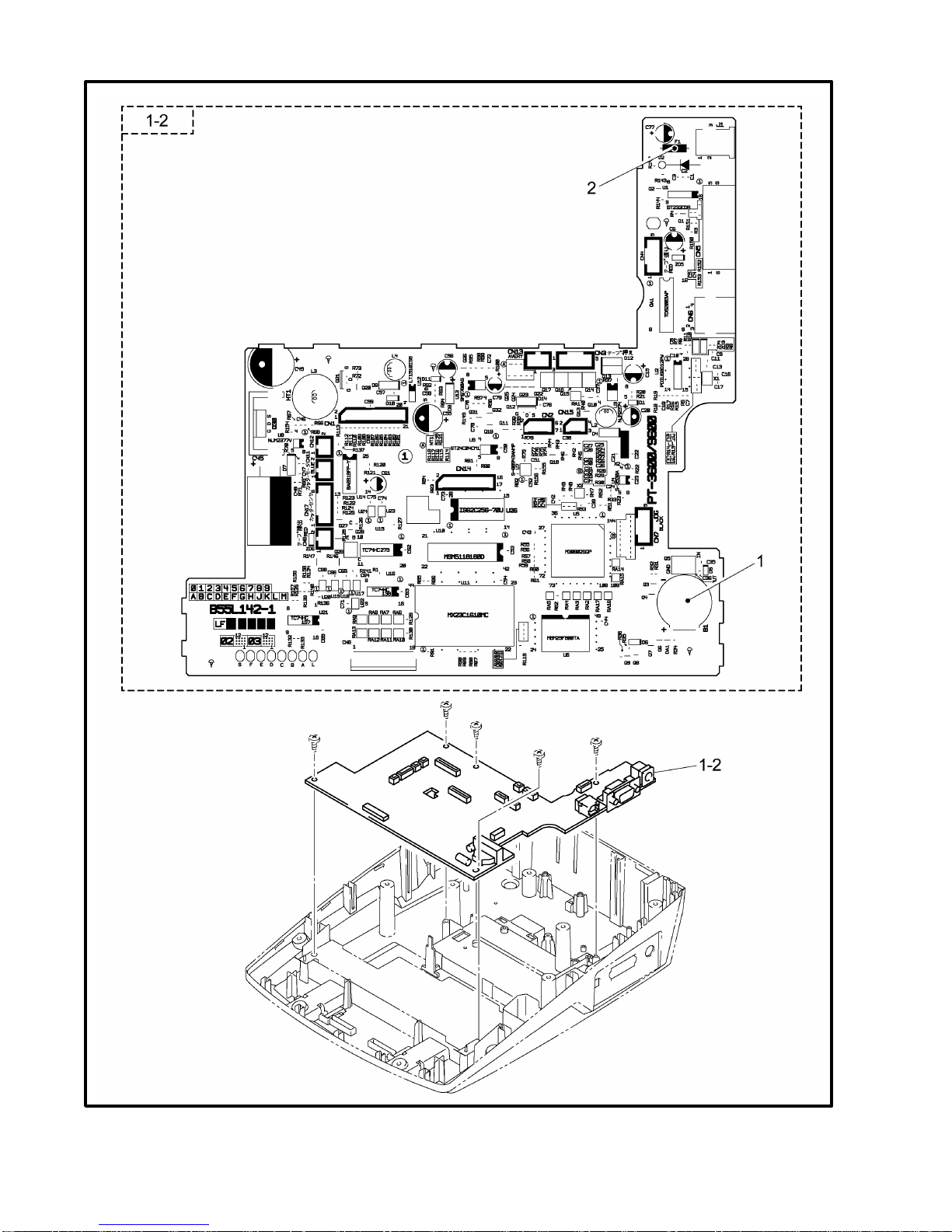

4 . MAIN PCB
