ENGLISH

INCLUDED ACCESSORIES 2

IMPORTANT NOTE 3

EMBROIDERY SAMPLES USING THE CYLINDER FRAME 3

DIAMETER AND DEPTH OF BAGS AND CYLINDRICAL ITEMS THAT CAN BE

EMBROIDERED 4

Bags (purses or cases) ..........................................................................................................4

Knit ribbing on cuffs (such as on golf club covers) ..............................................................4

Cylindrical items (such as pant legs or shirts) ......................................................................4

FABRICS 5

PREPARING TO USE THE CYLINDER FRAME 5

Installing the cylinder frame driver .....................................................................................5

Adjusting the cylinder frame driver (only when used for the first time) ..............................7

Installing the needle plate spacer ........................................................................................8

Preparing the cylinder frame mounting jig ..........................................................................8

INSTALLING THE CYLINDER FRAME 9

Hooping the fabric in the cylinder frame ............................................................................9

Attaching the cylinder frame to the machine ....................................................................11

Removing the cylinder frame ............................................................................................12

INSTALLING THE EMBROIDERY FRAME HOLDER 12

ADDITIONAL DIGITIZING INFORMATION 14

Cylinder Frame User's Guide

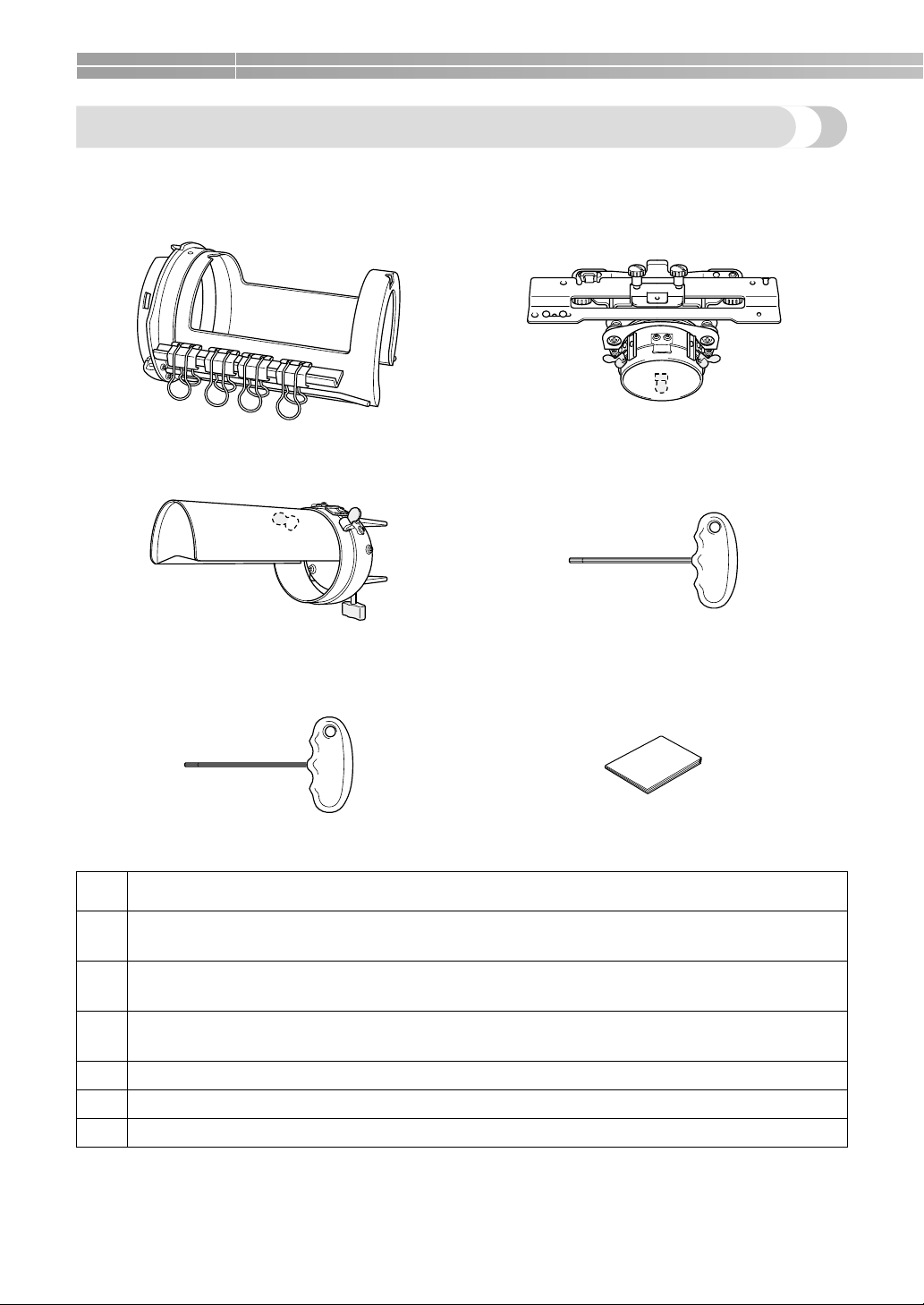

Included accessories

Check that the following cylinder frame, cylinder frame driver, cylinder frame mounting jig and the accessories

are included. If any item is missing or damaged, contact your authorized retailer.

No. Part Name

1Cylinder frame with 8 clips

(Embroidering area (90 mm (wide) × 80 mm (high)))

2Cylinder frame driver and 4 thumb screws

(Attach the cylinder frame driver to the carriage in order to use the cylinder frame.)

3Cylinder frame mounting jig

(Use when hooping fabric in the cylinder frame.)

4Allen wrench (3 mm)

5Allen wrench (2.5 mm)

6User's guide

ENGLISH

Important note

●Do not place floppy disks or magnetic cards

near the cylinder frame driver. The cylinder

frame driver is equipped with extremely

strong magnets, which may affect magnetic

media.

●Before installing the cylinder frame driver,

verify the version of your machine by

checking the shape of the notch in the

connecting plate installed on the carriage.

Split in two (before upgrading)

Split in three (after upgrading)

●If the notch is not split in three, the

embroidery machine is the older version.

Purchase the upgrade kit (sold separately)

and upgrade the embroidery machine. For

details, contact your authorized retailer.

●Before installing the cylinder frame, be sure

to adjust the cylinder frame driver. If the

same machine is being used, this

adjustment is only required the first time

that it is used. For details, refer to “Adjusting

the cylinder frame driver (only when used

for the first time)” on page 7.

●After the cylinder frame driver has been

adjusted, it must be adjusted again if a

different machine is being used. Adjust the

driver for each machine that is used. For

details, contact your authorized retailer.

Memo

●When the cylinder frame is attached, the

following embroidery frame indicator

(indicator showing the embroidery frames

that can be used) appears.

By using the cylinder frame, patterns can be

embroidered onto bags and cylindrical items. The

procedures for using the cylinder frame are

described below.

Embroidery samples using

the cylinder frame

1Only this area can be embroidered.

Memo

●There are various conditions on the size and

fabric in order to embroider. For details on

these conditions, refer to page 4 through 5.

●When embroidering golf club covers, check

that the fabric is elastic and is a size that fits

in the cylinder frame. In addition, only one-

point embroidery patterns can be sewn in

the area indicated in the illustration.

Diameter and depth of bags

and cylindrical items that can

be embroidered

The items embroidered using the cylinder frame

must have the diameter and depth shown below.

The diameter refers to the width of the bag or

cylindrical item, and the depth refers to the height of

the bag or cylindrical item.

■Bags (purses or cases)

•Diameter

1155 mm (6 1/8 inches)

2Must have a width of 155 mm (6 1/8 inches)

or more (when folded).

•Depth

1Must have a height of 70 mm (2 3/4 inches) or

more from the bottom.

270 mm (2 3/4 inches)

Memo

●The embroidering position on bags differs

depending on the width of the bag.

• With a width of 155 mm (6 1/8 inches) or

less: The embroidery can be sewn at a

height of 70 mm (2 3/4 inches) or more

from the bottom.

• With a width of 155 mm (6 1/8 inches) or

more: The height of the embroidery

position depends on the width of the

bag.

■Knit ribbing on cuffs (such as on golf club covers)

1155 mm (6 1/8 inches)

2Must have a width of 155 mm (6 1/8 inches) or

more (when folded).

■Cylindrical items (such as pant legs or shirts)

1155 mm (6 1/8 inches) or more

222mm (7/8 inch) or more

3175 mm (6 7/8 inches) or more

• Diameter: Must have a width of 155 mm

(6 1/8 inches) or more (when folded).

• Depth: Must be 22mm (7/8 inch) or more

from the hem.

Memo

●When embroidering at a position more than

130 mm (5 1/8 inches) from the pant hem,

such as at the knee, the width must be

175 mm (6 7/8 inches) or more when

folded.

ENGLISH

Fabrics

For best results, it is recommended to use the

following types of fabrics.

• 100% cotton

• 35% cotton/65% polyester

• 80% wool/20% nylon

• 15% wool/85% acrylic

Fabrics that are difficult to hoop, wrinkle easily or

shrink are not recommended to be used with the

cylinder frame. Fabrics such as:

• Polyester foam

• Stretch fabrics

• Melton wool

•100%nylon

•Suede

Note

●Patterns that misalign easily should not be

embroidered using this cylinder frame.

●Only use one-point embroidery patterns or

letters on ribbed knit fabrics.

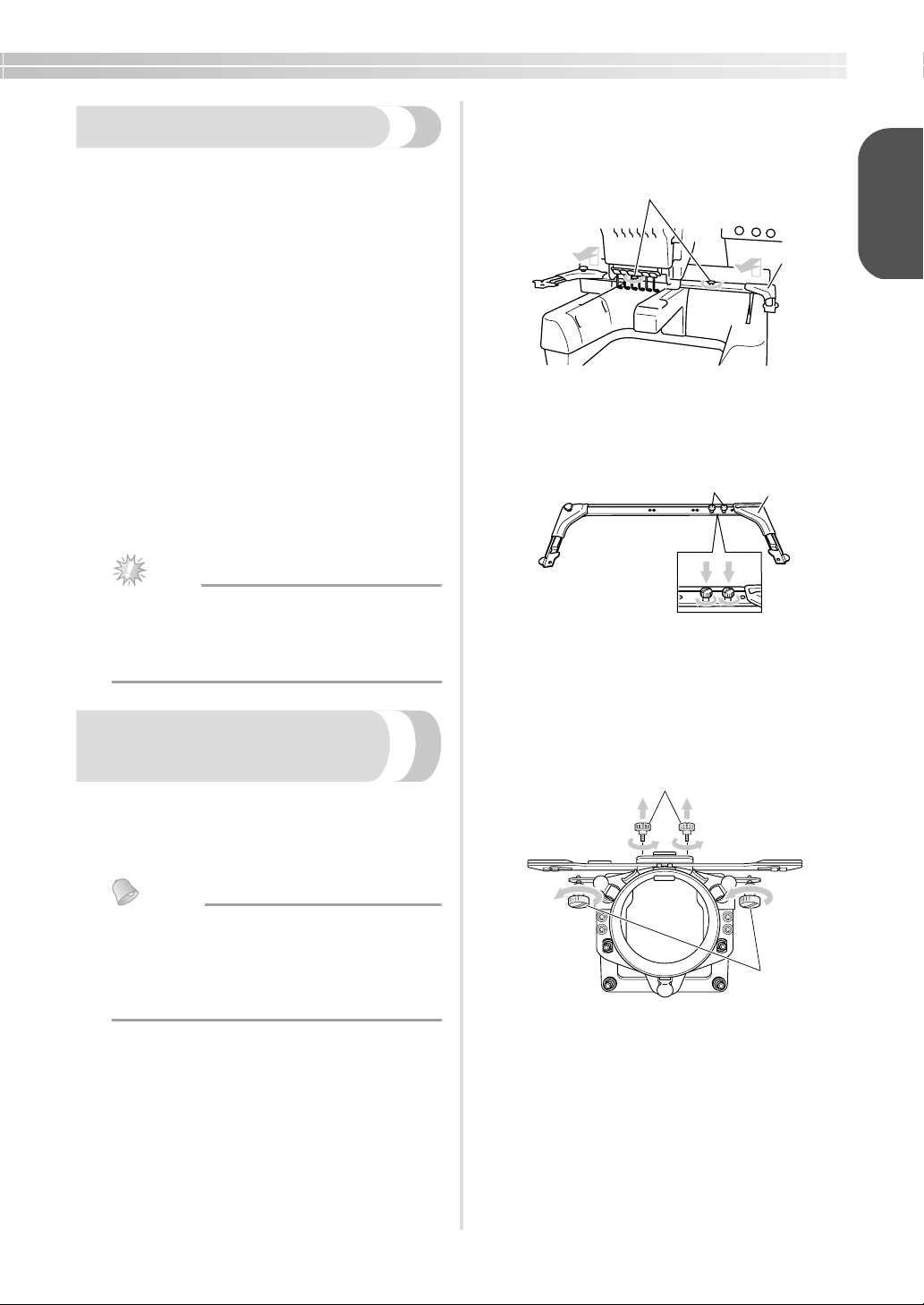

Preparing to use the cylinder

frame

■Installing the cylinder frame driver

Remove the embroidery frame holder from the

carriage, and then install the cylinder frame

driver.

Memo

●Before removing the embroidery frame

holder, remove the embroidery frame. For

details on the removal procedure, refer to

“Removing the embroidery frame” in the

Operation Manual.

aLoosen and remove the two thumb screws,

and then remove the embroidery frame

holder.

1Thumb screws

2Embroidery frame holder

• The removed thumb screws remain attached

to the embroidery frame holder.

1Leave the two thumb screws attached so they

are not lost.

2Embroidery frame holder

bRemove the two upper thumb screws of the

cylinder frame driver, and then loosen the

two lower thumb screws.

1Upper thumb screws (smaller)

2Lower thumb screws (larger)

cPass the machine bed through the ring of the

cylinder frame driver.

1Machine bed

2Gap in the mounting plate

Note

●Be careful that the cylinder frame driver

does not hit any nearby parts, such as the

presser foot or the gap in the mounting

plate.

dInsert the two thumb screws at the bottom

of the cylinder frame driver into the notches

in the carriage, and then place the mounting

plate of the cylinder frame driver on top of

the X carriage.

1Notch in the carriage

2Thumb screw of the cylinder frame driver

3Mounting plate of the cylinder frame driver

4X carriage

eInsert the pins on the X carriage into the

holes in the mounting plate of the cylinder

frame driver.

1Pins on the X carriage

2Holes in the mounting plate of the cylinder

frame driver

fTighten the two thumb screws removed in

step b.

gWhile pushing in the cylinder frame driver

so that it is fully inserted, tighten the two

lower thumb screws to secure the cylinder

frame driver.

XThis completes the installation of the

cylinder frame driver.

Memo

●Using the disc-shaped screwdriver included

with the embroidery machine, firmly tighten

the thumb screws.

ENGLISH

■Adjusting the cylinder frame driver (only when

used for the first time)

1L-shaped mounting bracket

2Ring

3Fitting in ring

Note

●Adjust the cylinder frame driver only when

it is being used for the first time. If the same

machine will be used, this adjustment will

not be required with later uses. However, if

the cylinder frame driver is used with a

different machine and the settings are

changed, the adjustment must be performed

again.

aSet the main power switch to “I” to turn on

the machine. After the carriage moves to its

initial position, turn off the machine.

Memo

●Be sure to adjust the cylinder frame driver at

its initial position. For details on the initial

position, refer to the Operation Manual.

bUsing the enclosed Allen wrench (2.5 mm),

turn the two hexagonal screws one turn in

the direction of the arrow to loosen them.

When the hexagonal screws are loosened,

the fitting in the ring is lowered.

1Hexagonal screws

2Enclosed Allen wrench (2.5 mm)

3Fitting in ring

Note

●Do not remove the hexagonal screws.

cWhile lightly pressing down with your finger

on the L-shaped mounting bracket so that it

touches the top surface of the machine bed,

use the Allen wrench (2.5 mm) to firmly

tighten the two hexagonal screws.

1L-shaped mounting bracket

2Fitting in ring

Memo

●Firmly tighten the hexagonal screws so that

the fitting in the ring touches the surface of

the machine bed.

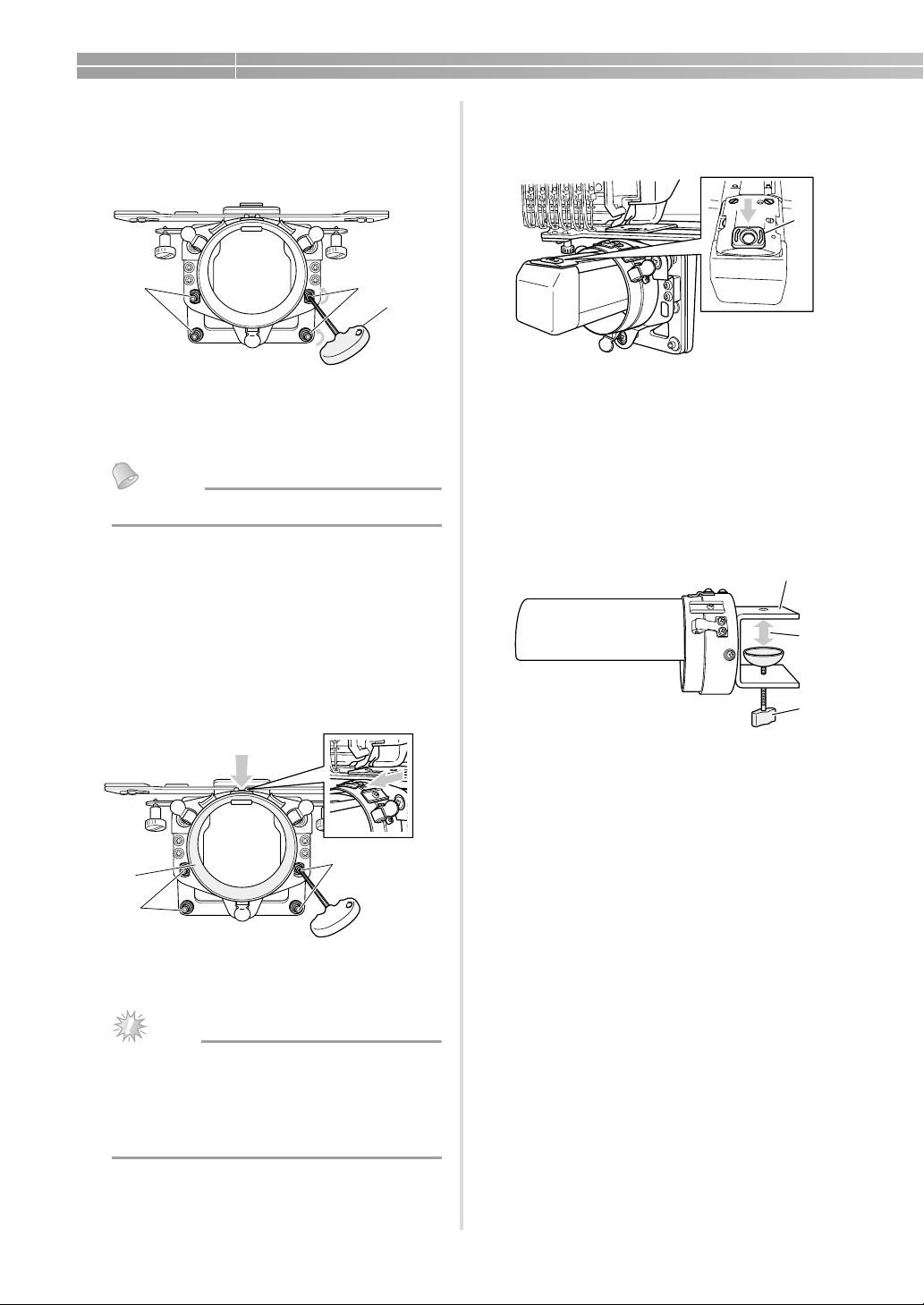

dUsing the enclosed Allen wrench (3 mm),

turn the four hexagonal screws outside the

ring one turn in the direction of the arrow to

loosen them.

1Hexagonal screws

2Enclosed Allen wrench (3 mm)

XWhen the hexagonal screws are loosened,

the ring can be lowered.

Memo

●Do not remove the hexagonal screws.

eWhile lightly pressing down on the ring, so

that the spacing between the ring and the

bed are equal on the left and right sides, use

the Allen screwdriver (3mm) to evenly

tighten the opposite hexagonal screws on

the outside of the ring, and then tighten the

other two hexagonal screws.

Firmly tighten all 4 screws.

1Ring

2Hexagonal screws

Note

●If the screws are not firmly tightened, the

cylinder frame driver may be damaged.

●To avoid damage to the machine or fabric,

make sure that no excess material is

allowed into the gap.

■Installing the needle plate spacer

Attach the needle plate spacer (included with the

machine) to the needle plate.

1Needle plate spacer

■Preparing the cylinder frame mounting jig

Attach the cylinder frame mounting jig to a level,

stable surface, such as a desk.

aLoosen the mounting jig thumb screw to

increase the space in the mounting bracket

so that it is wider than the thickness of the

mounting surface.

1Mounting bracket

2Open to desired width.

3Thumb screw

• The mounting bracket can be attached to a

surface 9 to 38 mm (11/32 to 1 1/2 inches)

thick.

Indice

Lingue:

Altri manuali Brother Accessori per macchine da cucire

Brother

Brother PRSCLPM1 Manuale utente

Brother

Brother WT10 Manuale utente

Brother

Brother 4234DT Manuale utente

Brother

Brother ScanNCut DX Printable Sticker Starter Kit Manuale utente

Brother

Brother MD-600 Series Manuale utente

Brother

Brother SA107 Manuale utente

Brother

Brother PR-600/600C Manuale utente

Brother

Brother SA179 Manuale utente

Brother

Brother ScanNCut DX Embossing Tool Set Manuale utente

Brother

Brother KIT I Manuale utente

Brother

Brother SA208 Manuale utente

Brother

Brother sa160 Manuale utente

Brother

Brother SA179 Manuale utente

Brother

Brother PR-620 Manuale utente

Brother

Brother S-6200A Manuale utente

Brother

Brother 888-M50 Manuale utente

Brother

Brother ScanNCut DX Embossing Starter Kit Manuale utente

Brother

Brother Innov-is V7 Manuale utente

Brother

Brother KIT CW Manuale utente

Brother

Brother F012N Manuale utente

Brother

Brother F036N Manuale utente

Brother

Brother ScanNCut DX Foil Transfer Starter Kit Manuale utente

Brother

Brother SA104/F082 Manuale utente

Brother

Brother ScanNCut DX Stamp Starter Kit Manuale utente

Manuali Accessori per macchine da cucire popolari di altre marche

DIVERSIFIED WOODCRAFTS

DIVERSIFIED WOODCRAFTS SMT-7242 Manuale utente

Jack

Jack 6040-D Manuale tecnico

JUKI

JUKI IP-410 Manuale utente

ZOJE

ZOJE 1900D Manuale utente

ELNA

ELNA 795-816-116 Manuale utente

Baby Lock

Baby Lock General Purpose Zig Zag Foot Manuale utente

ELNA

ELNA 202-248-004 Manuale utente

Efka

Efka dc 1500 Manuale utente

Baby Lock

Baby Lock BLQ2-QGF Manuale utente

Mitsubishi Electric

Mitsubishi Electric MP-G10-AH Manuale utente

JUKI

JUKI IP-200 Guida utente

Sullivans

Sullivans Sew & Go Manuale utente

Sailrite

Sailrite ULTRAFEED 120931 Manuale utente

Bernina

Bernina Spanish Hemstitch Equipment 47 Manuale utente

ELNA

ELNA 495-526-20 Manuale utente

$TEX ALL IN 1 Sleeve Board Pro Manuale utente$

TEX

TEX ALL IN 1 Sleeve Board Pro Manuale utente

JUKI

JUKI IP-420 Manuale utente

Husqvarna

Husqvarna VIKING Do All Quilters Hoop Manuale utente
