Frameworx LCD
Interface
Pre-Installation Manual
September 2009 / 10-095400-046
0609-28
2Frameworx to LCD Interface Pre-Installation
Frameworx LCD Interface Unit Pre-Installation Manual
© September 2009 by the Brunswick Bowling and Billiards Corporation. All rights reserved.
Frameworx is a registered trademark of the Brunswick Bowling and Billiards Corporation.
Reorder Part No. 10-095400-046
Notice: If available, updates to this manual can be found on-line at www.brunswickbowling.com.
Confidentialproprietaryinformation.Allinformationcontainedinthisdocumentissubjecttochangewithout
notice.
BrunswickBowling&BilliardsCorporation
525 West Laketon Avenue
P.O. Box 329
Muskegon,MI49443-0329
U.S.A.
231.725.3300
3
Frameworx to LCD Interface Pre-Installation
SAFETY
Throughoutthispublication,“Warnings”,and“Cautions”(accompaniedbyoneoftheInternational
HAZARDSymbols)areusedtoalertthemechanictospecialinstructionsconcerningaparticularserviceor
operationthatmaybehazardousifperformedincorrectlyorcarelessly. Theyaredefinedbelow.
OBSERVEANDREADTHEMCAREFULLY!
These“SafetyAlerts”alonecannoteliminatethehazardsthattheysignal. Strictcompliancetothesespecial
instructionswhenperformingtheservice,plustrainingand“CommonSense”operationaremajoraccident
preventionmeasures.
NOTE or IMPORTANT!: Will designate significant informational notes.
WARNING! Will designate a mechanical or nonelectrical alert which could
potentially cause personal injury or death.
WARNING! Will designate electrical alerts which could potentially cause
personal injury or death.
CAUTION! Will designate an alert which could potentially cause product
damage.
Will designate grounding alerts.
4Frameworx to LCD Interface Pre-Installation
SAFETY NOTICE TO USERS OF THIS MANUAL
ThismanualhasbeenwrittenandpublishedbytheServiceDepartmentofBrunswickBowlingandBilliards
toaidthereaderwhenservicingorinstallingtheproductsdescribed.
Itisassumedthatthesepersonnelarefamiliarwith,andhavebeentrainedin,theservicingorinstallation
proceduresoftheseproducts,whichincludestheuseofcommonmechanic’shandtoolsandanyspecial
Brunswickorrecommendedtoolsfromothersuppliers.
Wecouldnotpossiblyknowofandadvisethereaderofallconceivableproceduresbywhichaservice
mightbeperformedandofthepossiblehazardsand/orresultsofeachmethod. Wehavenotattemptedany
suchwideevaluation. Therefore,anyonewhousesaserviceprocedureand/ortool,whichisnotrecom-
mendedbyBrunswick,mustfirstcompletelysatisfyhimselfthatneitherhisnortheproductssafetywillbe
endangeredbytheserviceprocedureselected.
Allinformation,illustrationsandspecificationscontainedinthismanualarebasedonthelatestproduct
informationavailableatthetimeofpublication.
Itshouldbekeptinmind,whileworkingontheproduct,thattheelectricalsystemiscapableofviolentand
damagingshortcircuitsorsevereelectricalshocks. Whenperforminganyworkwhereelectricalterminals
couldpossiblybegroundedortouchedbythemechanic,thepowertotheproductshouldbedisconnected
priortoservicingandremaindisconnecteduntilservicingiscomplete.
5
Frameworx to LCD Interface Pre-Installation
TABLE OF CONTENTS
SiteSurvey ................................................................................................................................... 6
InterfaceOverview ..................................................................................................................... 10
InterfacePowerSupplypreinstallation ......................................................................................... 11
S-VideotoVGACONVERTEROverview ................................................................................. 12
S-VideotoVGACONVERTerPower Supplypreinstallation....................................................... 13
32"widescreenlcdmonitorwithframeworx lcdinterface ............................................................ 14
AllScoringSystems ......................................................................................................... 14
32"widescreenlcdmonitorwithframeworx lcdinterface ............................................................ 15
AllScoringSystems ......................................................................................................... 15
40"widescreenlcdmonitorwithframeworx lcdinterface ............................................................ 16
AllScoringSystems ......................................................................................................... 16
40"widescreenlcdmonitorwithframeworx lcdinterface ............................................................ 17
AllScoringSystems ......................................................................................................... 17
46"widescreenlcdmonitorwithframeworx lcdinterface ............................................................ 18
AllScoringSystems ......................................................................................................... 18
46"widescreenlcdmonitorwithframeworx lcdinterface ............................................................ 19
AllScoringSystems ......................................................................................................... 19
6Frameworx to LCD Interface Pre-Installation
SITE SURVEY
This site survey is to be completed by the sales team before order submission.
1. Verify the type of "Remote Video Board" the center has. There are two locations the "Remote
Video Boards" can be located, in the Lane Group Processor (LGP) or the shaver console. Refer to
Figures 1 & 2. The LGP is located on the curtain wall. If there is not an LGP then the "Remote
Video Board" is located inside the shaver scoring console.

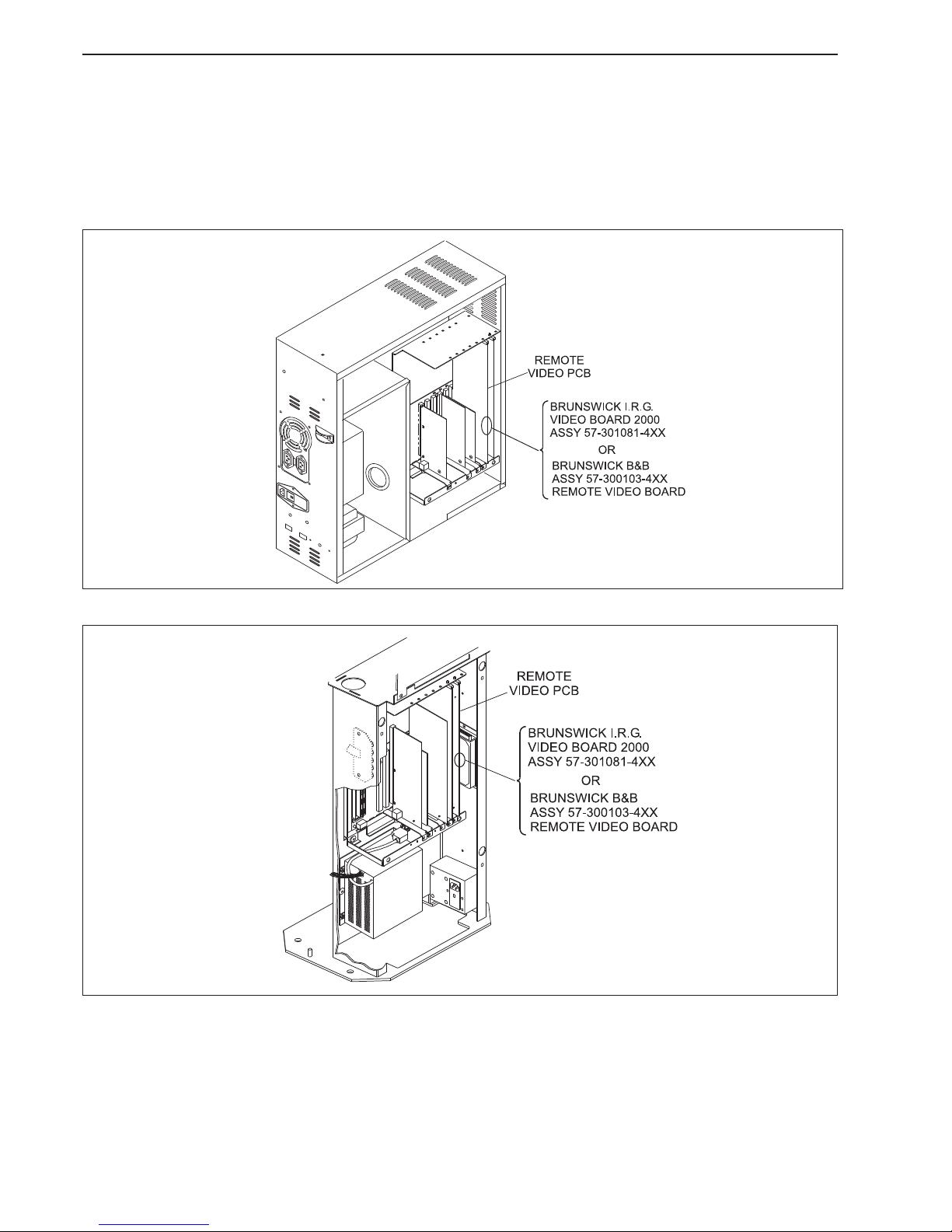

Figure 1. Lane Group Processor Remote Video Board Location
Figure 2. Shaver Console Remote Video Processor
2. Refer to Figures 1 and 2 for the location of the "Remote Video Board" part number.
7
Frameworx to LCD Interface Pre-Installation
IMPORTANT! The "Remote Video Boards" do not have to be removed to identify the part
number.
a. Does the center have video board, part number 57-300103-4xx? ______
b. Does the center have the 2000 video board, part number 57-301081-4xx? ______
c. Does the center have both video boards? ______
NOTE: Check ALL Lane Group Processors or if they do not have any Lane Group Proces-
sors, shaver scoring consoles will need to be checked for the type of video boards
NOTE: If the center does not have any existing overheads and would like to add LCD
overheads, an exception request will need to be processed
3. What type of Frameworx LCD upgrade will be ordered?
Description Guidance Model No. QTY
FXLCDUPGRADE32"SAMSUNGFORALL MARKETS
INCLUDINGASIAEXCEPTEUROPE Permonitor E3-300434-032
FXLCDUPGRADE40"SAMSUNGFORALL MARKETS
INCLUDINGASIAEXCEPTEUROPE Permonitor E3-300434-040
FXLCDUPGRADE46"SAMSUNGFORALL MARKETS
INCLUDINGASIAEXCEPTEUROPE Permonitor E3-300434-046
FXLCDUPGRADE32"SAMSUNGFOREUROPE Permonitor E3-300435-032
FXLCDUPGRADE40"SAMSUNGFOREUROPE Permonitor E3-300435-040
FXLCDUPGRADE46"SAMSUNGFOREUROPE Permonitor E3-300435-046
NOTE: Model Number includes Samsung monitor, electronics, and mounting bracket.
IMPORTANT: The customer's responsiblity to provide a quantity of three IG outlets for the
Frameworx LCD Interface. One for each component: Frameworx LCD Interface, S-video to
VGA convertor, and the LCD overhead.
NOTE: The customers are NOT allowed to provide their own LCD overhead.
NOTE: All electronics are capable of 120/230 volts and 50/60 hertz.
8Frameworx to LCD Interface Pre-Installation
4. Does the center have TV-Only monitors currently installed?
If No, skip to question 4.
a. Does the center want to turn the TV-only monitor on or off from the front desk?
i. If yes, then the FX LCD upgrade is required; specify the appropriate number of FX
LCD upgrade tab codes needed for TV-Only monitors.
ii. If No, see part c.
b. Does the center want to use the existing AV Box?
i. If yes, then the FX LCD upgrade is required; specify the appropriate number of FX
LCD upgrade tab codes needed for TV-Only monitors.
ii. If No, see part c.
c. Centers willing to control the TV-only monitors with a remote control can purchase a VCR and
run new composite video cable from the VCR to the TV-only monitors will not need to pur-
chase the LCD Interface. They can simply purchase LCD monitors.
NOTE: The customer is responsible to purchase and install all equipment for TV-only
monitors
5. ONLY applies if Question 3 is no. The customer does not have TV-Only with Frameworx. Does
the customer want to add TV-Only monitors?
If No, skip to question 5.
a. If Yes, centers will NOT be able to turn the TV-only monitor on or off from the front desk.
Centers willing to control the TV-only monitors with a remote control can purchase a VCR and
run new composite video cable from the VCR to the TV-only monitors will not need to pur-
chase the LCD Interface. They can simply purchase LCD monitors.
Description Guidance Package # QTY
32"SAMSUNGFORALLMARKETSINCLUDING
ASIAEXCEPTEUROPE Permonitor 57-863035-000
40"SAMSUNGFORALLMARKETSINCLUDING
ASIAEXCEPTEUROPE Permonitor 57-863355-000
46"SAMSUNGFORALLMARKETSINCLUDING
ASIAEXCEPTEUROPE Permonitor 57-863364-000
32"SAMSUNGFOREUROPE Permonitor 57-863363-000
40"SAMSUNGFOREUROPE Permonitor 57-863368-000
46"SAMSUNGFOREUROPE Permonitor 57-863369-000
HangingBrackets PerMonitor 57-863325-000
NOTE: “Samsung for all markets except Europe” packages will be supplied with a USA
power cord from Brunswick. If the Samsung monitor is purchased for another country
besides USA then the correct power cord or power adapter will have to be purchased by the
customer.
9
Frameworx to LCD Interface Pre-Installation
6. What type of front desk does the center have?
a. Command Network _______
b. Center Master _______
c. Vector Plus _______
7. What version of Frameworx scorer software does the customer have? _______
NOTE: Command Network must have Frameworx scorer software version 5.6. Vector Plus
and Centermaster must have Frameworx scorer software version 6.3. If the customer does not
have the proper software, please contact the CRC on behalf of the customer to obtain these
disks. Provide this site survey to the CRC.
IMPORTANT: The customer is responsible to provide a quantity of three IG outlets prer LCD
overhead for the Frameworx LCD Interface. One for each component: Frameworx LCD
Interface, S-video to VGA convertor, and the LCD overhead.
8. The LCD overheads require different electrical requirements than the old CRT overheads. Please
review the information below with the customer to inform them of their additional electrical responsi-
bilities.
a. Isolated Ground (IG) outlet is required for the LCD Overhead.
b. Isolated Ground (IG) outlet is required for the S-video to VGA convertor.
c. Isolated Ground (IG) outlet is required for the Frameworx LCD Interface.
d. Three power outlets are required for Frameworx LCD Interface, S-video to VGA convertor,
and the LCD overhead.
e. LCDWITHINTERFACEELECTRONICS TOTAL AMPERAGE PERE ONE OVERHEAD (120/230 VOLT)
32"LCD 2.5/1.5
40"LCD 3.5/1.75
46"LCD 4.0/2.0
9. What is the ceiling height, from the lane surface over the approach area where monitors will be
located? _______
a. For 32" LCD we recommend 10’-6" (3.2m) ceiling heights, minimum of 9’-6" (2.9m).
b. For 40" LCD we recommend 10’-10" (3.3m) ceiling heights, minimum of 9’-10" ( 3.0m).
c. For 46" LCD we recommend 11’-1" (3.4m) ceiling heights, minimum of 10’-1" (3.1m).
NOTE: The LCD monitor may be installed with ceilings lower than the minimum ceiling height
distance, but the customer should be aware the height from the lane to the bottom of the
monitor would be less than 89."
IMPORTANT!: The site survey and overhead certificate must be completed and sent to
Contract Management before the contract can be approved and shipped.
10 Frameworx to LCD Interface Pre-Installation
INTERFACEOVERVIEW

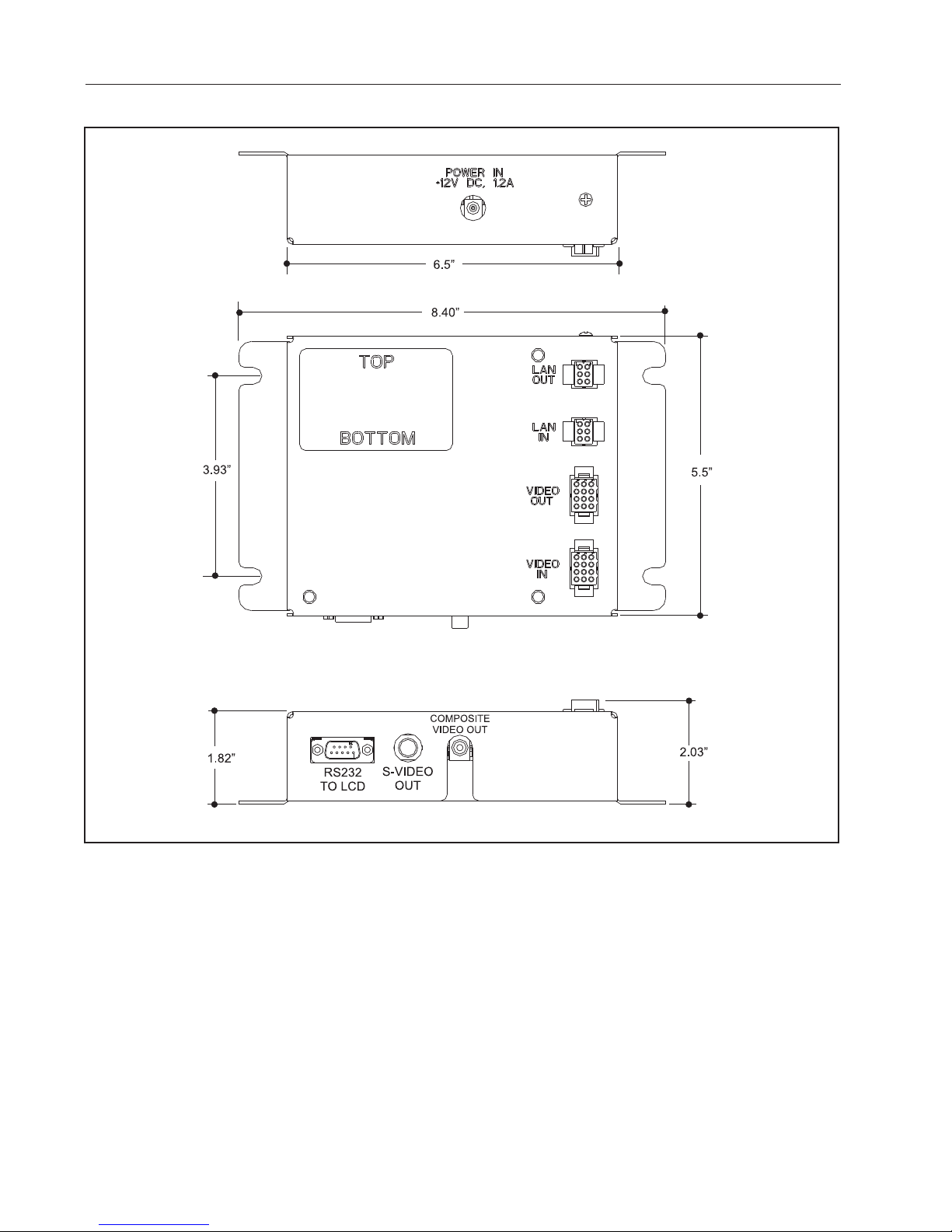

Figure 3. Frameworx to LCD Interface (P/N 57-863349-400)
