Form No. PDS CM5A.24.2

CM5A/CM5B COILS

KMABA BLOWERS

For Manufactured Homes

4THE CM5A/CM5B INDOOR COIL

To complete your cooling or heating system, the model CM5A

or CM5B Coil is installed inside your Evcon/Coleman, Nor-

dyne/Miller/Intertherm or AirPro gas or electric downﬂow fur-

nace. Both coils are uncased, and designed for installation

within the manufactured home furnace casing or inside a fac-

tory-installed plenum. These indoor coils are designed to be

used in conjunction with blower kits and other accessories.

The CM5A and CM5B coils are designed for quick and easy in-

stallation by a qualiﬁed service technician.

The CM5A comes with factory-installed mechanical connec-

tions. The CM5B comes with factory-installed sweat connec-

tions. Both coils utilize a Check-Flo-Rater® piston for refrig-

erant ﬂow control. Both coils can be used in cooling-only

applications or as part of a heat pump system.

When heating in conjunction with a heat pump, the outdoor

heat pump unit recovers heat from the outdoor air, and trans-

mits it to the CM5A or the CM5B indoor coil for distribution to

the living space.The CM5A and CM5B coils are not activated

when heating in conjunction with a furnace without a heat

pump in the system.

Built-in drainage assembly ensures leak-free condensate re-

moval. Periodic cleaning of ﬁlter and drainage sections is rec-

ommended to avoid possible sediment blockage.The A-shape

design of the coil provides maximum cooling-heating transfer

surface and ease of handling at installation.Four coil sizes are

available from 024 though 048, covering a wide range of cool-

ing-heating capacities to meet varying manufactured home re-

quirements.

THE KMABA BLOWER

KMABA Blower Kits and Accessories are designed and built to

meet the needs of the manufactured housing market.The kits

are used to upgrade Nordyne and Evcon gas and electric fur-

naces (see note). For cooling and heat pump duty, kits avail-

able include blowers for up to 4 tons of air conditioning, control

boxes, insulation kits, ﬁlter kits, and evaporator coil shelves.

Blower kits for gas furnaces are shipped without controls.Order

the control box from accessory usage chart.Blower kits for elec-

tric furnaces are shipped with or without controls. See acces-

sory usage chart for details. All control box kits are designed to

operate with a minimum 4-wire thermostat.

Quick connect wire harnesses are shipped with the appro-

priate blower kit or control box for ease of installation. Sheet

metal adapter plates also are included with the blower kits that

are needed to adapt the blower with the furnace.

NOTE: Intertherm, Miller, Coleman, and AirPro brands.

—2—

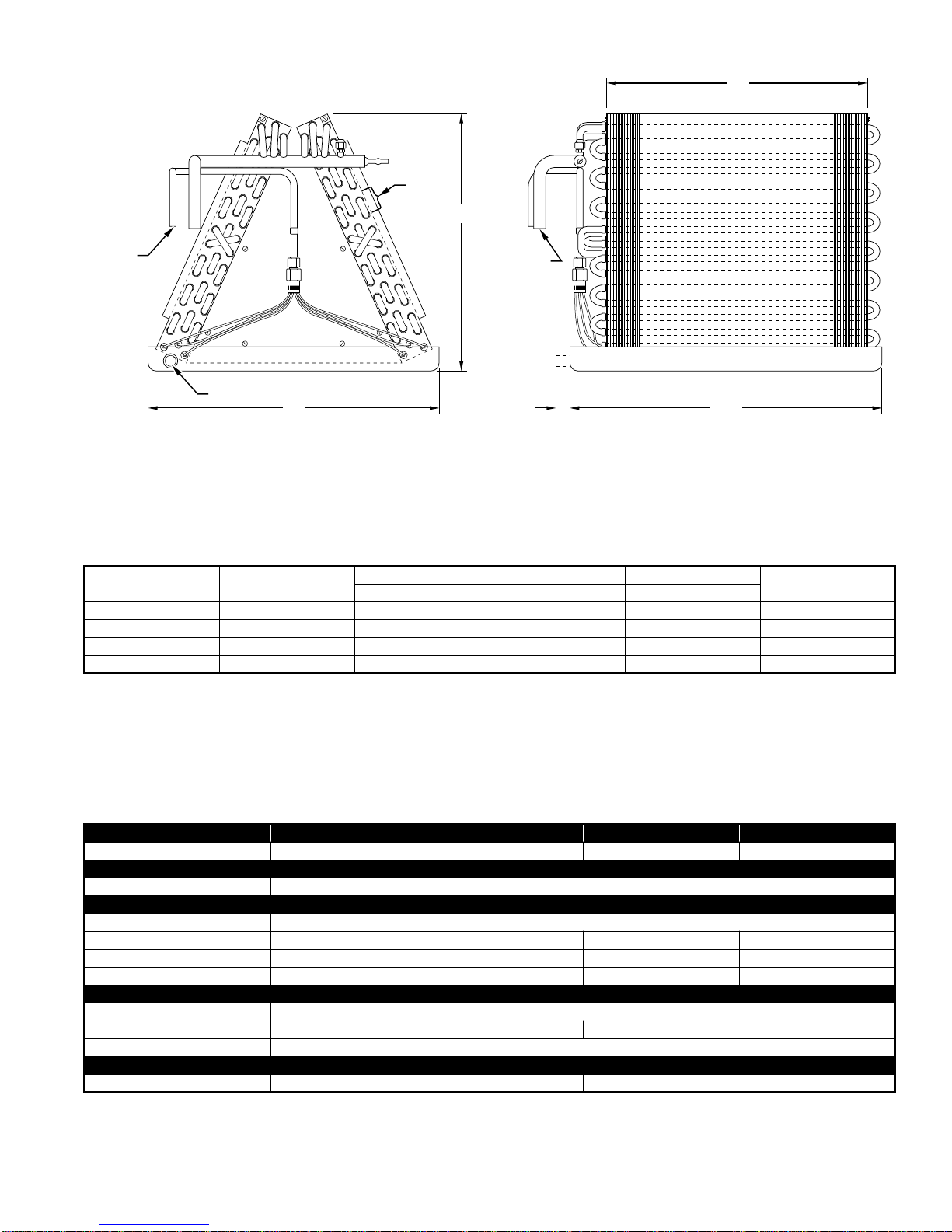

CM5A DIMENSIONS

A96627

NOTE:

Series designation is the 14th position of unit model number.

CM5A SPECIFICATIONS

UNIT SIZE SERIES UNIT DIMENSIONS (In.) NUMBER OF ROWS SHIPPINGWEIGHT

(Lb)ABC

024 A 14 5/8 3 30

036 A 16 3/4 3 32

042 A 18 3/4 3 35

048 A 18 3/4 4 37

UNIT SIZE-SERIES 024-A 036-A 042-A 048-A

Operating Weight (Lb) 21 23 26 28

REFRIGERANT

Control Check-Flo-Rater® Piston

COIL

Type Uncased A-Type with Aluminum Fins

Rows-Fins/In. 3–15 3–15 3–15 4–13

Face Area (Sq Ft) 3.11 3.56 4.00 3.56

Nominal CFM 800 1200 1200 1200

CONNECTIONS

Type Mechanical

Vapor (In. ID) 5/8 3/4

Liquid (In. ID) 3/8

OPTIONAL EQUIPMENT

TXV (Hard Shutoff) KSATX0801HSO KSATX0901HSO

FRONT RIGHT SIDE

"A"

7⁄8″ OD DRAIN

3⁄8″ DIA

LIQUID

FITTING "B" DIA

VAPOR

FITTING

"C" ROWS

19 1⁄4″

16″

7⁄8″18″

—3—

CM5B DIMENSIONS

A96628

NOTE:

Series designation is the 14th position of unit model number.

CM5B SPECIFICATIONS

UNIT SIZE SERIES UNIT DIMENSIONS (In.) NUMBER OF ROWS SHIPPINGWEIGHT

(Lb)ABC

024 A 14 5/8 3 30

036 A 16 3/4 3 32

042 A 18 7/8 3 35

048 A 18 7/8 4 37

UNIT SIZE-SERIES 024-A 036-A 042-A 048-A

Operating Weight (Lb) 21 23 26 28

REFRIGERANT

Control Check-Flo-Rater® Piston

COIL

Type Uncased A-Type with Aluminum Fins

Rows—Fins/In. 3–15 3–15 3–15 4–13

Face Area (Sq Ft) 3.11 3.56 4.00 3.56

Nominal CFM 800 1200 1200 1200

CONNECTIONS

Type Sweat

Vapor (In. ID) 5/8 3/4 7/8

Liquid (In. ID) 3/8

OPTIONAL EQUIPMENT

TXV (Hard Shutoff) KSATX0801HSO KSATX0901HSO

FRONT RIGHT SIDE

"A"

7⁄8″ OD DRAIN

3⁄8″ DIA

LIQUID

FITTING "B" DIA

VAPOR

FITTING

"C" ROWS

19 1⁄4″

16″

7⁄8″18″

—4—

A97119

KMABA SPECIFICATIONS

NOTE:

Refer to Accessory Usage chart for exact kit application.

N/A—Not applicable

BLOWER MODEL ABCD

KMABA01013TG

17-3/4 15-1/4

7-3/8 9-5/8

KMABA02014TG 7-1/2 10

KMABA03013TE 7-3/8 9-5/8

KMABA04014TE 7-1/2 10

KMABA05013TE 7-3/8 9-5/8

KMABA06014TE 7-1/2 10

BLOWER MODEL 01013TG 02014TG 03013TE 04014TE 05013TE 06014TE

Shipping Weight (Lb) 30 38 33 39 35 41

ELECTRICAL

Volts—Phase 115/1 115/1 208–230/1 208–230/1 208–230/1 208–230/1

Operating Voltage Range 104–127 104–127 187–253 187–253 187–253 187–253

Full Load Amps 7.20 9.00 3.00 4.30 3.00 4.30

BLOWER MOTOR

Motor Hp (PSC) 1/2 1/2 1/2 3/4 1/2 3/4

RPM—Speeds 1075/3

Blower Type Direct Drive

BLOWER WHEEL

Diameter (In.) 10-1/2 11-1/2 10-1/2 11-1/2 10-1/2 11-1/2

Width (In.) 8

Air Discharge Downﬂow

Maximum Cooling Capacity 3 Ton 4 Ton 3 Ton 4 Ton 3 Ton 4 Ton

ACCESSORIES

Control Box Kit KMACC02014WG KMACC0401E14 KMACC0601FE4

Filter Kit N/A KMAFK0101NFK

Insulation Kit N/A KMAIK0101E1I N/A

Coil Shelf Kit N/A KMACR0101CRI

—5—

PERFORMANCE DATA

GROSS COOLING CAPACITIES (MBH)

— Bypass Factor

CFM

— Cubic Ft per Minute

EWB

— Entering Wet Bulb (

SHG

— Gross Sensible Capacity 1000 Btuh

TCG

— Gross Cooling Capacity 1000 Btuh

NOTES:

1. Contact manufacturer for cooling capacities at conditions other than

shown in table.

2. Formulas:

Leaving db = entering db —

Leaving wb = wb corresponding to enthalpy of air leaving coil (h

lwb

)

lwb

= h

ewb

—

where h

ewb

= enthalpy of air entering coil.

INDOOR

COIL AIR SATURATED TEMPERATURE LEAVING EVAPORATOR (

30 35 40 45 50

CFM EWB (

F) TCG SHG BF TCG SHG BF TCG SHG BF TCG SHG BF TCG SHG BF

CM5A/CM5B024

600 72 50.4 24.2 0.00 45.8 21.8 0.00 40.9 19.4 0.00 35.3 16.9 0.09 28.8 14.3 0.06

67 41.5 24.8 0.08 37.0 22.4 0.06 32.0 19.9 0.05 26.2 17.3 0.05 19.9 14.7 0.06

62 33.7 25.4 0.05 29.1 22.9 0.05 24.1 20.4 0.06 18.5 17.5 0.08 14.8 14.8 0.19

800 72 61.9 29.4 0.00 56.7 26.8 0.00 50.8 24.1 0.00 44.0 21.1 0.11 36.0 17.9 0.08

67 51.6 30.9 0.10 46.2 28.1 0.08 39.9 25.1 0.07 32.7 22.0 0.07 24.9 18.7 0.08

62 42.1 32.1 0.07 36.4 29.1 0.07 30.1 26.0 0.08 23.2 22.4 0.11 19.0 19.0 0.22

1000 72 71.5 33.8 0.00 65.4 30.9 0.00 58.6 27.8 0.00 51.1 24.7 0.12 42.2 21.2 0.10

67 59.7 36.0 0.12 53.7 33.0 0.10 46.7 29.8 0.09 38.4 26.2 0.09 29.2 22.3 0.10

62 49.2 38.1 0.09 42.7 34.7 0.09 35.4 31.1 0.10 27.6 26.9 0.13 22.9 22.9 0.25

CM5A/CM5B036

1000 72 74.8 35.4 0.00 68.7 32.5 0.00 61.7 29.3 0.00 54.0 26.1 0.11 44.8 22.5 0.09

67 62.6 37.7 0.10 56.4 34.7 0.09 49.2 31.4 0.08 40.8 27.7 0.07 31.3 23.7 0.09

62 51.3 39.7 0.08 44.7 36.3 0.08 37.5 32.7 0.09 29.1 28.3 0.12 23.9 23.9 0.24

1200 72 83.4 39.4 0.00 76.9 36.3 0.00 69.2 33.0 0.19 60.4 29.4 0.12 50.5 25.6 0.10

67 70.1 42.6 0.11 63.1 39.3 0.10 55.3 35.7 0.09 46.2 31.8 0.09 35.7 27.4 0.10

62 57.6 45.4 0.09 50.5 41.8 0.09 42.5 37.8 0.10 33.4 32.8 0.14 27.8 27.8 0.26

1400 72 90.6 42.8 0.00 83.6 39.7 0.00 75.5 36.2 0.17 65.9 32.4 0.13 55.4 28.4 0.12

67 76.3 46.9 0.12 68.9 43.5 0.11 60.3 39.6 0.11 50.8 35.6 0.10 39.6 30.9 0.12

62 62.9 50.5 0.10 55.4 46.7 0.11 46.9 42.5 0.12 37.4 37.1 0.16 31.5 31.5 0.29

CM5A/CM5B042

1000 72 77.4 36.7 0.00 71.5 33.8 0.00 64.7 30.7 0.00 56.8 27.4 0.11 47.8 23.8 0.08

67 65.2 39.2 0.09 59.0 36.1 0.08 51.6 32.7 0.07 43.3 29.0 0.06 33.6 25.0 0.07

62 54.2 41.6 0.07 47.4 38.1 0.07 39.9 34.4 0.07 31.2 29.9 0.09 25.5 25.5 0.21

1200 72 85.9 40.6 0.00 79.8 37.7 0.00 72.1 34.4 0.20 63.3 30.7 0.11 53.6 27.0 0.10

67 72.8 44.2 0.10 65.5 40.7 0.09 57.9 37.2 0.09 48.9 33.3 0.08 38.2 28.8 0.09

62 60.4 47.2 0.08 53.3 43.7 0.08 45.1 39.6 0.09 35.7 34.7 0.11 29.7 29.7 0.23

1400 72 93.1 44.0 0.00 86.6 41.1 0.00 78.5 37.6 0.16 69.1 33.9 0.12 58.5 29.8 0.11

67 79.0 48.5 0.11 71.5 45.0 0.10 63.1 41.2 0.10 53.6 37.2 0.09 42.3 32.5 0.10

62 65.7 52.4 0.09 58.1 48.7 0.10 49.6 44.4 0.10 39.9 39.2 0.13 33.6 33.6 0.25

CM5A/CM5B048

1200 72 86.4 40.9 0.00 79.2 37.4 0.00 71.2 33.8 0.00 62.0 29.9 0.11 51.3 25.7 0.09

67 72.3 43.5 0.11 64.9 39.8 0.09 56.5 35.8 0.08 46.7 31.5 0.07 36.0 27.1 0.09

62 59.6 45.8 0.08 51.5 41.6 0.08 42.7 37.2 0.09 34.2 32.8 0.11 28.6 28.6 0.20

1400 72 94.5 44.6 0.00 86.8 40.9 0.00 77.8 37.0 0.00 68.0 33.0 0.14 56.6 28.5 0.12

67 79.1 47.8 0.13 71.2 44.0 0.12 62.1 39.8 0.11 51.6 35.2 0.10 39.8 30.3 0.11

62 65.1 50.6 0.10 56.9 46.5 0.10 47.4 41.8 0.11 38.3 37.2 0.12 32.4 32.4 0.22

1600 72 101.0 47.6 0.00 93.1 43.9 0.00 83.7 39.9 0.00 73.1 35.6 0.16 61.2 31.0 0.14

67 84.9 51.6 0.15 76.3 47.5 0.14 67.0 43.3 0.13 55.9 38.6 0.12 43.2 33.4 0.13

62 70.0 55.1 0.12 61.5 50.9 0.12 51.5 46.0 0.13 42.4 41.6 0.14 36.0 36.0 0.25

sensible heat cap.

1.09 x CFM

total capacity (Btuh)

4.5 x CFM

3. Direct interpolation is permissible.Do not extrapolate.

4. SHC is based on 80

F db temperature of air entering coil.

Below 80

F db, subtract (Correction Factor x CFM)

from SHC.Above 80

F db, add (Correction Factor x CFM) to SHC

5. All data points are based on 10

F superheat leaving coil.

SHC CORRECTION FACTOR

Interpolation is permissible.

Correction Factor = 1.09 x (1 – BF) x (db – 80)

BYPASS

FACTOR

ENTERING AIR DRY-BULBTEMPERATURE (

79 78 77 76 75 Under 75

81 82 83 84 85 Over 85

Correction Factor

0.10

0.20

0.30

0.98

0.87

0.76

1.96

1.74

1.53

2.94

2.62

2.29

3.92

3.49

3.05

4.91

4.36

3.82 Use formula

shown below.

—6—

COIL STATIC PRESSURE DROP (IN.WC)

UNIT SIZE BULB AIR QUANTITY (CFM)

024 WET

DRY

600 700 800 900 1000

0.11

0.09 0.14

0.12 0.19

0.15 0.23

0.19 0.27

0.22

036 WET

DRY

1000 1100 1200 1300 1400

0.22

0.19 0.28

0.23 0.32

0.27 0.37

0.31 0.42

0.36

042 WET

DRY

1100 1200 1300 1400 1500

0.24

0.20 0.28

0.24 0.32

0.29 0.38

0.33 0.43

0.39

048 WET

DRY

1200 1300 1400 1500 1600

0.30

0.27 0.35

0.29 0.40

0.33 0.45

0.38 0.51

0.43

—7—

ACCESSORY USAGE

* Requires additional control box kit.

† Only required on high static 3-ton applications.

‡ Only required on 3-1/2-ton and 4-ton applications.

** Blower package comes with necessary control box.Additional control box kit not required.

†† Only required if using existing furnace blower.

X—Indicates recommended use of product.

ACCESSORY

KIT

NO.

USEDWITH

Evcon/Coleman/AirPro Nordyne/Miller/Intertherm

Gas Furnaces Electric Furnaces Gas Furnaces Electric Furnaces

DGRT—A

7900 DGRT—B

DGAT

3400

3400A

3500A8— EB—B MGHA MGBA MGBB MGHB E1EB E1EH FEBA

FEBB FEH2

FEHB

BLOWER PACKAGES

KMABA01013TG X* X† — — X — — X† ————

KMABA02014TG X* X‡ — — X X‡ X‡ X‡ ————

KMABA03013TE —————————X**——

KMABA04014TE —————————X**——

KMABA05013TE — — X** ———————X**X**

KMABA06014TE — — X** ———————X**X**

CONTROL BOXES

KMACC02014WG X — — — X X ——————

KMACC0401E14 —————————X††——

KMACC0601FE4 ——————————X††X††

FILTER KIT

KMAFK0101NFK ————————XXXX

INSULATION KITS

KMAIK0101E1I ————————X X——

COIL SHELF KIT

KMACR0101CRI — — X X ————————

—8—

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

UNIT MUST BE INSTALLED IN ACCORDANCE

WITH INSTALLATION INSTRUCTIONS

Cancels: PDS CM5A.24.1

SERVICE TRAINING

Packaged Service Training programs are an excellent way to increase your

knowledge of the equipment discussed in this manual, including:

 • Unit Familiarization • Maintenance

 • Installation Overview • Operating Sequence

A large selection of product, theory, and skills programs is available, using popular

video-based formats and materials. All include video and/or slides, plus companion

book.

Classroom Service Training plus "hands-on" the products in our labs can mean

increased confidence that really pays dividends in faster troubleshooting, fewer

callbacks. Course descriptions and schedules are in our catalog.

CALL FOR FREE CATALOG 1-800-962-9212

[ ] Packaged Service Training [ ] Classroom Service Training

A94328

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Bryant Soffiatore

Bryant

Bryant 511 A 36 Manuale utente

Manuali Soffiatore popolari di altre marche

Weed Eater

Weed Eater VS2000BV Manuale utente

KRAUSMANN

KRAUSMANN U37020-00 Manuale utente

Bosch

Bosch ALB 36 LI Manuale utente

Cub Cadet

Cub Cadet HB425 Manuale utente

GreenWorks Pro

GreenWorks Pro BLB482 Manuale utente

ARIETE

ARIETE 2768 Manuale utente

NuTone

NuTone 331H Manuale utente

GÜDE

GÜDE GLB 200 18 Li-Ion Manuale utente

I.VA.CO.

I.VA.CO. SC Series Istruzioni operative

DeWalt

DeWalt DCE100 Manuale utente

Becker

Becker SV 7.330 Manuale utente

Metabo

Metabo AG 18 Pro Manuale utente

Desa

Desa GA3650TB Manuale utente

Echo

Echo Power Blower PB-230LN Manuale utente

Echo

Echo PB-413H Manuale utente

Black & Decker

Black & Decker BV3100 Manuale utente

Ryobi

Ryobi RY08570 Manuale utente

Haaga

Haaga 355 Manuale utente
