Bryant TSTATBBPB501 Guida

COOL

HEAT

AUTO

I2:00

Heat Pump & Heat Cool

Meets California Title 24 Residential

Dual Setpoint

5+2 Day Programmable

4 Time periods

Very Easy to Program

Easy To Read Display

Thermoglow Backlight

No Batteries Required

Auto Changeover

No Batteries Required

Locking Keypad

MODEL TSTATBBPB501

PROGRAMMABLE DIGITAL

THERMOSTAT

NOTE TO INSTALLER:

This manual must be left with the equipment user.

Heating & Cooling Systems

USERS INFORMATION MANUAL

Table Of Contents

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

BASIC OPERATION

PROGRAMMING 4 Time Periods

ADVANCED SETUP

ABOUT ADVANCED OPERATION

WARRANTY

Page 1

CAUTION

Follow Installation Instructions before proceeding.

SET THERMOSTAT TO MODE “OFF” PRIOR TO

CHANGING SETTINGS IN SETUP OR RESTORING

FACTORY DEFAULTS.

TSTATBBPB501

Residential Light Commercial Systems Carrier Corporation 04/01

COOL

HEAT

AUTO

I2:00

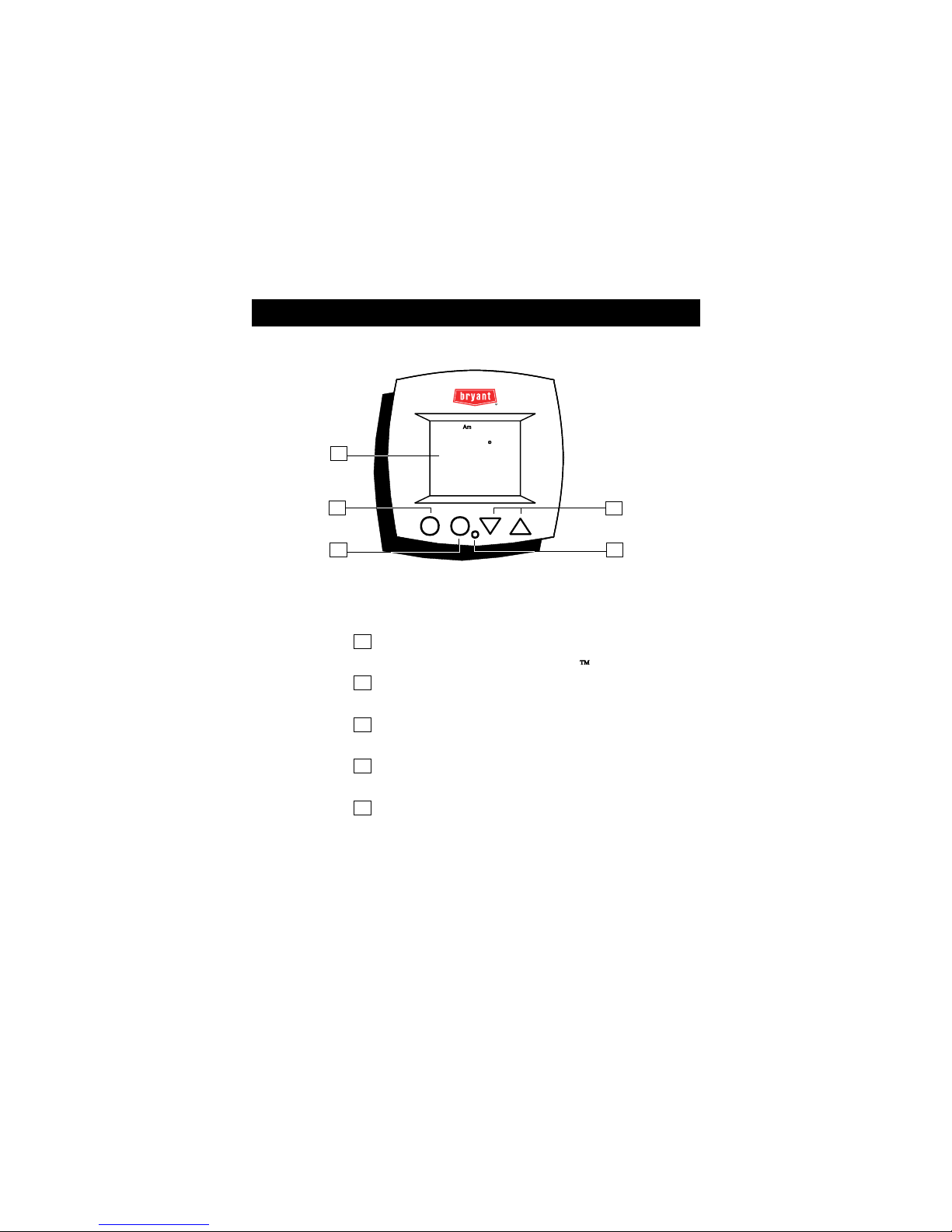

Front Panel

Page 2

Liquid Crystal Display

with Thermoglow

Up/Down Buttons

Mode Button

Fan Button

Heat or Cool Indicator

Heat = Red, Cool = Green

Mode Indicators

Selects the operation mode of the equipment.

HEAT - indicates the heat mode.

COOL - indicates the air conditioning mode.

AUTO - indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

OFF - indicates the entire system is turned off.

PROGRAM ON - indicates the stored program

is enabled to run. Page 6.

Clock with Day of the Week

Indicates the current time and day. This clock is

also used to program the timer periods. Page 5.

Room Temperature Display

Indicates the current room temperature.

Desired Set Temperature

Indicates desired room temperature(s). Page 7.

Display

Page 3

Night

MorningDayEvening

Fan On

SuMoTuWeThFrSa

Setup

Locked

Program On

AUTO

ONOFF

COOL

HEAT

I2:00 88

Morning, Day, Evening & Night Indication

Indicates the program time period.

Page 8-11.

Setup Indication

Indicates the thermostat is in the programming

mode. Page 12.

Fan Operation Indication

Fan On - indicates constant, continuous fan

operation.

When Fan On is not lit - indicates the fan will

only operate when necessary to heat or

to cool. Page 7.

Locked Indication

Locked appears after the right combination of

buttons are pressed, rendering the buttons

inoperative. Page 18.

Display

Page 4

During Setup & Programming:

Pressing the Mode button

selects different flashing items.

(Represented in dark black)

Pressing the Up and Down

buttons will modify the flashing

selection.

Press the Mode button.

While holding the Mode,

press the Fan button

for 2 seconds to enter Setup

screens.

Press both Mode and

Fan buttons as

above to return to

normal operation.

Quick Start Set the Clock and Go

Page 5

The thermostat is preprogrammed from the

factory to operate 1 or 2 Stage equipment* without

the need for further programming. To optimize the

installation of this thermostat follow the instructions

in the Advanced Setup section.

* The thermostat is not preprogrammed from the

factory to operate electric heat or heat pump systems.

To control these systems, follow the steps in the

Advanced Setup section, pages 12 & 13.

buttons.

To adjust the

clock or Day use

Press

I2:00

SuMoTuWeThFrSa

FA N

MODE

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

OFF indicates both heating

and air conditioning

systems are turned off.

AUTO will automatically select

heat or cool based on room

temperature demand.

Program On will activate the

stored timer operation.

(Morning, Day, Evening, Night)

Select Mode

Basic Operation

Page 6

I2:00

Day

I2:00

OFF

MODE

buttons.

In any mode, adjust the

desired Set Temperature

with

Pressing the up/down buttons in Auto mode will adjust both the heat and cool

set temperatures simultaneously.

Pressing the up/down buttons in Heat or Cool modes will adjust only the

heat or cool set temperature.

Select Desired Temperature

Page 7

Basic Operation

COOL

HEAT

AUTO

I2:00

COOL

HEAT

AUTO

Fan On

I2:00

Fan

Operation

Fan On indicates constant fan operation.

This feature is active even if the thermostat

is set to Off.

Press

FA N

Programming 4 Time periods

Page 8

Press

Press the Mode button. While holding the Mode,

press the Up button for 2 seconds to enter

time period programming.

Continued

Select the Day of the Week.

MoTuWeThFr or SaSu.

(Weekday or Weekend schedule)

Adjust the start time for

Morning.

Adjust the heating setpoint

for Morning.

Adjust the cooling setpoint

for Morning.

(35 - 99 )

MODE

MoTuWeThFr

COOL

HEAT

COOL

Morning

MoTuWeThFr

7:30

MODE

Programming 4 Time Periods

Page 9

Press

Continued

Adjust the start time for

Day.

Adjust the cooling setpoint

for Day.

(35 - 99)

Adjust the start time for

Evening.

Adjust the cooling setpoint

for Evening.

(35 - 99)

Adjust the heating setpoint

for Day.

(35 - 99)

MODE

Day

MoTuWeThFr

I0:30

Day

MoTuWeThFr COOL

I0:30 75

Day

MoTuWeThFr COOL

HEAT

I0:30 75

Evening

MoTuWeThFr

5:30

Evening

MoTuWeThFr COOL

5:30 75
