BT Mobile Hotspot Manuale utente
Job No. 1896
Client BT
Project BT MF65 UG
BT Mobile Hotspot
User Guide
bt.com/help/mobilebroadband
1896 BT Mobile Broadband MF65 UG [5].indd 1 02/07/2013 16:50
2
Contents
Getting to know your BT Mobile Hotspot 3
Setting up your BT Mobile Hotspot 5
Connecting to your BT Mobile Hotspot 8
Viewing and changing your BT Mobile
Hotspot settings
12
Troubleshooting 13
Safety information 15
1896 BT Mobile Broadband MF65 UG [5].indd 2 02/07/2013 16:50
3
Getting to know your
BT Mobile Hotspot
LED indicators
Micro USB port
SIM card slot
microSD™
card slot
Wi-fi key (network
password)
Power
button
WPS (Wi-fi Protected
Setup) button
1896 BT Mobile Broadband MF65 UG [5].indd 3 02/07/2013 16:50
4
LED indicators
Indicator Status What’s happening
Network Red solid Error status. BT Mobile SIM card isn’t
registered to the BT Mobile Network,
no SIM card inserted or no BT Mobile
Network service available
Green solid Connected to the BT Mobile Network
Green flashing Connected to the BT Mobile Network
and transferring data
Wi-fi Blue solid Wi-fi is active
Blue flashing WPS (Wi-fi Protected Setup) is active
Off Wi-fi is off or your BT Mobile
Hotspot is in sleep mode
Battery Red solid/
flashing
The battery is low and needs charging
Green flashing The battery is being charged
Green solid The battery level is middle or high
Off Your BT Mobile Hotspot is in standby
mode and not being charged, or the
battery isn’t fitted
1896 BT Mobile Broadband MF65 UG [5].indd 4 02/07/2013 16:50
5
1 Slide the back cover to remove it.
2 Insert your BT Mobile SIM card.
Important: your BT Mobile Hotspot doesn’t support
Micro, Nano or any other non-standard SIM cards.
Setting up your BT Mobile Hotspot
1896 BT Mobile Broadband MF65 UG [5].indd 5 02/07/2013 16:50
6
3 If you want to use your BT Mobile Hotspot as a data storage
device, insert a microSD™ card. (This is optional, you don’t
need a microSD card to use your BT Mobile Hotspot.)
1
is a trademark of SD Card Association
1
2
4
3
5
1896 BT Mobile Broadband MF65 UG [5].indd 6 02/07/2013 16:50
7
4 Insert the battery.
5 Close the back cover.
Important: make sure your device has enough ventilation
to stop it overheating. If it does overheat and shuts down,
put it in a well-ventilated place to cool down before
turning it on again.
1
2
1896 BT Mobile Broadband MF65 UG [5].indd 7 02/07/2013 16:50
8
Connecting to your BT Mobile Hotspot
You can connect to your BT Mobile Hotspot by wi-fi or with a
USB cable. When connecting with wi-fi, you can connect up to
ten devices to your BT Mobile Hotspot.
Connecting with wi-fi
1 Turn on your BT Mobile Hotspot by pressing the power button
for around five seconds. It’ll take a few moments to start up,
then the wi-fi LED will glow blue and the network LED will
glow green.
2 Turn on the device that you want to connect to the BT Mobile
Hotspot, making sure its wi-fi is switched on.
3 If the device you want to connect to the BT Mobile Hotspot
supports WPS, go to step 4. If not, go to step 6.
4 Set up WPS by pressing the WPS button on your BT Mobile
Hotspot until the wi-fi indicator flashes blue.
5 Select the ‘BT_Mobile_Hotspot_xxxxxx’ network on the
device you want to connect (xxxxxx will be specific to the
device) and follow the prompts.
1896 BT Mobile Broadband MF65 UG [5].indd 8 02/07/2013 16:50
9
Note: how you set up WPS on your device may vary,
depending upon its operating system. Some operating
systems, e.g. Mac OS X, don’t support WPS. If your device
doesn’t support WPS, go to step 6.
6 On the device that you want to connect to your BT Mobile
Hotspot, choose the ‘BT_Mobile_Hotspot_xxxxxx’ SSID
and click Connect. The connection manager will look
something like this:
Network name (SSID)
1896 BT Mobile Broadband MF65 UG [5].indd 9 02/07/2013 16:50
10

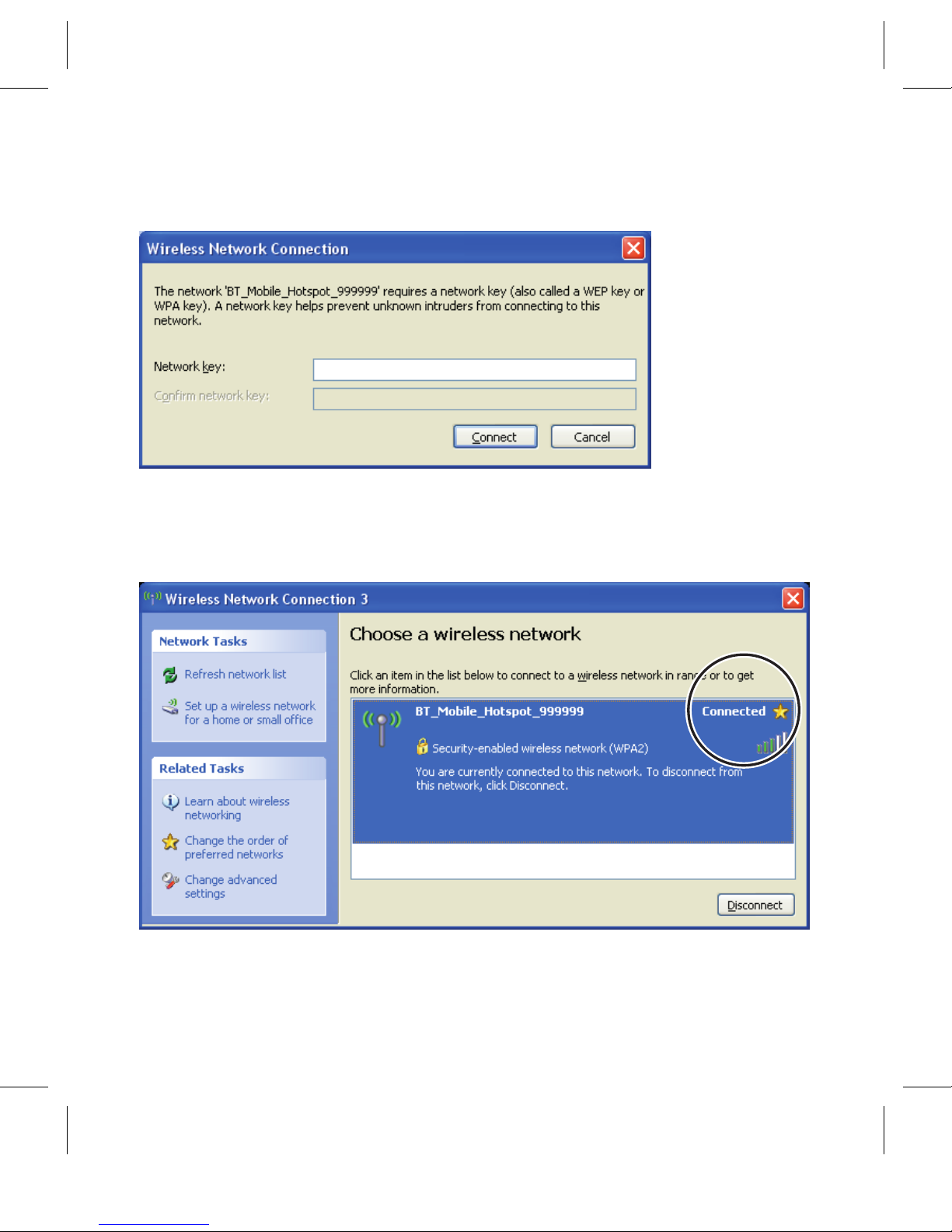

7 Enter the wi-fi key, then click Connect. The wi-fi key can be
found on the box or on a sticker under the battery.
8 Wait a few moments and you’ll see a message that
you’re connected.
1896 BT Mobile Broadband MF65 UG [5].indd 10 02/07/2013 16:50
