2. Overview

The Buckeye Cam X80 Series includes wireless cameras, sensors, re eaters, and actuators. All

of the available devices work seamlessly together and may be controlled and monitored with the

X-Series Network Manager software a lication. Before using the X80 Feeder Controller, it is

im ortant to be familiar with X-Series Network Manager. User's manuals and video tutorials may

be found at www.buckeyecam.com/site/su ort.html.

The X80 Wireless Feeder Controller can re lace the standard timer on most commonly available

deer feeder kits. This will allow the feeder to be controlled and monitored wirelessly from several

miles away using the Buckeye Cam X-Series Network Manager software a lication and a base

receiver connected to a com uter.

Using X-Series Network Manager, the daily feed schedule may be modified at any time and

wirelessly transmitted to the feeder. The feeder can also send status alerts for low battery, blown

fuse, jammed motor, or em ty feeder. U to 254 feeders can be controlled and monitored from

one base.

X80 Feeder Controller User's Manual v1.1 4

3. etting Started

3. Getting Started

Before installing an X80 Feeder Controller on a feeder, it must be registered to a base using the X-

Series Network Manager software a lication. If you have not already done so, refer to the X80

Wireless Camera System User s Manual for instructions on how to connect to a base.

If X-Series Network Manager is installed and connected to a base, follow the ste s shown below to

Atta h antenna.

Screw the antenna onto the threaded antenna connector.

Do not over-tighten.

Install 5 AA batteries.

Remove the battery cover and install 5 AA batteries as

shown. Re lace the battery cover when done.

Wait for the LCD display to read “Not Registered

Waiting for Base”.

Add to X-Series Network Manager.

Click on “Add/Remove Device”.

Cli k on the Feeder i on and drag it

into the network view.

Once the Feeder Controller has been

registered, it will be assigned a Feeder

number.

X80 Feeder Controller User's Manual v1.1 5

Click here

3. etting Started

Cli k on the Feeder i on in the

network view to open the Feeder

Control Panel.

Cli k the “Settings” button on the

Feeder Control Panel.

Sele t the Feeder motor battery

voltage (6V or 12V).

Enter optional text labels.

Text may be entered in the Text 1 and Text 2

fields to make it easy to identify the feeder in

the software. This is es ecially hel ful if you

have more than one feeder.

Make sure the Feeder Enabled button is set

to “Enabled”.

The Detection o tions may be left to the default state of “Yes”.

They may be changed later if necessary.

Cli k Update to save the hanges, or Can el if no

hanges were made.

Repeat steps 1 through 11 for all Feeder Controllers.

X80 Feeder Controller User's Manual v1.1 6

Click

here

Click

here

Select

batttery

voltage

4. Installing the Feeder Controller

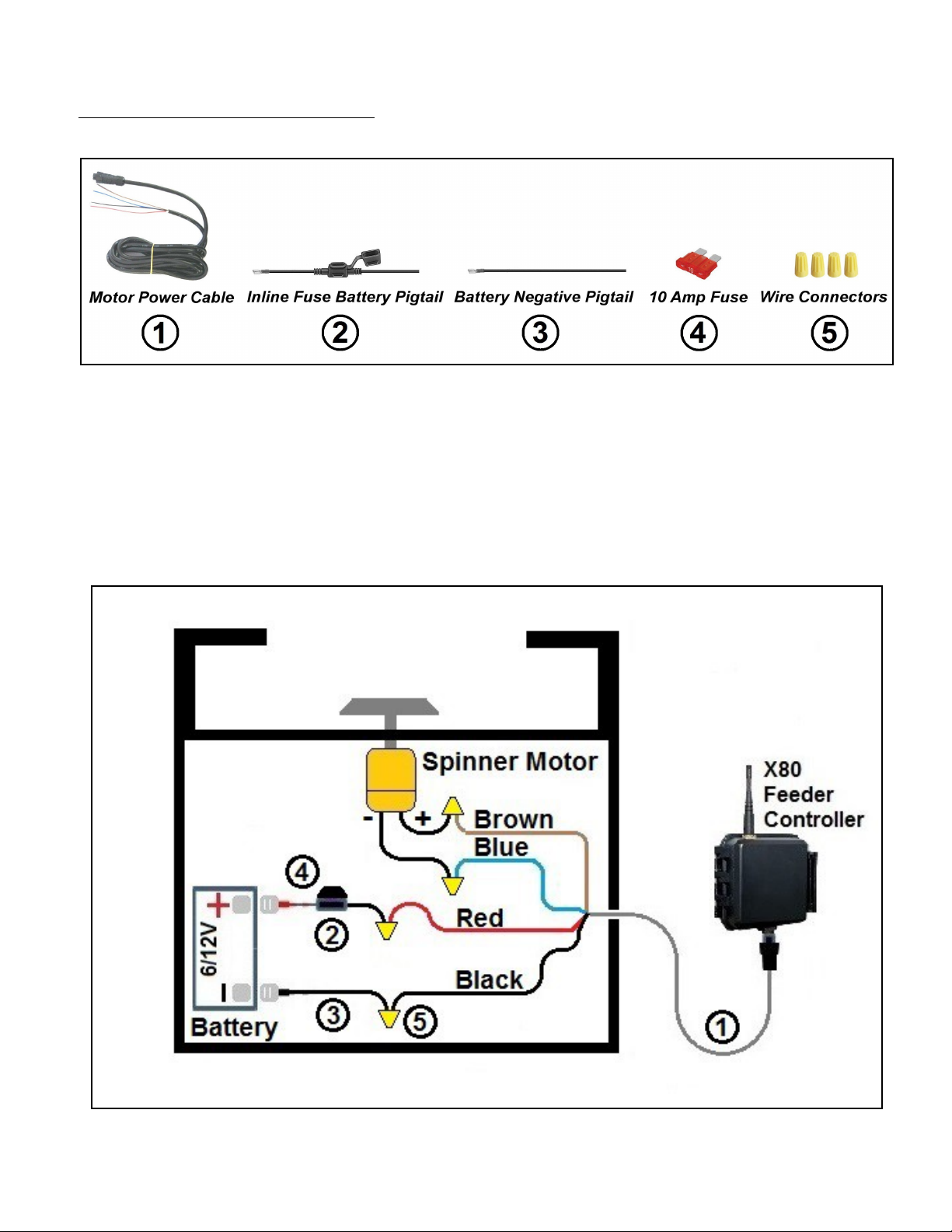

The following items are rovided for wiring to the s inner motor and battery (6 Volt or 12 Volt).

To install the Feeder Controller on an existing s in feeder kit:

1. Remove the existing timer.

2. Drill a hole for the Motor Power Cable (or use existing hole, minimum diameter of 0.3125 in.).

3. Insert the 10 Amp Fuse into the Inline Fuse Battery Pigtail.

4. Make the wiring connections as shown below.

NOTE: If the motor does not turn in the desired direction, reverse the brown and blue wires. For

most s in feeders, the order of connection of the brown and blue wires does not matter.

X80 Feeder Controller User's Manual v1.1 7

4. Installing the Feeder Controller

The X80 Feeder Controller is housed in a watertight, weather roof enclosure. It may be attached

to the feed ho er or motor kit using the su lied mounting bracket or a ratchet stra .

If a high gain antenna is used, it may be attached to the feed ho er using an antenna mast.

Once the X80 Feeder Controller is installed, it is im ortant to erform a manual feed and do a

signal check to make sure everything is functioning ro erly. Refer to Chapter 5, Display and

Pushbuttons for instructions.

X80 Feeder Controller User's Manual v1.1 8

5. Display and Pushbuttons

Release the latch on the side of the Feeder Controller enclosure to access the LCD dis lay and

ushbuttons.

If no buttons have been ushed for some eriod of time, the LCD dis lay will go blank in order to

save battery ower. Pushing any button will wake it u .

Pushing the NEXT button will always advance the dis lay to show the next message.

Pushing the HOME button will always return the dis lay sequence to the first message.

Manual Feed

Push the NEXT button until the dis lay shows “Manual Feed”.

Press the ENTER button.

The dis lay will now show the duration of the manual feed.

To change the duration, ress the CHANGE button.

Press ENTER when done.

The dis lay will now show the motor s eed.

To change the motor s eed, ress CHANGE.

Press ENTER when done.

The dis lay will now show duration and s eed.

To start the manual feed, ress ENTER.

The dis lay will now start a countdown before the manual feed begins.

Stand back from the feeder!

X80 Feeder Controller User's Manual v1.1 9

Manual Feed

HOME NEXT CHANGE ENTER

Manual Feed

Duration: 3 sec

HOME NEXT CHANGE ENTER

Manual Feed

Speed: 40%

HOME NEXT CHANGE ENTER

3 sec @ 40%

[ENTER] to run

HOME NEXT CHANGE ENTER

Manual Feed

Start In: 0sec

HOME NEXT CHANGE ENTER

5. Display and Pushbuttons

Che k Signal

Push the NEXT button until the dis lay shows “Signal to Base”.

After a few seconds, the dis lay will show the signal reading.

The signal is shown in dBm and also “bars”.

If a signal cannot be obtained, you may need to u grade to a high-gain

antenna, or use a re eater (see Cha ter 6, Setting up a Repeater).

Che k Battery

Push the NEXT button until the dis lay shows “External 12V SLA”

(see note below).

This will show the battery level of the main feeder battery.

Push the CHANGE button to see the AA battery reading.

NOTE: The dis lay will show 12V SLA or 6V SLA de ending

on what battery voltage was chosen in X-Series Network Manager.

Refer to Chapter 3, Getting Started.

Serial Number and Firmware Version

Push the NEXT button until the dis lay shows the serial number

and firmware version.

X80 Feeder Controller User's Manual v1.1 10

Signal to Base

||||||||-40dBm

HOME NEXT CHANGE ENTER

External 2V SLA

99% 2.6V

HOME NEXT CHANGE ENTER

SN: 2345678

Ver. . .0

HOME NEXT CHANGE ENTER
