Buderus GB142 Manuale utente

7215 0300 - 02/2008 US/CA (en) For the user

Please read thoroughly before operating

User’s Instructions

Condensing gas boiler

GB142-24/30/45/60

This manual must be retained for future use.

2http://www.buderus.net

Warning: If the information in these instructions is not followed exactly, a fire or

explosion may result causing property damage, personal injury or loss of life.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other boiler.

– What to do if you smell gas

• Do not try to light any boiler.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer,

service agency or the gas supplier.

CAUTION !

The operating manual is part of the documentation that is delivered to the

installation's operator. Go through the information in this manual with the owner/

operator and make sure that he or she is familiar with all the necessary operating

instructions.

http://www.buderus.net 3

Contents

1 For your safety . . . . . . . . . . . . . . . . . . . . 5

1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . 5

1.2 Safety instructions . . . . . . . . . . . . . . . . . . . . 6

2 Lighting Instructions . . . . . . . . . . . . . . . 8

2.1 Operating the BC10 basic controller . . . . . . 9

2.2 Opening and closing the control panel . . . . 10

2.3 Switching on and off . . . . . . . . . . . . . . . . . . 10

2.4 Setting the DHW temperature value . . . . . 11

2.5 Entering the space heating water

temperature . . . . . . . . . . . . . . . . . . . . . . . . 13

2.6 "Burner on" LED . . . . . . . . . . . . . . . . . . . . . 14

2.7 Other functions and economic heating . . . 14

3 Starting up and shutting down

the boiler . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Starting up the boiler . . . . . . . . . . . . . . . . . 15

3.2 Shutting down the boiler . . . . . . . . . . . . . . 18

4 Operating and error messages . . . . . . 19

4.1 Displaying operating messages . . . . . . . . . 19

4.2 Identifying and resetting faults . . . . . . . . . . 23

4http://www.buderus.net

Preface

About these instructions

These user's Instructions contain important information for the safe and proper operation of

GB142-24/30/45/60 condensing gas boilers.

If the information in this manual is not followed exactly, a fire or explosion may result causing property

damage, personal injury or loss of life.

Subject to technical changes!

Changes may be made following technical improvements!

Updating of documentation

Please contact us if you have any suggestions for improvements or corrections.

http://www.buderus.net 5

For your safety

1 For your safety

GB142 condensing gas boilers are designed and

built according to the latest technological advances

and safety requirements.

The design is specifically focused on ease of use.

To ensure the safe, economical and environmen-

tally friendly use of the heating system we urge you

to read and observe the User's Instructions.

1.1 Designated use

The GB142 was designed for heating water for a

central heating system and for generating domestic

hot water. The boiler can be fitted with a modulating

outdoor reset control AM10 (scope of delivery),

a room controller RC35 (optional) or an On/Off

thermostat (accessory).

Hazard definitions

ADANGER:

Indicates the presence of hazards that will

cause severe personal injury, death or

substantial property damage.

AWARNING:

Indicates the presence of hazards that can

cause severe personal injury, death or

substantial property damage.

ACAUTION:

Indicates presence of hazards that will or

can cause minor personal injury or property

damage.

HCAUTION:

Risk of electric shock.

Indicates presence of hazards due to electric

shock.

6http://www.buderus.net

For your safety

INOTICE

Indicates special instructions on installation,

operation or maintenance that are important

but not related to personal injury or property

damage.

1.2 Safety instructions

Make sure to observe these safety instructions.

Failure to do so can result in property damage,

personal injury or loss of life.

– Installation, gas and flue connection,

commissioning, electrical connection and

maintenance activities must only be carried out

by a trained service provider.

– Certain work, e.g. on gas lines, may require a

professional license. Only carry out such work if

you are licensed to do so.

– Only use the boiler for its intended purpose and

only when it is in working order.

– Have a trained service provider check, clean

and service the heating system once a year.

Buderus recommends a contract for annual

service and maintenance.

– The condensate collection and disposal system

must be periodically cleaned by a trained

service technician.

– Have your trained service provider give you

detailed instructions about the operation of the

heating system.

– Carefully read these user's instructions.

– Immediately have all defects to the heating

system repaired.

– Ensure that air intake and outlet openings are

open and free from obstructions at all times.

– Do not store any flammable material or liquids in

the immediate vicinity of the boiler.

http://www.buderus.net 7

For your safety

– Never use chlorinated detergents or

halogenated hydrocarbons (e.g. in spraycans,

solvents and detergents, paints, adhesives) in

the room where the boiler is installed.

– When Calcium Chloride is present in concrete

floors (when poured in winter) it is necessary to

seal the floor with a suitable paint.

– Do not allow too much dust to collect on the

device.

– Do not use the boiler if any part has been under

water. Immediately call a trained service

technician to inspect the boiler and to replace

any part of the control system and any gas

control which has been under water.

– Should overheating occur or the gas supply fail

to shut off, do not turn off or disconnect the

electrical supply to the pump. Instead, shut off

the gas supply at a location external to the

boiler.

– The venting system must be inspected annually.

Replace any parts which show deterioration

from corrosion or any other sources.

– This boiler does not have a pilot. It has an

ignition device which automatically lights the

burner.

– Check for smell of gas around the boiler area.

Be sure to smell next to the floor because

propane gas is heavier than air and will settle on

the floor.

– Use only your hand to turn the gas control knob

(fig. 3 on page 15). Never use tools. If the knob

will not turn by hand, don't try to repair it, call a

trained service technician. Force or attempted

repair may result in a fire or an explosion.

8http://www.buderus.net

Lighting Instructions

2 Lighting Instructions

ASTOP!

Read the chapter "For your safety" on page 5 before

lighting the boiler.

http://www.buderus.net 9

Lighting Instructions

2.1 Operating the BC10 basic controller

1) ECO mode means that the temperature inside the hot water tank is 140 °F.

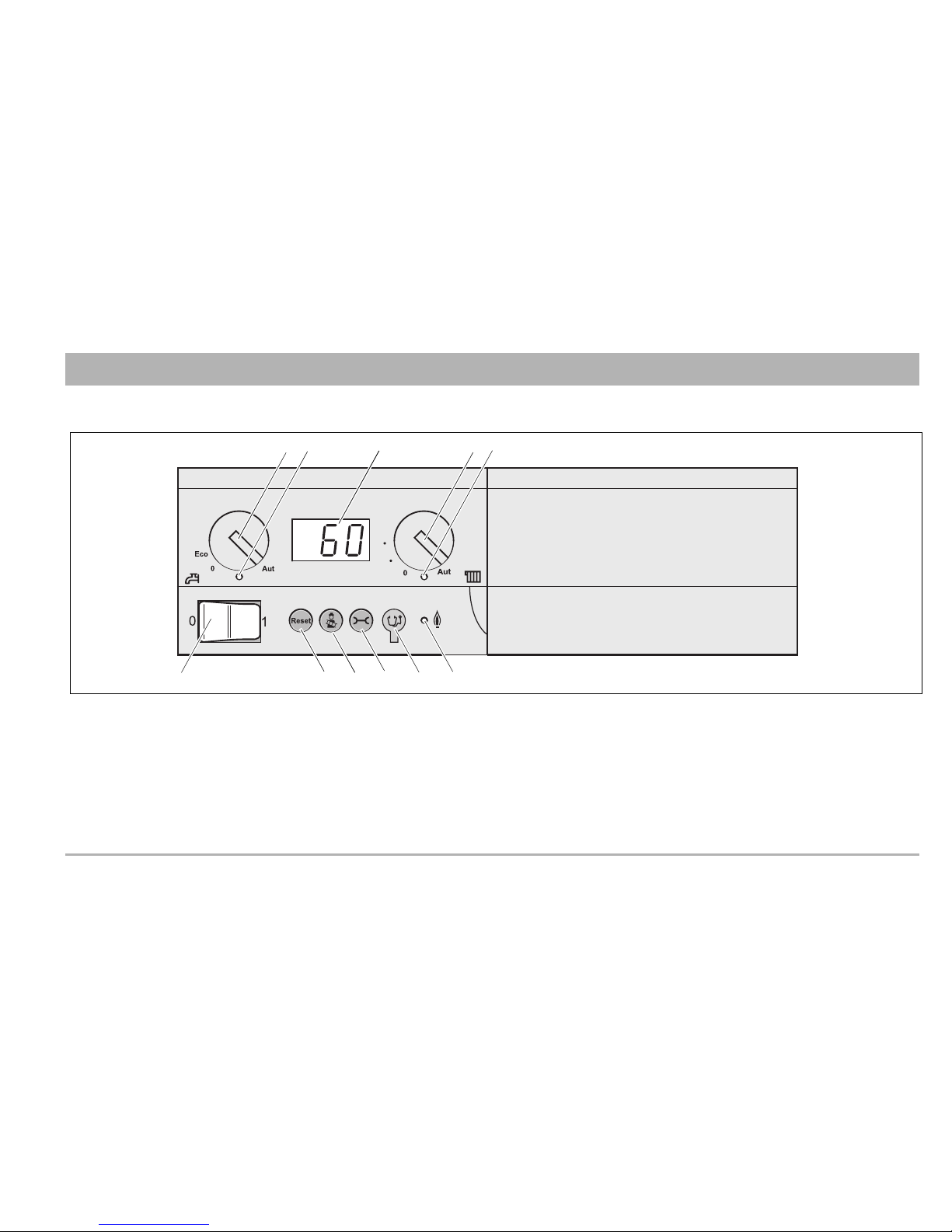

Fig. 1 Logamatic BC10 basic controller – Controls

pos. 1: Main switch

pos. 2: DHW temperature knob 1)

pos. 3: LED "DHW status"

pos. 4: Display

pos. 5: Space heating water

temperature knob

pos. 6: LED "Burner status"

pos. 7: LED "Burner Operation"

pos. 8: Service Tool connector

pos. 9: "Service" button

pos. 10:"Chimney sweep" button

pos. 11:"Reset" button

190

170

150

130

110

140

130

120

100

110

711 910

3 6

10 http://www.buderus.net

Lighting Instructions

2.2 Opening and closing the control panel

zBriefly push the drawer to open the control panel (fig. 2).

The drawer will come out. The control panel consists of the

Logamatic BC10 basic controller (fig. 1).

Close the control panel by pushing it back into the boiler

2.3 Switching on and off

zSet the main switch on the BC10 to position "1" (On) to

switch on the boiler and set it to "0" to switch it off.

HCAUTION

Risk of electric shock.

If a hazardous situation occurs, shut off power to the

boiler using the emergency shutoff switch or the boiler

circuit breaker (see chapter 3 "Starting up and shutting

down the boiler", page 15). Make yourself familiar with

the location of the emergency shutoff switch and the

boiler loop circuit breaker.

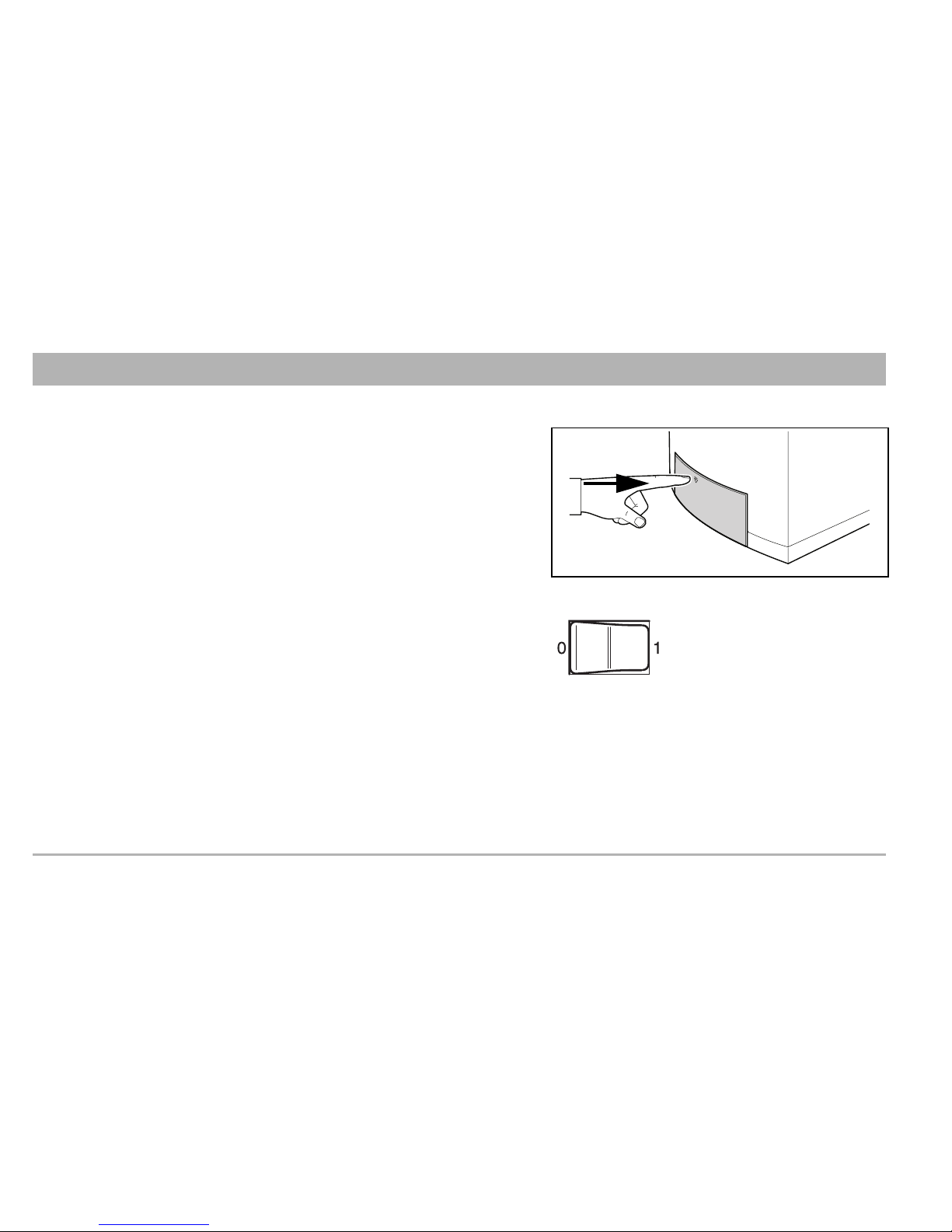

Fig. 2 Opening and closing the control panel
