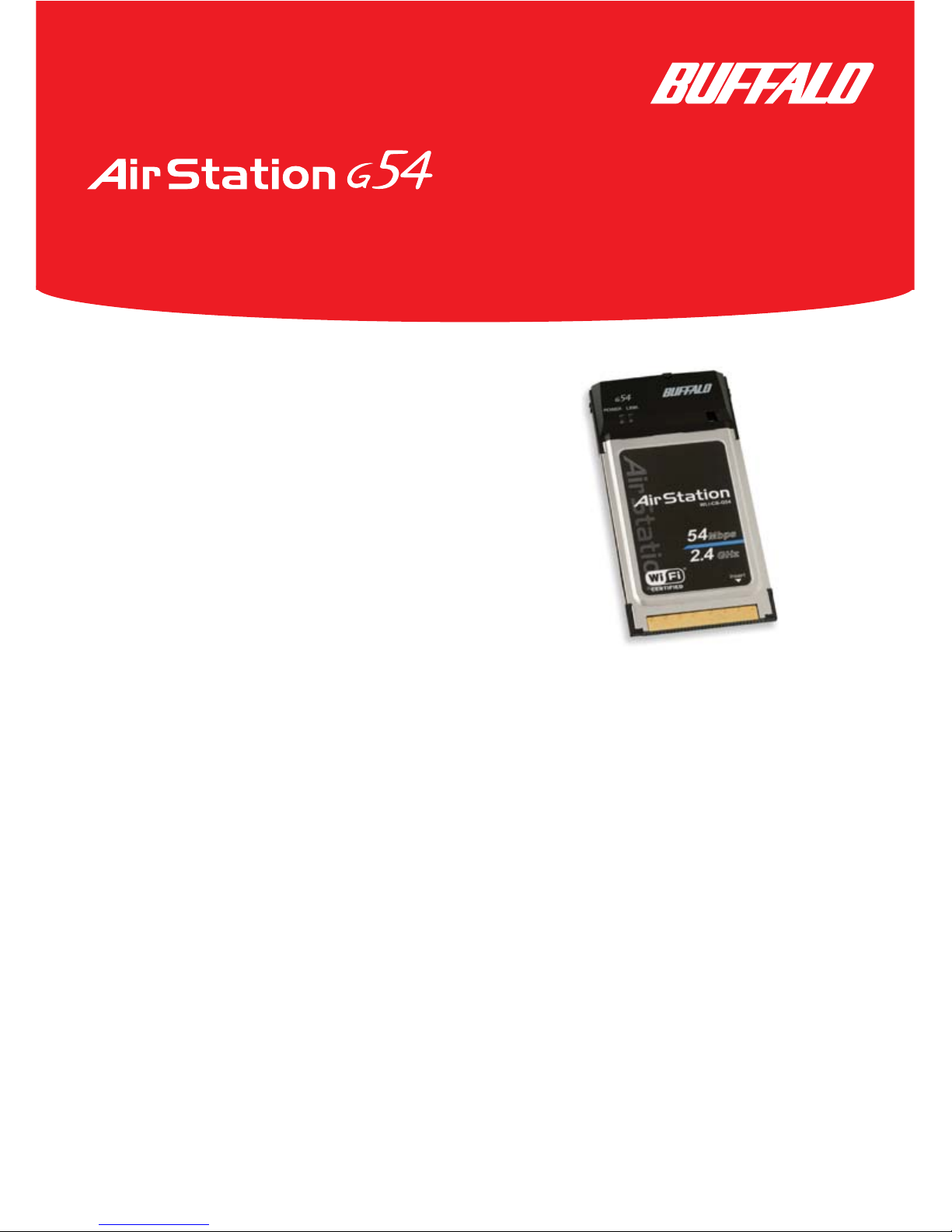

Quick Setup Guide

54Mbps Wireless Notebook Adapter-g

WLI-CB-G54A

Use this guide to quickly and easily install your

Wireless Notebook Adapter-g.For

detailed setup and configuration information,

refer to the User Manual, located on the

AirNavigator Utility CD or the BuffaloWireless

SupportWeb Page.

Contents

◗ Wireless Notebook Adapter-g

◗AirNavigator CD

◗Quick Setup Guides

◗Warranty Statement

If any items are missing, please contact

the reseller from whom you purchased

this product.

System Requirements

◗Notebook PC with an available

32-bit CardBus slot

◗10 MB of available disk space

(with Client Manager)

◗802.11b or 802.11g access point

(Infrastructure Mode) OR a different

computer with an 802.11b or 802.11g

wireless adapter (Ad-hoc Mode).

◗Windows XP : Refer to the

Windows XP section of Installing

and Configuring the Wireless

Notebook Adapter-g to install your

Wireless Notebook Adapter-g.

◗Windows 98se/ ME/2000: Refer to

the Windows 98se/ME/2000

section of Installing and

Configuring the Wireless

Notebook Adapter-g to install your

Wireless Notebook Adapter. Once

you successfully install your

Wireless Notebook Adapter,

continue your setup by referring

to the Installing Client Manager

section of this guide.

www.buffalotech.com/wireless

PY00-29003-DM20 RevA

Step Installing the

Wireless Notebook Adapter

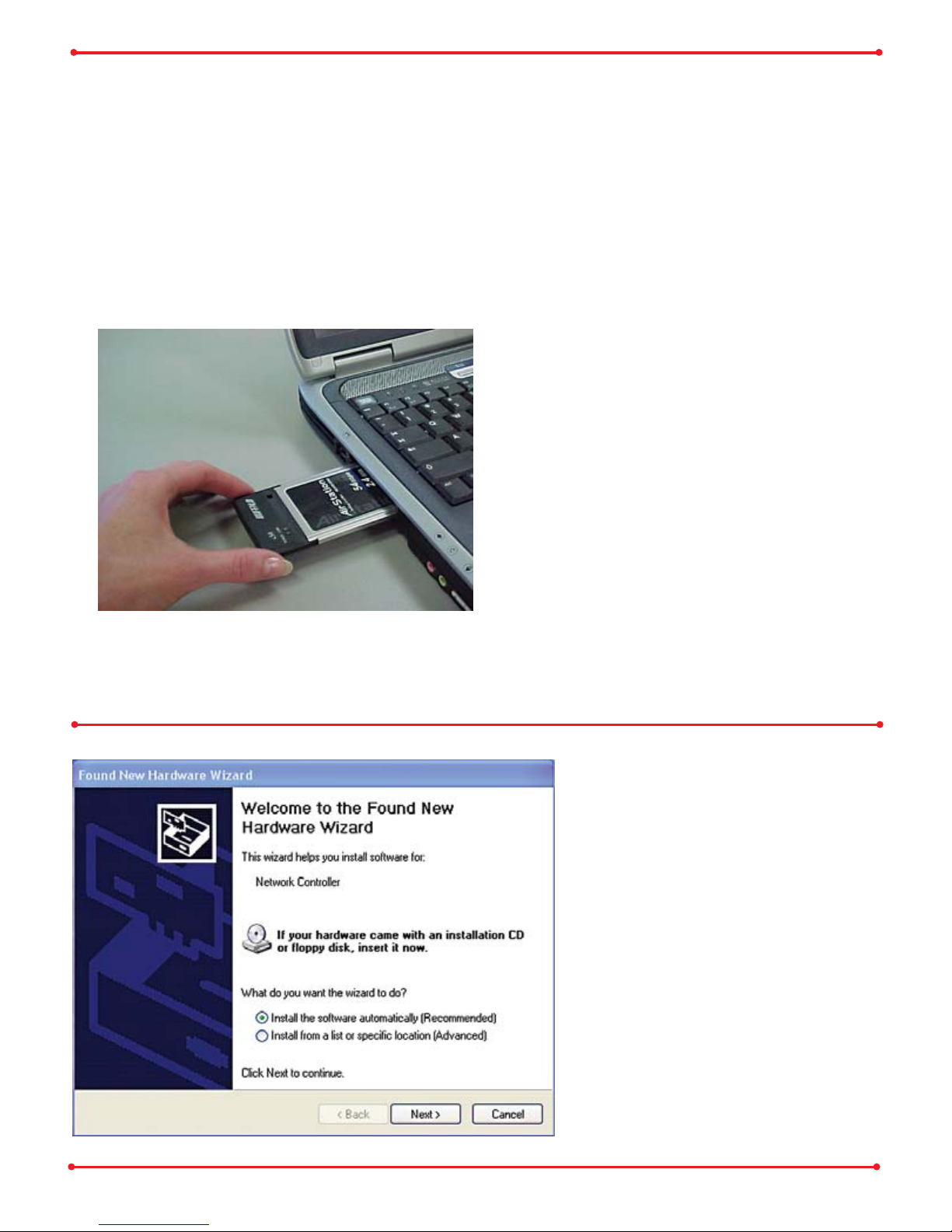

Insert the Wireless Notebook

Adapter, with the Buffalo logo

facing up, into an available

CardBus slot. CardBus slots are

usually located on the left or

right side of the notebook. Once

the Wireless Notebook Adapter

is installed correctly, the Found

New Hardware Wizard will

launch automatically. If the Found

New Hardware Wizard does not

launch, remove the Wireless

Notebook Adapter and restart

the notebook. Re-insert the

Wireless Notebook Adapter

once the notebook has rebooted.

Insert the AirNavigator CD

Select Install the software

automatically.

Click the Next button.

NOTE: If AutoRun is enabled,

exit out of the automatic

Software Installation.

Windows XP

Installation & Configuration

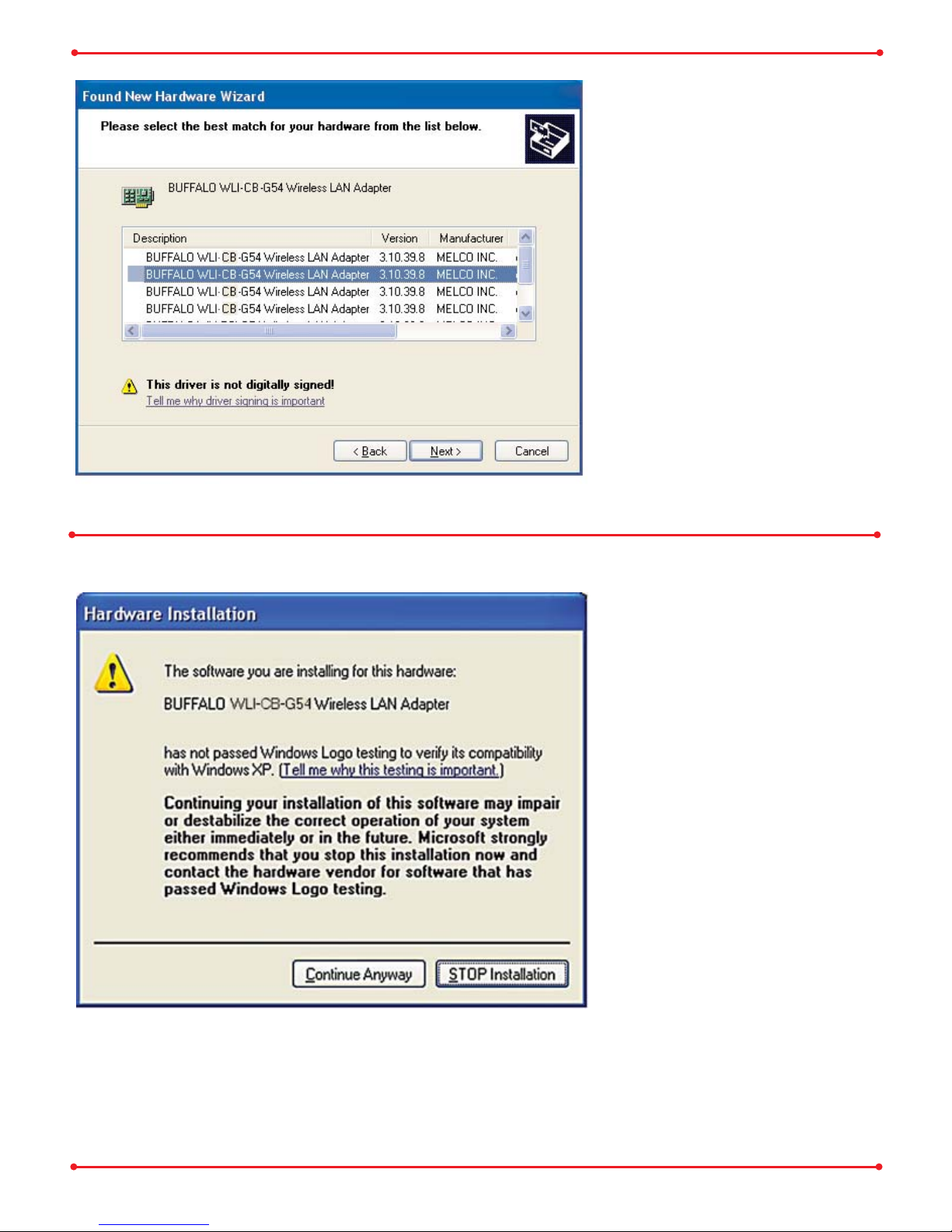

Select the driver you

want to install. If multiple

drivers are listed, select the

most recent driver version.

Click the Next button.

NOTE: If prompted to

select a search location, un-

select all checkboxes except

for the CD-ROM drive

If a window opens, stating

that your driver does not

pass Windows Logo testing,

click the Continue Anyway

button. When the Wireless

Notebook Adapter is

successfully installed, click

the Finish button. Restart

your notebook if prompted.

Step Configuring Wireless

Zero Configuration Service

If the Wireless Zero Config-

uration Service is activated,

Windows will scan for available

wireless access points once the

Wireless Notebook Adapter is

properly installed. If Windows

detects one or more access

points, a networking icon

appears in the taskbar. One or

more wireless networks are

available appears as a caption

accompanying the icon.

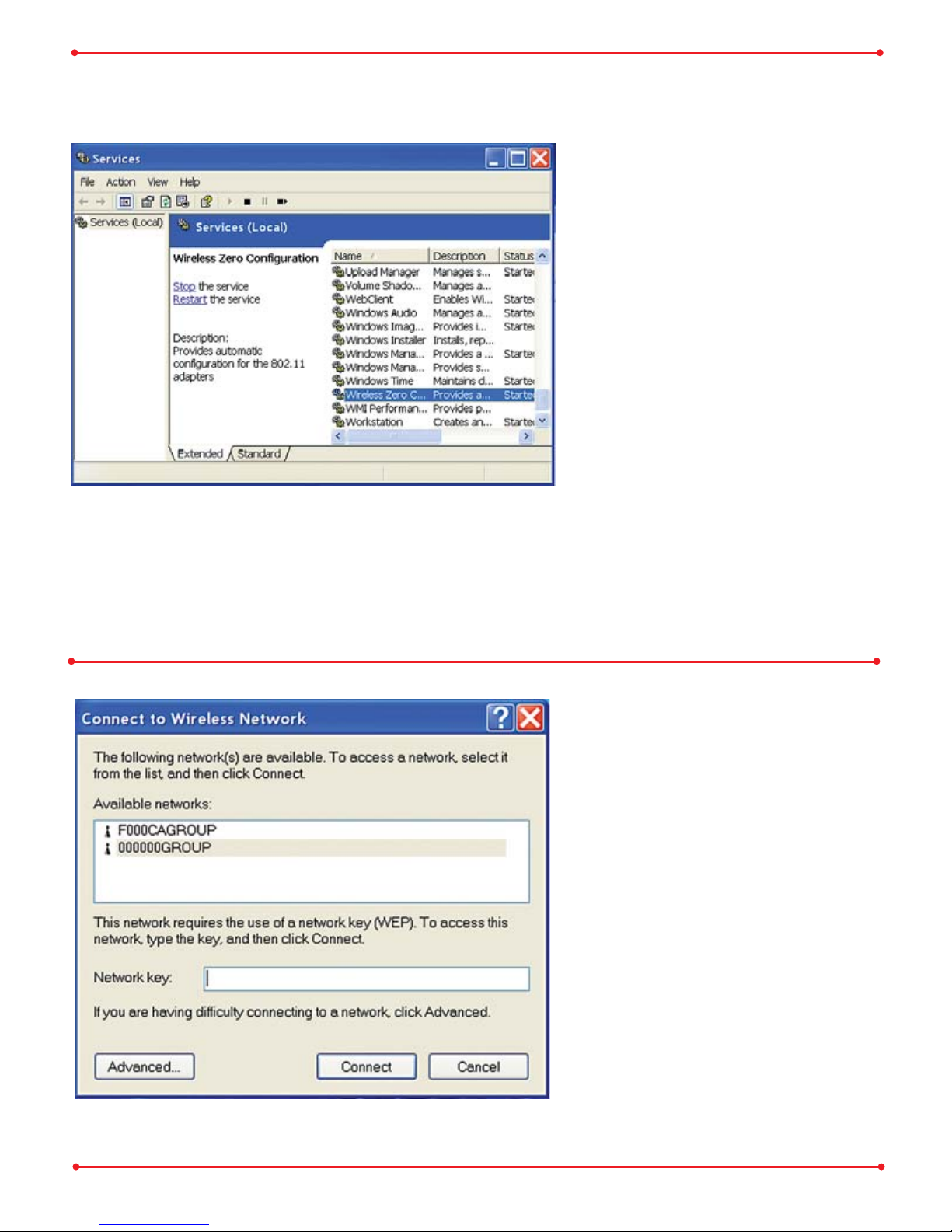

Right click the networking

icon in the taskbar and select

View Available Wireless

Networks to display a list of

available wireless networks.

(See step 2C if you need to

enter an ESS-ID network

name or WEP/WPA encryption

key.) Select an access point

network name or ESS-ID and

click the Connect button to

establish a connection.

Note: If the Wireless Zero Configuration Service is not functioning, select Start

» Control Panel » Administrative » Tools » Services. Select Automatic

in the Startup type field to enable the Wireless Zero Configuration Service.The

default value is Automatic.

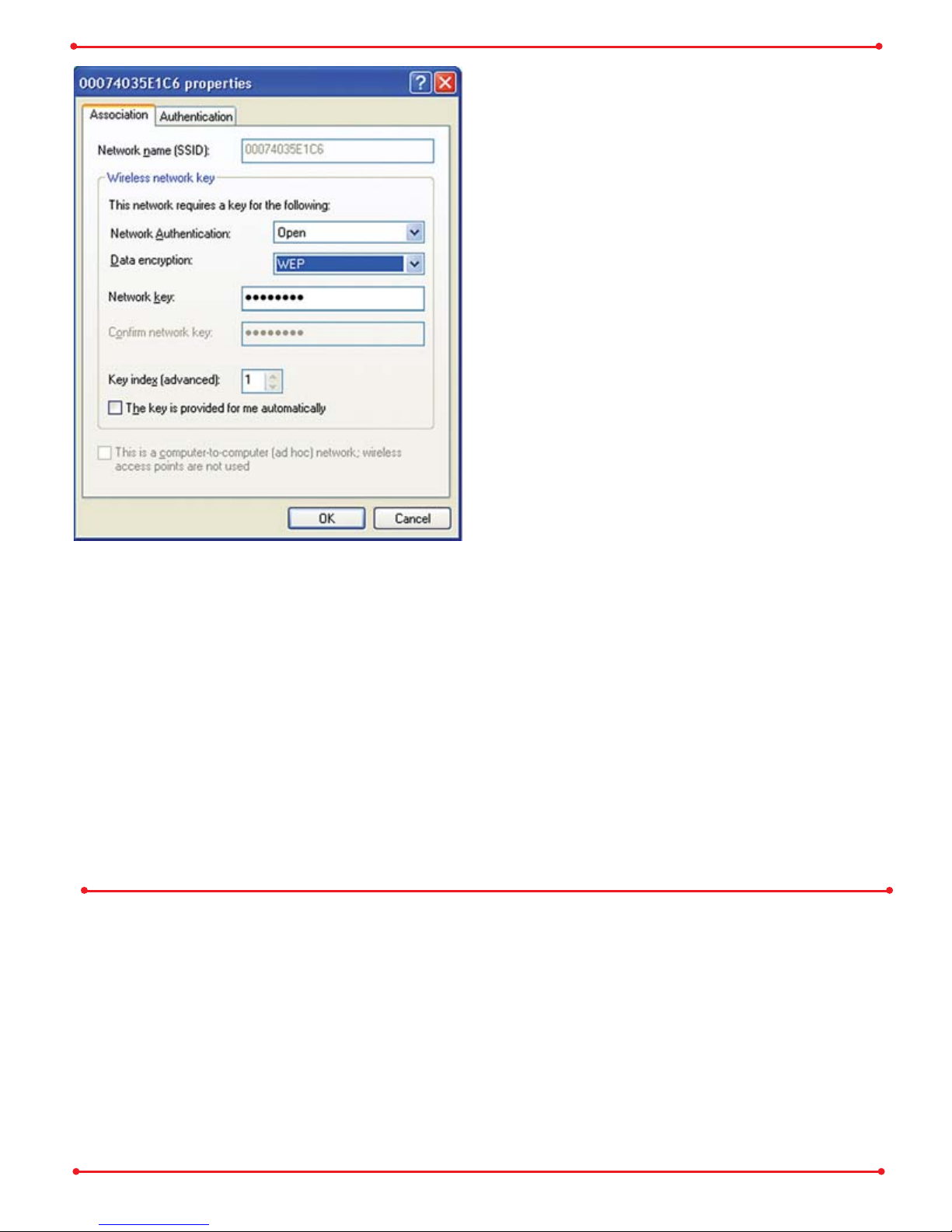

 Select a network name or access

point and click the Advanced button

to enter an SSID and/or

WEP/WPA/WPA-PSK encryption

key into the appropriate field, if

any is necessary and click the

Connect button.

WPA requirements

Windows XP users must use the

Wireless Zero Configuration Service

with Service Pack 1 (SP1) and the WPA

patch installed. This software can be

downloaded from:

http://www.microsoft.com.

WIndows 98SE/2000/ME users

require a third-party WPA supplicant

such as Odyssey by Funk Software. For

more information visit:

http://www.funk.com

You have finished installing your Wireless Notebook Adapter-g. See Installing

Client Manager to install Client Manager on your notebook. Client Manager will

not function properly if the Wireless Zero Configuration Service is activated. For

more information about configuring and operating your Wireless Notebook

Adapter-g and Client Manager, refer to the Buffalo Support Web Site:

http://www.buffalotech.com/wireless/support/index.php.

For more information about the Wireless Zero Configuration Service, refer to the

Microsoft Support Web Site: http://www.microsoft.com

NOTE: Buffalo Technology recommends that users of the Wireless Zero

Configuration Service upgrade to the latest version available free at

http://www.microsoft.com.

Step Installing theWireless

Notebook Adapter-g

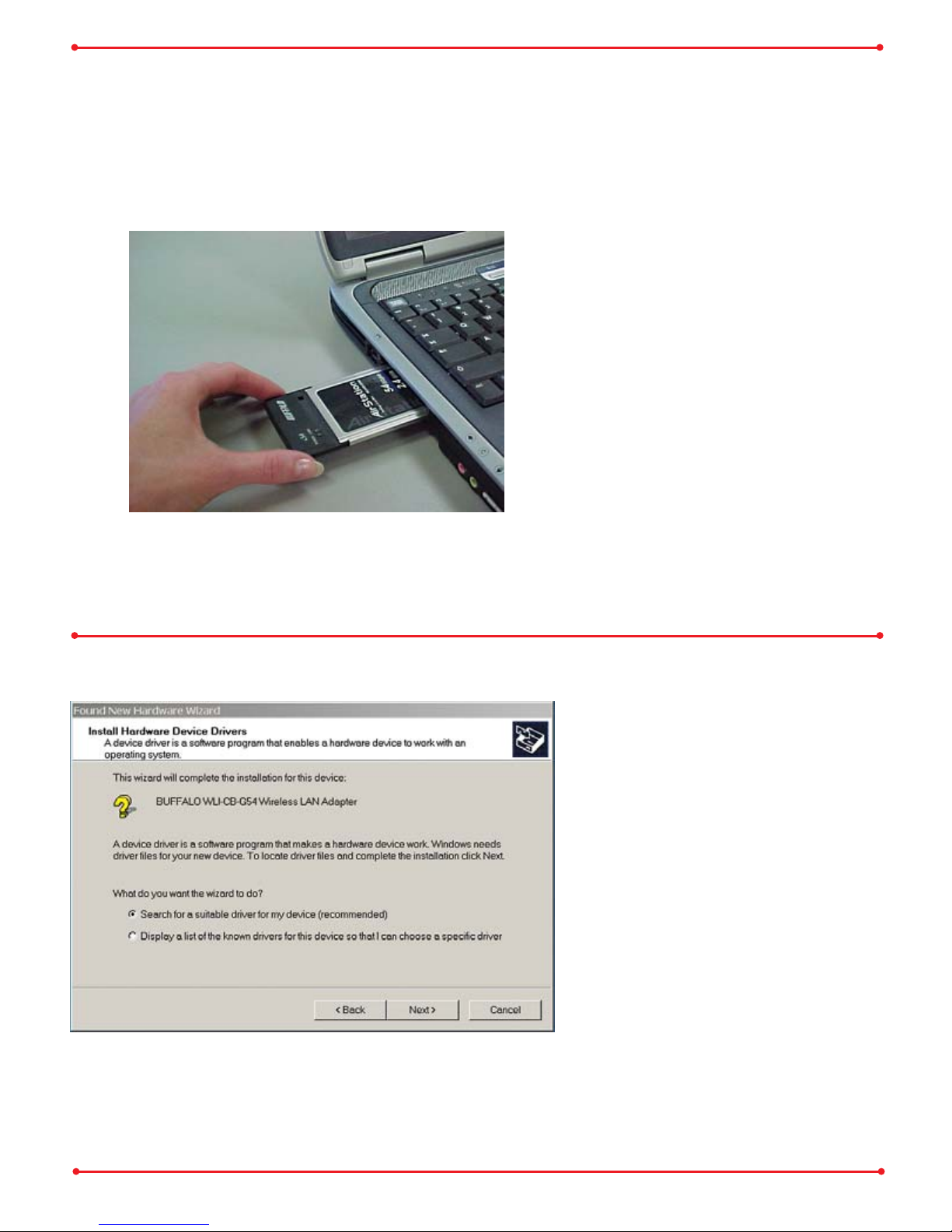

Insert the Wireless Notebook

Adapter, with the Buffalo logo

facing up, into an available

CardBus slot. CardBus slots are

usually located on the left or right

side of the notebook. Once the

Wireless Notebook Adapter is

installed correctly, the Found

New Hardware Wizard will

launch automatically. If the Found

New Hardware Wizard does not

launch, remove the Wireless

Notebook Adapter and restart the

notebook. Re-insert the Wireless

Notebook Adapter once the

notebook has rebooted.

Insert the AirNavigator CD

Select Search for a suitable

driver for my device. Click the

Next button to continue to the

Locate Driver Files page.

NOTE: If AutoRun is enabled,

exit out of the automatic

Software Installation.

Windows 98SE/2000/ME

Installation & Configuration

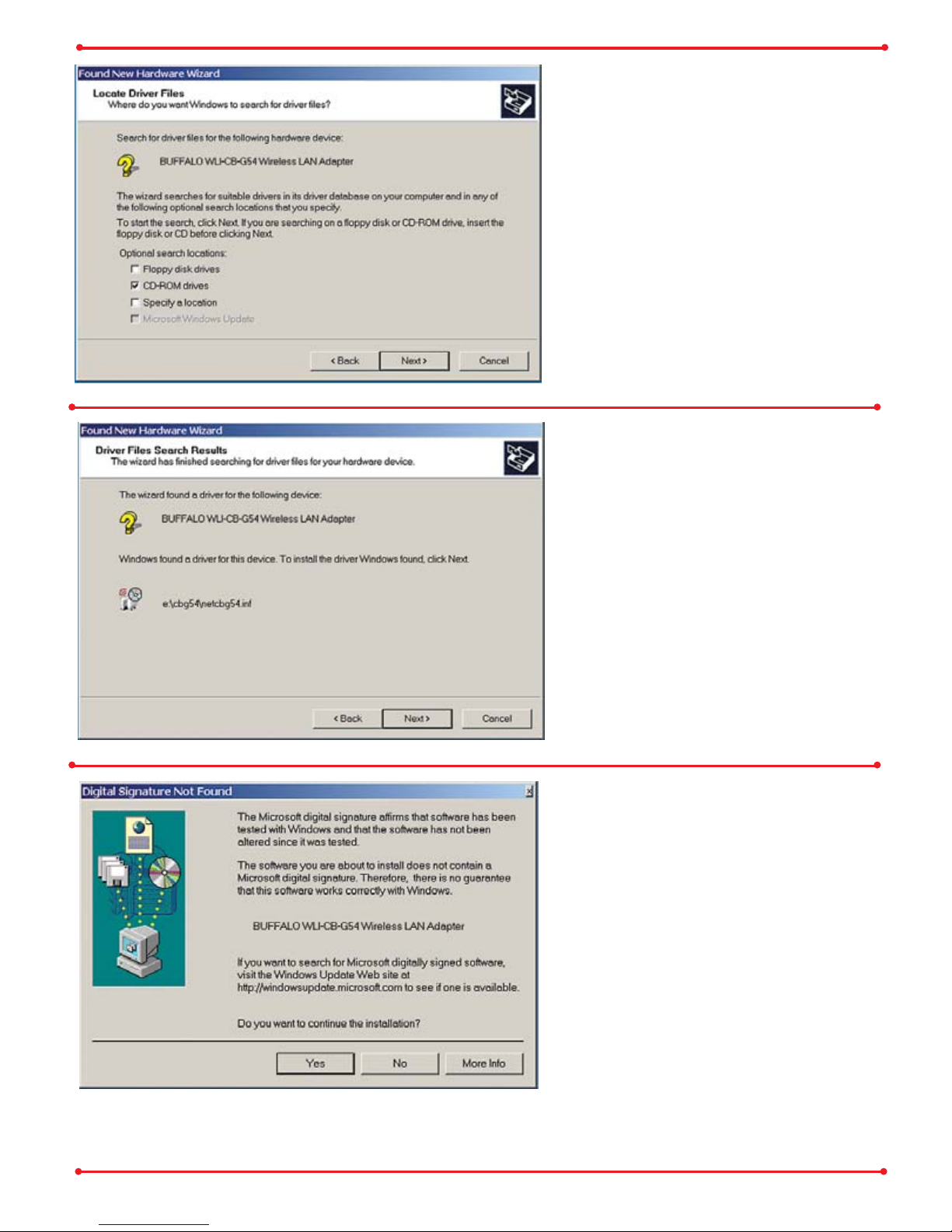

Verify that no Optional

search locations are

selected. Clear any

checkboxes that are selected

except for the CD-ROM

drive. Click the Next button

to continue to the Driver

Files Search Results page.

Windows will display a

driver you can use with the

Wireless Notebook Adapter.

Click the Next button to

continue the installation

process.

Windows 2000: If the

Digital Signature Not

Found page opens, informing

you that no digital signature

exists for the driver you are

installing, click the Yes button

to continue the installation

process. When the Wireless

Notebook Adapter is

successfully installed, click the

You have finished installing your Wireless Notebook Adapter-g. See Installing

Client Manager to install Client Manager on your notebook.

Installing Client Manager

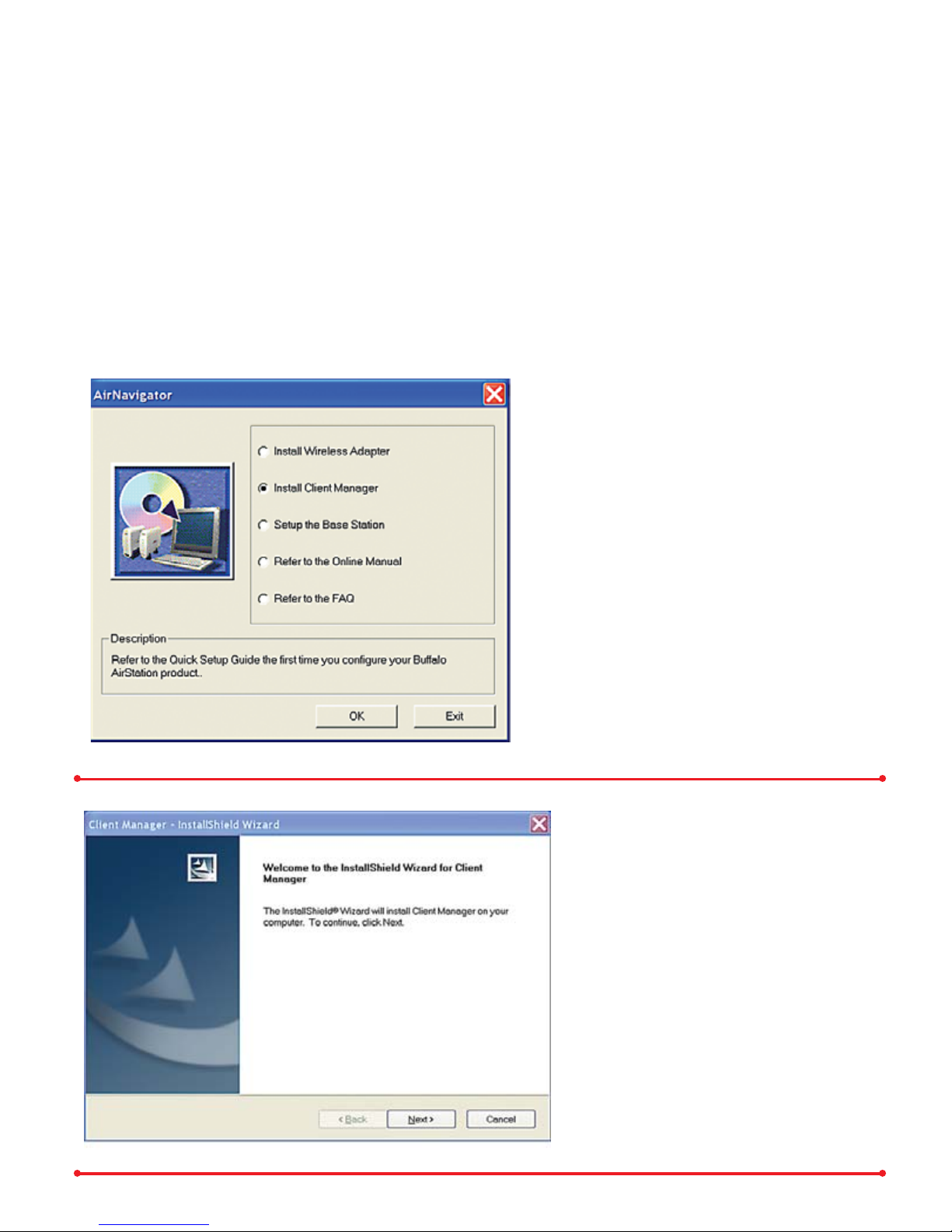

 Insert AirNavigator CD-ROM

The AirNavigator dialog

box will open automatically. If

the AirNavigator dialog box

does not open automatically,

select Start»Run and enter

D:\Setup.exe in the Open field

to open the dialog box manually.

D: represents the letter assigned

to the CD-ROM drive. If another

letter is assigned to the CD-

ROM drive, your command

should reflect that difference.

Click the OK button. Select

Install Client Manager to

launch the InstallShield Wizard.

Once the InstallShield

Wizard launches, click the Next

button to begin the software

installation.

Client Manager is used to associate a Buffalo Wireless Client Card or

Adapter to an access point.

Note: Client Manager does not function properly if the Windows XP

Wireless Zero Configuration Service is enabled.

If you plan to use XP’s Wireless Zero Configuration Ser vice, do not install

Client Manager.

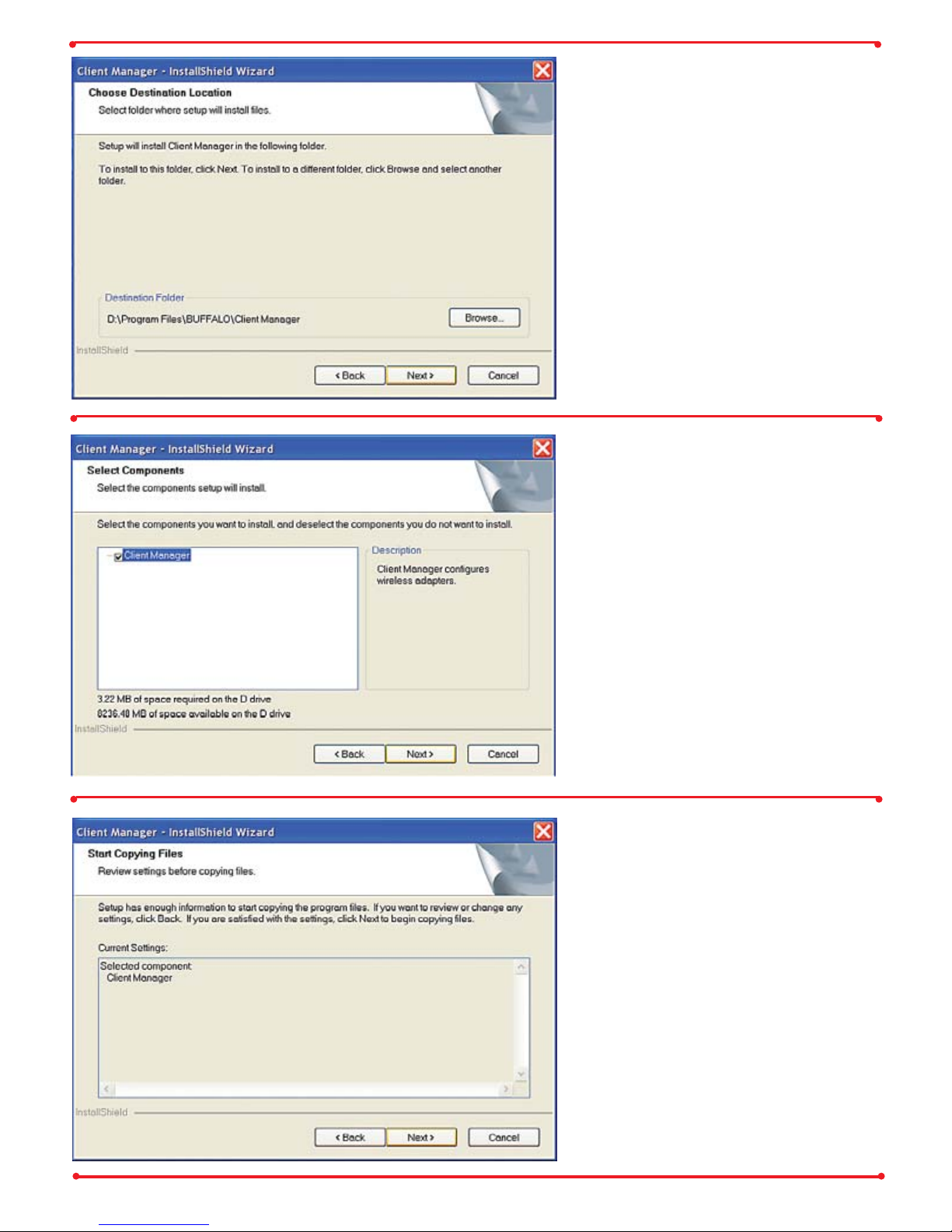

Confirm that the installation

location for the software is

acceptable. To select an alternate

installation location, click the

Browse button and select another

location. Click the Next button to

continue to the Select

Components page.

Select the components you

want to install and click the

Next button to continue to the

Start Copying Files page.

Click the Next button to begin

copying the necessary files to install

Client Manager.

Depending on the operating system, some screens may vary from those shown in

this guide. However, by accepting default installation settings, Client Manager should

properly install. For more information about configuring and operating your

Wireless Notebook Adapter-g and Client Manager, refer to the Buffalo Support

Web Site: http://www.buffalotech.com/wireless/support/index.php.

In order to utilize WPA, users currently require XP’s Wireless Zero Configuration

Service.

WIndows 98SE/2000/ME users require a third-party WPA supplicant such as

Odyssey by Funk Software. More information can be found at :

http://www.funk.com

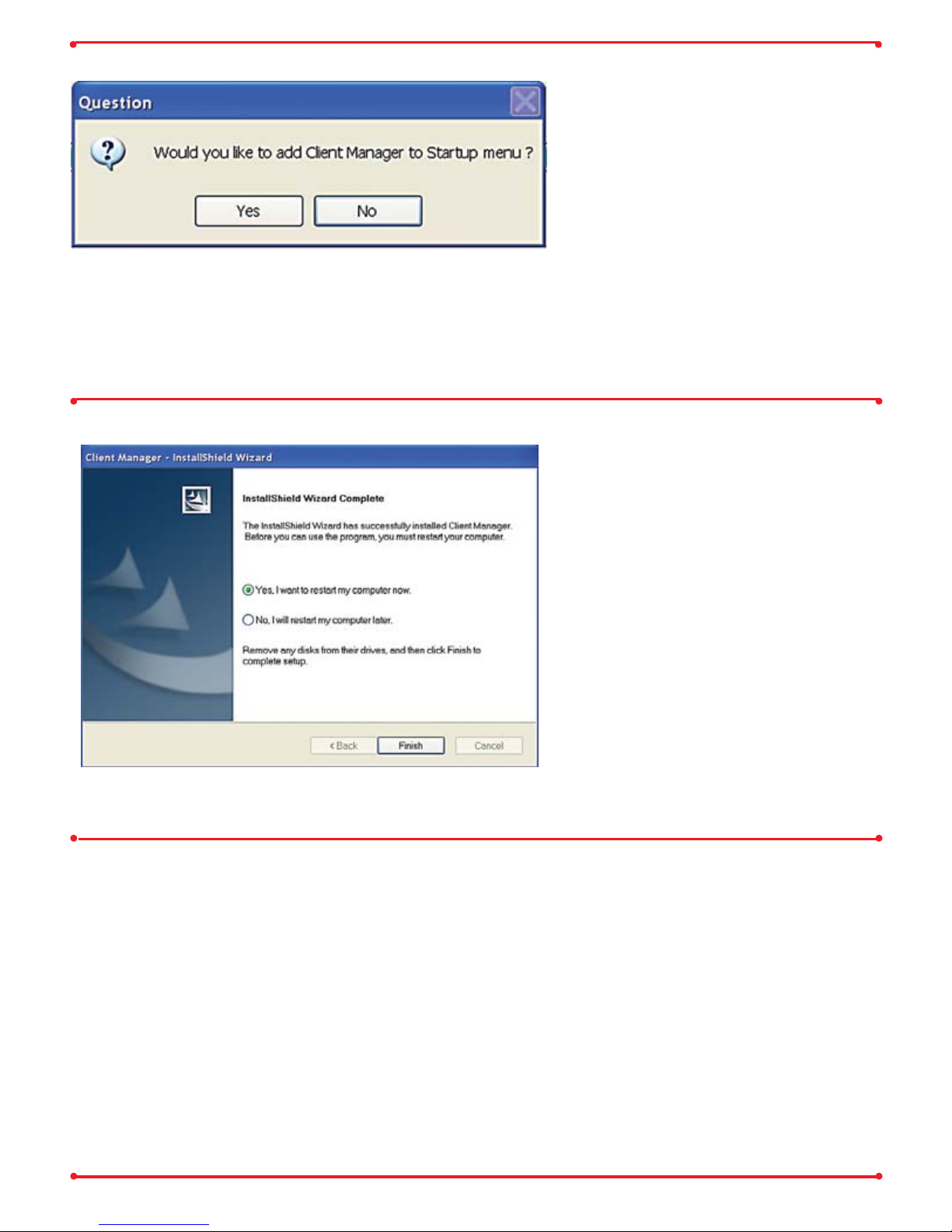

Click the Yes button, when

prompted, to add a shortcut for

Client Manager to your Windows

Startup menu. If you click the Yes

button, Client Manager will run at

startup.

Click the Finish button to

complete the installation of Client

Manager. Restart your notebook.

Note: The Wireless Notebook

Adapter and Client Manager will not

function properly until you reboot

the system.

NOTE: Users who frequently change profiles should not add Client Manager

to the Start-up Group.
