Buffalo TeraStation III TS-IXL Manuale utente
Network Attached Storage
TeraStation III iSCSI User Manual
www.buffalotech.com
35011188 ver.01
TS-IXL
TS-RIXL
TeraStation IS Setup Guide 1
Contents
Chapter 1 Introduction ........................................................................... 3
Chapter 2 Using the iSCSI Hard Disk Connection Tool ....... 7
Chapter 3 Conguration Utility .............................................................. 13
Chapter 4 Using Logical Volume Manager (LVM) .................................... 14
Chapter 5 Changing RAID Mode ............................................................ 17
TeraStation IS Setup Guide 2
Chapter 6 Congure Access Restrictions ................................................. 26
Chapter 7 TeraStation Maintenance ....................................................... 28
Chapter 8 Conguration Utility .............................................................. 45
Appendix .................................................................................... 55
TeraStation IS Setup Guide 3
Chapter 1
Introduction
iSCSI
Can be placed anywhere
It is recognized as a local hard disk just like USB
hard drives, but you don't have to place this
unit close to your computer or server unlike a
USB hard drive since this unit is connected via
the network.
Can be used as a local drive
Since it is recognized as a local drive, all features
of your OS and applications can be used. You can
format the drive with NTFS from Windows.
This example shows a TS-IXL TeraStation. The rackmount TS-RIXL is functionally identical.
iSCSI Compatible Hard Drive
iSCSI ("Internet Small Computer System Interface") is a standard to transmit data on an Ethernet network by
encapsulating SCSI commands in TCP/IP protocol. Connecting Ethernet cabling as iSCSI, it is recognized as a
local drive by computers or servers.
TeraStation IS Setup Guide 4
For best results, use dedicated Gigabit (1000BASE-T)
NICs, cabling, and routers to connect iSCSI drives.
Use of slower network equipment, or sharing a
network with normal Ethernet trafc, will compromise
performance.
Consider Network Structure
Differences between NAS and iSCSI
NAS
Servers and computers directly access shared folders on a NAS.
• Create and use shared folders easily (no extra server needed)
• Access les directly using XFS format.
• Features like backup are built-in to the NAS.
iSCSI
A server creates shared folders on the iSCSI drive, and a
computer accesses shared folders on the server.
• Can be used as a local drive from Windows Server and
accessed via the server by client computers.
• All standard Windows features such as Access
Restrictions with Active Directory can be used on iSCSI
drives.
• Database software that requires special formatting can
by used with iSCSI drives..
TeraStation IS Setup Guide 5
Install the "Microsoft iSCSI Software Initiator" rst.
Before you can use iSCSI equipment with Windows XP, 2000, or Server 2003, you must
download and install the "Microsoft iSCSI Software Initiator".
1. Navigate to Microsoft's web site ( www.microsoft.com).
2. Search for "Microsoft iSCSI Software Initiator".
3. Download the latest version of the Microsoft iSCSI Software Initiator.
4. When the download is complete, double-click on the installer. Uncheck the "Initiator
Service" and "Software Initiator" checkboxes. Follow the wizard to install the Microsoft
iSCSI Software Initiator.
Install the Microsoft iSCSI Software Initiator
Windows XP/2000、Windows Server 2003/2000 Server
Windows 7/ Vista, Windows Server 2008
If you’re using Windows 7, Vista, or Windows Server 2008, the iSCSI Software Initiator is
already installed on your computer. You don’t need to download and install it.
TeraStation IS Setup Guide 6
Refer to the separate "Quick Setup Guide" for connection instructions.
▼
Turn on your computer
▼
Insert the Utility CD included in the package into the CD/DVD drive
▼
After "TeraNavigator" launches, follow the instructions on the screen.
▼
Launch the iSCSI Hard Disk Connection Tool, click “Register the iSCSI Hard Disk”,
then “Connect”.
Setup
Notes: • If there is a DHCP server in the network, the TeraStation will get an IP address from it automatically.
• Running the TeraNavigator software will automatically assign an unused IP address to a TeraStation.
• TeraNavigator can automatically congure only one unit at a time. To recongure a TeraStation with
TeraNavigator after its initial installation, initialize the TeraStation rst.
• If no DHCP server is available and TeraNavigator is not run, a random IP address of the form 169.254.
xxx.xxx (where each xxx is a random number from 1 - 256) will be assigned to the TeraStation.
If you are using Windows 2000, XP, 2000 Server, or Server 2003, install the "Microsoft
iSCSI Software Initiator" before installing the TeraStation.
Run TeraNavigator separately for each iSCSI TeraStation.
Note: If no DHCP server is available on the network, an IP Address of the form 169.254.xxx.xxx is randomly
assigned. Run TeraNavigator to congure the Terastation automatically.
Adding multiple TeraStations
TeraStation IS Setup Guide 7
Chapter 2
Using the iSCSI Hard Disk Connection Tool
iSCSI Hard Disk Connection Tool
When you set up the TeraStation with TeraNavigator, the iSCSI Hard Disk Connection Tool was installed. You will use
this tool to connect to the TeraStation.
To launch: Click “Start” - “All Programs” - “BUFFALO”-”iSCSI Hard Disk Connection Tool”-”iSCSI Hard Disk Connection
Tool”.
Name Meaning
Target product Select a TeraStation from the drop-down list. Any iSCSI TeraStations on the LAN should be available.
“Register the iSCSI Hard Disk” registers all volumes of the selected TeraStation to your computer.
If a TeraStation is already registered, click “Remove the registered iSCSI Hard Disk” to unregister all
volumes of that TeraStation.
Model Name TeraStation's model name
Series Name TeraStation's series name
IP Address TeraStation's IP address.
Subnet mask TeraStation's subnet mask.
MAC Address TeraStation's MAC address.
Firmware TeraStation's rmware version.
iSCSI Service Shows whether the iSCSI service of the TeraStation is running or stopped.
Volume Select individual volumes from a registered TeraStation.
Select a volume and click “Connect". The selected volume will be recognized as a local drive on your
computer in My Computer.
Volumes will not be visible until the TeraStation is registered above.
If IP address restrictions are set, volumes are displayed only on computers with allowed IP addresses.
If a volume is connected, click “Remove" to disconnect it.
TeraStation IS Setup Guide 8
Current status Displays Current status of the selected volume.
• Not connected. Volume is disconnected.
• Connected. Volume is connected.
• Connected to other computer. Volume is connected to other computer. Displays other computer's IP
address.
*You must register TeraStation as an iSCSI hard drive at “Target product" to display it.
User
Authorization
Displays user authentication for the specied volume.
Disabled: No authentication
Enabled: With authentication. User authentication is needed to connect to a volume.
*You must register TeraStation as an iSCSI hard drive at “Target product" to display it. It is not displayed
when the volume is already connected from other computer.
Connect on
Start Up
Displays check mark in the check box, and click “Connect (or Remove)” to set the volume automatically
connected when the computer is booted (always connected).
Uncheck the check mark and click “Connect (or Remove)” to set the volume automatically not connected
when the computer is booted (always connected).
*You must register TeraStation as an iSCSI hard drive at “Target product" to display it. It is not displayed
when the volume is already connected from other computer.
Refresh Search the TeraStation within the LAN.
Exit Exit iSCSI Hard Disk Connection Tool.
Menu Navigation:
File Refresh Search the TeraStation within the LAN.
Exit Finish iSCSI Hard Disk Connection Tool.
Setup
Browse Web setting Opens the Conguration Screen of the selected TeraStation.
Change IP Address Open “Change IP Address” screen. You can change the IP address of the
selected TeraStation.
Remove the registered
iSCSI Hard Disk
Displays “Remove the registered iSCSI Hard Disk” screen.
If you disconnect the TeraStation without unregistering it or changing its IP
address, it will take a long time to search since the registration information
stays in your computer. In such a case, unregister old TeraStation from “Remove
the registered iSCSI Hard Disk” screen.
Set Mutual CHAP Secret Set the CHAP password on the computer side.
Use share folder on a
Persistent Volume
If TeraStation is always connected and folders are shared in the network, click
this to insert the check mark. If the checkmark is not inserted, the share will be
disconnected when the computer is restarted.
Connect some Volumes Displays the screen to connect multiple volume at a time.
Disconnect some
Volumes
Displays the screen to disconnect multiple volume at a time.
Launch “Disk
Management”
Displays the Disk Management screen on Windows.
To use the connected TeraStation, you must reserve the volume area and
format it on the Disk Management Screen.
Help Version Displays iSCSI hard drive version information.
TeraStation IS Setup Guide 9

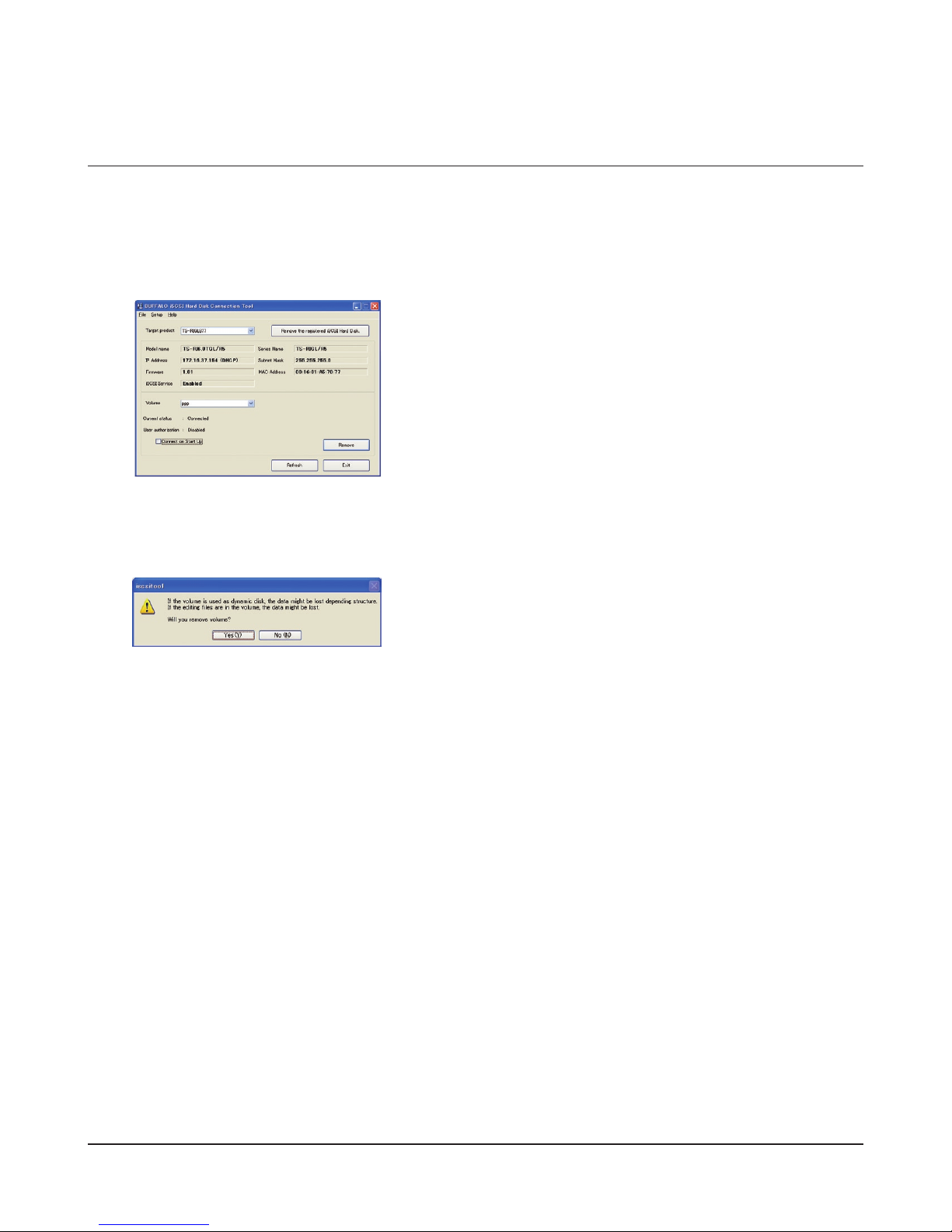

Disconnecting and Removing TeraStation
To remove an iSCSI TeraStation, disconnect any connected volumes rst and then unregister the TeraStation.
1Click “Start”-”All Programs”-”BUFFALO”-”iSCSI Hard Disk Connection Tool”-”iSCSI Hard Disk
Connection Tool”. The iSCSI Hard Disk Connection Tool will launch.
2
Select the volume to disconnect from “Volume” and click
“Remove”.
Note: To disconnect multiple volumes at once, choose “Remove the Registered iSCSI Hard Disk” from the “Setup”
menu. Click on “Select All”, then “Remove”.
3
Click “Yes” to disconnect the volume(s).
