Buffalo HD-HGLAN Series Manuale utente

Unpacking and Setup

This section provides unpacking and setup information for LinkStation.

Open the shipping carton of LinkStation and carefully unpack its contents. The

carton should contain the following items:

Main unit (LinkStation) 1

LinkStation Base Plate 1

Base Rubber Feet 4

Ethernet Cable 1

Power Cord 1

LinkNavigator Installation CD 1

Quick Setup Guide (this user’s guide) 1

Warranty card 1

If any items are missing or damaged, please contact the reseller or retailer from

which the product was purchased.

The front face of the LinkStation has a protective plastic ﬁlm covering for

protection from scratching during assembly and shipping. The ﬁlm can be

removed by peeling it away from any corner of the front face.

Quick Setup Guide

LinkStation

HD-HGLAN Series

www.buffalo-technology.com PY00-31003-DM20-01 1-01

LinkStation Setup

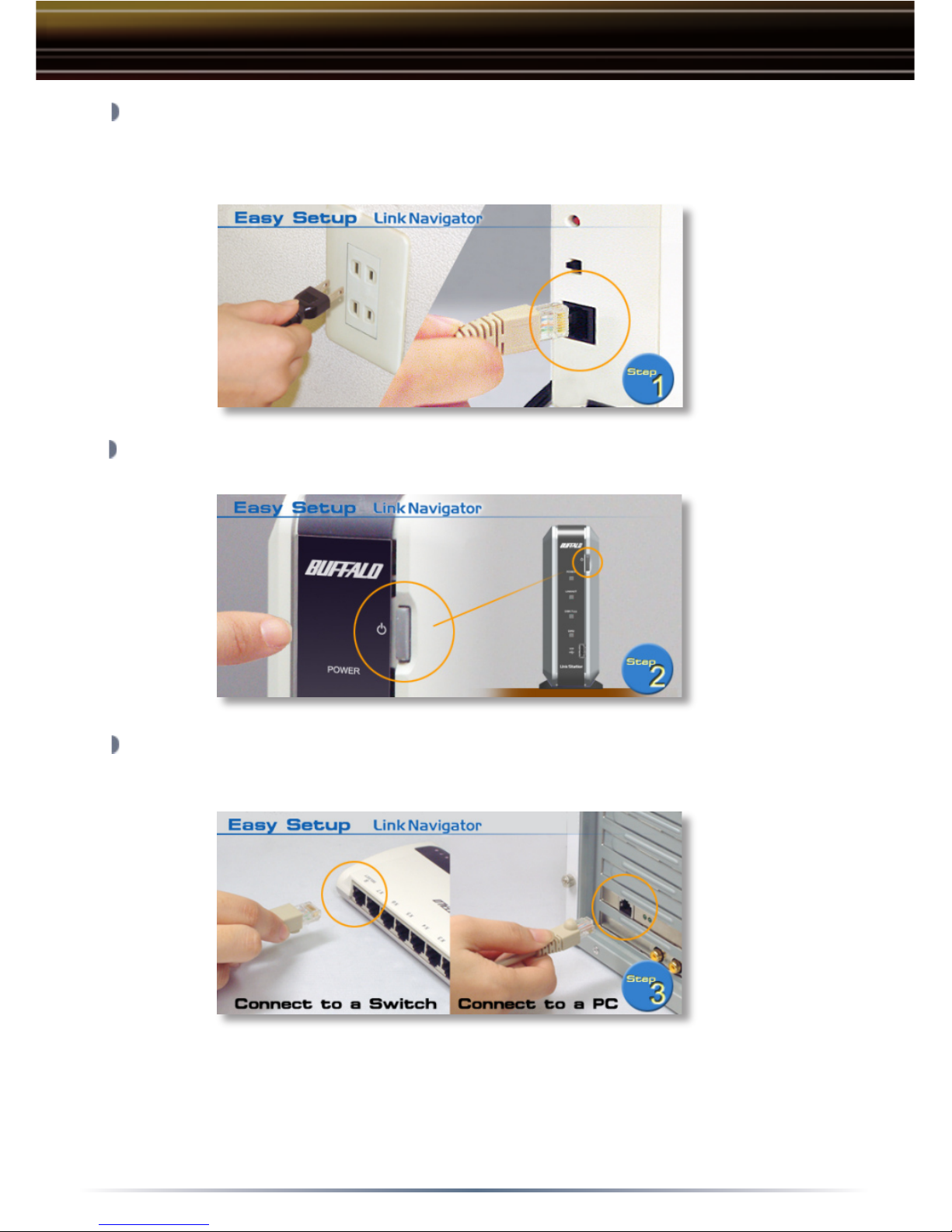

Plug LinkStation’s power cord into the back of LinkStation. Plug the other

end of the power code into a power outlet. Then, connect the included

Ethernet Cable into the Ethernet port on the back of LinkStation.

Press the power button on the front of LinkStation to turn LinkStation on.

Connect the other end of the included Ethernet Cable into a hub, switch,

or router on the network, or connect it directly to a nearby running PC.

NOTE: It is recommended to connect LinkStation to a hub or switch

on the network. Connecting it directly to the back of a PC should only

be used if absolutely necessary. Many features including DHCP IP

Addressing require LinkStation to be connected to a switch or hub.

Check the LINK/ACT light on the front of the LinkStation. If it is lit, then

LinkStation is connected properly; please turn to Page 4 to continue

setup. If it is not lit, continue to the next step.

Verify that the LINK/ACT light on the front of LinkStation is lit (see Step 4’s

picture). If it is lit, turn to Page 4 to contintue setting up LinkStation. If the

LINK/ACT light is still not lit, please verify the following:

Both LinkStation and the hub, switch, or PC are powered on.

The Ethernet Cable is securely fastened to both devices.

LinkStation Setup

Insert the LinkNavigator CD

into the PC’s CD-ROM drive.

Depending on the PC’s

conﬁguration, the EasySetup

program may launch. If

it does not automatically

launch, manually launch it

by pressing the ‘Start’ menu

and selecting the ‘Run...’

option. When the ‘Run’ dialog opens, type x:\easysetup.exe (where X

is the drive letter of the CD-ROM drive). Press ‘OK’ to continue.

Link Navigator is now running.

Please press the ‘Install IP Setup

Utility’ button, then press the

‘Start’ button.

The LinkStation IP Address

Conﬁguration Utility will launch

and begin scanning for all

available LinkStation devices on

the network.

The IP Setup Utility allows you

to easily conﬁgure LinkStation’s

network settings. The ‘Search’

button will re-scan the network

for all available LinkStations. The

drop down menu lists all available

LinkStations. If there are multiple

LinkStations on the network, then

select the proper LinkStation from

the drop down menu. Once the

proper LinkStation has been selected from the drop down menu,

press the ‘Change IP Address’ button.

The setup of Link Navigator is performed using the following steps:

Link Navigator Setup

This part of the program changes

LinkStation’s IP Address. Check the

box that states ‘Acquire IP Address

Automatically’. This will give

LinkStation an IP Address from the

network’s router/DHCP server. A static

IP Address and gateway can also be

set if preferred. The ‘Administrator

Password’ ﬁeld sets an administrator

password for the web-based conﬁguration. If a password is desired,

then type a password in the ﬁeld. When ﬁnished, press the ‘OK’

button. LinkStation will conﬁrm and set the IP Address settings.

The login prompt will appear.

The user name is root.

There is NO password by default.

If a password was speciﬁed on the

previous step, then type that password

in the ‘Password’ ﬁeld. Press the ‘OK’

button when ﬁnished.

These are LinkStation’s main

conﬁguration menus. Please

bookmark this page so it

can be accessed for future

conﬁguration changes.

Refer to the User Manual for

detailed explanations of each

menu and their settings. The

User Manual is located on the

LinkNavigaor CD-ROM.

Please not that Pcast media server option can only be used in

conjunction with a Buffalo LinkTheater.

To continue setup, click on the ‘Basic’ settings button. This will allow

you to setup some important settings.

Then click on the ‘LinkStation Name Setup’ link.

Link Navigator Setup

The LinkStation name

will be required to access

LinkStation. A friendly, easy

name is recommended.

Enter a suitable name in the

‘LinkStation Name’ ﬁeld.

Feel free to use your ﬁrst or

last name, a description of

the data to be installed on

LinkStation, or simply name it LinkStation. Enter a short description of

LinkStation in the ‘LinkStation Description’ ﬁeld. Once completed,

press the ‘Apply’ button.

By default there are two shares

on LinkStation. If you would

like to create additional shares

for speciﬁc users or speciﬁc

types of data, then click on the

‘Security’ tab. Then click on

the ‘Shared Folder Setup’ link.

From this conﬁguration page

you can add new shares or edit

existing shares.Press the ‘Add

a New Folder’ button to begin creating a new shared folder.

To begin setting up a new

share, enter an appropriate

share/folder name in the

‘Shared Folder Name’

ﬁeld. Enter a description

of the share in the ‘Shared

Folder Description’ ﬁeld. It

is recommended to leave the

remaining settings in their

default state. Please refer

to the User Manual on the

LinkNavigator CD-ROM before

changing any of these settings. Press the ‘Apply’ button when ﬁnished.

Please repeat this step to create additional shares.

LinkStation Conﬁguration

Accessing LinkStation data is performed using the following steps:

LinkStation’s ‘Root Directory’

will appear. You will see all

of the conﬁgured shares. All

users can read and write to all

folders. To setup security and

password protection, please

refer to the User Manual on the

LinkNavigator CD-ROM. Also,

please refer to the User Manual

to setup the print server. A

drive letter can also be mapped

for LinkStation, see the next step for more information. LinkStation can

be accessed by multiple computers simultaneously.

From the previous step’s ‘Root

Directory’ screen, use the pull

down menu and click ‘Tools’

and then select ‘Map Network

Drive’. The ‘Map Network

Drive’ program will run. Select

the drive letter you would like

LinkStation to assume from the

‘Drive:’ pull down menu. Enter

the \\LinkStation_Name\share_

name in the ‘Folder:’ ﬁeld (where

LinkStation_Name is the ‘LinkStation Name’ and share_name is the

‘Shared Folder Name’ both set on Page 6). Once complete, check the

‘Reconnect at logon’ box and press the ‘Finish’ button.

Congratulations, LinkStation is setup. Please see the User Manual on

the LinkNavigator CD-ROM for more help and conﬁguration options.

Press the ‘Start’ menu, select

the ‘Run...’ option. When the

‘Run’ dialog appears, please

type \\LinkStation_Name

(where LinkStation_Name is the

‘LinkStation Name’ set on Page

6). Press ‘OK’ to continue.

Accessing LinkStation Data from a PC

Technical Speciﬁcations

LAN Standards: IEEE 802.3u 100BASE-TX; IEEE 802.3

10BASE-T

Transmission Types: 1000Mbps/100Mbps/10Mbps;

(1000BASE-T) 8B1Q4+PAM5

(100BASE-T) 4B5B+MLT-3

(10BASE-T) Manchester Coding

Access Media: CSMA/CD

Media Interface: RJ-45

USB Standard: USB 2.0

Hi-Speed (HS)

Full-Speed (FS)

Low-Speed (LS)

USB Connector: USB A Connector (2)

Data Transmission Speed: Max: 480 Mbps (HS Mode)

Max: 12 Mbps (FS Mode)

Electric Current: 5.0V 1.5A, 12V 1.5A

Power Consumption: 17W Maximum

Dimensions: 2.4 x 6.94 x 7.4 in. (60 x 173.5 x 185 mm.)

Weight: 3.8 LB. (1.3 kg.)

Operating Temperature: 5-35 C; 20-80% non-condensing

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause

radio interference, in which case the user may be required to take adequate

measures.

Technical Support

Buffalo Technology offers Technical Support between the hours of 9am-6pm

(GMT) Monday to Thursday and 9am-4:30pm (GMT) Friday for this product.

Customers in Europe can obtain Technical Support using the following

information:

◗ Online Help Available on the enclosed AirNavigator CD.

◗ Web www.buffalo-technology.com

◗ E-mail helpdesk@buffalo-technology.ie

◗ Telephone UK only: 08712 50 12 60

Elsewhere: +353 61 708 050

The constantly evolving state of wireless products and operating systems requires

Buffalo Technology to occasionally release updated software to take advantage

of new technologies and to comply with industry standards. For the most recent

software, ﬁrmware, driver, and technical whitepaper releases available, please visit

the Buffalo Technology website: www.buffalo-technology.com
