Buffalo LinkStation Quad LS-QL/R5 Manuale utente

Package Contents:

•LinkStation Quad

•Ethernet Cable

•Power Adaptor & Cord

•LinkNavigator Installation CD

•Quick Setup Guide (this manual)

•Warranty Card

www.buffalotech.com

Quick Setup Guide

LS-QL/R5

LinkStation Quad

v1.7

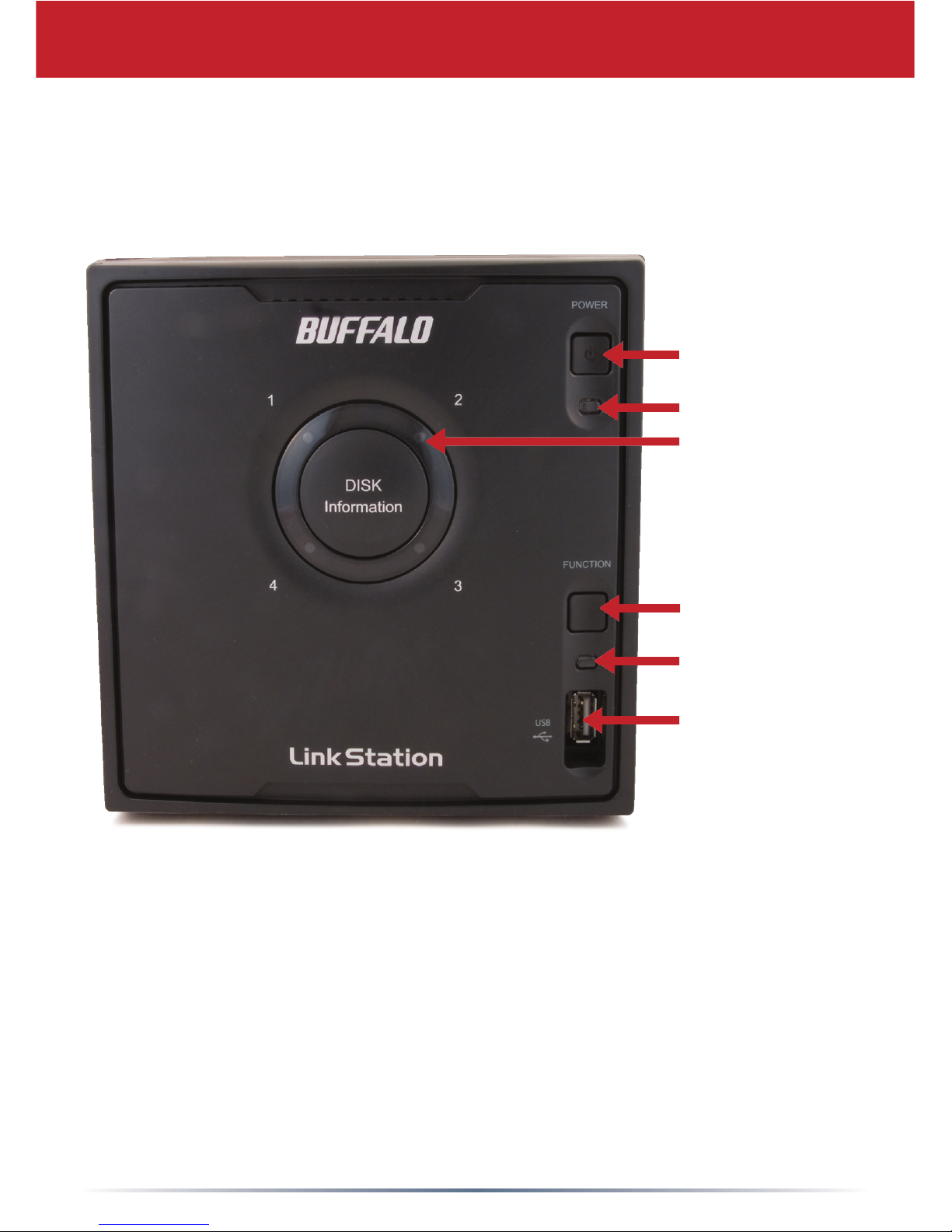

Front Panel Layout

USB

Function Button

Power Switch

Power LED

Function LED

Disk LEDs

(Green-Access

Red-Error)

Note: The LinkStation’s front panel is removable by pulling

it straight forward. Do not lift the unit by its front panel. It

may come off suddenly, allowing the unit to fall.

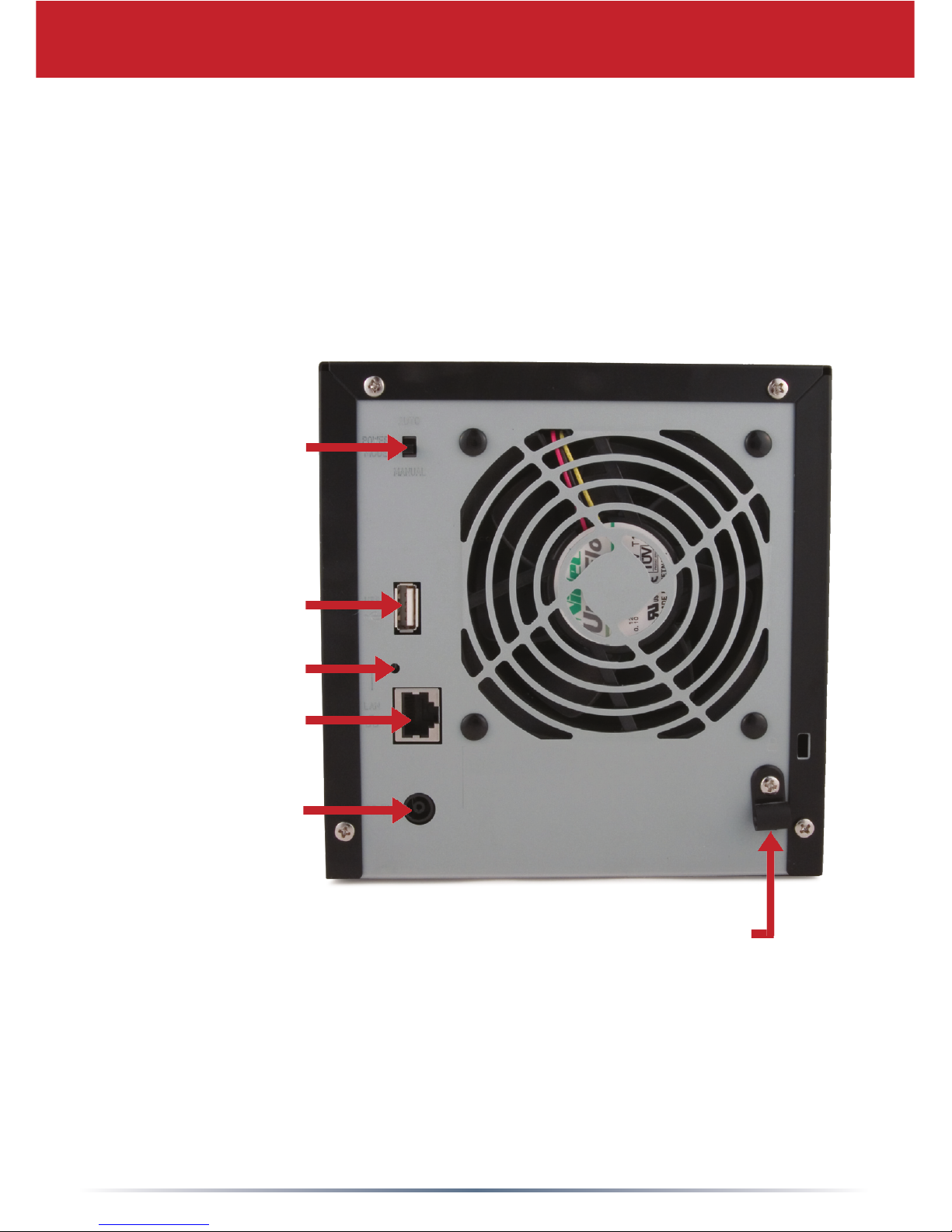

Rear Panel Layout

USB

Power Mode - Auto

Manual

Ethernet LED

Ethernet Port

Power Adaptor

Cable Guide

Insert the LinkNavigator

CD into your computer’s

CD-ROM drive. Setup

will launch automatically.

Click on your chosen

language. If you are

installing the software on

a Mac, open the CD and

click LinkNavigator to

begin installation.

Click Next to step through

the installation.

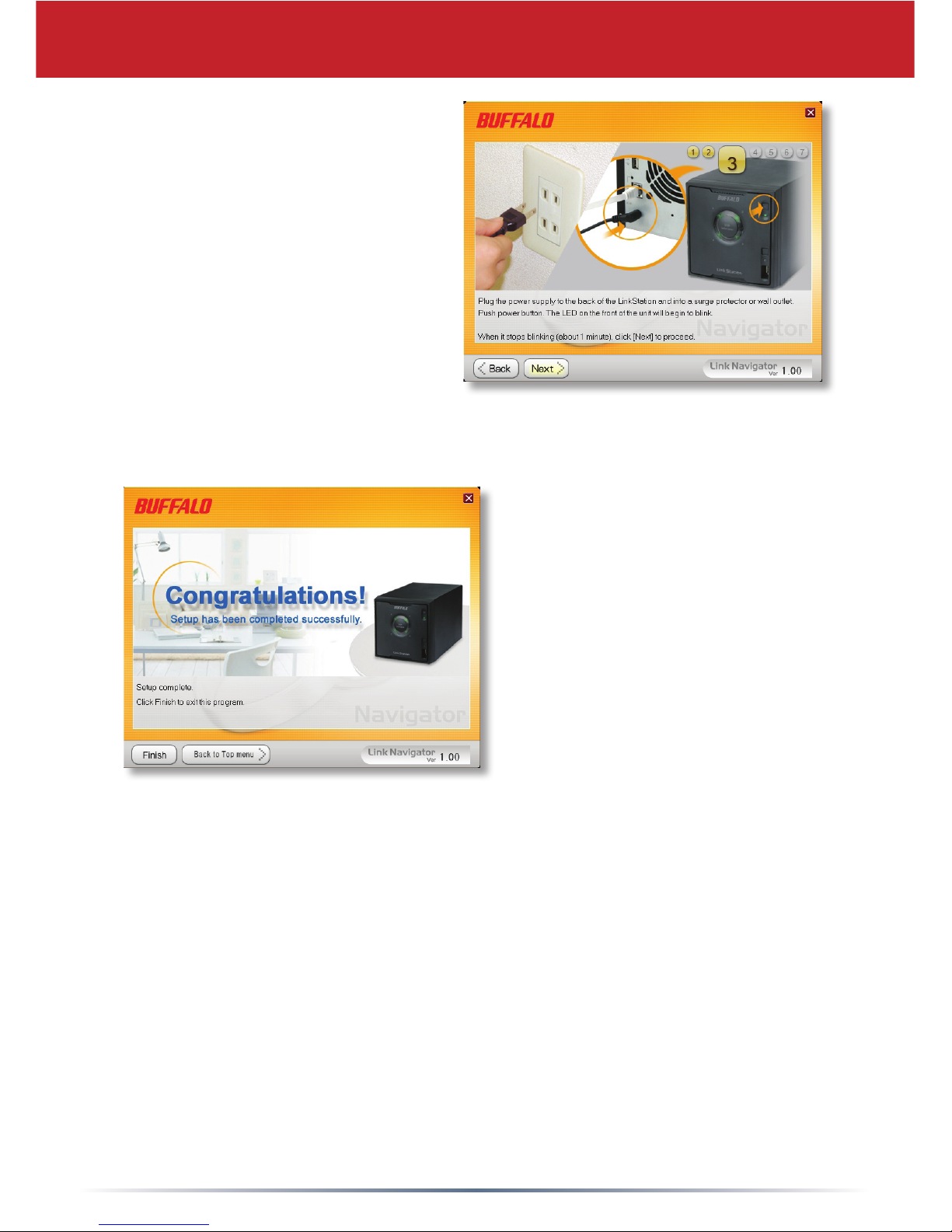

Installing Your LinkStation

Click on Begin

Installation.

The wizard will step you

through installation. Follow

the directions on each screen

and continue pressing

Next to step through the

installation.

When installation is

complete, you may close the

installation window.

Congratulations! Your LinkStation is ready to use. Turn to page

6 for more on using your LinkStation with a PC, or page 7 for

more on using your LinkStation with a Mac®.

Please see the LinkStation User Manual on your LinkNavigator

CD for more help and conguration options.

The LS-QLxxx shortcut will take directly to the

folders on your LinkStation.

Share is the main folder that you can put les

and folders in. Info contains a copy of your user

manual.

Using your LinkStation with a Windows PC

The Buffalo NAS Navigator icon opens

the LinkStation’s client utility. This lets

you easily view system information for

your LinkStation(s). If you right-click

on your LinkStation’s icon and choose

Open Web Admin, it will take you to the

Web Administration Tool, where you may

change your LinkStation’s settings. Until

you change it, the GUI’s username is

“admin” and the password is “password”.

Consult your user manual for more

information on the Buffalo NAS Navigator

and the Web Admin Tool.

If you’re using a Windows PC, three new

icons will be on your desktop: Buffalo

NAS Navigator, LS-QLxxx Setup results,

and LS-QLxxx, where xxx is the last three

characters of the unit’s MAC address. The

LS-QLxxx Setup results.txt le contains the IP address and network

information for the LinkStation.

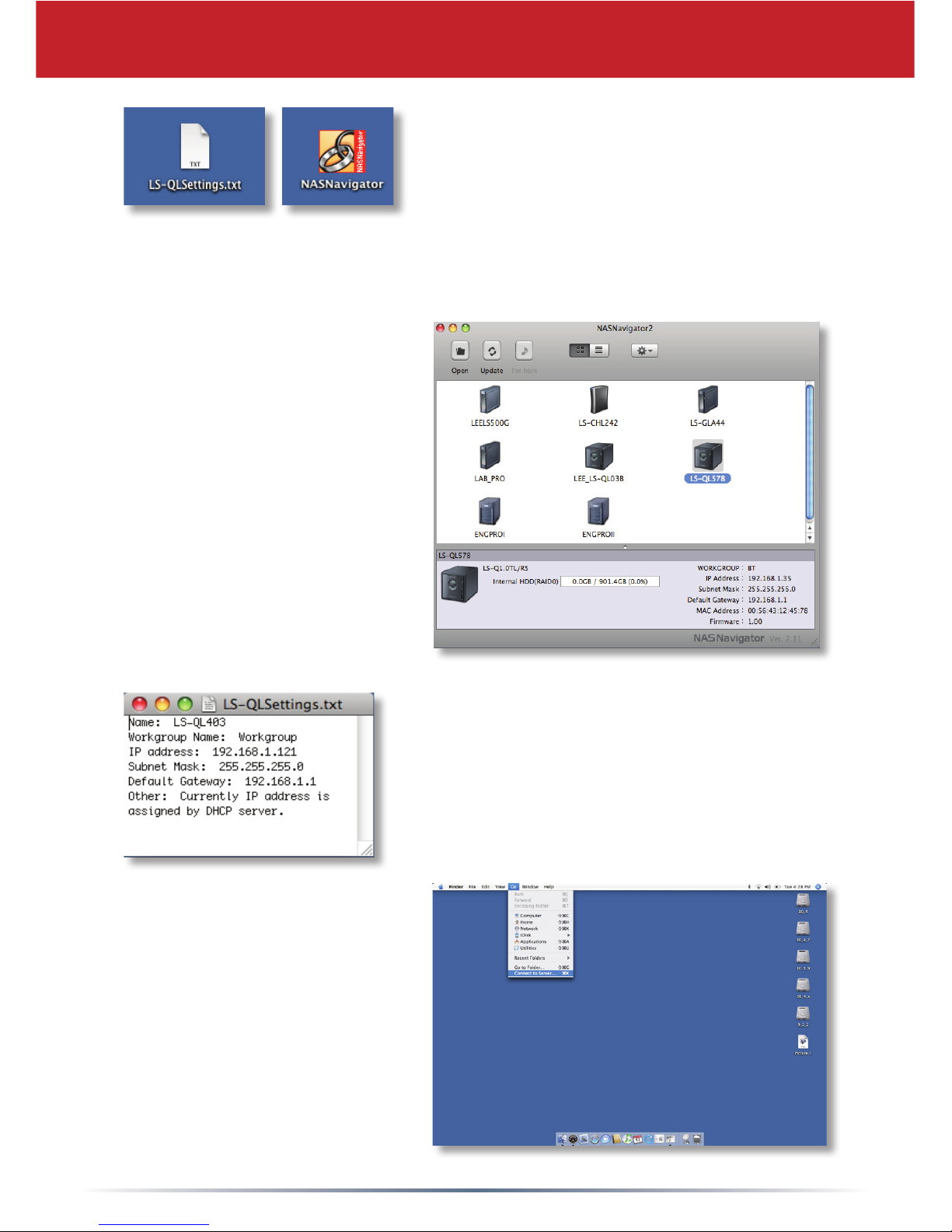

After installing the LinkNavigator

software, your Mac will have new

icons.

On the desktop, the LS-QLSettings.

txt le contains the IP address of your LinkStation. In the

Finder, NASNavigator is the LinkStation’s client utility.

Using your LinkStation with a Mac

Clicking NASNavigator

opens the LinkStation’s

client utility. This lets

you easily view system

information for your

LinkStation and change

its settings. Consult your

user manual for more

information on the Buffalo

NAS Navigator.

With the information in the LS-

QLSettings.txt le, you can easily

connect to the LinkStation from any

of your computers on your local

network.

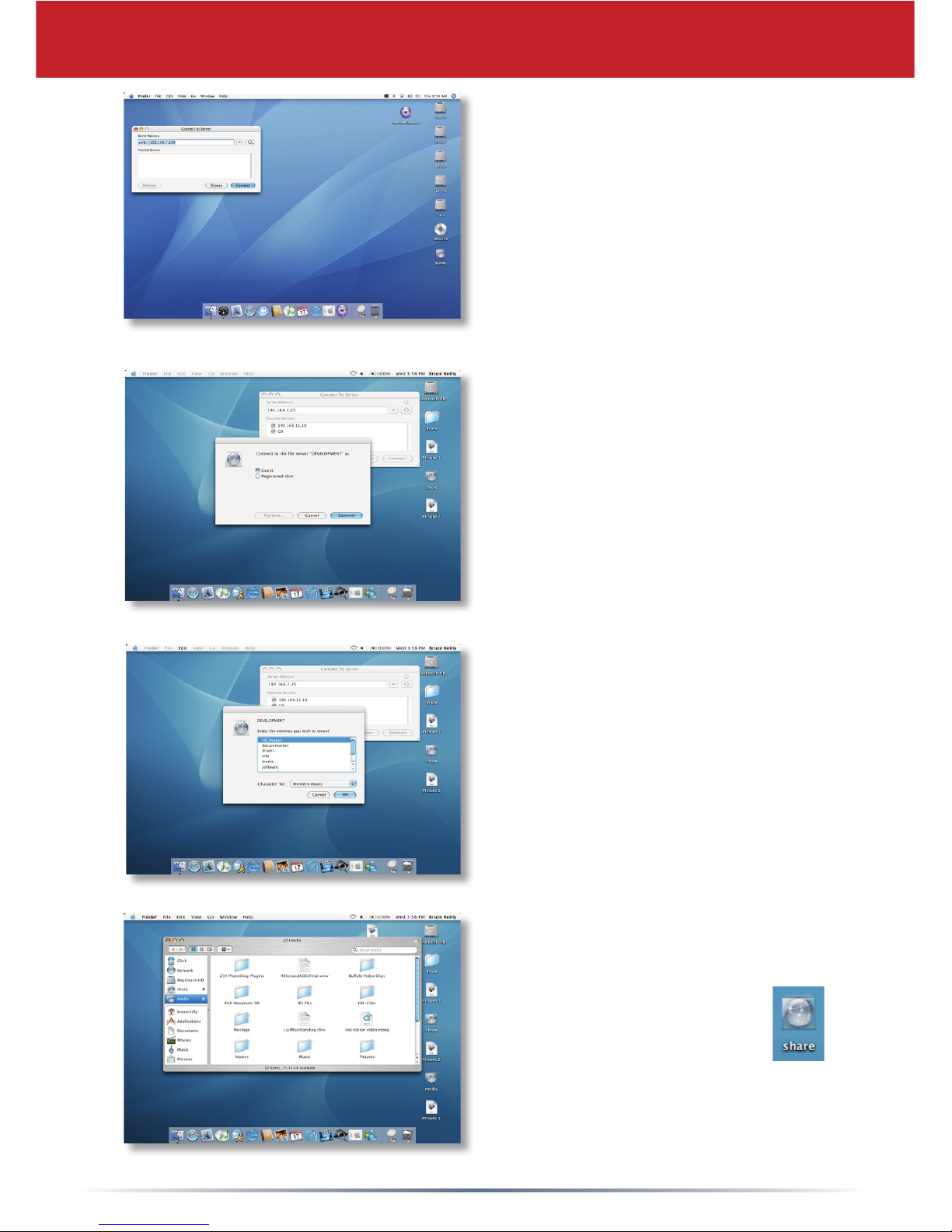

From the Finder, click Go,

and then choose Connect

to Server.

In the Server Address eld, enter

your LinkStation’s IP address

in the form smb://ipaddress

(where “ipaddress” is your

LinkStation’s IP address), and

click Connect.

You can get your LinkStation’s

IP address from the LS-

QLSettings.txt le on your

desktop.

Select Guest and click on

Connect. Note: If you have

congured share permissions

on your LinkStation, select

Registered User and enter your

Select share from the list of

folders on the LinkStation.

The share will open. A link to it

will appear on your desktop.

Using your LinkStation with a Mac

Technical Support

Buffalo Technology offers free technical support. See the back page

of this guide for contact information. Please also visit our web site at

www.buffalotech.com.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

*The LinkStation and its client utility work well with Windows Server 2003 and Windows Server 2008, but

many of the optional utilities (such as backup software) included with the LinkStation are not supported.

† Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Windows is a

registered trademark of Microsoft Corporation in the United States and other countries.

Technical Specications

Data Transfer: 10/100/1000 Mbps

Hard Drives: 3.5” SATA II (3 Gb/s)

Main Connector: RJ-45 (Ethernet)

USB Interface: USB 2.0/1.1

Protocol Support: TCP/IP, AppleTalk

SMB, FTP (File Sharing)

HTTP (Management)

NTP (Time Synchronization)

Power Supply: 100-240V 50/60Hz

Client OS Support: Windows

Vista

™

, XP, 2000, Server 2003*,

Server 2008*, Mac OS

10.3.9 or later

†

Power Consumption: ~45W (with no USB devices connected)

Dimensions: 5.91

”

x 5.91

”

x 9.01

”

(150 x 150 x 230 mm)

Weight: 12.5 pounds (5.7 kg)

Operating Environment: 41˚-95˚F;5˚-35˚C;20-80%non-condensing
