User Manual

LS-WSGL

LinkStation Mini

www.buffalotech.com

Introduction

Congratulations on your new LinkStation Mini. This user manual is intended to assist you

in conﬁ guring it.

Because we’re constantly updating our products, the images and text in this manual may vary

slightly from the images and text displayed by your LinkStation. These changes are minor

and should not affect the ease of setup adversely. As time passes, future user interfaces,

updated software, and later versions of this manual may be freely available for download at

our web site www.buffalotech.com.

If you run into difﬁ culties or need additional help, feel free to contact our technical support.

Contact information for Buffalo Technology and our technical support is available on pages

67 and 68.

Table of Contents

Back Panel Layout ............................................................4

Installation .......................................................................5

Power Mode Switch ...........................................................8

Using your LinkStation with a PC .....................................9

Using your LinkStation with a Mac .................................13

Add Additional Hard Drives ............................................ 17

Advanced Settings .......................................................... 18

Network Settings.............................................................22

Disk Management ...........................................................24

Shared Folders................................................................ 30

Groups ...........................................................................34

Users ..............................................................................35

Passwords....................................................................... 36

WebAccess...................................................................... 37

DLNA Media Server ......................................................... 41

Installing a Printer ..........................................................42

Troubleshooting Multiple Shares..................................... 47

Backups .........................................................................49

Maintenance & Notiﬁ cation ............................................. 53

System Status ................................................................ 58

Client Utility ...................................................................63

Troubleshooting .............................................................. 65

Technical Speciﬁ cations .................................................. 66

Contact Information (USA) ..............................................67

Contact Information (Europe) .........................................68

GPL Information .............................................................69

Back Panel Layout

USB

Power Switch

Power Plug

Ethernet

(to Router)

Insert the LinkNavigator CD into your computer’s CD-ROM drive.

On a PC, setup should automatically launch. If it does not, manually

launch setup.exe by pressing Start and selecting the Run... option.

When the Run dialog opens, type d:\LSnavi.exe (where d is the drive

letter of your CD-ROM drive). Press OK to continue.

Installation

If you are installing the software on a Mac, open the CD and click

LinkNavigator to begin installation.

Press the Begin Installation button to begin.

LinkNavigator Setup

If you’re installing on a PC, click on Easy Setup (the pink,

upper button). Mac users can skip this step.

Click Next to step through the installation.

LinkNavigator Setup

The wizard will step you through installation. Follow the

directions on each screen and continue pressing Next to step

through the installation.

When installation is complete, you may close the installation

window.

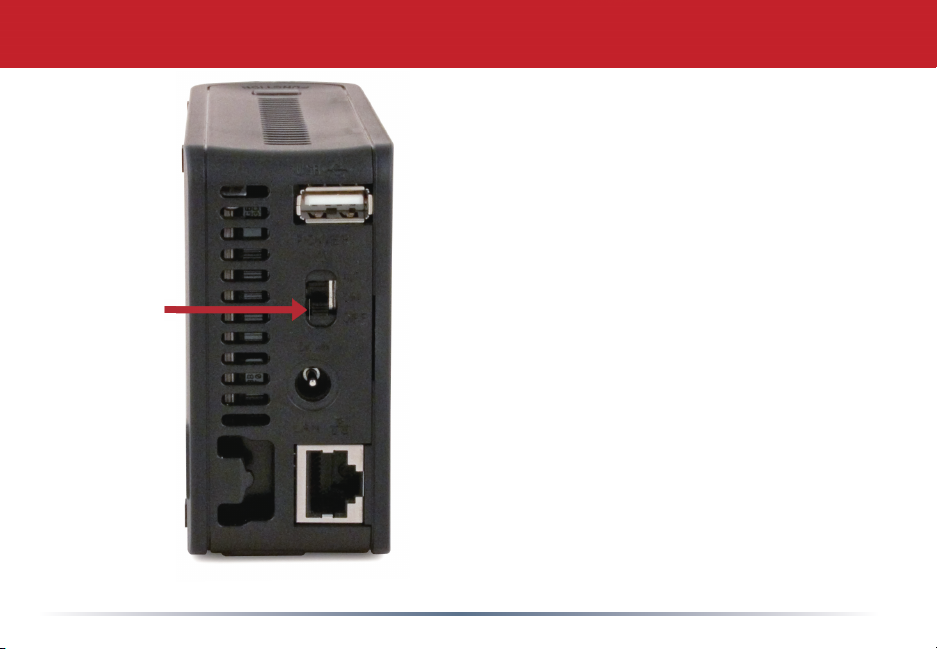

Power Mode

The “Power Mode” switch on the back of the unit

has three positions: “Auto”, “On”, and “Off”. The

“Auto” position automatically powers the unit on or

off based with your PC. If your PC is turned on the

LinkStation will power up; if the PC is turned off

the LinkStation will power down.

You must have installed the NAS Navigator software

on your PC for this feature to work. Otherwise, if

you move the switch to “auto”, your unit will power

down by itself and you will have to manually turn it

back on.

Also note that the unit needs to be powered on if

you want to use the Web Access feature. When

using Web Access, it is best to leave the Power

Mode switch set to “On”.

Move the switch to the “Off” position to turn the

LinkStation off. It will take about 35 seconds to

shut down. Do not unplug or interrupt power to

the unit until shutdown is complete and all LEDs

are off.

Power

Mode

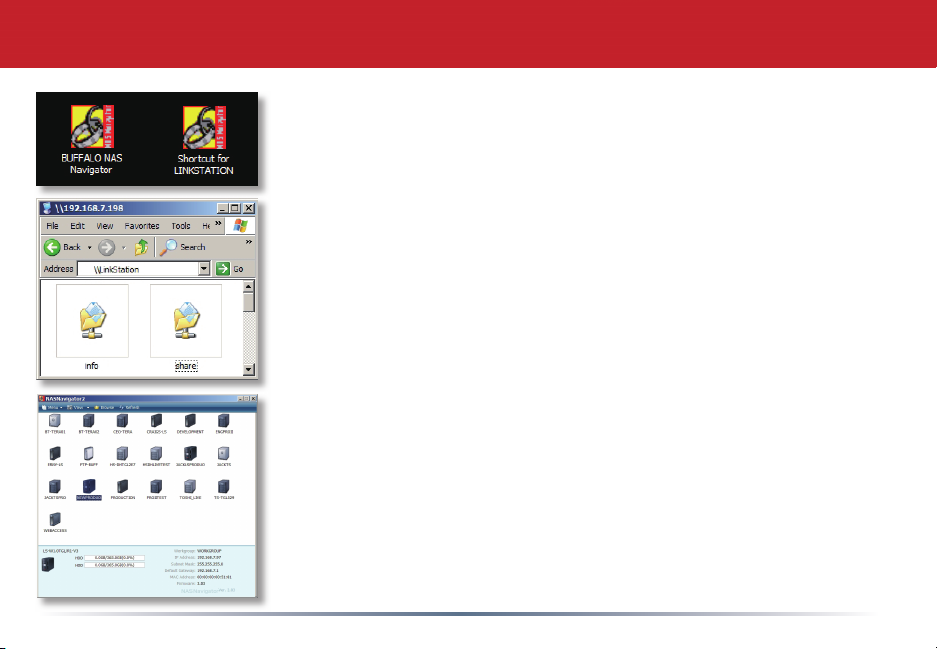

Two new icons will be on your desktop: Shortcut for LinkStation and

Buffalo NAS Navigator.

Clicking Shortcut for LinkStation takes you directly to the folders on

your LinkStation. Share is the main folder that you can put ﬁ les and

folders in. Info contains a copy of your user manual.

The Buffalo NAS Navigator icon opens the LinkStation’s client utility.

Turn to page 63 for more on using the NAS Navigator client utility.

Using your LinkStation with a Windows PC

To Access LinkStation Data from a PC:

Your LinkStation uses “shares” (folders) to hold data. A share called “share” is already

conﬁ gured on your LinkStation, and you can create additional shares in Shared Folders.

To start using your LinkStation, you can either click on the Shortcut for LinkStation on

your desktop, or you may just use drive L in My Computer, which setup has mapped to the

default share in your LinkStation.

Accessing LinkStation Data from your PC
