Buffalo TeraNavigator none Manuale utente

Package Contents:

Main Unit (TeraStation)

Ethernet Cable

Power Cable

TeraNavigator Installation CD

Quick Setup Guide (this manual)

Warranty Card

www.buffalotech.com

Quick Setup Guide

TeraStation Pro

v1.2

Step 1: Connect your Cables

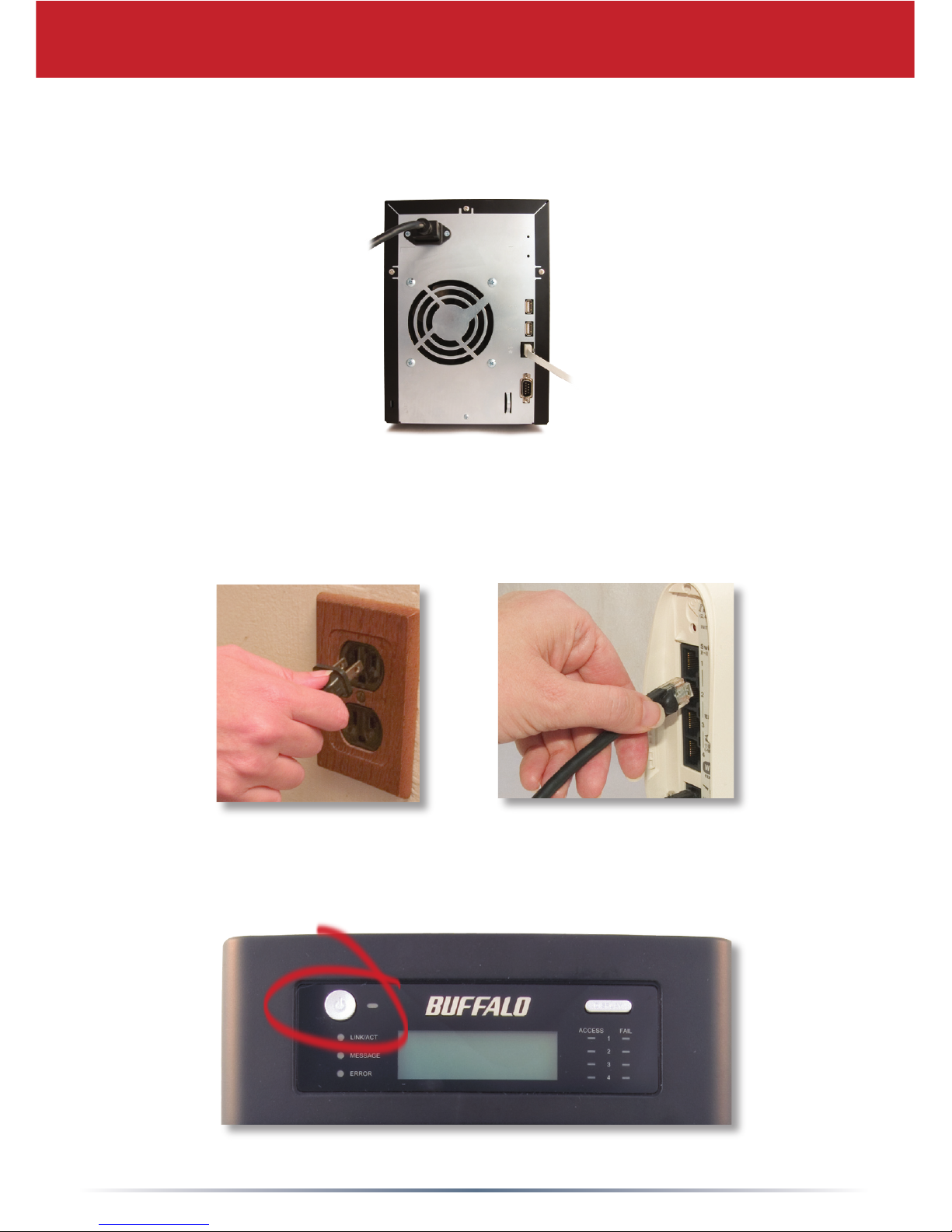

Plug TeraStation’s power cord and Ethernet cable into the back of

the TeraStation.

Connect the power plug to a power outlet. Plug the other end of

the Ethernet cable into a hub, switch, or router on the network.

Press the power button on the front panel to turn your

TeraStation on.

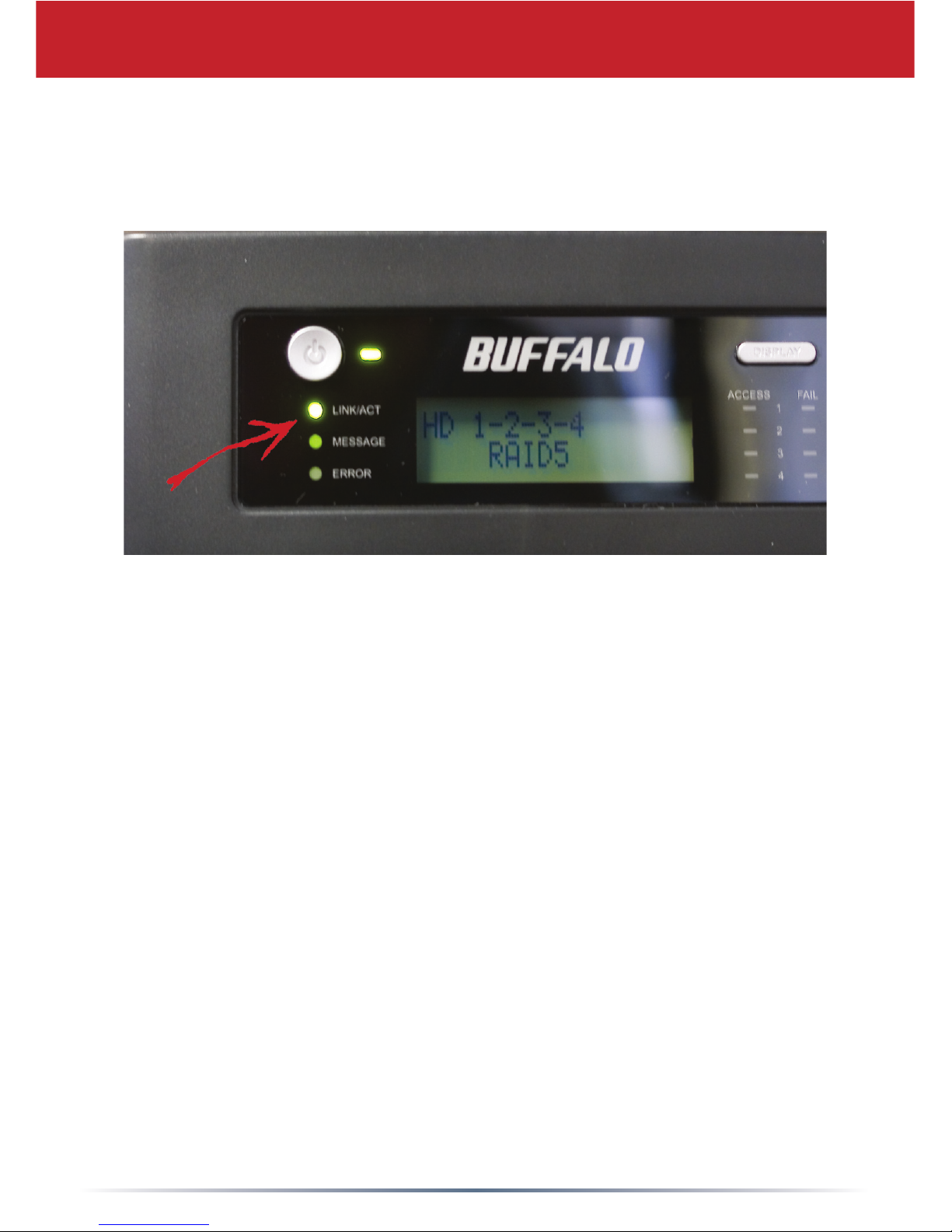

Check the LINK/ACT LED on the front of the TeraStation. If it’s

lit, then your TeraStation is connected to your network. Please

turn to page 4 to continue setup.

If the LINK/ACT LED on the front of TeraStation is not lit, your

TeraStation is not properly connected to your network. Make sure

that:

If problems persist, contact our technical support. Refer to page

9 for more details.

• both TeraStation and the hub, switch, or PC are powered on,

• the Ethernet cable is securely fastened to both devices, and

• the Ethernet cable is not damaged. To verify, try using another

Ethernet cable.

Step 2: Check your Connection

Insert the TeraNavigator

CD into a PC’s CD-ROM

drive. If Setup doesn’t

launch automatically, you

can launch it manually by

clicking Start, then Run....

When the Run dialog

opens, type d:\setup.exe

(where “d” is the drive letter

of the CD-ROM drive).

Press OK to continue.

Each TeraStation on

the network will have a

tab in the client utility.

Make sure that your

Terastation’s tab is

selected, click Setup

from the pull down menu

and choose Browser

Management.

Step 3: Using the Client Utility

TeraNavigator should now

be running.

Press the Install Client

Utility button, and then

press the Start button.

Once the installation

has completed, press the

Launch button.

This login prompt will appear.

The user name is admin.

The password is password, until you

change it.

Press OK when nished.

You’re now logged in. Bookmark

this page in your browser for

easy future access. For detailed

explanations of each menu and

setting, refer to your TeraStation

manual, available on your

TeraNavigator CD.

Click on the Basic button on the

left side.

Step 4: TeraStation Conguration Utility

Here on the Basic page, begin

by changing the name of your

TeraStation in the TeraStation

Hostname eld. A friendly,

easy-to-remember name

is recommended, such as

“TeraStation”. The name cannot

contain any spaces or special

characters.

Enter a short description of your

TeraStation in the TeraStation

Description eld. You’ll then

see this description in Network

Neighborhood.

Make sure that the date and time are correct in Date and time

setup. To synchronize clock settings with your computer, press Use

Local time.

Press Apply at the bottom of the page when the desired elds are

completed.

To access your TeraStation’s data, it’s

convenient to map your TeraStation

to a drive letter. Begin by clicking

Start and then Run.... In the dialog

box, type \\TeraStation_Name where

TeraStation_Name is the friendly, easy-

to-remember name that you entered into

the TeraStation Hostname eld on page 5. Press OK to continue.

TeraStation’s root directory

will appear. You’ll see all

of the congured shared

folders, including share, the

precongured shared folder that

we’re going to map a drive letter

to. From the pull-down menu,

click Tools, and then Map

Network Drive. Note: If you

cannot access the TeraStation,

please disable or recongure your

software rewalls.

Select the drive letter you

want to map share to from the

Drive: list box. In the Folder:

eld, enter

\\TeraStation_Name\share,

where TeraStation_Name is

the friendly, easy-to-remember

name you gave your TeraStation

on page 5. If you set up other

shares on your TeraStation, you

may map them by substituting

their share name for “share” in the Folder: eld. You can also

browse for a shared folder by pressing the Browse button and

searching through the Entire Network and then the Microsoft

Windows Network. Check the Reconnect at logon checkbox to

have Windows connect to your mapped drive every time it starts.

Press Finish.

Step 6: Map a Driveletter to your Share

Congratulations! Your TeraStation is set up. Please see the

TeraStation User Manual for more help and conguration options.

Note on RAID arrays:

TeraStation uses RAID (“Redundant Array of Independent Disks”)

technology to control the four hard drives in your TeraStation. RAID

may be congured several ways:

RAID Spanning - All four drives are combined into one large drive,

giving the maximum capacity for your TeraStation. RAID Spanning is

efcient, but has no redundancy. If one hard drive fails, all data on

the TeraStation is lost.

RAID 1 (mirroring) - Hard drives (or spanned pairs of hard drives) are

arranged in mirrored pairs. Each half of the pair reads and writes

exactly the same data. This costs you half of the total capacity of your

TeraStation, but provides excellent redundancy. If a hard drive fails,

the mirror set continues to operate, allowing you to work normally.

You may replace the damaged or defective drive at any time, and

normal RAID 1 mirroring will then be automatically restored.

RAID 5 (parity) - All drives in a RAID 5 array reserve part of their

data space for parity information, allowing all data to be recovered

if a single drive fails. The parity information takes up about one

hard drive’s worth of space, so if you set up all four drives in the

TeraStation as a RAID 5 array, your usable capacity will be about

3/4 of the total capacity of the TeraStation. RAID 5 is an excellent

compromise between efciency and security. If a single drive fails,

no data is lost. After the damaged or defective drive is replaced, your

TeraStation will automatically restore all data on the new drive and

resume normal RAID 5 operation. This is how your TeraStation is set

up out of the box.

Out of the box, your TeraStation is congured with RAID 5. This

means that you’ll only be able to use about 3/4 of the total capacity

of your TeraStation, but your data will be much safer than it would

be without fault tolerance. If you wish to use a different type of RAID,

instructions for changing your RAID settings are in the TeraStation

manual, available on your TeraNavigator CD.

It is important to replace broken drives as soon as possible, as the

TeraStation may not be fault tolerant after a drive fails.

Technical Support

Buffalo Technology offers free technical support. See the back

page of this quick start guide for contact information. Please also

visit the web site at http://www.buffalotech.com.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

Technical Specications

LAN Standards: IEEE 802.3u 100BASE-TX; IEEE 802.3 10BASE-T

Transmission: 1000/100Mbps/10 Mbps, 1000BASE-T: 8B1Q4,

PAM5, X 4B/5B, MLT-3; 10BASE-T Manchester Coding

Access Media: CSMA/CD

Media Interface: RJ-45

USB Standard: USB 2.0

Hi-Speed (HS)

Full-Speed (FS)

Low-Speed (LS)

USB Connector: USB A Connector (2)

Data Transmission Speed: Max: 480 Mbps (HS Mode)

Max: 12 Mbps (FS Mode)

Electric Current: 120V A/C

Power Consumption: ~17W (Varies based on size)

Dimensions: 6.7“ x 9.3“ x 12.2“ (170 x 235 x 310 mm.)

Weight: ~15.8 LB. (Weight varies based on size)

Operating Temperature: 32-95˚ F; 20-80% non-condensing

USA/Canada Technical Support is available 24 hours a day, 7 days a week

Toll-Free: 866-752-6210

email: [email protected]

Europe Technical Support is available between 9am-6pm (Monday-Thursday) (GMT)

and 9am-4:30pm on Fridays.

email: helpdesk@buffalo-technology.ie

http://www.buffalotech.com
