Buhl VP-30 Manuale utente
Buhl Industries VP-30
Visual Presenter
USER MANUAL
Version 8-5-08
NOTICES: PLEASE READ CAREFULLY BEFORE USE
Use the visual presenter under rated electric conditions with
included power supply only
Do not place the visual presenter on any unstable surface.
Do not place this device directly under sunlight or near heaters.
Do not place this device near water.
Keep the camera away from acid or alkali gas.
Do not place this visual presenter in humid, dusty, windy or
vibrant locations.
The recommended operating environment is:
zTemperature: 0ºC - 45ºC (32ºF - 113ºF)
zHumidity: Less than 75%
Always unplug BEFORE cleaning the device. Use a damp
soft-cloth for cleaning. Do not use volatile solvent.
When this equipment functions abnormally, such as smoke,
smell, noise, immediately unplug and call for professional
assistance.
Unplug the visual presenter or shut off the power when not in
use.
CONTENTS
System Diagram:.......................................................................1
Rear Panel Connections............................................................1
Front Control Panel...................................................................2
Specifications............................................................................4
Initial Setup...............................................................................5
Operating Instructions...............................................................6
Troubleshooting........................................................................7
Packing List and Accessories....................................................8
Service and Support..................................................................8

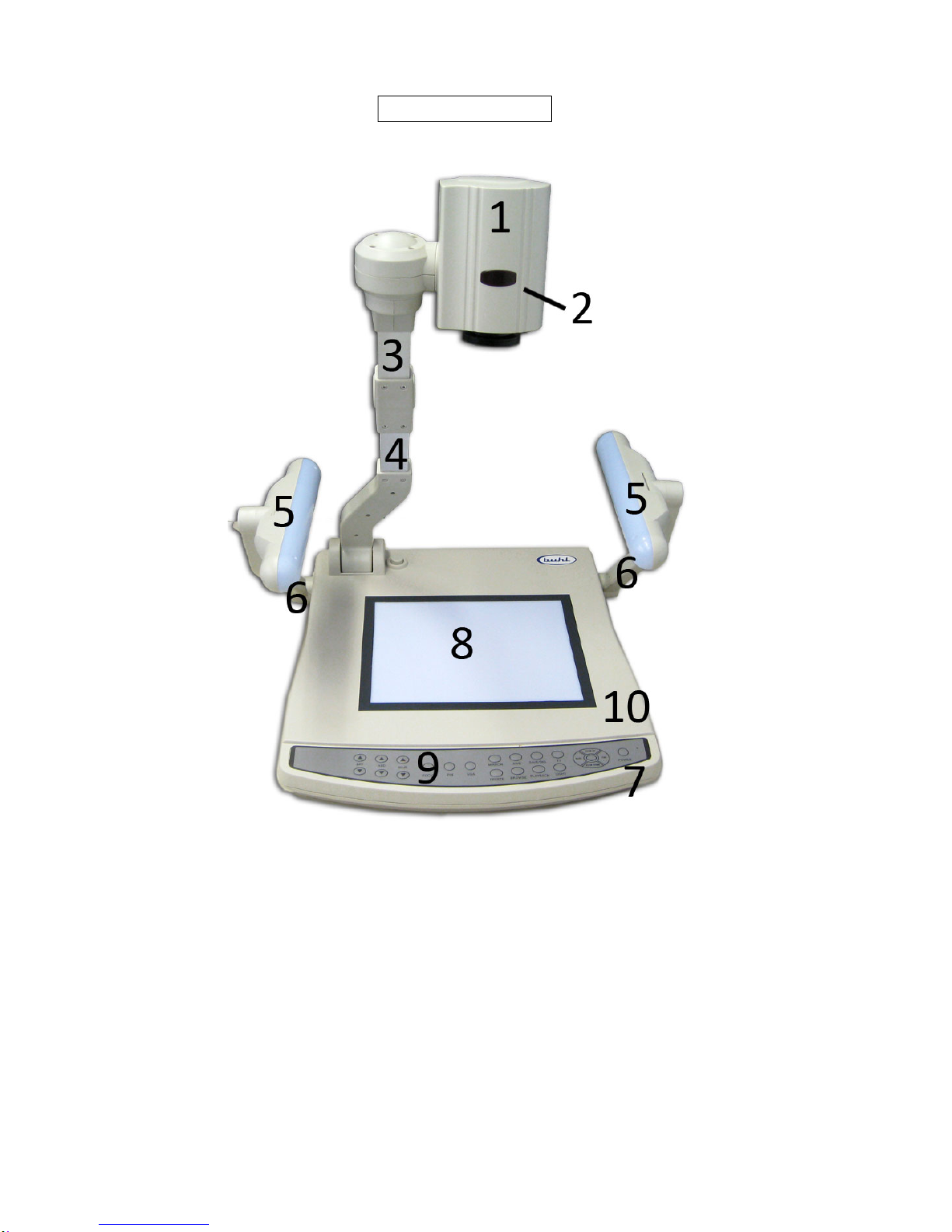

System Diagram:
1. Camera head
2. Remotes Sensor
3. Upper mechanical arm
4. Main mechanical arm
5. Side lamp
6. Lighting arm
7. Power switch
8. Base light
9. Control panel
10. Baseunit
Rear Panel
Connections
Video, Audio: Video & Audio Input
Video, Audio: Composite Video & Audio Output
S-VIDEO:S-videoOutput
MIC: Microphone Input
VGA OUT1;VGA OUT2：VGA Output
VGA IN1; VGA IN2: VGA Input
PC IN: PC stereo audio input
USB: PC connector
DC12V: power adapter connector
Front Control Panel:
1) POWER: Press the Power button for 3 seconds to turn the camera on or off.
2) VGA: Switch between VGA output 1 & VGAoutput 2
3) RED+, RED－: Image chroma control (red).
4) BLUE+, BLUE－: Image chroma control (blue).
5) BRT+, BRT－: Image brightness control.
6) MIRROR: Toggle mirror image of camera output (Left to right)
7) LIGHT: Lamp control – Toggles between base lamp, arm lamps, all lamps and off.
P/N: Switch the image mode between positive and negative.
8) AWB: Perform white balance automatically.
9) T/I: Switch the image between text mode and dynamic mode. Text mode gives
sharper and better-colored images when showing printed material.
10) FREEZE: Freeze frame the image
11) BROWSE: Enable the function of side-by-side images comparison on same screen.
12) PLAYBACK: Playback saved pictures
13) FOCUS: Automatically focus the image
14) ZOOM UP, ZOOM DOWN: Zoom the image in and out
SPECIFICATIONS:
Power supply 12V DC power adapter
Maximum power consumption 20 W
Operating
condition Temperature 0 —45℃
Humidity 5% - 75% Non-condensing
Dimentions(packing case) 425mm*477mm*170mm (W
Weight 6.0 kg
Light source LED
Compliance ROHS,CE,CCC,ISO9001
Inputs
Audio 1 x，<2.0 Vp -- p
Video 1 x，<1.0 Vp -- p/75Ω
Signal system NTSC
VGA（PC）2x
Outputs
Audio 1 x，<2 Vp -- p
Video 1 x，<1.0Vp -- p/75Ω
Signal system NTSC
USB connector 1x
S-Video 1X
VGA（PC）2X
Camera
Video output RGBHV
Sensor CCD image sensor
Total pixels 850,000
Focus Auto/manual
Zoom > 96X
Scan frequency 48 KHz（horizontal），60 Hz
Images side-by-side Manual
Brightness adjustment Manual
Text/Image mode switch Manual
Initial Setup:
1. Unpack system and put
aside all packing materials.
Unfold the lighting arms until
reach the end position.
2. Raise the main camera arm
until it locks in place, then
rotate the upper camera arm.
3. Rotate the camera head
until the lens face the center
of the base unit.
4. Connect RGB interface: use the provided RGB cable, connect the output of the
visual presenter with the RGB input the display (monitor, television or projector).
5. Connect the composite-in interface: use the provided RCA pin cable. Plug the
power cord into the power cord receptacle of the visual presenter and the AC outlet.
Operating Instructions
1. General:
1). Turn on the Power switch.
2). Place the target object on the stage.
3). Adjust the image size according to the object size by
pressing the ZOOM up/ ZOOM down buttons on the control
panel.
4). Press the “Focus” button for automatic focus.
5). “Freeze” button can be used to lock the image while
changing displaying materials.
6) “Browse” and “Freeze” buttons can be used to compare a
previous captured image with the current image side by side.
7) Turn the knob on the camera will change the alignment of
the image.
2. Showing printed material:
For sharper image and more vivid color, choose the Text mode by
pressing “FN” and “P/N” button.
3. Showing the transparent material such as an overhead transparent
sheet:Press the “Light” button until the built-in base light lights up.
Troubleshooting
Symptoms Possible causes/counter-measures
No image 1. Power cord is not properly connected.
2. Cables are not properly connected.
3. Power switch is not turned on.
4. The built-in fuse is broken: Change fuse.
Upper light not
on 1. The filament is broken. Change the bulb.
2. the lamp is not fully plugged in its holder:
Out of focus or
blurring image 1. The object is too close to the lens.
2. Focus is on the max. point of “Tele” press
“Wide”.
3. Auto-focus is not on: press AF again.
4. Fog on the lens in damp climate. It will disappear
gradually when the equipment warms up.
If the problem still remains after checking the above, consult your
dealer or authorized service personnel.
