For current speciﬁcation sheets and other information, go to www.bunn.com.

9/10 A8.1a

BUNN Espress® Tiger XL M Series

Simple solution for exceptional espresso beverages

from a sleek, compact super-automatic

• Up to 180 shots per hour from less than 16 inches of counter space.

• Intelligent modular brewing chamber adjusts espresso.

• Simulates barista tamping and polishing motion for uniform extraction.

• Two hoppers for regular, decaf or other specialty beans.

• Each hopper holds 1.75 lbs of fresh beans.

• Adjusts for 4.5 to 7.4 inch cup clearance.

• Pod brewing option standard on all models.

• Intuitive operational design. Easy-to-use control pad guides user through

steps for making drinks.

• Simple daily cleaning process with automatic reminder and lockout.

• Innovative milk delivery system does not inject steam or water to dilute the

foam so customers enjoy a full, rich ﬂavor experience.

• XL model includes self-contained 1 gallon milk drawer.

• EXT model allows for up to 2 milk types.

• EXT model includes 4 foot hose for external milk for under-counter

applications.

Model Agency Listing

Tiger XL M-2

Tiger XL M-2 EXT

Tiger Super Automatic

Espresso Machine

Espresso Water Quality System

EQHP-ESP

Product No. : 39000.0008

Replacement Cartridge

EQHP-ESPCRTG

Product No.: 39000.1008

Booster Pump Kit

w/.357 hoses

Product No.: 41815.1000

Caﬁza™ Cleaning Tablets

Product No.: 36000.1189 (100 count)

Product No.: 36000.1188 (12/case)

Rinza™

Milk Frother Cleaner

Product No.: 39265.0000 (each)

Product No.: 39265.0001 (6/case)

Cup Heater

Product No.: 35800.0400

Steamer

Product No.: 35800.0401

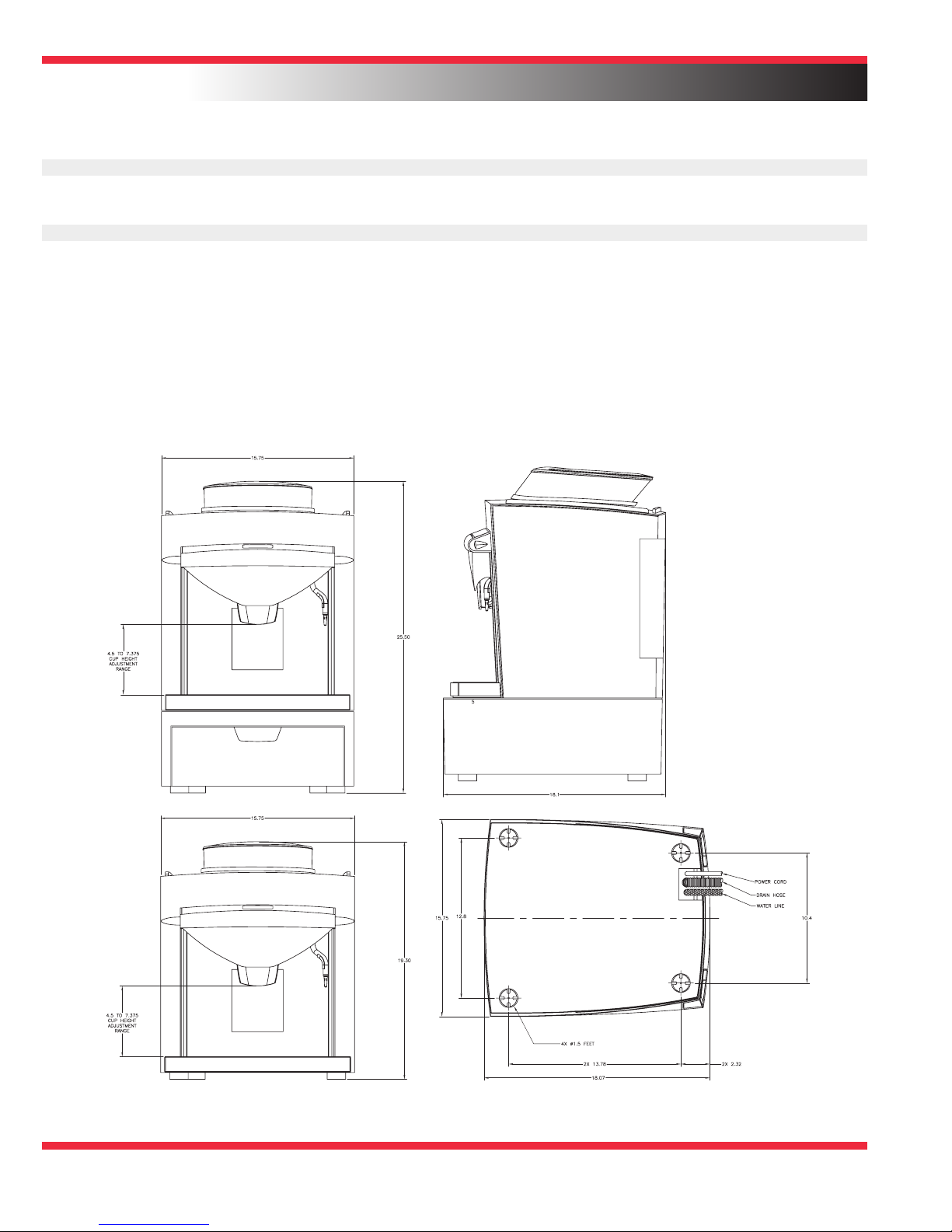

Model Tiger XL M Series EXT

external milk

Dimensions: 19.3”H x 15.8”W x 18.1”D

(49 cm H x 40.1 cm W x 45.9 cm D)

Model Tiger XL M Series

with milk drawer

Dimensions: 25.5”H x 15.8”W x 18.1”D

(64.8 cm H x 40.1 cm W x 45.9 cm D)

BUNN® practices continuous product research and improvement. We reserve the right to change speciﬁcations and product design without notice. Such

revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in inches.

Dimensions & Speciﬁcations

Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springﬁeld, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com

Tank Heater Total Cubic Shipping Cord

Model Product # Volts Amps Watts Watts Capacity Measure Weight Attached

Tiger XL M-2 35800.0012 120 16 1700 1850 180 shots/hr 12.5 ft3 103 lbs Yes/20A Plug

Tiger XL M-2 35800.0013 208 12 2000 2400 180 shots/hr 12.5 ft3 103 lbs Yes/No Plug

(.35 m3) (46.7 kg)

Tiger M-2 EXT 35800.0014 120 16 1700 1850 180 shots/hr 12.5 ft3 88 lbs Yes/20A Plug

Tiger M-2 EXT 35800.0015 208 12 2000 2400 180 shots/hr 12.5ft3 88 lbs Yes/No Plug

(.35 m3) (39.9 kg)

Model includes: Machine, water ﬁltration system, installation and 2-year preventive maintenance.

Electrical: Model requires 2-wire grounded service rated 120 or 208V, single phase, 50/60 Hz.

Plumbing: 20-90 psi (138 - 621kPa). Machine supplied with 3/8” BSPP ﬁtting.

Booster pump is required for Tiger Steam. It can be utilized for all M Series and Cool Froth models in

locations with inconsistent water pressure or where bottled water is used.

Drain: All machines are supplied with a waste water hose and must be connected to a drain.

Tiger XL M, EXT

(front view)

9/10 © Bunn-O-Matic Corporation
