BURY CC 9045 Manuale utente

CC 9045

Index

Introductory information 22

1. General 22

2. Security guidelines 22

Installation of the hands-free car kit 24

3. Scope of supply 24

4. Positioning of the 3-button remote control 26

5. Connecting the Electronic box 27

6. Installation of the audio switchbox AC 5120 30

7. Installation instructions for the fuses 34

Operating guidelines 35

8. Switch-on 35

9. Establishing a

Bluetooth

®connection 35

10. 3-Button Remote Control 37

11. Play music with A2DP 39

Further Information 40

12. Service 40

22 Introductory information

1. General

Dear customer,

Congratulation on purchasing a BURY hands-free car kit. You have cho-

sen a high quality product that is extremely easy to use. All aspects of

BURY production through to sales and service are subject to strict qua-

lity management according to DIN EN ISO 9001. All BURY hands-free

car kits meet CE and e1 security standards. Furthermore, we provide a

two-year warranty on all components.

Please read the operating manual carefully so that you can fully enjoy

your BURY hands-free car kit. If you have any further questions concer-

ning installation or operation of your car kit, please contact your dealer.

He will be happy to give you reliable advice. You can also contact our

hotline. Our phone and fax numbers are listed in the chapter Service at

the end of the operating instructions.

Have a good trip!

2. Security guidelines

Installation – who and where

The installation of this system can be carried out by yourself but please

observe the installation requirements of the automotive manufacturer

(VAS 1978). During the installation, park the car at a place where the

road traffic is not impaired. We recommend to let a specialised work-

shop perform the installation.

Power supply

This system has been designed for the use in vehicles with an on-board

supply system of 12 volts (passenger car). If you intend to install the

device in a vehicle with an on-board supply system of 24 volts (lorry),

please use a voltage converter. If you have queries regarding this sub-

ject, please contact our hotline.

Position, volume

Install the components of the device in the vehicle so that your field of

vision is not impaired and the components are not mounted in the im-

pact zone of the passenger compartment or in the airbag inflation

zones. The removal of coverings (with and without airbags) or compo-

nents of the dashboard requires – in some cases – special tools and

special knowledge.

Intended use

We shall not be liable for damages or malfunctions due to improper use

of the navigation system. Therefore, do not expose the device to moi-

sture, extreme temperatures or shocks and carefully follow the proce-

dure described in the installation and operating guidelines.

Use while driving

Operate the system only when the situation allows it and when you do

not endanger, harm, constrain, or annoy other road users. The volume

of the device has to be set in a way that exterior noise is still audible.

Faults

Do not commission the device if you detect or assume a defect. In this

case, contact a Bury specialised dealer or our hotline. Improper repair

efforts can be dangerous for you. Therefore, only skilled personnel may

perform inspections.

Important:

The driver is ultimately responsible for the safe operation

and control of their vehicle at all times. You should never

use a hand held phone, including sending or reading text or

picture messages, while driving.

Research indicates that there is a risk to safety when the

driver of a motor vehicle is distracted and using a mobile

phone while driving can be a distriction.

The manufacturer strongly recommends that you use a

hands-free solution when driving.

24 Installation of the hands-free car kit

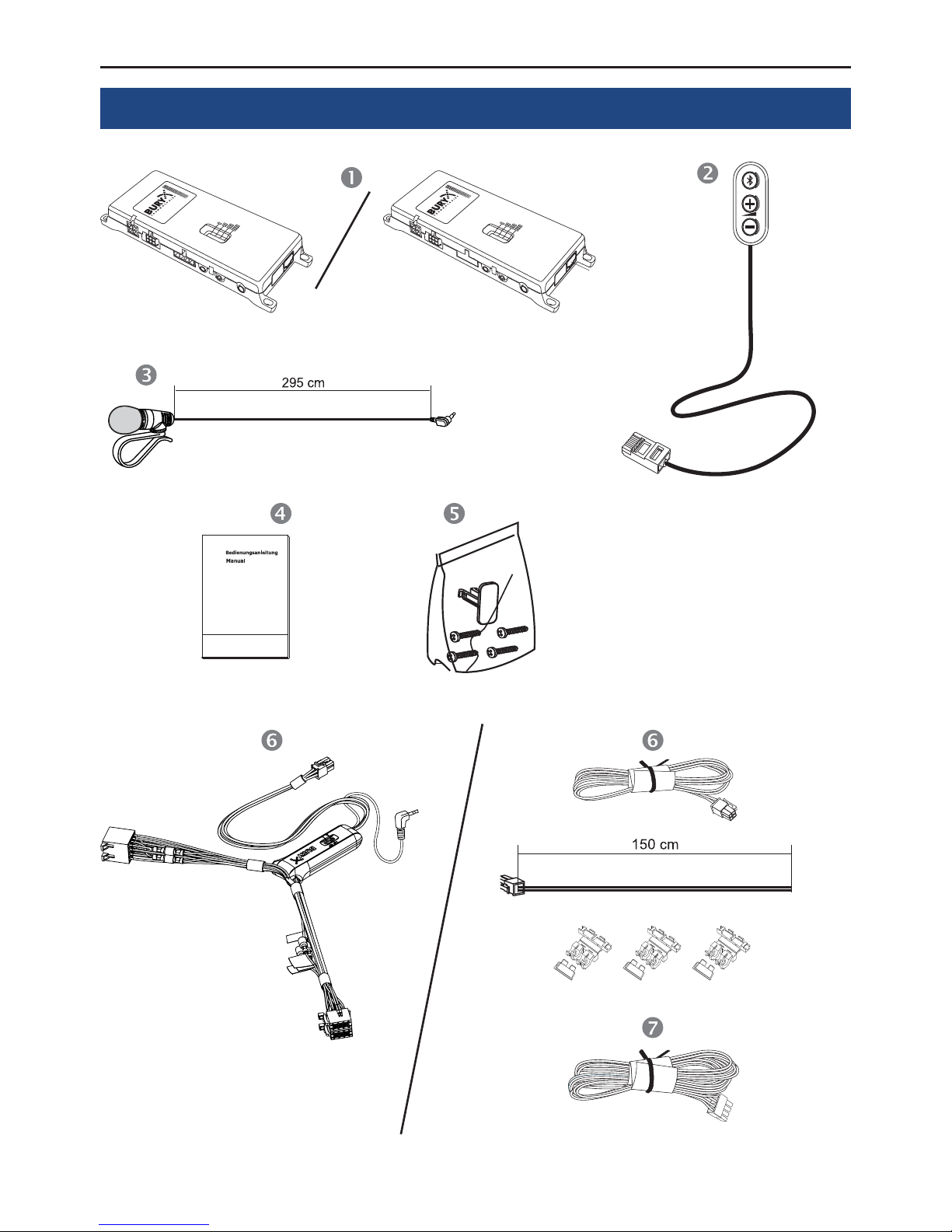

3. Scope of supply

Description of the components:

1) Electronics box

(with or without an internal switch box, depending on version)

2) Remote control

3) Microphone

4) Installation and Operating manual

5) Fixing screws for electronics box, rider

Variant 1:

6) External loudspeaker switch-box AC 5120

Variant 2:

6) Power supply cable with fuses

7) Cable for internal loudspeaker switch box

Please note:

If certain components are added or omitted you will recei-

ve the corresponding information on a separate enclosure.

26 Installation of the hands-free car kit

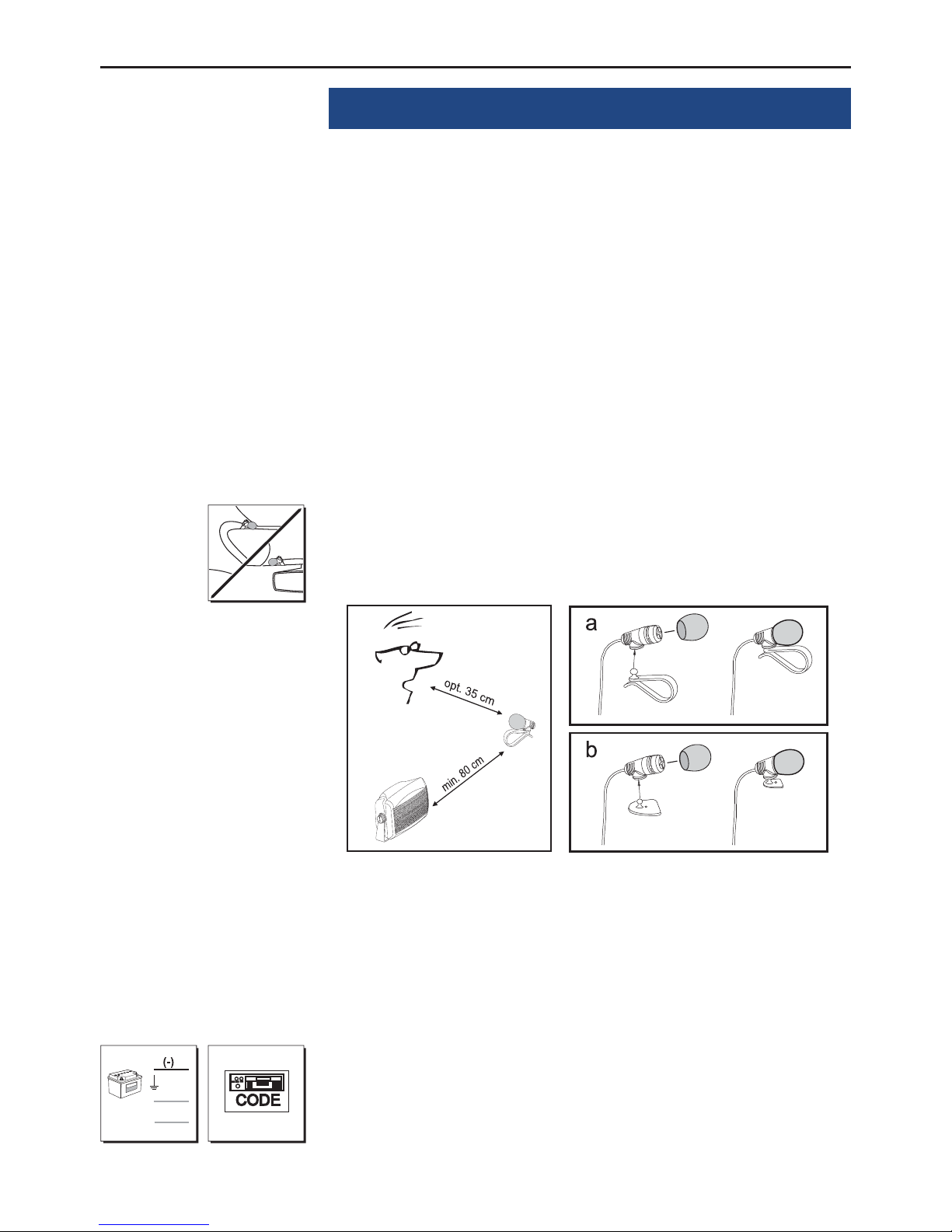

4. Positioning of the 3-button remote control

Step 1:

First of all, choose the most suitable location for the 3-button remote

control by positioning it or holding it at different locations in the vehicle

yourself. Once you have found a suitable position for the remote con-

trol, you can attach it / mount it appropriately. Please use the cleaning

cloth provided to remove any grease or dirt from the surfaces. Please

remember that in the event of strong temperature variations, depen-

ding on the structure and quality, the colours of the surfaces may fade

during subsequent use.

Important:

The remote control can only be stuck down once. Damage

to its adhesive surface may occur when it is removed.

Step 2:

Depending on the vehicle type and its equipment (e.g. airbags), it is

reasonable to install the microphone either at the A-pillar, at the sun

shield or at the roof interior. For details about the equipment features

please refer to the vehicle documents.

Step 3:

Please lay the cables in a way that they do not lie/hang unsecured in

the vehicle and that they may not influence the conducting of the vehi-

cle. When laying a cable, please take care that it is not under traction

stress but that it has some tolerance. Avoid crushing the cable as da-

mages of the insulation can be caused by friction/rubbing.

Step 4:

Install the electronics box at a convenient place in the vehicle. This can

e.g. be behind the radio, in the glove box, or in the centre console.

Please mind that you can access the connections of the box without

difficulty. Before connecting the components to the electronics box you

should branch off the battery for safety reasons. In doing so, take into

account that there might be a radio coding (confer radio manual).

Important:

Please install the electronics box behind a cover or so-

mewhere you can only reach by opening or unfastening a

protective cover / a cover. The terminal box must not hang

loosely in the vehicle.

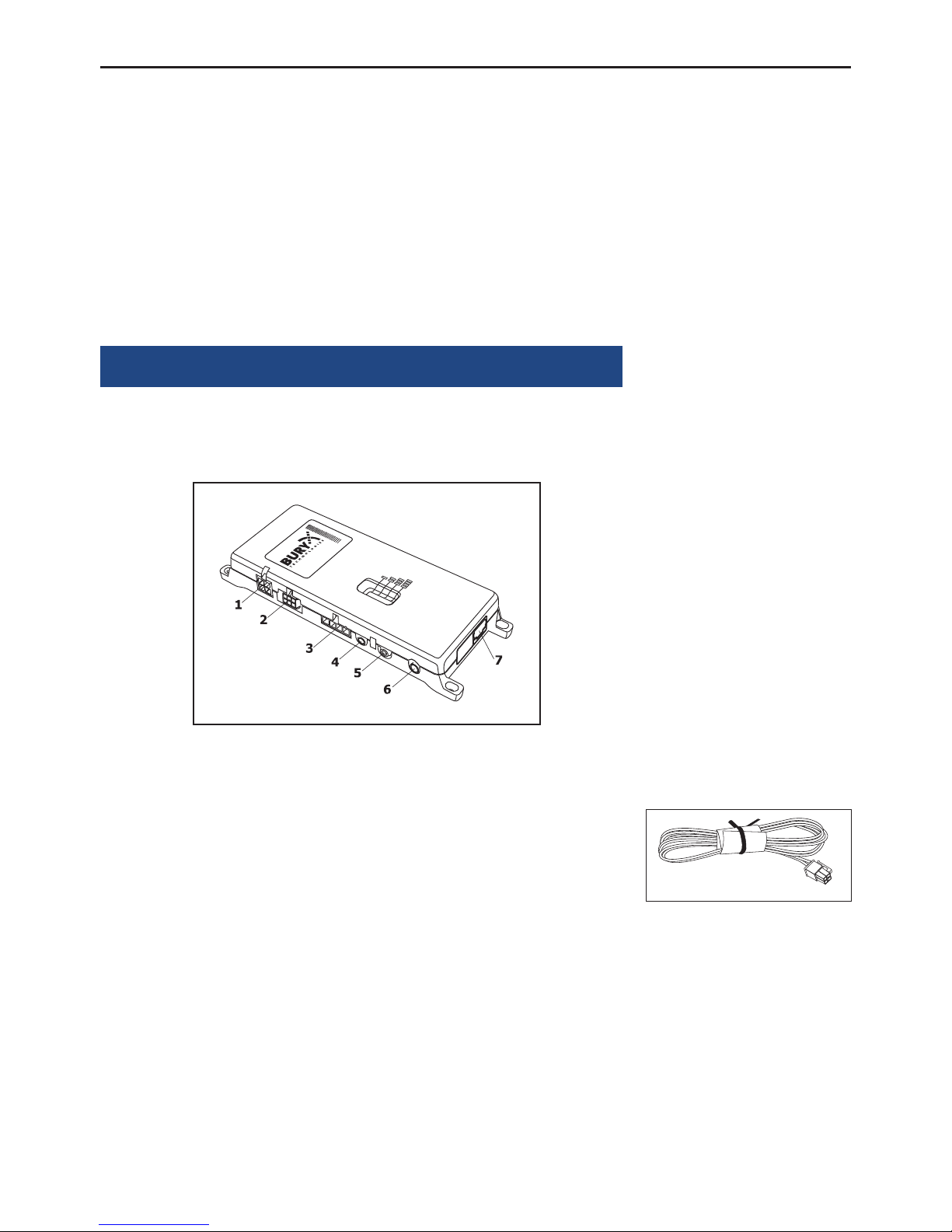

5. Connecting the Electronic box

The additional components of the hands-free car kit are connected to

the electronics box. The following connections are provided:

1 - Power supply

Version 1, with integrated loudspeaker switch box:

The power supply of the hands-free car kit is established via a 4-core

cable. Connect the black (clamp 31 – minus), the red (clamp 30 – stea-

dy plus) and the blue cable (clamp 15 – ignition plus) to the power

supply of your radio (where required via the cigarette lighter or the fuse

box). After connection to the counterpart, the yellow cable provides for

radio muting during a phone conversation. Please connect the white

Molex connector with connection 1.

Attention:

If you also connect the blue cable to clamp 30, the hands-

free car kit will be permanently supplied with power. If the

vehicle is not running for a longer period, this could lead to

a discharge of the car battery.

28 Installation of the hands-free car kit

Version 2, with external loudspeaker switch box:

Refer to the separate chapter:

Installation of the audio switch box AC 5120

2 - System 9 Socket

Socket for connection of the basePlate suitable for the CC 9045 from

the System 9.

3 - Voice output of the hands-free car kit

Version 1, with integrated loudspeaker switch box:

The cable provided serves the purpose of transferring the voice output

to one of the loudspeakers in the car. In the best case scenario, this

speaker should be on the passenger side of the vehicle in order to pro-

vide sufficient distance from the microphone and to prevent possible

echoes from occurring. The jack plug remains unused during the use of

the internal loudspeaker switch box.

Version 2, with external loudspeaker switch box:

Refer to separate chapter:

Installation of the audio switch box AC 5120

4 - Microphone input

This is where you plug in the microphone jack. After connection 3 has

already been occupied use the rider. This ensures that neither of the

jacks is able to loosen as a result of vibrations.

5 - Speaker output

Please connect the 3.5 mm jack plug of the external BURY loudspeaker

(available as an accessory) to this socket.

6 - AUX-Out connection

Stereo music is output at connection 2. Here you can connect the AUX-

In input of your radio (if existent) via adapters available at local retai-

lers. For the connection to the hands-free car kit, the adapter must

have a 3.5 mm stereo jack. Depending on the car radio, the other end

must be selected otherwise. If your radio does not have an AUX-In, you

can use the car CD/MP3 adapter from the BURY accessories programme

to enable the reproduction of music via your radio.

7 - Input for the remote control

Please connect the remote control jack to this socket. Tighten at least

one of the two fixing screws hand-tight so that this plug cannot become

unplugged as a result of vibrations.

30 Installation of the hands-free car kit

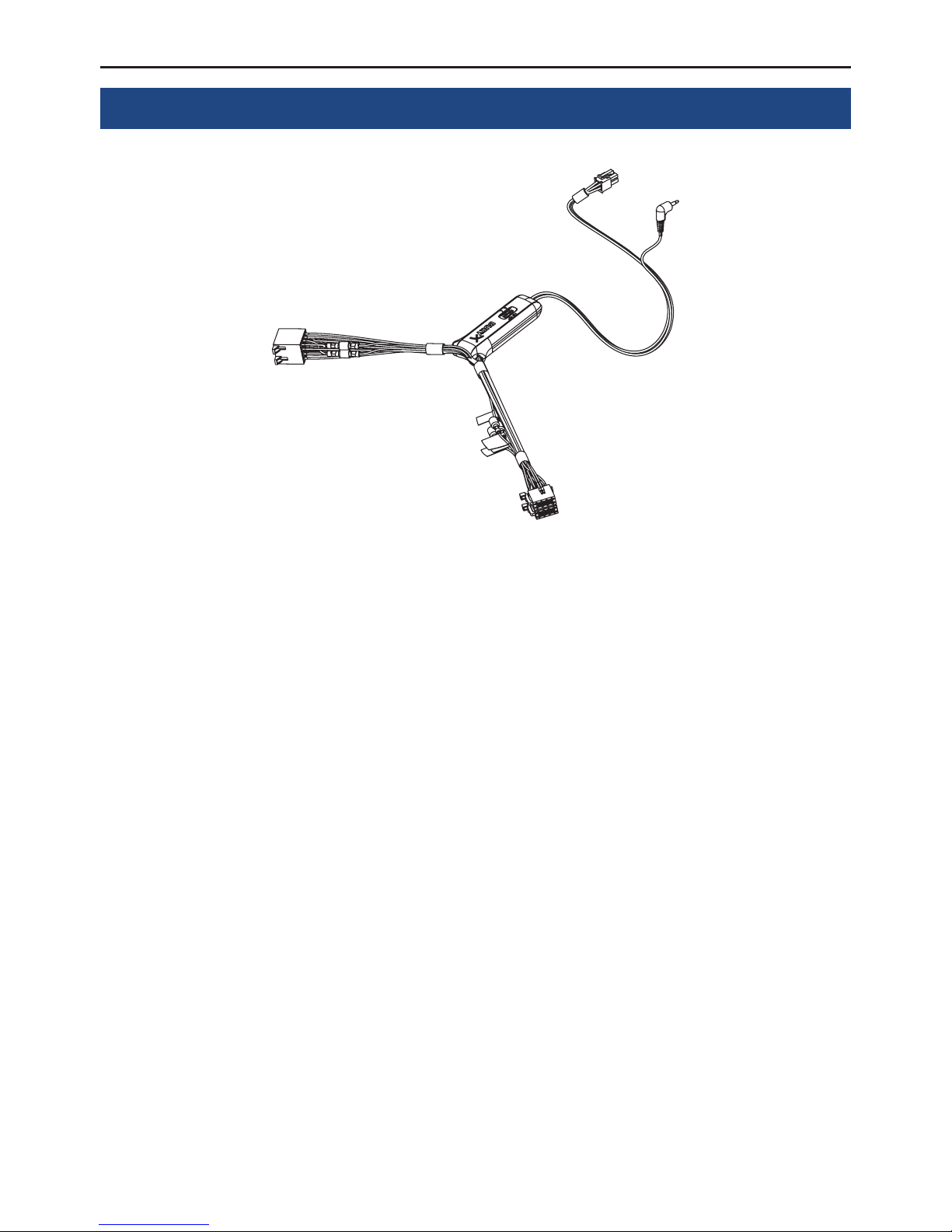

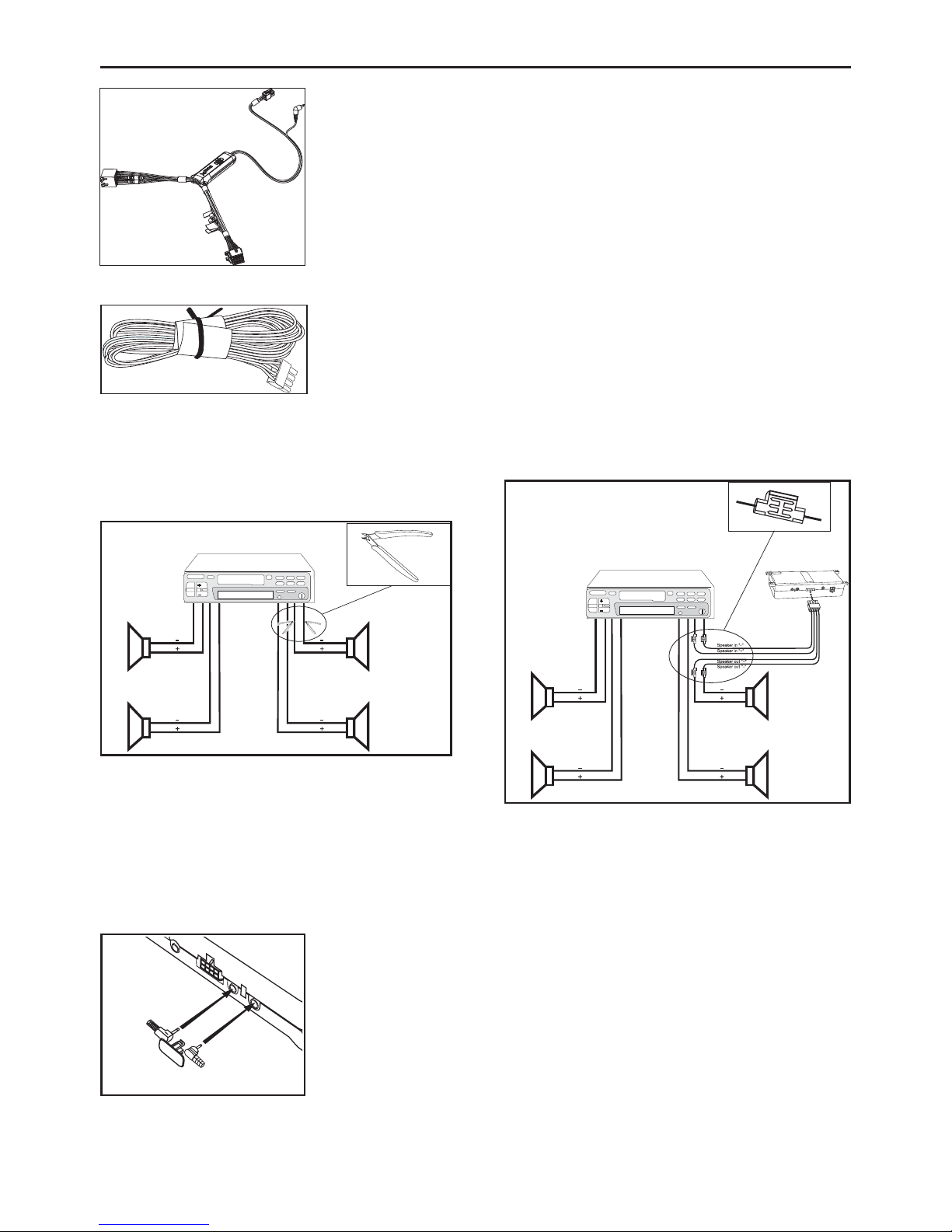

6. Installation instructions switching box AC 5120

With the AC 5120 speaker switchbox, you get the possibility of being able to mute the feedback of your

car radio / CD player etc. and to transfer the voice output of your conversation partner during a tele-

phone call to your vehicle’s speakers. This means that the installation of additional speakers isn‘t re-

quired. If your radio has a mute function, then the vehicle speakers are turned onto mute using the

radio. If your car radio doesn‘t have this function, then the signals will be suppressed by the speaker

switchbox. You can use the AC 5120 through the connections that your BURY hands free car kit offers,

which guarantee voltage supply via molex plugs and also have a speaker output.

If you want to make a telephone call in the hands-free mode, your car radio will be automatically swit-

ched on to mute (for the exact operation of your hands free car kit, please read your HFCK user ma-

nual). The Audio switchbox now uses one or two loudspeakers in your car for the telephone conversa-

tion, even if your radio is switched off. This function will be automatically activated after the installati-

on of the unit, there are no subsequent manual settings required.

Some mobile phones do not support a radio mute function. Please read your telephone user manual

for more details. You can find out more detailed information at your specialist retailer, in the internet

under www.bury.com, or over our telephone hotline.
