Bush SuperSLim LT19M4 Manuale utente

Customer helpline: 0845 604 0105

19in HD Ready Digital LED LCD TV

INSTRUCTION MANUAL

LT19M4

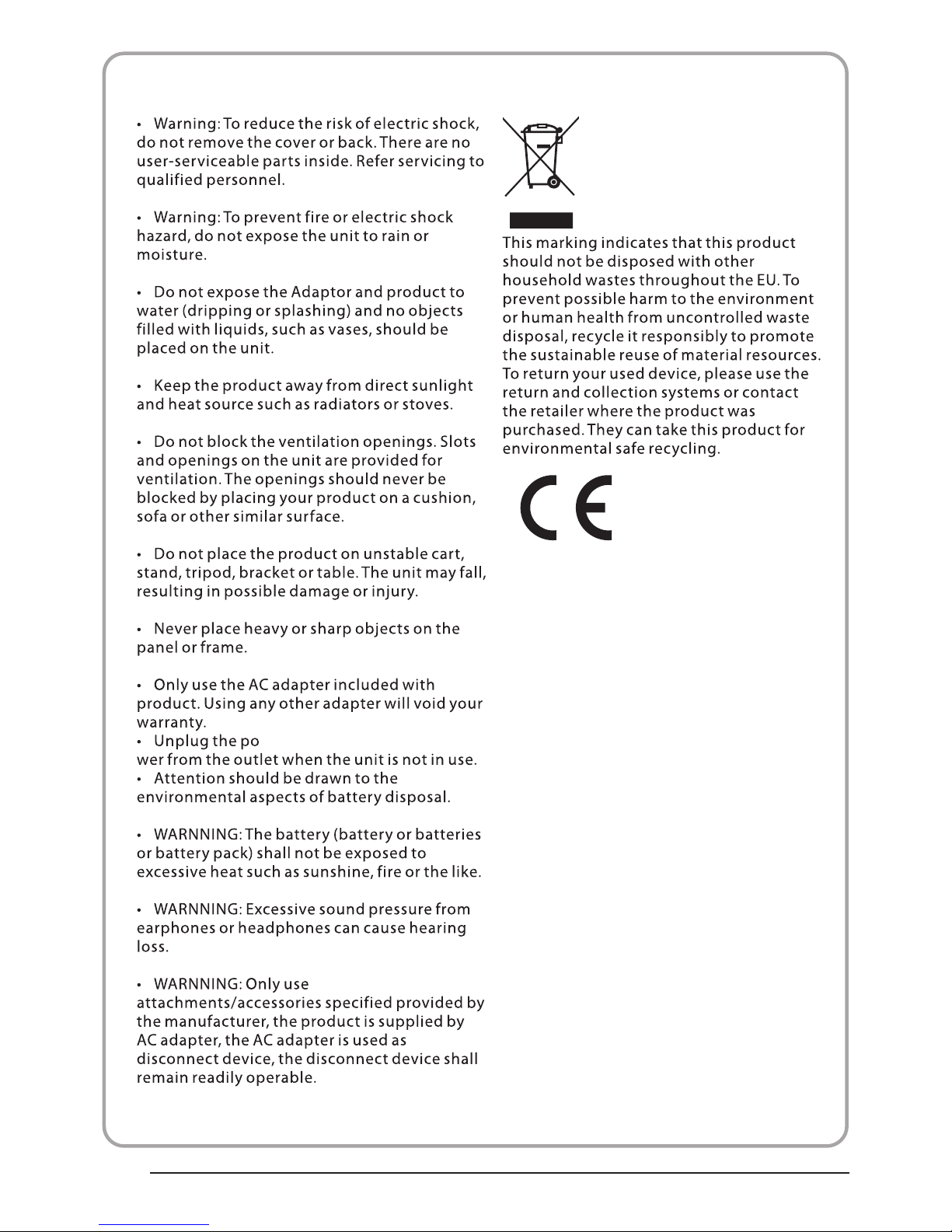

SAFETY NOTICE

P.03

BUSH|HD Ready Digital LED LCD TV | User Manual | Helpline:0845 604 0105

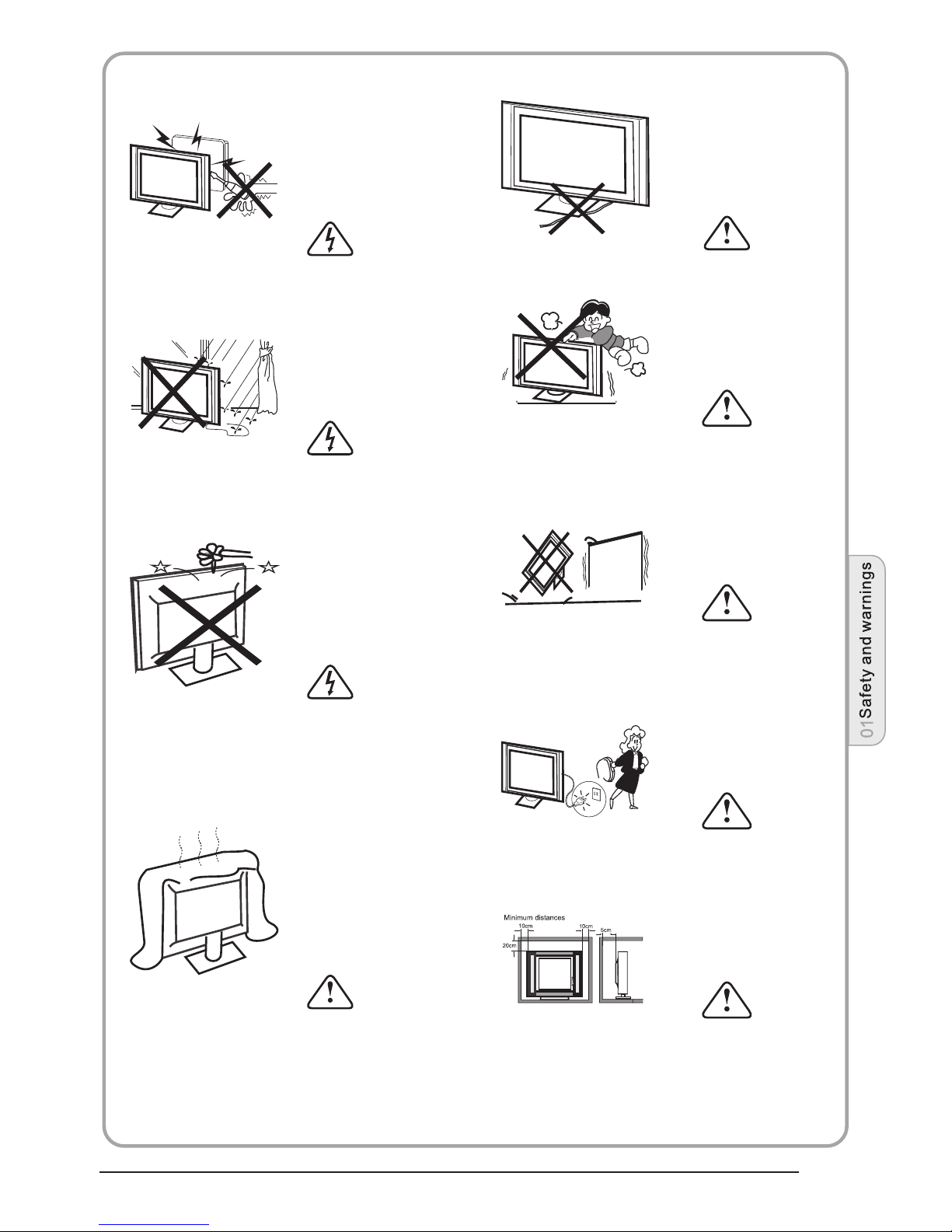

WARNINGS AND CAUTIONS

Warning

High voltages are used in the operation

of this television receiver. Do not remove

the cabinet back from your set. Refer

servicing to qualified service personnel.

Warning

To prevent fire or electrical shock

hazard, do not expose the television

receiver to rain or moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings.

Never spill any kind of liquid on the

television receiver.

Caution

Do not block the ventilation holes in the

back cover. Adequate ventilation is

essential to prevent failure of electrical

components.

Caution

Do not trap the power supply cord under

the television receiver.

Caution

Never stand on, lean on, or suddenly push

the television or its stand. You should pay

special attention to children. Serious injury

may result if it should fall.

Caution

Do not place your television on an unstable

cart, stand, shelf or table. Serious injury to

an individual , and damage to the

television, may result if it should fall.

Caution

When the television receiver is not

used for an extended period of time, it

is advisable to disconnect the AC power

cord from the AC outlet.

Dim:5 15*320m m(不包括底座）

Caution

If the television is to be built into a

compartment or similar enclosure, the

minimum distances must be maintained.

Heat build-up can reduce the service life of

your television, and can also be dangerous.

P.04

BUSH|HD Ready Digital LED LCD TV | User Manual | Helpline:0845 604 0105

Introduction

INSTALLATION

CAUTION

*Locate the TV in the room where light

does not strike the screen directly.

*Total darkness or a reflection on the

picture screen can cause eyestrain. Soft

and indirect lighting is recommended for

comfortable viewing.

*Allow enough space between the TV and

the wall to permit ventilation.

*Avoid excessively warm locations to

prevent possible damage to the cabinet or

premature component failure.

*Do not cover the ventilation openings

when using theTV.

Never tamper with any components inside

the TV, or any other adjustment controls

not mentioned in this manual. All LED-TVs

are high voltage instruments. When you

clean up dust or water drops on the LED

PANEL or CABINET, the power cord should

be pulled out from the receptacle, then

wipe the TV with a dry soft cloth. During

thunder and lighting, unplug the power cord

and antenna cord to prevent damage to

your TV. All repairs to this TV should only

be performed by qualified TV service

personnel.

Panel

Power supply

Audio Output Power （THD 7%）2x3W

Horizontal definition（TV line）Composite Video input >=350

Super Video Input >=400

YPbPr >=400

Main parameter

Main features

① Used as Television, display terminal,

PC display；

② High luminance, wide viewing

Angle；

3 HDMI interface and SCART

Interface；

4 NICAM；

DC 12V, 3A (Power adaptor supplied)

Terminals: Analog RGB(PC)x1

High-Definition Multimedia Interface (HDMI) x 2

Video Input x1

Audio Input x2

USB Input x1

YPbPr x1

Mini SCART x 1

P.05

BUSH|HD Ready Digital LED LCD TV | User Manual | Helpline:0845 604 0105

PRESET MODE

640*480

800*600

1024*768

1280*1024

31.47

37.88

48.36

63.98

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

P.06

BUSH|HD Ready Digital LED LCD TV | User Manual | Helpline:0845 604 0105

02 Introduction

INSTALLATION NOTES

This TV can be connected to an AC 100-240 Volts, 50/60 Hz power supply. Never

connect straight to a DC power supply.

Locate the TV in a room where light does not strike the screen directly. Total darkness

or a reflection on the screen can cause eyestrain. Soft and indirect lighting is

recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or

premature component failure.

Base Stand Assembly Instruction

1. Place the TV with the display side down

on a flat surface.Use a cloth to protect.

Locate the bottom at the stand.

2. Fix the bottom with turning the screw

tightly on the stand.

P.07

BUSH|HD Ready Digital LED LCD TV | User Manual | Helpline:0845 604 0105

WALL MOUNTING INSTALLATION GUIDELINES

This television can be wall mounted as follows:

1.Place the LED LCD Television onto a solid surface. Please place some soft material over

the front of the screen to protect it from any damage.

2.Remove the screws from the lower part of the television, where the base joins to the

TV, and take away the stand (put the stand somewhere safe for future use).

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)

via the four VESA standard holes on the back of the television.

100mm

P.08

BUSH|HD Ready Digital LED LCD TV | User Manual | Helpline:0845 604 0105

02 Introduction

1AV

input

YPbPr

input

5input

input

SCART

input

8PC AUDIO input

L/R AUDIO

Intput

Input

12 input

Front control panel

Remote control sensor.

Indicator LED:

BLUE:POWER ON. RED STAND BY.

Key board.

Rear/Side Sockets

1SOURCE

Display the input source menu.

MENU Display main MENU.

CH+/CH- In TV mode,press CH+ or CH- to change

the channel up and down.

In MENU, press CH+ or CH- to select items .

In standby mode, it can Turn on the TV.

STANDBY

VOL+/VOL- Adjust sound level.

In MENU,adjust the item that you Selected.

Remote Control

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

AV L R Y Pb Pr

HDMI2

1 2 3 4 5

HDMI1 USB PC AUDIO VGA ANT

SCART

COMMON INTERFACE (CI)

6 7 8 10

911 12

DC Power Source

HDMI2

input

HDMI1

USB

COMMON IN INTERFACE(CI)

VGAINPUT

ANT

Intput

P.09
