Customer service manual
BUSH WMNB Series Washing Machine 7,8,9,10 Kg
Contents
1
Precautions
Page 2
2
Tub Bellow Seal
Page 4
3
Detergent Drawer
Page 11
4
Door Lock
Page 12
5
Drain Pump
Page 14
6
Heater
Page 20
7
Door Hinge Handle
Page 26
8
Additional Support
Page 35

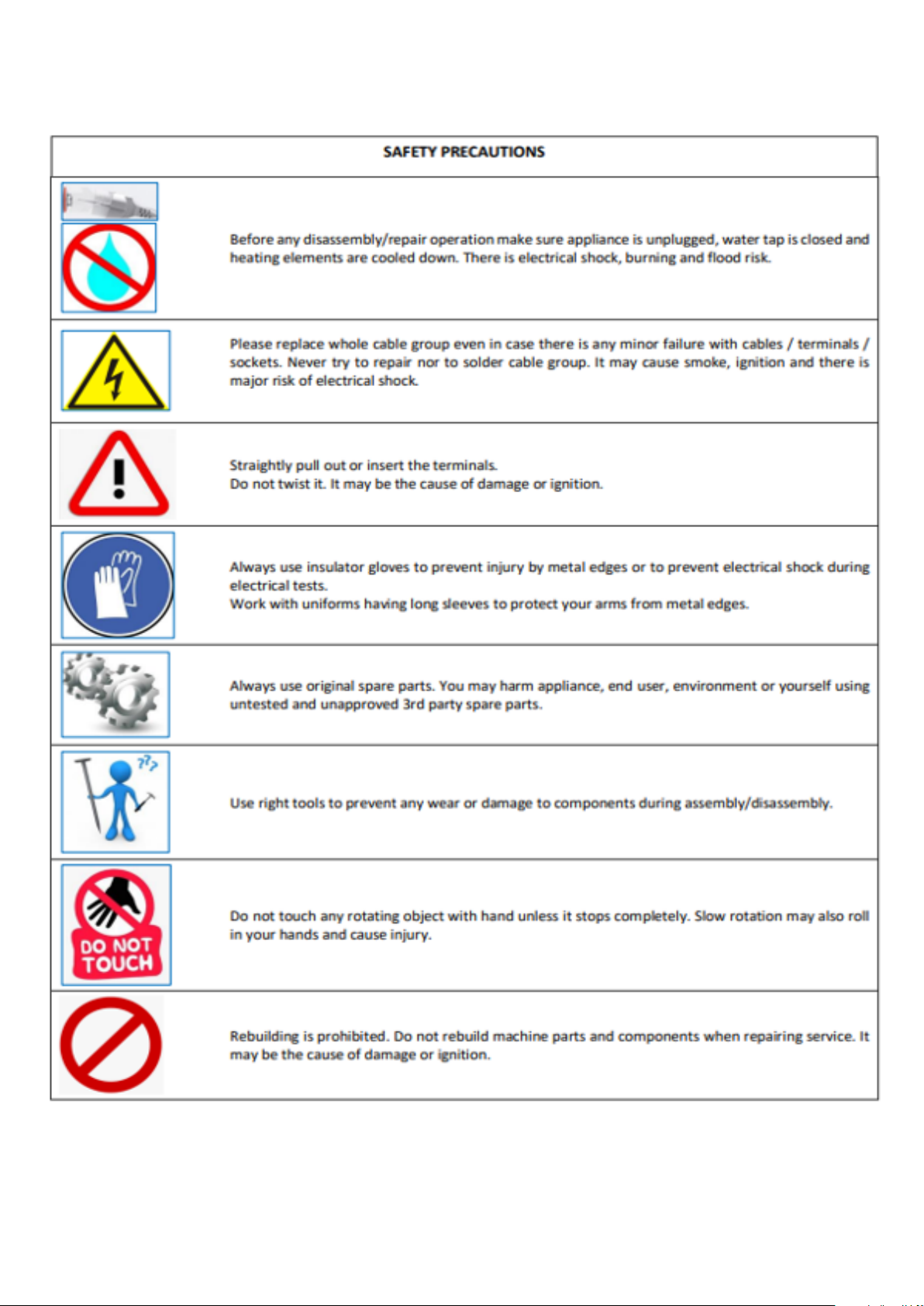

Precautions:
Always follow safety advice.
Always switch off and unplug the appliance before attempting to remove any part.
Always wear appropriate protective equipment when carrying out any work.
Always use the correct tools for carrying out any work.
Some repairs may not be suitable for unqualified users to carry out. If in doubt seek the advice of
a profession repairer.
3
4
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal
1. Necessary Tools
A. Pliers
B. Flat head thin screwdriver
C. Cordless screwdriver or classic screwdriver with
torx bits (T20)
2. Disconnection
2.1. Remove the plug
2.2. Turn off the tap and disconnect the hose from the valve
5
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal
2.3. Turn off the tap and disconnect the hose from the valve
3. Disassembly Instructions
3.1. Turn off the tap and disconnect the hose from
the valve 3.2. Push the top-plate back and pull it up.
3.3. While pressing siphon cover keep pulling drawer
to remove it.
3.4 Remove the screw which fixes the control panel to the
front panel.
6
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal
3.5 Remove two screws fixing control panel.
3.6 Remove the screw on support bracket and two
screws fixing front panel to body
3.7 Remove the screw fixing twinjet elbow.
3.8 Remove the screws fixing the door lock.
3.9 Remove the screw and plastic part located under the pump cover
3.10 Remove the screw fixing the front panel at
the bottom.
3.11 Remove the wire by using small screwdriver
and push the seal to the inside
7
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal
3.12 Pull up and remove the front panel.
3.13 Remove twinjet hoses from tub bellow seal
pulling them up.
3.14 Remove the tub gasket clip by using small screwdriver.
3.15 Hold the gasket bellows and the gasket body pull out in and out at the same time.
4. Assembly Instructions
4.1. Guides must be matched
4.2. Fit the tub bellow seal to the front tub
8
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal
4.3. Pull the tub gasket clip to the up by hand and fit it
4.4. Assemble the twinjet nozes and tighten the
clips
4.5. Put the front panel to the cabinet and push down to
set it
4.6. Tighten the door lock screw
4.7. Pull the tub bellow seal to the outside and assemble
the wire by using small screwdriver
4.8. Tighten the screw fixing the front panel at the
bottom
9
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal
4.9. Fit the screw and plastic part located under the pump cover
4.10. Assemble the twinjet elbow to the front panel
4.11. Tighten the screw on support bracket and two
screws fixing front panel to body
4.12. Tighten two screws fixing control panel.
4.13. Tighten the screw which fixes the control panel to
the front panel.
4.14. While pressing siphon cover keep pushing
drawer to fit
4.15. Fit the upper tray according to movement above
10
REPLACEMENT PROCEDURE
Applicable models
EN
General
Part name
Tub Bellow Seal

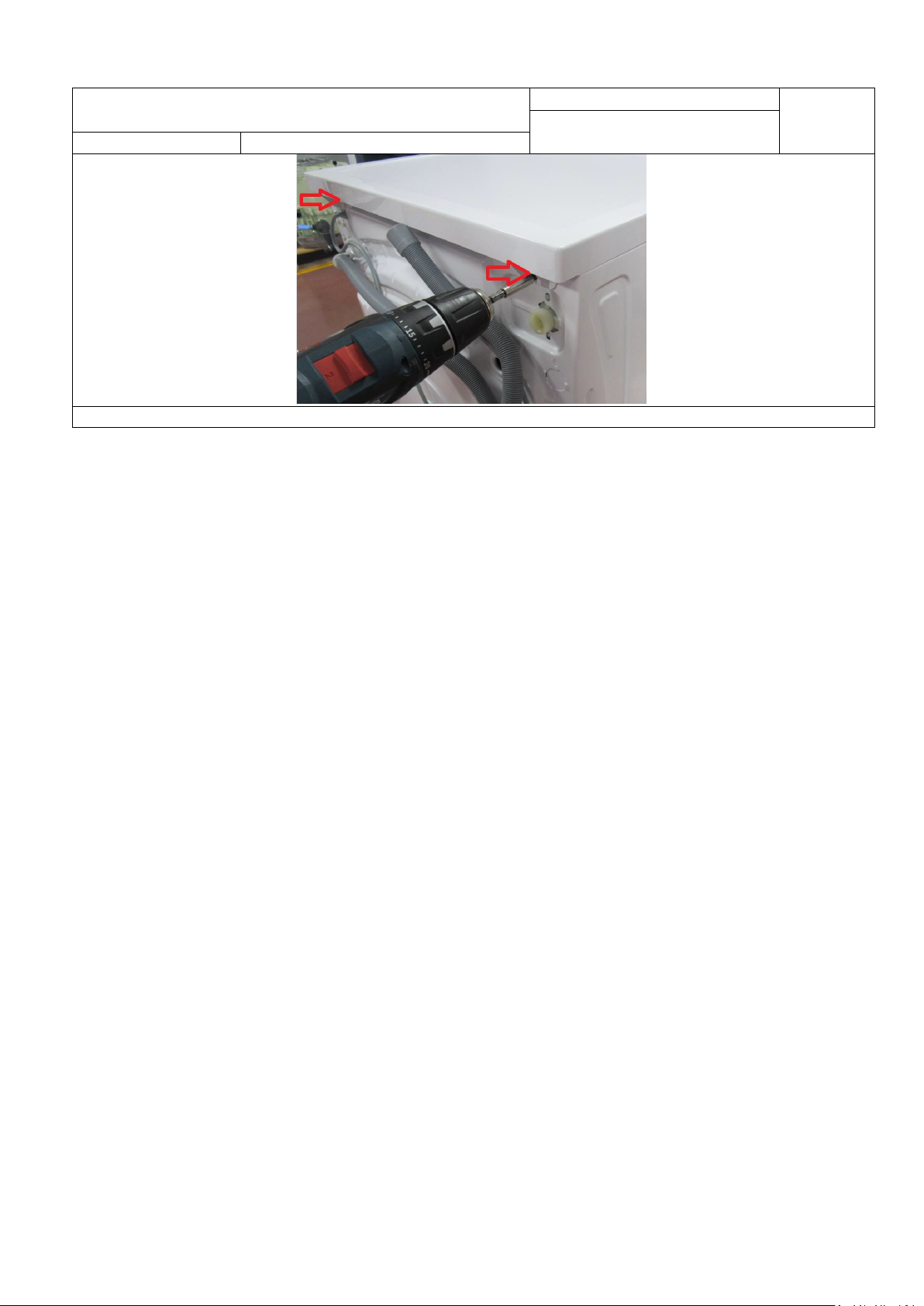

4.16. Tighten two screws that fix the top-plate at the back.
