Bushnell Legend 786351ED Manuale utente

Lit. #: 98-1404/03-09

Spotting ScopeS

e Bushnell Legend Continues.

ED Prime Glass. ED Prime Extra-

Low Dispersion uorite glass

delivers amazing color resolution

and contrast, and virtually

eliminates chromatic aberration

and color-fringing to bring out the

most distinct details possible in

low-light conditions.

Rainguard® HD. This patented*,

permanent, water-repellent coating

causes moisture from rain, snow,

sleet or condensation to bead up

and scatter less light, so you get a

clear, bright view when other optics

would be rendered useless.

*U.S. Patents # 6,906,862 , 6,816,310 and 6,542,302

Built on the same philosophy as our Legend® Ultra•HD

binoculars, the Legend Ultra•HD spotting scope delivers

exceptional ﬁeld performance, with bright, razor-sharp

imagery and a new, compact 100% waterproof design

that excels in the most unforgiving conditions.. e ED

Prime Extra Low Dispersion glass, fully multi-coated

optics and premium BaK-4 prisms capture the moment

with vivid clarity and contrast, even in low-light

conditions. Stacked, dual-focus controls permit you to

make both rapid and ﬁne-tuning adjustments. Lenses

are protected by the ultra-eective Rainguard® HD

hydrophobic coating, for the clearest possible view in the

face of foul weather or condensation from breath.

English

ank you for purchasing your new Bushnell Legend Ultra•HD™ Spotting Scope.

is manual will help you optimize your viewing experience by explaining how to utilize the scope’s

controls and features, and how to care for it. Read the instructions carefully before using your scope.

TRIPOD MOUNTING

After setting up your tripod on ﬁrm ground, fasten

the scope mounting base to the screw on the tripod’s

platform, so that the scope is held securely in place.

e scope’s tripod mount collar allows you to easily

change the angle and position of the scope for more

comfortable viewing without having to use the

tripod’s adjustments-just loosen the knob on the

collar, rotate the scope and tighten the knob again.

FOCUSING

e Legend Ultra HD spotting scopes feature dual

focus knobs, which provide two dierent focusing

speeds. e back knob should be used rst when

focusing-it is the fast focus knob, and may be all

you need when viewing at lower power settings and

longer distances. After setting it, use the front, ﬁne focus knob to more slowly reﬁne the focus sharpness.

It is especially useful at higher powers and closer distances, where focus is more critical.

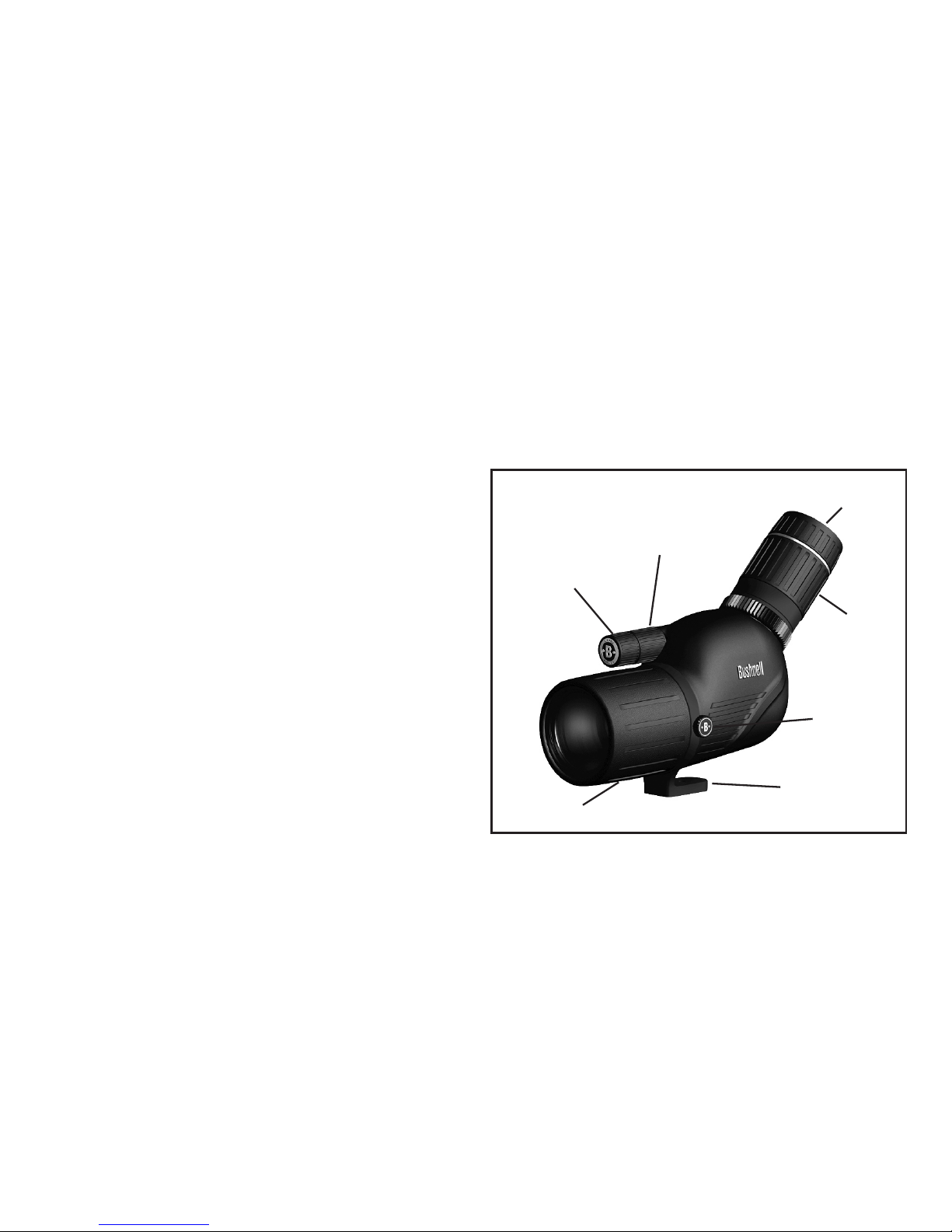

Coarse (Fast)

Focus

Fine (Slow)

Focus

Tripod

Mount

Zoom

Ring

Eyecup

Mounting

Collar

Knob

Lens

Shade

Model # 786351ED shown for reference

USING THE ZOOM EYEPIECE

Rotate the zoom ring on the eyepiece to change magnifying power from low to high. Lower power settings

will provide a brighter image with a wider eld of view, higher powers allow observing smaller details on

more distant subjects. To reduce the need to readjust focus when zooming, set the zoom to its highest

power and focus on your subject. When you zoom back down to lower powers, it will stay in focus.

Note: the zoom eyepiece is not removable, do not attempt to take it oﬀ of the scope.

USING THE EYECUP AND LENS SHADE

If you are not wearing glasses, twist the rubber eyecup counter-clockwise to extend it. If you experience

glare or lens are due to the angle and direction of the sun relative to the front lens, pull the lens shade

out to extend it.

USING THE SCOPE GLOVE (not included with 80mm models)

A scope glove is included with some smaller Legend Ultra HD scopes, to allow convenient handheld

viewing at low magnication settings (15-20x range). Pull the wide straps away from their velcro tabs and

place the glove on the scope, making sure the tripod mount goes through the opening at the bottom, then

put the straps back in place on the velcro tabs. Slip your hand through the side strap and use the buckle

to adjust the strap length so it holds the scope tightly against your hand.

NEVER LOOK DiRECtLY At tHE SUN WitHYOUR SCOPE

AS it MAY CAUSE SERiOUS DAMAGE tO YOUR EYES

WATERPROOF / FOGPROOF

Your Bushnell Legend Ultra HD spotting scope has been designed and built utilizing the latest waterproof

and fogproof technology. e scope is O-ring sealed for complete moisture protection. Fogproof

protection is achieved from dry nitrogen purging that removes all internal moisture.

CLEANING

e lenses of your spotting scope are coated for highest light transmission. As with any multicoated

optics, special care must be taken in cleaning the lenses. Follow these steps for proper lens cleaning:

•Blow away any dust or debris on the lens (or use a soft lens brush).

•To remove dirt or nger prints, clean with the supplied micro-ber cloth rubbing in a circular

motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually

cause permanent damage. e included, washable, “microber”cleaning cloth is ideal for the routine

cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture,

then gently rub the lens with the microﬁber cloth.

•For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning uid

or isopropyl alcohol may be used. Always apply the uid to the cleaning cloth – never directly on

the lens.

GENERAL CARE AND CAUTIONS

•Never disassemble your spotting scope. Irreparable damage can result from unauthorized service

attempts, which also void the warranty.

•Avoid sharp impacts. Set the scope down gently on hard surfaces.

•Store your scope in a cool, dry place whenever possible.

USING THE COMPACT TRIPOD

(not included with 80mm models)

Unfold the legs fully and set the tripod on

a stable, level surface such as a table or the

ground. If additional height is needed, extend

the center column, following these steps:

•Loosen the center column locking collar

•Raise the center column to the desired

position

•Tighten the column locking collar

Twist the pan/tilt handle counter-clockwise to

loosenit, tiltthe tripodheaduntilthemounting

platform is in a level position (parallel to the

ground), then twist the handle clockwise to

tighten it. Turn the mounting screw to attach

the scope’s tripod mount securely to the tripod

platform (do not overtighten).

To tilt the scope vertically, twist the pan/tilt handle counter-clockwise to loosen it rst, then tilt the

tripod head up or down. To pan the scope left or right, loosen the pan lock knob ﬁrst, then use the pan/

tilt handle to rotate the tripod head.

Note: appearance and features of tripod are subject to change.

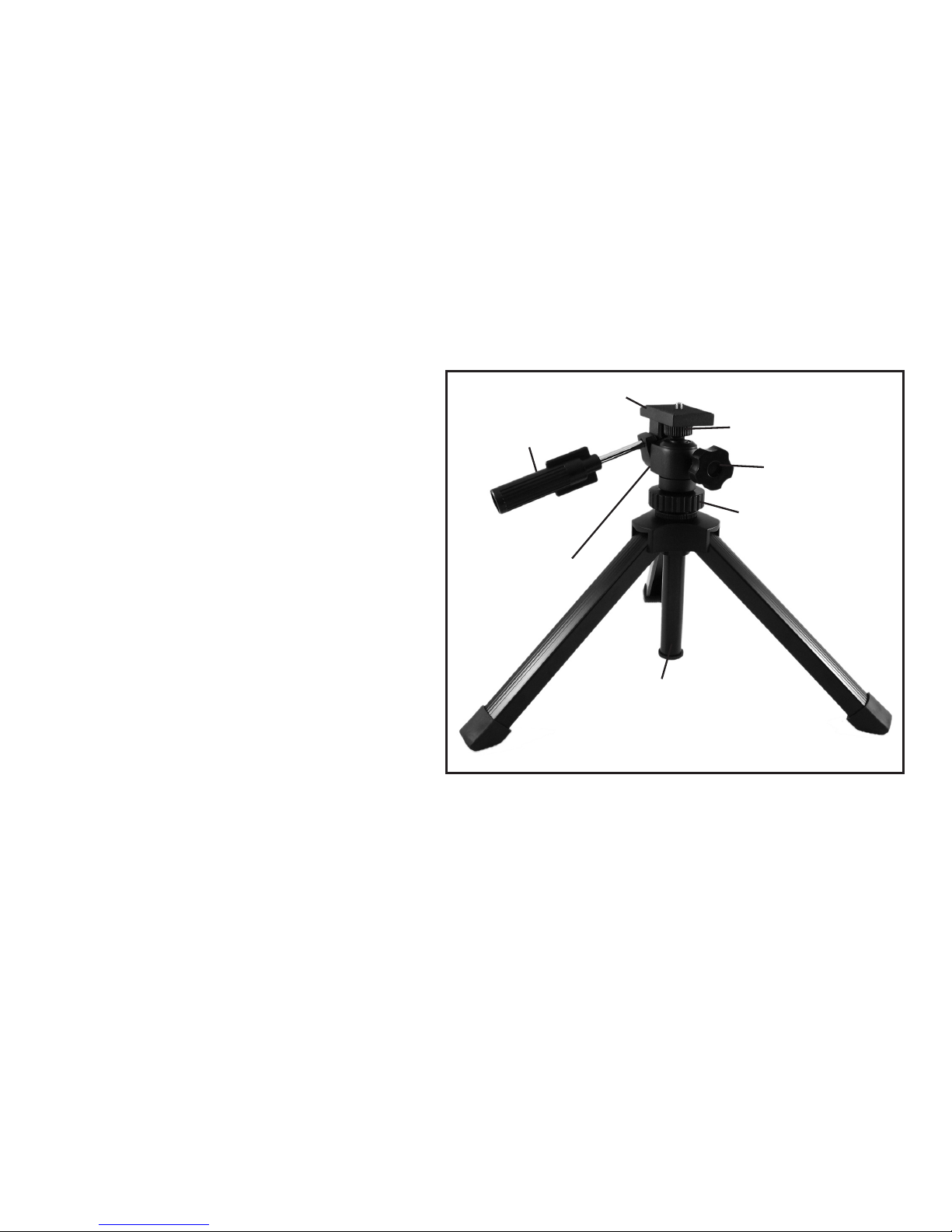

Pan/Tilt

Handle

Mounting Platform

Column

Locking Collar

Pan Lock

Knob

Mounting Screw

Center Column

Tripod Head

WARRANTY/REPAIR

LIFETIME LIMITED WARRANTY

We are so proud of our Bushnell®Legend Ultra HD™ Spotting Scopes that their materials and workmanship are warranted to be free of defects for the

life of the binocular. e warranty is available to any owner of a Legend Ultra HD spotting scope. No receipt or warranty card is required. is warranty

does not cover damages caused by misuse or improper handling, installation or maintenance of the binoculars.

At our option, we will repair or replace any defective Legend Ultra HD spotting scope, which shall be your sole remedy under this warranty. In no event

shall we be liable for transportation costs to us, costs of removal or reinstallation of the binocular, or incidental or consequential damages. Some states do

not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Any return in the U.S. or Canada made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of $10.00 to cover the cost of postage and handling

2) Name and address for product return

3) An explanation of the defect

4) Proof of Purchase

Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

8500 Marshall Drive 25A East Pearce Street, Unit 1

Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also

contact Bushnell at: Bushnell Germany GmbH

European Service Centre

Mathias-Brüggen-Str. 80

D-50827 Köln

GERMANY

Tel: +49 221 995568-0

Fax: +49 221 995568-20

is warranty gives you specic legal rights. You may have other rights which vary from country to country.

La Légende de Bushnell Continue

Verre de Qualité Supérieure ED

à Très Faible Dispersion. Le Verre

en uorine de Qualité Supérieure

ED à Très Faible Dispersion restitue

une résolution et un contraste des

couleurs étonnants, et élimine

virtuellement les aberrations

chromatiques et les franges de

couleur pour faire ressortir le

plus de détails possibles dans des

conditions de faible luminosité.

RainGuard® HD. Ce revêtement

breveté* permanent et hydrofuge

fait que l’humidité de la pluie, de

la neige, de la neige fondue ou de

la condensation perle et disperse

moins de lumière, vous avez

donc une vue claire et lumineuse

quand les autres optiques seraient

devenus inutilisables.

*U.S. Patents # 6,906,862 , 6,816,310 and 6,542,302

Se fondant sur l’héritage de nos jumelles Legend®

Ultra•HD, la lunette terrestre Legend Ultra•HD ore

des performances exceptionnelles sur le terrain, avec des

images lumineuses et extrêmement nettes et une nouvelle

construction compacte et 100 % étanche qui excelle

dans les conditions les plus diciles. Le verre de qualité

supérieure ED à Très Faible Dispersion, des optiques

traitées multicouches et des prismes BaK-4 capturent

l’instant avec une netteté et un contraste frappants,

même dans des conditions de faible luminosité. Les deux

réglages superposés de la mise au point vous permettent

d’eectuer à la fois des réglages rapides et des réglages de

précision. Les lentilles sont protégées par un revêtement

Rainguard® ultra-ecace pour restituer l’image la plus

claire possible en dépit du mauvais temps ou de la

condensation de votre propre soue.

Français

Nous vous remercions d’avoir acheté une nouvelle lunette terrestre Bushnell Legend Ultra•HD.

Ce manuel vous aidera à optimiser vos observations en expliquant comment utiliser les réglages et les caractéristiques

de votre lunette terrestre, et comment en prendre soin. Lisez ces instructions attentivement avant d’utiliser votre

lunette terrestre.

MONTAGE DU TRÉPIED

Après avoir monté votre trépied dans un endroit stable,

attachez le socle de montage de la lunette à la vis de la

platine du trépied de manière à maintenir la lunette

fermement en place. Le collier de montage du trépied de

la lunette vous permet de changer facilement l’angle et la

position de la lunette pour fournir plus de confort pendant

une observation sans que vous ayez à utiliser les réglages

du trépied – desserrez simplement le bouton du collier,

tournez la lunette et serrez de nouveau le bouton.

ISE AU POINT

Les lunettes terrestres Legend Ultra•HD ont comme

caractéristique deux molettes de mise au point, qui

fournissent deux vitesses diérentes de la mise au point.

La molette arrière devra être utilisée en premier lors de la

mise au point – c’est la molette de mise au point rapide et

peut-être le seul réglage dont vous aurez besoin dans les situations de faible grossissement et de distances plus longues.

Après l’avoir réglée, utilisez la molette de mise au point anée située en avant pour ajuster plus lentement la netteté de

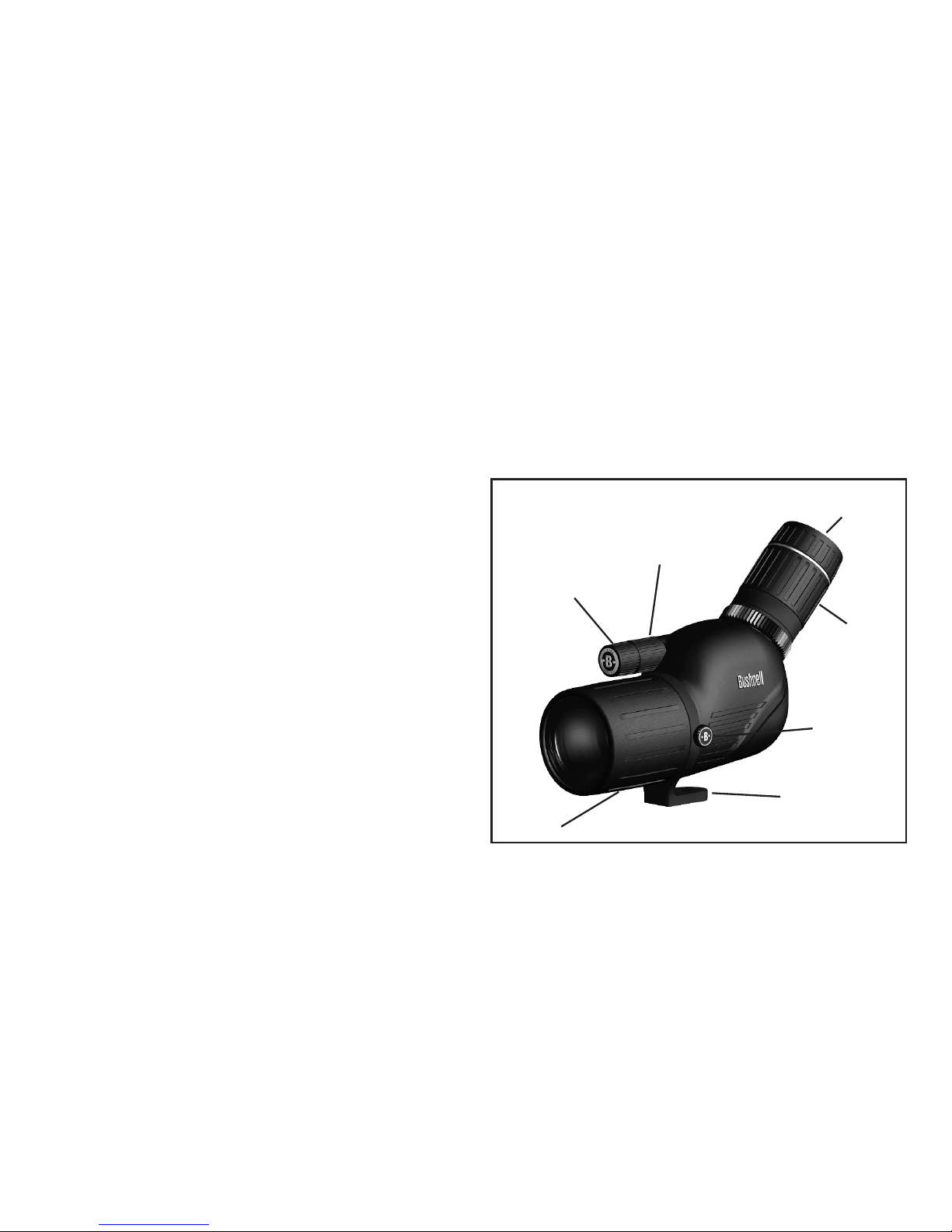

Mise au point

grossière

(rapide)

Mise au

point anée

(lente)

Socle de

montage sur

un trépied

Bague

de zoom

Oculaire

Bouton du

collier de

montage

Pare-soleil

d’objectif

Modèle # 786351ED montré pour référence

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Bushnell Telescopio

Bushnell

Bushnell Trophy 78-7325 Manuale utente

Bushnell

Bushnell Deep Space 78-9518 Manuale utente

Bushnell

Bushnell Imageview 78-7351 Manuale utente

Bushnell

Bushnell VOYAGER 78-6000 Manuale utente

Bushnell

Bushnell Voyager 78-9565 Manuale utente

Bushnell

Bushnell NatureView 1181518 Manuale utente

Bushnell

Bushnell SportView 78-2061 Manuale utente

Bushnell

Bushnell VOYAGER 78993 Manuale utente

Bushnell

Bushnell VOYAGER 78-4500 Manuale utente

Bushnell

Bushnell 712060G Manuale utente

Bushnell

Bushnell Northstar 78-8890 Manuale utente

Bushnell

Bushnell ImageView 111545 Manuale utente

Bushnell

Bushnell Elite Tactical LMSS2 Manuale utente

Bushnell

Bushnell 78-9500 Manuale utente

Bushnell

Bushnell DEEP SPACE SERIES 78-9519 Manuale utente

Bushnell

Bushnell 181561 Manuale utente

Bushnell

Bushnell Voyager 78-9960 Manuale utente

Bushnell

Bushnell FORGE Manuale utente

Bushnell

Bushnell Natureview 78-1645 Manuale utente

Bushnell

Bushnell North Star GOTO Manuale utente

Bushnell

Bushnell Northstar 78-7830 Manuale utente

Bushnell

Bushnell 78-9675 Manuale utente

Bushnell

Bushnell Discoverer 78-1600 Manuale

Bushnell

Bushnell Northstar 78-7846 Manuale utente

Manuali Telescopio popolari di altre marche

Meade

Meade 81005 Condor Manuale utente

Celestron

Celestron NexStar 6 SE Manuale utente

Meade

Meade 114 EQ-DS Manuale utente

Celestron

Celestron C4.5 Manuale utente

Meade

Meade LX200 CLASSIC Manuale utente

Leica

Leica 82 HD Manuale utente

Celestron

Celestron CPC DELUXE 800 HD Manuale utente

EASTCOLIGHT

EASTCOLIGHT 9920 Manuale utente

zoomion

zoomion Genesis 200 EQ Manuale utente

TEC

TEC APO 140 Manuale utente

Orion

Orion 7832 Manuale utente

Carson

Carson Skelescope SK-100 Manuale utente

SKY-WATCHER

SKY-WATCHER VIRTUOSO Manuale utente

Celestron

Celestron Novice 50 Manuale utente

Orion

Orion EZ Finder 7228 Manuale utente

cassini

cassini C-JRS Manuale utente

nedis

nedis SCTE5060WT Manuale utente

Meade

Meade Polaris 60EQ-D Manuale utente
