BWI Eagle AIR-EAGLE SR PLUS 36-40100-AC Manuale

PRODUCT INFORMATION

BULLETIN

105 Bonnie Drive

Butler, PA 16002

724-283-4681

724-283-5939 (fax)

www.bwieagle.com

AIR-EAGLE®SR PLUS

2.4 GHz RF Transceiver

MODEL 36-40100-AC

DESCRIPTION

The AIR-EAGLE SRPLUS TRX is an R.F. transceiver capable of

transmitting and receiving commands from up to 600 feet away. This

model comes equipped with one dry contact input and one 5amp relay

output. When combined with another transceiver this allows the user to

transmit information out and receive a confirming signal back that the

operation was performed. This unit has eight user-selectable network

frequencies to allow multiple systems to operate simultaneously in the

same area without interference.

APPROVALS

United States (FCC)

OUR-XBEEPRO

Canada (IC)

4214A-XBEEPRO

Europe (CE)

ETSI

INSTALLATION

DISCONNECT Power from all equipment before installation.

1. Mount the transceiver in a convenient location.

2. Install control wiring to terminalstrip.

3. Install antenna onto antenna connector located on the right side on

the enclosure.

4. Connect supplied power input cable to your external power source.

TERMINAL STRIP WIRING

TER 3

DRY CONTACT INPUT

TER 2

RELAY OUTPUT

TER 1

AC/DC POWER INPUT

Input 1 C

N/O

100-250 VAC

Input 1

C (common)

100-250 VAC

N/C

Ground

Dimensions (with mounting plate) 7.07L x 3.57W x 1.62H

CONTROLS AND INDICATORS

Power –LED1

Illuminates green whenunit is powered

TX –LED2

Illuminates red when unit is transmitting

Relay –LED3

Illuminates green whenrelay is energized

RF1

RF module that sends data to the remote

receiver

SEL1

Seven dip switches for selecting options and

network frequency

TER3

Dry contact input

TER2

Relay output

TER1

Power Input

AIR-EAGLE®SR PLUS

2.4 GHz RF Transceiver

MODEL 36-40100-AC

RELAY & FREQUENCY SET-UP

The unit is shipped from the factory with SEL1 switches in the open

positions. The relay will operate as maintained momentary and unit is

receiving commands on frequency one. If you wish to change these

default settings, follow the instructions onthe table below.

1) Remove power from unit.

2) Remove back cover.

3) Select desired settings using table below.

4) Reattach cover and apply power.

5) Programming is now complete.

RELAY CONFIGURATION

SEL1

(SW1-2)

Relay Operation

SW1

SW2

Momentary (default)

OPEN

Toggle/Latch

CLOSED

OPEN

Latching

OPEN

CLOSED

Maintained Momentary –Relay mimics button or input –when

depressed or closed, relay will be energized; when released, relay de-

energizes

Toggle/Latch –Relay changes (and holds) its state each time the

corresponding button or input is depressed or closed.

Latching –Relay requires two buttons or inputs for operation –

momentary press of 1st button energizes relay; momentary press of 2nd

button de-energizes relay

OPTIONS

SW #

OPEN

CLOSED

SW3

Vibrating Feedback Off

(default)

Vibrating Feedback On

SW4

Repeater Mode Off (default)

Repeater Mode On

FREQUENCY SET-UP

SEL1

(SW5-7)

Network

Frequency

SW5

SW6

SW7

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SPECIFICATIONS

Power Input

100-250 VAC, 5 W, 50/60 Hz

Transmitter Frequency

2.4 GHz Spread Spectrum

Transmit Data

Dry Contact Input

RF Output Power

60 mW

Transmit Range

Up to 600 Feet

Note: Max range figures are estimates, based on free-air terrain with limited sources of

interference. Actual range will vary based on transmitting power, orientation of transmitter

and receiver, height of transmitting antenna, height of receiving antenna, weather

conditions, interference sources in the area, and terrain between receiver and transmitter,

including, but not limited to, indoor and outdoor structures such as walls, metal objects,

trees, buildings, hills, and mountains.

RF Networks

Eight Independent Frequencies

Relay Contact

SPDT 5 amp @ 120 VAC or 30VDC

Antenna Connection

TNC Female Connector

Operating Temperature

-40oF to +185oF

Enclosure

Polycarbonate NEMA 4, 12, 13 –IP66

Weight

Approx 2 lbs.

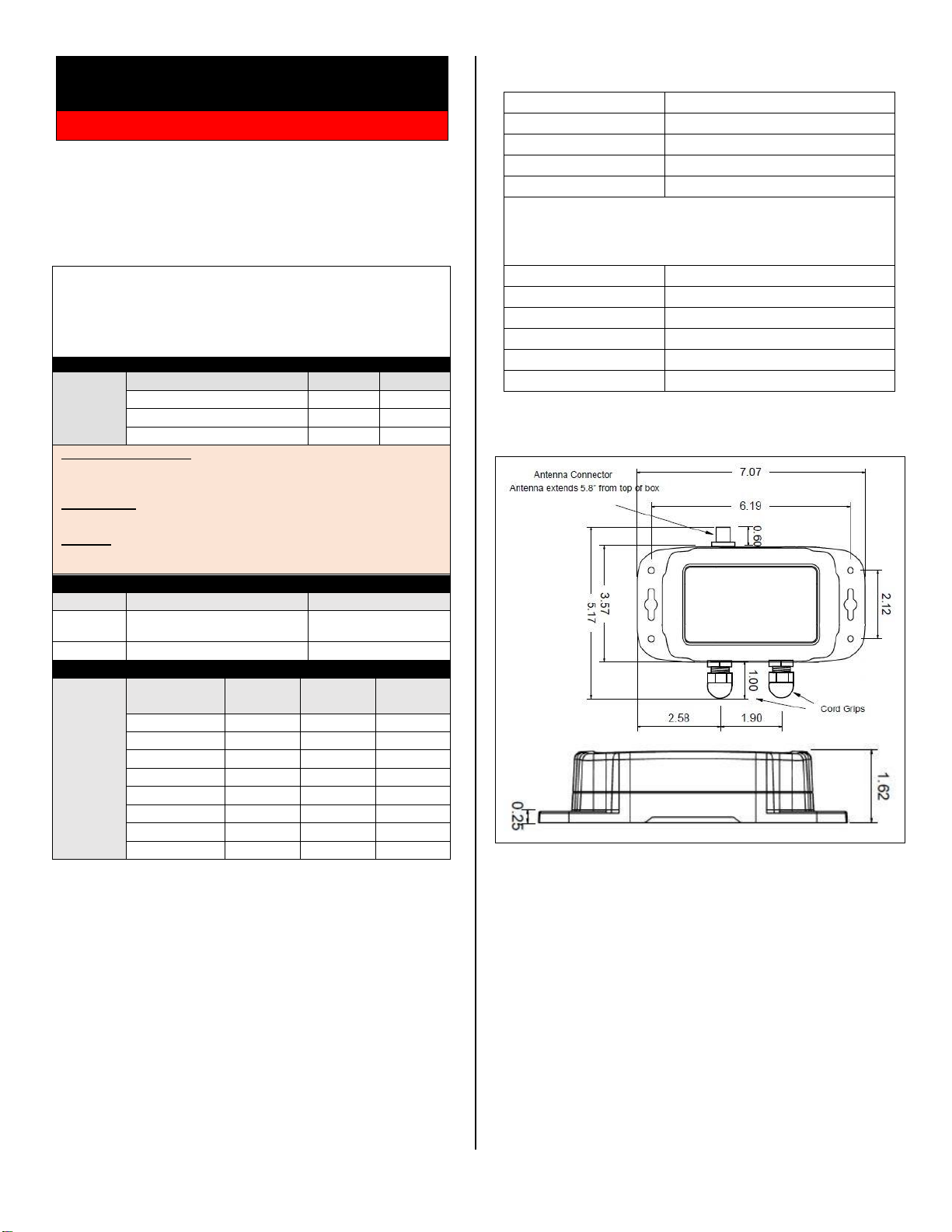

DIMENSIONS

AIR-EAGLE®SR PLUS

2.4 GHz RF Transceiver

MODEL 36-40100-AC

ACCESSORIES

Standard Antenna (Included):

2.4GHz TNC “Rubber Duck” Antenna

49-1201

High Gain Antennas –

Used to help achieve max range in both non line of sight and line

of sight applications. - Contact BWI Eagle for recommendations

2.4GHz Thru-Hole Mount Omni Directional Antenna

49-2201

2.4GHz Magnet Mount Omni Directional Antenna

49-2202

2.4GHz Omni Directional Antenna

49-3201

2.4GHz Yagi Antenna

49-3202

High Quality Coax Cables –

Used to connect external high gain antennas to control unit

Flex Coax Cable w/Connectors –Available

in 5’,15’,25’,30’,40’,60’,80’,100’ Lengths

49-4000-XX

(XX = # of Feet)

Bulkhead Extensions –

Used to provide an external antenna connection whenmounting

control unit inside another enclosure

TNC Male to TNCBulkhead CableAssembly

- Available in 2’, 4’, 7’ Lengths

49-5004-X-ISO

(X = # of Feet)

LIMITED WARRANTY STATEMENT

BWI Eagle Inc. warrants theAir-Eagle Remote Control System, if properly

used and installed, will be free from defects inmaterial and workmanship

for a period of 1 year after date of purchase. Said warranty to include the

repair or replacement of defective equipment. This warranty does not

cover damage due to external causes, including accident, problems with

electrical power, usage not in accordance with product instructions,

misuse, neglect, alteration, repair,improperinstallation, or improper

testing. This limited warranty, and any impliedwarranties that may exist

under state law, apply only to the original purchaser of the equipment, and

last only for as long as such purchaser continues to own the equipment.

This warranty replaces all other warranties, express or implied including,

but not limited to, the implied warranties or merchantability and fitnessfor

a particular purpose. BWI Eaglemakes no express warranties beyond

thosestated here. BWI disclaims without limitation, implied warranties of

merchantability and fitness for a particular purpose. Some jurisdictions do

not allowthe exclusion of implied warranties so this limitation may not

apply to you. To obtain warranty service, contact BWI Eagle for a return

material authorization. When returning equipment to BWI Eagle, the

customer assumes the risk of damage or loss duringshipping and is

responsible for the shipping costs incurred.

DOCUMENT DATE: 10/25/2020 / PRODUCT REV. 4

105 Bonnie Drive

Butler, PA 16002

(724) 283-4681

Fax (724) 283-5939

www.bwieagle.com
