BYD L3 QCJ7153 A Manuale utente
L3 Owner’s Manual
I
L3 Owner’s Manual
BYD AUTO CO., Ltd
(European & African Countries) Ver.2014
ECE / Reg.
L3 Owner’s Manual
II
Preface
Thank you for choosing BYD L3. For better use and maintenance of your BYD L3.AUTO, please do read this Manual carefully.
Special Warning: BYD Auto Industry Company Limited assumes NO liability for any vehicle damage or failure and collateral
damage caused by re-moulding, retrofitting or parts change of BYD L3.
Thank you for choosing BYD L3, and your comments and suggestions will be welcomed. To allow us to provide better service to you
our esteemed customer, please make sure to provide us with your accurate contact information. In the case of any change to your
contact details, please contact BYD sales service center to update it in our system. Meanwhile, we would suggest you to check your
national laws and regulations as well as your local policies and obtain a license plates as soon as possible, thus to avoid any
possible legal risk that could arise thereof.
Please strictly follow “Safety tips” and “Notice” in this Manual to avoid possible injury or damage.

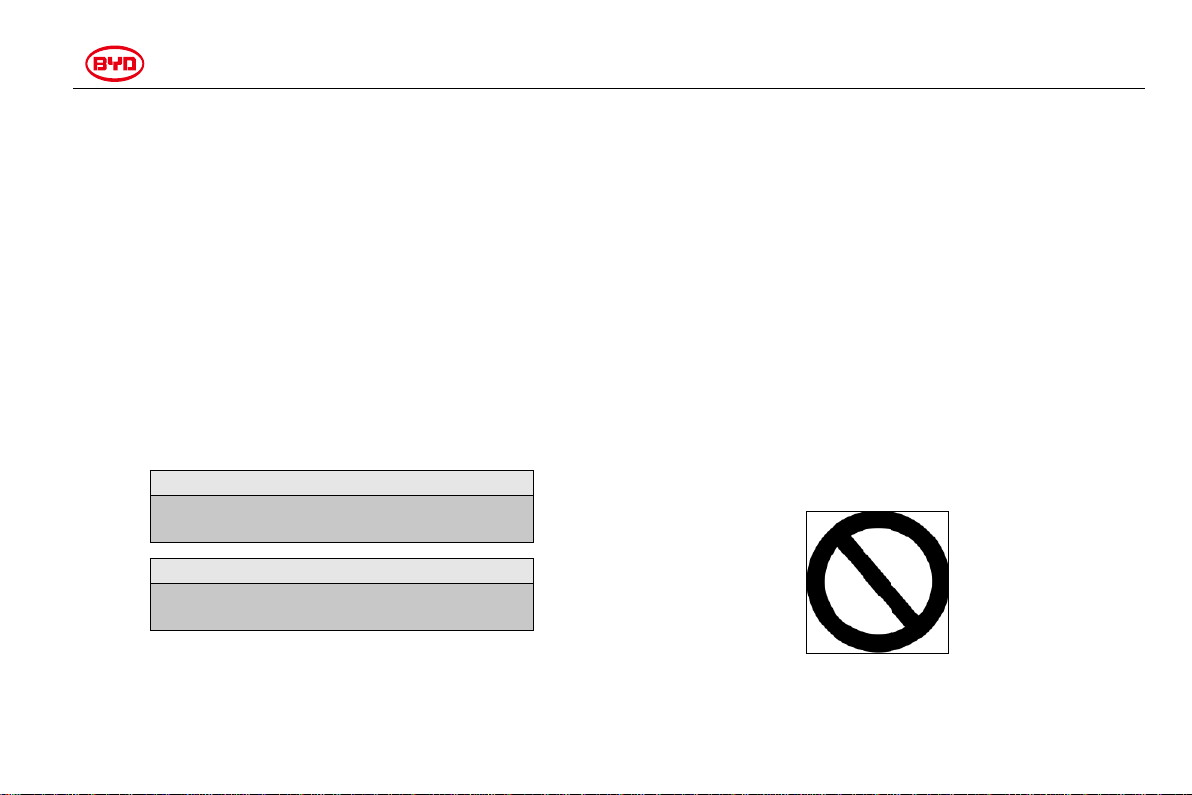

Designation and usage of prompt type are described below:
NOTICE
Precautions to be followed to make
maintenance easier
Safety sign
The safety sign shown in the figure above indicates “Do NOT do
so” or “Do NOT behave this way”.
FRIENDLY TIPS
Precautions to avoid the vehicle damage or
personal injury
This Manual is provided ONLY to help you use this auto properly, and shall not be construed as any specification of the product
L3 Owner’s Manual
III
configuration. For the product configuration, please refer to the contract (if any) related to this product or contact your distributor.
The illustrations provided in this Manual are for reference only. Actual auto may differ in appearance. For detailed user instruction,
please check http://www.bydauto.com.cn/service/manual/index.php.
BYDAuto Industry Company Limited reserves its right to change the technical characteristics, contents and spare parts status in this
Manual, and may update software at any time without any restriction or prior notice.
To join our online vehicle community, please log into the BYD “The vehicle Forum” at http://www.byd-auto.net/ower/service.php
L3 Owner’s Manual
IV
Contents
Whole-The Vehicle Parameters and the Vehicle Identification of BYD L3............................................................................... V
Chapter 1 Operation of Instruments and Controllers ............................................................................................................... 1-1
Section 1 Instrument Panel Exterior................................................................................................................................ 1-1
Section 2 Keys and Doors............................................................................................................................................... 1-7
Section 3 Seats, Seat Belts, Steering Wheels, the Child Seat and Rearview Mirrors...................................................... 1-33
Section 4 Lighting, Wipers, Defrosters and Travel Speed Projector................................................................................ 1-65
Section 5 Instrument and Maintenance Indicators........................................................................................................... 1-75
Section 6 Parking Brake Assembly.................................................................................................................................. 1-89
Section 7 Auto Audio System .......................................................................................................................................... 1-91
Section 8 Air Conditioning System .................................................................................................................................. 1-101
Section 9 Other Devices.................................................................................................................................................. 1-111
Chapter 2 Driving Tips ............................................................................................................................................................. 2-1
Chapter 3 Starting and Driving ............................................................................................................................................... 3-1
Chapter 4 Emergency Handling............................................................................................................................................... 4-1
Chapter 5 Anti-Corrosion and Automobile Exterior Maintenance............................................................................................. 5-1
Chapter 6 Maintenance Knowledge......................................................................................................................................... 6-1
Chapter 7 Self-Maintenance.................................................................................................................................................... 7-1
Section 1 Preface............................................................................................................................................................ 7-1
Section 2 Engine and Chassis......................................................................................................................................... 7-7
Section 3 Electrical Appliance Parts................................................................................................................................ 7-17
Chapter 8 Specification of Parts............................................................................................................................................... 8-1
L3 Owner’s Manual
V
Complete Vehicle Parameter of BYD L3 (The actual fuel consumption is subject to the vehicle conditions,
road conditions and driving habits etc.)
Product Model and Name
QCJ7153
A
QCJ7153
A3
QCJ7153
A5
QCJ7153
A6
QCJ7153
A7
BYD7153
A
QCJ7183
A3
QCJ7183
A4
Dimension
Length mm
(millimeter)
4568
width mm
(millimeter)
1716
Height mm
(millimeter)
1480
Wheelbase
2615
Tread
front mm
(millimeter)
1486
rear mm
(millimeter)
1466
Axle load
front kg
(kilogram)
830
830
885
rear kg
(kilogram)
725
755
695
Curb weight (kg)
1180
1210
1205
Gross weight (kg)
1555
1585
1580
Tire size
195/60 R15 88H
Approach angle (degree)
17.6°
Departure angle (degree)
18.6°
The front overhang (mm)
943
Rear overhang (mm)
1010
L3 Owner’s Manual
VI
Passenger capacity
5
Maximum speed (km/h)
170
175
Engine model
BYD473QB
BYD473QE
BYD483QA
Pattern
In-line transverse position, SOHC
In-line 4-cylinder engine,
water cooled, double
overhead camshaft
Displacement (L)
1.488
1.497
1.839
Emission level
Euro IV
Euro III
Euro IV
Euro III
Euro IV
Maximum output power
(rated power)
kw (kilowatts)
79
80
90
Speed corresponding to
engine rated power r/min
5800
5800
6000
Maximum torque (Nm/rpm)
144
145
160
speed at maximum torqu
r/min
4800
4800
3700~4200
Maximum gradeability %
≥30
≥35
Fuel consumption (urban
conditions)
8.5
7.9
8.2
7.9
7.9
10.4
Fuel consumption
(suburban conditions)
5.3
5.1
5.5
5.1
5.1
6.9
Combined fuel
consumption
6.5
6.2
6.5
6.2
6.2
7.9
L3 Owner’s Manual
VII
The Vehicle Identification of BYD L3

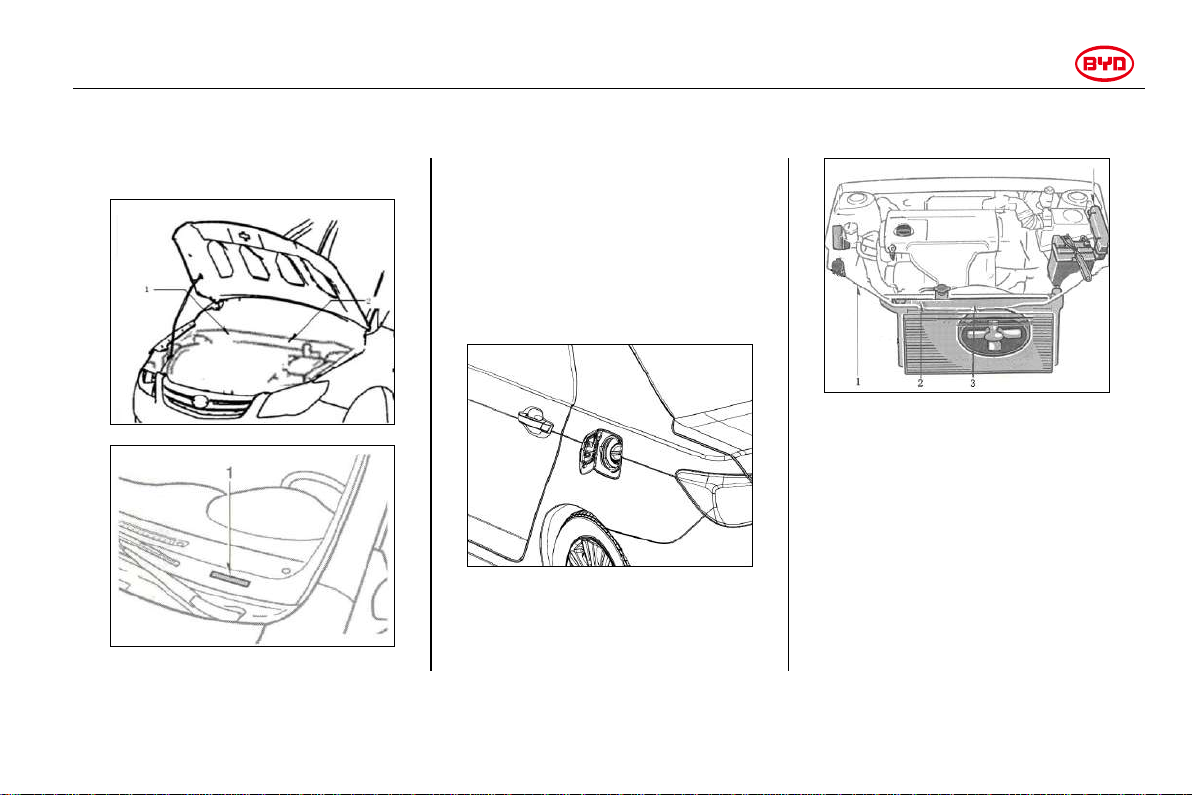

he vehicle Identification number
The vehicle Identification numbers are
marked inside the engine compartment
and on the top left of the instrument panel
as shown in the figure. This is the vehicle
identification number of BYD L3. It is used
for registration of the car owner. The
vehicle identification number is also
marked on the manufacturer nameplate.
The indication sign of oil standard is
attached inside oil filler lid as shown in the
above figure.
1. The indication sign of the engine
coolant
2. The warning sign of the air
conditioning system
3. The warning sign of the cooling fan
L3 Owner’s Manual
VIII

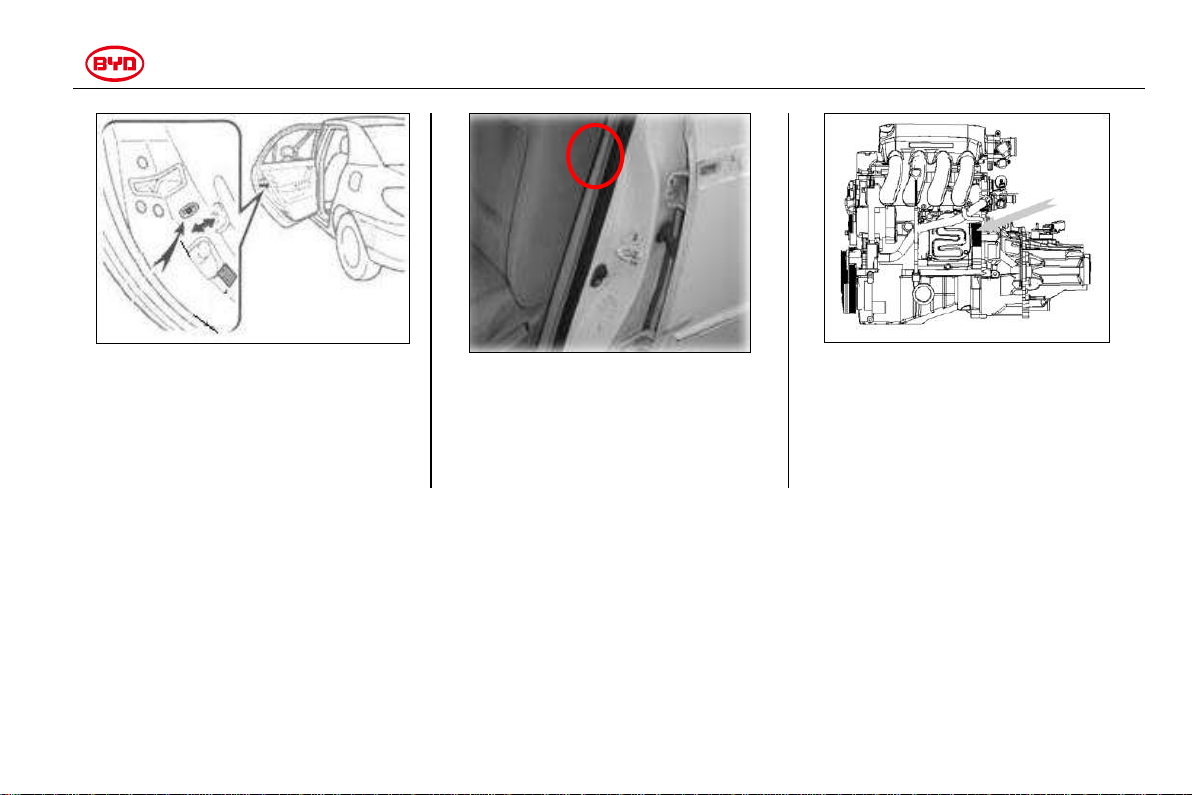

The indication sign of the child protection
device is attached inside the rear door
below the child protection lock.
The indication sign of the tire air pressure
is attached to the downside of the front left
door lock as shown in the above figure.
Engine Number (BYD473Q series engine)
Engine Number
Engine Number is marked on the engine
cylinder as shown in the figure.
L3 Owner’s Manual
Instrument Panel Exterior 1-1
Chapter 1
Section 1
Operation of Instruments and Controllers
Instrument Panel Exterior
Instrument Panel Exterior .......................................................... 1-2
Combined Meter Exterior........................................................... 1-4
The Indication Sign on the Combined Meter.............................. 1-5
L3 Owner’s Manual
Instrument Panel Exterior 1-2

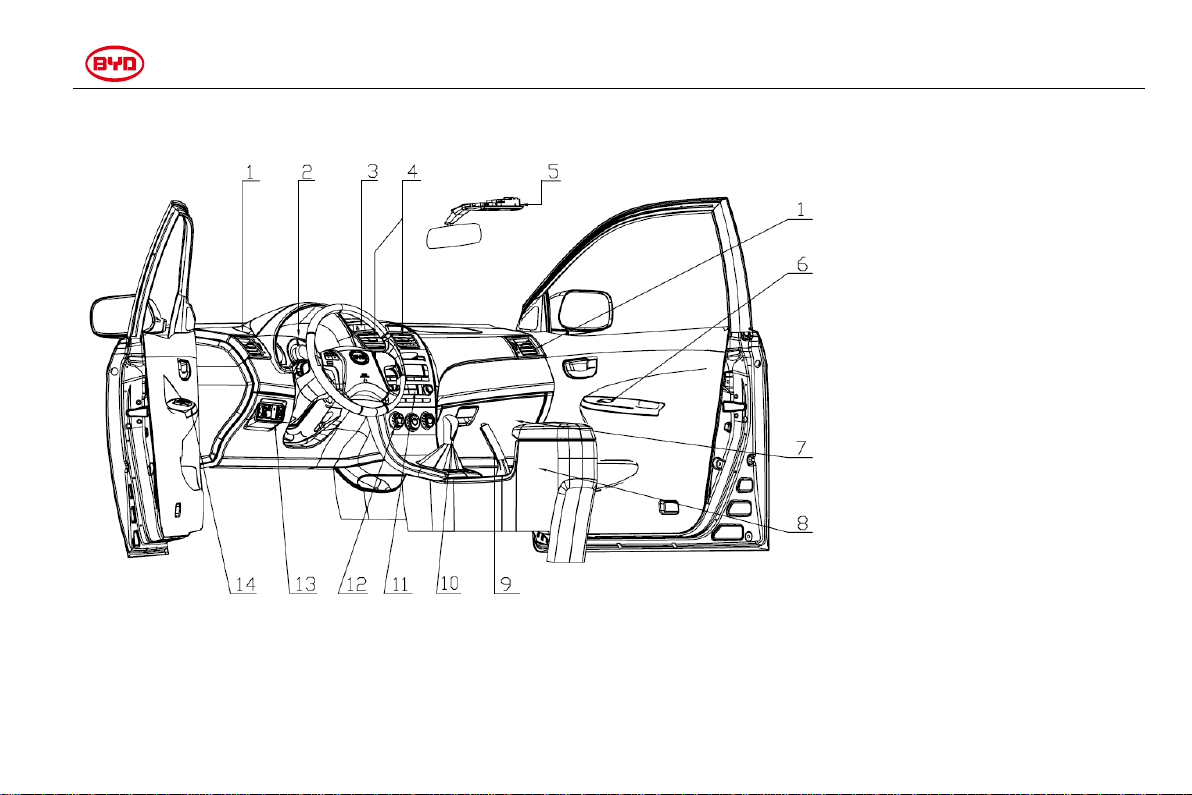

Instrument Panel Exterior
1. Left/right assembly on the
instrument panel
2. Combined meter assembly
3. Reversing radar switch and co-
driver safety-belt the indication
4. Central airduct
5. Lighting and switch assembly in
the front cabinet
6. Window regulator switch
7. Glove box
8. Auxiliary instrument panel
9. Parking brake mechanism
assembly
10. Gear shift handle (manual
transmission)
11. Multi-media system
12. Air-conditioner panel
13. 2#Switch block
14. Central control switch
