Introduction

The Matrix K is a small, multi-function, professional audio system, which integrates a

microphone pre-amplier with +48V phantom power, a Direct Box for connecting a guitar or

bass, a 3-channel dual bus stereo mixer and dual headphone amplifiers. The unique dual bus

design makes Matrix K the best choice for use with a computer based hard-disk recording system

or when you want to add a microphone to a digital instrument with line in and line outs. For

example, use the Matrix K with a synthesizer with a sampling function or to add vocals to a

digital piano with line inputs and outputs.

After connecting Matrix K to your computer, your new music-making system will include

many practical and convenient functions. Matrix K features not only inputs and outputs for

transmitting signal to/from computer but also two headphone outputs with volume control

knob for different monitoring needs. Matrix K also features different connectors such as Line

In, Monitor Output, gain adjustable Mic In and Guitar In to satisfy all of your music-making

needs. In addition, the Line In of Matrix K can receive un-balanced signals and convert into

balanced signals. Furthermore, Matrix K provides +48V phantom power to support professional

microphones.

Matrix K is bus powered when it connects with computer via IEEE 1394 port (Matrix K FW)

or USB port (Matrix K USB). It works with full functions without any other extra power adaptor

is needed.

Hardware Direct Monitor is another advantage for Matrix K users. Signals from the Line

In, Mic In or Guitar In can be sent to the headphone outputs or monitor speakers directly by

pressing the Direct Monitor button. Un-pressing the button will route those signals to the

computer and then out through Matrix K back to the headphone output or monitor speakers. This

is a convenient function to compare the sound before and after processing and recording on the

computer.

Besides working with computer, Matrix K can be used as a stand-alone device to add a

microphone or guitar to a keyboard that has a line in and out. Simply connect the audio matrix

and you can easily add a microphone or guitar to a digital piano with speakers or increase in the

number of headphone outputs.

Matrix K is a unique utility mixer that ts many different audio applications because of its

exible and powerful design. It’s especially useful in a small computer recording environment.

You’ll nd that Matrix K will come in handy for many different situations and that it’s quality

and cost performance is outstanding.

Matrix K User's Manual 7

Congurations

Front Panel

Matrix K front panel has all of the input gain and output volume control knobs, and the

switches for direct monitor, phantom power and guitar signal. Below is the detail of Matrix K

front panel.

1. XLR / TS combo connector

You can connect a microphone or electrical guitar here. The XLR input is balanced and

provides 48V phantom power (by pressing the “48V On / Off” button). It is suitable for

professional condenser microphones. The ¼” connector is un-balanced and is suitable for

dynamic coiled microphone and electric guitar or bass.

2. Mic / Guitar In

Adjusts the gain of the signal from the combo connector.

3. In Peak

After activating “Direct Monitor” function. A red LED ashes when the input signal level is

near distortion indicating it would be better to lower the input gain.

4. In Level

After activating “Direct Monitor” function. A blue LED will light up and ash if signal is

available at the input channel.

5. Stereo In Vol.

Adjusts the volume level of the Stereo In.

6. Line Out vol.

Adjusts the volume level of Line Out.

7. Head Phone Vol.

Adjusts the volume level of Head Phone 1 and Head Phone 2.

8. Head Phone 1

The rst headphone output connector (stereo).

Matrix K User's Manual

9. Phantom power LED

This LED will light up when phantom power supply is turned on and is providing power to

XLR input.

10. 48V On / Off

Switches the phantom power on or off. Turn phantom power on by pressing the button.

11. Guitar On / Off

Pressing this button will activate the TS connector of the combo connector to receive external

signals.

12. Direct Monitor

Switches the direct monitor function On or Off. Pressing this button down, all of the input

signals will be sent to Head Phone 1 / 2 and Line Out directly. If you are using recording software

to record, you should un-press this button to avoid latency while monitoring.

13. Power LED

This LED will light up when it is turned on.

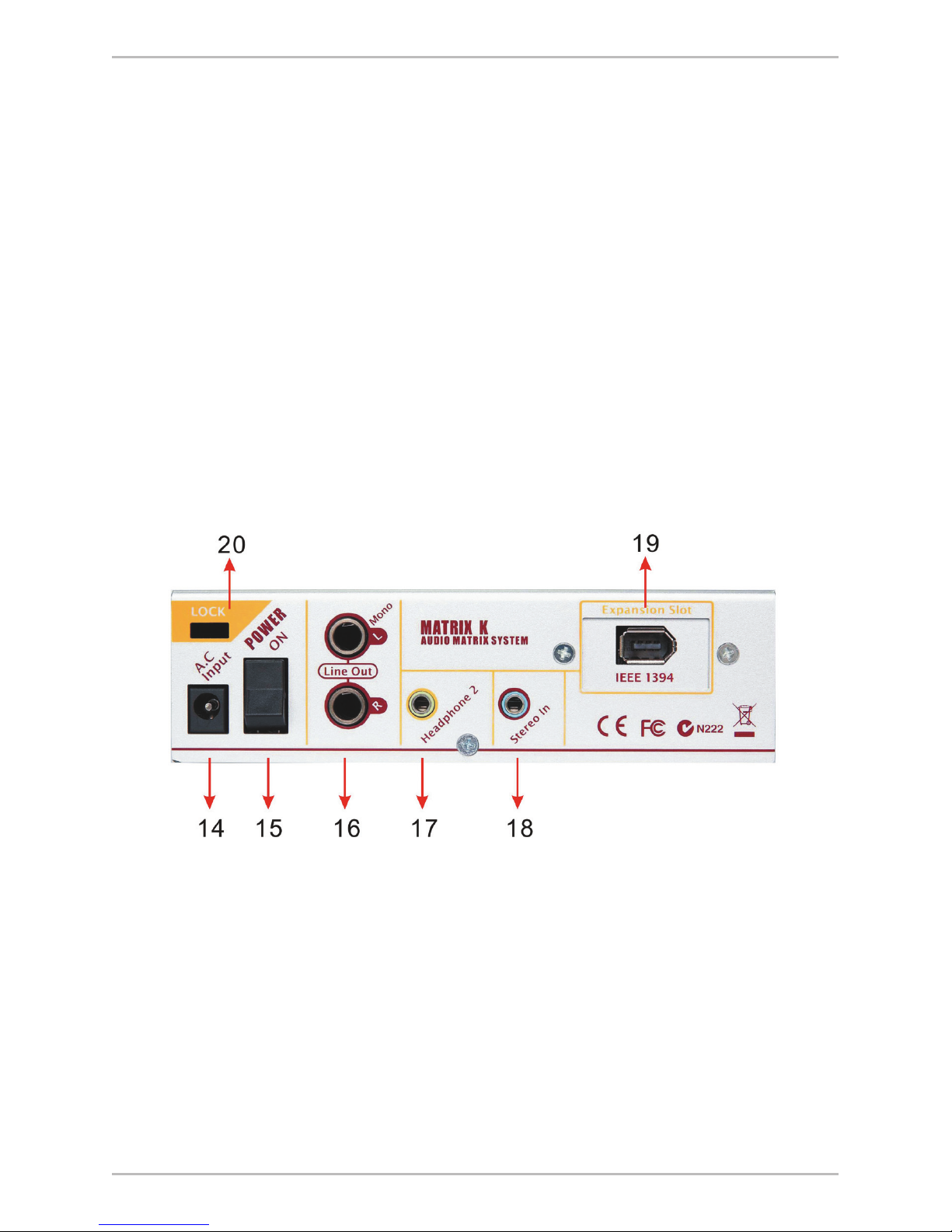

Rear Panel of Matrix K FW

The main input and output connectors are in rear panel of Matrix-X.

14. Power Input

Plug the bundled power adapter here for supplying power to the Matrix K. To avoid voiding

your warranty, only use the power adapter supplied for use with Matrix K.

15. Power On

Power switch. It just switches the power while using power adaptor. The power from IEEE

1394 or USB bus is not been controlled.

16. Line Out

Signal monitor output connectors, the left channel is on the top, the right channel is on the

bottom. Both of the two connectors are balanced 1/4” TRS jacks.

17. Head Phone 2

The second headphone output connector (1/8”, stereo).

Indice

Altri manuali C-me Impianto stereo

C-me

C-me Matrix X Manuale utente

Manuali Impianto stereo popolari di altre marche

LG CM3330B Manuale utente

Sony

Sony SS-CEP50 Manuale utente

Cetacea Sound

Cetacea Sound CVS-II Manuale utente

Aiwa

Aiwa XR-H66MD Manuale utente

Denon

Denon UCD-250 Manuale utente

Sanyo

Sanyo DC-MX41i Manuale utente

Sharp

Sharp CD-ES600V Manuale utente

Exibel

Exibel BDX600-UK Manuale utente

Sanyo

Sanyo DC-F320 Manuale utente

Philips

Philips FWM583X Manuale utente

Sharp

Sharp CD-C462 Manuale utente

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuale utente

Aiwa

Aiwa XR-EM70 Manuale utente

Cyrus

Cyrus Lyric Manuale utente

Philips

Philips MCM159/98 Manuale utente

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuale utente

RCA

RCA RS3965SB Manuale utente

Sharp

Sharp XL-UH240 Manuale utente
