C2STek CAT-1X Manuale utente

Multi-application | Satellite Tracking | Wireless Sensor Connection

GSM/GPSALARM

TRACKING KIT CAT-1X USER’S GUIDE

2/ 20

Content Index

1-Introduction:..............................................................................................................................................3

1.1-Instruction of Safety: ........................................................................................................................3

1.2-Specification...........................................................................................................................................3

1.3-Typical Application: ...............................................................................................................................4

1.4-Package Contents: ..................................................................................................................................4

2-Knowlege Before Usage:...........................................................................................................................5

2.1- How it works? .......................................................................................................................................5

2.2 Factory Default Setting........................................................................................................................... 5

2.3 Power Supply..........................................................................................................................................6

2.4 Transmitter Operation.............................................................................................................................6

2.5 How to configure device (Configuration)...............................................................................................7

2.6 I/O Introduction and Definition..............................................................................................................9

2.7How to insert Simcard to Cat-1X ..........................................................................................................10

3. Functions and Operation:........................................................................................................................10

3.1 Arm/Disarm.......................................................................................................................................... 11

3.2 Alarm Alert functions.......................................................................................................................... 11

3.3 Remote stop Oil/Power supply for engine (Immobilizer)..................................................................... 12

3.4 Power Saving........................................................................................................................................12

3.5 Shock Alert ,Crash accident alert and Crash accident data logger........................................................13

3.6 Voice Listen-in......................................................................................................................................15

3.7 Switch ON/Off Siren ............................................................................................................................15

3.8 Battery Low Alert.................................................................................................................................15

3.9 Recovery Factory Default.....................................................................................................................15

3.10 Remote Reboot...................................................................................................................................15

3.11 Locate in parking Lot..........................................................................................................................15

3.12 GPS Tracking features........................................................................................................................15

3.13Emergency Medical/Information Call to Center( Two way intercom):.......................................... 17

3.14 Remote Door Lock/Unlock.................................................................................................................18

3.15 Mute Output control for Original car Radio:...................................................................................... 18

3.16 Arm/Disarm Status LED Indicator .....................................................................................................18

3.17 Doppler Movement Detection ............................................................................................................18

3.18 Wireless Sensor Detection..................................................................................................................18

3.19 Daily Travel Mileage SMS report to Driver ( A authorization Phone No.) ........................................19

3.20 OTA firmware..................................................................................................................................... 20

4. Problem Shooting ...................................................................................................................................20

APPENDIX ................................................................................................................................................20

3/ 20

1-Introduction:

CAT-1X is a GSM/GPRS/GPS alarm tracking box for multi applications.

This small unit is equipped with Quad Bands GSM/GPRS module, Hi-sensitivity GPS receiver and 3D

Accelerometer. It’s also can be connected with optional wireless/wired accessories like PIR senor, Doppler

Movement sensor, RF Key Fob, Alarm siren and Relay for external electronics device control

It supports both GPS tracking and backup LAC/CID tracking, which brings an idea solution with no blind tracking

both indoor and outdoor.

1.1-Instruction of Safety:

-Do not disassemble the device more than it is allowed. If the device is damaged, the power supply cables are

not isolated or the isolation is damaged, before unplugging the power supply, do not touch the device.

-All wireless data transferring devices produce interference that may affect other devices which are placed

nearby.

-The device may be fitted only by qualified personnel.

-The device must be firmly fastened in the predefined location.。

-The device is susceptible to water and humidity in environment with IP class greater than IP67.

-Any installation and/or handling during a lightning storm is prohibited.

-Ensure that the batteries are not immersed in water. When stored, keep the device in a cool and dry place.

-Ensure that device and batteries are not exposed to hot surfaces or direct sunlight.

1.2-Specification

-Physical Specification:

• Dimension: 90x53x23mm

• Weight: 0.1Kg

• Enclosure: Aluminum Metal Box

• Connector:

Molex 18Pin Connector,6Pin Molex Connector and one 4Pin Molex Connector

SMA Connector for GSM/GPS antenna

Mini USB port for configuration and firmware update

-Power Supply:

• Voltage: 9-36V DC

• Power Consumption:

70-150mA(All active)/

Simple Sleep:<20mA (GSM ON, GPS Off, Alarm trigger active)

Deep Sleep: <5mA(GSM Off, GPS Off, Alarm trigger active)

• Internal Battery:800mAH, 3.7V

-GPS Navigation:

• Antenna: External

• Receiver: uBlox NEO 6M engine

• Sensitivity: -162dBm

• Navigation Update: 1Sec

• TTFF: Cold Starts: 29s/Aided Starts: <1S/ Hot Starts: <1S

4/ 20

-GSM:

• Antenna: External

• Modem: QUECTEL M35 /Quad Bands:850/900/1800/1900MHz

-Radio Frequency:

• Working frequency: 433MHz.

• Code: 1527/2240 study

• Working Voltage: 12V ( 27A 12V dry battery)

• Control Distance: 20-50M

-Environmental:

• Working Temp.: -20℃~ +75℃

• Humidity: 20-95%

1.3-Typical Application:

• Car, truck, trailer and other special machinery like excavator and forklift)

• Motor Homes

• Boats & Yacht

1.4-Package Contents:

1.4.1Standard Package Contents

1) CAT-1X GPS Alarm Tracker x 1PC

2) GSM Antenna x 1PC

3) GPS Antenna x 1PC

4) 14Pin Power+I/O Wire harness x 1PC

5) Panic Button x 1PC

6) Engine Cut-off Relay x 1PC

7) Microphone x 1PC

1.4.2 Optional Accessories

5/ 20

Note:

Please kindly noted that optional accessories are not available in the standard package. But they are available for

purchase separately from manufacturer.

2-Knowlege Before Usage:

2.1- How it works?

The CAT-1X mainframe works as a host box with multi input/outputs. The mainframe will process to get GPS

location and various working status from inputs and wireless sensors, and then send those information to preset

Phone Numbers or IP/Port Server via GSM network. Cell Phone or Server software can send commands to control

outputs action and also acquire different information by available commands.

2.2 Factory Default Setting

• Device SMS Command Password: 1234

• IP/Port/APN: Empty

• Alarm Alert Phone No.(A/B/C/D/G): Empty

• Arm/Disarm Status: Disarmed

6/ 20

• Speed Over Limit: Off

• GEO Fence: Off

• Data Transmit Mode: SMS Default when GPRS Parameter is not configured

• Siren: ON

• Automatic Immobilizer in Armed status: Disabled

• Automatic Power supply switch from external to internal when external power low: Enabled

• External Power low voltage Alert Level: less than 11.5V DC

• Re-Arm: Disabled

• Power Saving Mode: Simple Sleep

• SMS Data Time Zone: GMT+0

• Crash accident Logger and alert : Off

2.3 Power Supply

2.3.1 External Power and Internal Power

CAT-1X works with two power supply mode: External Power and Internal Battery.

It's working normally with external power supply range from 9-36V DC. When the external power is disconnected

or with low voltage output, device will switch to work on internal battery automatically. And it also will send"

Circuit Cut Off" or "External power low voltage" Alert to preset Alerts Phone Numbers.

2.3.2 Sleep Mode consumptions and how it works

Simple Sleep when Ignition Off:

GSM Sleep with SMS/CallActive, NO GPRS Connection and GPS shut down

All Alarms Detection working normally

Power Consumption in standby without alarm trigger: 10mA

Deep Sleep when Ignition Off:

GSM Shut down, NO SMS/Call active, GPS shut down

Alarms trigger detection: Off 6seconds, detect 2seconds in recycle

Average power consumption without alarm trigger: <5mA

NO sleep when Ignition Off:

GSM all ON with SMS/Call active, and GPRS connected with Server with continuously data sending

GPS ON

All alarm detection work normally

2.4 Transmitter Operation

2.4.1 Transmitter Button functions

Disarm

Arm

Mute

Panic

(

Siren

)

7/ 20

Arm: Buzzer sound once, or direction light flash once

Disarm: Buzzer Sound Twice or direction light flash twice.

Mute Key: In siren sounding, press this button to stop the sounding.

In panic, Activate Siren to sound. Or in parking lot, press this button for car finding.

2.4.2 Transmitter and wireless sensor Program to Cat-1X box(OVERRIDE)

If your transmitter is lost or damaged, or the transmitter battery is flat, the system can be overridden by

Ignition switch conjunction with Panic Button.

Please follow below process to finish the transmitter overridden operation:

1. Send SMS command to clear all existing transmitter code which stored in the system

2. Disarm the system by SMS command

3. Press and Hold Panic button

4. Switch Key fromACC off to ON position continuously 7times

5. Buzzer will sound once to indicating Overridden mode entered

6. Press any button of the transmitter

7. Buzzer sound twice again to indicate override success and exit overridden mode

If system get into overridden mode, and no transmitter button was pressed or did not receive any

incoming signal during 20seconds, buzzer will sound bibibi three times and exit override mode

After you pressed the transmitter button during overridden mode, but system failed in accident due to

unexpected reason, system also will sound bibibi three times to indicate failure.

You can start the process again until you get it work success.

Note:

For other wireless sensor, like Door/window contact, Smoke and gas detectors follow the same process to

integrate them to system.\

2.5 How to configure device (Configuration)

Cat-1X box support configuration via SMS commands and also via PC program tool(Configurator) via

connect Cat-1X with PC through USB cable.

2.5.1 Configure by SMS commands:

8/ 20

2.5.2 Configure by PC tool “ Configurator”:

1. Connect Cat-1X with PC via USB cable:

2.Install CP2102 USB-Serial Driver:

9/ 20

3. Run Cat-1X configurator.exe and get into following interface:

2.6 I/O Introduction and Definition

1. Main I/O ports Introduction:

10 / 20

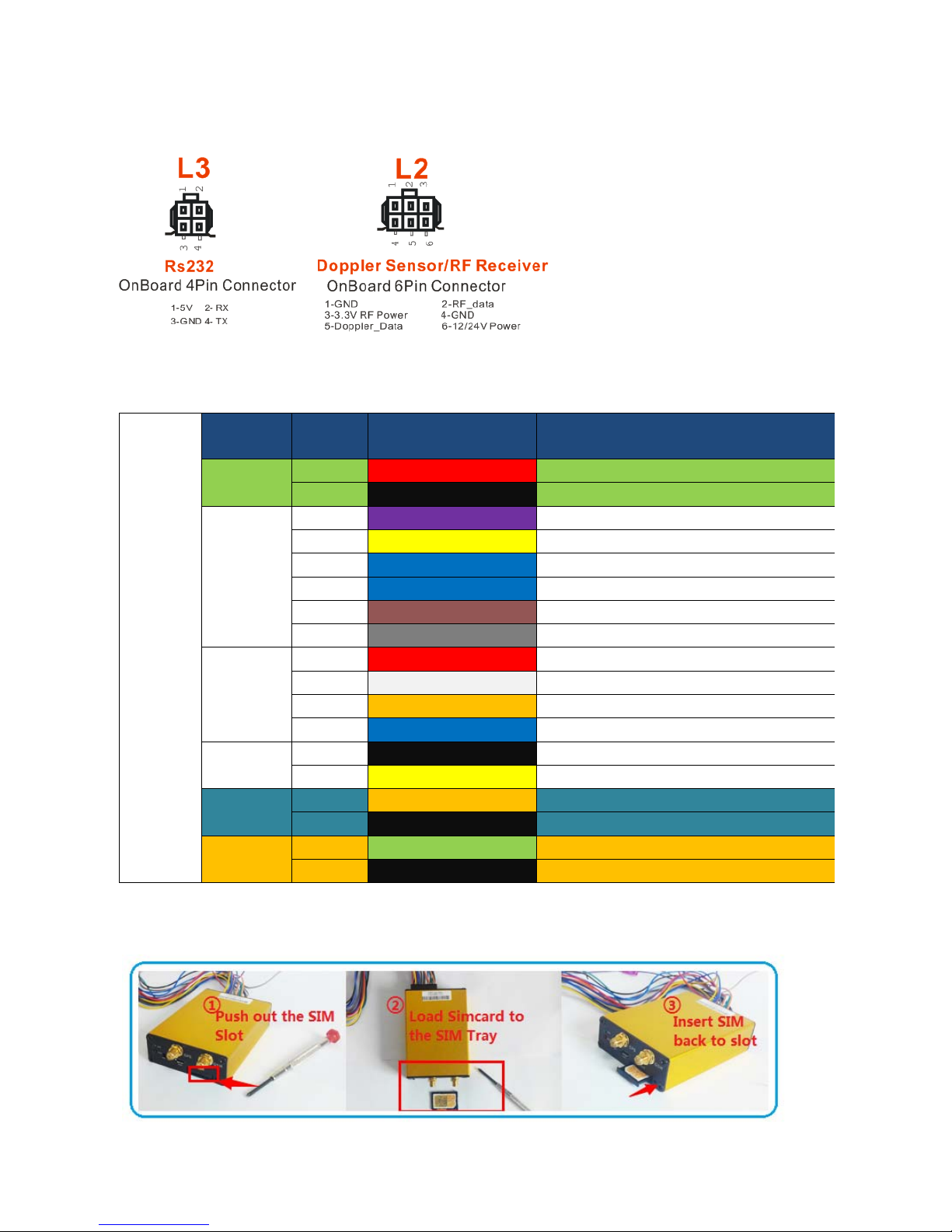

2. I/O Pin slot Definition

L1 18Pin Port Pin slot definition:

L1 Molex

18Pin

Connector

Wire

Description Pin No. Wire Color Function/Specification Description

Power 9 Red/White Power positive pole, 9-60V DC

18 Black/White Ground

Digital

Output

6 Purple/White Over speed Buzzer(=0V,Effect)

8 Yellow Siren/Hazard Light(12/24V, Effect)

7 Blue Lock Door(=0V, Effect)

16 Blue/White Unlock Door(=0V, Effect)

12 Brown/White Mute-Control (=0V, Effect)

15 Grey/White Engine Immobilizer (=0V, Effect))

Digtal Input

17 Red Ignition status Detection(=0V, Off)

4 White Door Status( =0V: Open)

3 Orange/White Panic Button(=0V:effective)

13 Blue/White ShortCall(=0V, Effective)

Arm/Disarm

Status LED

5 Black/White LED -

14 Yellow/White LED +

Microphone 1 Orange Mic+

10 Balck/White Mic-

3W Speaker 2 Green/White Speaker +

11 Black/White Speaker -

2.7How to insert Simcard to Cat-1X
