C4i SX-HE05 Manuale utente
1
H.265/H.264 HDMI Encoder For IP TV
Max resolution 4K@30HZ 4:4:4
2
Catalogue
Dear Customer................................................................................................................. 3
1. Features........................................................................................................................ 3
2. Specifications...............................................................................................................3
3. Package Contents......................................................................................................... 5
4. Panel Descriptions....................................................................................................... 5
5. Typical Application...................................................................................................... 6
5.1. Application 1.....................................................................................................6
5.2. Application 2 Compatible with video player such as VLC etc......................... 6
5.3. Application 3 Work with SX-UHE01-RX........................................................ 7
6. WEB Instruction:......................................................................................................... 7
6.1. Change the IP address of your PC.................................................................... 7
6.2. System Setting:................................................................................................. 9
6.3. Network configuration.................................................................................... 12
6.4. Audio configuration........................................................................................ 13
6.5. Video configuration.........................................................................................14
6.6. Image settings................................................................................................. 15
6.7. OSD configuration.......................................................................................... 16
6.8. Time configuration..........................................................................................16
6.9. Serial port configuration................................................................................. 16
7. Video Scheme............................................................................................................ 17
7.1. Matrix Configuration...................................................................................... 17
7.2. Multi-View......................................................................................................18
7.3. Video Wall.......................................................................................................19
MAINTENANCE.......................................................................................................... 21
PRODUCT SERVICE....................................................................................................21
WARRANTY.................................................................................................................22
MAIL-IN SERVICE...................................................................................................... 22
LIMITED WARRANTY LIMITS AND EXCLUSIONS..............................................22
3
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
1. Features
Support H.265/H.264 encoding
Support HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ONVIF(UDP/RTP) protocol
CBR/VBR rate: up to 100Mbps.
Support Audio encoding format: AAC
Max resolution 4K@30HZ YUV 4:4:4, Support HDCP2.2/1.4
Support WEB GUI Control, Support upgrade, reboot and reset by web page
Support NTP (Network Time Protocol)
Support video and audio parameter settings, Support audio and video
synchronization
Support network parameter configuration
Support 1x looping HDMI output , Support RS232 pass through
With LED to display firmware version, IP address, MAC address, Channel etc
Support one to one, many to many when working with SX-UHE01-RX, transmit
distance up to 120m over single Cat5e/6 cable. Support Video Wall, Multi-View,
Matrix work with CMP system.
DC12V Power supply
2. Specifications
Performance
Protocol
H.265/H.264
Video format
480P/720P/1080P/4K2K/800*600/1280*1024@6
0hz etc
Audio format
PCM2.0, Audio sampling rate 48KHZ. Analog
Extractor
HDCP
HDCP2.2/1.4
RS232 Baud Rate
2400\4800\9600\19200\38400\57600\115200bps
IP SETTING
Request for Switch/Router
Support IGMP, support DHCP
Environmental & Power Requirements
Operating temperature
-5 to + 40℃ （+23 to +95℉）
Operating Humidity Range
5 to 90%RH (No Condensation)
4
Power supply
12V1A
Power consumption
4.416W
Dimension
125*115*31mm
Net Weight
0.44 kg
2.1 Supported input resolution
Frequency
Resolution
50HZ
576P
720P
1080P
60Hz
/59.94Hz
480P
720P
1080P
30/29.97Hz
720P
1080P
4K2K
24Hz
720P
1080P
4K2K
25Hz
720P
1080P
4K2K
VESA Resolution
Frequency
Resolution
60Hz
800×600
1024×768
1280×768
1280×960
1280×1024
5
1680×1050
1920×1080
1280×720
1360×768
1400×1050
1920×1200
3840×2160（Yuv420）
3. Package Contents
1). Main Unit Encoder x1
2). Power Adapter DC12V1A x1
3). Fixed Hanger x2
4). Operating Instruction x1
5). 1*3 Phoenix Terminal x2
4. Panel Descriptions
60Hz
6

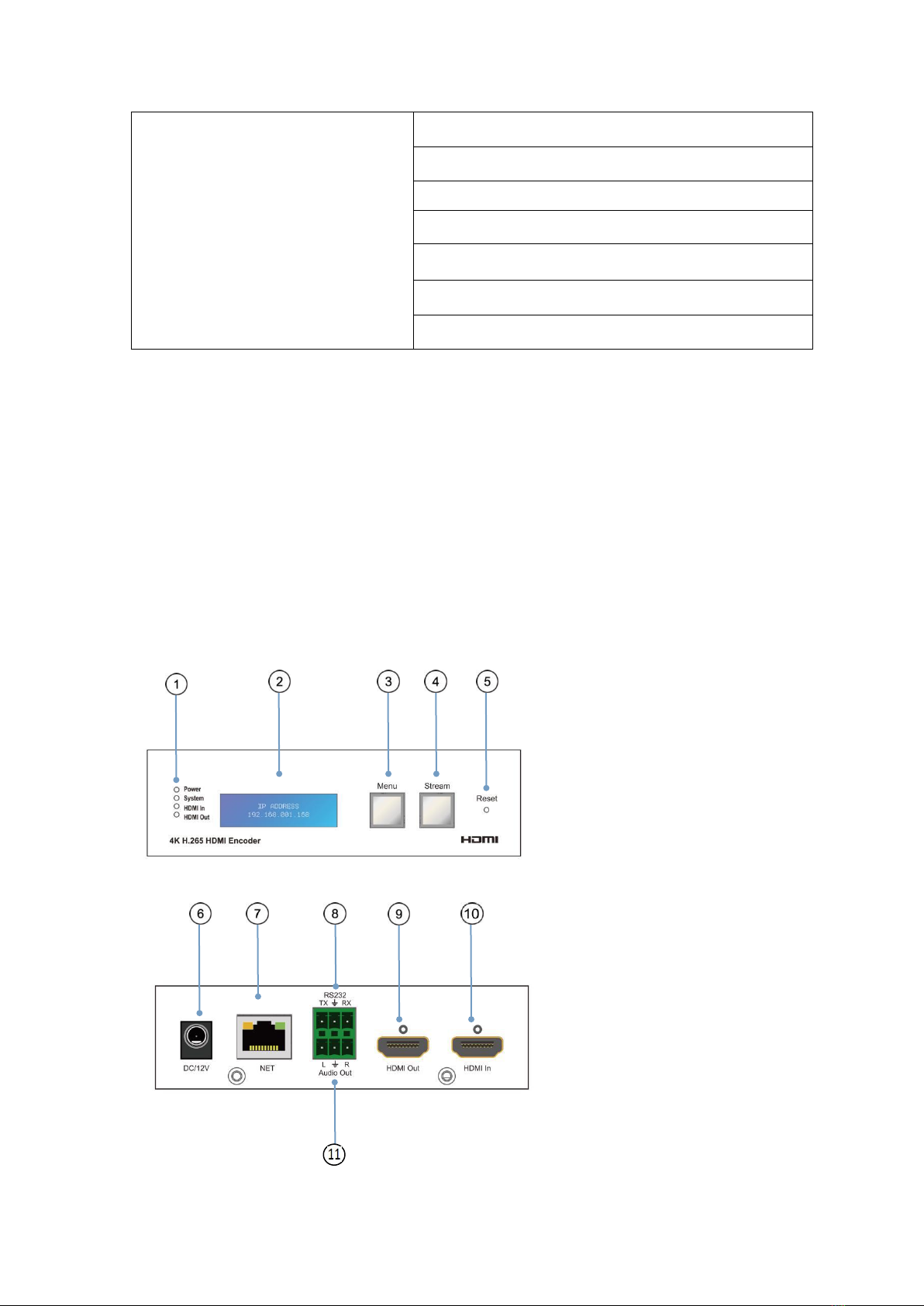

①Indicator of Power; Network; HDMI input; HDMI output
②LCD to display firmware version, IP address, MAC address, Channel etc
③The button to switch LCD display
④Video streaming buttons ⑤Reset button
⑥DC/12V input ⑦Cat5/6 output
⑧RS232 port ⑨HDMI Output
⑩HDMI Input ⑪Audio Output

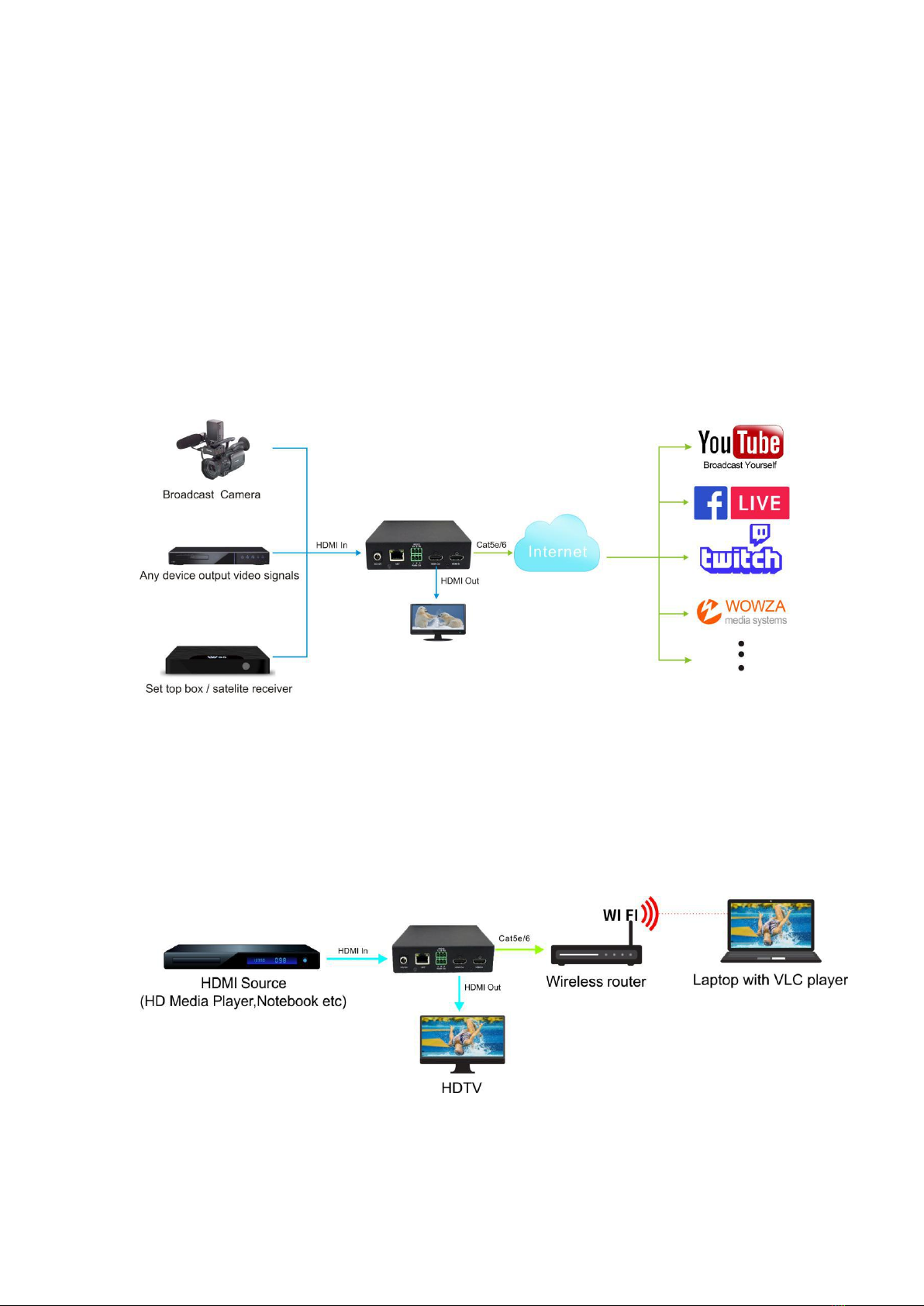

5. Typical Application
5.1. Application 1
5.2. Application 2 Compatible with video player such as VLC etc
7

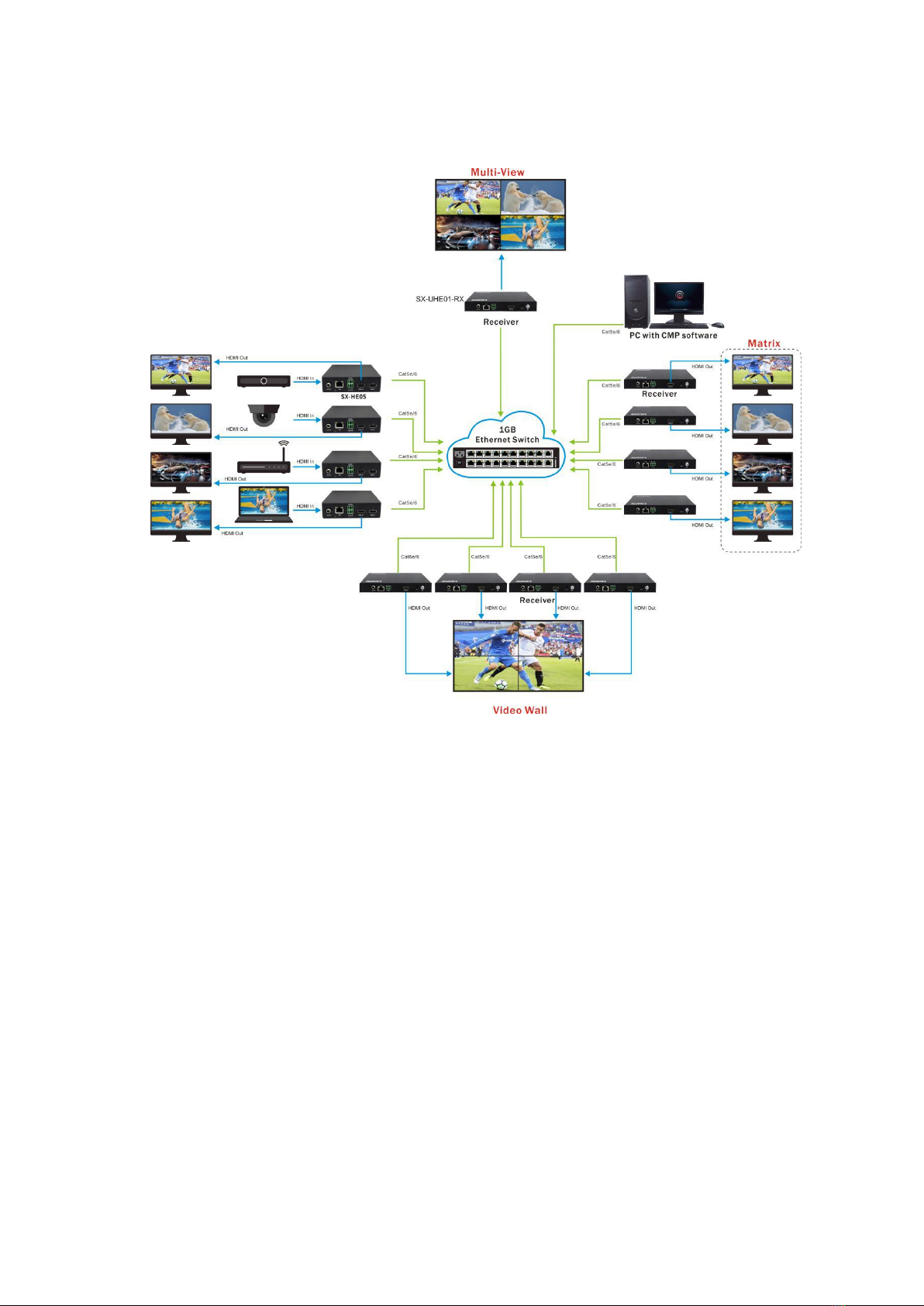

5.3. Application 3 Work with SX-UHE01-RX
6. WEB Instruction:
6.1. Change the IP address of your PC
Before configuring the device through the web side, it is necessary to configure the IP
address of the computer configured with the device (mainly to ensure that the
computer and the device are set in the same network segment).

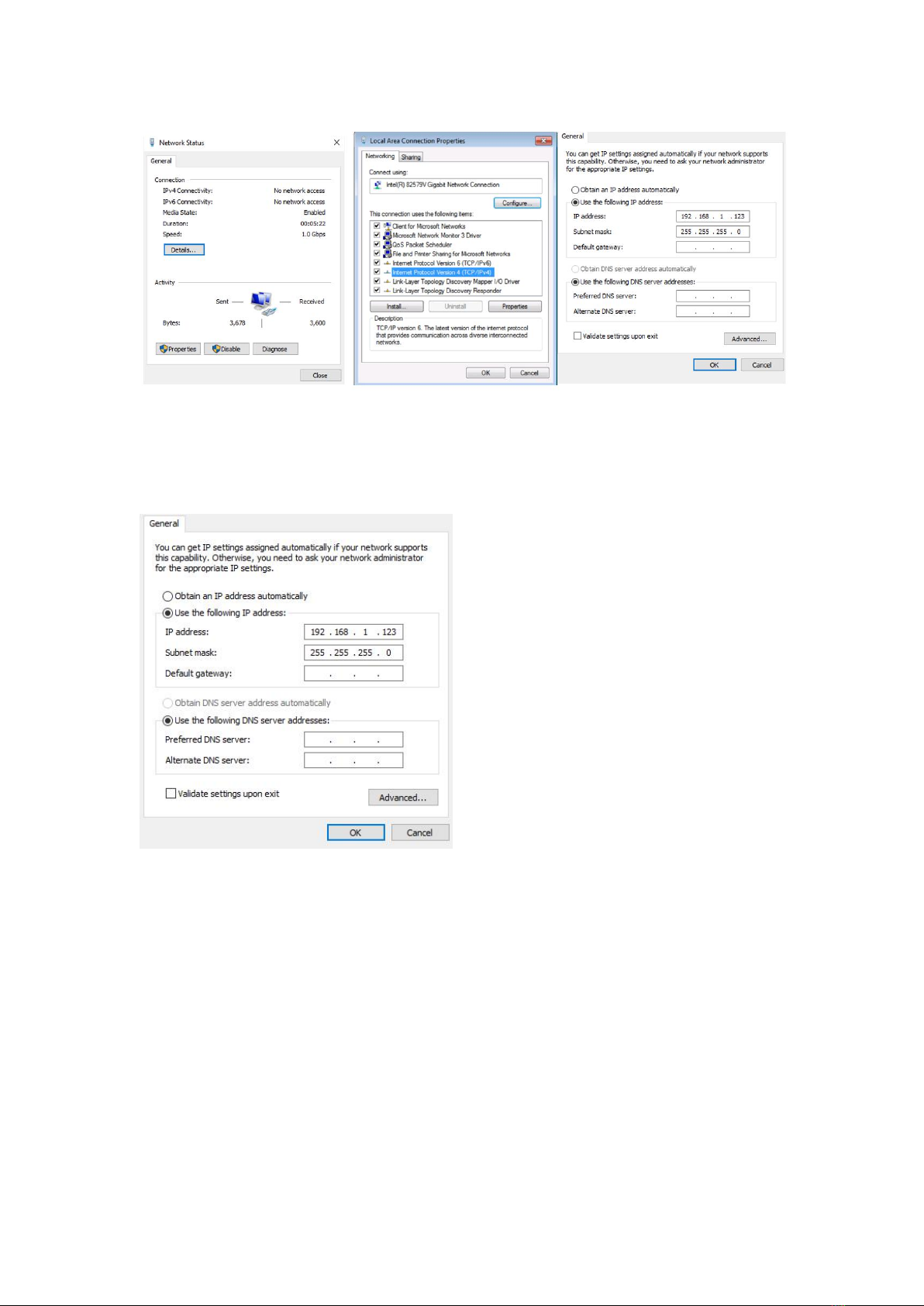

1). Open the network control center and set the computer's IP address：
8
2). Choose to use Static IP, with the IP address set to 196.168.1.x (x ranges from 0 to
254, but cannot be consistent with the device's IP address),
3). Subnet mask set to 255.255.255.0
4). Gateway set to 192.168.1.1
5) . Enter the device's IP address in the web browser for the device configuration
interface.

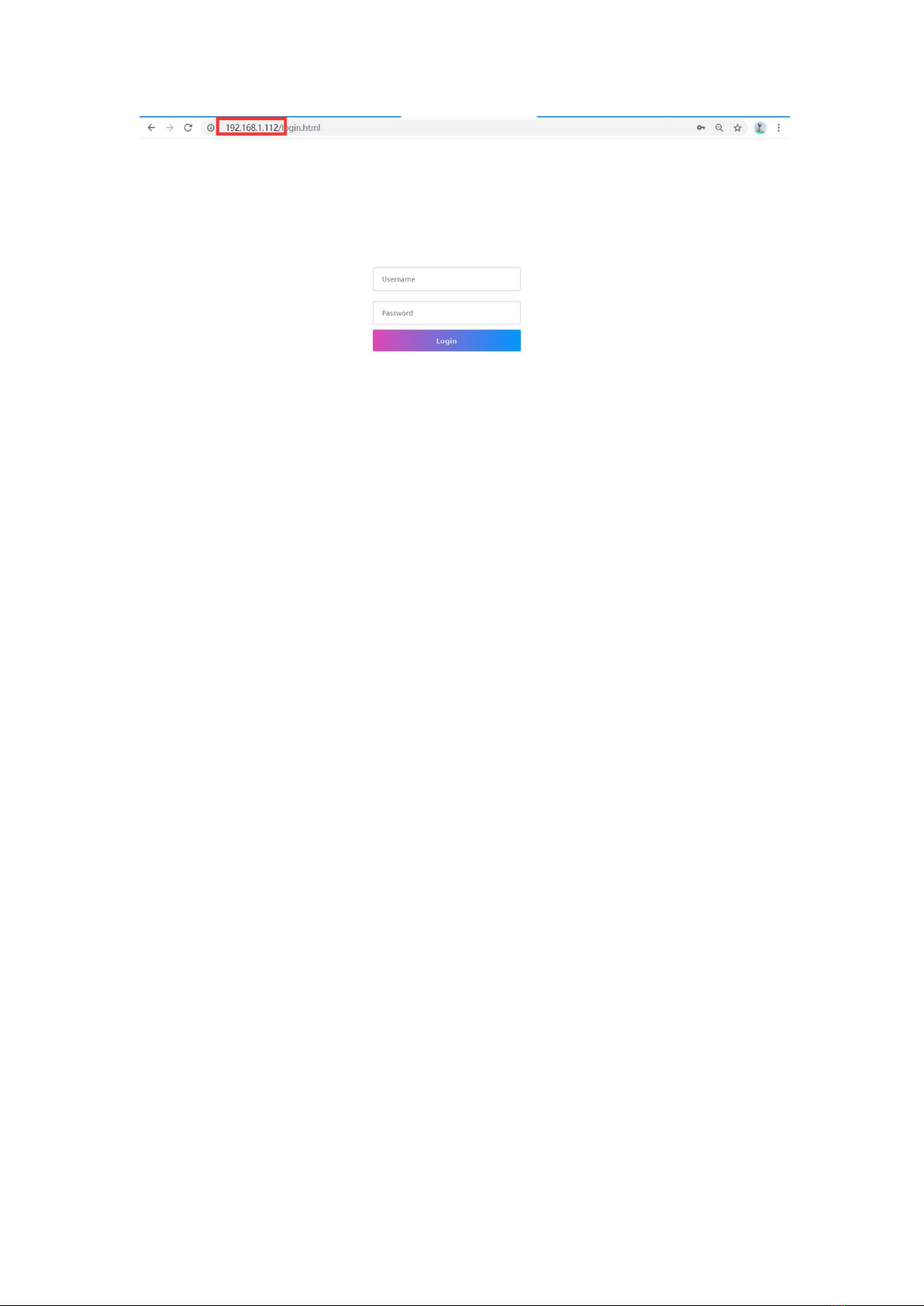

Way to enter the device login interface:
(1) If the device IP is known, enter the device IP address in web browser to enter the
device login interface.
9
Enter the user configuration interface after you enter the correct user name and
password. You can view the relevant information of the device and Configure the
device.
Note: Encoder Static default IP: 192.168.1.168 (device and computer directly
connected by network cable).
Device DHCP default open, if there is a router will directly assign IP address. You can
view the IP address of the device by switching the third page on the LCD screen of the
product.
6.2. System Setting:

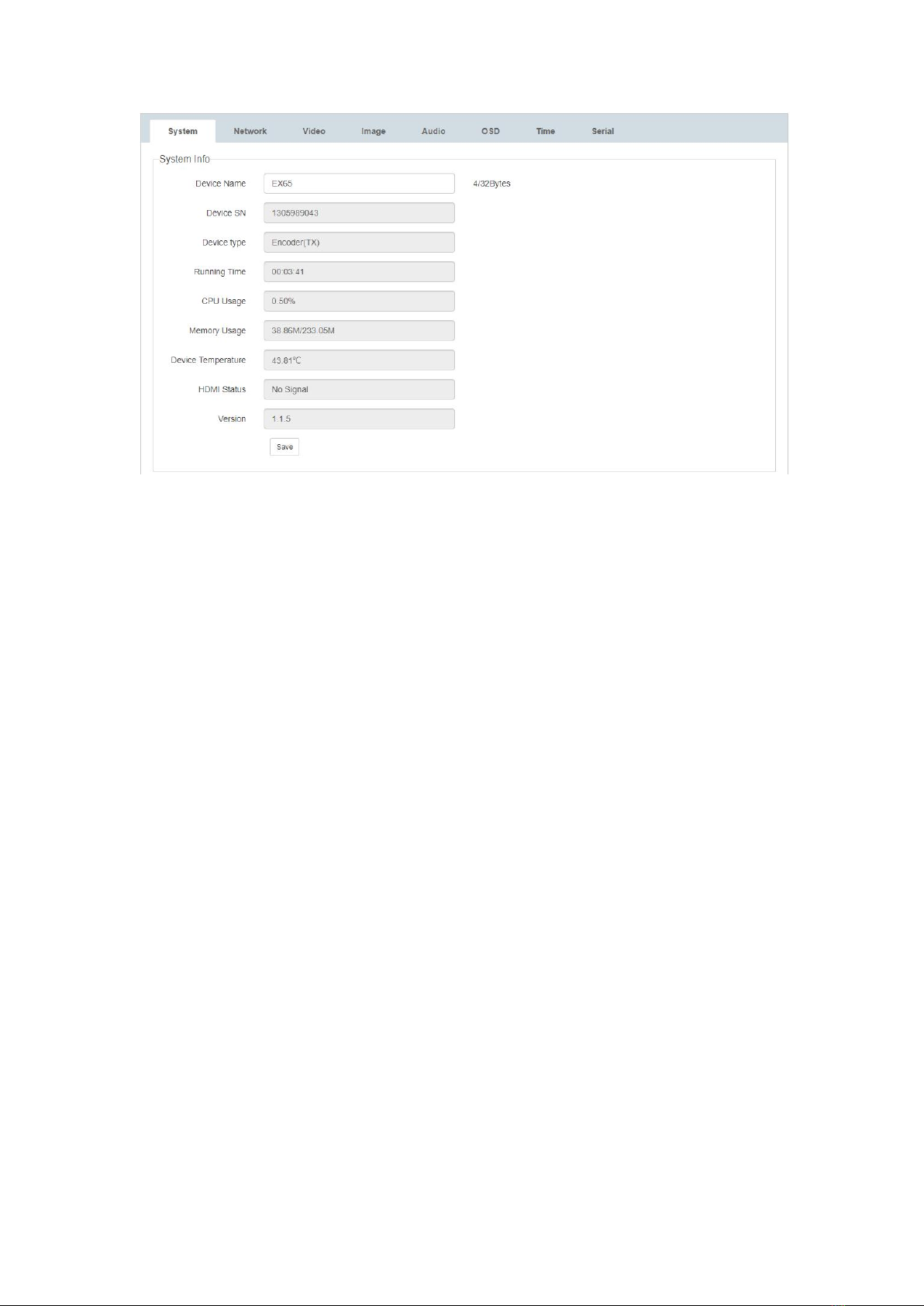

1) System Information
●In the "System", you can view the Device name, Device SN, Device type, Running
time, CPU usage, Memory usage, Device temperature, HDMI status, and Version in
real time.
●The device name can be modified within 32 bytes. After the modification is
completed, press “Save” to take effect immediately.
10
2) Language Switching
● In the "System" interface, the language of the interface can be switched
● Select the language we need, after the selection is completed, we can switch the
interface language (support Chinese and English)
3) Channel
● The channel of the device can be configured in advance in the "System" before
configuring to use the decoder;
● If the H.265 Encoder and decoder are configured on the same channel, the display
connected to the decoder can play the audio and video signals from the Encoder .
● Through channel configuration, Can set one-to-many, many-to-many video matrix
(Note: channels between Encoder and Encoder cannot be set to be consistent,
otherwise channel conflict will be caused).
4) Streaming switch
● "Stream" switch : When the "stream" switch is ticked, the video stream starts to
output; when it is not checked, the video stream stops output
NOTE: (1) The function of Switch is same as the Video streaming buttons of product.
When the video stream button is green, the video stream is output; when the button is
red, the video stream stops output.
(2) Long press 2S to switch the status of the " Video streaming buttons " on the
product , and the status of the "stream" switch on the web will also change in real time.
● "Stream button" switch: When the "Stream button" switch is checked, the "Video
streaming button" on the product becomes invalid.
● "Multicast" switch: When the "multicast" switch is checked, the channel starts to
transmit video streams; when the "multicast" switch is not checked, the channel stops
transmitting video streams.
