Cable-Tronix CT-HDVD-EXT-IR230 Manuale utente

www.nacebrands.com www.cabletronix.com

Version: V1.0.0

User Manual

CT-HDVD-EXT-IR230

230 Feet HDBaseT Extender with Bi-directional PoE

www.nacebrands.com www.cabletronix.com

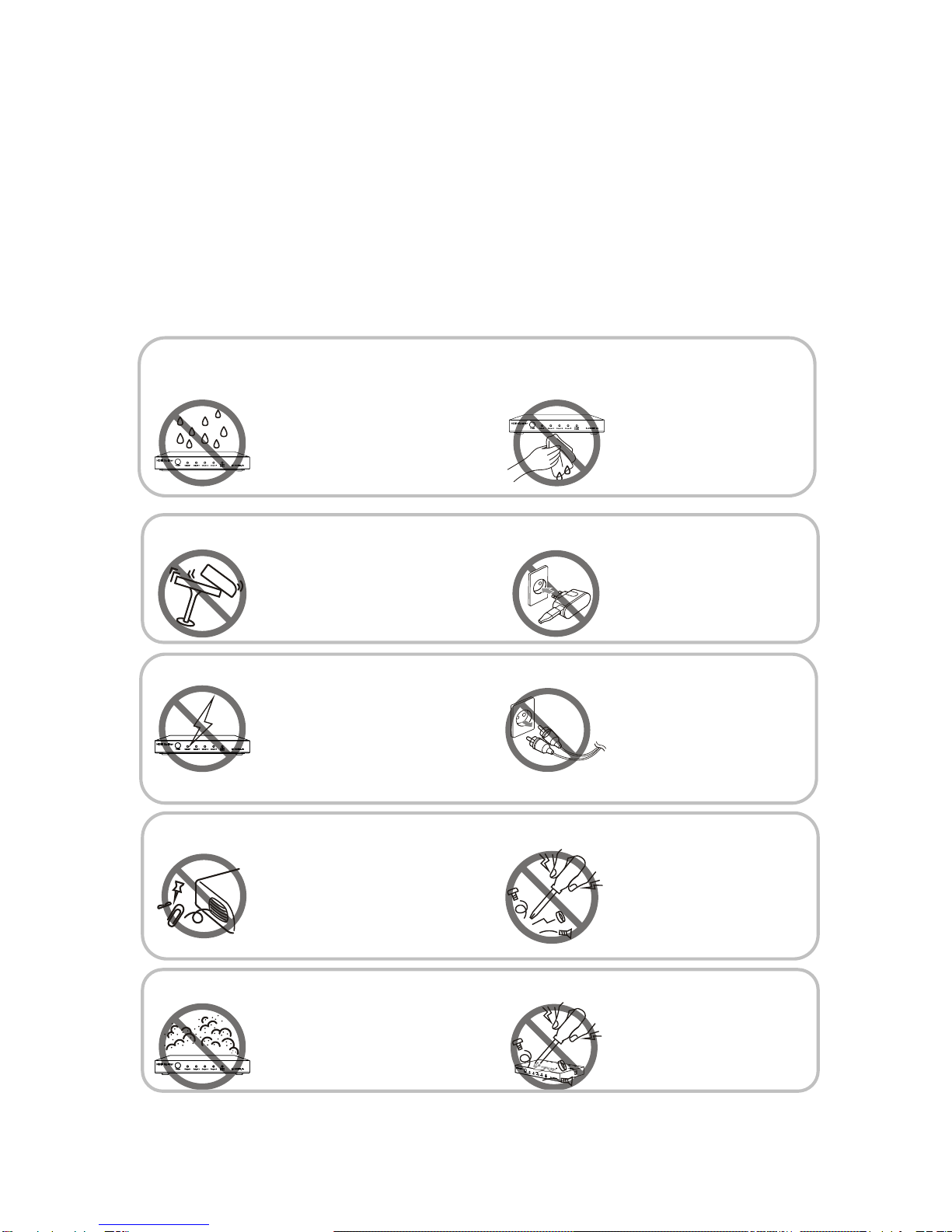

Important Safety Instructions

Warning:

To reduce the risk of fire, electric shock or product damage:

1. Do not expose apparatus to

rain, moisture, dripping, or

splashing. Do not place objects

filled with liquids, such as vases,

on apparatus.

6. Clean this apparatus

only with dry cloths.

2. Ensure the unit is well

ventilated. Do not install or place

unit in a bookcase, built-in

cabinet or other confined space.

3. To prevent risk of electric

shock or fire hazard due to

overheating, do not obstruct

ventilation openings of unit

with, tablecloths, curtains, or

similar items.

4. Do not install near any heat

sources such as radiators, heat

registers, stoves, or other

apparatus (including amplifiers)

that produce heat.

5. Do not place sources of open

flames, such as lighted candles,

on the unit.

7. Unplug device during

lightning storms or when

unused for long periods

of time.

8. Protect the power cord

from being walked on or

pinched, particularly at

plugs.

9. Only use

attachments/accessories

specified by the

manufacturer.

10.Refer all servicing to

qualified service

personnel.

www.nacebrands.com www.cabletronix.com

Introduction

Overview

The CABLETRONIX CT-HDVD-EXT-IR230 is a cost effective HDBaseT

Extender solution featuring Power over Ethernet (PoE), and offers

distribution of uncompressed 4K@60Hz UHD video, HD audio, Ethernet and

two-way IR control up to 70m/230ft along a single CAT5E/6 cable.

The unit also features HDCP 2.2 compatibility for distribution of encrypted

content.

The bi-directional Power over Ethernet technology of the

CT-HDVD-EXT-IR230 ensures only one power adapter is needed at either

TX (transmitter) or RX (receiver) side to power both units. LEDs indicate

power is being supplied to the units, and indicates an established connection

between connected devices.

www.nacebrands.com www.cabletronix.com

Features

Via Cat 6a/7 cables:

4K@60Hz output up to 40m/131ft

1080P up to 70m/230ft

Via Cat 5e/6 cables:

4K@60Hz output up to 35m/115ft

1080P up to 60m/197ft.

HDMI 1.4 with 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only) and

HDCP 2.2 compliance.

Bi-directional PoE - Only one power adapter required at either TX or RX

Bi-directional and IR pass-through over HDBaseT.

Automatic EDID management.

All connectors on one side for easy cable management.

Note:

Actual signal transmission distance can vary depending on signal

resolution, cable quality, graphics card, and/or display used in the system.

Package Contents

1 x Transmitter CT-HDVD-EXT-IR230

1 x Receiver CT-HDVD-EXT-IR230

1 x 18V 1A DC Power Supply

4 x Mounting Ears

2 x IR Emitter

2 x IR Receiver (30KHz-50KHz)

www.nacebrands.com www.cabletronix.com

Specifications

Transmitter

Technical

Video

Input

1 x HDMI

Input Signal Type

HDMI: HDMI1.4 w/ HDCP 2.2 pass through

Input Resolution Support

4096x2160@24/25/30/50/60Hz,

3840x2160@24/25/30/50/60Hz,

1080p, 1080i, 720P, 576p, 576i, 480p, 480i;

Input Video Level

0.5~1.0 Vp-p

Maximum Pixel Clock

297MHz

Output

1 x HDBT

Output Signal Type

HDBaseT (HDBT)

Output Resolution Support

4096x2160@24/25/30/50/60Hz,

3840x2160@24/25/30/50/60Hz,

1080p, 1080i, 720p, 576p, 576i, 480p, 480i;

www.nacebrands.com www.cabletronix.com

Video Impedance

100ohms

Transmission Distance

Cat 5e/6:

4K: max. 35m; 1080p: max. 60m/197ft

Cat 6a/7:

4K: max. 40m; 1080p: max. 70m/230ft

Audio

Support Audio Format

Stereo, LPCM 5.1, LPCM 7.1; Dolby True

HD, DTS-HD Master Audio

Control

Control Method

1x IR TX,

1x IR RX

General

Operating Temperature

0°C ~ 45°C (32°F ~ 113 °F),

10% to 90%, non-condensing

Storage Temperature

-20°C ~70°C (-4°F to ~ 158 °F),

10% to 90%, non-condensing

www.nacebrands.com www.cabletronix.com

Product Weight

200g/7oz

Power Supply

DC 18V 1A

Power Consumption

11W Max (Pair)

Case Dimension

175mm x135mm x 90mm (Pair)

7in x 5.5in x 3.5in

Product Dimension

(L x W x H)

162mm × 74MM × 25mm

6in x 3in x 1in

ESD Protection

±8kV(Air-gap discharge)/

±4kV(Contact discharge)

www.nacebrands.com www.cabletronix.com

Receiver

Technical Specifications

Video

Input

1 x HDBT

Input Signal Type

HDBT

Input Resolution Support

4096x2160@24/25/30/50/60Hz,

3840x2160@24/25/30/50/60Hz,

1080p, 1080i, 720p, 576p, 576i, 480p, 480i;

Input Video Level

0.5~1.0 Vp-p

Maximum Pixel Clock

297MHz

Output

1 x HDMI

Output Signal Type

HDMI: HDMI1.4 w/ HDCP 2.2 pass through

Output Resolution Support

4096x2160@24/25/30/50/60Hz,

3840x2160@24/25/30/50/60Hz,

1080p, 1080i, 720p, 576p, 576i, 480p, 480i;

Video Impedance

100ohms

Transmission Distance

Cat 5e/6:

www.nacebrands.com www.cabletronix.com

4K: max. 35m; 1080p: max. 60m/197ft

Cat 6a/7:

4K: max. 40m; 1080p: max. 70m/230ft

Audio

Support Audio

Stereo, LPCM 5.1, LPCM 7.1; Dolby True

HD, DTS-HD Master Audio

Control

Control Method

1x IR TX, 1x IR RX

General

Operating Temperature

0°C ~ 45°C (32 ~ 113 °F),

10% to 90%, non-condensing

Storage Temperature

-20°C ~ 70°C (-4 ~ 158 °F),

10% to 90%, non-condensing

Product Weight

200g

Power Supply

DC 18V 1A

Power Consumption

11W Max (Pair)

www.nacebrands.com www.cabletronix.com

Case Dimension

175mm x135mm x 90mm (Pair)

7in x 5.5in x 3.5in

Product Dimension

(L x W x H)

162mm × 74mm × 25mm

6in x 3in x 1in

ESD Protection

±8kV(Air-gap discharge)/

±4kV(Contact discharge)
