Cadence QSA-8.2 Manuale utente

User's Manual

8˝ Super Compact Bass Enclosure

With 2 Channel Amplifier Output

Sa-8.2

CONTENTS

USER'S MANUAL

2Introduction

2What is included?

2Features

3General precautions

3Protection circuitry

Mounting the subwoofer

Connecting the subwoofer

Front panel controls and features

Low Level Input Wiring

Rear panel controls and features

Remote level control connection

Power Connections

Output / High Level Input Wiring

11 Troubleshooting

10 Specifications

Congratulations on your

purchase of a CADENCE

amplified subwoofer.

It has been designed, engineered and

manufactured to bring you the highest

level of performance and quality, and

will afford you years of listening

pleasure.

Thank you for making CADENCE your

choice for car audio entertainment!

Page

QSA8.2

8˝ Super Compact Bass Enclosure

With 2 Channel Amplifier Output

Introduction

With the QSA8.2, we are introducing a

low-profile amplified subwoofer.

Low enough to easily fit below the

seat of your car, this system offers

you a quick and easy way to add a

high-powered subwoofer system to

your audio system.

The integrated amplifier features both

high pass and low pass crossovers,

and a control for adjusting the input

sensitivity from 0.2v to 6v.

Both high level (speaker level) and low

level (RCA type) inputs are present,

making this a universal solution for use

with any head unit or other input

source.

For further flexibility in the use of the

subwoofer, a variable bass boost

control has been included. You can

control the subwoofer level with the

remote level control module.

Features

Your new Amplified subwoofer features

the following:

* MOSFET PWM (Pulse Width

Modulated) Power Supply

* Thermal, overload and speaker

short protection

* Soft turn-on circuit

* Remote turn-on/turn-off circuit

* Variable input gain control

* Variable low and high pass

crossovers

* Variable bass boost (0 to 18dB)

* Variable phase shift (0 or 180 degree)

* RCA low level and high level inputs

* Auto Power On: ON/OFF

* LED power and protection indicators

* Remote subwoofer level control

What is included?

When first unpacking your new

amplified subwoofer, please check

first that the package contains all of

the items below. if something is

missing, contact the store where you

purchased the product.

* Amplified subwoofer

* Remote subwoofer level control

* Remote subwoofer control cable

* Output / High level input harness/wire

* Mounting hardware

The built-in amplifier incorporates

special protection circuitry which will

disable the amplifier if any of the

following should occur:

*Input overload

*Short circuit

*Extremely high temperatures

If any of these conditions is detected,

the amplifier will go into a self-preservation

mode, and the PROTECT LED on the

control panel will glow in RED color.

What should I do if the POWER STATUS

LED turns RED?

If you observe that the POWER STATUS

LED IS RED, please check the system

carefully to determine what has caused

the protection circuit to engage.

To reset the amplified subwoofer when

it is in PROTECT mode, turn off the

to the system (usually by turning

the head unit or other signal source

which feeds the amplifier) and then turn

it on again.

If the internal amplifier has shut down

due to thermal overload, you should first

allow it to cool down before restarting.

If the shut down was due to either an

input overload or a short circuit, be sure

to correct these conditions before

attempting to power up the subwoofer

again.

Protection circuitryGeneral precautions

SHOCK HAZARD! Do not open the case

of this product. There are dangerous

voltages present within the unit. There are

no user-serviceable parts within the unit.

installing and using your new

amplified subwoofer ,

please

become familiar with all the

information contained in this manual.

Please keep this manual in a safe

place for future reference.

*Do not open or attempt to repair this

unit yourself. Dangerous high voltages

are present which may result in electric

shock. Refer any repairs to a qualified

service technician.

*To avoid risk of electronic shock or

damage to the unit, do not permit any

of this equipment to become damp or

wet from water or drinks. If this does

occur, immediately unplug the power

wires and send the product to your

local dealer or service center as soon

as possible.

*If there is smoke or any peculiar odor

present during use or if there is damage

to any of the component enclosures,

immediately unplug the power cord

and send the product to your local

dealer or service center as soon as

possible.

CADENCE

Before

power

off

1. Find a suitable location in the vehicle

in which to mount the amplifier.

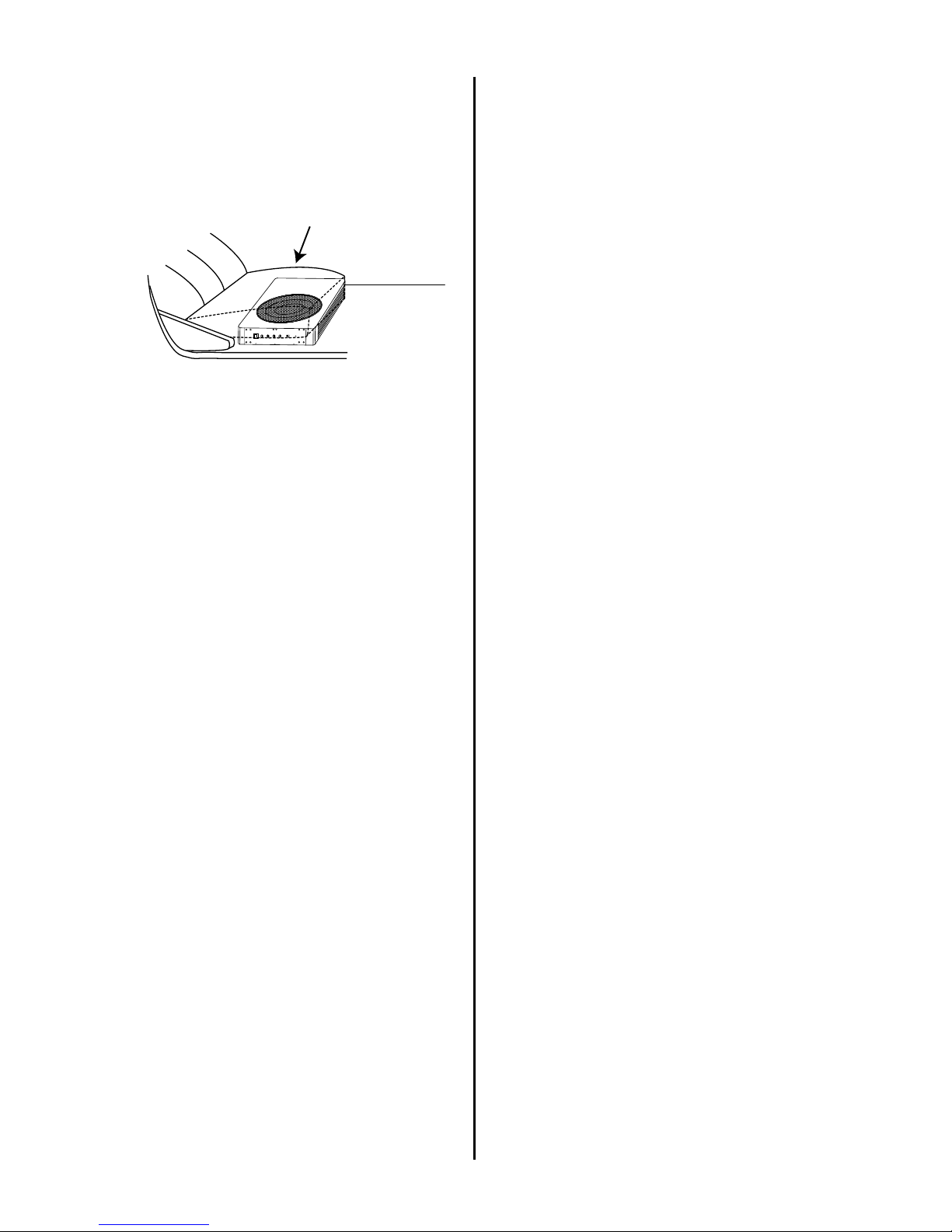

A typical location is shown below:

2. Make sure there is sufficient air

circulation around the inteded

mounting location.

3. Mark the location for the mounting

hole screws by positioning the cabinet

where you wish to install it. Make a

small mark to identify the position and

remove the unit.

Thoroughly clean the area you plan to

attach the subwoofer, using a vacuum

cleaner.

Mounting the subwoofer Connecting the subwoofer

Vehicle seat

REMOTE

LEVEL

BASS

BOOST LPF PHASE

SUB

SONIC

POWER(GREEN)

PROTECT(RED)

Before doing any wiring, look through

this manual and identify the diagrams

to follow for power, input and speaker

connections for your particular

installation. Be sure you understand

all the connections before you proceed.

1. Connect the ground terminal to the

closest point on the chassis of the

vehicle. Keep this ground wire to less

than 39" (100cm) in length. Use 8

gauge (or heavier) wire.

2. Connect the remote terminal to the

remote output of the head unit using

16 gauge (or heavier) wire.

3. Connect an empty fuse holder within

18" (45cm) of the car battery, and run

8 gauge (or heavier) cable from this

fuse to the amplifier location.

4. Check that the fuse holder is empty.

Then connect the fuse holder to the

"BATT+" connection on the amplifier.

5. Connect all line inputs and outputs (if

used) using high-quality cables. Connect

all speakers, following the diagrams in

this manual. Be sure to observe proper

polarity to avoid audio phase problems.

6. Insert fuse(s) into battery fuse holders.

7. Recheck all connections before

powering up the subwoofer.

8. Set all level controls to minimum

position, and set all crossover

control/switches to the desired

frequency points.

9. Power up the head unit and the

subwoofer. Then set the volume control

on the head unit to about 3/4 volume,

and adjust the subwoofer's input level

controls to just below the level of

distortion.

10. Further fine tuning of the various

controls may be necessary to obtain

best results.

Do not mistake the input level control

for a volume control! It is designed

ONLY to match the output level of

your audio source to the input level

of your subwoofer.

Do not adjust this input level to

maximum unless your input level

requires it.

Ignoring these instructions will result

in an input overload to the amplifier

and excessive audio distortion.

It can

also cause the protection circuit.

to engage.

Don't misuse the

level control!

Front panel controls and features

REMOTE LEVEL CONTROL PORT

Attach the included remote level

control to control the volume level of

the subwoofer independently.

BASS BOOST

SUBSONIC FILTER

Use this control to filter out low

frequency noise and rumble.

INPUT GAIN CONTROL

After you have installed your system,

turn this control to minimum.

Turn the head unit on (and the

subwoofer will turn on via the remote

connection). Turn the head unit

volume to about 2/3 full level.

Slowly turn up the subwoofer input

gain control until you hear a small

amount of distortion. Then reduce the

level until the distortion is completely

gone. Leave the control at this setting.

PASS :

The HI-PASS rotary potentiometer

permits to adjust the high-pass filter

value (the amplification is ensured up

the selected value).

The bass boost rotary potentiometer

permits to increase the bass level

from 0 to +18dB.

LOW-

PASS FILTER

The LOW P

-ASS rotary potentiometer

permits the setting of the low-pass

filter value.

PHASE SHIFT

Use this switch to help compensate

for time alignment problems in the

system. Such problems usually result

from having the subwoofer at a

different distance from the listener

than the other speakers in the system.

AUTO POWER ON

s i ) F FO/NO ( NOREWOPOTUAe h T for

high

level (speaker-level) connections.

When the switch is in the "ON" position,

n e hwNOREWOPOTUA l l i wr e i f i l pmae h t

there is signal input. If the amplifier detects

no signal input, the amplifier

will auto turn

off delay Several minutes. If

you prefer to

use the remote turn on/off connection, the

switch is in the OFF position.

POWER STATUS LED

When the LED is green, it means the

amplifier is on and it’s working correctly.

When the LED is red,it means the amplifier

is in protection mode and there is a problem

(overheating, wrong wiring, etc.).

The selected value defines the frequency

until which the signal is amplified.

8˝ SUPER COMPACT BASS ENCLOSURE WITH 2 CHANNEL AMPLIFIER OUTPUT

Sa-8.2

34 5 6

987

Sa-8.2

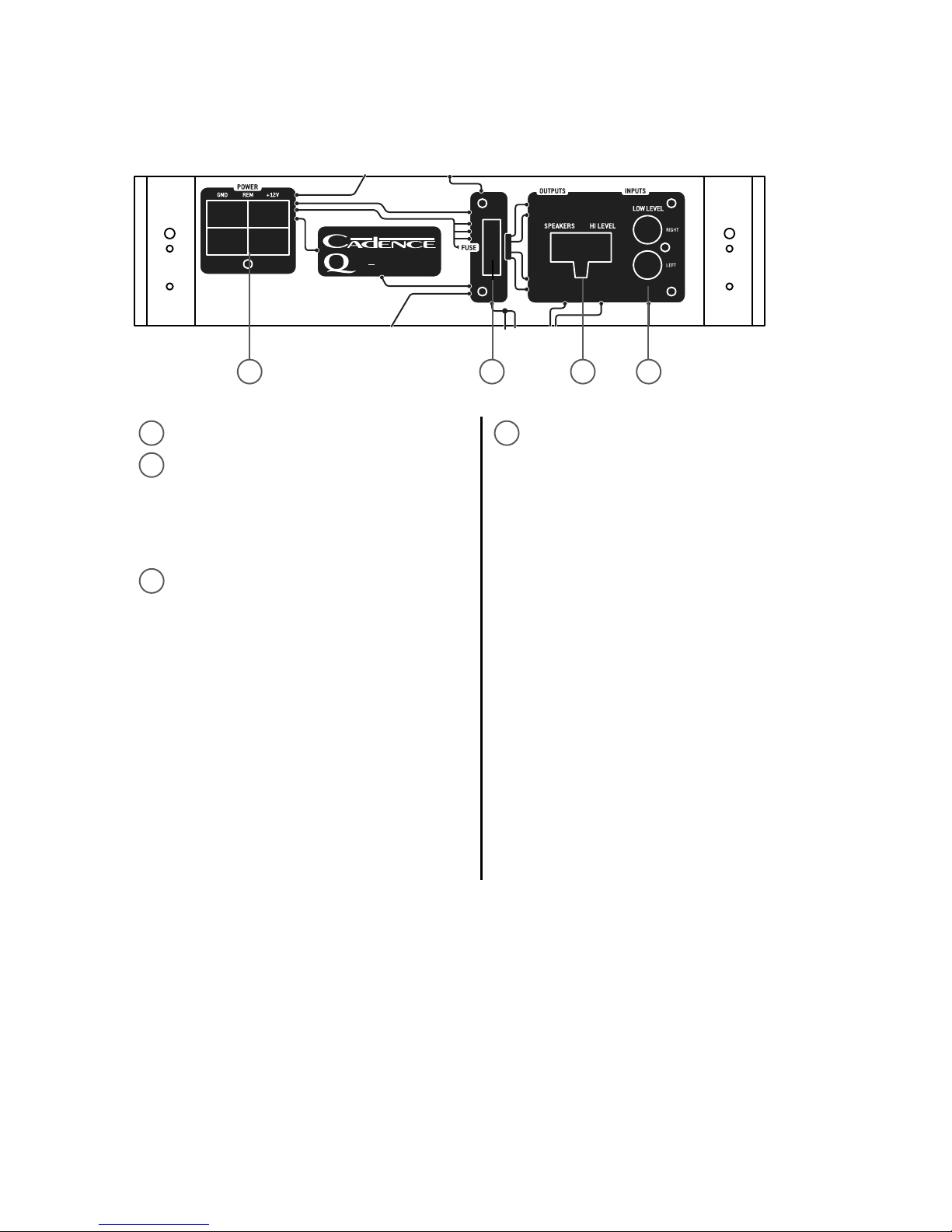

Rear panel controls and features

POWER TERMINALS

FUSE

LOW LEVEL RCA INPUTS

Low level inputs are the recommended

way to introduce the audio signal to the

subwoofer if RCA outputs are present

on your head unit or other signal

source (such as a sound processor).

The fuse is rated at 30A. Do not use

a fuse with a different value and

NEVER replace the fuse with a wire

or coin.

3 4

OUTPUT/HI LEVEL INPUT

The output / high level terminal

permits for high-level signal in.

It also allows for the amplified

signal to be sent to your system

speakers (left part :OUTPUT) for

a true 2.1 system.

If you are using the RCA inputs

(low level) you must disconnect the

high-level plug on the cable beam in

order to achieve the 2.1 system

CAUTION: you must respect this order,

if not you might damage the product.

(2x50W RMS).

Sa-8.2

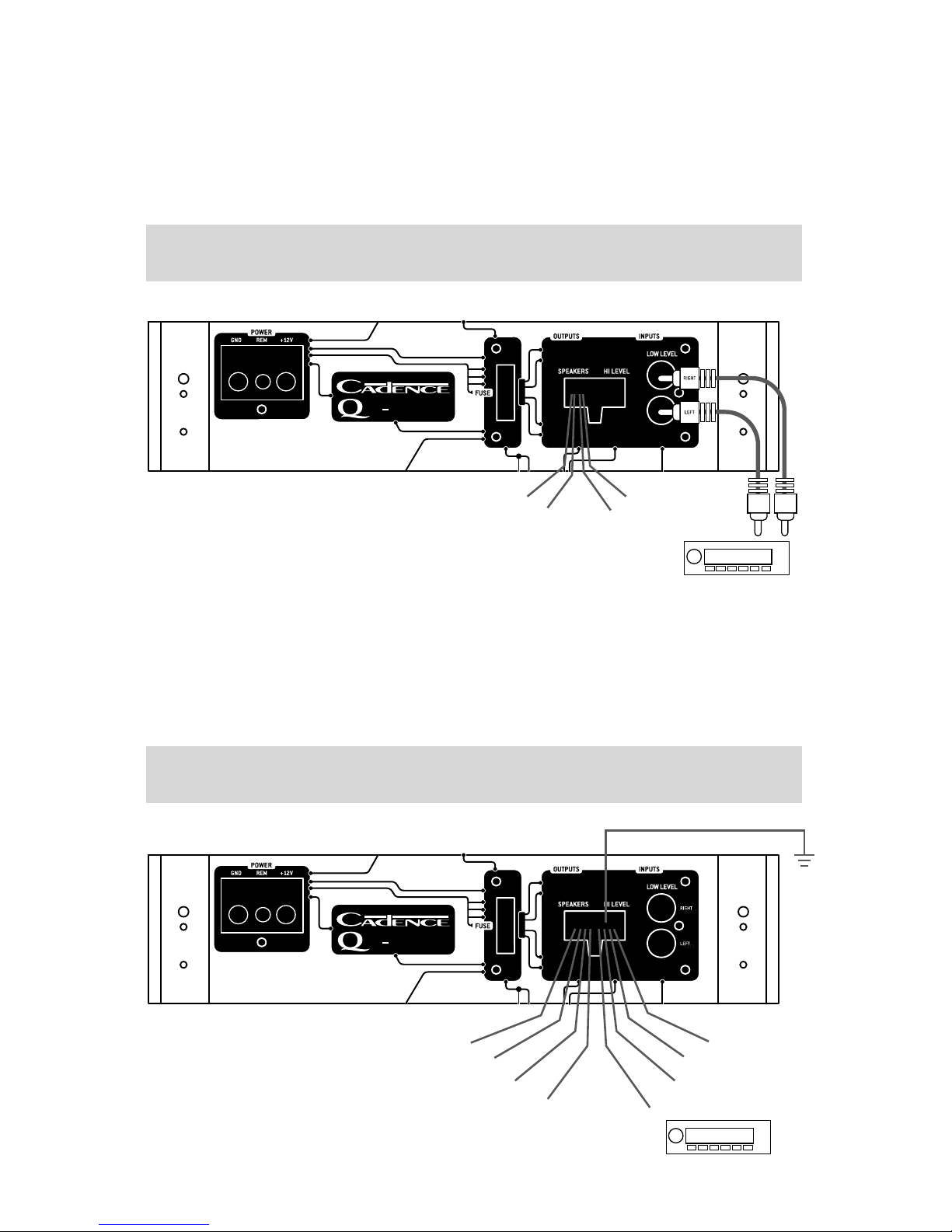

Low Level Input Wiring

Low-level (RCA) input wiring is preferred for best audio performance. Most trunk

or hatchback installations will require a 15-20 feet RCA cable, while pickup trucks

and under-seat installations will require a 6-12 feet RCA cable. Always use a

high quality cable.

NOTE: Do not connect BOTH the high level and low level inputs from your

receiver to your amplifier at the same time!

NOTE: Do not connect BOTH the high level and low level inputs from your

receiver to your amplifier at the same time!

OUTPUT / High Level Input Wiring

he high level input(s) should only be used when your receiver lacks RCA outputs.

If the RCA outputs are not present, connect the speaker outputs from the receiver

to the high level input connector of the amplifier. Be sure to observe polarity to

avoid audio phase problems.

GREY R+

To Speaker Terminals

of head unit

GREY / BLACK R-

BLACK

To Audio outputs

of head unit.

GREY R+

GREY / BLACK R- L- WHITE / BLACK

L+ WHITE

WHITE L+

WHITE / BLACK L-

R- Purple / BLACK

R+ Purple

L- Green / BLACK

L+ Green

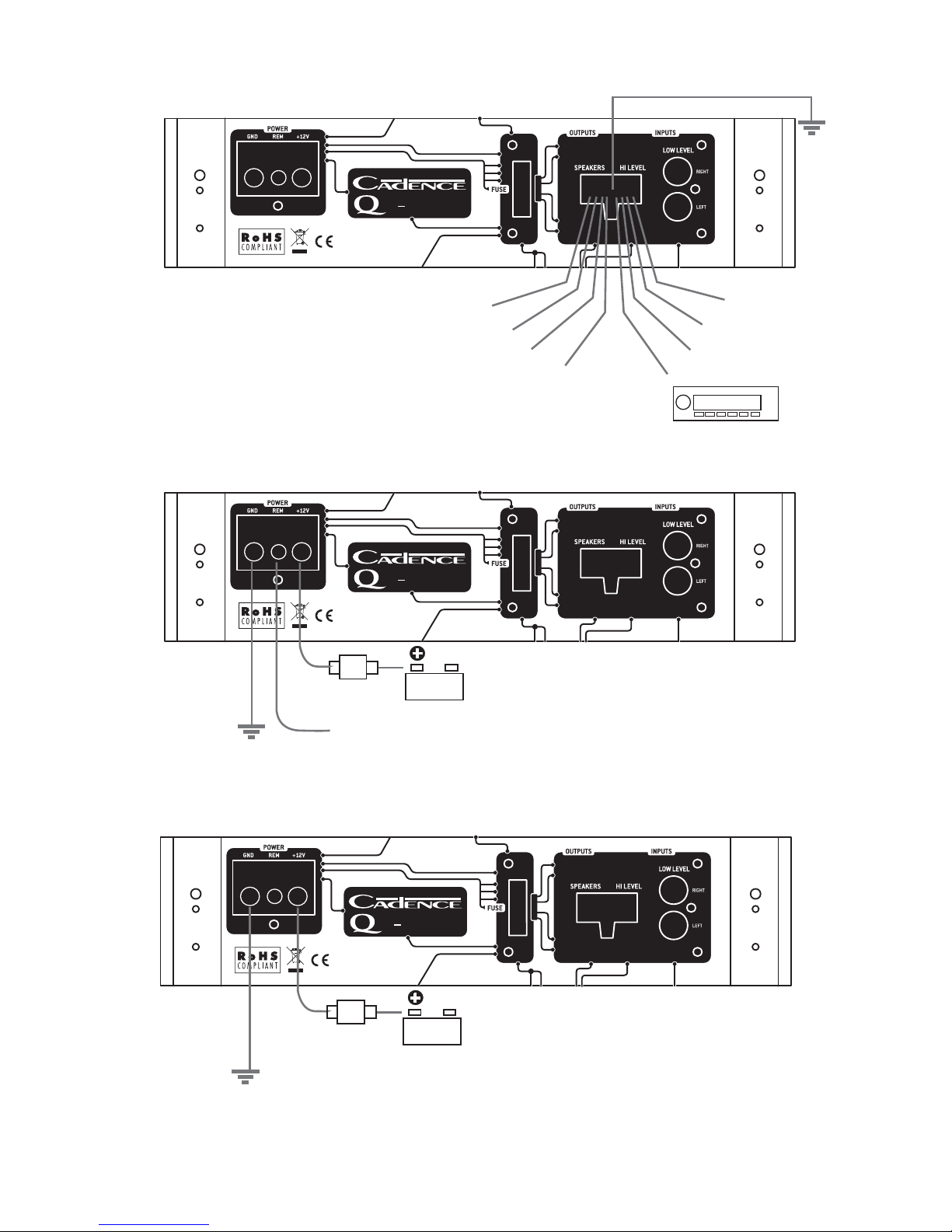

WIRING METHOD A

WIRING METHOD B

To Speaker Terminals

of head unit

to REMOTE TURN-ON

terminal of head unit

Chassis

ground

point

Battery

FUSE

Power Connections

NOTE: You may not hear any

any sound when using

option A with older head units.

If that is the case please change

speaker phase as per option B.

GREY / BLACK R+

GREY R-

WHITE / BLACK L+

WHITE L-

R- Purple

R+ Purple / BLACK

L- Green

L+ Green / BLACK

Chassis

ground

point

Battery

FUSE

NOTE: In this connection, the

AUTO TURN ON switch is in the

OFF position.

If you use high level inputs, AUTO TURN ON switch

should be in the “ON” position. The unit will automatically

turn on when there is signal input. If the unit detects no

signal it will remain off.

Sa-8.2

BLACK

Indice

Altri manuali Cadence Allegato

Cadence

Cadence BEAST BOOK Subwoofer Guida

Manuali Allegato popolari di altre marche

SilentiumPC

SilentiumPC Armis AR5 Manuale

Pulsar

Pulsar 17/TRP80/DSPR Manuale utente

Thermaltake

Thermaltake V150 TG Manuale utente

MSI

MSI MPG SEKIRA 500X Manuale utente

Antec

Antec Dark fleet DF-10 Manuale utente

Nexans

Nexans WTC05 Manuale utente

Peavey

Peavey DS 1502 Manuale utente

D-Link

D-Link ShareCenter Pro DNS-1550-04 Manuale utente

Rosewill

Rosewill RX82-U(JBOD) Manuale utente

QNAP

QNAP SAS JBOD CLI 1.0 Manuale utente

GAMDIAS

GAMDIAS Talos P1 Manuale utente

Auvs

Auvs KR615 Manuale utente

Digitus

Digitus DA-71114 Manuale utente

CommScope

CommScope FDH 3000 Manuale utente

FS FHD-FWME4 Manuale utente

JBL

JBL CS1215T Manuale utente

Pulsar

Pulsar ARAD-S4 Manuale utente

Pulsar

Pulsar AWO454 Manuale utente
