Cadillac ATS 2017 Manuale utente
ATS
Convenience &
Personalization Guide
2017
cadillac.com
2
Electric
Parking Brake
Switch♦
Power Mirrors
Control
Turn Signal Lever/
Exterior Lamps
Control
Instrument
Cluster/Driver
Information
Center
Cruise Control/
Voice
Recognition
Buttons
Tilt/Telescope
Steering Column
Adjuster
Windshield
Wipers
Lever
Audio Steering
Wheel
Controls/
5-way Control
Head-Up
Display
Controls♦
Trunk
Release
Review this guide for an overview of some important features in your Cadillac ATS. Some optional equipment described in this guide
(denoted by ♦) may not be included in your vehicle. More detailed information can be found in your Owner Manual.
Cadillac
CUE
Touch
Screen♦
Traction Control
and StabiliTrak/
Auto Stop-Start
Disable♦/Driver
Mode Butttons
Heated Seat
Buttons♦/
Climate
Controls
Storage
Compartment
Access♦
(behind control
panel)
Engine Start/
Stop Button
Audio System
Controls♦
Hazard
Warning
Flashers
Lane Keep
Assist with
Lane Departure
Warning♦/Park
Assist Buttons♦

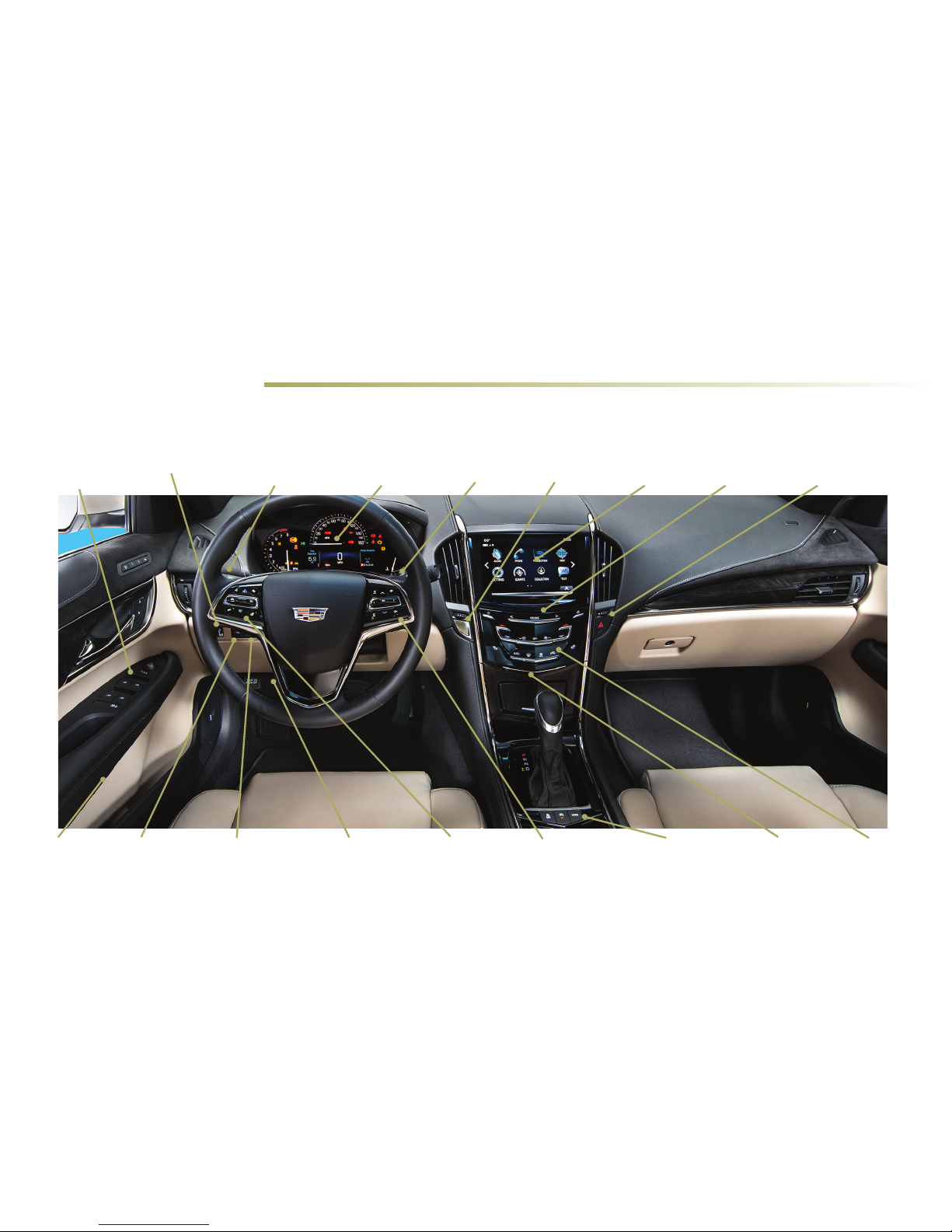

INSTRUMENT PANEL
3

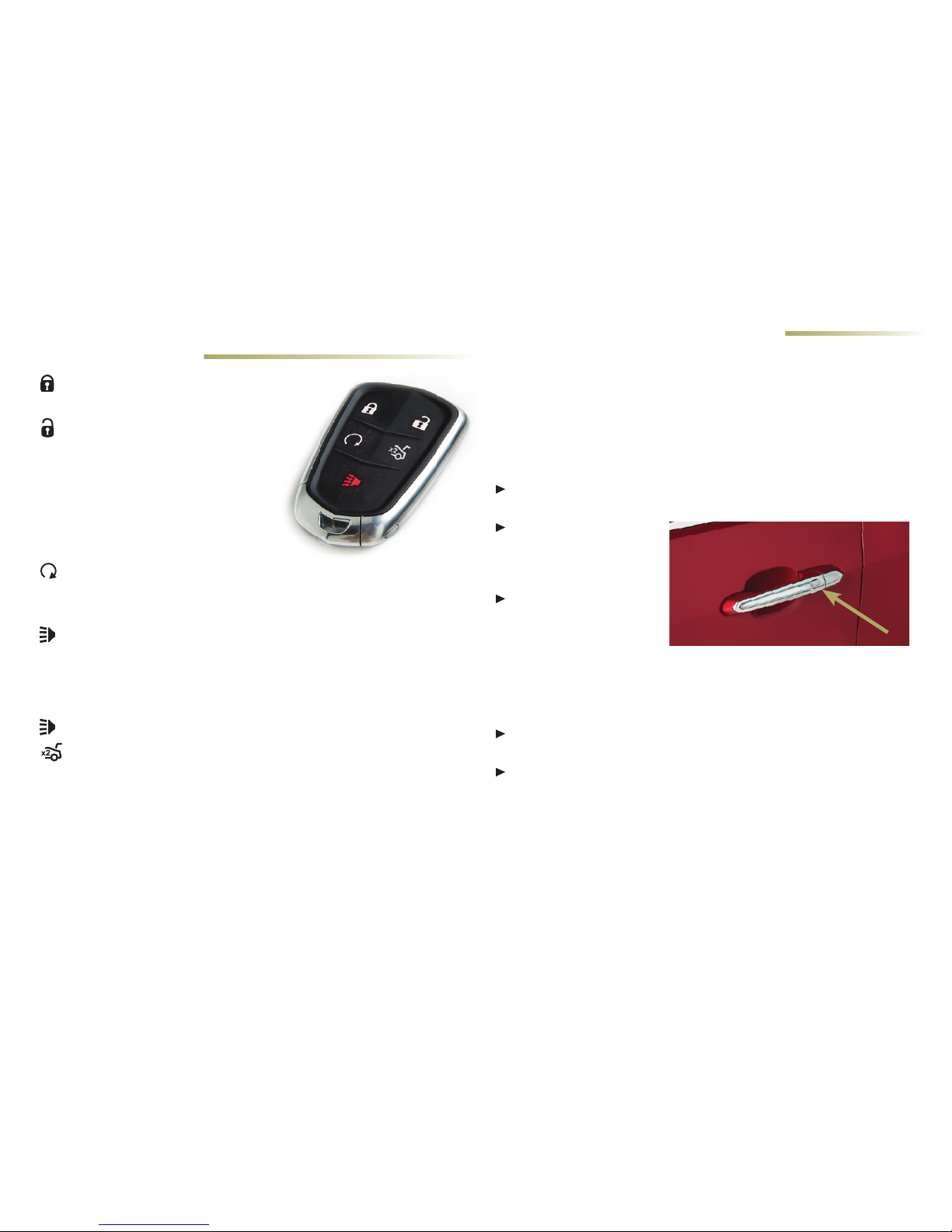

REMOTE KEYLESS ENTRY
TRANSMITTER KEYLESS ACCESS SYSTEM
Lock
Press to lock all doors.
Unlock
Press to unlock the driver's door.
Press again to unlock all doors.
Press and hold to open all windows.
Note: To change the Remote Lock and
Unlock settings, go to Remote Lock,
Unlock, Start in the Vehicle Settings
menu.
Remote Vehicle Start
♦
Use to start the engine from outside
the vehicle. See Adaptive Remote Start on page 17.
Vehicle Locator/Panic Alarm
Press and release to locate your vehicle. e exterior lamps ash
and the horn sounds.
Press and hold for 3 seconds to activate the alarm. e turn
signal lamps ash and the horn sounds for 30 seconds, or until the
buon is pressed again or the vehicle is started.
Trunk Release
Press twice to open the trunk.
See Keys, Doors and Windows in your Owner Manual.
e Keyless Access System enables operation of the doors, ignition
and trunk without removing the Remote Keyless Entry transmier
from your pocket or purse. e transmier must be within 3 feet
of the door being unlocked or the trunk.
KEYLESS UNLOCKING
With the transmier within range:
Press the lock buon on the driver’s door handle to unlock the
driver’s door; press it again within 5 seconds to unlock alldoors.
Press the lock buon
on a passenger door
handle to unlock all
doors.
Press the touch
padabove the
licenseplate to open
the trunk.
KEYLESS LOCKING
With the ignition o, the transmier removed from the vehicle,
and all doors closed:
Press the lock buon on any door handle to lock all doors
immediately.
If Passive Locking is turned on, all doors will lock automat ically
aer a short delay once all doors are closed.
Note: To change the door lock and unlock settings, go to Remote Lock,
Unlock, Start in the Vehicle Settings menu.
See Keys, Doors and Windows in your Owner Manual.
♦Optional equipment
4

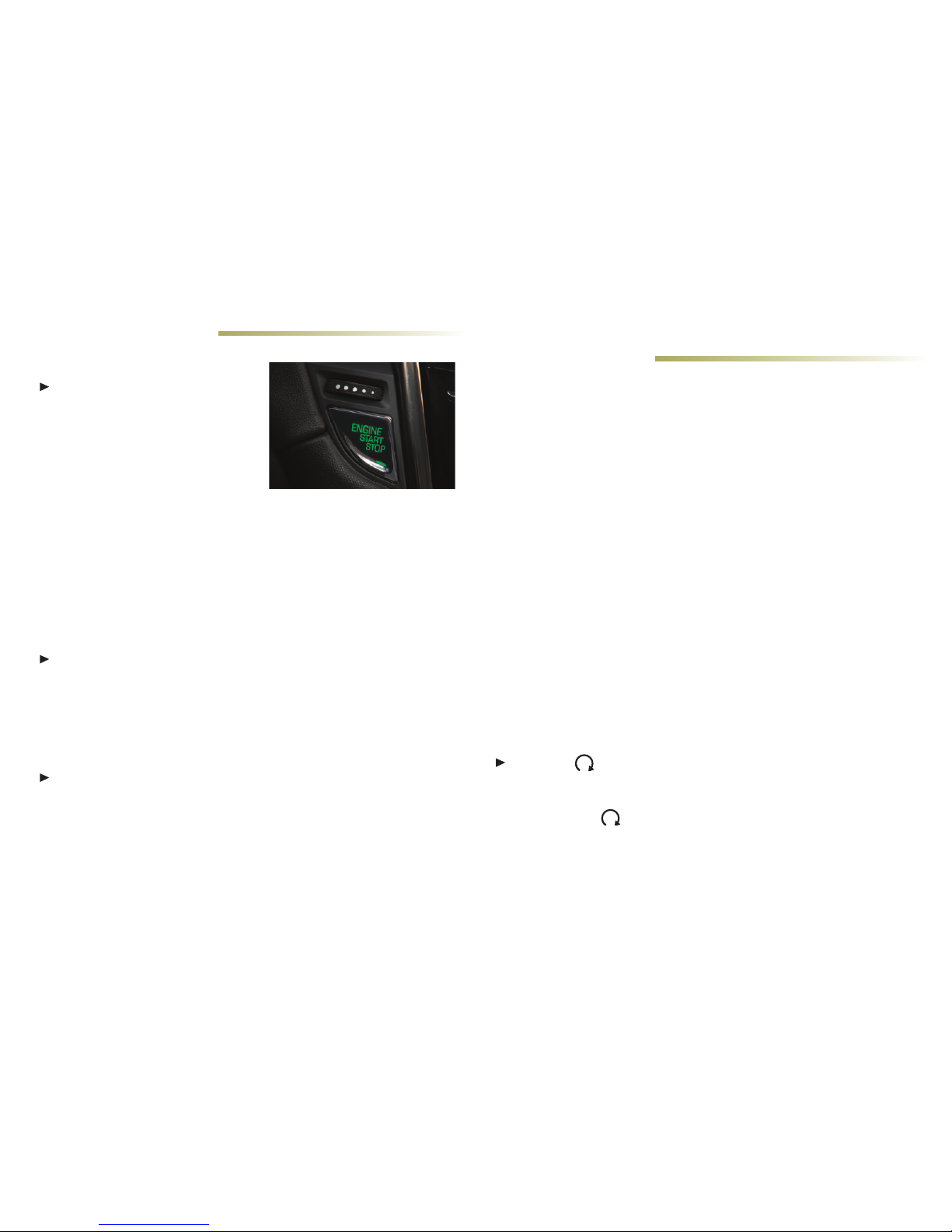

KEYLESS START
START
With the vehicle in Park or
Neutral, press the brake pedal
(and clutch pedal, if equipped)
and then press the ENGINE
START/STOP buon to start
theengine. e green indicator
on the buon will illuminate.
ENGINE START/STOP will
illuminate on the buon when the headlamps are on.
Note: The transmitter must be in the vehicle to turn on the ignition. If the
transmitter battery is weak, place the transmitter in the pocket at the front
of the center console storage area to enable the engine to start.
Cell phone chargers may interfere with the operation of the Pushbutton
Start System and should not be plugged in when starting or turning o the
engine.
STOP/OFF
Shi to Park (automatic transmission), or 1st or Reverse
(manual transmission), and press the ENGINE START/STOP
buon to turn o theengine.
Power is available to operate the audio system for 10 minutes or
until the driver’s door is opened.
ACCESSORY
With the engine o and the brake pedal NOT depressed,
pressthe ENGINE START/STOP buon to place the vehicle
inAccessory mode. e yellow indicator on the buon will
illuminate.
See Driving and Operating in your Owner Manual.
AUTO ENGINE STOP/START
(IF EQUIPPED)
e Auto Engine Stop/Start system is included on 2.0L L4 turbo-
charged engine and 3.6L V6 engine vehicles with an automatic
transmission.
When the brakes are applied and the vehicle is at a complete stop,
the engine may turn o, depending on operating conditions, to
conserve fuel. When the engine stops, the tachometer displays
AUTO STOP. When the brake pedal is released or the accelerator
pedal is pushed, the engine will restart.
Auto Stop may automatically deactivate if:
• A minimum vehicle speed is not reached.
• e engine or transmission is not at the required operating
temperature.
• e outside temperature is not in the required operating range.
• e shi lever is in any gear other than D (Drive).
• e baery charge is low.
• e current seings for the climate control or defog system
have not been reached.
• e Auto Stop time is greater than 2 minutes.
AUTO ENGINE STOP/START DISABLE
Press the
$
buon on the center console when the engine is
running to disable the Auto Engine Stop/Start system.
When the system is disabled, the buon indicator will not be illu-
minated and the
$
symbol on the instrument cluster will change
from green to white with a slash through it.
See Driving and Operating in your Owner Manual.
VOICE RECOGNITION
Push to Talk
Press to answer an incoming call or interact with the OnStar,
Bluetooth or Cadillac CUE system.♦
End Call/Mute
Press to end/decline a call or mute/unmute the audio system.
See Instruments and Controls in your Owner Manual.
5-WAY CONTROL
Moves le/right, up/down, and in.
Left/Right
Press to navigate to the le or
right cluster display. Press the le
to exit a center display menu.
Up/Down
Press the control bar up or down
to scroll through a menu.
SEL Select
Press to select a highlighted menu item.
AUDIO CONTROLS
+ –Volume
Press +or –to increase or decrease the volume.
Next/Previous
Press or to select the next or previous favorite radio station
or track.
See Instruments and Controls in your Owner Manual.
CRUISE CONTROL
On/O
SET Set Speed
With Cruise Control on, press
the control bar down fully to
set the cruise speed.
RES Resume Speed
With Cruise Control on, press the control bar up fully to resume the
previous set speed.
+ – Adjust Speed
When active, press the control bar up (+) or down (–) lightly to
increase or decrease the set speed by 1-mph increments; press up or
down fully to increase or decrease the set speed to the next 5-mph
interval on the speedometer.
Cancel
Press to cancel cruise control without erasing the set speed from
memory.
Following Gap
♦
Press repeatedly to select a gap seing of Far, Medium, or Near.
See Driving and Operating in your Owner Manual.
HEATED STEERING WHEEL
♦
On/O
See Instruments and Controls in your Owner Manual.
5

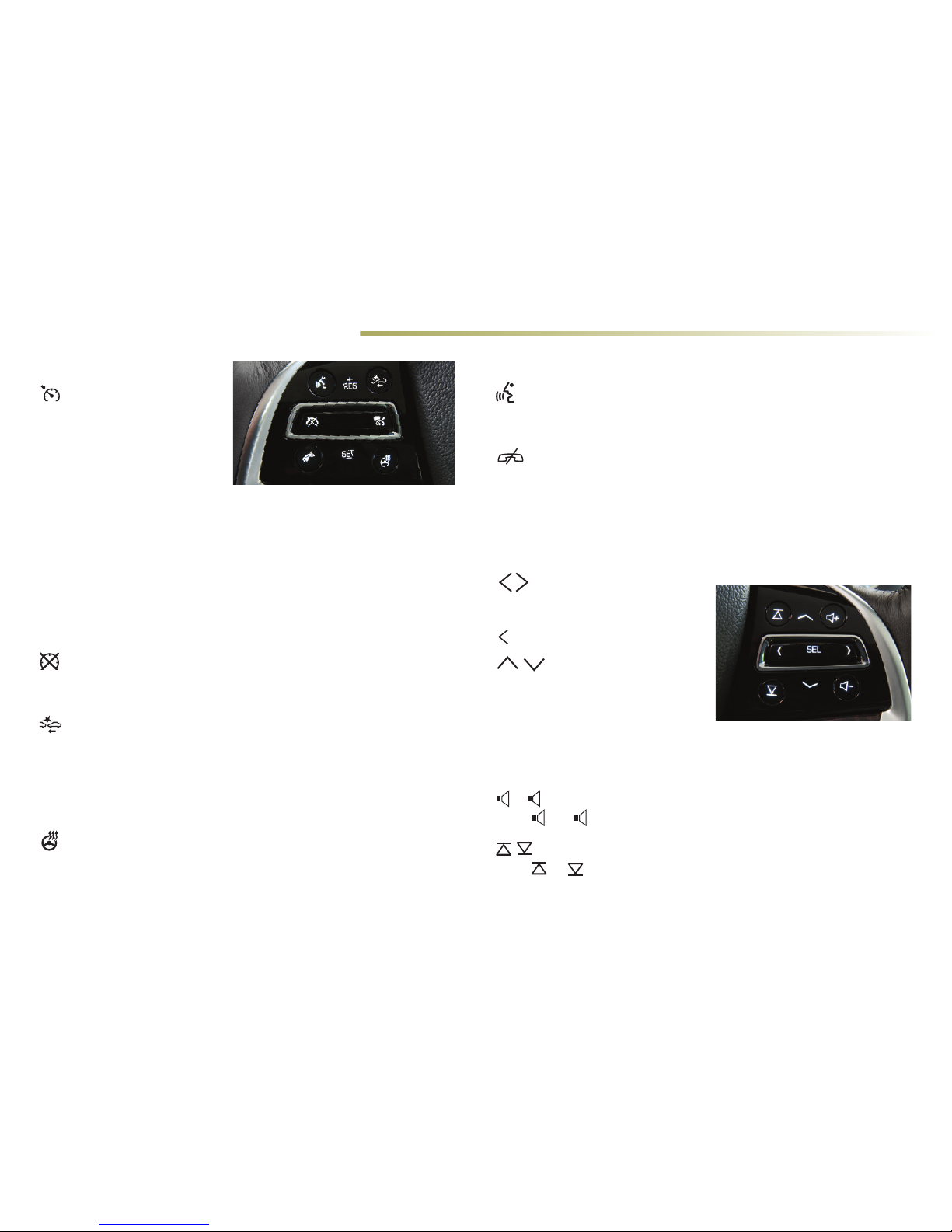

STEERING WHEEL CONTROLS
♦Optional equipment
6

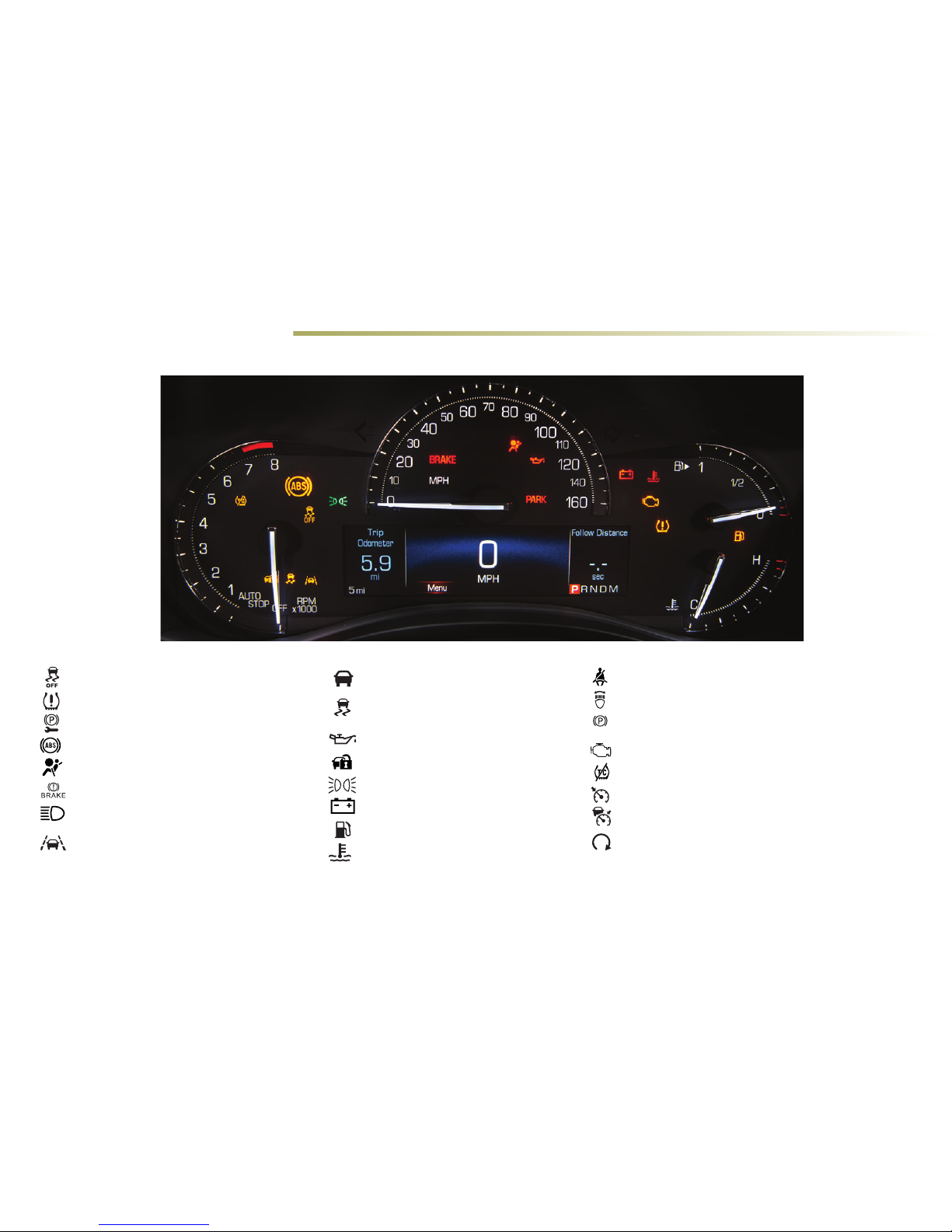

INSTRUMENT CLUSTER
Refer to your Owner Manual to learn about the information being relayed
by the lights, gauges and indicators of the instrument cluster.
StabiliTrak O
Low Tire Pressure
Service Electric Parking Brake
Antilock Brake System Warning
Airbag Readiness
Brake System Warning
High Beam Headlamps
Lane Keep Assist/
Lane Departure Warning
Forward Collision Alert
StabiliTrak/Traction Control
Engaged
Engine Oil Pressure Warning
Security Notification
Lights On Reminder
Charging System Warning
Low Fuel Warning
Engine Coolant Temperature
Safety Belt Reminder
Adaptive Forward Lighting Activated
PARK Electric Parking Brake Set
Check Engine Warning
Traction Control O
Cruise Control Activated
Adaptive Cruise Control Activated
$
AutoStop
Symbols
See Instruments and Controls in your Owner Manual.
7

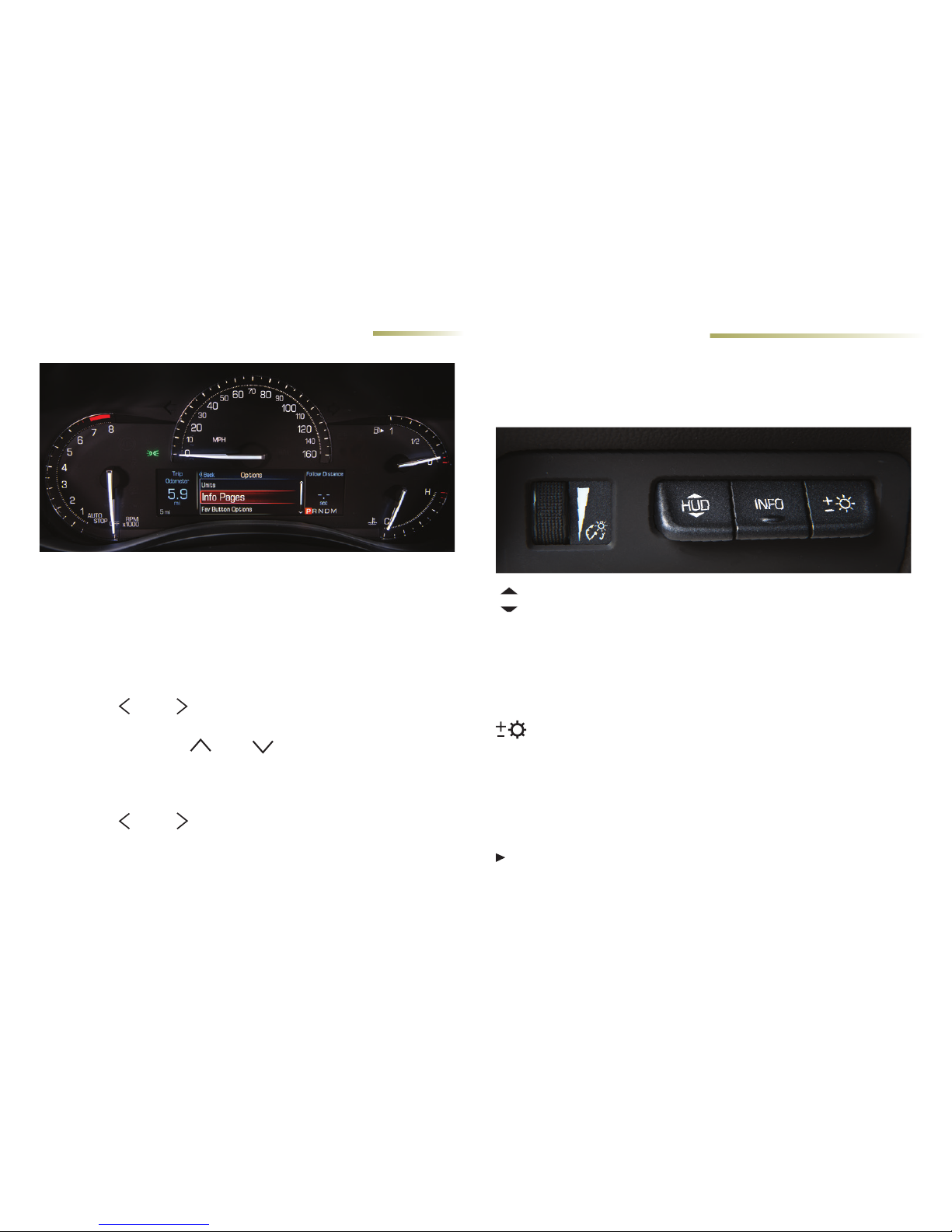

DRIVER INFORMATION CENTER
e Driver Information Center displays a variety of vehicle
information on three display zones. Zones can be personalized to
display: digital speedometer, trip odometer, fuel range, average fuel
economy, compass, oil life, tire pressure, navigation, phone or other
vehicle information.
Use the 5-way control on the right side of the steering wheel to nav-
igate and select between the available menus. To select the desired
display information:
1. Press the le or right side of the control bar to select one
of the three display zones.
2. Press the control bar up or down to scroll through
amenu.
3. Press SEL (Select) to select a menu item. Press and hold to reset
values on certain screens.
4. Press the le or right side of the control bar to retain the
information view and to exit the display zone.
See Instruments and Controls in your Owner Manual.
HEAD-UP DISPLAY♦
e Head-Up Display (HUD) projects some operating information
onto the windshield, reducing the need to look away from the road.
e HUD controls are located on the le side of the instrument panel.
HUD
Li up or press down to adjust the position of the image. It cannot
be adjusted side-to-side.
INFO
Press to select from four displays: Speed View; Audio/Phone View;
Navigation View; and Performance View.
Li up or press down to brighten or dim the display.
Hold down to turn o the display.
ROTATION OPTION
Adjust the angle of the HUD image to compensate for windshield
variations.
To adjust the angle of the HUD, use the 5-way control to view
the Options menu on the instrument cluster and select HUD
Rotation.
See Instruments and Controls in your Owner Manual.
♦Optional equipment
8

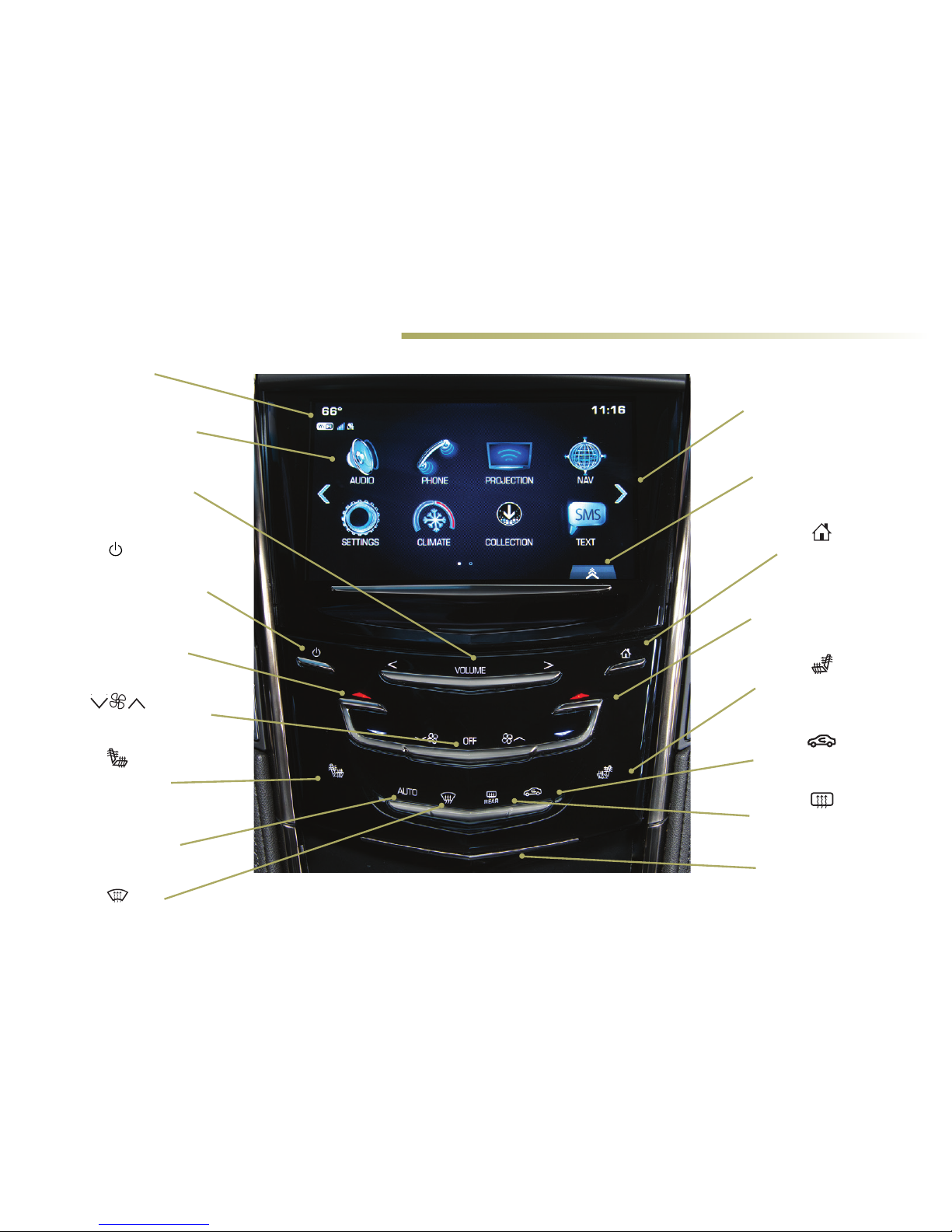

TOUCH SCREEN AND CONTROLS♦
Applications:
Touch the screen icon to
access the application
Wi-Fi
Indicator
See your Cadillac CUE Infotainment System Manual.
Power/Mute:
Press and hold to turn
Cadillac CUE On/O; press to
mute/unmute audio
Climate Control Fan Speed
Defrost Mode
Driver’s Temperature
Control
Additional Pages:
Touch to view additional
pages of applications
Interaction Selector:
Touch to display the
favorites list
Passenger’s Temperature
Control
Passenger’s Heated
Seat Control♦
Driver’s Heated
Seat Control♦
The controls use capacitive technology – simply touch the icon/text
to access a feature or adjust a function.
VOLUME:
Touch arrows or swipe
finger above chrome bar
AUTO:
Automatic Climate
Control Operation
Rear Window Defog
Recirculation Mode
Home Page
Storage Compartment
(with USB port and
Wireless Charging♦):
Press and hold the bright
bar to open/close
9

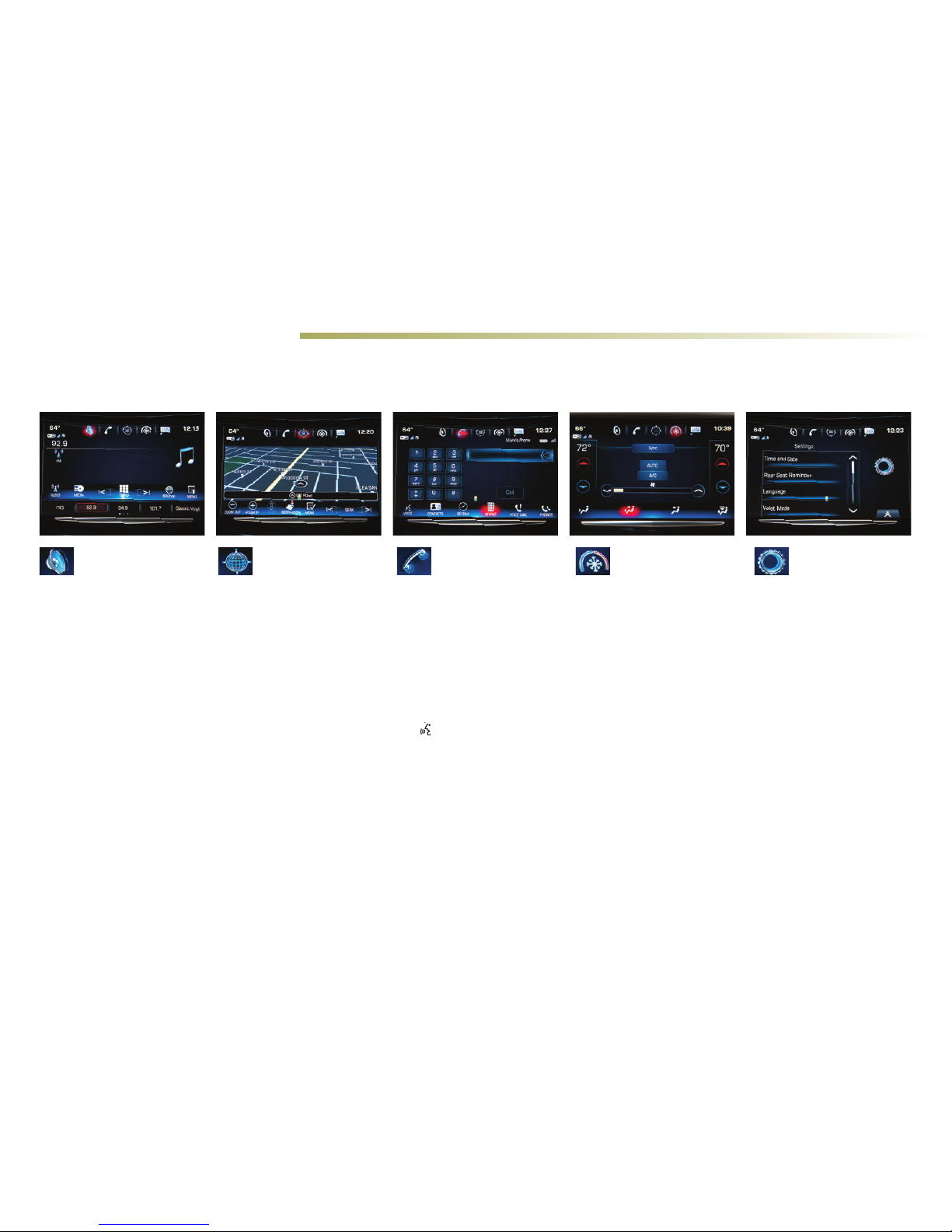

CADILLAC CUE MENUS♦
CUE oers a variety of entertainment, communication and vehicle system options. Touch an application icon on the touch screen to access
the following items.
See your Cadillac CUE Infotainment System Manual.
Audio
• Radio Band
• Media
• Seek Up/Down
• Tune/Play
• Browse
• Menu
Navigation
♦
• Zoom Out
• Zoom In
• Overview
• Destination
• Map Menu
• Seek Up/Down
• Mute/Unmute
• Cancel Destination
Phone
• Voice Recognition
• Contacts
• Recent
• Keypad
• Voice Mail
• Phones
Note: Press and hold
the Push to Talk
steering wheel button to
activate Voice Pass-Thru.
See page 12.
Climate
• Driver/Vehicle
Set Temperature
• Passenger
Set Temperature
• Sync Temperature
Seings
• A/C Mode
• Automatic Climate
On/O
• Air Delivery Seings
• Fan Speed
Settings
• Time and Date
• Rear Seat Reminder
• Language
• Valet Mode
• Teen Driver
• Radio
• Vehicle
• Bluetooth
• Apple CarPlay
• Android Auto
• Voice
• Display
• Rear Camera
• Return to Factory
Seings
• Soware Information
♦Optional equipment
10
CADILLAC CUE FEATURES♦
Refer to your Owner Manual for important safety information about using the infotainment system while driving.
Cadillac CUE uses a Bluetooth or USB connection to link a compatible smartphone, cell phone, USB ash drive or portable audio player/iPod®
to the touch screen infotainment display. It oers a variety of entertainment options and features enhanced hands-free voice control.
For assistance, call 1-855-4-CUE-NOW (1-855-428-3669) or visit my.cadillac.com/learn.
Tap
Touch and Hold
Drag
Spread
Pinch
2X
2X
2X
2X
2X
SETTING THE TIME
1. Touch Seings on the Home page.
2. Touch Time and Date.
3. Touch Set Time.
4. Touch +or – to adjust the hours, minutes, and AM or PM.
5. Touch Back to exit the menu.
If the Auto Set feature is enabled, the time will be updated
automatically as the system obtains time information from the
cellular network.
PORTABLE AUDIO DEVICES
USB ports and an auxiliary audio input jack are located in the center
console storage compartment.
Connect an iPod®, iPhone®, MP3 player, a USB ash drive or a
USB mass storage device to the USB port.
Touch Audio, and then touch Media until the connected
device is shown. Cadillac CUE will read the device and build a
list of voice commands. Search for music on-screen or by voice
commands.

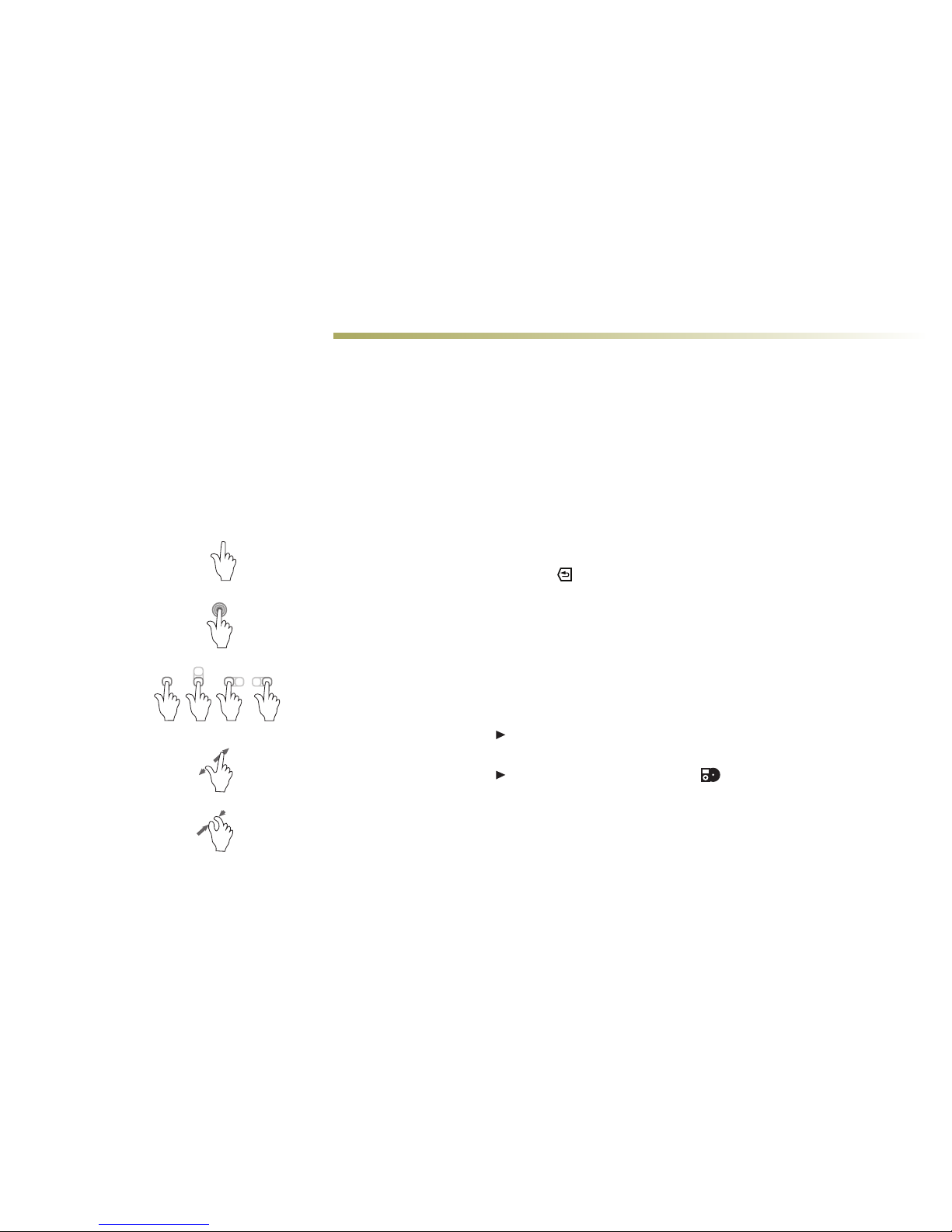

INTERACTING WITH THE CADILLAC CUE SYSTEM
You can use simple gestures on the touch screen just as you would
on a smartphone to interact with the Cadillac CUE system.
Altri manuali per ATS 2017
1
Indice
Altri manuali Cadillac Automobile
Cadillac
Cadillac 2014 ELR Manuale elenco delle parti
Cadillac
Cadillac Automobile Manuale utente
Cadillac
Cadillac CTS 2013 Manuale utente
Cadillac
Cadillac 2005 Escalade Manuale utente
Cadillac
Cadillac 2006 Escalade Manuale elenco delle parti
Cadillac
Cadillac 2007 Escalade Manuale utente
Cadillac
Cadillac ESCALADE EXT 2005 Guida di riferimento
Cadillac
Cadillac XT5 2017 Manuale utente
Cadillac
Cadillac CT5 2021 Manuale utente
Cadillac
Cadillac 1947 VVI Manuale operativo e di manutenzione
Cadillac
Cadillac CTS-V COUPE 2014 Manuale utente
Cadillac
Cadillac 2012 Cadillac SRX Manuale utente
Cadillac
Cadillac 2010 DTS Manuale utente
Cadillac
Cadillac 2011 SRX CROSSOVER Manuale utente
Cadillac
Cadillac 2010 Escalade Manuale utente
Cadillac
Cadillac 2014 ELR Manuale utente
Cadillac
Cadillac CT5 2022 Manuale utente
Cadillac
Cadillac 2001 Catera Manuale utente
Cadillac
Cadillac 2014 ELR Manuale elenco delle parti
Cadillac
Cadillac ATS 2014 Manuale utente
