Caffitaly System S01HS Manuale utente
Model S01HS / P01HS
Manuale di istruzioni
Instruction book
Mode d'emploi
Bedienungsanleitung
Italiano English Français Deutsch
26
Table of contents
Introduction
Intended use .......................................................................................... 27
Warning symbols................................................................................... 27
Safety warnings..................................................................................... 28
Instructions for use and disposal ....................................................... 29
Your Cataly System contact ............................................................. 29
Description of machine components ............................................... 30
Installation
First use or after a long period of disuse .......................................... 31
Turning on the appliance..................................................................... 32
General operating indications............................................................ 33
Dispensing the product
Dispensing coee.................................................................................. 35
Dispensing lter coee ........................................................................ 36
Dispensing other beverages ............................................................... 38
Dispensing hot water ........................................................................... 39
Preparing cappuccino / Dispensing steam....................................... 40
Cleaning and Maintenance
Daily maintenance ................................................................................ 42
Descaling ................................................................................................ 43
Changing the gasket ............................................................................ 47
Miscellaneous
Troubleshooting.................................................................................... 48
Technical data ........................................................................................ 49
2
3
4
4
5
6
7
8
9
0
2
3
27
Introduction
ear Customer,
Thank you for having chosen our product and for your con dence in our company.
You can savour your favourite hot beverages at any time of the day with our appliance by choosing one
of the capsules that Ca taly o ers you. For example: An espresso, a cocoa- avoured beverage or a tea
will be ready in just a few seconds.
Intended use
his appliance is intended to be used in domestic and similar applications such as, for example:
- sta cooking areas in shops, o ces and other work environments;
- holiday farms;
- by guests staying at hotels, motels and other residential facilities;
- facilities like bed and breakfasts.
Use only Ca ta System capsules. Use of the appliance in any manner other than as directed herein
could cause harm to persons and void the guarantee.
he manufacturer will not be responsible for injury or damage resulting from improper use of the
appliance.
Warning symbols
CAUTION
his is the safety warning symbol. It is used to call your attention to possible risks of
personal injury. Abide by the safety messages provided in order to avoid possible injury
or death.
NOTE
his is the symbol used to highlight some actions that will optimise use of the
appliance.
Not dishwasher safe Maintenance tips
his symbol is used to highlight a GREEN light indication.
his symbol is used to highlight an ORANGE light indication.
his symbol is used to highlight a BLUE light indication.
his symbol is used to highlight a RED light indication.
28
Introduction
Safety warnings
Carefully read the following instructions! In this way you will avoid the risk of personal injury and
damage to the appliance.
After removing the packaging, check that the appliance is not damaged. If damage is found, or
upon the rst sign of a defect (unusual noise or odours), do not use the appliance and contact
the Authorised Service Centre.
he packaging elements (plastic bags, etc.) must not be left within reach of children as they are
potential sources of danger.
Only use the appliance if the power cord is intact. If the cord is damaged, it should be replaced:
contact an Authorised Service Centre. Lethal danger of electric shocks.
Only use and store the appliance indoors. Make sure the electrical elements, plug and cord are
dry. Never submerge the appliance in water. Protect the appliance from sprays and drips. Water
and electricity together constitute a risk of electrocution.
Only connect the appliance to power outlets complying with the requirements of the law. Make
sure that the power supply voltage matches the rating shown on the data plate on the bottom
of the appliance.
o avoid the risk of re, set the appliance on a at, heat-resistant surface. Do not leave the
power cord hanging from the edge of the support surface.
Do not allow the appliance to be used by children or persons with impaired mental, physical
or sensory faculties or insu cient experience and/or skills, unless they are under the careful
supervision and guidance of a person responsible for their safety. Children must be kept under
supervision to prevent them from playing with the appliance.
Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
Never place your hands inside the capsule compartment. Danger of injury
Always close the lever. Never open the lever while the appliance is operating.
Never remove parts of the appliance. Do not insert objects into the openings. his could cause
electric shocks! Any operation that is not described in this instruction manual should only be
performed by an Authorised Service Centre!
Do not pull on the power cord to disconnect it. Remove the plug to avoid damage to the outlet.
29
Instructions for use and disposal
Introduction
he appliance has been manufactured using high quality materials that can be reused
or recycled. Dispose of the appliance in a suitable waste collection centre.
o rule out any abuse and dangers involved, ensure that the machine cannot be
plugged into the mains before delivering it to the scrapping service.
o achieve this, unplug the appliance from the outlet and cut the power cord as close
as possible to the machine.
Directions for correct disposal of the product according to European Directive
2002/96/EC and Italian Legislative Decree no. 151 dated 25 July 2005. At the end of
its useful life, the product should not be disposed of with unsorted household waste.
It should be taken to a suitable selective waste collection centre set up by the local
authorities or returned to a retailer who provides this service. Separate collection of
an electric household appliance avoids a possible negative impact on the environ-
ment and health arising from improper disposal and enables the materials it is made
of to be recovered so as to achieve signi cant savings of energy and resources. he
crossed-out wheelie bin symbol applied on the product highlights the need to dispose
of electric appliances separately. Improper disposal of the product by the user shall be
subject to speci c administrative sanctions as provided for under current regulations.
he packaging is made from recyclable materials. Contact the competent authorities
for information regarding local legislation.
Descale the appliance regularly, following the instructions provided. If you do not, the appli-
ance may be damaged and may become harmful to your health.
Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be
hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.),
unplug it.
Your Cataly System contact info@cataly.com
30
Power cord
Power on/o switch
"team"
button
"Filter co ee"
button
"Multifunction"
alarm
"Filter co ee"
indicator light
Drip tray
Co ee position
Central
position (0)
Hot water /
steam position
Adjustable co ee dis-
penser
Lever for opening
capsule compartment
Co ee / hot water /
steam control lever
Hot water / steam
dispensing tube
Used capsule
drawer
Capsule
compartment
Water tank
Water tank cover
Description of machine components
Introduction
31
First use or after a long period of disuse
Fill the tank with fresh, still water. Plug in the appliance and turn it on.
he multifunction indicator light blinks
in GREEN. After approximately 1 minute, it
becomes lit steadily and the appliance is ready
to use.
o ll the circuit, draw o approximately one
glass of water from the co ee dispensing spout
(without using a capsule), setting the control
lever to the co ee position.
At the end of this step, set the lever back to its
central position (0).
Flush the circuit by drawing o another glass
from the hot water dispensing pipe, setting the
control lever to the hot water position.
5
6
1
43
2
1
32
Turning on the appliance
2Turning on the appliance
Empty the water from the used capsule drawer.
At the end of this step, set the lever back to its
central position (0).
Fill the tank with fresh, still water. urning on
the appliance
he multifunction indicator light blinks
in GREEN. After approximately 1 minute, it
becomes lit steadily and the appliance is ready
to use.
12
8
7
2
33
General operating indications
When the water runs out during operation
Heating
When the multifunction indicator light is lit in
RED, the water tank is empty.
Set the control lever back to the centre (0).
he multifunction indicator light blinks in
GREEN.
Set the control lever to the co ee position; the
appliance will resume brewing.
Fill the tank with fresh water.
21
3 4
3
34

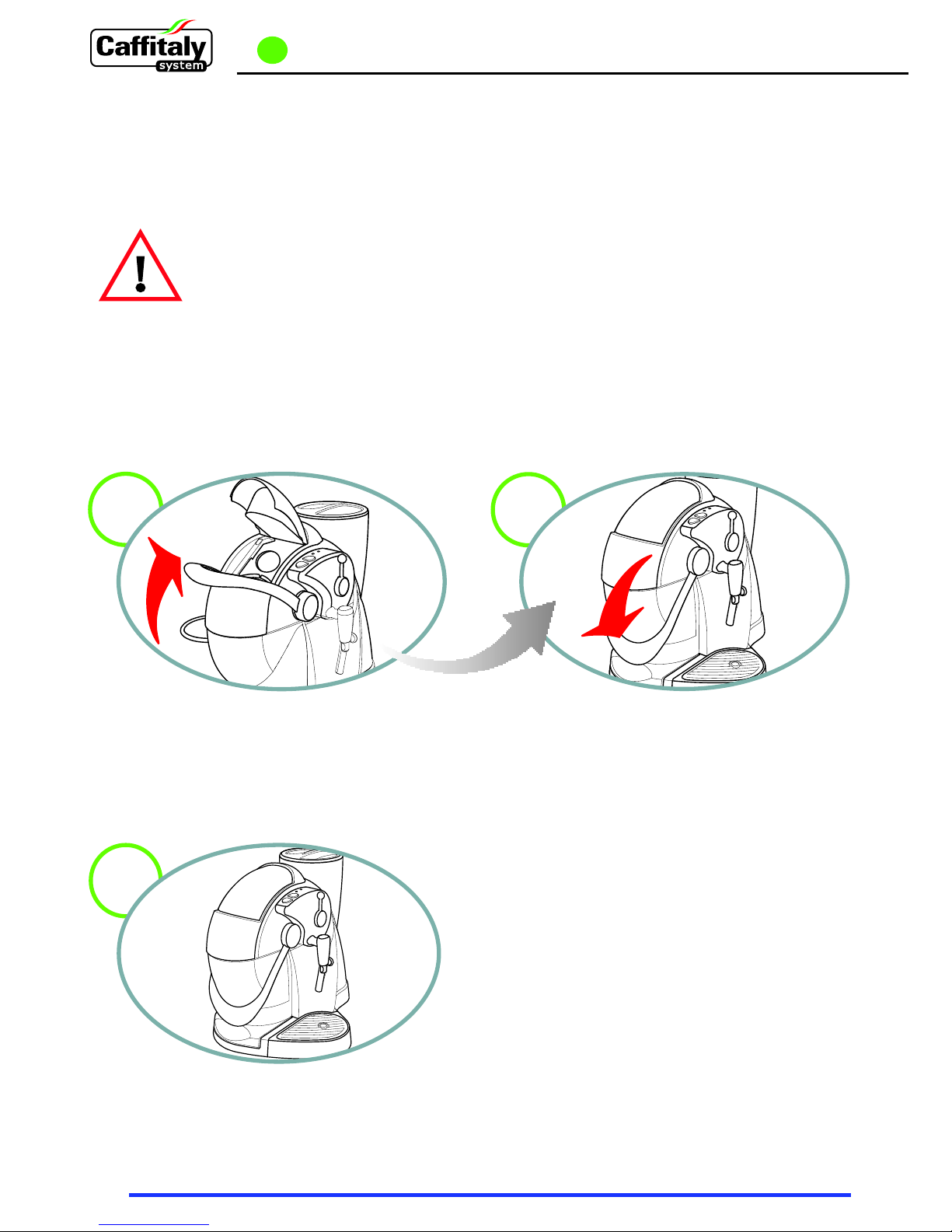

If the lever is raised while a product is being
dispensed.
General operating indications
CAUTION!
Raising the lever incorrectly while dispensing a product may cause brief
splashes of hot water.
Danger of scalding!
If the lever is raised
he appliance will immediately stop dispensing.
Close the lever.
he appliance is ready for a new dispensing
cycle.
3
12
3
