Cal-Comp BT-1000 Manuale utente

Cal-Comp

Preface

Cal-Comp’s Bluetooth TM Headset BT-1000 is a cordless mobile solution built on

Bluetooth wireless technology.

Please proceed the instructions before using your Headset

What is Bluetooth Technology?

The Bluetooth wireless Technology eliminates constraint of cables by making

connection to any portable and stationary device realized. This is built on the

technology that is based on a radio link that provides voice and data transmission.

The Bluetooth wireless technology uses a worldwide available range of frequency to

ensure communication compatibility throughout the globe.

How the Headset is Used?

For Headset to work, it must be used with mobile phone, PC or any device with

Bluetooth technology that conforms to the Headset Profile. This User’s Guide

concentrates on how to use the Headset with your mobile phone. When the Headset is

connected to your mobile phone, calls can be made by using voice control (provided

that this function is supported by your phone). Because the Headset is designed to

keep your hands free, the phone can be tucked away in your pocket or in a bag. By

using a three-way button on the Headset, you can easily handle incoming and

outgoing calls, and adjust the volume.

Cal-Comp

Operating Your Headset

Overview

To be able to use the Headset together with a mobile phone, or any device that you

want to use with the Bluetooth Headset, it has to be compatible with Bluetooth

wireless technology and supports the Headset Profile. In order to use the Headset with

a mobile phone, you need to have a phone with Bluetooth capability built-in.

Front

Charging connector

Indicator light

Back

Speaker

Microphone

Ear clip

Cal-Comp

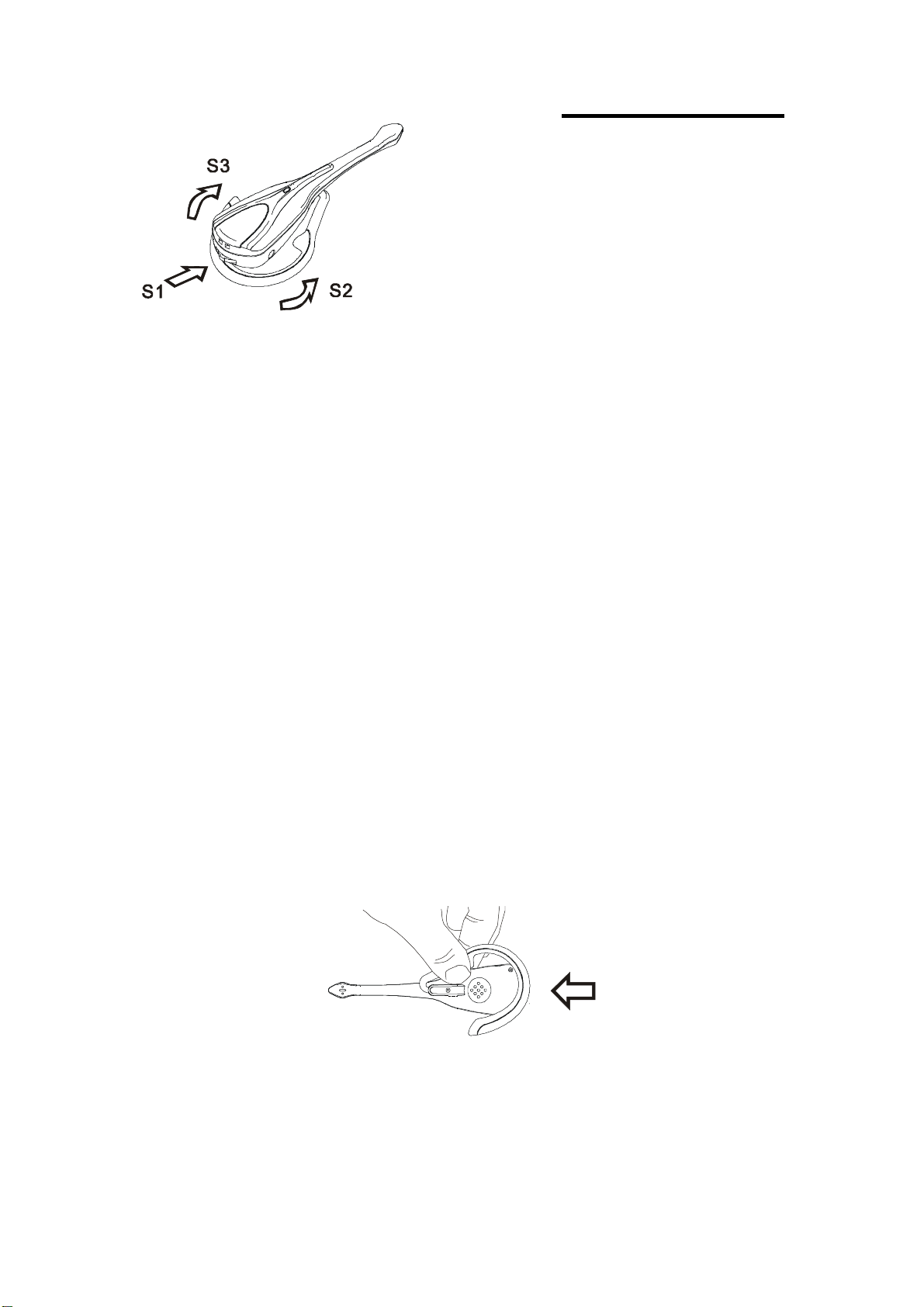

S1 : On/Off and Answer/End calls

S2 :Decrease Volume

S3 :Increase Volume

Getting Started

You should do the following prior to using the Headset with a phone or other device

for the first time,

 Decide on which ear you want to wear the headset (factory setup is for right-ear

use).

 Pair the Headset with a device (mobile phone).

 Use appropriate Cal-Comp charger to charger the Headset

The above stages are described in detail below.

Right or Left Ear

The direction of the ear clip has to be changed should you decide to wear the Headset

on your left ear.

To adjust the ear clip for left-ear use:

1. Pull the ear clip from the Headset gently as shown above.

Always hold the clip as shown.

Cal-Comp

2. Turn the clip 180 degrees.

3. Attach the ear clip by gently pressing it into place.

You also have to change the orientation of volume button by doing the following:

a) Before the Headset flashes green and red, press and hold the Headset button for

up to 10 seconds when the Headset is in power off status.

b) Slide the volume button in the direction of either upwards or downwards that you

want to use to increase the volume.

c) Press the Headset button until the Headset is turned off.

Putting On the Headset

 Press down the lever as shown.

 Put on the Headset with the ear clip behind your ear.

Cal-Comp

 Ensure the microphone is pointing toward your mouth.

Turning the Headset On or Off

To turn the Headset on

 A short low tone will be heard when you press and hold the Headset button,

followed by a short high tone. The Headset indicator light now flashes green, and

flashes red when low battery is detected.

To turn the Headset off

 A short high tone will be heard when you press and hold the Headset button

followed by a short low tone. The Headset indicator light is now turned off.

Pairing the Headset

Pairing the Headset with the device you want to use with is required before starting to

operate the Headset for the first time.

To pair with Ericsson’s mobile:

Using a Mobile Phone with Built-in Bluetooth Capability.

You can simply pair the Headset with your phone by adding it to a list of paired

device in the phone. They will connect each other based on the recognition between

the phone and the Headset.

To pair the Headset with the phone

1. In the phone, scroll the Extras, YES, Bluetooth, YES, Paired devices, YES,ADD

device? , YES ,Phone initiates, YES.

2. The phone shows a list of device types that can be paired with it is displayed. Scroll

the Headset and press YES.

3. When the Headset is turned off, press and hold the Headset button for up to 10

seconds until the indicator light flashes green and red. Make sure the Headset

and the phone are within close proximity.

4. The phone commences searching for the Headset as soon as the Headset passkey

Cal-Comp

(0000) is entered, and press YES..

5. When the search is complete, the display shows a list of available devices, like

“BT-1000”, then press YES.

6. The preset Headset name may be modified to your own personal name tag now.

Press YES. When pairing has been completed, the indicator light on the Headset

flashes green.

Charging

The Headset comes with a rechargeable battery included. The battery is not fully

charged when it is new. For first time use, insert the adaptor into the Headset to

charge until the indicator light turns green.

 It takes 1-1.5hours to fully charge the battery.

 To indicate that the Headset runs on low power, the Headset indicator light

flashes red when the Headset is on.

 When the Headset is turned off during the process of charging, the indicator light

shows a steady red light, and flashes red when the Headset is on.

 When the headset is turned off once the battery is fully charged, the indicator

shows a steady green light, or shows green light if the Headset is on.

Which Charger Can I Use

Please use Cal-Comp travel charger to the Headset.

How to Charge the Battery

Cal-Comp

.Connect the adaptor into the Headset as shown in the

picture. Gently press the adaptor until it clicks into place.

Volume Adjustment

Listening volume adjustment

Headset listening volume can be adjusted during a call.

To adjust the listening volume

 To turn down the volume, slide the Headset button S2.

 To turn up the volume, slide the Headset button S3.

Note: The orientation of the volume button must be changed when you change the ear

on which the Headset is worn.

Making and Receiving Calls

Once the Headset is successfully paired with your phone, you can use the Headset to

make and receive calls, provided that the Headset is on and operated within up to

10m/30ft. with no solid obstructions of the phone.

The Headset can be used with voice dialing provided that your phone supports this

feature. For detailed operation on voice control, please refer to your phone’s user’s

manual.

The Headset light indicator flashes more quickly during an ongoing call.

The Headset button is pressed for the following functions:

 make a call (by using voice control)

 receive a call

 terminate a call

 transfer the sound from the phone to the Headset

The following is for user’s reference should you be using the Headset with a built-in

Bluetooth Ericsson phone.

Cal-Comp

Making Calls

Using voice dialing to make a call

1. Press the button once. Make sure the phone and the Headset are within close

proximity to each other.

2. Once a beep is heard, voice dial as you normally would.

3. Press the Headset button to end the call, or press the NO key on the phone.

Should the phone not supporting voice dialing, you can also make a call using the

phone’s keypad or phone book

Using the phone keys to make a call

1. Ensure the Headset and the phone is turned on and within close range of each

other.

2. Enter the number as you normally would.

3. With a built-in Bluetooth mobile:

Once the call has been set up, press the Headset button to transfer the sound to the

Headset.

4. Press the Headset button to end the call or the NO key on the phone..

Answering Calls

 When the Headset rings, press the button on the Headset to answer a call.

Note: Only press the Headset button when you hear the Headset rings.

 Press the Headset to end the call, or the NO key on the phone.

To answer a second call

During a conversation, you can answer a second incoming call by pressing the phone

keypad, and you can still use the Headset for talking and listening.

Transferring sound from phone to Headset

You can still transfer the sound to the Headset if you make a call without using it.

Make sure the Headset is on and within close range to the phone.

Transfering the sound to the Headset

 With a Bluetooth built-in Ericsson phone, press the button on the Headset to

transfer the sound to the Headset.

 You can transfer the sound to the Headset by pressing the Headset button should

the Headset is turned on after a call has been initiated.

Cal-Comp

Transferring sound from Headset to phone

Use with a built-on Bluetooth Ericsson phone.

 During an ongoing call, scroll to Ongoing Call, YES,

 Transfer Sound, YES.

Cal-Comp

Additional information

Troubleshooting

This section lists some problems that you might encounter while using your Headset.

The Headset Indicator Light Flashes Red

This indicates that the Headset is running on low battery and has limited talk time and

standby time left. Charge the Headset for approximately 1 to 1.5 hours.

No Sound Contact Between Headset and Other Device

In order for the Headset and the device you are using to recognize one another, they

ought to be paired.

Make sure the Headset and the device you are using with are no more than

10 m. /30 ft. apart, so they are within operable range.

No Indication of Charging is Shown

For the Headset battery that is empty, or has not been used for a long time, it may take

several minutes for the indicator to show charging status (a steady red light).

Guidelines for Safe and Efficient Use

Note: Read this information before using your Bluetooth Headset.

Product Care and Maintenance

Please read the following to get the most out of your sophisticated Bluetooth Headset

about product care, safe and efficient use.

For any queries about any exceptions when using Bluetooth equipment, due to

national requirements or limitations, please visit www.bluetooth.com.

Product Care

• Use of non-Cal-Comp original accessories may result in performance deterioration,

product damage, injury, or electronic shock, and warranty termination.

• Do not attempt to disassemble your Headset, as it does not contain any components

serviceable or repairable by consumers.

• Do not paint your product as the paint could prevent normal use.

• Do not place the Headset in a dusty area, and only use soft cloth to clean your
