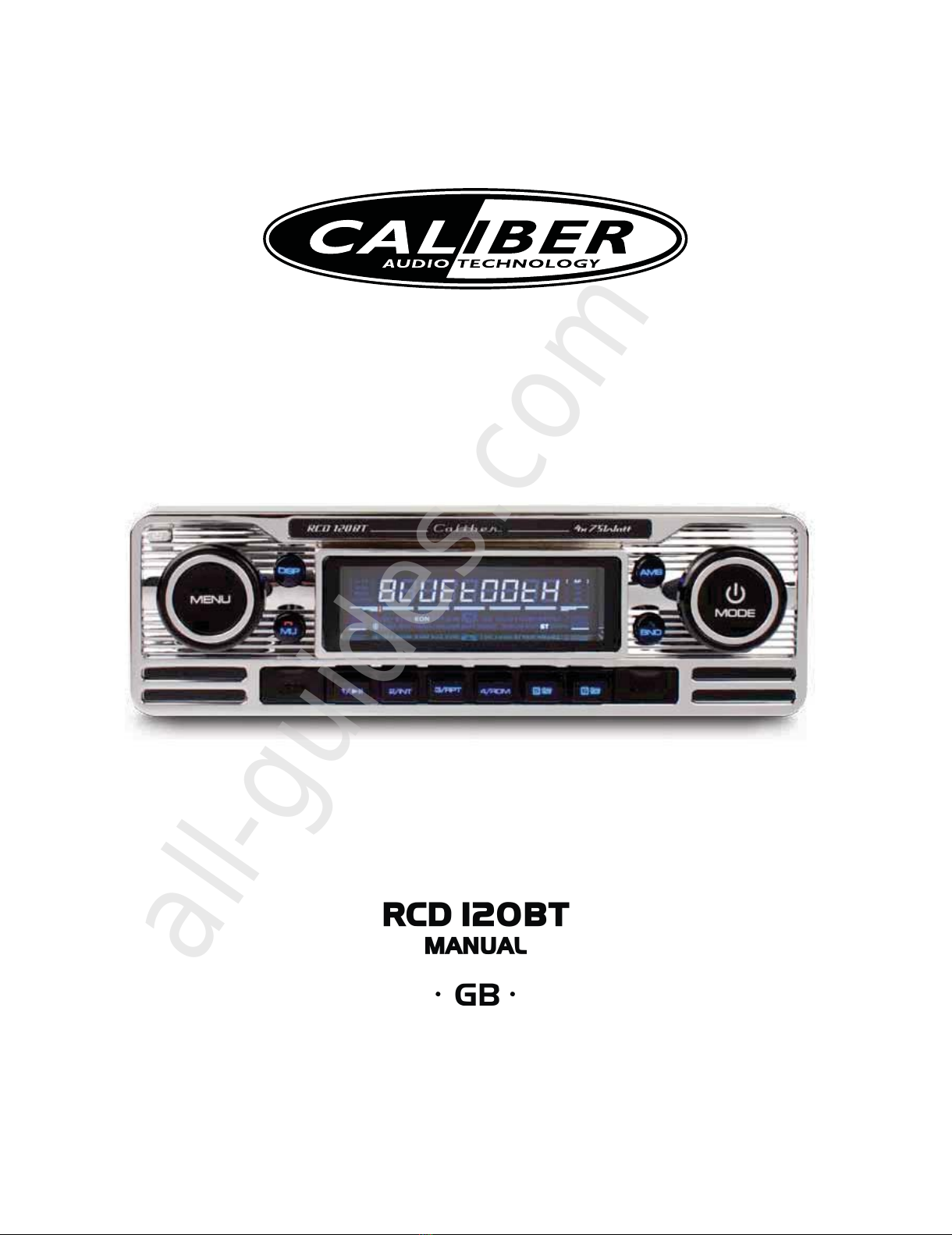

Caliber RCD 120BT Manuale utente

RCD 120BT

MANUAL

o(#o

All manuals and user guides at all-guides.com

all-guides.com

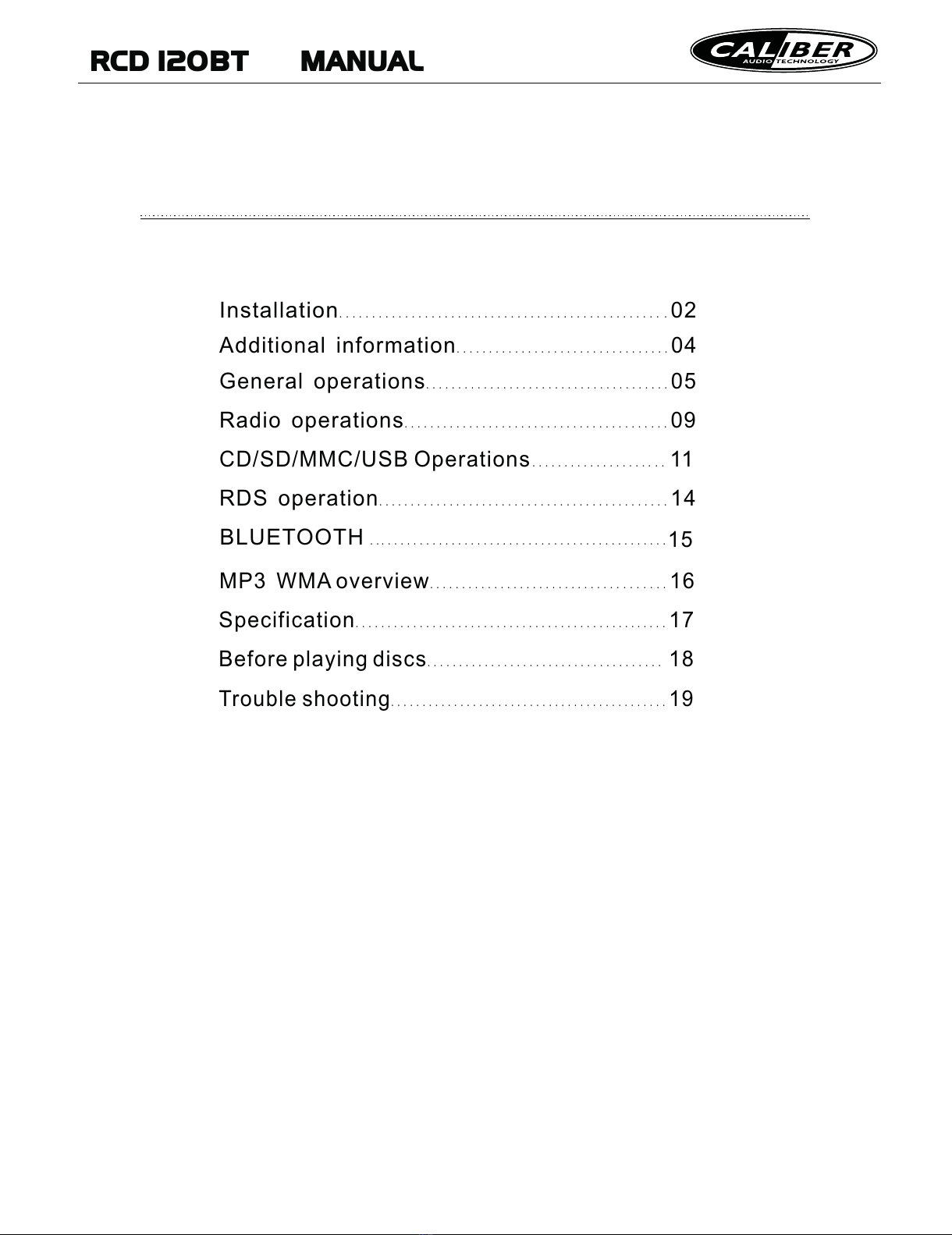

RCD 120BT MANUAL

Installation. ............................................... .02.

Additional information

.................................

General operations......................................05

Radio operations.........................................09

CD/SD/MMC/USB Operations

.....................

MP3 WMA overview.....................................16

Specification.................................................17

Before

playing

discs

.....................................

Trouble shooting............................................19

BLUETOOTH

...............................................

RDS operation.............................................14

All manuals and user guides at all-guides.com

RCD 120BT MANUAL

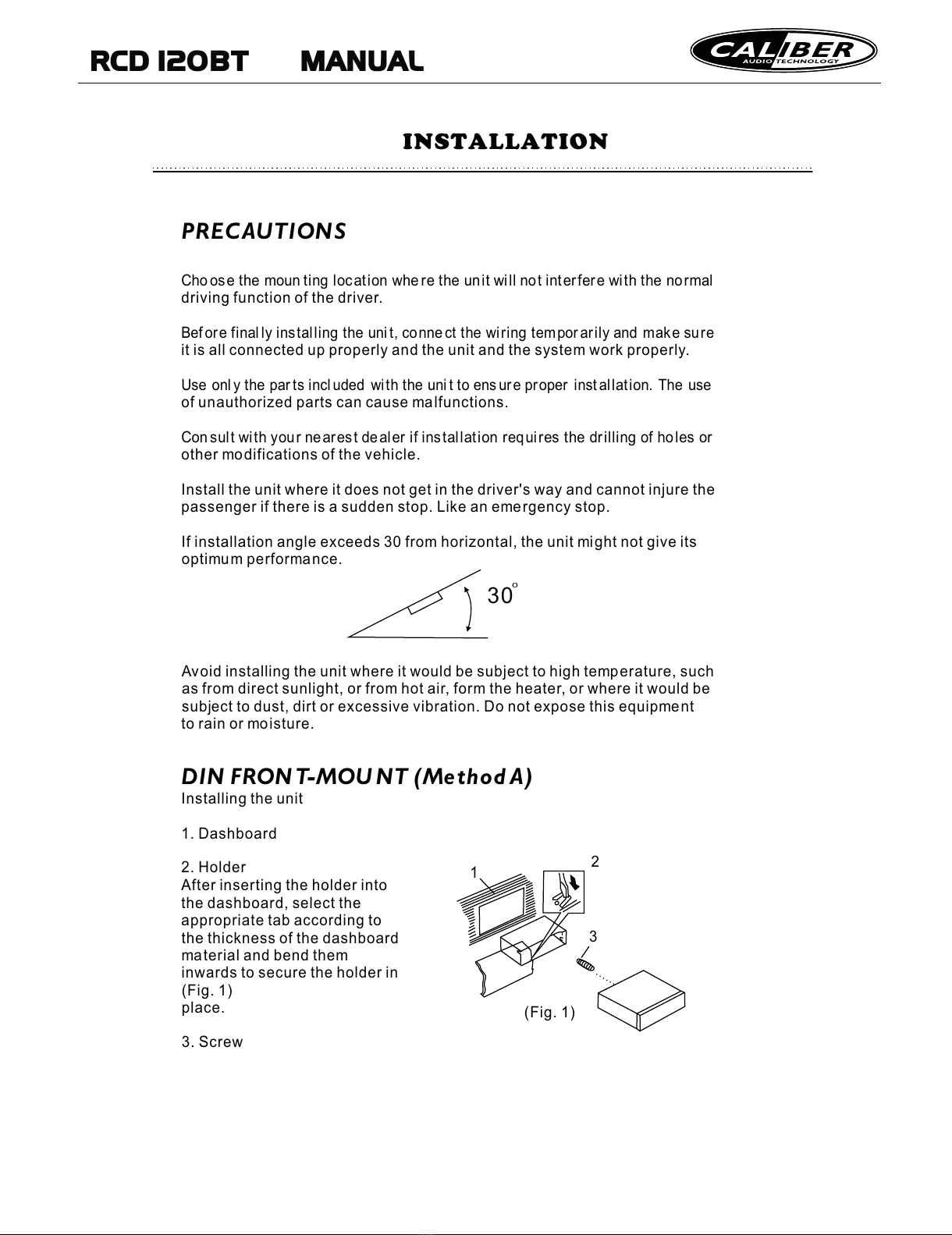

PRECAUTIONS

Cho ose the moun ting location whe re the unit wi ll not interfer e wi th the normal

driving function of the driver.

Bef ore final ly instal ling the uni t, conne ct the wiring tempor ar ily and make sure

it is all connected up properly and the unit and the system work properly.

Use onl y the par ts incl uded wi th the uni t to ens ure proper inst al lation. The use

of unauthorized parts can cause malfunctions.

Con sul t wi th you r ne ar es t de al er if installat ion requi res the drilling of holes or

other modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the

passenger if there is a sudden stop. Like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit mi ght not give its

optimum performance.

Avoid installing the unit where it would be subject to high temperature, such

as from direct sunlight, or from hot air, form the heater, or where it would be

subject to dust, dirt or excessive vibration. Do not expose this equipment

to rain or moisture.

DIN FRONT-MOUNT (Method A)

Installing the unit

1. Dashboard

2. Holder

After inserting the holder into

the dashboard, select the

appropriate tab according to

the thickness of the dashboard

material and bend them

inwards to secure the holder in

(Fig. 1)

place.

3. Screw

INSTALLATION

(Fig. 1)

All manuals and user guides at all-guides.com

RCD 120BT oMANUAL

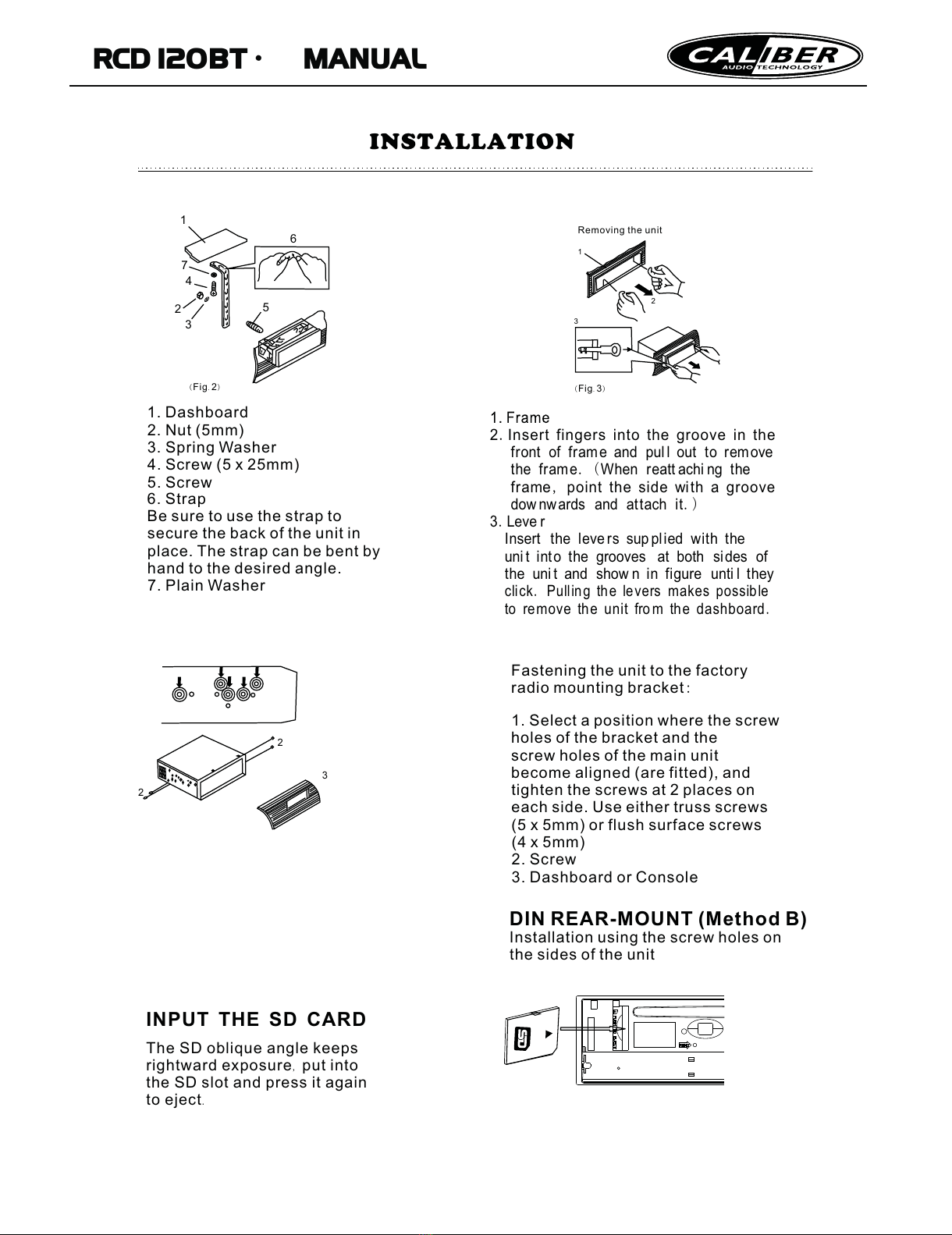

INPUT THE SD CARD

The SD oblique angle keeps

rightward exposure, put into

the SD slot and press it again

to eject.

1. Dashboard

2. Nut (5mm)

3. Spring Washer

4. Screw (5 x 25mm)

5. Screw

2.Insert fingers into the groove in the

front of fram e and pul l out to rem ove

the fram e. (When reatt achi ng the

frame, point the side with a groove

dow nwards and attach it.)

3.Leve r

Insert the leve rs sup plied with the

uni t into the grooves at both sides of

the uni t and show n in figure unti l they

click. Pulling the levers makes possible

to re move the unit fro m th e dashboard.

DIN REAR-MOUNT (Method B)

Installation using the screw holes on

the sides of the unit

Fastening the unit to the factory

radio mounting bracket:

1. Select a position where the screw

holes of the bracket and the

screw holes of the main unit

become aligned (are fitted), and

tighten the screws at 2 places on

each side. Use either truss screws

(5 x 5mm) or flush surface screws

(4 x 5mm)

2. Screw

3. Dashboard or Console

INSTALLATION

6. Strap

Be sure to use the strap to

secure the back of the unit in

place. The strap can be bent by

hand to the desired angle.

7. Plain Washer

(Fig.3)

Removing the unit

(Fig.2)

All manuals and user guides at all-guides.com

RCD 120BT oMANUAL

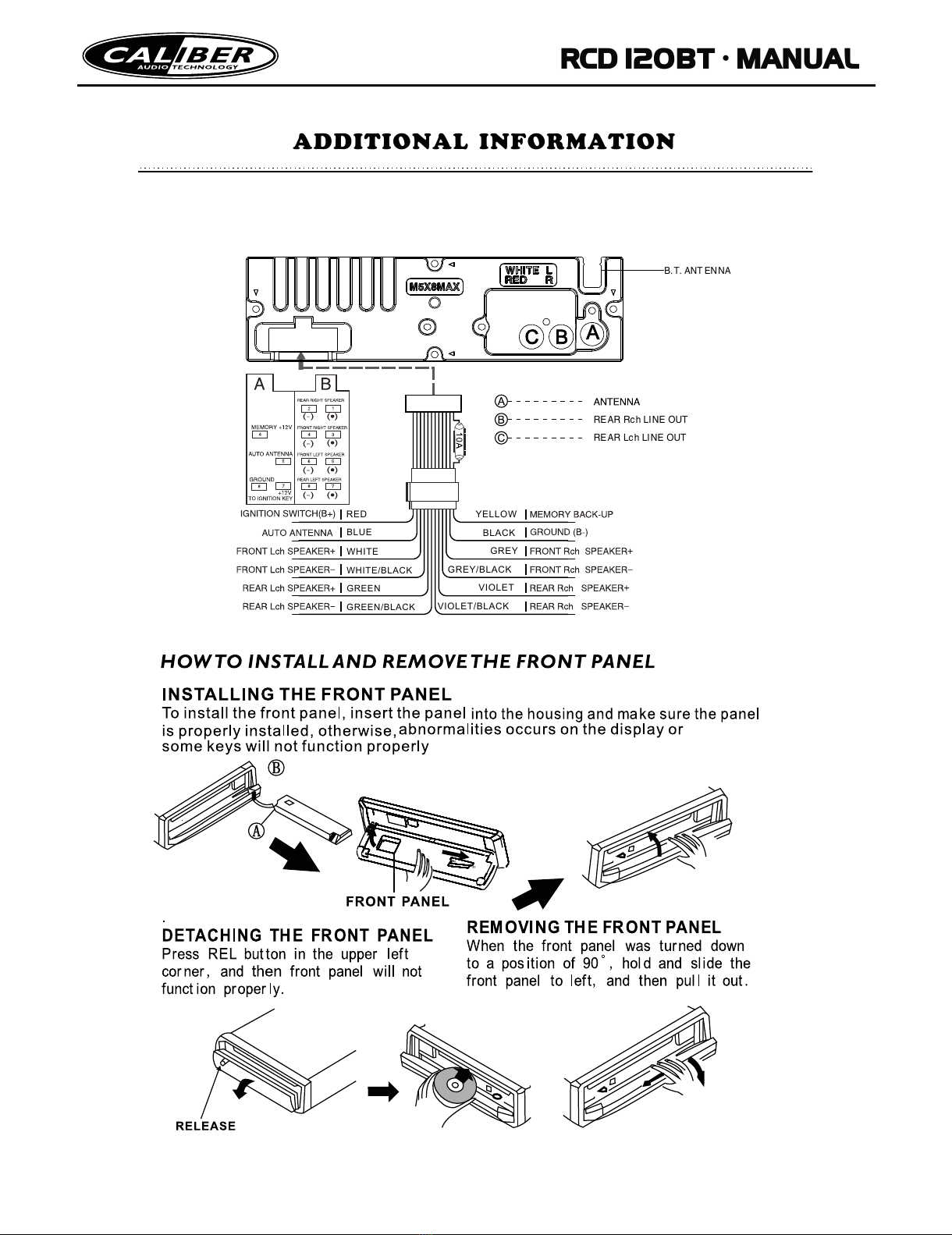

ADDITIONAL INFORMATION

RE AR Lc h LINE OUT

RE AR Rc h LINE OUT

BLUE

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

RED YELLOW

BLACK

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

B. T. ANT EN NA

All manuals and user guides at all-guides.com

RCD 120BT oMANUAL

MU BND

2/INT 3/RPT 4/R DM1/

DISP

MODE

AMS

GENERAL OPERATIONS

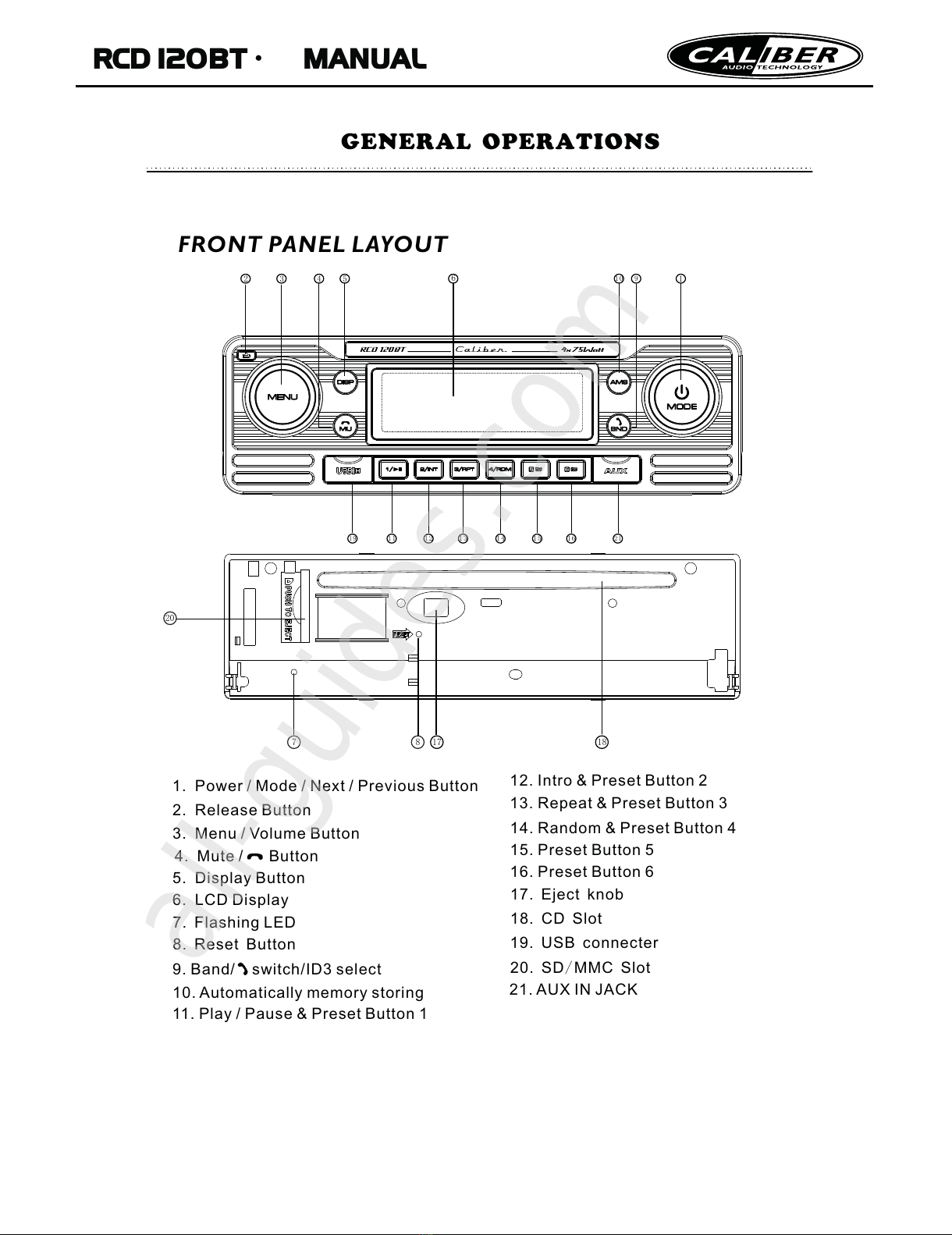

FRONT PANEL LAYOUT

1. Power / Mode / Next / Previous Button

3. Menu / Volume Button

5. Display Button

11. Play / Pause & Preset Button 1

2. Release Button

12. Intro & Preset Button 2

6. LCD Display

13. Repeat & Preset Button 3

10. Automatically memory storing

14. Random & Preset Button 4

15. Preset Button 5

16. Preset Button 6

19. USB connecter

8. Reset Button

17. Eject knob

18. CD Slot

7. Flashing LED

20. SD/MMC Slot

21. AUX IN JACK

7 8

11 12 13 14 15 16

9. Band/ switch /ID3 select

4. Mute / Button

All manuals and user guides at all-guides.com

all-guides.com

RCD 120BT oMANUAL

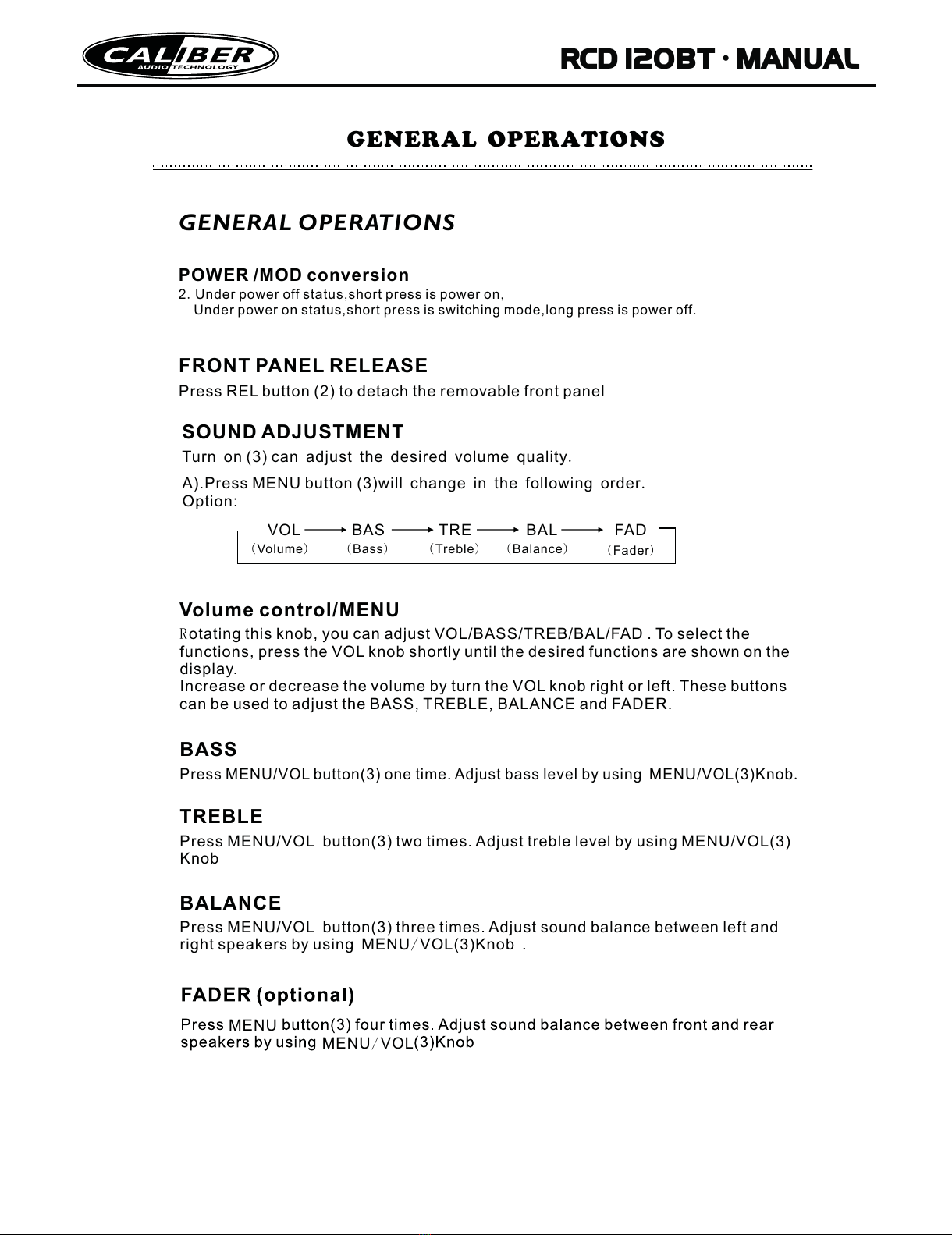

GENERAL OPERATIONS

FRONT PANEL RELEASE

Press REL button (2) to detach the removable front panel

SOUND ADJUSTMENT

Turn on (3) can adjust the desired volume quality.

A).Press MENU button (3) will change in the following order.

Option:

Volume control/MENU

Rotating this knob, you can adjust VOL/BASS/TREB/BAL/FAD . To select the

functions, press the VOL knob shortly until the desired functions are shown on the

display.

Increase or decrease the volume by turn the VOL knob right or left. These buttons

can be used to adjust the BASS, TREBLE, BALANCE and FADER.

VOL BAS TRE BAL FAD

(Volume)(Bass)(Treble)(Balance)(Fader)

BASS

Press MENU/VOL button(3) one time. Adjust bass level by using MENU/VOL(3)Knob.

TREBLE

Press MENU/VOL button(3) two times. Adjust treble level by using MENU/VOL(3)

Knob

BALANCE

Press MENU/VOL button(3) three times. Adjust sound balance between left and

right speakers by using MENU/VOL(3)Knob .

POWER /MOD conversion

2.Under power off status,short press is power on,

Under power on status,short press is switching mode,long press is power off.

MENU/VOL

All manuals and user guides at all-guides.com

RCD 120BT oMANUAL

GENERAL OPERATIONS

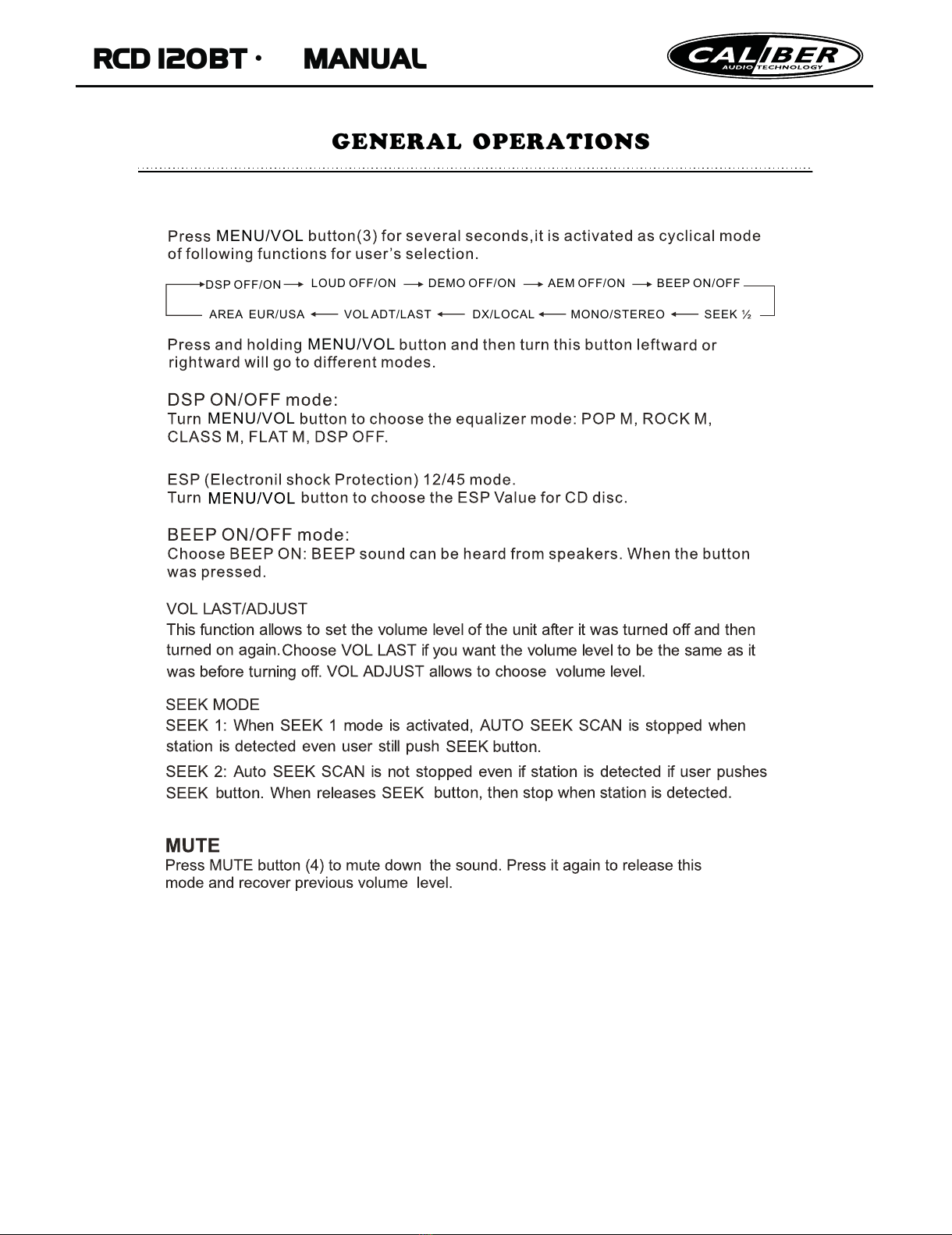

MENU/VOL

LOUD OFF/ON DEMO OFF/ON

DSP OFF/ON AEM OFF/ON BEEP ON/OFF

MONO/STEREODX/LOCALVOL ADT/LASTAREA EUR/USA SEEK

All manuals and user guides at all-guides.com

RCD 120BT oMANUAL

GENERAL OPERATIONS

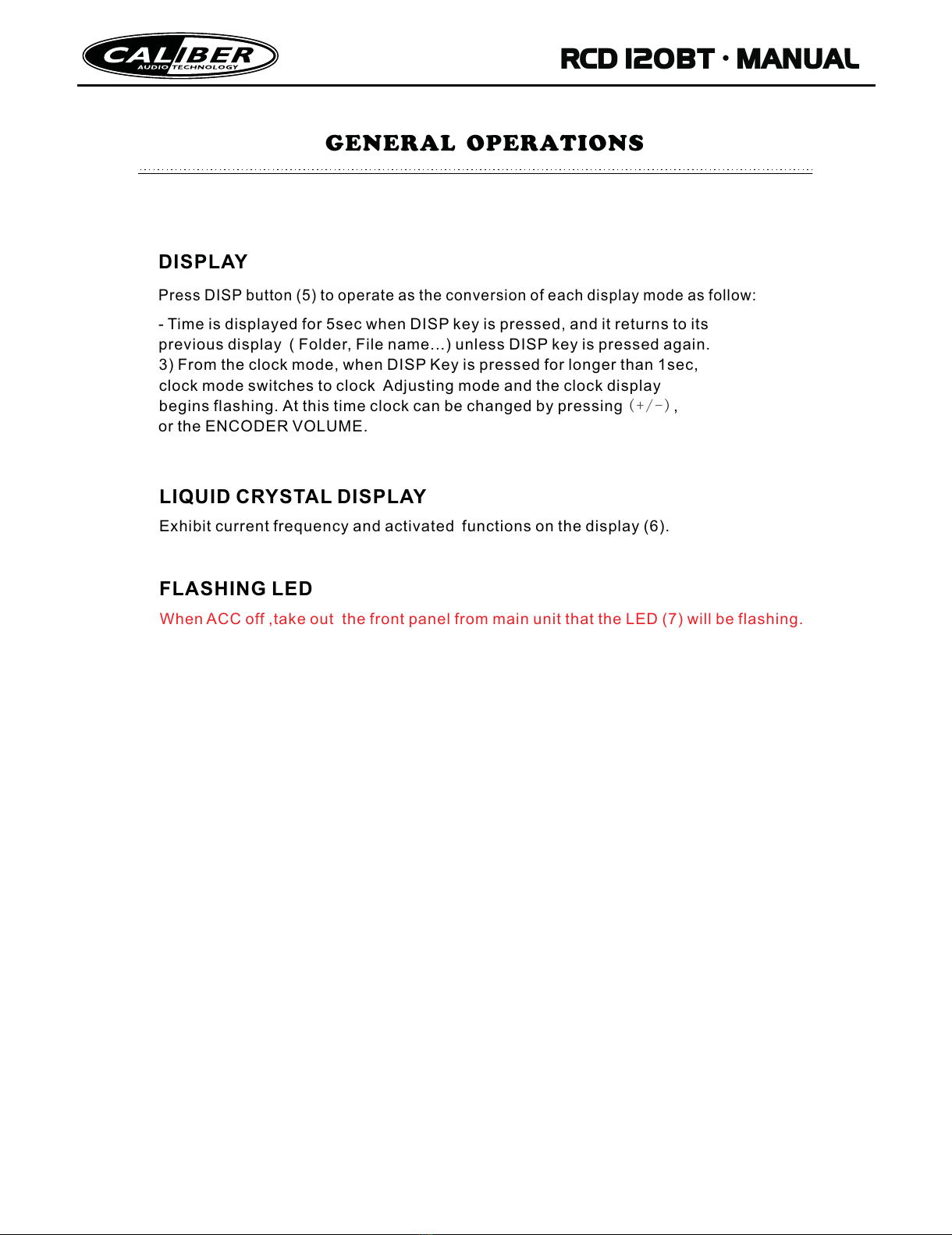

LIQUID CRYSTAL DISPLAY

Exhibit current frequency and activated functions on the display (6).

FLASHING LED

DISPLAY

Press DISP button (5) to operate as the conversion of each display mode as follow:

- Time is displayed for 5sec when DISP key is pressed, and it returns to its

previous display ( Folder, File name...) unless DISP key is pressed again.

3) From the clock mode, when DISP Key is pressed for longer than 1sec,

clock mode switches to clock Adjusting mode and the clock display

begins flashing. At this time clock can be changed by pressing (+/-),

or the ENCODER VOLUME.

When ACC off ,take out the front panel from main unit that the LED (7) will be flashing.

All manuals and user guides at all-guides.com

RCD 120BT oMANUAL

GENERAL OPERATIONS

MENU/VOL

LOUD OFF/ON DEMO OFF/ON

DSP OFF/ON AEM OFF/ON BEEP ON/OFF

MONO/STEREODX/LOCALVOL ADT/LASTAREA EUR/USA SEEK

All manuals and user guides at all-guides.com
