Thank you for purchasing this Wireless Music Maker™ Multimedia Player. I invite you to register your product online for its one year

warranty coverage at our website: www.califone.com — while you’re there — make sure to learn more about our complete line

of portable and installed PA systems, multimedia players and recorders, wired and wireless headphones and headsets, computer

peripherals and other Califone products.

Sincerely,

Roscoe Anthony

President, Califone® International, Inc.

Warranty Registration

Please register your Music Maker online for its one year

warranty www.califone.com.

Unpacking your Infrared Music Maker Player/Recorder

Check carefully for damage which may have taken place

during transit. Although the shipping carton & packaging

materials are designed to prevent damage during shipment,

you should inspect the carton for any signs of mishandling or

damage immediately upon receiving your new unit. Carefully lift

the unit from the carton and inspect it for any signs of damage.

Save all packaging materials for possible later use. Report any

damage claim directly to the freight carrier immediately. Save

the product and packaging for inspection by the carrier’s

claim agent. Notify your dealer of the pending claim.

All Damage Claims Must Be Made With The Freight Carrier

Notify the freight carrier immediately if you observe any

damage the shipping carton or product. Repack the unit

in the carton and await inspection by the carrier’s claim

agent. Notify your dealer of the pending freight claim.

Returning your unit for service or repairs

Should your unit require repair, rst contact the dealer

or Califone Service Department at: (800) 722-0500 to

obtain a Return Authorization number. After receiving

the RA, write it clearly on the outside of the shipping box

and ship the unit to Califone prepaid. Collect shipments will

be refused. Please DO NOT SHIP ANY UNIT TO THE FACTORY

WITHOUT PRIOR AUTHORIZATION AND INSTRUCTIONS.

Contents

a) 2395IR CD/Dual Cassette/AM/FM Radio

b) Remote Control

c) Owner’s Manual

Note:

If the Six-person Learning Center

(2395IRPLC-6) was purchased, there should

also be six 34B-IR headphones.

Initial Setup

Visit us online at califone.com

califone_2395IR_manual.indd 4 9/14/07 4:34:43 PM

Infrared Music Maker™ Plus

Player/Recorder Owner’s Manual

Initial Setup

Visit us online at califone.com

AC Line Operation

1. The power cord is located at the rear of the unit. Release the cord retainer tab and uncoil the cord.

2. Plug the cord into a standard 120 volt 50-60 Hz AC outlet. Be sure the plug blades are fully inserted.

THE UNIT IS ON WHEN PLUGGED IN.

Battery Operation

1. The battery compartment is located at the rear of the unit. Push the lever at the center of the door toward the rear

of the unit and then lift the door free.

2. Eight “D” or UM-1 size batteries are required. When installing the batteries refer to the orientation diagram shown

inside the battery compartment. Place the batteries on top of the nylon ribbon. This helps to “pop” old batteries out

when you need to replace them.

3. Replace the battery cover.

IMPORTANT:

Remove all batteries from your cassette unit if it will not be used for an extended period of time.

DO NOT LEAVE DISCHARGED BATTERIES IN THE BATTERY COMPARTMENT. DAMAGE TO THE UNIT DUE TO BATTERY

CORROSION IS NOT COVERED UNDER WARRANTY.

NOTE:

Califone cassette recorders are designed for use only with 60-minute Type 1 Normal Bias recording tape.

califone_2395IR_manual.indd 5 9/14/07 4:34:44 PM

Visit us online at califone.com

Top View DetailFront View

Rear View

HEADPHONE

EXT. SPK.

MICREMOTE

BEAT CUT

29 30

36 38

califone_2395IR_manual.indd 6 9/14/07 4:34:44 PM

Visit us online at califone.com

AM/FM

REBL

POWER

PHONES

BALANCE

RANDOMPROGRAM

OFF

132

TAPE CD PLAY

TIME

AM/FM

REBL

POWER

PHONES

BALANCE

RANDOMPROGRAM

OFF

132

TAPE CD PLAY

TIME

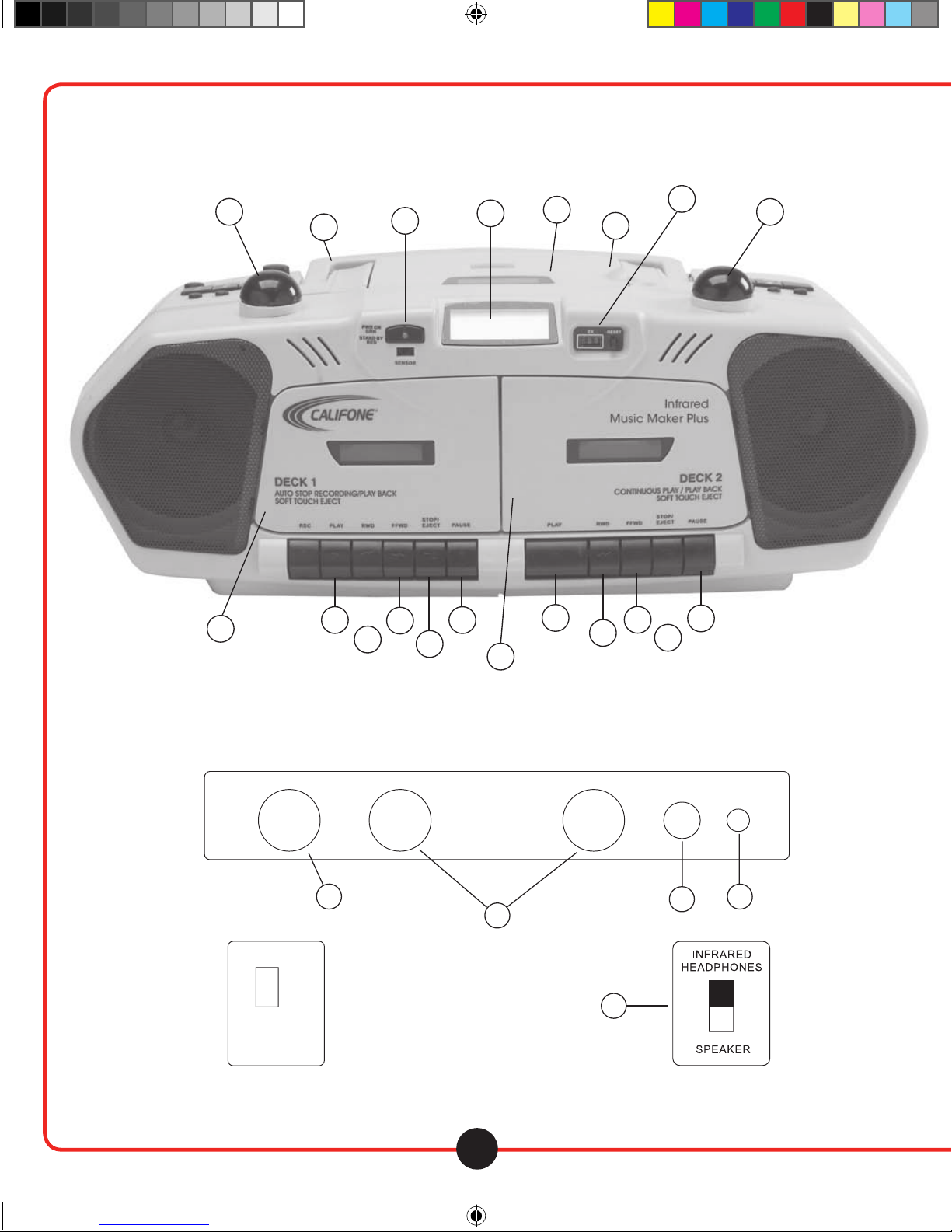

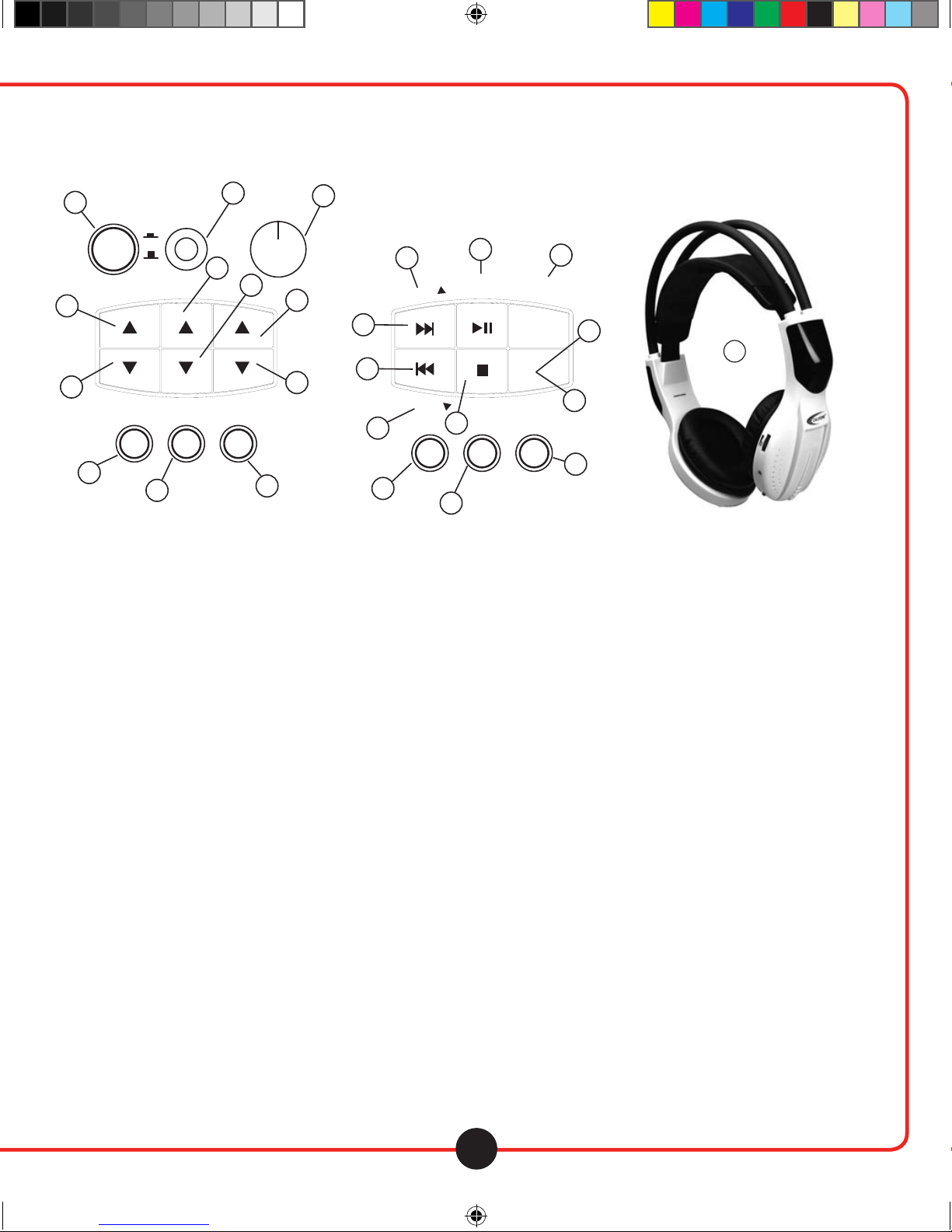

1. Power On

2. Power/Standby Switch

3. LCD Display

4. Tape

5. AM/FM

6. CD

7. Volume Down

8. Volume Up

9. Treble Up

10. Treble Down

11. Bass Up

12. Bass Down

13. Telescoping Antenna

14. Tuner Up

15. Tuner Down

16. Preset

17. Program

18. CD Door

19. Play/Pause

20. Skip Forward

21. Skip Backward

22. Stop

23. Repeat

24. Random

25. Play Time

26. 3.5 mm Headphone Jack

27. 1/4” Headphone Jack

28. External Speaker Jacks

29. Microphone Jack

30. Mic. Remote On/Off Jack

31. Remote Sensor

32. Balance Control

33. Carrying Handle

34 & 35. Stop/Eject

36. Tape Cassette A

37. Tape Cassette B

38 & 39. Play

40 & 41. Pause

42 & 43. Rewind

44 & 45. Fast Forward

46. Tape Counter

47. Stereo/Mono - FM Mode Only

48. Infrared Transmitter (2)

49. IR Headphone/Speaker Switch

50. 34B-IR Headphone

(purchased separately)

Top View DetailFront View

Rear View

36 38

califone_2395IR_manual.indd 7 9/14/07 4:34:45 PM

Visit us online at califone.com Visit us online at califone.com

Getting Started

When the ‘Power’ button (1) is depressed the LED (2) to the left of the LCD display (3) will be red for standby mode. Pushing the LED

will cause the LED to be green indicating the unit is fully powered up.

• Depressing the ‘Tape’ (4) button will cause the LCD display to show ‘Tape’.

• Depressing the ‘AM/FM’ (5) button will cause the LCD display to show ‘AM’ or ‘FM’.

• Depressing the ‘CD’ (6) button will cause the LCD display to show ‘Disc’.

Digital Volume Control

• Press ‘VOL q(7) to reduce or ‘VOL p(8) to increase the volume.Tthe level will be shown in the LCD panel.

Minimum volume will show ‘00’ and maximum volume is ‘40’ on the LCD display.

Treble and Bass Controls

‘TREBLE p (9) and ‘TREBLE q (10) can be used to adjust the Treble up and down respectively, while ‘BASS p (11) and ‘BASS q(12)

can be used to adjust the Bass up and down respectively. Both Treble and Bass can be adjusted in the range of +5 to –5.

EQ Control

Press ‘EQ’ (9) to select the equalizer as sequence.

Radio Function

• Press ‘AM/FM’ (5) to select the desired reception band. Extend the telescoping antenna (13) for FM. There is a built-in antenna

for AM reception. For FM stereo reception the ‘stereo’ will show on the LCD display.

• Press the ‘TUNER p (14) or ‘TUNER q (15) button repeatedly until the desired station shows on the LCD display.

• To automatically scan through the frequency bands, hold the ‘TUNER’ button down until you see the speed of the LCD

display increase. Scanning will stop when a strong signal is detected.

continued page 6

Radio Function continued

VOL 04 VOLUME

Electronic Volume Control Display

BASSTREBLE

TRE+2 BA-1

570

AM KHz AM BAND SELECTION

califone_2395IR_manual.indd 8 9/14/07 4:34:45 PM

Visit us online at califone.com Visit us online at califone.com

Getting Started Radio Function continued

Programming Stations

Twenty FM stations and Twelve AM stations can be saved in memory with the ‘PRESET’ (16) function.

• To save a station into memory, rst select a station and then press the ‘PROGRAM’ (17) button to see ‘_ _’ appear on the LCD display.

• Press ‘PRESET’ key to choose the desired channel (e.g. channel 1) then press ‘PROGRAM’ again to save.

• Select another station and press ‘PROGRAM’ again, then press ‘PRESET’ to select channel 2. Press ‘PROGRAM’ again to save.

To access preset stations simply press the ‘PRESET’ button until the desired channel is found.

AM/FM Radio Operation

The 2395IR features an AM/FM PLL (phase locked loop) stereo radio and telescopic antenna for local AM and FM stereo reception.

To operate the radio:

1. Plug the unit in.

2. Set the FUNCTION selector to Radio.

3. Extend the telescope antenna.

4. Select AM, FM or FM Stereo reception band.

5. Use the Tuning buttons to select the desired station.

6. Adjust antenna for best reception.

Note: When tuning FM stereo stations the FM indicator will light when an FM stereo station is tuned in

continued on page 7

89.90 _ _

FM MHz

Memory Display

89.90 1

FM MHz

Memory Display

califone_2395IR_manual.indd 9 9/14/07 4:34:46 PM

Visit us online at califone.com

CD Function continued

CD Function

The CD player will accept both 12 cm and 8 cm discs and will read CD, CD-R and CD-RW formats.

• Before opening the CD door (18) the LCD will show dashed lines. Open the CD door and the LCD display will show ‘Open’.

Insert a CD, close the door and the LCD will display the number of tracks and total play time of the disc.

• Press the ‘PLAY/PAUSE button’ (19) to play the CD and the LCD display will ash while reading the disc.

Then it will show track 1 and the elapsed playing time.

• To Pause press the ‘PLAY/PAUSE’ button (19) while the disc is playing, the playing time will ash. Pressing the ‘PLAY/PAUSE’

button again will start the disc again from where it paused.

• To select a track to play, press the ‘SKIP FORWARD’ | (20) or ‘SKIP BACKWARD’ | (21) button either from ‘Stop’ or ‘Pause’.

Each press will change the track number by one.

• If the CD is playing, pushing and holding the ‘SKIP’ | button will advance through the current track until it is over, then

proceed to advance through the next track as long as the button is held down. Conversely, pushing and holding the

‘SKIP’ | button will scan in the reverse direction through the track currently playing and continue through previous

tracks as long as the button is held down.

• To stop playing the disc, press the ‘STOP’ button (22).

Repeat Playing

• To repeat one track, press the ‘REPEAT’ button (23) one time either while playing or in pause.

• To replay all tracks, press the ‘REPEAT’ button a second time either while playing or in pause.

• A third press of the ‘REPEAT’ button will cancel the repeat command.

continued page 8

———— — —

READING TOC AFTER READING TOC

45:06 1 1

TRACK

SEARCHING TRACK 1

-- : -- 1 1

TRACK

PLAYING TRACK 1

0 : 01 1

TRACK

ONE TRACK REPEAT (FLASHING)

4 : 05 5

TRACKREPEAT

califone_2395IR_manual.indd 10 9/14/07 4:34:46 PM

Visit us online at califone.com

CD Function continued

CD Function

Memory Programming

Up to 16 tracks can be programmed.

With the CD stopped press the ‘PROGRAM’ button one time. Select a track to play by pushing the ‘Skip

Forward’ | or ‘Skip Back’ | button. Push the ‘PROGRAM’ button again to enter another track to save in memory.

When nished, press the ‘PLAY/PAUSE’ button to start the program. Pressing ‘STOP’ at any time exits the Program function.

Note: When the CD door is opened all programming is cleared.

Random Play Function

Pressing the ‘RANDOM’ button (24) during CD play or stop condition will engage random play. Pressing again will cancel

the function. Note: If the CD has memory programmed, the random function cannot operate until the program is cleared.

Play Time Mode

Pressing the ‘PLAY TIME’ button (25) changes the time format on the LCD from elapsed time of each track to the total

time remaining on the CD.

Compact Disc Player Operation

The 2395IR Programmable Compact Disc Player plays both 12cm and 8cm CDs, CD-R, CD-RW without requiring an adapter.

Up to 20 tracks can be programmed for play.

Loading a Compact Disc

1. Lift to open the CD door and see “OPEN” on the LCD display.

2. Place a CD in compartment with label side up.

3. Press the CD door down to close.

Compact Disc Play

To play a loaded CD:

1. Turn power ON.

2. Set the FUNCTION Selector to CD.

To pause while playing CD

Press the PLAY/PAUSE button again. The pause indicator “II” will appear on the display. Press PLAY/PAUSE again to resume play.

To stop playing CD

Press the STOP button. The Display shows, “—”.

Note: When you press PLAY again the Player will return to the rst song. The Display will show “00” and then “01”.

To skip forward or backward from track to track during playback

Press the (SKIP |) button once and the next track will be displayed and begin playing. Press repeatedly to move

forward to the desired track.

Press the (SKIP |) button once to return to the beginning of the current track. Press repeatedly to skip back to earlier tracks.

Playback resumes from the selected track.

continued page 9

PROGRAM INPUT MODE

Pr:01 _ _

TRACKMEMORY

CHOOSE TRACK 4

Pr:01 04

TRACKMEMORY

PROGRAM INPUT COMPLETE

Pr:02 _ _

TRACKMEMORY

3. The LCD will show the number of tracks and playing time.

4. Press the PLAY/PAUSE button.

The CD Display will show the current track and playing time.

califone_2395IR_manual.indd 11 9/14/07 4:34:46 PM

Visit us online at califone.com

Cassette Function continued

CD Function continued

To search forward or backward to a particular point on a track during playback

Press and hold the (SKIP|) or (SKIP |) buttons to search forward or backward through the current track.

Playback resumes at the point you release the button.

Program Playback

Up to 20 tracks can be programmed for playback. To program a song sequence:

1. Press STOP rst if the CD is playing.

2. Press the PROGRAM button. The CD display will show P:01

3. Press the (SKIP>>) and or (SKIP<<) buttons to select the rst track to program.

4. Once the desired track is reached, press the PROGRAM button to enter the track number into memory.

5. Repeat steps 3 & 4 to program additional tracks.

6. Press the PLAY/PAUSE button to start programmed playback.

Note: The program will be erased when you press the CD PROGRAM button.

Repeat CD Selections

Repeat one or all programmed selections using the CD REPEAT button. Push the button once to replay any single selection. Push the

button twice to replay all programmed selections (in programmed order). Push

the button three times to clear the REPEAT function. “REPEAT ONE” or “REPEAT ALL” will appear on the CD PROGRAM DISPLAY when the

CD REPEAT button is pushed.

Dual Cassette Operation

The 2395IR features a cassette for playback and recording from radio, CD, cassette and microphone. The dual cassette decks

oer playback, continuous playback (Deck B to Deck A) and recording from tape, radio, microphone or CD on Deck A only.

Loading a Tape

To load a cassette tape, press the STOP/EJECT button (34) on Tape A or (35) on Tape B to open the cassette door. Insert tape with

playing side label facing you. Close the cassette door to lock the tape in position. Note: While Deck A is in playback mode, Deck B

must be stopped and not in PLAY or PAUSE mode for Deck A to playback.

Tape Playback

To play a loaded cassette tape:

1. Set FUNCTION button to TAPE

2. Press PLAY Deck A or B (38) (39)

3. Adjust VOLUME (7) (8)

4. Adjust TREBLE and BASS controls (9) (10) (11) (12)

To Stop Playback

Press the STOP/EJECT key (34) (35).

To Pause Playback

Press the PAUSE key (40) (41) all the way down to lock. To resume play, press the PAUSE key again, and release.

continued page 10

Cassette Function

califone_2395IR_manual.indd 12 9/14/07 4:34:46 PM

Indice

Altri manuali Califone Lettore multimediale portatile

Califone

Califone Spirit 1776 Manuale utente

Manuali Lettore multimediale portatile popolari di altre marche

Epson

Epson P3000 - Digital AV Player Dimensioni

VIETA

VIETA VM-HS247BK Manuale utente

Epson

Epson P6000 - Multimedia Photo Viewer Manuale utente

Apantac

Apantac Tahoma LE-4 Manuale utente

Polaroid

Polaroid PMP120-4 Manuale utente

Creative

Creative ZEN Vision Manuale utente

Mattel

Mattel Juice Box Manuale utente

Creative

Creative ZEN Vision Manuale utente

Denon

Denon HEOS Amp Manuale utente

Espow

Espow RM Manuale utente

Philips

Philips HMP3000 Manuale utente

Archos

Archos 604 - Digital AV Player Manuale utente

Aigo

Aigo MV5920 Manuale di istruzioni

Yoo Digital

Yoo Digital YOOMOVE 2401 Manuale utente

Cowon

Cowon iAUDIO CW200 Manuale utente

Kodak

Kodak mc3 Manuale utente

Shiro

Shiro VJ Manuale utente

Philips

Philips GoGear SA3085/02 Manuale utente
