Network Digital Video Recorder Operation Manual ( Vl.l

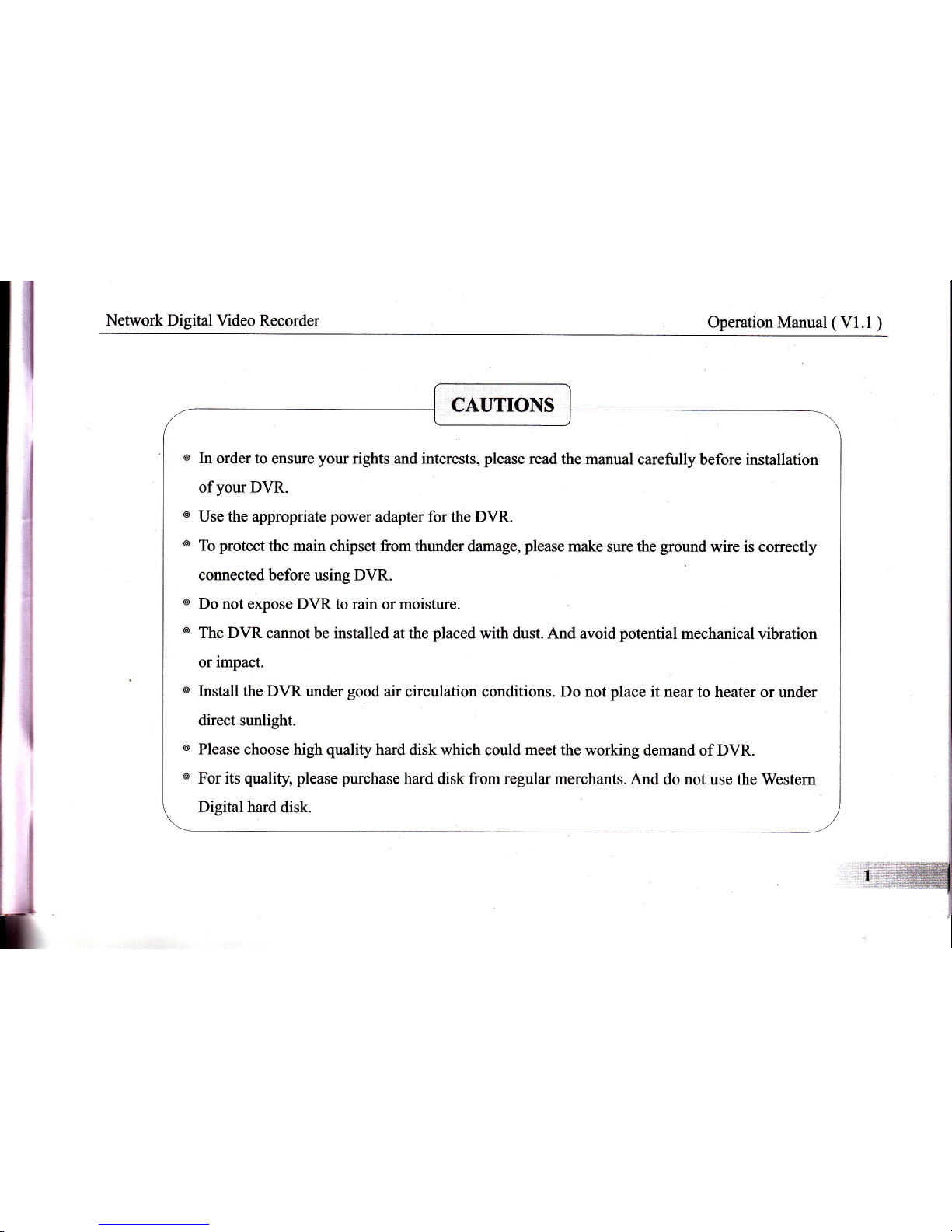

.CAUTIONS
o In order to ensure your rights and interests, please read the manual carefully before installation
of your DVR.
@ Use the appropriate power adapter for the DVR.
@ To protect the main chipset from thunder damage, please make sure the ground wire is correctly
connected before using DVR.
@ Do not expose DVR to rain or moisture.
@ The DVR cannot be installed at the placed with dust. And avoid potential mechanical vibration
or impact.
o Install the DVR under good air circulation conditions. Do not place it near to heater or under
direct sunlight.
o Please choose high quality hard disk which could meet the working demand of DVR.
o For its quality, please purchase hard disk from regular merchants. And do not use the Western
Digital hard disk.
,,:
Network Digital Video Recorder
I Before connecting to other facilities, please disconnect the F)wer supply and pull the power
plug out from the.Power socket'
, In case of any solid or liquid coming into the case, please disconnect the power supply
immediately. And the DVR can be reitarted only after being checked by qualified person'
o If the DVR is not in use for a long time, please disconnect the power supply and pull the
power plug out from the power socket'
o This is precise instrument. NO internal part can be repaired by the users' If default occurs'
it is necessary to ask qualified person to repair it or contact the dealer for the solution'
Operation Manual ( Vl.l
Network Digital Video Recorder Operation Manual ( Vl.l )
Chapter 1 Panel Introduction
1.1 Description of front panel
1.2 Description of rear panel
1.3 Instruction of installation '
I .4 Instruction of alarm connection
Chapter 2 Instruction of GUI
2.1 Poweron.............. ...
2.2 Power off
2.3 Livepreview
1.5 Instruction of remote control
2.5 System setup
Network' Digital \ftdeo Recorder Operation Manual ( V1.1)
2.15 User setup
2.16 User shift
2.17 Instruction of CMS
he
Network Digital Video Recorder Operation Manual ( Vl.1 )
@
Tlpe A front panel:
Tlpe B front panel:
Tlpe C front panel:
Network Digital Video Recorder
Type D front panel:
fipe E front panel:
Tlpe F front panel:
Operation Manual ( V1.1 )
Network Digital Video Recorder Operation Manual ( Vl.l
Status
indicator
POWER
HDD
LOCK
REC
PLAY
IR
SEQ
PTZ
NET
ALARM
It is red in running mode, it is green in standby mode. It is offin power offmode.
Hard drive LED indicator light. It will flash when the HDD is being used.
Lock LED indicator light. It is on in locking mode.
Record LED indicator light. It is on in recording mode.
Play indicator light. It is on in playback mode.
Remote signal receiver LED indicator light. It is on in remote control usable mode.
Channel sequence LED indicator light. It is on in channel sequence mode.
PTZ control LED indicator light. It is on inPTZ control mode.
Network LED indicator light. It is on in network connection mode.
Alarm LED indicator light. It is on when alarm happens.
lR Receiver oReceive signal from remote control.
Numberkey t-16
0/10 +
a) Press l-16 to select channel.
b) Press it once to input"0". Press it twice to input "10". Press it and other number
to input number 10 plus.
d) Press 1-9 to input password.
Ne nrork Digital Video Recordt )T Operation Manual ( Vl.l:
Recording ke1 oStart recording.
Playback/
pause HE"t- i"t" 'SEARCH' -enu, select the time schedule and press it to play thevideo,
Press it once again to stop playback.
Stop IPress it to stop recording ,when it's under recording;
press it to stop playback when it's rmder playback. Then it will go to "search menu";
Press it to view preset operation when it's under PTZ status'
Press it to enter into SEARCH menu.
Press it to make PTZ control.
Press it to enter into SEARCH menu-
Search G
PTZ PTZ
Backup BAK(COPY
Information INFO Press it one time to display the status bar on the top right of screen. Press lt twrce to
check the systems' information. Press it three times to check the log list.
Press it to cancel the operation or turn back to previous menu'
Press it to shift the channel automatically.
Exit ESC
SEQ SEQ
Audio AUDIO
Network Digital Video Recorder Operation Manual ( Vl.l )
Main menu MENU Press it to enter into main menu.
Spot output SPOT Press it to enter into spot setup.
LOCK LOCK Press it to lock the system or shift user.
Direction /
split/
confirm key
llv<>
<_l
a) [^l (') [. ] [ >] are directionkeys. Inmenumode, selectthe listedoptions
upward/downward/leftward/rightward; in PT Z control mode, control the dome
to rotate upward/downward/leftward/rightward. [*]l confirm the selection and
operation. b) [ ^ ] [.:l ['l could be Quad, nine-split-screen andl6-split-screen
key in live mode. c) [. I [ > I rewind and forward in playback mode. Change
the parameters value in menu mode.
+/- +/- Increase or decrease the data value.
Split key E
ffi
ffi
Press it in live/record/playback mode to change the screen into four-split screen.
Press it in live/record/playback mode to change the screen into nine-split screen.
Press it in live/record/playback mode to change the screen into sixteen-split screen.
Shuttle @Tum the shuttle to select the menu or control the speed of playback. For example
2x,4x, 8x .
USB port EE. For USB mouse or connect to USB disk to upgrade or backup.
i
J
I
