CAME BPT XTS 7 WIFI Series Manuale
Wifi touch-screen speaker video-intercom
XTS 7 WH WIFI
XTS 7 BK WIFI
XTS 7 WH WFBF
INSTALLATION AND CONFIGURATION MANUAL
EN
English
FB01262-EN
4
2
1
3
Page 2- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Full-touch speaker video-intercom for the X1 wall-
hung system.
Description of parts
Front view
1Signaling LED
2Speaker
3Touch-screen display
4Microphone.
Rear view
5Housing for the not-included Micro SD card (for
future use).
6Reset button. When pressed it reboots the device;
this operation DOES NOT require any deleting of pro-
gramming.
DESCRIPTION
GENERAL PRECAUTIONS
• Read the instructions carefully before beginning the installation and carry out the actions as specified by the
manufacturer.
• The installation, programming, commissioning and maintenance of the product must only be carried out by
qualified technicians, properly trained in compliance with the regulations in force, including health and safety
measures and the disposal of packaging.
• Before carrying out any cleaning or maintenance operation, disconnect the device from the power supply.
• Use this equipment solely for the its specifically intended purpose.
• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.
Cautionary issues on remotely controlling the device
Some features of the system may be managed by smartphones and tablet PCs, by using the corresponding apps.
For the system to be remotely controlled, the device must be connected to a home WiFi network with internet
access.
This type of system functions properly when:
- the device receives a high-quality WiFi signal
- there is a permanent connection established by your contract with the internet service provider. The connection
must support the data flow generated by the device and support VoIP,
- the smartphone or table PC on which the corresponding app is running does not block any VoIP apps.
remotely controlling the device via app means that the data trac consumption takes place over the
home network of the smartphone or table PC; the ensuing cost of said consumption is borne by the user.
5
6
7
8
ON OFF
Page 3- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

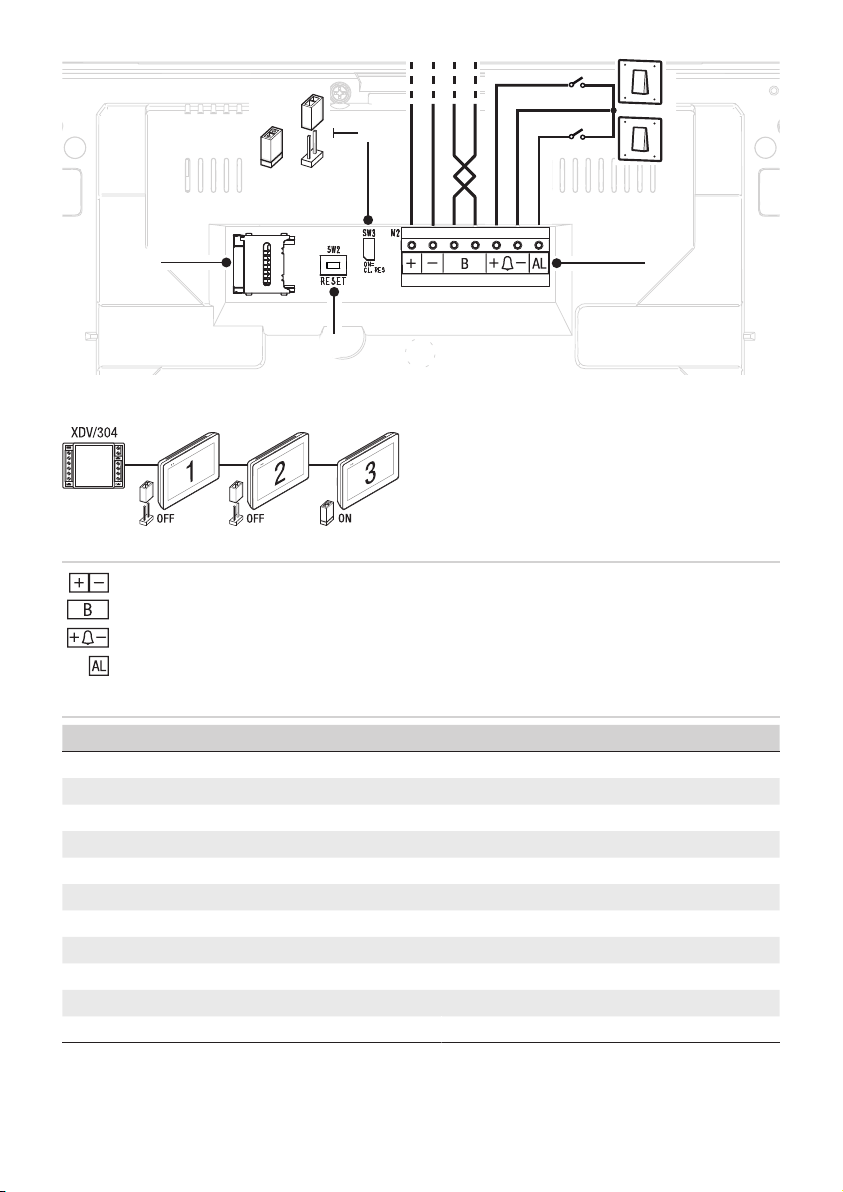

7End-of-line resistor. Set the bridge only on the last of the line's devices.
8 Function of terminals
Local power supply input
BUS-line input
Landing call input
Alarm input
Technical data
Type XTS 7 WIFI
local power supply (V DC) 14 to 18
Maximum draw (mA) 520
Current draw in stand-by mode (mA) 360
Stocking temperature °C -25 to +70
Operating temperature °C 0 to +40
Protection rating (IP) 30
Capacitative TFT Touch-screen Display (pixels) 1024 x 600
Standard wireless (IEEE) 802.11b, 802.11g, 802.11n
Wireless frequency filed (MHz) 2,412 - 2,472
Maximum transmission strength (dBm) 16
Wireless security WPA/WPA2-PSK, WEP
129 mm
24 mm
185 mm
H= 155 -165 cm
H= 125 -135 cm
1
83,5 mm
3
2
4
Page 4- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
INSTALLATION
5
Page 5- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
To make the device's installation more solid, use
the supplied screws and dowels to fasten the frame
to the wall.
Reinforced concrete
Supporting wall
Stone wall
Wooden wall
Plasterboard wall
Light-brick wall
Notes on installing indoor receivers connected to the WiFi network
Install the indoor receiver: away from any metal objects that may interfere with the signal, or from any devices
that generate magnetic fields. Install it in the same room as the router or have the least possible number of walls
separating the router and the indoor receiver.
If the place chosen for installing the indoor receiver is not easily reached by a suciently intense WiFi signal, we
suggest installing a signal regeneration processor which is easily bought on the open market.
Signal quality
Optimal
Good
Sucient
Insucient
La
La
Lb
La
Lc
1
VAS/101
LITHOS MTM VAS/100.30
VAS/101
Page 6- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
VCM/1D VCM/2D UTP/CAT 5 2x1.5mm2
La ≤ 100 m ≤ 100 m ≤ 100 m –
Lb – ≤ 100 m ≤ 50m * –
Lc ≤ 75 m – – ≤ 100 m
* Use a pair of wires for each single power-supply conductor.
Examples of installation
Installing four indoor receivers in one home.
The WiFi connection needs only to be active on one indoor receiver. The Apps are associated to the indoor
receiver that has an active Wifi connection.
Lc
La
L1 L2
Lb
Lb
Ld
LeLf
Lg
Lb
L3
3
1
2
MTM
VA/01
MTM MTM
MTM
VAS/101
VAS/101VAS/101VAS/101VAS/101
VAS/101VAS/101VAS/101
VAS/101
XDV/304
VAS/101 VAS/101
Page 7- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
A maximum of 5 Monitors can be connected enter/exit mode at each output of the XDV/304 distributor
Each single call can activate a maximum number of 8 devices.
Device installed in several homes with dierent types of power-supply units.
In a home where several indoor receivers are installed, the WiFi connection need only be active on one of
the receivers. The Apps are associated to the indoor receiver that has an active Wifi connection.
VCM/1D VCM/2D UTP/CAT 5 2x1.5mm2
La+Lb ≤100 m – ≤100 m –
Lc ≤75 m – – ≤100 m
L1, L2, L3 – ≤100 m – –
La + Lb + L1 (L2, L3) ≤150 m
La + Lb + Lc + Ld + Le + Lf + Lg + (L1, L2, L3)* ≤600 m
*In the count, only consider the longest distance among those measured from the indoor receiver to the power
supply unit.
MAX 4
MODEM
ROUTER
Lb
La
1 2
La
La
Lc
LITHOS VAS/100.30
XDV/304
Page 8- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Greatest number of devices that can be connected to the indoor receiver that has the active WiFi
connection
VCM/1D VCM/2D UTP/CAT 5 2x1.5mm2
La ≤ 100 ≤ m 100 ≤ m 100 –
Lb – ≤ m 100 ≤ m 50* –
Lc ≤ m 75 – – ≤ m 100
* Use a pair of wires for each single power-supply conductor.
Installed at a duplex home, where each home has a device
The Apps are associated to the indoor receiver that has an active Wifi connection.
Page 9- Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Mulmedia
Conguraon X2
CAME Connect
Network
Conguring the user interface
Automac door opener
Credenals
HomeBackInfo
19:02 Thursday
01 Feb 2018
Backdrops
Quick commands
IP video cameras
Video recording
Advanced sengs
Tones
Display
HomeBackInfo
19:02 Thursday
01 Feb 2018
SengsCCTV
HomeBackInfo
19:02 Thursday
01 Feb 2018
Advanced settings
This section requires specific
know-how in operating the vid-
eo-intercom system. Wrong set-
tings may cause partial or even
total malfunctions; that is why
the editing of some parameters
is allowed only after entering the
installer password; the default
password is 112233).
Scroll the list.
Select menu item B.
Select item A.
COMMISSIONING
Once the cables are laid and connected, program the essential function for operating the device.
Scroll the available pages.
B
A
1
Page 10 - Manual FB01262 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
DHCP
YES
Congure WiFi
Save
Stac
NO
Address MAC
DNS
Gateway
Netmask
IP address
Mode
Enabled
WiFi
Type of connecon
HomeBackInfo
19:02 Thursday
01 Feb 2018
Manual programming
Send SN
HomeBackInfo
19:02 Thursday
01 Feb 2018

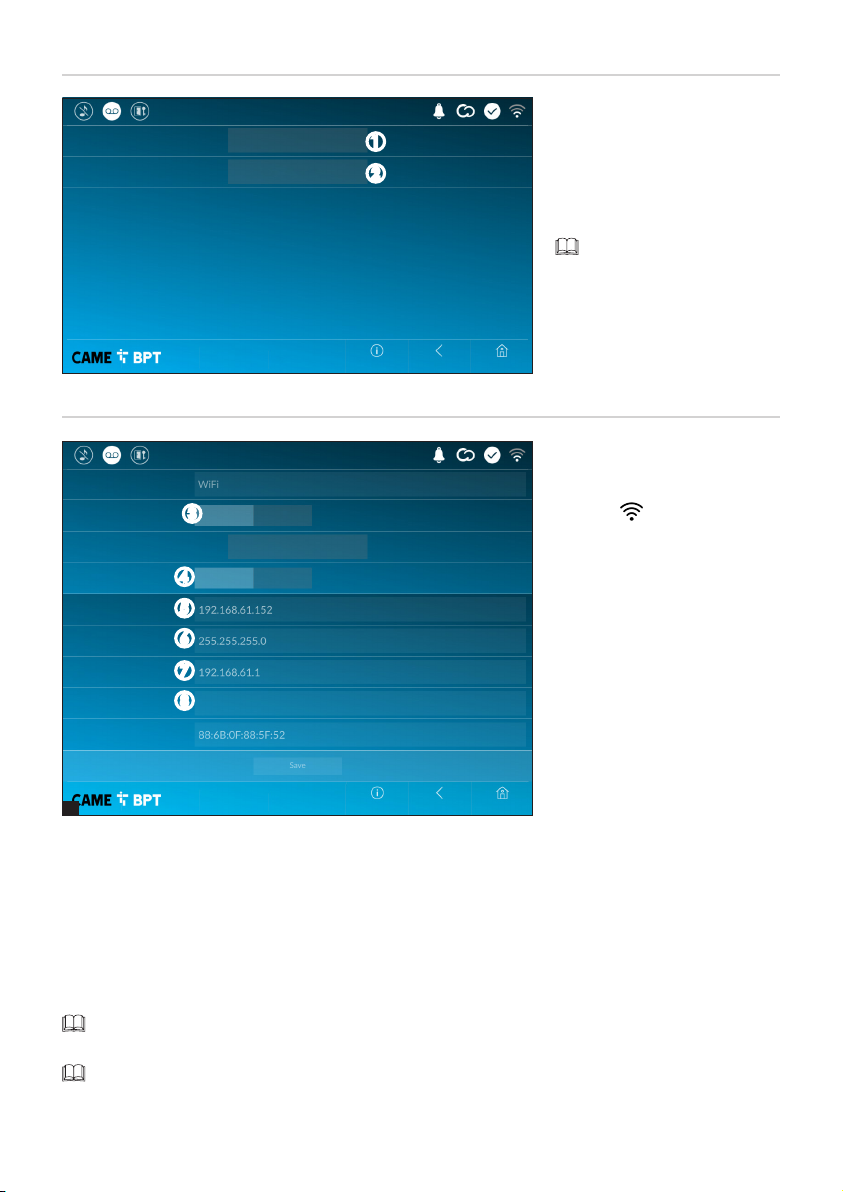

CThis button is for enabling WiFi
communication.
This icon shows that the WiFi
connection is active, enabling the
network-settings sections below.
DLets you choose the type of ad-
dress from:
DHCP
The device's IP address is as-
signed by the DHCP server; if
there are no special needs, this
mode lets you continue with the
settings without adding any ad-
ditional data.
Static
The device's IP address is manually assigned.
EIf you have chosen a static IP address, enter the device's IP, which must belong to the same subnet as that of
the router and of the other connected devices.
FIf the netmask is dierent from the default one, provide the proper netmask.
GProvide the default gateway for your network.
HEnter a valid DNS address to have the CAMEConnect connection (for example, 8.8.8.8.).
If a DHCP server is also present, the static address selected must not be among those included in the
DHCP pool.
For devices configured as a Master it is advisable to assign a static IP address. Instead if the address is
generated by a DHCP server, check that the IP address is assigned on the basis of the MAC ADDRESS of the
device or that the lease time is very high.
Network
A This button is for sending the
SN (serial number) to the Pcs/Xip
software during the programming
steps.
B This button takes you to manual
programming of the device.
The complete manual pro-
gramming procedure for the call
is printed in the literature that is
issued with the indoor receivers.
Configuration X2
A
B
C
D
E
F
G
H
