FAST KIT
Installation Instructions
FAST-P, Pair of gates automation kit
Kit consists of :
2 x fast motors 240V
1 x built-in control panel 240V
1 x radio receiver
1 x tuned antenna
2 x remote control handsets
1 x pair safety photocells
1 x flashing “in movement” light
Full installation guide
FAST-S, Single gate automation kit
Kit consists of :
1 x fast motor 240V
1 x built-in control panel 240V
1 x radio receiver
1 x tuned antenna
2 x remote control handsets
1 x pair safety photocells
1 x flashing “in movement” light
Full installation guide
UNITED KINGDOM LTD.
1
LOCK
UNLOCK
RG58
RX
TX
LOCK
UNLOCK
CAME
Standard installation
1
1
3
2
45 7 7
INTRODUCTION

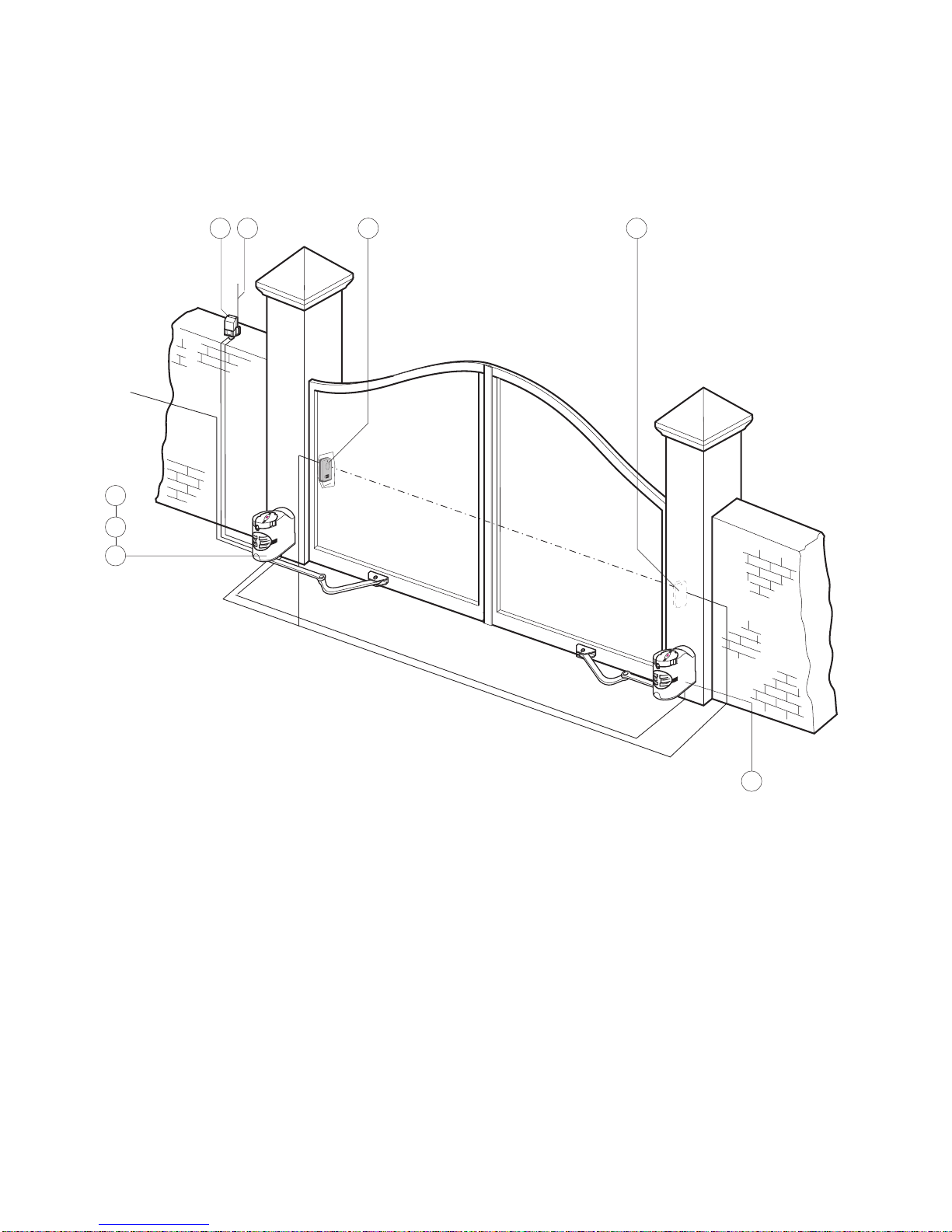

These instructions will show you how to install a FAST gate kit to a pair of gates.
Please read these instructions and diagrams carefully before starting any work.
Installation Type
1 - Gear Motor
Accessories:
2- Control panel
3- Radio receiver
4- Antenna
5- Flashing light indicating door movement
7- Safety photocells
UNDER NO CIRCUMSTANCES SHOULD THIS EQUIPMENT BE OPERATED UNLESS FITTED TO A GATE.
FAILURE TO COMPLY WILL INVALIDATE THE GUARANTEE.
2
INSTALLATION INSTRUCTIONS
CONTENTS
1) Stage 1:- Civil & Mechanical Section Page
1.1 PRE-INSTALLATION CHECK 3
1.2 MOUNTING THE MOTOR BASE PLATE 4
2) Stage 2:- Wiring & Electrical
2.1 BASIC CABLE LAYOUT 6
3) Stage 3:- Installation Section
3.1 INSTALLING THE MOTORS 8
3.2 INSTALLING THE DRIVE ARMS 9
3.3 ADJUSTING THE OPEN & CLOSED CAMS 10
4) Stage 4:- Wiring the Motors
4.1 ELECTRICAL CONNECTIONS TO THE ZF1 BOARD WITH PAIR OF GATES 12
4.2 ELECTRICAL CONNECTIONS TO THE ZF1 BOARD WITH SINGLE\ GATE 13
4.3 ELECTRICAL CONNECTIONS 14
5) Stage 5:- Commissioning the control Panel
5.1 INITIAL WIRING & CONTROL PANEL SETUP 16
5.2 OPENING & CLOSING THE GATES 17
5.3 CONTROL PANEL ADJUSTMENTS 18
5.4 AUTOMATIC CLOSE & SAFETY PHOTOCELLS 19
5.5 PROGRAMMING THE REMOTE CONTROLS TO THE CONTROL PANEL 20
5.6 CODING THE ADDITIONAL REMOTE 21
5.7 FINAL ASSEMBLY 22
6) Technical Information
7.1 ELECTRICAL CONNECTIONS 24
7.2 FUNCTION SELECTIONS 25
7.3 TECHNICAL DESCRIPTION - ZF1 CONTROL PANEL 25
7.4 MOTHERBOARD 26
7.5 ADJUSTMENTS 26
7) Troubleshooting Guide 27
8) Contact Information
“Time marches on but Came automation equipment stands the test of time...”
3
1.1 - Requirements
EXTERNAL DIMENSIONS AND OPERATING LIMITS
BEFORE INSTALLING...
Before proceeding with the installation of the automation, check the following:
- the structure of the door must be sufficiently sturdy, the hinges must be efficient and there must be
no friction between fixed or mobile parts;
- the path of the electrical cables must be made according to the control and safety requirements (see
the system type);
- there must be a centre stop firmly secured in the ground for the gates to close onto to prevent the
gate overextending,
Width of gate wing Weight of gate wing
1 m 300 Kg
1,5 m 250 Kg
2 m 215 Kg
2,3 m 200 Kg
194 mm 218 mm
245 mm
Opening angle
A B
90° 137–210 0
90° 137–205 50
90° 137–200 75
90° 137–195 100
90° 137–190 125
90° 137–185 150
90° 137–180 175
90° 137–175 200
110° 180–210 0
110° 200–205 50
Hinge
Mechanical stop
Pilastro
Pillar
Piller
Pleifer
Pilar
430A
B
330
330
i
i = 240 mm. max
with 90° opening angle
Pillar
4
1.2 - Mounting the Motor Base Plate
Using suitable anchor bolts or chemical resin for brick pier securely mount the motor plate to the brick
pier. For wooden posts it is advised to fix the motor plate to the post. A threaded bar should be placed
all the way through the post then bolted.
Use M8 screws and ø14 screw anchors to mount the base plate on the pillar. Be sure to respect the
100mm minimum distance from the pavement. Attach bracket “A”to the gate wing (use M6 screws or
welds). Be sure to respect the offsets of 430mm and 68mm.
14 14
14 14
14
Base plate
Brac et “A”
M8M8
M8M8
M8
M6M6
M6M6
M6
Front view
430 mm
100 mm min.
68 min.
5
END OF INSTALLATION STAGE 1
BEFORE STARTING STAGE 2 - Wiring and Electrical
PLEASE CHECK THAT YOU HAVE CORRECTLY:
Ref Page
1. Checked Requirements 1.1 3
2. Mounted Motor Base Plate 1.2 4
NOW STAGE 1 IS FULLY COMPLETED YOU ARE READY TO BEGIN
STAGE 2 OF YOUR FAST AUTOMATION KIT INSTALLATION.
6
STAGE 2
WIRING AND ELECTRICAL
2.1 - Basic Cable Layout
The power supply to the control panel should be live and protected in accordance with the 16th edition
electrical regulations. The supply should be rated at a minimum of 6 amps.
When installing low voltage cable around the gateway it is advised to put all low voltage cable in either
ducting or alkathene piping. All cable jointing should be carried out above ground.
All Came accessories can be wired 0.2m stranded cable (burglar alarm type). The tuned antenna
should be wired with coaxial cable (RG59).
Tuned antenna
Coaxial cable
4 Core SWA 1.5m
Low voltage
Mains power
2 core
1mm
Flashing light
Safety
photocells
7
END OF INSTALLATION STAGE 2
BEFORE STARTING STAGE 3 - Installation
PLEASE CHECK THAT YOU HAVE CORRECTLY:
Ref Page
1. Installed Basic Cable Layout 2.1 6
NOW STAGE 2 IS FULLY COMPLETED YOU ARE READY TO BEGIN
STAGE 3 OF YOUR FAST AUTOMATION KIT INSTALLATION.
8
STAGE 3
INSTALLATION
3.1 - Installing the Motors
Open the lock cover cap (1). Push the key in and turn clockwise (2). Raise the cover, loosen the
3.9x13 screw and remove the cover from the gearmotor unit (3).
Insert the gearmotor in the base plate, align with the 4 holes and secure it with the two M8x90 bolts
and nuts provided.
(1) 3,9x133,9x13
3,9x133,9x13
3,9x13
(1) (2) (3)
M8x90M8x90
M8x90M8x90
M8x90
M8M8
M8M8
M8
(4)
9
3.2 - Installing drive arms

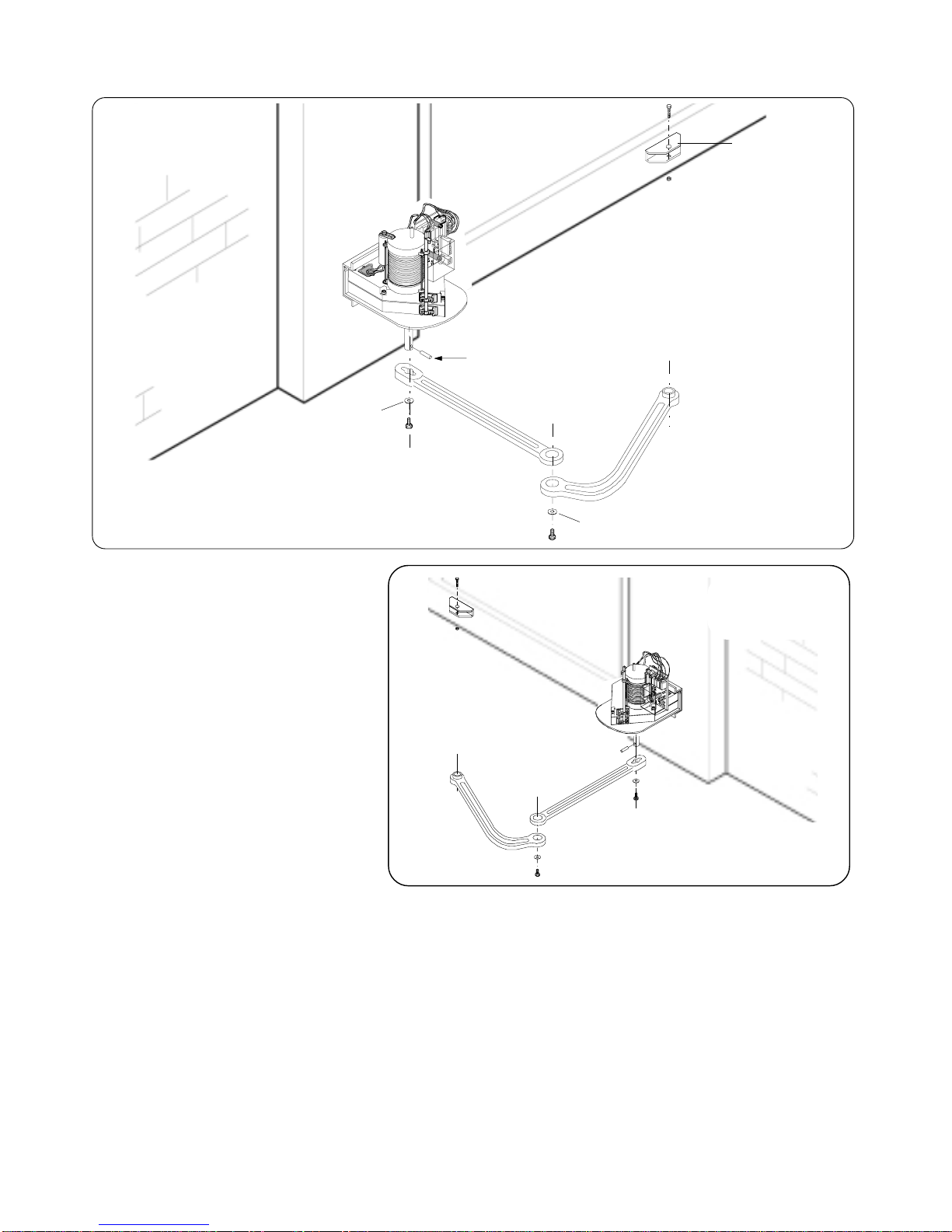

Insert the Ø10x14 pin and the straight arm into the shaft of the gearmotor and secure it with the
M10x14 screw and 10x35 washer. Lubricate the pin of the straight arm. Join and secure the two arms
with the M6x10 screw and 6x24 washer. Release the gearmotor and fix the curved arm to the bracket
“A”with the M12x40 screw and the M12 nut, checking it is free moving. For application on the right-
hand side see fig.2.
M6x10M6x10
M6x10M6x10
M6x10
M12x40M12x40
M12x40M12x40
M12x40
M12M12
M12M12
M12
6x24 6x24
6x24 6x24
6x24
10x35 10x35
10x35 10x35
10x35
M10x14M10x14
M10x14M10x14
M10x14
Pin
10x40
Bracket A
Fig. 2
