Operating Instructions
CN-780 / CN-782
2EN
Hints
Produced by IMC CAMOS GmbH
Copyright © 2007 IMC CAMOS GmbH
Printed in Korea
All rights reserved
Subject to change without prior notice. All
product names might be brands or registered
trademarks. All rights reserved. Reprint, nor in
extracts, is not permitted without our express
written approval.
EN 3
Content
2 Hints
3 Content
4 Caution
4 Warning
5 Components
6 Controls
7 First Steps
7 Power on
7 Stand-by
7 Battery operation
7 DC operation
7 Installation (Quick)
7 Installation (Advanced, optional)
8 Launcher Menu
9 Play Back of Video Files
10 Play Back of Music
11 Photo Album
12 Play Back of an External A/V Source
13 Connecting a Rear View Camera (Option)
14 Compass
15 Settings
16 Volume and Brightness
17 Power Settings
18 Start Settings
19 Factory Settings
20 Calibration
21 Time Zone
22 Language
23 System Information
24 Specication
4EN
Caution Warning
WITH RESPECT TO TRAFFIC SAFETY AND
LOCAL REGULATIONS YOU MAY NOT ACTI-
VATE THIS DEVICE WHILE DRIVING. PLEASE
PREPARE DEVICE BEFORE DRIVING.
Do not change any settings or input data while
driving. Please stop or ask a co-driver to do this.
As driver you must focus on trafc.
ALWAYS KEEP AN OVERVIEW
This product is a perfect support tool for your orien-
tation in unknown terrain. Anyhow more important
is your discernment as driver. Do not rely solely on
technical tools.
TRAFFIC REGULATION
Local trafc regulations, laws and trafc signs have
always priority over announcements of the naviga-
tion software.
PLEASE FOLLOW THE HINTS BELOW TO
PROTECT YOUR HEALTH.
Do not open! Hazardous electrical
parts inside!
In case of defect please turn off and
contact your local dealer.
Run this device on 12V only. It is not
constructed for 24V!
To obtain maximum life time, run this
device in optimal temperature.
The quality of the GPS signal depends
on various factors. Please note that
incidental variation of signal strength
is normal.
This device uses a SD card. Treat this
card with maximum care, otherwise
you may risk complete loss of data.
For cleaning of the screen do not use
any liquids. A soft cloth is enough.
Sharp objects may damage the
touch screen. Please operate it only
with your nger tips or special touch
screen pen.
EN 5

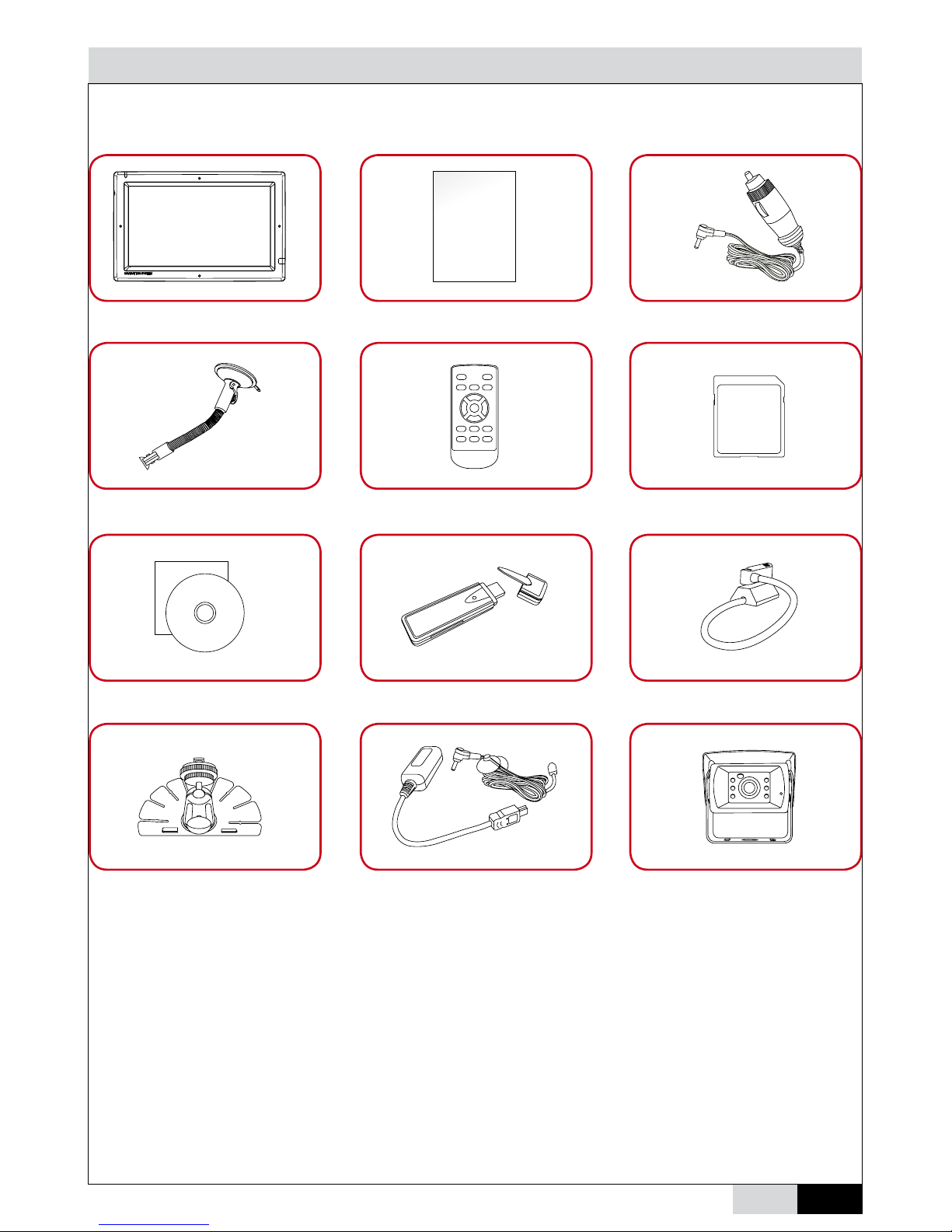

Components
Please check, if your box is complete
INSTRUCTION MANUAL
Navigation
System
Navigation Device Manual 12V Power Cord
Gosse Neck CL-9 Remote Control SD Card
Navigation Software USB SD-Card Reader Multi Cable
Stand CL-5 TMC Receiver (optional) Rear View Camera (optional)
Illustrations might be symbolic. The functionality of the navigation software is explained in separate
manual on CD/DVD.
6EN

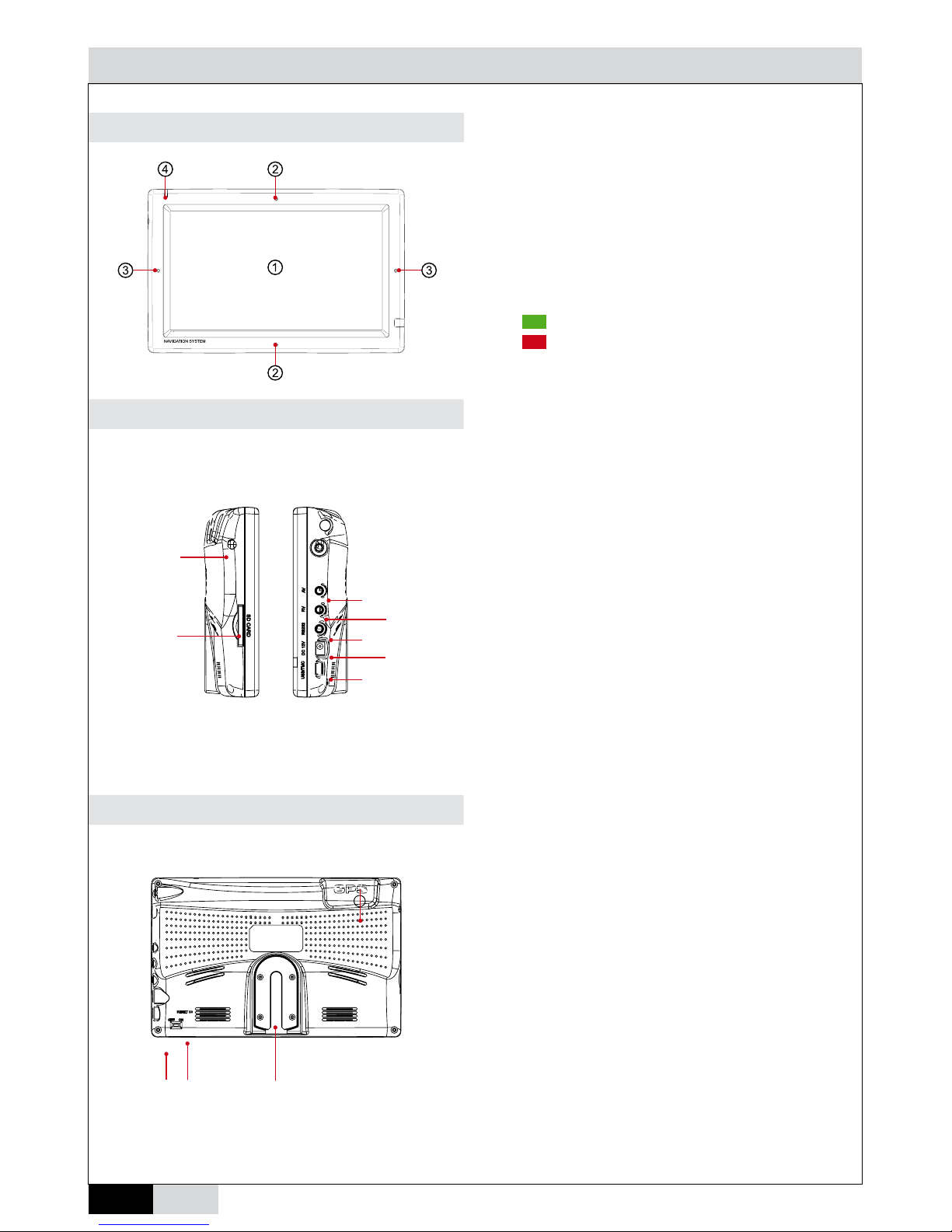

Controls
Front View
①Touchscreen:
Control of the complete system
②Vertical sensor buttons:
Increase/reduce volume
③Horizontal sensor buttons:
Increase/reduce brightness
④Charge of battery:
Battery completely charged
Battery is charging
Side Views
①AV:
3,5 mm input for Audio/Video
②RV:
3,5 mm input for rear view camera
③RS232:
3,5 mm serial interface
④DC12V:
For power supply 12 V DC
⑤USB/TMC:
For connection with PC or for use with TMC
module.
⑥Standby:
The current mode will be stored.
⑦SD card reader
Back View
①RESET:
Device will be resetted after system freeze.
②On/Off switch:
Internal battery will be turned off.
③External GPS antenna:
MCX-connector for patch antenna.
④Mounting:
Guidance for mounting bracket.
⑤
⑥
⑦
①
②
④
③
①② ④
③
EN 7

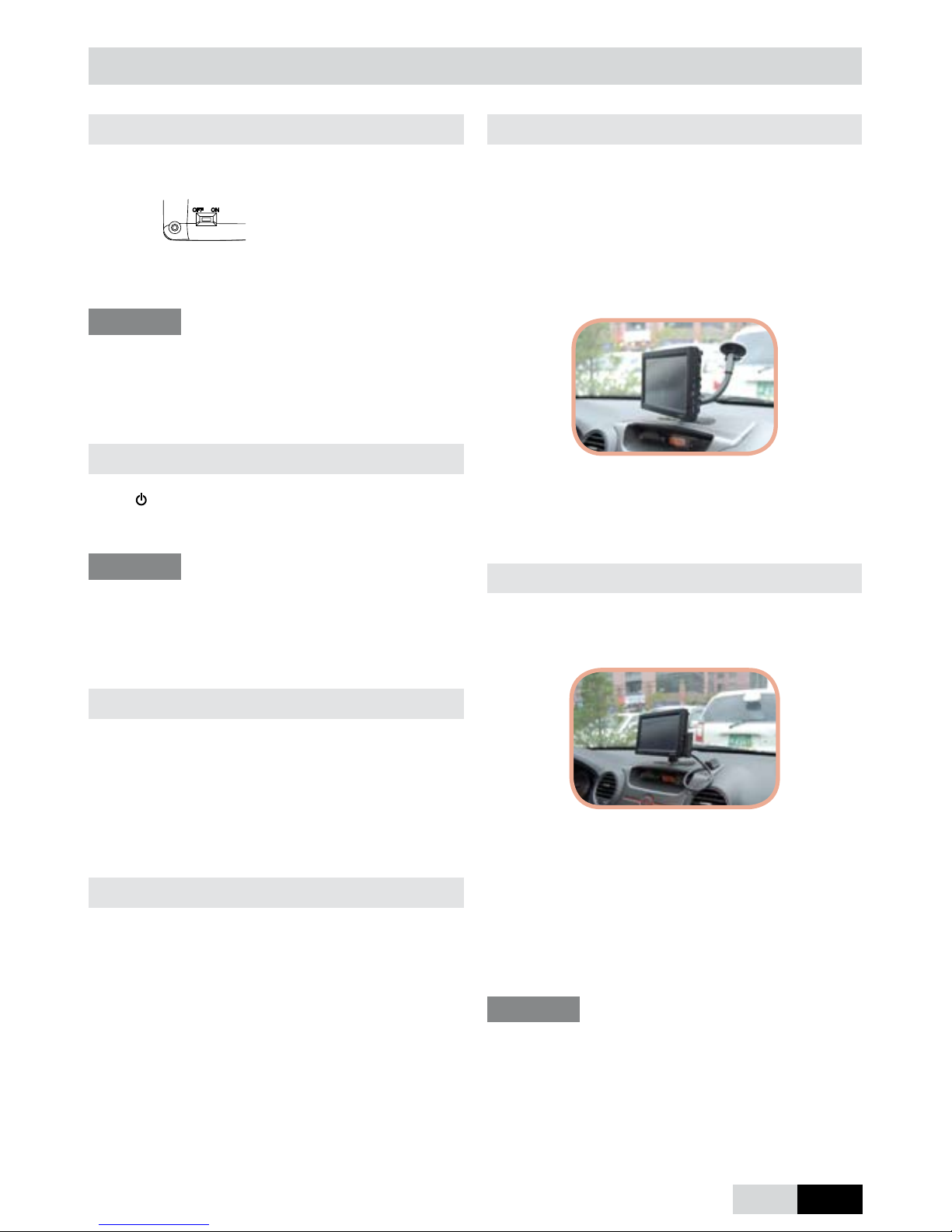

First Steps
Power on
Turn on the device on the backside (ON).
System will start automatically.
HINT
In case of non-usage for a longer period, it is rec-
ommended to turn off the device to avoid total dis-
charge of the battery.
Stand-by
Press to send the system to sleep mode or to re-
activate.
HINT
In sleep mode the power consumption will be re-
duced, but charging of the device battery is still
working. So the car battery is used.
Battery operation
While operating the unit without external power sup-
ply, the sensor indicator lights will be switched of
and the background light will be reduced to save
power. You can use the settings to setup further
power saving options.
DC operation
Connect the unit with the 12 V cigar jack of the vehi-
cle. The internal battery will now be charged.
Installation (Quick)
There are different ways to install the unit in your
vehicle.
The easiest way is to use the goose neck with suc-
tion cup and to power the unit with the spiral cable
to the cigar jack. So you may install and use the
system within few minutes.
The optional TMC module with one-wire antenna
is placed onto the dash board.
Installation (Advanced, optional)
The taped socket CL-5 and the multi cable will en-
able you to install the unit without visible cables.
All connectors and cables remain behind the dash
board, which will keep your interior clear. In this
case the TMC module can be installed invisible.
Under certain conditions the reception quality of the
one-wire antenna might not be sufcient. A y-adapt-
er that will be put between car antenna and car hi
is available at well sorted stores.
HINT
Please establish electric connections only when
unit is switched off.
8EN

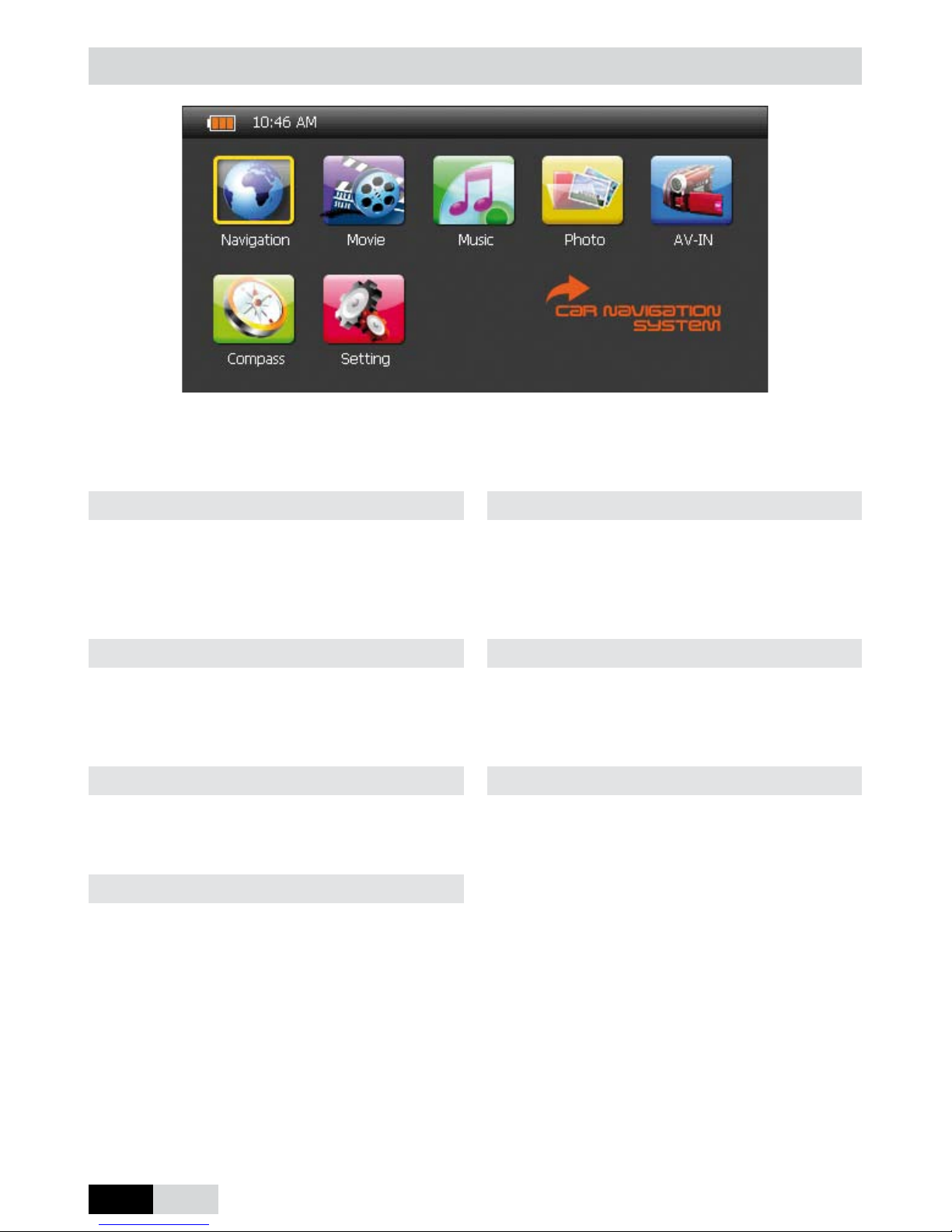

Launcher Menu
After booting the launcher menu will appear. From
here you may start any available function.
Navigation
The functionality of the navigation software is de-
scribed separately. Manuals are available on CD/
DVD.
Movies
Play digital movie clips or recorded movies from SD
card.
Music
Playback of digital music.
Enjoy your holiday pictures directly where you are.
Best for perfect image control.
AV-IN
If an external A/V source or a rear view camera is
connected, please use this function for viewing.
Compass
With the help of the GPS signal you can use this
function as electronic compass or speedometer.
Settings
Use this function to adopt the system to your
needs.
EN 9

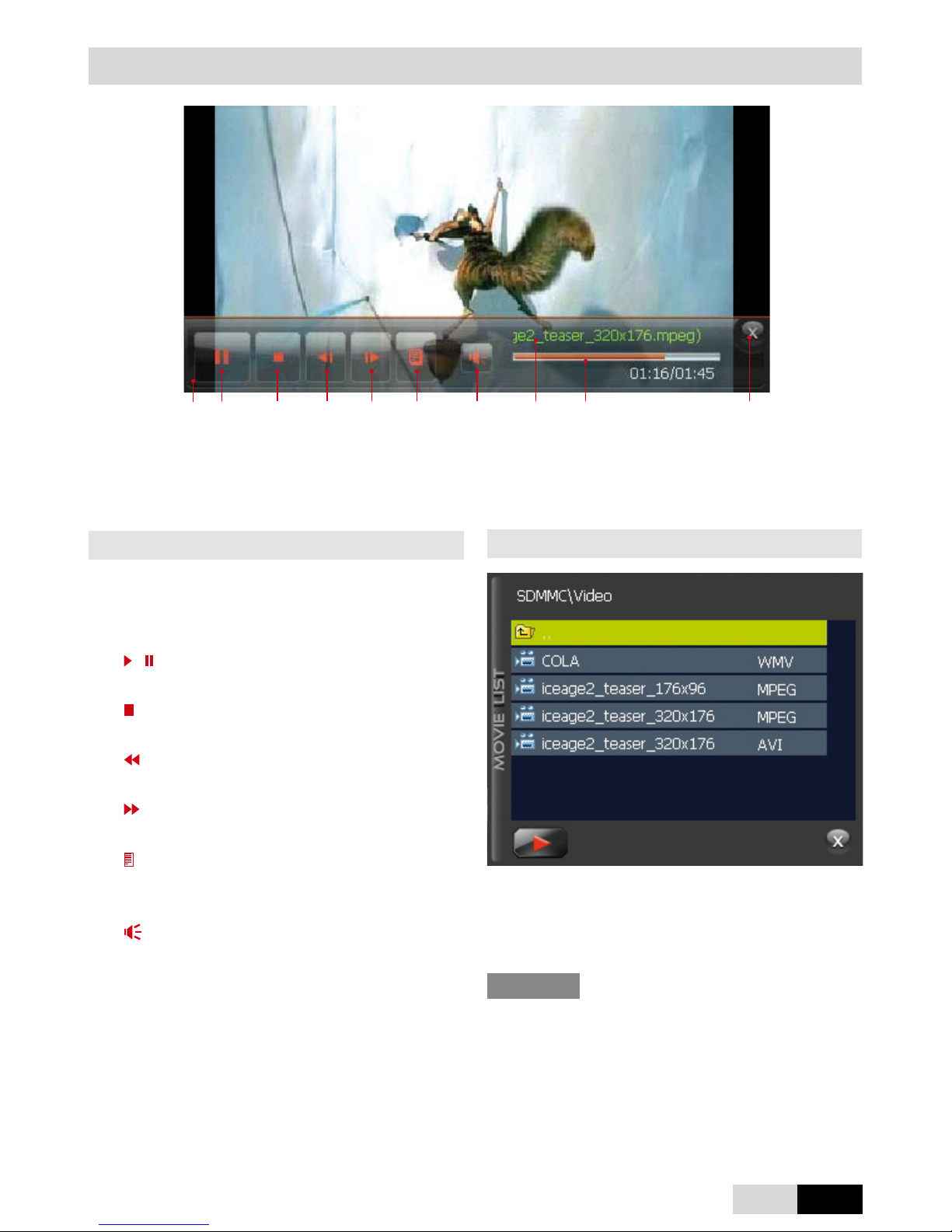

Play Back of Video Files
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
The Video Player enables you to play back mov-
ies on SD card. It is compatible to various formats/
codeces.
Display
①Taskbar:
disappears automatically at play back,
pops up after touching the screen.
②/
Start/pause of play back
③
Stop
④
Jump back to last video le.
⑤
Jump forward to next video le.
⑥
With the le listing you may select your video
clip..
⑦
Mute on/off without changing the basic volume
settings.
⑧Title Information:
Song information scroll continuously, i.e. title,
le name, size, etc.
⑨Progress Bar:
This bar shows the current play back position
of the video le. You may use it for rewind and
fast-forward.
⑩Exit:
Return to main menu.
File Listing
You may move through the le structure of the SD
card like a computer.
Click on the le will start the play back.
HINT
The play back of movies during driving can affect
your concentration. Please be aware that safety
comes rst and refer to local laws.
10 EN

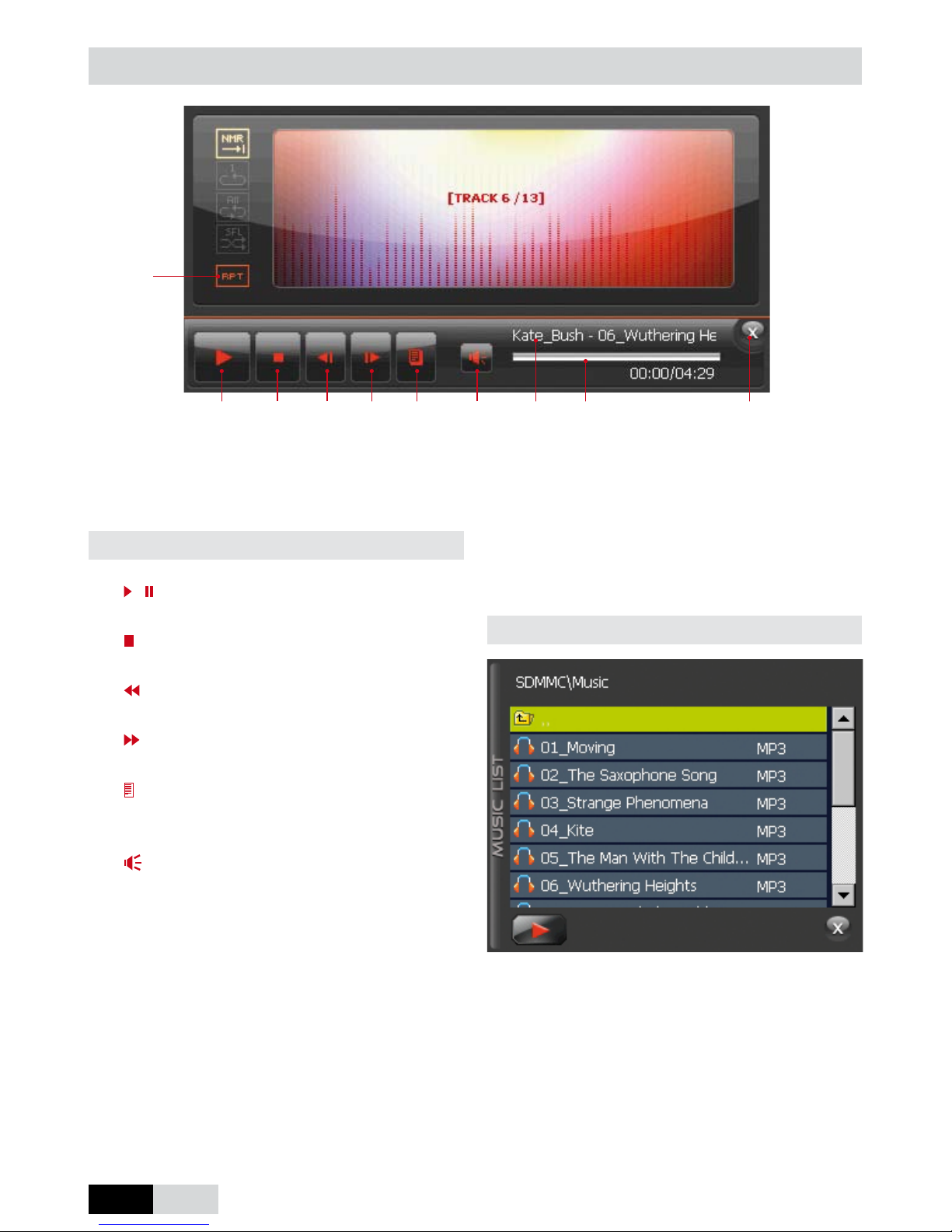

The Music Player enables you to play back music
les on SD card. It is compatible to various formats/
codeces.
Display
①/
Start/pause of play back
②
Stop
③
Jump back to last video le.
④
Jump forward to next video le.
⑤
With the le listing you may select your video
clip..
⑥
Mute on/off without changing the basic volume
settings.
⑦Title Information:
Song information scroll continuously, i.e. title,
le name, size, etc.
⑧Progress Bar:
This bar shows the current play back position
of the video le. You may use it for rewind and
fast-forward.
⑨Exit:
Return to main menu.
Play Back of Music
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
⑩RPT
Select play back mode
NMR
1
ALL
SFL
Each title will be played once
The current title will be repeated
All titles will be repeated
Shufe play back.
File List
You may move through the le structure of the SD
card like a Computer.
Click on the le will start the play back.
⑩
