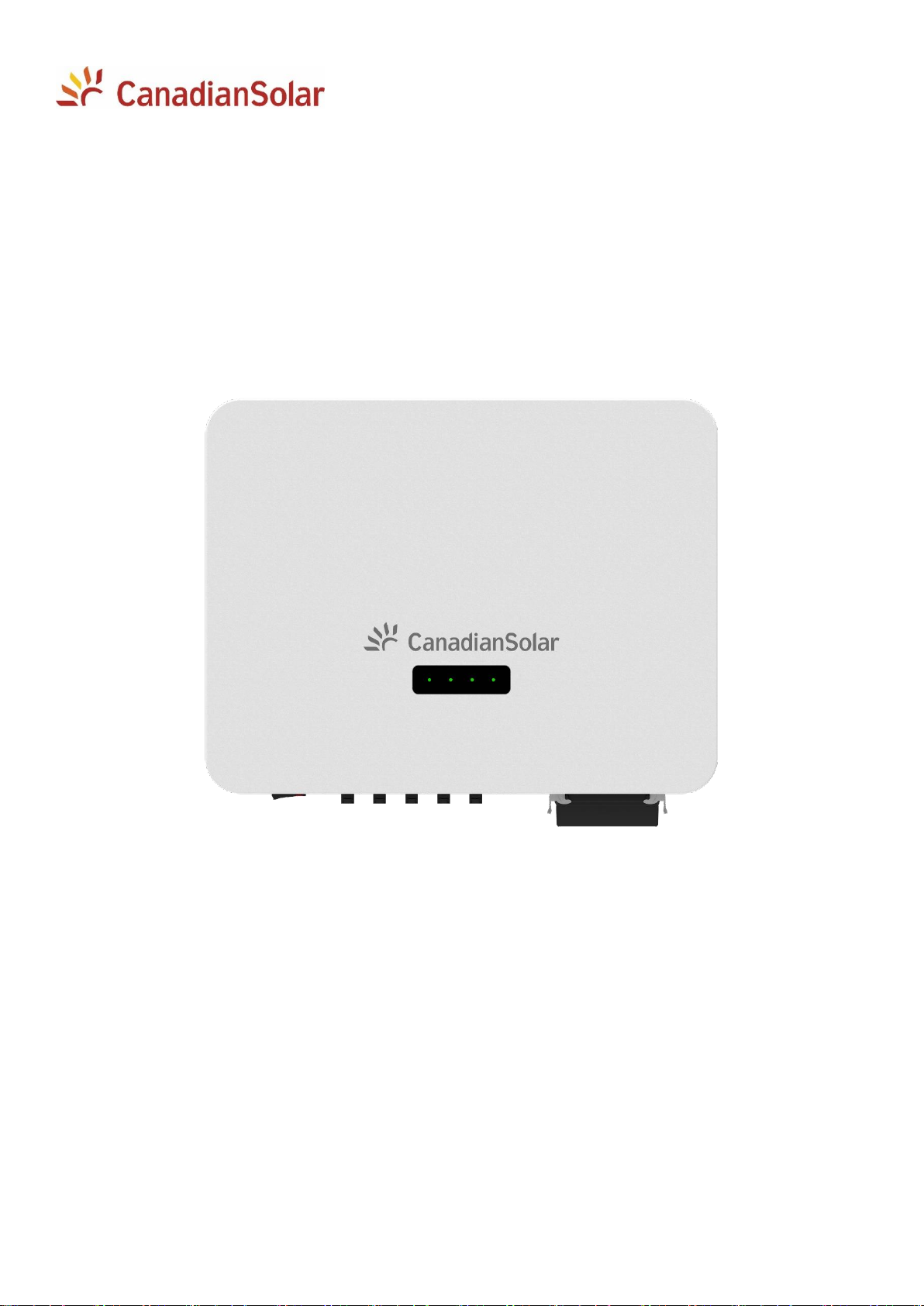

CanadianSolar CSI-40K-T4001A-E Manuale utente

CSI-40K-T4001A-E

CSI-50K-T4001A-E

CSI-60K-T4001A-E

PV Inverter Quick Installation Guide

（Part No: 91000208; Release Date: May, 2023）

1/ 17

1 About This Guide

1) This guide only applies to the following inverters：CSI-40K-T4001A-E，CSI-50K-T4001A-E，CSI-60K-T4001A-E.

2) This instruction only provides an overview of the installation of the above inverters

3) Due to product version upgrade or other reasons, this guidance will be updated irregularly. Under no circumstances can

this guide replace the user manual and the safety instructions on the product.

4) Please read the user manual and related standard specifications carefully before performing any operation on this series

of products. You can scan the QR code on the left side of the device or at the end of this guide to obtain an electronic

copy of the manual。

5) All operations on this series of products must be completed by professional technicians. Professional and technical

personnel must be specially trained, read user manual, master the safety matters related to operation, and be familiar

with local standards and electrical system safety specification.

6) Before installing the products, please check whether the products are complete, consistent with the order, and whether

there is obvious damage. If there is any abnormality, please contact the local dealer or CSI Solar Co., Ltd.

2 Product Introduction

3 3

CSI-40K-T4001A-E

AC OUTPUT

COM.-1

COM.-2

COM.-3

PV-1

PV-2

PV-3

MPPT-2

PV-4

PV-5

MPPT-3

PV-6

MPPT-1

DO NOT DISCONNECT U NDER LOAD!

OFF

DC SWITCH

8 7 10 11 12 9 6

2/ 15

CSI-50K-T4001A-E

AC OUTPUT

OFF

DC SWITCH-1

DC SWITCH-2

COM.-1

COM.-2

COM.-3

PV-1

PV-2

PV-3

MPPT-2

PV-4

PV-5

MPPT-3

PV-6

PV-7

MPPT-4

PV-8

MPPT-1

DO NOT DISCONNECT UNDER LOAD!

8710 11 12 9 6

CSI-60K-T4001A-E

AC OUTPUT

PV-1

PV-2

PV-3

MPPT-2

PV-4

PV-5

MPPT-3

PV-6

PV-7

MPPT-4

PV-8

PV-9

MPPT-5

PV-10

MPPT-1

DO NOT DISCONNECT UNDER LOAD!

OFF

DC SWITCH-1

DC SWITCH-2

COM.-1

COM.-2

COM.-3

8 7 10 11 12 9 6

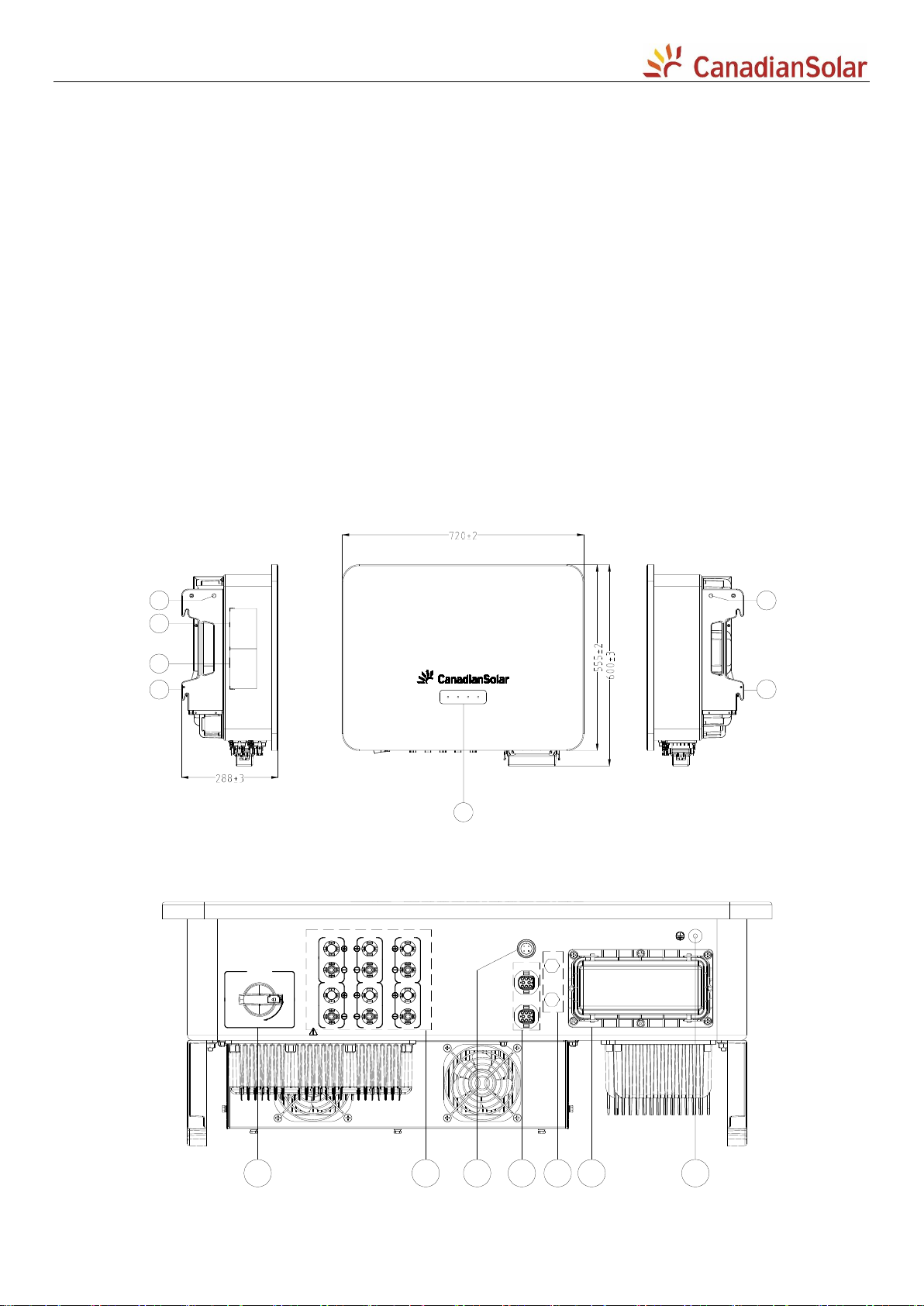

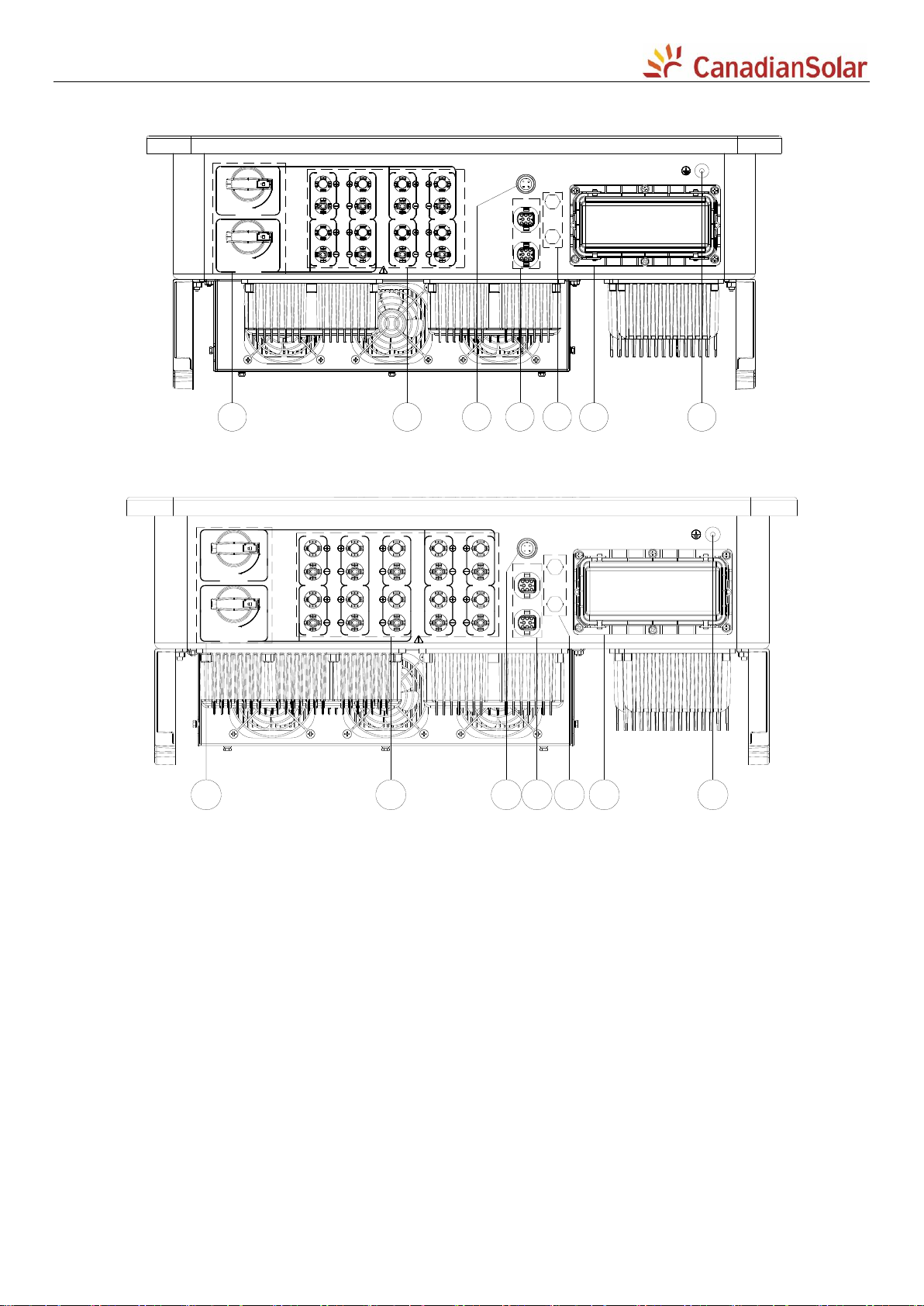

FIG 2-1 Product introduction (The picture is for reference only)

1. LED indicator panel

7. PV input connectors

2. Side handles and mounting ears

8. DC disconnect switch

3. M12 holes for lifting eyes

9. Cable gland for AC output

4. Rating label

10. Cable gland for wireless communication

5. Warning label

11. Cable gland for communication

6. Additional grounding point

12. Breather valve

3 Installation Environment Requirements

1) Do not install the inverter on the structures constructed of flammable, thermolabile or explosive materials.

2) Ensure the inverter is out of children's reach.

3) The ambient temperature should be between -30℃~ 60℃.

4) The humidity of the installation location should be below 100% without condensation.

5) Do not install the inverter outdoors in salt, sulfur or other corrosive areas.

6) Prevent the inverter from direct exposure to sun, rain and snow.

7) The inverter should be well ventilated. Ensure air circulation.

8) Never install the inverter in living areas. The inverter will generate noise during operation, affecting daily life.

9) Install at at an appropriate height for ease of viewing LED indicators and operating switches.

3/ 15

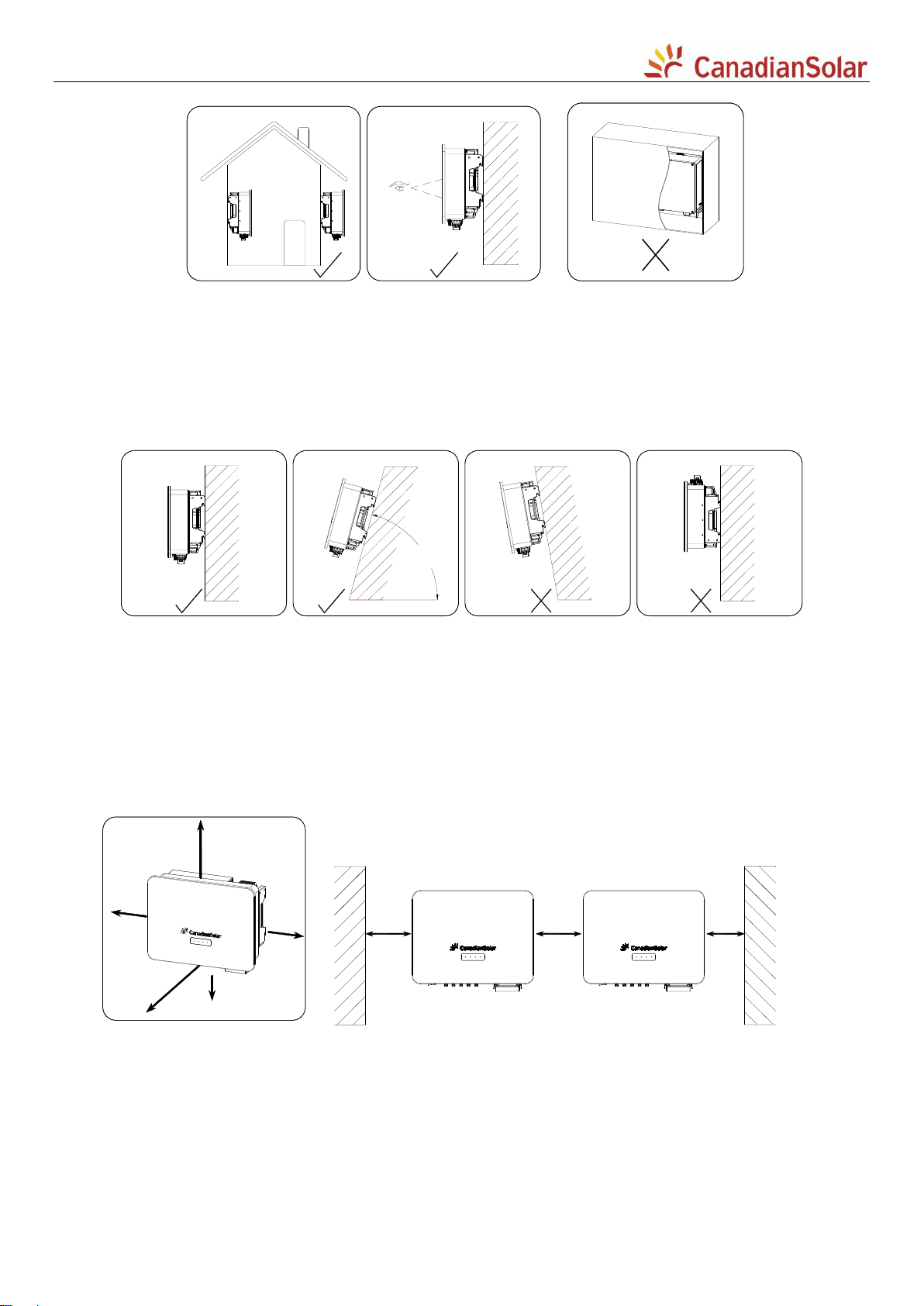

FIG 3-1 Installation site

3.1 Carrier Requirements

Min. load bearing capacity ≥ 4 times of inverter weight.

3.2 Installation Angle Requirements

It is recommended to install the inverter vertically. Forward installation or upside down installation is prohibited.。

Vertical Forward Upside downBackward

≥75°

FIG 3-2 Installation angle

3.3 Installation Clearance Requirements

1）Reserve enough clearance around the inverter to ensure sufficient space for heat dissipation，shown as FIG 3-3.

( Under the premise of ensuring installability, the gap between the left and right sides of the inverter can be reduced

to 200mm, and it is recommended to be ≥ 500mm.)

2) In case of multiple inverters, reserve specific clearance between the inverters. 3-4

≥500mm

≥200mm*

≥1000mm

≥650mm

≥200mm*

FIG 3-3 Single installation space FIG 3-4 Multiple installation space

≥200mm* ≥200mm* ≥200mm*

4/ 15

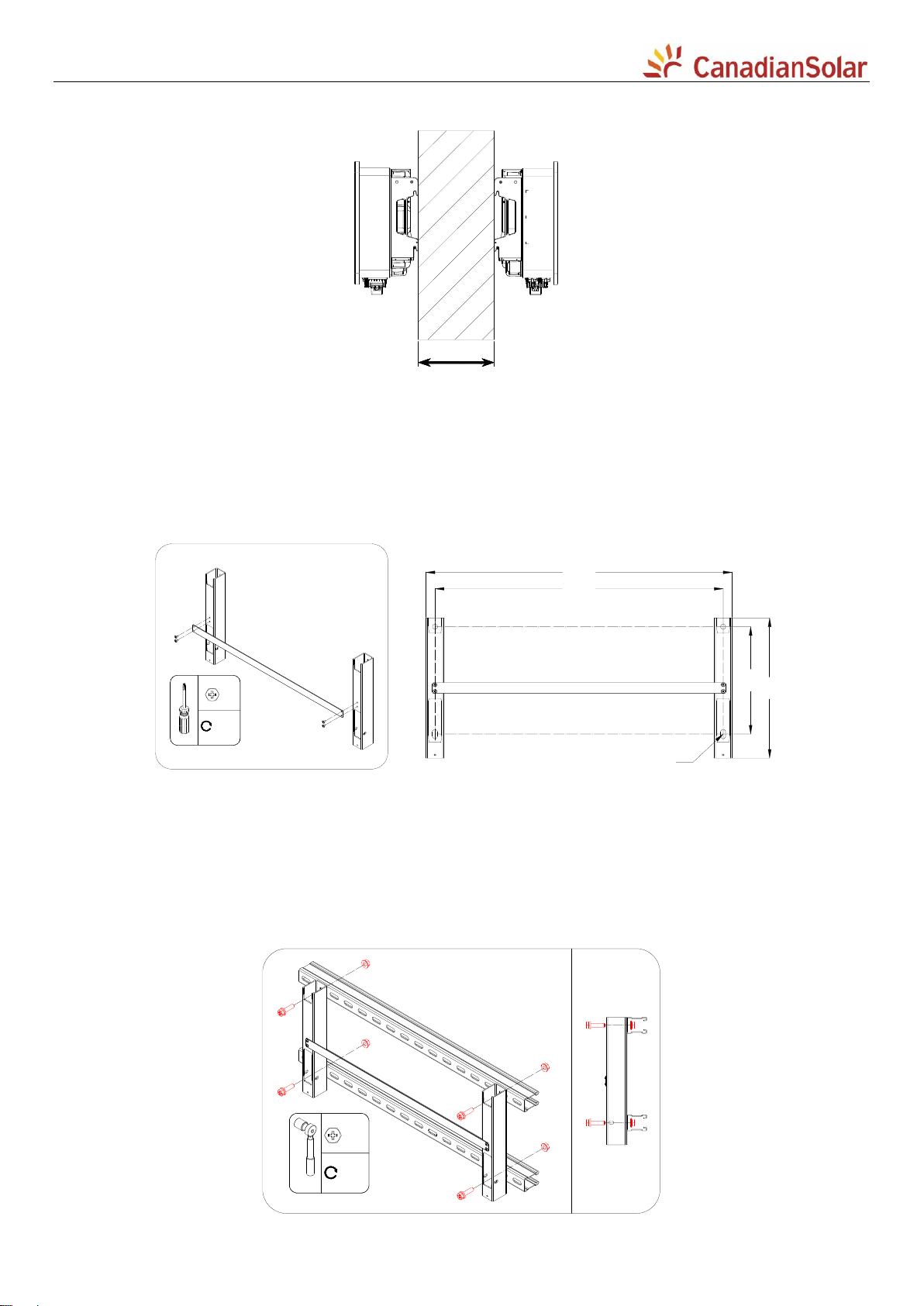

3) In case of back-to-back installation, reserve specific clearance between the two inverters.

FIG 3-5 Back-to-back installation

3.4 Assembling the mounting-bracket

Dimensions of the assembled mounting-bracket are as follows.

Assemble the mounting-bracket by using the connecting bar.

PH2

1.5N.m

FIG 3-6 Assembly mounting bracket

3.4.1 Standard C or U Steel Installation

Mounting Steps:

Step 1 Localize the hole positions in C or U-section steel to install mounting bracket.

Step 2 Secure the mounting bracket with M8 bolts and nuts.

FIG 3-7 Locate the mounting hole

≥500mm

637.5

245

320

677.5

2-OB11*21

12N.m

#13

5/ 15

3.4.2 Steel Frame Installation

Mounting Steps:

Step 1: Level the assembled mounting-bracket by using a level, and mark the positions for drilling holes on the steel frame.

Drill the holes by using a hammer drill. Recommended aperture:10mm.

Step 2: Secure the mounting-bracket with M8 bolts and nuts.

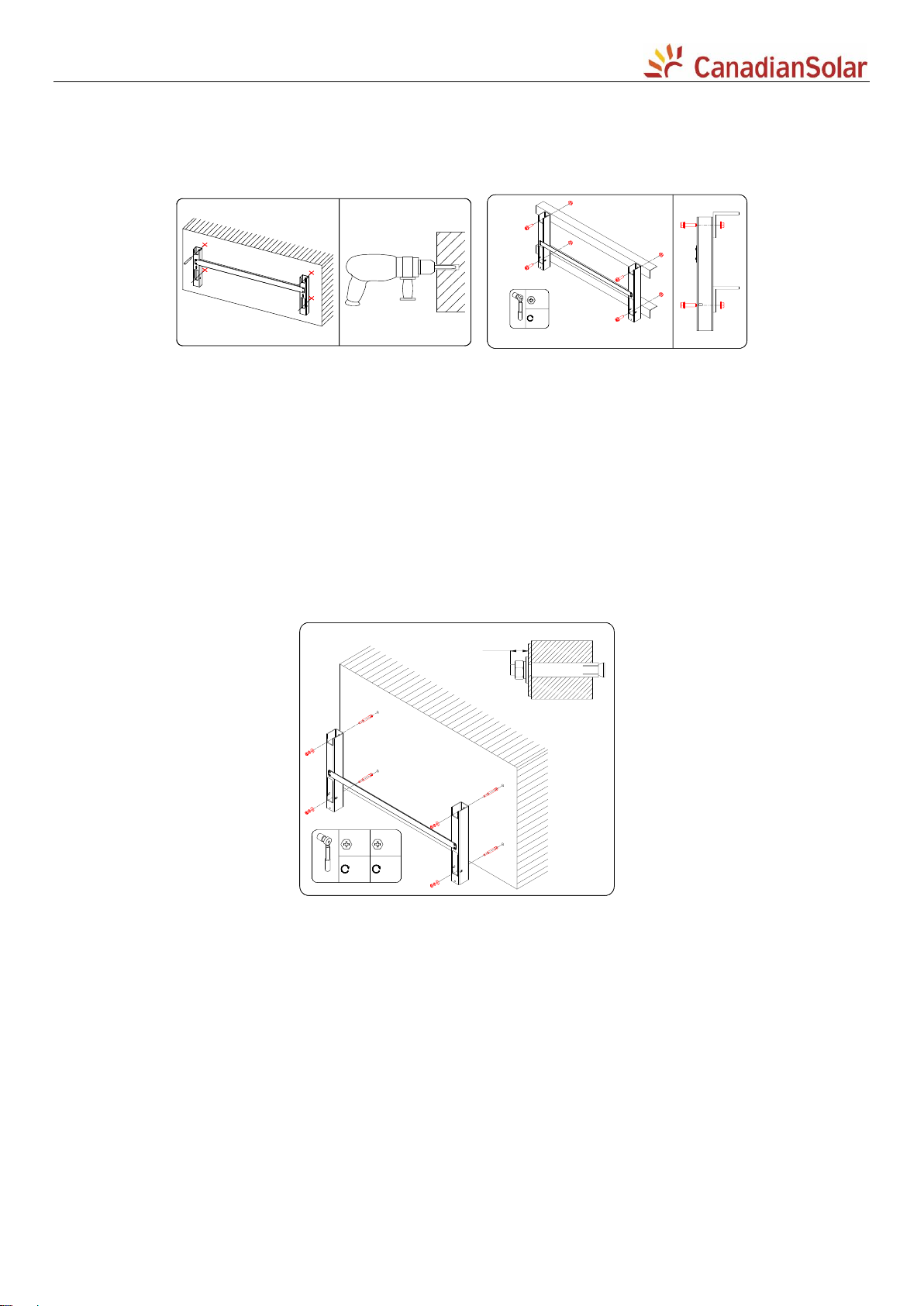

FIG 3-8 Install the wall bracket

3.4.3 Wall-Mounted Installation

M8 or M10 expansion bolts can be used to fix the wall bracket on the wall. (Note: No expansion bolt is supplied)

Mounting Steps

Step 1: Level the assembled mounting-bracket by using a level, and mark the positions for drilling holes on the installation

site.

Step 2: Insert the expansion bolts into the holes and secure them with arubber hammer. Fasten the nut with a wrench to

expand the bolt. Remove the nut, spring washer, and flat washer, and store them properly.

Step 3: Fix the mounting-bracket with the expansion bolts.

M10

30N.m

12N.m

#13/#16

≤25

FIG 3-9 Install the wall bracket

3.5 Inverter Installation

Step 1: Take out the inverter from the packing carton.

Step 2: If the inverter is installed in a high position, hoisting the inverter is recommended (refer to manual "4.3.2 Hoisting

Transport"). If not, skip performing this step.

Step 3: Hang the inverter to the mounting-bracket and ensure that the mounting ears perfectly engage with the mounting-

bracket.

Step 4: Fix the inverter with screws M6x30 (Note: It is not locked or fixed here, and the screw can be locked to the end).

12N.m

#13

6/ 15

FIG 3-10 Install the inverter

4 Electrical Connection

4.1 Electrical Connection Overview

1）PV string; 2）Inverter; 3）

AC distribution box/cabinet

; 4）Utility grid; 5）Monitoring device

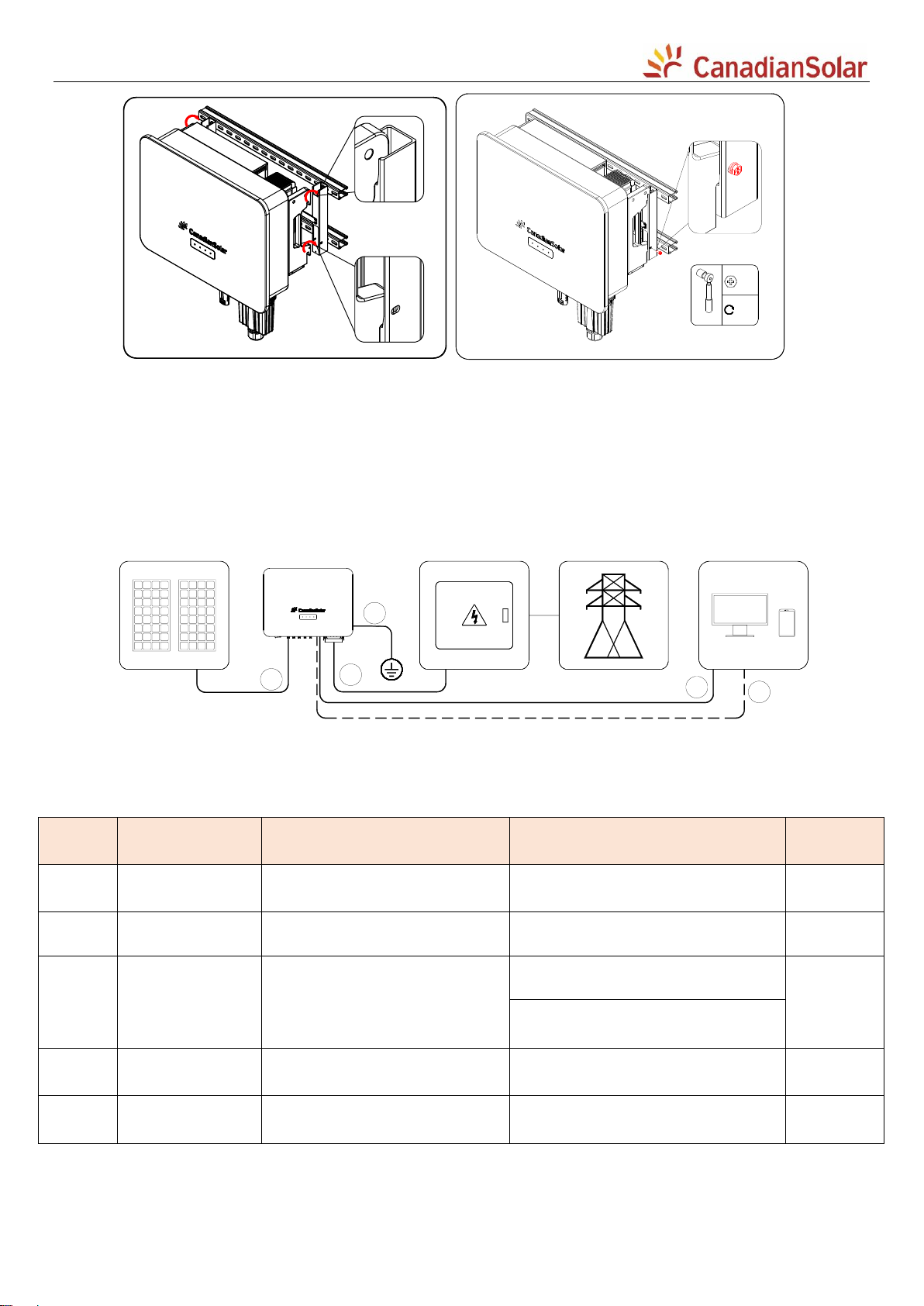

FIG 4-1 General electrical connection diagram

Table 4-1 Recommended Cables

No.

Cable Name

Cable Type

Conductor Cross-Sectional Area

Outer

Diameter

DC cable

PV cable, complying with 1500V

standard

4~6mm²

6~9mm

Additional

Grounding cable

Outdoor single core copper

conductor cable

The same as that of the PE wire in

the AC cable

N/A

AC cable

Four/Five-core outdoor copper or

aluminum cables*【1】

L1/L2/L3/N (40kW) : 16~35 mm2

L1/L2/L3/N (50-60kW) : 25~50 mm2

22~38mm

PE wire: refer to "table 4-

2 PE wire requirements"

Communication

cable

Shielded twisted pair

0.2~1.5 mm2

4.0~5.5mm

Wireless

communication

N/A

*【1】Acopper to aluminum adapter terminal is required when an aluminum cable is used.

4.5N.m

#10

ABC D E

7/ 15

Tbale 4-2 PE wire requirements

Phase wire cross

section S

PE wire cross

section

Note

16<S≤35 mm²

16 mm²

The specifications are valid only when the phase wire and PE

wire use the same material. If otherwise, ensure that the cross

section of PE wire produces a conductance equivalent to that

of the wire specified in the table.

S＞35mm²

S/2

4.2 Connecting the PE Cable

WARNING

Since the inverter is a transformerless inverter, neither the negative pole nor the positive pole of the

PV string can be grounded. Otherwise, the inverter will not operate normally.

Connect the additional grounding terminal to the protective grounding point before AC cable

connection, PV cable connection, and communication cable connection.

The ground connection of this additional grounding terminal cannot replace the connection of the PE

terminal of the AC cable. Make sure thoes terminals are both grounded reliably.

4.2.1 Additional Grounding Requirements

All non-current carrying metal parts and device enclosures in the PV power system should be grounded, for example, brackets

of PV modules and inverter enclosure. When there is only one inverter in the PV system, connect the additional grounding

cable to a nearby grounding point.

When there are multiple inverters in the PV system, connect grounding points of all inverters and the PV array frames to the

equipotential cable (according to the onsite conditions) to implement an equipotential connection.

4.2.2 Connection Procedure

Step 1 Prepare an external ground cable according to the following figure: strip the cable - > crimp the terminal - > cover the

heat shrinkable sleeve. Recommended terminal type: DT/OT.

Step 2 Remove the screw on the grounding terminal and fasten the cable with awrench.

Step 3 Apply paint to the grounding terminal to ensure corrosion resistance.

L1L2=L1+3mm L3=2L1

6≤D≤8.5mm

8/ 15

4.5N.m

#10

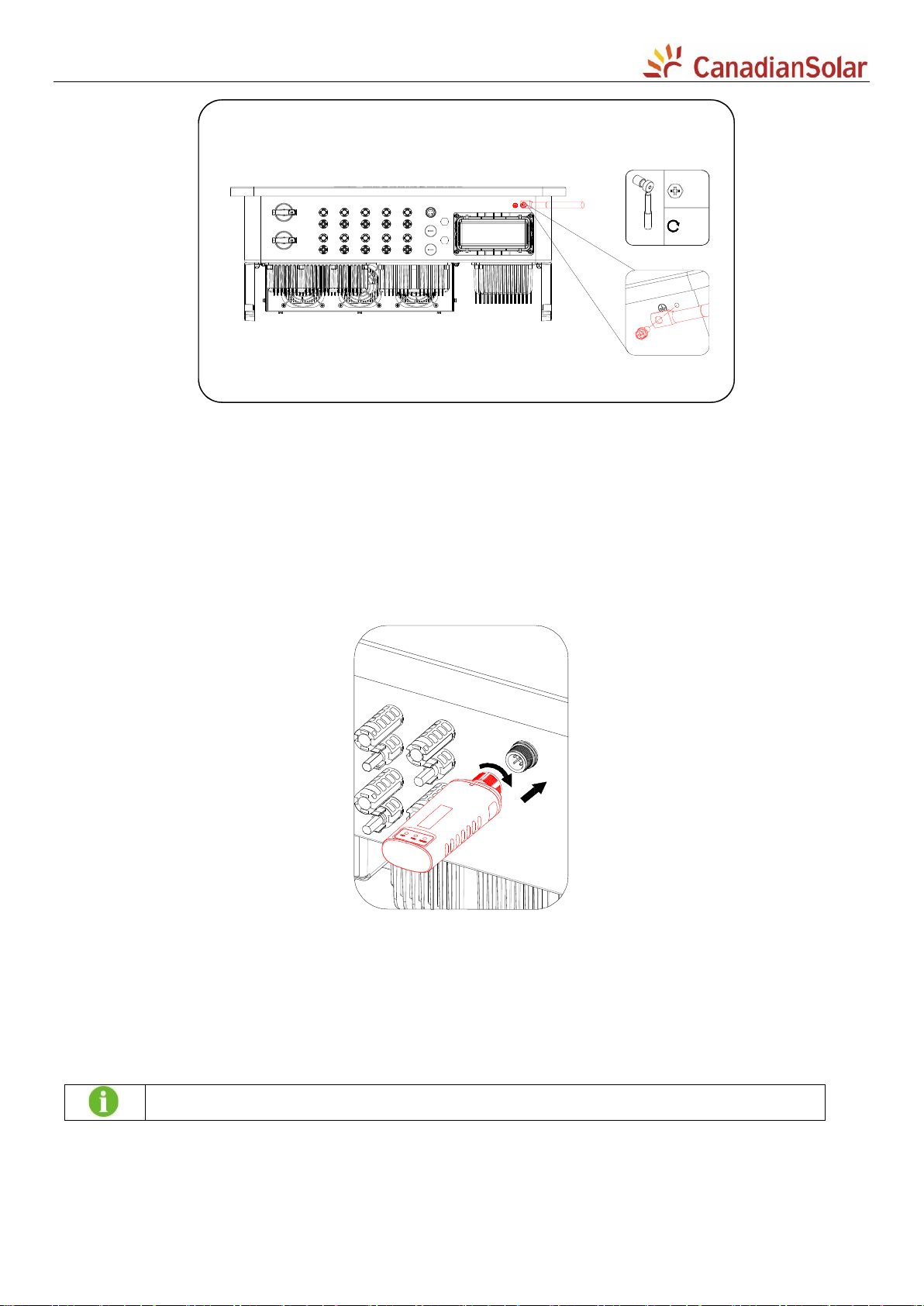

FIG 4-2 Install ground cables

4.3

Communication Cable Connection

This series of models provides standard wireless communication function and optional wired communication function.

4.3.1 Data Logger Connection

Connect the Data Logger to the communication accessory port.

After successful connection, information such as power generation and running state of the inverter can be viewed via the APP

on the phone.

FIG 4-3 Data logger connection

4.4 AC Cable Connection

4.4.1 AC Side Requirements

Before connecting the inverter to the grid, ensure the grid voltage and frequency comply with requirements, for which, refer to

Specification. Otherwise, contact the electric power company for help.

Connect the inverter to the grid only after getting an approval from the local electric power company.

4.4.2 Connection Procedure

Step 1: Disconnect the AC-side circuit breaker and prevent it from inadvertent reconnection.

Step 2: Open the wiring compartment, loosen the swivel nut of the AC waterproof connector, take out the multi-layer sealing

ring and select aseal rings according to the cable outer diameter. Lead the cable through the swivel nut, seal rings, and w

wiring compartment successively.

9/ 15

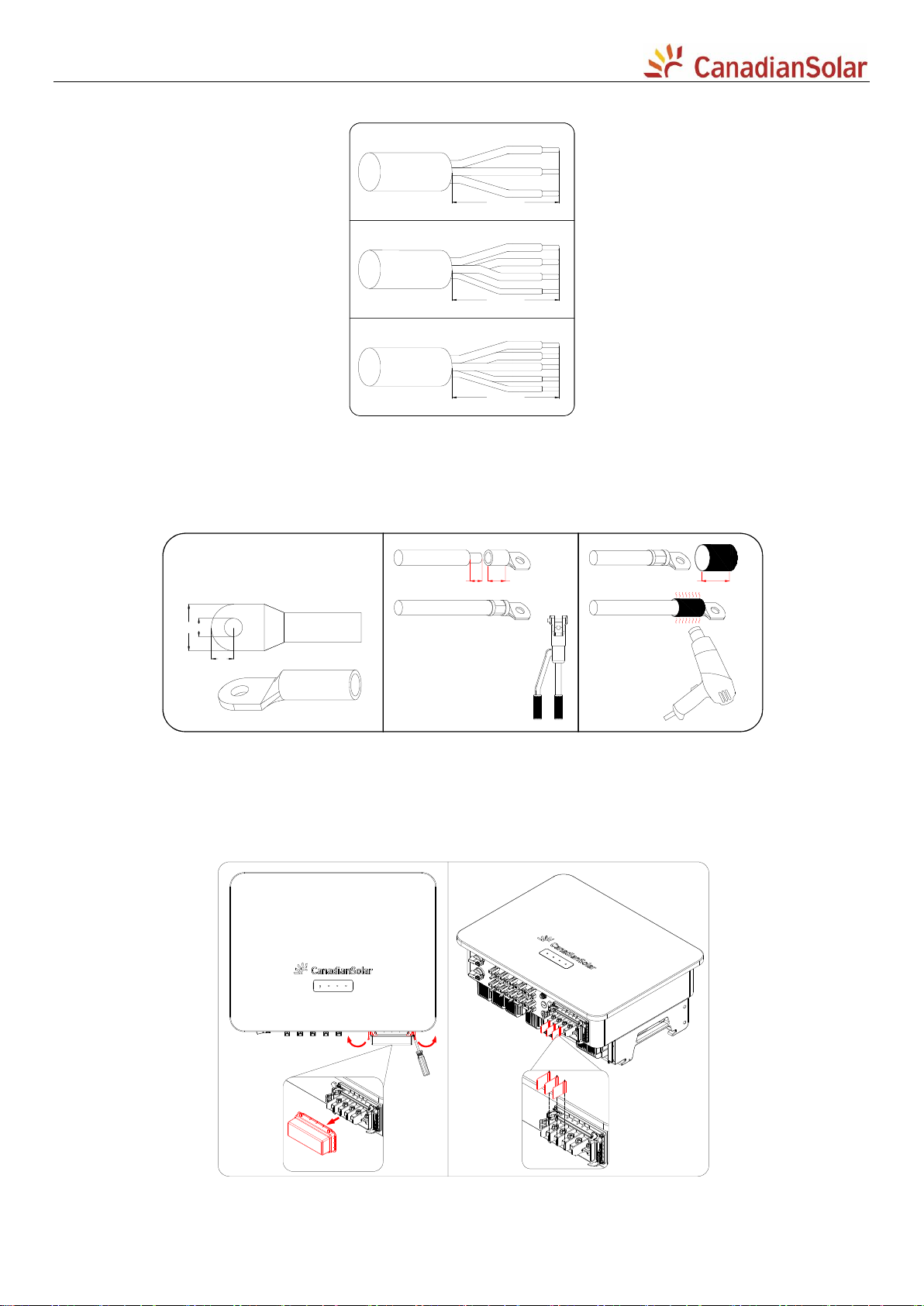

Step 3: Strip the protection layer and insulation layer by specific length, as described in the figure below.

≤80-140mm

FIG 4-4 Strip the protection layer and insulation layer

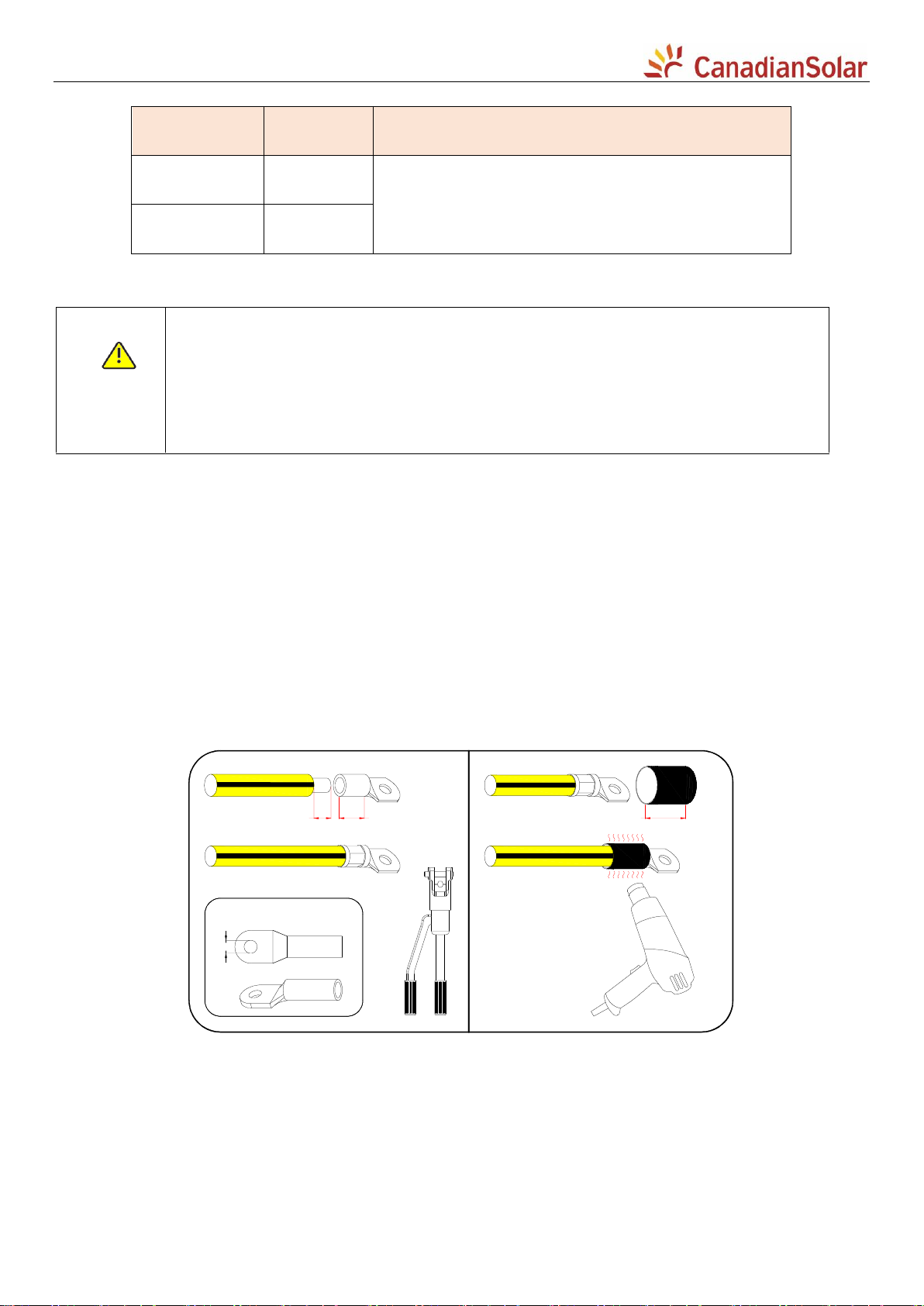

Step 4: Make the cable and crimp OT/DT terminal.

FIG 4-5 Make the cable

Step 5: Remove the protective box by pushing the clasp in the left and right directions. Take out the inter-pole insulation

shield of the terminal block delivered with the machine and install it on the terminal block.

FIG 4-6 Remove the protective box and install the insulation shield between terminals

W≤23mm

8≤D≤10.5mm

A≤15mm

端子要求：

L1L2=L1+3mm L3=2L1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CanadianSolar Invertitore

CanadianSolar

CanadianSolar CSI-125K-T600GL02-E Manuale utente

CanadianSolar

CanadianSolar CSI 23KTL-CT/US-480 Manuale utente

CanadianSolar

CanadianSolar CSI-25KTL-GS-FL Manuale utente

CanadianSolar

CanadianSolar CSI-3K-S22002-E Manuale utente

CanadianSolar

CanadianSolar CSI Manuale utente

CanadianSolar

CanadianSolar CSI-185K-T600GL02-U Manuale utente

CanadianSolar

CanadianSolar CSI-75K-T40001-E Manuale utente

CanadianSolar

CanadianSolar CSI-75K-T40001-E Manuale utente

CanadianSolar

CanadianSolar CSI-50KTL-GS-FLB Manuale utente

CanadianSolar

CanadianSolar CSI-5K-S22003-E Manuale utente

CanadianSolar

CanadianSolar CSI-5K-S22002-E Manuale utente

CanadianSolar

CanadianSolar CSI-75K-T400 Series Manuale utente

CanadianSolar

CanadianSolar CSI-75K-T480GL03-U Manuale utente

CanadianSolar

CanadianSolar HiKu7 Manuale utente

CanadianSolar

CanadianSolar CSI-75K-T40001-E Manuale utente

CanadianSolar

CanadianSolar CSI SERIES Manuale utente

CanadianSolar

CanadianSolar CSI-50K-T400GL03-E Manuale utente

CanadianSolar

CanadianSolar CSI Series Manuale utente

CanadianSolar

CanadianSolar CSI-100K-T400GL02-E Manuale utente

CanadianSolar

CanadianSolar CSI-25K-T400 Series Manuale utente

CanadianSolar

CanadianSolar CSI SERIES Manuale utente

CanadianSolar

CanadianSolar CSI-7K-S22003-E Manuale utente

CanadianSolar

CanadianSolar CSI SERIES Manuale utente

CanadianSolar

CanadianSolar CS3W-PB-AG Series Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
