Sampling Strobe:
•Internal: to 5 MHz
•Front Panel: to 5 MHz
•Backplane Trigger: to 5 MHz
•Source and prescaler software
programmable
Interrupts:
•Data Stored
•FIFO Half-Full
•FIFO Full
•Time-Stamp Rollover
•Change of State
•Level Transition
•Bit Pattern
I/O Connectors:
•44 pin DSUB
Indicators: Power
Module Access
LAN Status
Temperature:
Operating 0° C to 50° C
Storage -40° C to 70° C
Networking
•Easy network configuration
through web based interface
•TCP/IP and UDP/IP supported
for M-module communication
•Static IP, DHCP, and AutoIP
addressing supported
•Ethernet 10Base-T or 100Base-
TX (Auto Sensing)
Applications
•Acquisition of transient signals
•Real-time data compression
•Logic Analysis
•Event counting
Additional Information
User Manuals for this carrier and
C&H M-modules can be found on
our website at www.chtech.com.
Specifications:
Number of Channels: 32, 64 or 128
Sample Rate: up to 5 Msps
Input Debounce: 0 to 128 ms
Software selectable
Input Specifications:
Threshold Resolution 100mV
Threshold Range 0 to 25.6V
Threshold Accuracy ±0.5% of FS
Max. Input Voltage 48V
Input Hysteresis 25mV
Input Impedance >100K_
Input Current <300_A
Input Masking:
Allows selection of bits to be
monitored
Local Memory:
32K deep (data and 31–bit
timestamp)
Input Polarity: Software Selectable
Ethernet
Event Detector
Instruments
The EM405D100, EM405-8x106
and EM405-8x107 are 32, 64, and
128 channel input modules that
sample and selectively store up to
128 bits of data along with a 31 bit
time tag at rates up to 5 MSPS.
These instruments have the ability
to store all data at the specified
sample rate or to selectively store
input values based upon changes in
state on one or more of the inputs.
Each version is 1U high with the 32
channel unit designed for bench
applications and the 64 and 128
channel version for rack mounting.
Rev. *
Specifications:
Implementation:
•All versions use either two (2), four (4) or eight (8)
ANSI/VITA Standard 16 Channel M-Modules

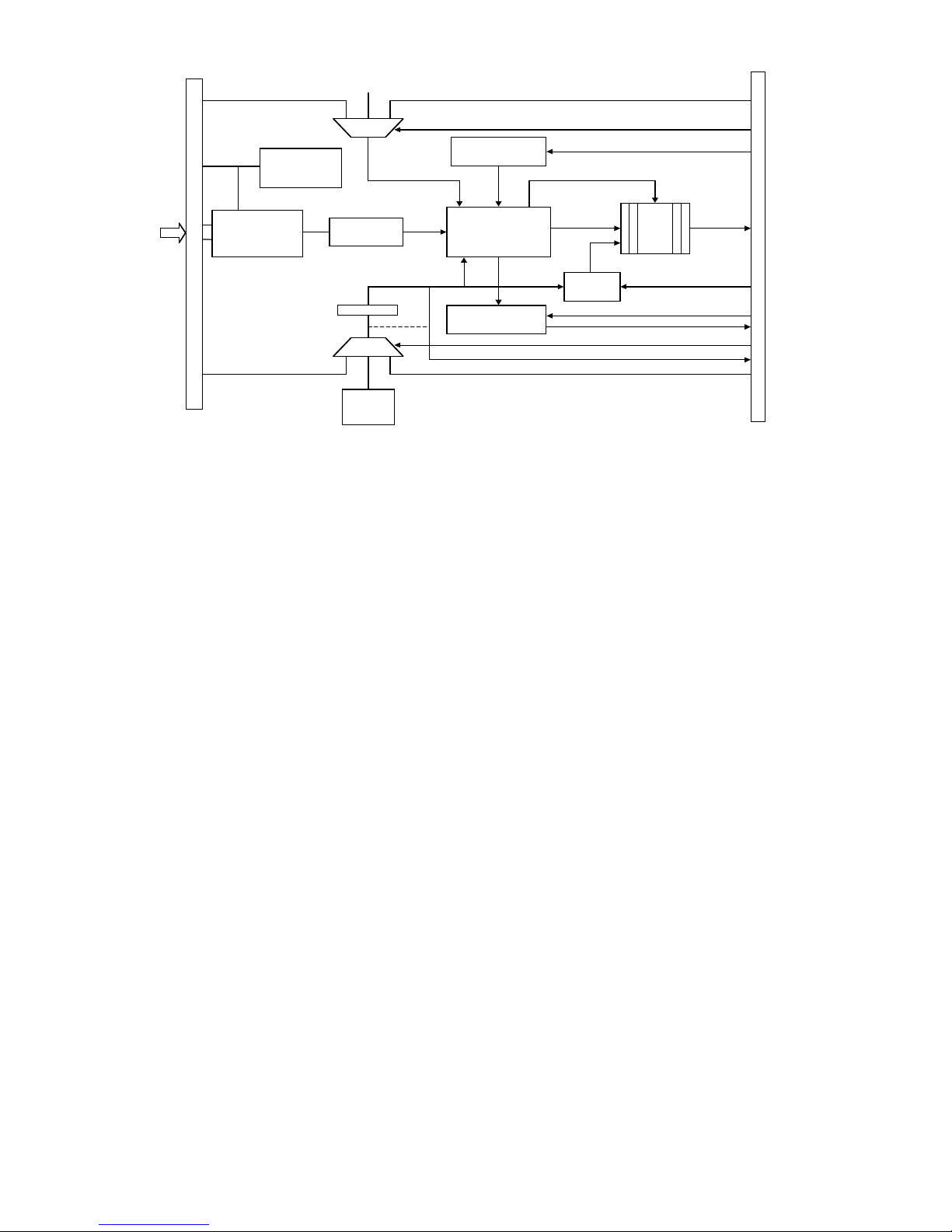

(MA203), each of which have the block diagram
shown above
•See the EM405D and EM405-8 on C&H web site for
further information on the instrument enclosure
mounting and dimensions.
Trigger/Sample Strobe Features:
•An external clock may be routed through one
mezzanine to a carrier trigger and back to the Event
Detector triggers to minimize skew between
channels
•One mezzanine’s clock may be used as a master in
a similar manner
External Trigger Inputs:
•32 Channel Unit TTL
•64 & 128 Channel Units TTL and LVDS
External Power (32 Channel Unit):
•AC Input 100 to 240VAC, 47 to 63Hz with furnished
adapter
•Alternatively DC powered by 12V, 1A
External Power (64 and 128 Channel Units):
•AC Input 85 to 265VAC, 47 to 63Hz
•Alternatively DC Powered by 36 to 75V
Software Driver:
•Windows DLL
•Soft Front Panel Executable
•Online Help
•LabWindows/CVI Function Panels
•ANSI-C Source Code
•LabView
Conformance:
•These modules will be CE compliant for Emissions,
Immunity and Safety
Ordering Information:
32 Channel Event Detector:
Model EM405D100 P/N 11030010-0001
64 Channel Event Detector:
Model EM405-8x106 P/N 11030010-0002
128 Channel Event Detector:
Model EM405-8x107 P/N 11030010-0003
DEBOUNCE
M-MODULE
I/F
TIMER
31-BIT
SAMPLE
AND
STORE
LOGIC
FIFO
RESET
PROGRAM
TRIGGER A OR BEXTCLK
MEMORY
48-BIT
CONTROL
STORE
FRONT
PANEL I/O
WATCH
MASK
CLOCK
10KHz
- 5MHz
INTERRUPT
LOGIC
PROGRAM
CONTROL
RUN
SCLK
TRIGGER A OR B
SW
EXTRUN
SIGNAL
CONDITIONING
ACCESSORY
MODULE
ISOLATED
DC-DC
CONVERTER
INTERRUPT
PRESCALER
TRIGGER A OR B
INPUT
SIGNALS
