Candy 32900048 CDI45 Manuale utente
32900048 CDI45
Service Manual
Copyright 2006 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 32900048 CDI45 0432 (01/08/2004)

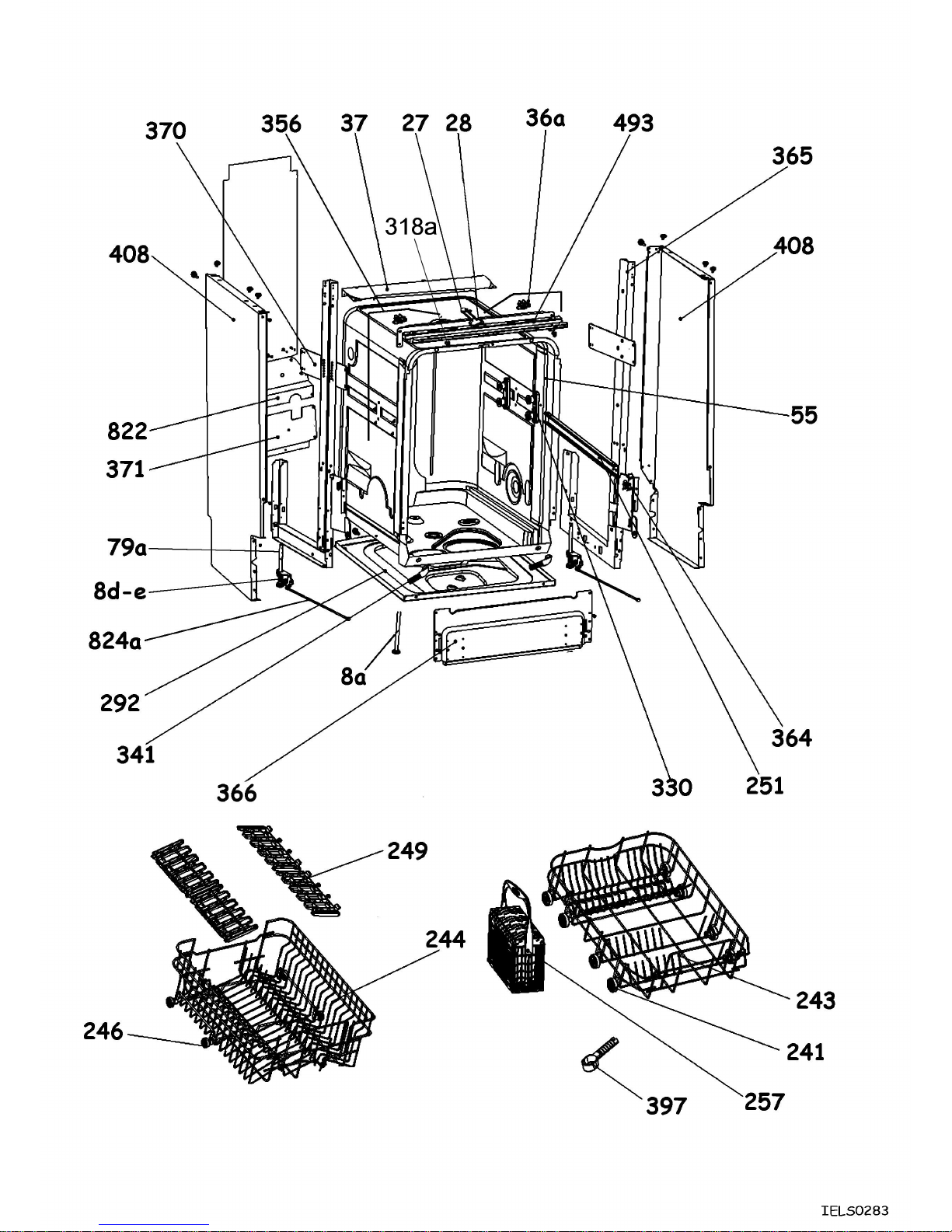

8a Foot 49005847
8d Foot 49006648
8e Foot 49006647

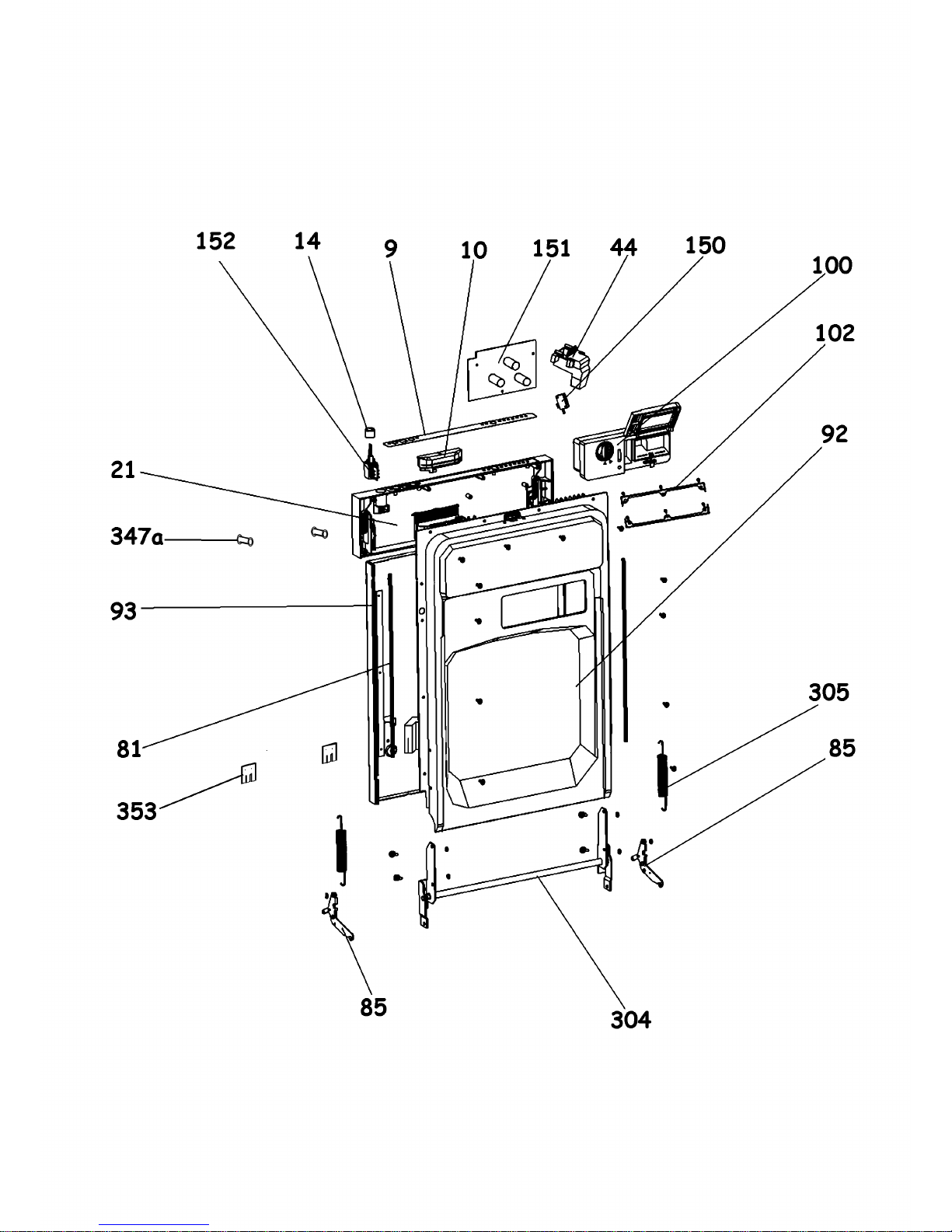

9Control panel plate 49005835
10 Handle plate 49005836
14 Button 49005841
21a Control panel 49005840
27 Closure regulator 49005844
28 Catch 49005845
36a Work table fixing bracket 49005710
37 Rear trim 49005671
44 Door lock 49005837
55 Front gasket 49005714
57 Seal gasket 49005713
79a Adjustable rear foot 49006649
81b Trim 49005843
85a R/H hinge 49005634
85b L/H hinge 49005635
92 Innerdoor 49005621
93 Door 49005842
100 Electrodistributor 49005637
102 Frame 49005639
122 Gasket 49005675
126 Seal gasket 49005685
127 Metal ring 49005686
129 Hard water tube 49005745
131 Junction box 49005750
134 Electrovalve 49005679
135 Gasket 49005732
137 Discharge hose 49006651
138 Drain hose 49005682
Copyright 2006 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 32900048 CDI45 0432 (01/08/2004)
138a Drain house elbow 49005683
138b Hoseb clamp 49005709
142b Safety fill hose 49005785
148a Outer heater assy 49005753
150 Door micro switch 49005838

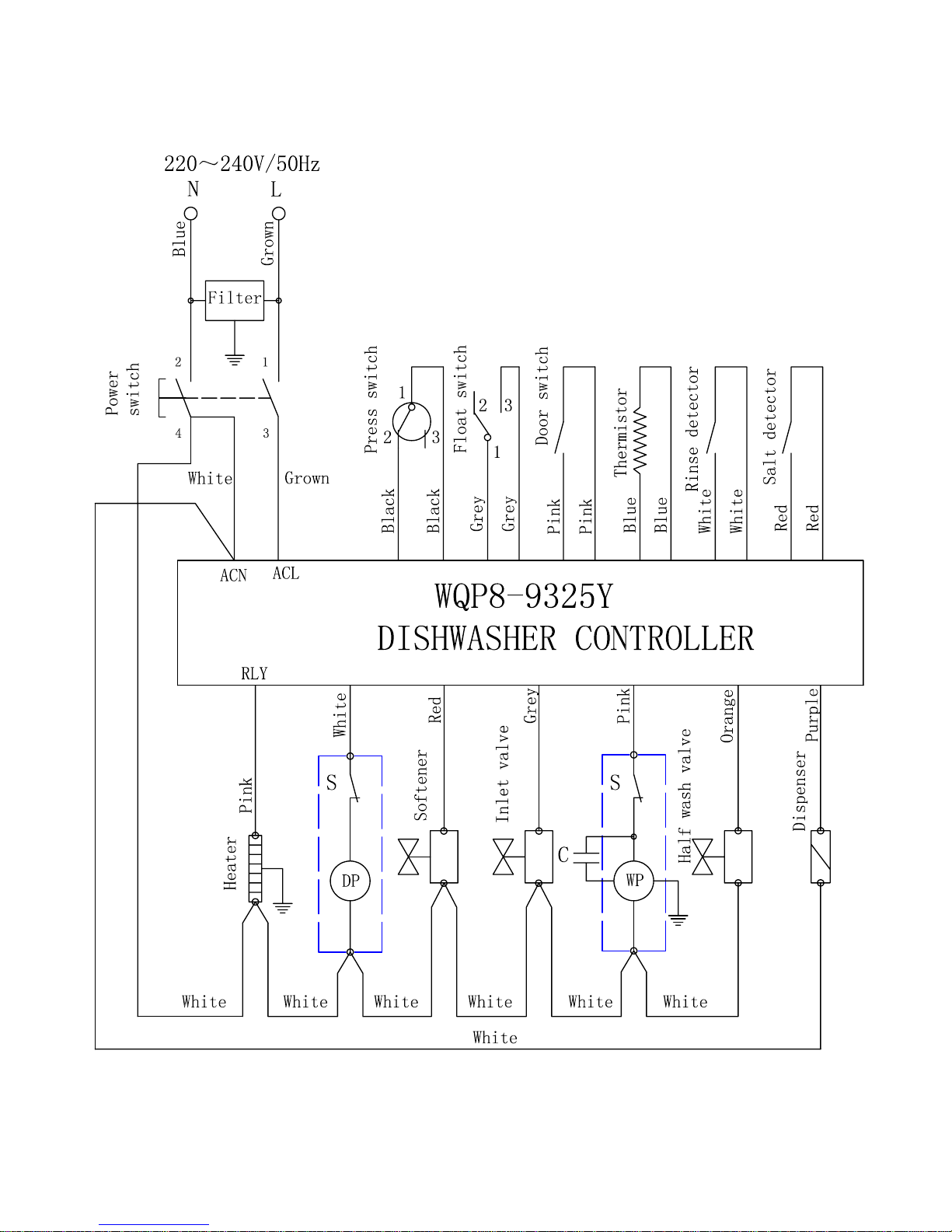

151a Electronic module 49005839
152e Switch as.(open doub.con) 49005625
153 Level switch 49005707
161 Drain pump 49005689
161b Pump bracket 49005722
164 Anti jamming filter radio 49005678
168 Upper spray arm feeder tube 49005718
168b Upper spray arm duct 49005711
169b Heater/motor pump tube 49006650
171 Motor pump 49005706
173 Hose 49005733
177 Motor Schoch absorber 49005721
177a Motorpump support 49005720
200 Drawer grasket 49005691
204a Upper spray arm 49005695
204b Lower spray arm 49005696
205 Spray arms tube 49005762
207 Ring nut 49005735
208 Filter 49005694
208a Microfilter 49005693
217 Filter bacin. 49005690
219 Flange ring 49005692
241 Lower basket wheel 49005659
243 Lower basket 49005660
244 Upper basket 49005661
246 Basket wheel upper. 49005662
Copyright 2006 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 32900048 CDI45 0432 (01/08/2004)
249 Cups basket 49005663
251 Runner 49005654
257 Cutlery basket 49005658
275 Level hose 49005740
281 Sprayer 49005717
283a Hub 49005737
287m NTC probe 49005798
292b Dispenser drawer 49005647
294c Water-block float 49005744
294d Water-block body 49005742
294e Water-block microswitch 49005743
295a Water softener 49005784
296 Water softener stopper 49005687
297 Hose 49005746
299 Water softener capacitor 49005673
304 Reinforcement 49005640
305 Spring 49005636
308a Door spring adjust. screw 49008813
311a Sleeve 49005739
313 Funnel 49005688
316 Center square 49005699
318 Upper ramp tube 49005702
320 Deviator ring nut 49005700
321 Deviator cabinet 49005701
323 Seal 49005698
330 Subseq.runner ass.support 49005653
341 Anti - overflow tube 49005648
347a Built-in pin 49007002
353 Door hook 49007001
356c Spring regulation 49005846
364 Upper basket stopper 49005655
Copyright 2006 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 32900048 CDI45 0432 (01/08/2004)
365 R-H tub support 49005665
366 Front crosspiece 49005649
370 LH tub support 49005642
371 Rear crosspiece 49005645
388 Spray arm support 49005738
395 Air break ring nut 49005674
397 Salt regulator 49005657
408a R/H later.panel 49005765
408b L/H later.panel 49005769
491 Main cable 49005752
493 Upper cover 49005666
512 Discharge rose 49005697
512b Discharge rose ring nut 49005719
512c Discharge rose gasket 49005618
822 Rear covering 49005667
824a Rod 49006646
Grey
