Candy CCE160XGG Manuale utente

Made in China

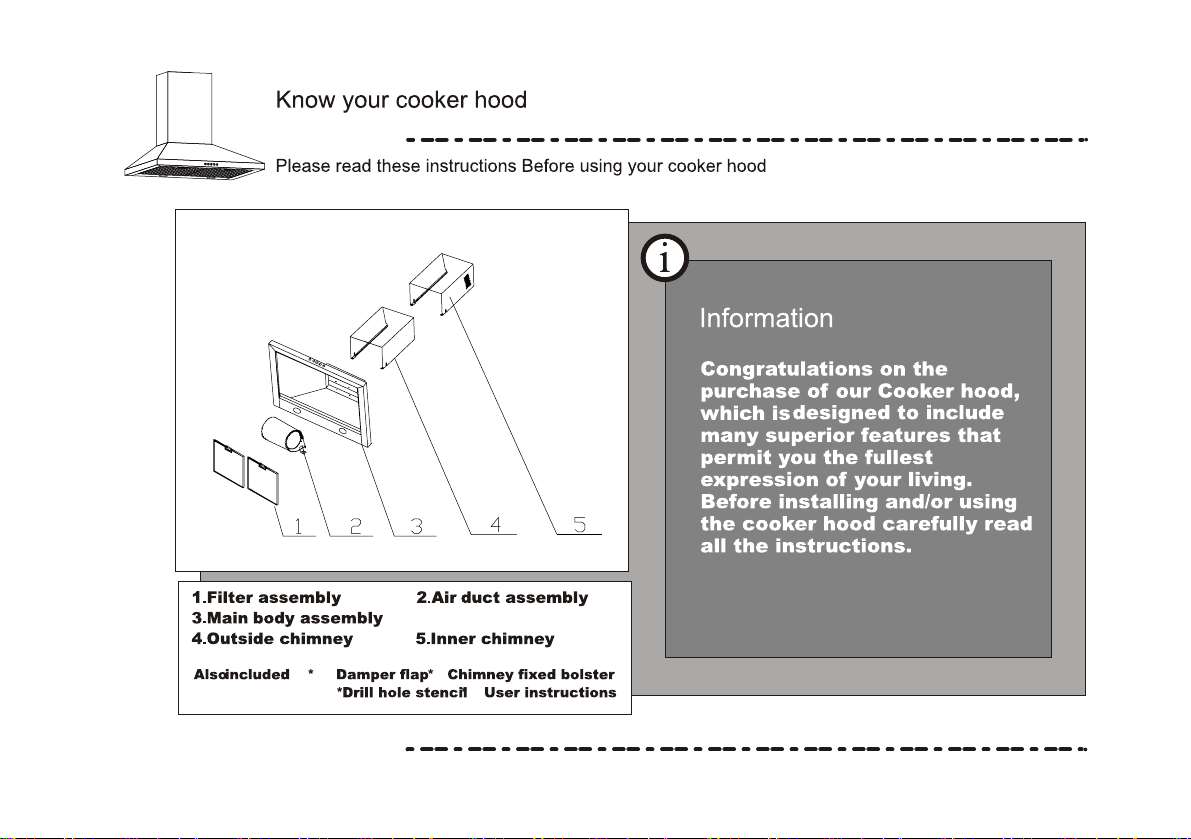

Cooker Hood

Model CCE160XGG

Instructions Book

CAUTION:Accessible parts may become not when used with cooking appliances.

In certain circumstances electrical appliance may be a danger hazard.

G) Disconnect the electrical plug prior to any maintenance.

F)Constantly check food frying to avoid overheated oil splashing and becoming a

fire hazard.

E)Avoid opening gasometer when there is no pan on the stove, as it is damaging

for the filters and a fire hazard.

D)Do not light a flame under the cooker hood.

C)Do not touch the light bulb within half an hour after appliance has been use.

B)Do not check the status of the filters while the cooker hood is operating.

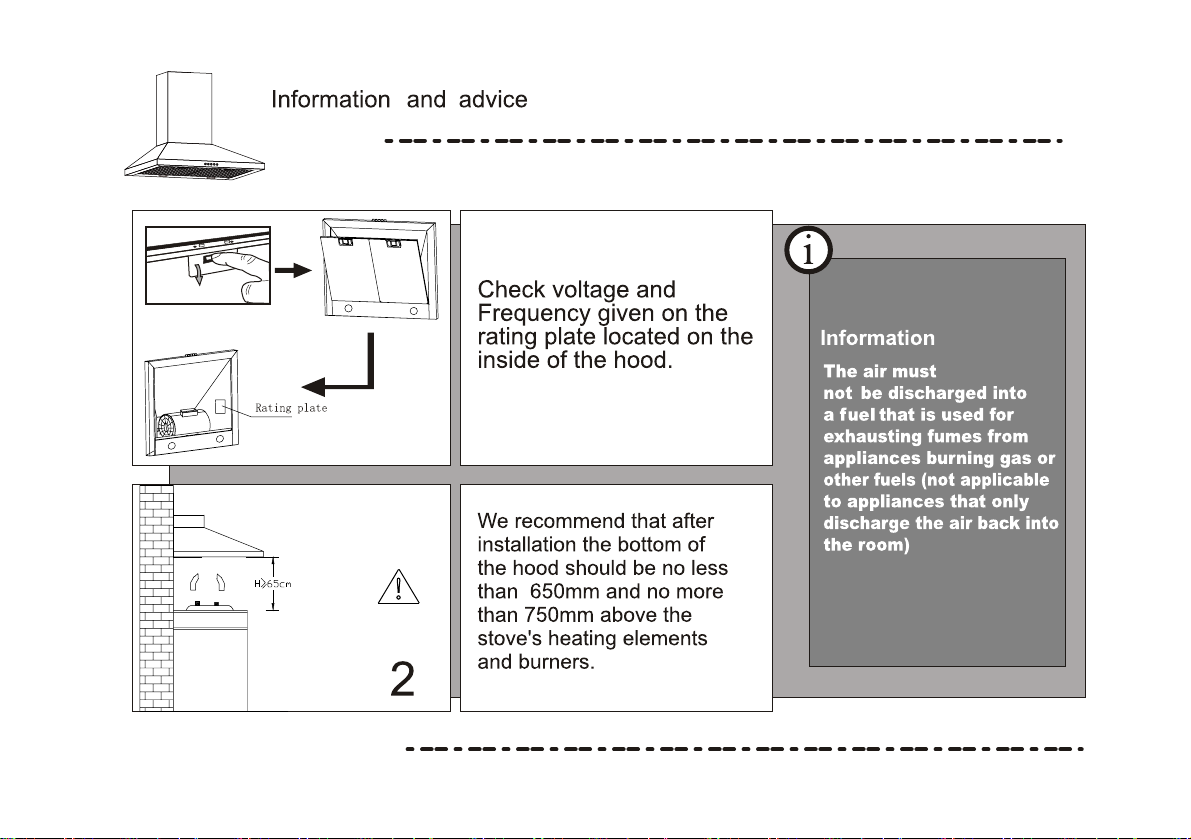

A) There must be adequate ventilation of the room when the cooker hood is used

at the same time as appliances burning gas or other fuels.

H) Regulations concerning the discharge of air have to be fulfilled.

I) When the range hood and appliances supplied with energy Other than electricity

are simultaneously in operation.The negative pressure in the room must not

exceed 4 Pa (4x10 bar)

¯5

J)If the supply cord is damaged,it must be replaced by the manufacturer,its service

agent or similarly qualified persons in order to avoid a hazard.

K)This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

L)the range hood is inteded to be installed over a hob having no more than four hob

elements.

M) Indoor use and household use only

O) Attention ! Observe the warning in the instruction sheet concerning the operation

of the appliance when air is discharged from the room

N)When the appliance is not in use and before cleaning, unplug the appliance from

the outlet.

CAUTION:Accessible parts may become not when used with cooking appliances.

P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

According to

the Fig.4,

make sure the

position of the

hoods on the

wall. Then use

the stencil to

drill four Φ8

holes on the

wall. Fix four

sets expanding

plugs and

screws aimed

at the four

holes.

4

5

When

cutting or

drilling

into wall

or ceiling,

do not

damage

electrical

wiring or

other

hidden

utilities.

Ф8

ventilation direction.

socket

socket

Ф8
