Canon 3301B002 Manuale utente

How to Use This Manual

Printing This Manual

MC-3456-V1.00

Basic Guide

Describes the summary of

this product.

Advanced Guide

Describes the detailed

function of this product.

Troubleshooting

Page 1 of 997 pagesCanon MX860 series On-screen Manual

How to Use This Manual

Printing This Manual

MP-2951-V1.10

dvanced Guide

Contents

Safety Precautions

Overview of the Machine

Main Components

How to Navigate Menus on the LCD

Setting Up the Machine

Confirming the Telephone Line Connection

Specifying the Basic Settings for the Machine

Setting the Receive Mode

Printing from a Memory Card

Printing Photos Saved on the Memory Card

Using Various Functions

Inserting the Memory Card

Copying

Making Copies

Using Various Copy Functions

Scanning

Saving Scanned Data

Using Various Scan Functions

Printing from Your Computer

Printing Photos (Easy-PhotoPrint EX)

Printing Documents (Windows)

Printing Documents (Macintosh)

Faxing

Sending Faxes

Using Various Sending Functions

Receiving Faxes

Using Various Receiving Functions

Using Useful Fax Functions

Other Usages

Printing the Notebook or Graph Paper

Printing Photos Directly from Your Digital

Camera or Mobile Phone

Machine Settings

Solution Menu and My Printer

Loading Paper / Originals

Loading Paper

Loading Originals

Routine Maintenance

Replacing an Ink Tank

When Printing Becomes Faint or Colors Are

Incorrect

Cleaning the Paper Feed Roller

Cleaning the Pad in the Cassette

Appendix

Legal Limitations on Use of Your Product and

Use of Images

Tips on How to Use Your Machine

Page 2 of 997 pagesMX860 series Basic Guide

Advanced Guide Troubleshooting

Contents > Safety Precautions

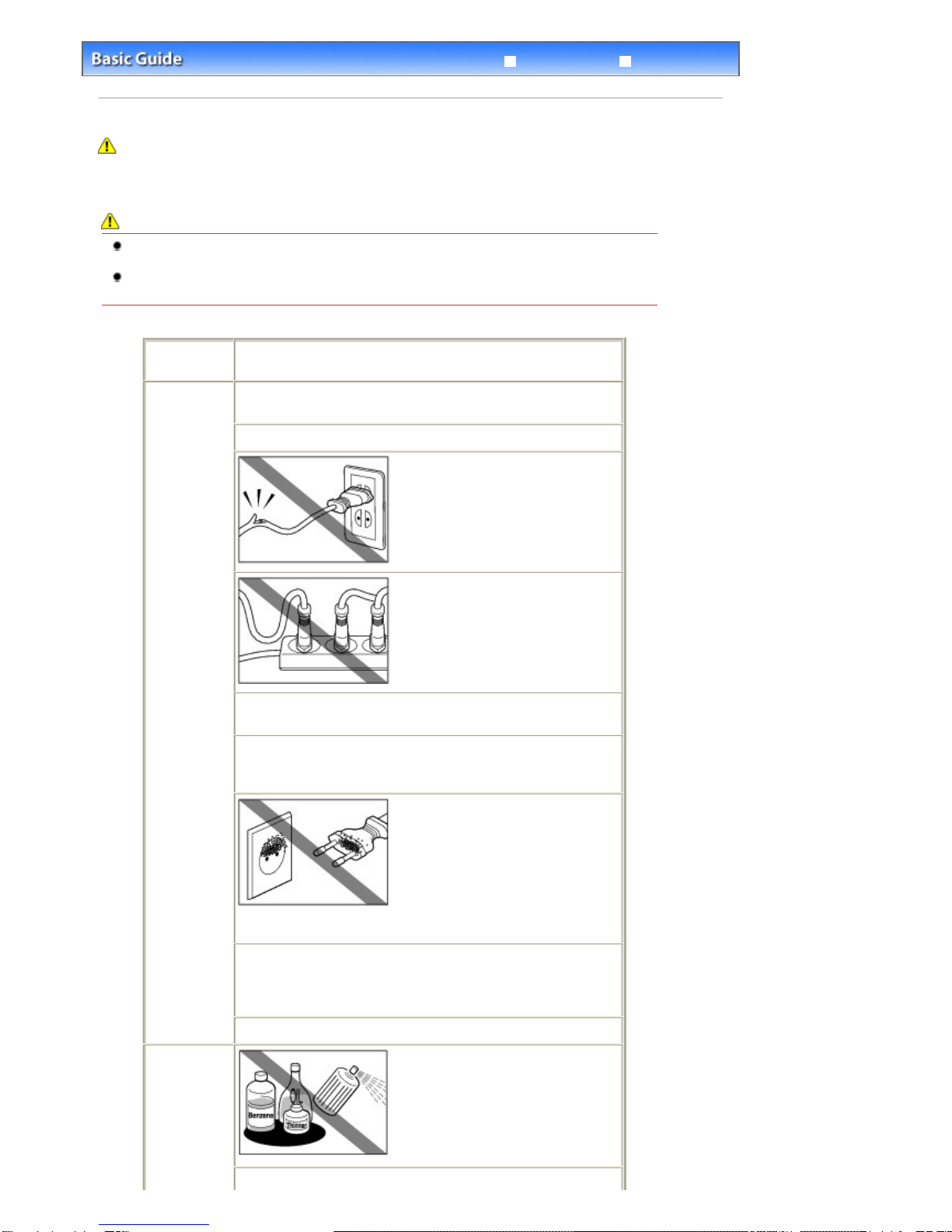

Safety Precautions

Please read the safety warnings and cautions provided in this manual to ensure that you use the

machine safely. Do not attempt to use the machine in any way not described in this manual. It causes

unexpected accident, fire, or electric shock.

Warning

This product emits low level magnetic flux. If you use a cardiac pacemaker and feel abnormalities,

please move away from this product and consult your doctor.

The following are instructions that, if ignored, could result in death or serious personal injury

caused by incorrect operation of the equipment. These must be observed for safe operation.

Choosing a

location Do not place the machine close to flammable solvents such as

alcohol or thinners.

Power

supply Never attempt to plug in or unplug the machine from the

power supply when your hands are wet.

Always push the plug all the way into the power outlet.

Never damage, modify, stretch or

excessively bend or twist the power

cord.Do not place heavy objects on

the power cord.

Never plug the machine into a power

socket that is shared with other

equipment (extension lead/cord, 2- or

3-way adapter, etc.).

Never use the machine if the power cord is bundled or

knotted.

If you detect smoke, unusual smells or strange noises around

the machine, immediately unplug the machine at the power

supply and call for service.

Periodically, unplug the machine and

use a dry cloth to wipe off any dust or

dirt collected on the plug and the

power outlet.If the machine is placed

at a location exposed to a lot of dust,

smoke, or high humidity, the dust

collected on the plug absorbs

moisture and may cause insulation

failure and fire.

If you hear thunder, disconnect the power supply of the

machine and refrain from using it. Leaving the machine

plugged in may cause fire, electric shock, or damage to the

machine, depending on the thunder storm.

Use the power cable included with the machine.

Cleaning the

machine Use a damp cloth to clean the

machine.Never use flammable

solvents such as alcohol, benzene or

thinners.

If flammable solvents come in contact with

electrical components inside the machine, it

could cause a fire or electric shock.

Always unplug the machine from the power outlet before

Page 3 of 997 pagesSafety Precautions

cleaning the machine.

If you accidentally switch the machine on while cleaning it, you could

injure yourself or damage the machine.

Maintaining

the machine Do not attempt to disassemble or modify the machine. There

are no user serviceable parts inside the machine.

The machine contains high-voltage components. Never attempt any

maintenance procedure not described in this guide.

Do not connect other than recommended devices to the Direct

Print Port or cable connector on the machine. It could cause a

fire or electric shock.

Working

around the

machine

Do not use highly flammable sprays near the machine.

This could cause a fire or electric shock if the spray comes into contact

with electrical components inside the machine.

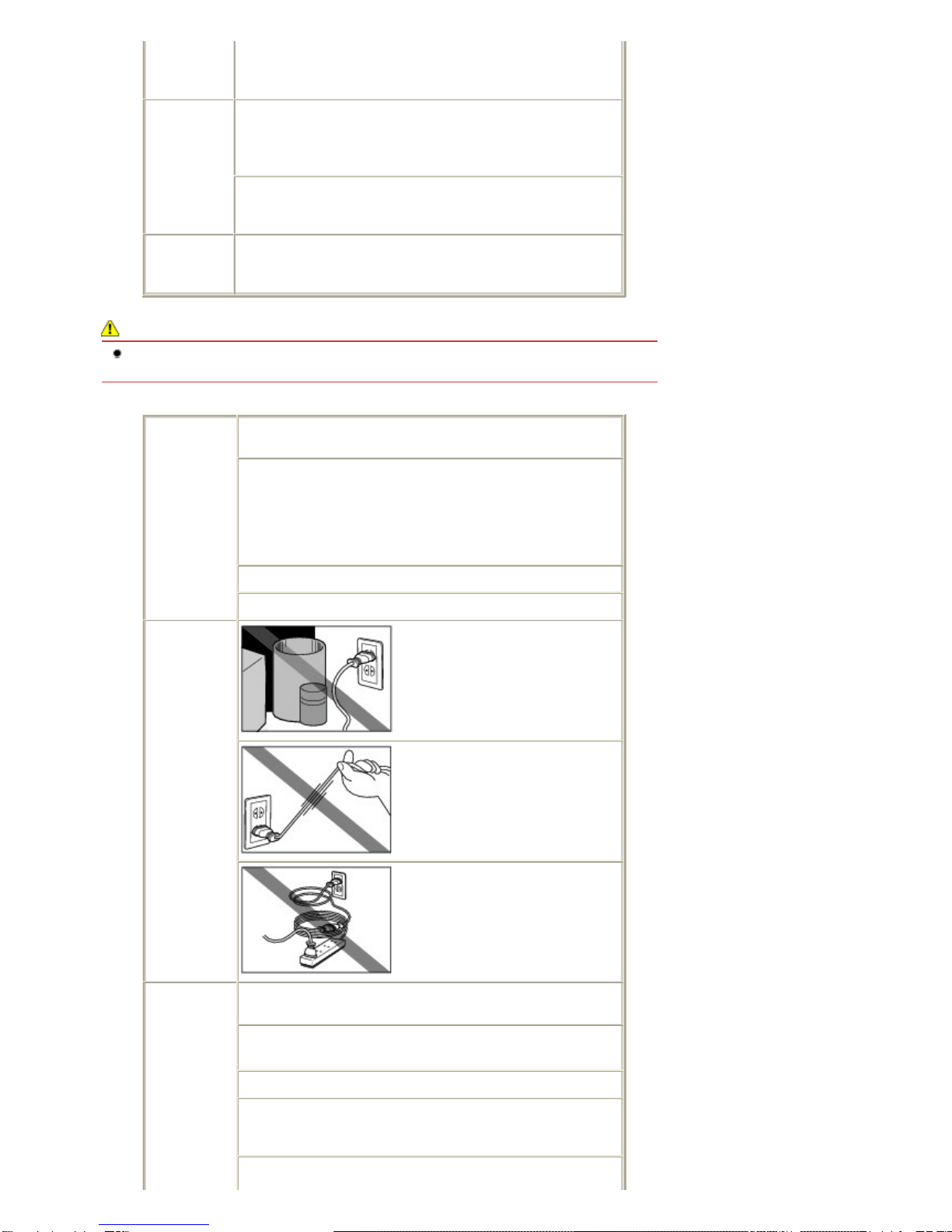

Caution

The following are instructions that, if ignored, could result in personal injury or material damage

caused by incorrect operation of the equipment. These must be observed for safe operation.

Choosing a

location Do not install the machine in a location that is unstable or

subject to excessive vibration.

Do not install the machine in locations that are very humid or

dusty, in direct sunlight, outdoors, or close to a heating

source.

To avoid the risk of fire or electric shocks, install the machine

in a location with an ambient temperature range of 5°C to 35°C

(41°F to 95°F) and humidity of 10% to 90% (condensation free).

Do not place the machine on a thick rug or carpet.

Do not place the machine with its back attached to the wall.

Power supply Ensure that the area around the

power outlet is kept clear at all times

so you can easily unplug the power

cord if necessary.

Never remove the plug by pulling on

the cord.

Do not use an extension lead/cord.

Working

around the

machine

Never put your hands or fingers in the machine while it is

printing.

When moving the machine, carry the machine at both ends.

Do not hold the Operation Panel.

Do not place any object on the machine.

Do not place metal objects (paper clips, staples, etc.) or

containers of flammable solvents (alcohol, thinners, etc.) on

top of the machine.

If any foreign object (metal or liquid) fall into the machine,

unplug the power cord and call for service.

Page 4 of 997 pagesSafety Precautions

Do not transport or use the machine on a slant, vertically or

upside-down, as the ink may leak and damage the machine.

When loading a thick book on the Platen Glass, do not press

hard on the Document Cover.The Platen Glass may break and

cause injury.

Print Heads

and ink tanks Keep ink tanks out of the reach of children.

In case ink is accidentally licked or swallowed, rinse out mouth or give

one or two glasses of water to drink.

If irritation or discomfort occurs, obtain medical advice immediately.

In case ink gets in contact with eyes, rinse with water

immediately.

In case ink gets in contact with skin, wash with soap and

water immediately.

If irritation to eyes or skin persists, obtain medical advice immediately.

Do not shake Print Heads or ink tanks.

Ink may leak out and stain clothing or the surrounding area.

Never touch the electrical contacts

on a Print Head after printing.

The metal parts may be very hot and

could cause burns.

Do not throw ink tanks into fire.

Do not attempt to disassemble or modify the Print Head and

ink tanks.

Do not handle the Print Head and ink tanks roughly such as

applying them excessive pressure or dropping them.

Do not rinse or wipe the Print Head

and ink tanks.

Once you have installed the Print Head and ink tanks, do not

remove them unnecessarily.

Note when you place the machine near other electrical appliances such as fluorescent lamps

Place the machine at least 5.91 inches / 15 cm away from other electrical appliances such as

fluorescent lamps. If the machine is placed closer to those, it may not be able to work properly due

to fluorescent noises.

When you disconnect the power plug

When you disconnect the power plug, always press the ON button and be sure that the mode

buttons (such as the COPY button, etc.) stop flashing and all lamps on the Operation Panel go out. If

you disconnect the power plug from the power outlet when any lamp on the Operation Panel is lit or

flashing, the Print Head cannot be protected and you may not be able to print later.

Radio wave interference

Since the microwave oven and the wireless LAN system use the same frequency bandwidth, the

microwave oven can be the potential source of interference when the microwave oven is on.

Placing this product close to microwave oven may result in the poor status of radio.

Page top

Page 5 of 997 pagesSafety Precautions

Advanced Guide Troubleshooting

Contents > Overview of the Machine

Overview of the Machine

This section shows the component names of the machine and describes the basic operations you need

to know before using it.

Main Components

Front View

Rear View

Inside View

Operation Panel

How to Navigate Menus on the LCD

Basic Operation in Each Mode

Basic Operation on the Settings Screen

Page top

Page 6 of 997 pagesOverview of the Machine

Advanced Guide Troubleshooting

Contents > Overview of the Machine > Main Components

Main Components

Front View

Rear View

Inside View

Operation Panel

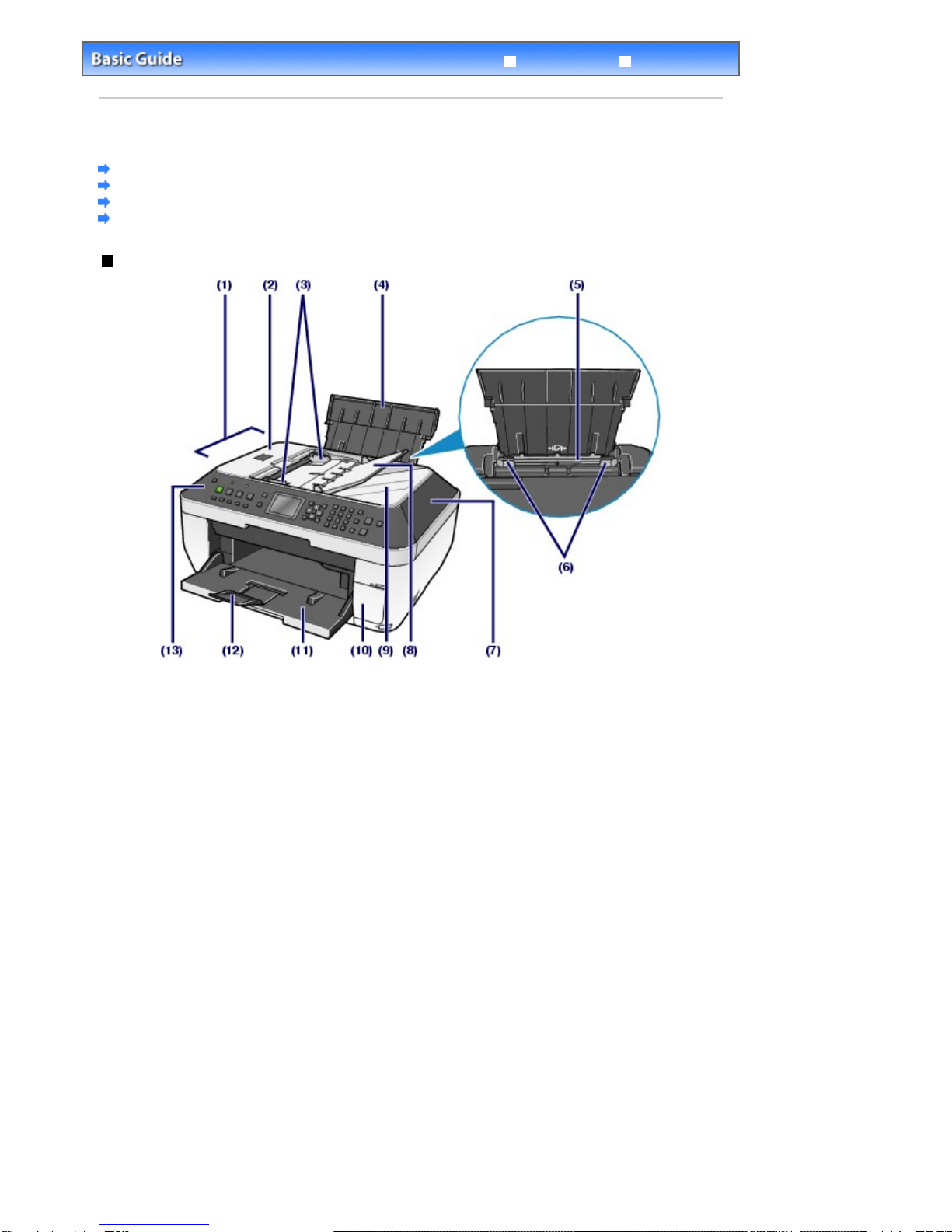

Front View

(1) ADF (Auto Document Feeder)

Load a document to copy, scan, or fax. The document loaded in the Document Tray are scanned

automatically one sheet at a time.

See Loading a Document in the ADF.

(2) Document Feeder Cover

Open when clearing jammed documents.

(3) Document Guides

djust these guides to match the width of document in the ADF.

(4) Paper Support

Raise and tip back to load paper in the Rear Tray.

(5) Rear Tray

Load various sizes or types of paper which you can use on the machine. Two or more sheets of the same

size and type of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper.

(6) Paper Guides

Slide to align with both sides of the paper stack.

(7) Document Cover

Open to load an original on the Platen Glass.

(8) Document Tray

Open to load a document in the ADF. You can load two or more sheets of document of the same size and

thickness. Load the document with the side you want to scan facing up.

(9) Document Output Slot

Documents scanned from the Document Tray are delivered here.

(10) Card Slot Cover

Open to insert a memory card.

Page 7 of 997 pagesMain Components

(11) Paper Output Tray

Opens automatically when printing or copying starts and printed papers are ejected.

(12) Output Tray Extension

Open to support the printouts. Open it when printing or copying.

(13) Operation Panel

Use to change the settings of the machine or to operate it.

See Operation Panel.

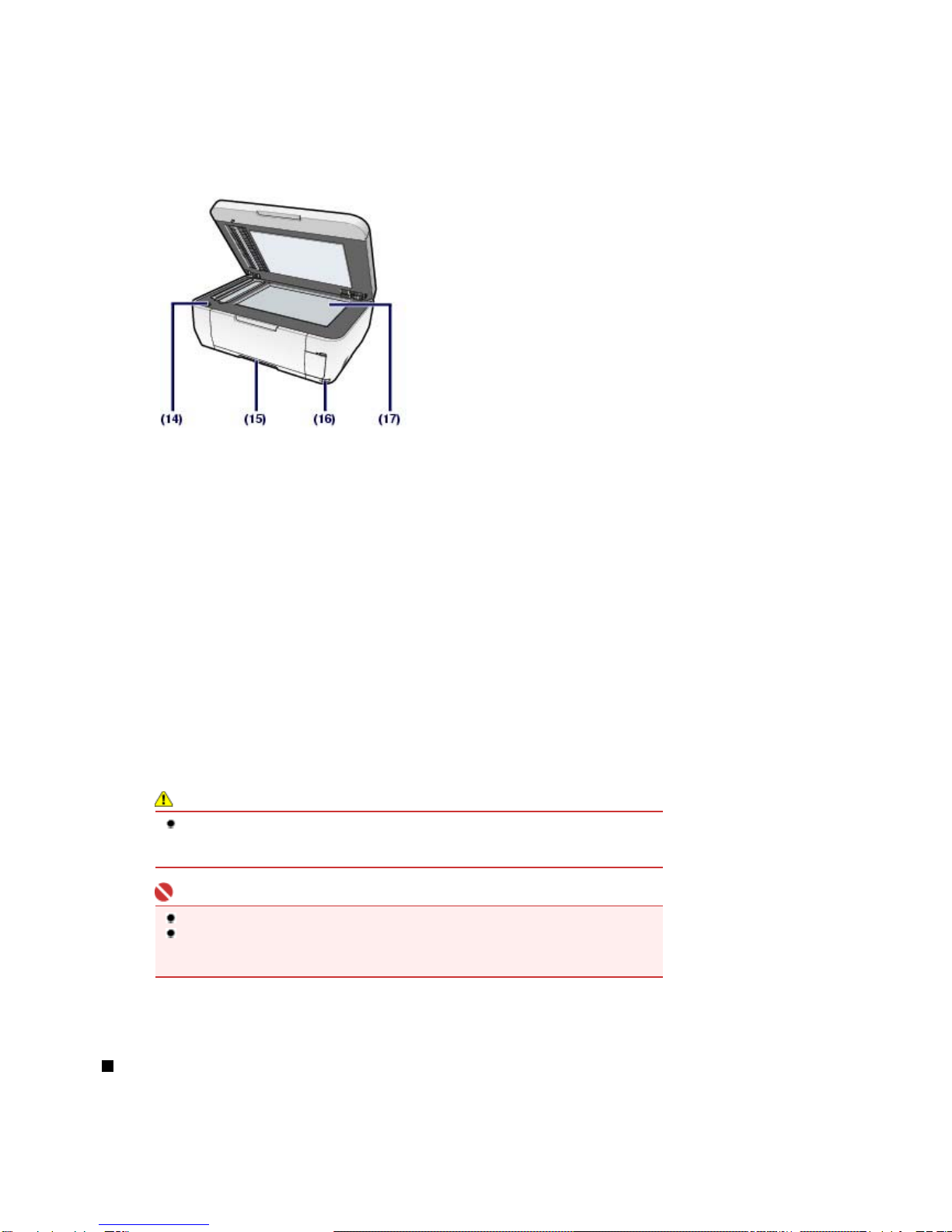

(14) Scanning Unit Detection Button

Locks the Scanning Unit (Cover) while the Document Cover is open. This button is pressed down when the

Document Cover is closed, so that you can open the Scanning Unit (Cover). (You do not need to touch this

button.)

For information on the Scanning Unit (Cover), see Scanning Unit (Cover).

(15) Cassette

Load A4, B5, A5, or Letter-sized plain paper and insert it into the machine. Two or more sheets of the same

size of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper.

(16) Direct Print Port

Connect a PictBridge compliant device such as a digital camera or the optional Bluetooth Unit BU-30* to print

directly.

See Printing Photos Directly from Your Digital Camera or Mobile Phone.

You can also insert a USB flash drive to this port to save scanned data on it.

Refer to the on-screen manual:

dvanced Guide

* The Bluetooth Unit is not available in some countries or regions depending on the local laws and

regulations. For details, contact your service center.

Warning

Do not connect any equipment other than PictBridge compliant devices, the optional

Bluetooth Unit BU-30, and USB flash drives to the Direct Print Port of the machine. This

may cause fire, electric shock, or damage to the machine.

Important

Do not touch the metal casing.

Do not use the USB cable longer than around 10 feet / 3 meters to connect any PictBridge

compliant device to the machine since it may affect the operation of other peripheral

devices.

(17) Platen Glass

Load an original to copy, scan, or fax.

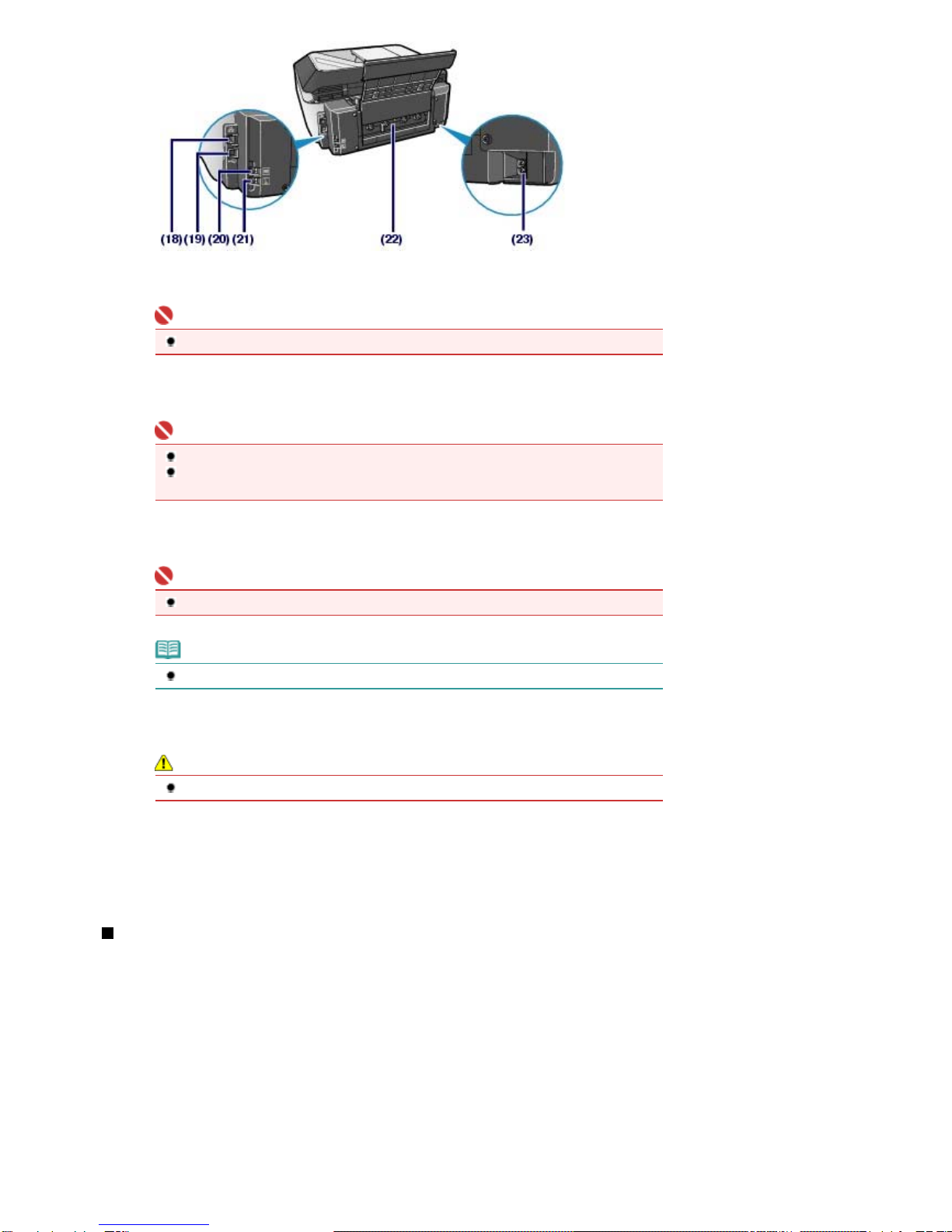

Rear View

Page 8 of 997 pagesMain Components

(18) Wired LAN Connector

Plug in the LAN cable to connect the machine to a LAN.

Important

Do not touch the metal casing.

(19) USB Port

Plug in the USB cable to connect the machine with a computer.

Important

Do not touch the metal casing.

Do not plug in or unplug the USB cable while the machine is printing from or scanning

originals to the computer.

(20) External Device Jack

Connects an external device such as telephone, answering machine, or modem.

Important

Do not touch the metal casing.

Note

Remove the Telephone connector cap to connect the external device.

(21) Telephone Line Jack

Connects with the telephone line.

Caution

To avoid an electric shock, do not touch the metal casing.

(22) Rear Cover

Detach to remove jammed paper.

(23) Power Cord Connector

Plug in the supplied power cord.

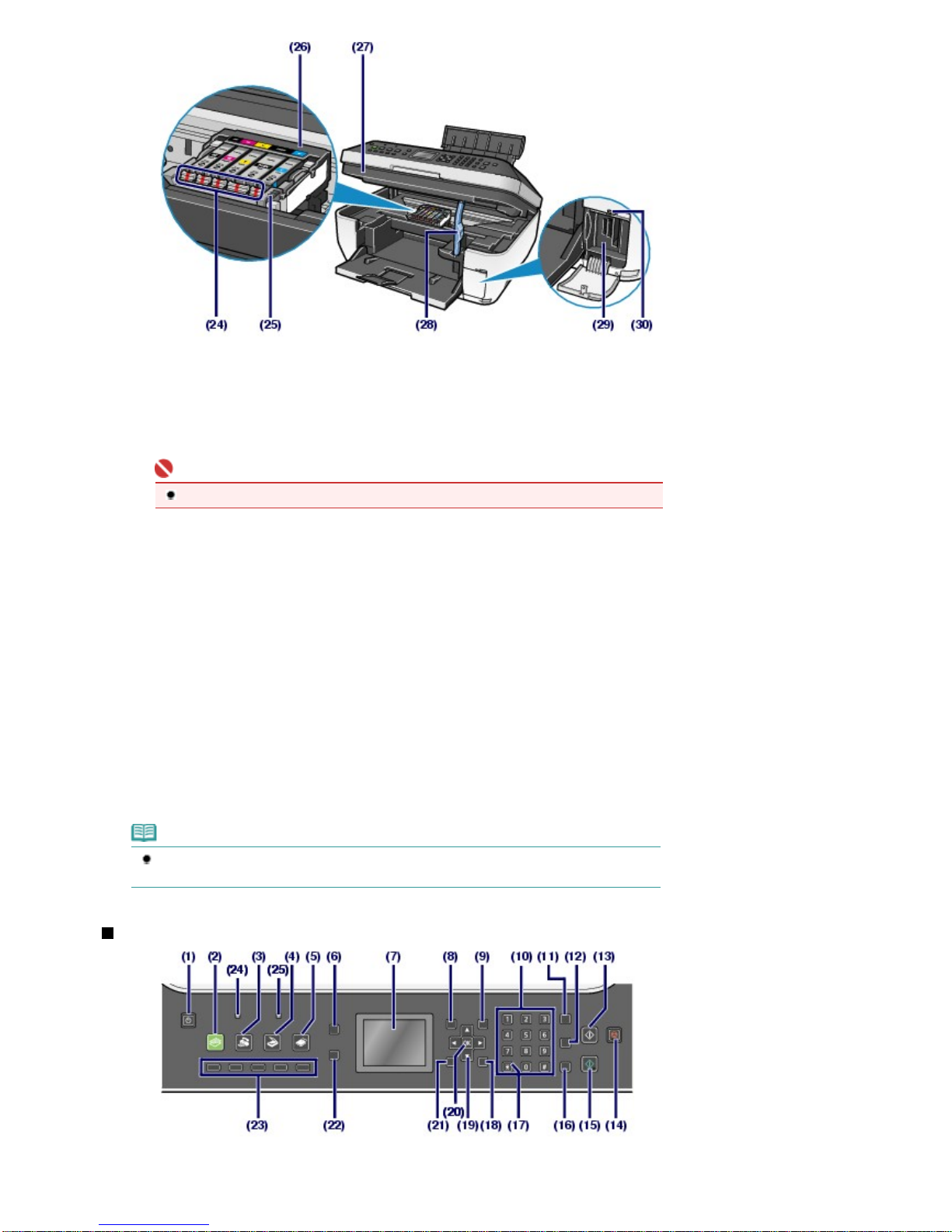

Inside View

Page 9 of 997 pagesMain Components

(24) Ink lamp

Lights or flashes red to indicate the ink tank status.

See Checking the Ink Status.

(25) Print Head Lock Lever

Locks the Print Head into place.

Important

Do not raise this lever after installing the Print Head.

(26) Print Head Holder

Install the Print Head.

(27) Scanning Unit (Cover)

Scans the original. Open it to replace ink tanks, to check ink lamps, or to remove jammed paper inside the

machine. To open the Scanning Unit (Cover), lift it with the Document Cover closed.

(28) Scanning Unit Support

Holds the Scanning Unit (Cover) being opened.

(29) Card Slot

Insert a memory card.

See Inserting the Memory Card.

(30) Access lamp

Lights or flashes to indicate the memory card status.

See Inserting the Memory Card.

Note

For details on installing the Print Head and ink tanks, refer to the printed manual: Getting

Started.

Operation Panel

(1) ON button

Turns the power on or off. Before turning on the power, make sure that the Document Cover is closed.

Page 10 of 997 pagesMain Components

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Stampante tutto in uno

Canon

Canon image RUNNER 3045 Manuale utente

Canon

Canon Color imageCLASS MF8180c Istruzioni di installazione e manutenzione

Canon

Canon imageCLASS MF3010 Manuale utente

Canon

Canon imageCLASS MF6500 Series Guida all'installazione

Canon

Canon PIXMA MG5500 Series Guida all'installazione

Canon

Canon PIXMA MX922 Scheda informativa del prodotto

Canon

Canon iR1600 Series Manuale utente

Canon

Canon ImageCLASS MF4570dw Guida di sicurezza

Canon

Canon imageRUNNER ADVANCE C355P Manuale utente

Canon

Canon imageRUNNER C5870U Manuale utente

Canon

Canon MP480 series Manuale utente

Canon

Canon IMAGERUNNER 7095 PRINTER Manuale utente

Canon

Canon imageRUNNER ADVANCE C9075S PRO Istruzioni per l'installazione

Canon

Canon PIXMA MG5320 Series Manuale utente

Canon

Canon 6224B002 Manuale utente

Canon

Canon ImageCLASS MF4570dw Manuale utente

Canon

Canon MX920 series Guida all'installazione

Canon

Canon Pixma MG3500 Series Guida all'installazione

Canon

Canon PIXMA MP960 Manuale utente

Canon

Canon imageRUNNER C3480 Manuale utente

Canon

Canon ImageCLASS MF4570dw Istruzioni per il montaggio

Canon

Canon PIXMA MX432 Manuale

Canon

Canon imageRUNNER 5075 Manuale utente

Canon

Canon MF7280 - ImageCLASS B/W Laser Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente
