Set-Up Instructions

Thank you for purchasing Canon imageCLASS D800 Series.

To get your machine ready for use, please follow the instructions in this document before referring to any other documentation.

Series

Unpack the machine and its components.

Check that you have the following:

•Power cord

•Telephone cable*

•Documentation

Set-Up Instructions

Basic Guide

Fax Guide*

Registration Card**

Limited Warranty Notice

•CD-ROM

*imageCLASS D880 Model

** U.S.A. only

Slide the platen unit

to the left until the

I4 mark appears.

Remove the shipping

material.

Lift the platen unit

lever 1and slide the

platen unit to the left

Open the cartridge

cover.

Machine

Output tray

L50 S-Cartridge

Destination labels*

3 4

Remove the shipping materials.

Place the machine on a flat surface.

Remove all shipping tapes from the exterior of the machine.

E111MB Set-Up Sheet.qxd 6/21/04 9:11 AM Page 1

Grasp the cartridge

with one hand, firmly

and slowly pull out

the sealing tape tab

with the other hand.

Remove the sealing

tape completely.

Place the cartridge on

a flat and stable

surface, grip the

sealing tape tab,

and snap in the

direction shown. Make

sure that the tab is

detached from the

cartridge.

Slide the cartridge

into the machine with

the arrow mark up as

far as it will go.

Close the cartridge

cover and slide the

platen unit back to the

original position.

Pull out the

cassette until it

stops.

Load the paper stack beneath

the cassette’s length guide 1

and width guides 2.

Make sure that the paper stack does not

exceed the length and width guides in

the cassette.Failure to do so will cause a

paper jam.

Gently insert the cassette as

far as it will go.

Load paper.

Install the cartridge.

Remove the cartridge

from its bag.

Rock the cartridge

several times to

distribute the toner

evenly.

Arrow Mark

E111MB Set-Up Sheet.qxd 6/21/04 9:11 AM Page 2

Connect the machine to your computer.

Connect the telephone cable and any necessary external device.

(Only for the imageCLASS D880 model)

Using a parallel cable

PARALLEL

Parallel interface connection

Make sure that the other end is securely connected

to your computer.

Make sure that the computer is turned off before connecting the cable.

Using a USB cable

PAR

USB interface connection

Connect to your computer using USB cable.

Make sure that the other end is securely connected

to your computer.

USB interface connection

Attach the output tray.

NOTE

●Printer cables are not included.

Hook the tab on

the output tray

onto the opening

on the left side of

the machine.

External device (optional)

Connect the cord of an

extension telephone,

answering machine or

data modem to the jack.

Telephone line cord

Connect the supplied

telephone line to the L

jack.

Then connect the other end to the

telephone line jack on your wall.

Connect external devices as follows:

•Telephone or answering machine

•Telephone and answering machine

•Telephone and modem (external modem)

•Built-in computer modem and telephone

:Telephone line jack

:External device jack

Machine

Telephone

line

Telephone or answering

machine

Telephone

line

Telephone

line

Telephone

Modem

LINE TEL.

Computer

Serial

Connector

Machine

Telephone

Computer

LINE TEL.

Machine

Answering

machine

LINE TEL.

E111MB Set-Up Sheet.qxd 6/21/04 9:11 AM Page 3

Connect the power cord.

When the power cord is

plugged into both the

machine and a power

outlet, the machine will turn

on. The LCD displays PLEASE

WAIT. Please wait until the

LCD display returns to the

Copy Mode standby display.

Connect the supplied power cord to the power cord

connector on the left side of the machine.

Then connect the other end into a properly grounded

standard 120 V three-prong outlet.

Copy Mode standby display

NOTE

●The machine does not have a power switch.

Set the fax receive mode. (Only for the imageCLASS D880 model)

Press FAX to switch the machine to the Fax Mode.

Press Receive Mode until the mode you want appears.

You can select from the following modes:

FAX ONLY:if you use the machine to receive only faxes.

DRPD:to distinguish between fax and voice calls by using

Distinctive Ring Patterns.

MANUAL:you can receive faxes by pressing Start before hanging

up the handset on the telephone.

AnsMode:if you want to receive faxes automatically and route voice calls to an answering machine.

FaxTel:when a telephone is connected to the machine, the machine automatically switches between faxes and voice calls.

NOTE

•The machine does not ring when it receives a fax in FaxOnly. If you want to be alerted when a fax is received, connect a telephone to

the machine, and enable the INCOMING RING setting. →Fax Guide

•For AnsMode, you need to connect an answering machine or a telephone with an answering machine to the machine (see step ).

•Follow these guidelines when using the machine with an answering machine:

—Set the answering machine to answer on the first or second ring.

— When recording the outgoing message on the answering machine, the entire message must be no longer than 15 seconds.

•DRPD is an optional service that must be set up through your telephone company.

Press Set.

The selected receive mode is set and the machine returns to the standby mode. The current date and the selected receive mode are

displayed.

Turn over to

continue

Turn over to

continue

ex:

E111MB Set-Up Sheet.qxd 6/21/04 9:11 AM Page 4

Enter the Date and Time.

Press Additional Functions.

Use 4(–) or e(+) to select 5.TIMER SETTINGS.

Press Set twice.

The date and time currently set for the machine are

displayed.

ex:

Use the numeric keys to enter the correct month, day,

year and time in this order.

•Use 4(–) or e(+) to move the cursor under the

number you want to change, then enter the correct

number.

•Enter only the last two digits of the year.

•Use the 24-hour format for the time setting (e.g.1:00

p.m. as 13:00).

ex:

Press Set.

Press Stop/Reset to return to the standby display.

Press Additional Functions.

Use 4(–) or e(+) to select 3.FAX SETTINGS.

Press Set four times.

Use the numeric keys to enter your fax number (max. 20

digits, including spaces).

•If you have already registered your fax/telephone

number, the previous entry will be displayed.To

change your fax/telephone number, use the numeric

keys.

•Press Space to enter a space.

•To enter a plus sign (+) before the number, press + key.

•If you make a mistake, press Delete or 4(–) to delete

the last number or press Clear to delete all the

numbers you entered.

ex:

Press Set.

Press Additional Functions.

Use 4(–) or e(+) to select 2.UNIT NAME.

Press Set.

Use the numeric keys to enter your name or company’s

name (max. 24 characters, including spaces).

•If you are unsure how to enter characters, →FaxGuide.

•If you have already registered your name or company’s

name, previous entry will be displayed.To change your

name, press Clear to delete the previous entry and

re-enter.

•Press Space to enter a space and move the cursor to

the right.

•If you make a mistake, press 4(–) or e(+) to move the

cursor to the incorrect character, then press Delete.Or

press Clear to delete all the characters you entered.

ex:

Press Set.

Press Stop/Reset to return to the standby display.

E111MB Set-Up Sheet.qxd 6/21/04 9:11 AM Page 5

Install the printer driver (CAPT).

For parallel connection:

Make sure that the computer is turned off, and that the parallel cable is securely connected to the machine and the computer.

Plug the machine’s power cord into a power outlet to turn it on.

Turn the computer on and start Windows.

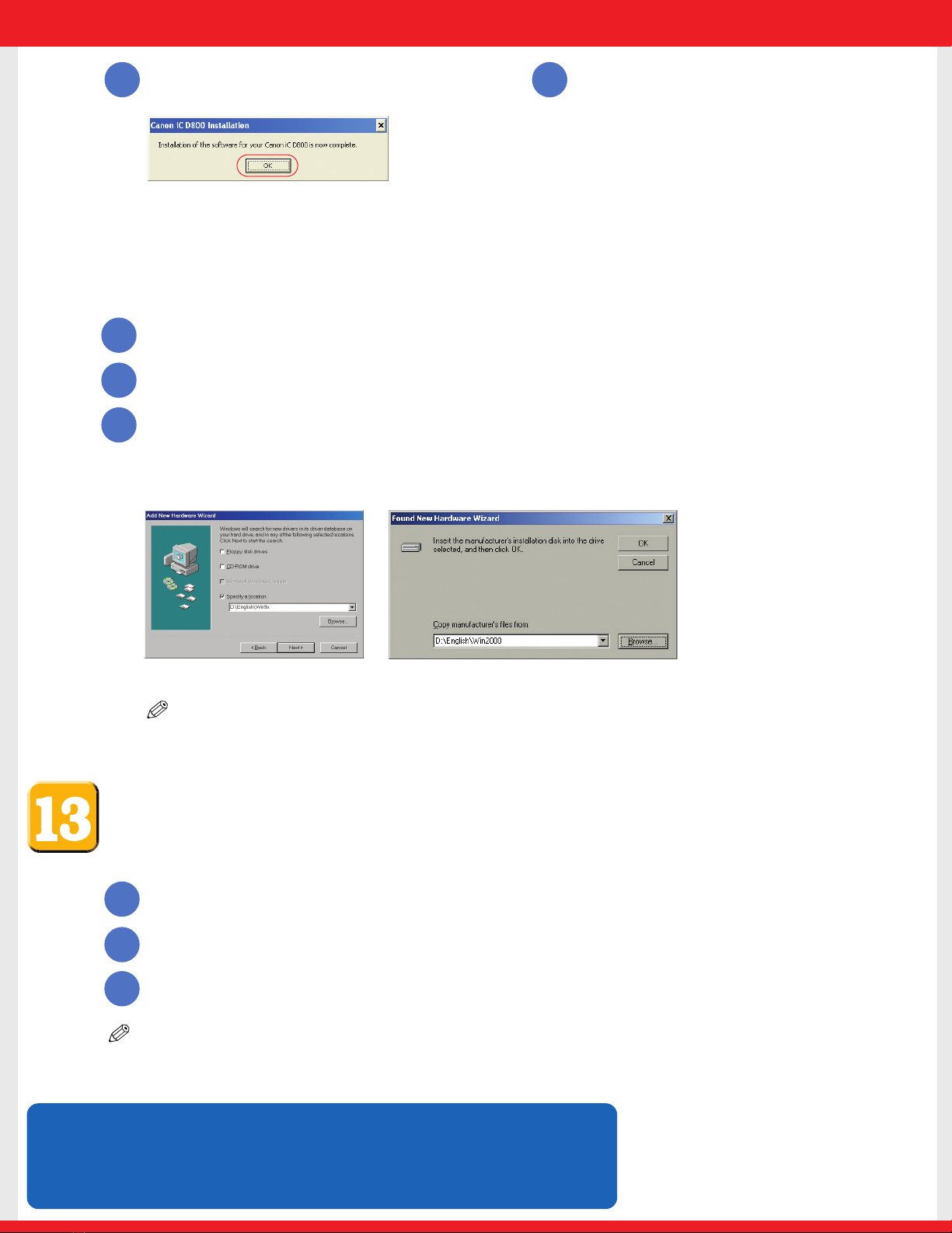

Plug and Play will activate and the Found New Hardware Wizard (in Windows 95, New Hardware or Device Wizard) dialog box appears.

Click Cancel.

Place the CD-ROM into the CD-ROM drive of your computer. The CD-ROM Menu starts automatically.

When the installation is

complete, the dialog box

shown on the left appears.

To close the dialog box,

click OK.

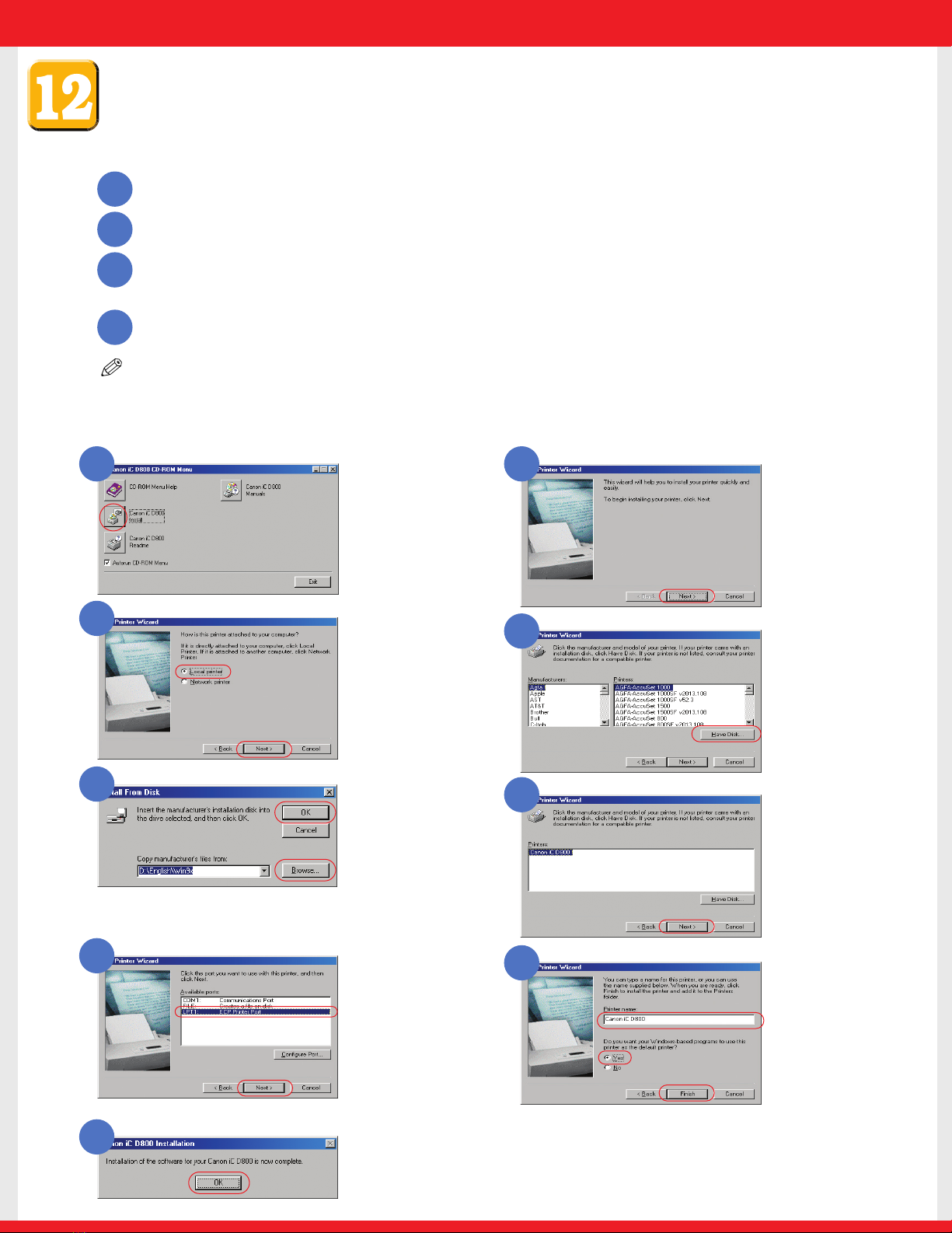

Click Canon iC D800

Install.

The Add Printer Wizard

dialog box appears.

Select Local Printer,then

click Next.

The Manufacturers/Printers

selection dialog box

appears.

Use Browse…to select

the directory that contains

the printer driver, then

click OK.

For example, if you are

using Windows 95/98, and

your CD-ROM drive is drive

D:, browseD:\English\Win9x,

and click OK.

Select the port the

machine is connected to

(usually LPT1:), then click

Next.The Printer name

dialog box appears.

If you select the port the

machine is not

connected to, the machine

will not print.

Click Next.

The Local

printer/Network printer

selection dialog box

appears.

Click Have Disk…in the

Manufactures/Printers

dialog box.

The Install From Disk

dialog box appears.

The printers selection

dialog box appears.

Click Next.

The printer port

selection dialog box

appears.

Click Finish.

If you want to change the

printer name, type a new

name into the text box.

If you want to set this

printer as the default

printer, select Ye s.

●If no other printer driver

is installed on your

computer, this printer will

be set as the default

printer automatically.

NOTE

●If the CD-ROM Menu does not start automatically, choose Run... from the Start Menu.Type D:\SETUP.EXE (if your CD-ROM drive is drive D:) in the

command line and click OK.

11 12

E111MB Set-Up Sheet.qxd 6/21/04 9:11 AM Page 6

Click Canon iC D800

Install.

The Add Printer Wizard

dialog box appears. Click

Next.

Click Have Disk…in the

Manufacturers/Printer

dialog box.

The Install From Disk

dialog box appears.

The printer selection

dialog box appears.

Click Next.

The Printer name dialog

box appears.

Select Use the

following port.Select

the printer port the

machine is connected to

(usually LPT1:

(Recommended Printer

Port)), then click Next.

The Manufacturers/

Printers selection

dialog box appears.

Use Browse…to select

the directory that

contains the printer

driver, then click OK.

For example, if your

CD-ROM drive is drive

D:\English\WinXP, click

Open.

Click Next.

If you want to change

printer name, type a new

name into the text box.

If you want to set this

printer as the default

printer, select Ye s.

●If no other printer driver

is installed on your

computer, this printer

will be set as the default

priter automatically.

Select Local printer

attached to this

computer,then click

Next.

The printer port

selection dialog box

appears. Automatically

detect and install my

Plug and Play printer is

not recommended.

Click Yes if you want to

print a test page, or No if

you do not want to print

a test page, then click

Next.

If this printer is shared

with other computers,

select Share name,and

click Next.

You can modify the

setting after installation,

from the Printer

Properties dialog box.

Click Finish.

5 6

11 12

13 14

●Depending on your computer settings, this selection may not be

displayed.

**E111MB Set-Up Sheet.qxd 7/20/04 2:39 PM Page 7

Congratulations! You have now completed setting up your

machine.

Where to go from here...

Once you have completed all steps in this document, see the Basic Guide for paper handling or copy functions of your machine.

Detailed instructions for setting up, sending faxes and receiving faxes are provided in the Fax Guide.

The Printer Guide (in the CD-ROM) provides detailed instructions on how to configure the printer driver and print from your computer.

NOTE

●Remember to register your machine to ensure product support.

The serial number is located on the back of the machine.

trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

Part no. FA7-5983 (010)

PRINTED IN CHINA

If you opted to print a test page, the test page will be printed

after the installation is complete. If the test page is printed

correctly, click Yes on the dialog box that appears.

When installation is complete, the following dialog box

appears. Click OK.

For installation instructions under Windows 2000/NT 4.0 →Printer Guide

For installation help and operational instructions, call us at:

1-800-828-4040 1-800 OK CANON

U.S.A. CUSTOMERS CANADA CUSTOMERS

15 16

For USB connection:

Make sure that the computer is turned off.

Make sure that the power cord of the machine is plugged into the power outlet and that the machine is connected to your computer

(cable not included).

Turn the computer on and the Add New Hardware Wizard dialog box appears. Follow the instructions on screen to initiate

Plug and Play installation.When you are asked to select the directory that contains the printer driver, click Browse....If your CD-ROM

drive is drive D:, browse to D:\English\Win9x in Windows 98, D:\English\WinMe in Windows Me, D:\English\Win2000 in Windows 2000,

and D:\English\WinXP in Windows XP/Server 2003.

Example: Windows 98 Example: Windows 2000

For installation instructions using Plug and Play for the USB Port →Printer Guide

NOTE

●For installation instructions under Windows 95 →"Parallel Port Users" in Printer Guide.

For installation instructions under Windows NT 4.0 →"Windows NT 4.0 Add Printer Wizard" in Printer Guide.

*E111MB Set-Up Sheet.qxd 7/21/04 1:22 PM Page 8

Altri manuali per imageCLASS D860

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Stampante tutto in uno

Canon

Canon IMAGERUNNER ADVANCE C5051 Manuale di istruzioni

Canon

Canon MX390 series Guida all'installazione

Canon

Canon Color imageCLASS MF8170c Manuale utente

Canon

Canon Color imageRUNNER LBP5975 Manuale utente

Canon

Canon IR5000 - iR B/W Laser Manuale di installazione e funzionamento

Canon

Canon imageclass mf820cdn Manuale utente

Canon

Canon imageRUNNER 1435iF Manuale utente

Canon

Canon TS6400 Series Guida all'installazione

Canon

Canon PIXMA MP170 Manuale utente

Canon

Canon PIXMA MP970 Manuale utente

Canon

Canon iR4570 Series Manuale utente

Canon

Canon PIXMA MG3220 series Manuale utente

Canon

Canon MultiPASS F20 Manuale utente

Canon

Canon PIXMA MX700 Series Manuale utente

Canon

Canon imageCLASS D340 Manuale utente

Canon

Canon PIXMA MP500 Manuale di istruzioni

Canon

Canon ImageCLASS 2300 Manuale

Canon

Canon Oce VarioPrint 6000+ Series Manuale utente

Canon

Canon I-sensys mf4370dn Manuale utente

Canon

Canon ImageRunner 5050 Manuale utente

Canon

Canon imageRUNNER ADVANCE C2230 Istruzioni per l'installazione

Canon

Canon ImageCLASS MF3240 Series Guida di sicurezza

Canon

Canon K10376 Manuale

Canon

Canon Pixma MG2400 Series Guida all'installazione

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Canon imageCLASS D860 Manuale

Manuali Stampante tutto in uno popolari di altre marche
